Model Details

D-150/650-16

Printer Friendly
D-150/650-16

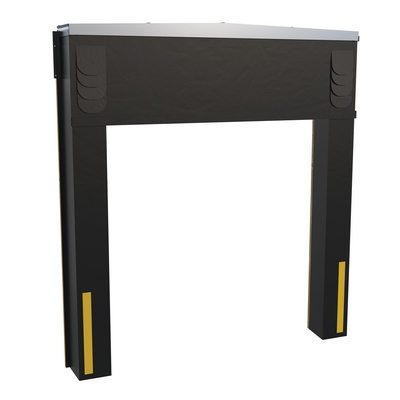

Vinyl-Coated Nylon Dock Seal/Shelter Combination 16 In. 8 Ft. x 10 Ft. Black

The Dock Seal/shelter combination is used with a ninety-six (96) inch width by one-hundred twenty (120) inch height door. The top (header) is constructed of wolmanized lumber and is built with a slope to allow for water run-off. It contains a high density foam mounted to treated lumber. The verticals are mounted on wooden boards allowing wall mounted down the length of the vertical pieces. Application with flush dock to building in conjunction with an Edge-O-Dock use a twenty (20) inch projection Dock Seal. Unit is non-returnable.

  • Unique two-in-one design provides a dock seal & dock shelter
  • Maximum compression design offers the maximum protection
  • Built-in air tunnels allow air to escape when contacted by a trailer
  • Mounting hardware and installation instructions make installation quick and easy
Total Ship Wt.(lbs.): 296 (only 1 package) Size: 114"W x 16"L x 126"H Color: Black Non-Returnable

Projection (in.): 16 Header Width (in.): 114 Header Height (in.): 6
Drop Curtain (in.): 30 Maximum Door Width (in.): 96 Maximum Door Width (ft.): 8
Maximum Door Height (ft.): 10 Usable Door Width (in.): 90 Usable Door Height (in.): 90
Standard Guide Stipe Height (in.): 30 Maximum Compression (in.): 5 Side Width (in.): 12
Side Height (in.): 120 Side Bumper Vinyl-Coated Nylon (oz.): 18 Header Flap Vinyl-Coated Nylon (oz.): 40

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: D-150/650-16
D-150/650-16

Vinyl-Coated Nylon Dock Seal/Shelter Combination 16 In. 8 Ft. x 10 Ft. Black

The Dock Seal/shelter combination is used with a ninety-six (96) inch width by one-hundred twenty (120) inch height door. The top (header) is constructed of wolmanized lumber and is built with a slope to allow for water run-off. It contains a high density foam mounted to treated lumber. The verticals are mounted on wooden boards allowing wall mounted down the length of the vertical pieces. Application with flush dock to building in conjunction with an Edge-O-Dock use a twenty (20) inch projection Dock Seal. Unit is non-returnable.

  • Unique two-in-one design provides a dock seal & dock shelter
  • Maximum compression design offers the maximum protection
  • Built-in air tunnels allow air to escape when contacted by a trailer
  • Mounting hardware and installation instructions make installation quick and easy
Dimensions: 114"W x 16"L x 126"H Sell UOM: EA-Each Color: Black
Material: Vinyl-Coated Nylon UPC: 691215012003 GTIN: 00691215012003
Warranty: -- Shipping Weight: 296 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Projection (in.): 16 Header Width (in.): 114 Header Height (in.): 6
Drop Curtain (in.): 30 Maximum Door Width (in.): 96 Maximum Door Width (ft.): 8
Maximum Door Height (ft.): 10 Usable Door Width (in.): 90 Usable Door Height (in.): 90
Standard Guide Stipe Height (in.): 30 Maximum Compression (in.): 5 Side Width (in.): 12
Side Height (in.): 120 Side Bumper Vinyl-Coated Nylon (oz.): 18 Header Flap Vinyl-Coated Nylon (oz.): 40
