Cast Aluminum Dollies

- - - -

Description
Model Chart
PDF's
Image Gallery

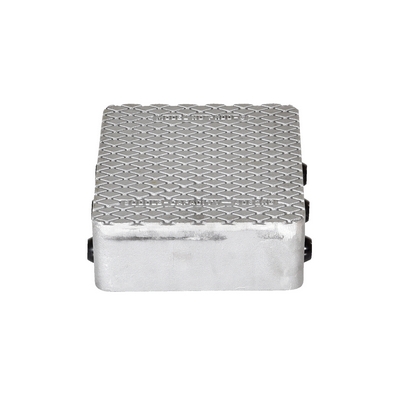

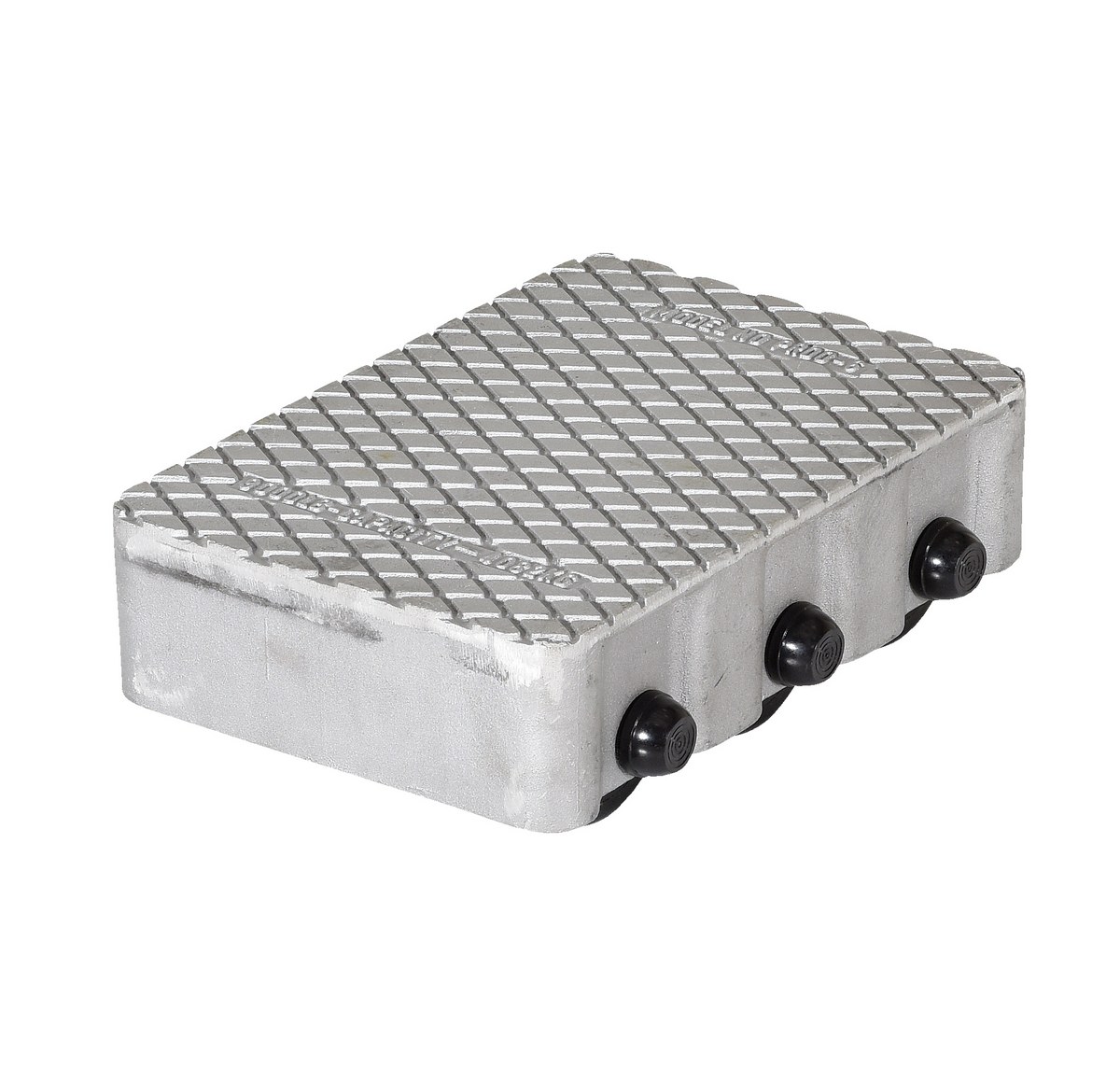

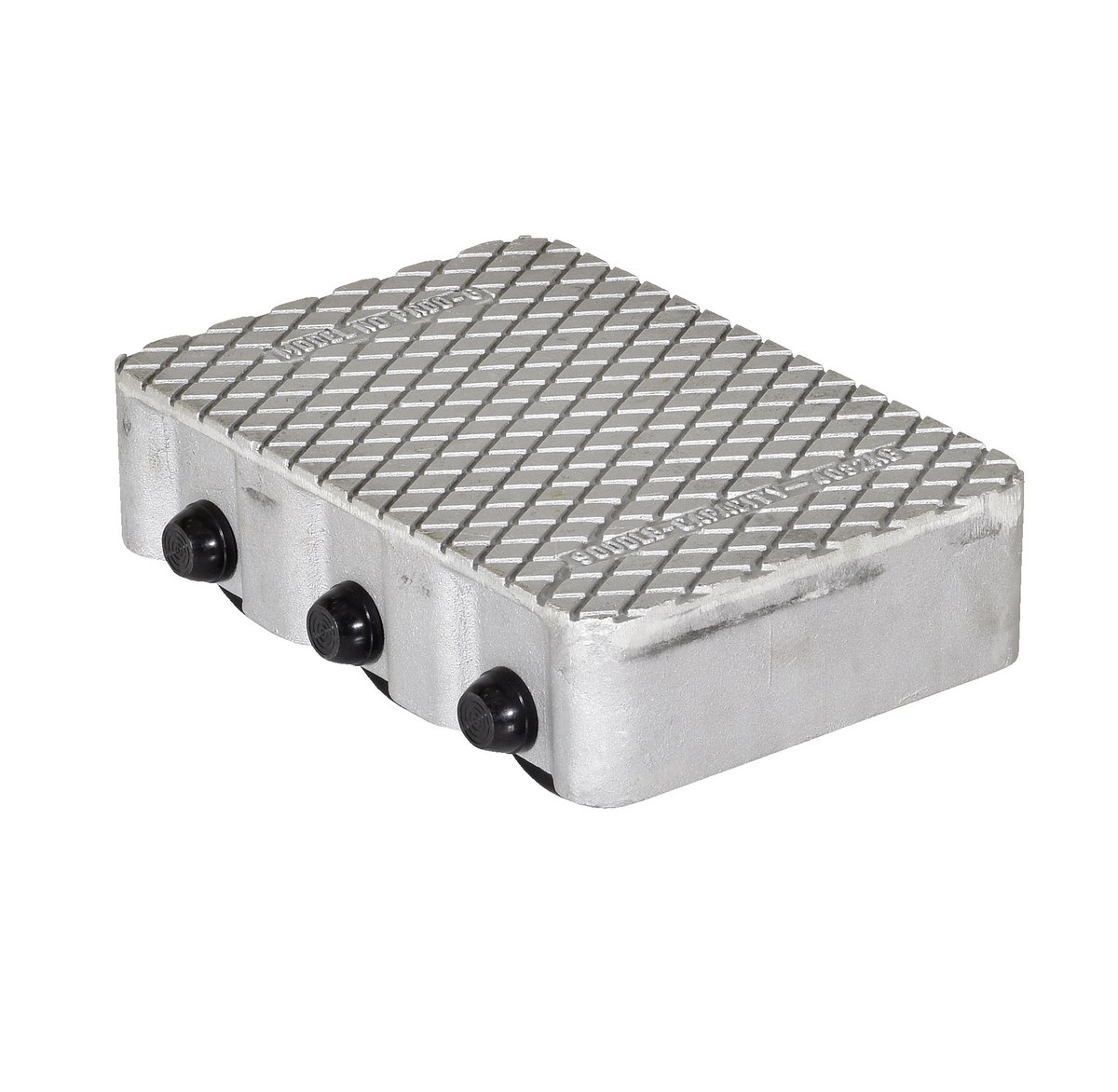

VPRDO-6_A.jpg VPRDO-6_B.jpg VPRDO-6_C.jpg
Cast Aluminum Dollies

model: VPRDO-6



Featured Industrial Carts & Dollies


Aluminum Channel Platform Trucks
Commercial Service Carts
Hydraulic Vehicle Positioning Jacks
Nestable Multi-Use Cart with Brake
Steel Platform Truck (Smooth or Treadplate)
Panel Dollies
Horizontal Panel Cart
Specialty Dollies
Six-Wheel Wooden Mover Dollies
model chart

Product Family Overview

Print Friendly
Cast Aluminum Dollies
SERIES: VPRDO

These Propel Dollies are easy to use and provide efficient moving time. Aluminum, box-like frames have integral sides and deeply fluted tops. Dollies include 3-1/2" dia. x 3" wide phenolic rollers. They are excellent for moving heavy crates and machinery. Note: Except when used individually, corners should be turned by lifting the load and rotating each dolly individually. Overall height 4-1/4".

  • Rugged cast-aluminum construction is strong yet lightweight
  • Low-profile design works with hundreds of applications
  • Dolly design is excellent for moving heavy crates and machinery
  • Easy to use dolly provides efficient moving time

These Propel Dollies are easy to use and provide efficient moving time. Aluminum, box-like frames have integral sides and deeply fluted tops. Dollies include 3-1/2" dia. x 3" wide phenolic rollers. They are excellent for moving heavy crates and machinery. Note: Except when used individually, corners should be turned by lifting the load and rotating each dolly individually. Overall height 4-1/4".

  • Rugged cast-aluminum construction is strong yet lightweight
  • Low-profile design works with hundreds of applications
  • Dolly design is excellent for moving heavy crates and machinery
  • Easy to use dolly provides efficient moving time

Other Machine Rollers & Lifts

 Machinery Lifts Open Deck Machinery Dollies Cast Aluminum Dollies Machinery Skates

Additional Models In This Family
view entire Image Gallery

VPRDO-1

model VPRDO-1

VPRDO-2

model VPRDO-2

VPRDO-4

model VPRDO-4

VPRDO-6T

model VPRDO-6T

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

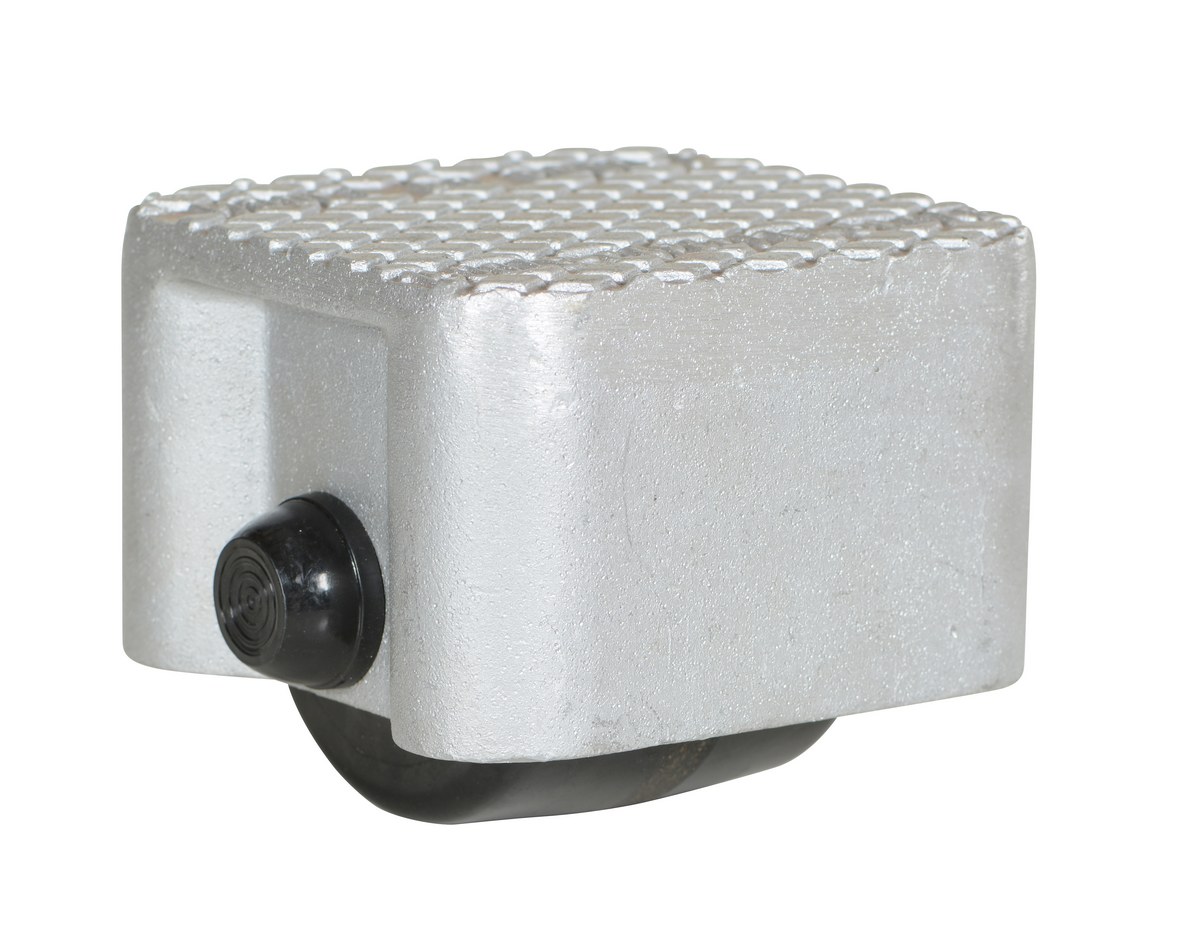

VPRDO-1 VPRDO-130 Days Limited WarrantyCast Aluminum Dolly 4-1/2 In. x 4-1/2 In. 1,500 Lb. Capacity SilverUniform Static Capacity (lb.): 1,500
Rollers (qty.): 1		5

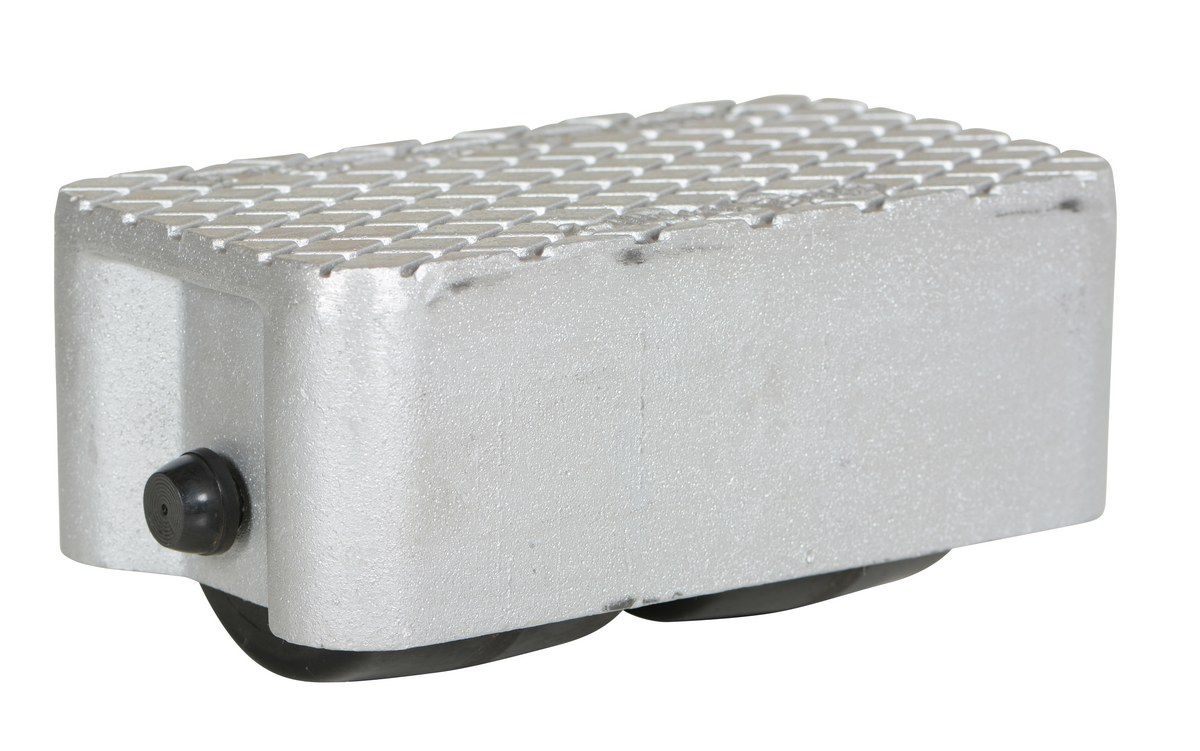

VPRDO-2 VPRDO-230 Days Limited WarrantyCast Aluminum Dolly 8-1/2 In. x 4-3/4 In. 3,000 Lb. Capacity SilverUniform Static Capacity (lb.): 3,000
Rollers (qty.): 2		9

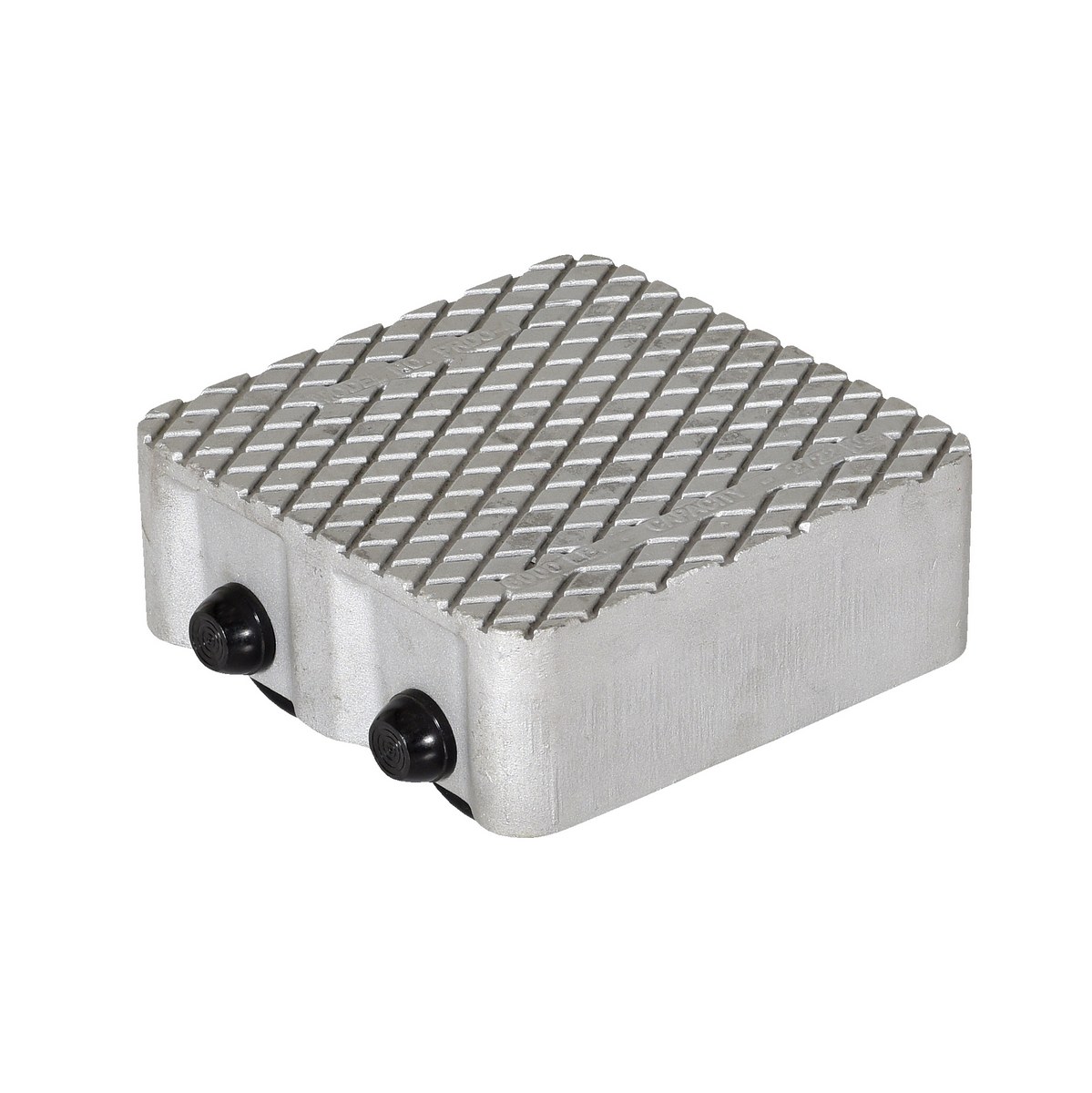

VPRDO-4 VPRDO-430 Days Limited WarrantyCast Aluminum Dolly 8-1/2 In. x 8-1/2 In. 6,000 Lb. Capacity SilverUniform Static Capacity (lb.): 6,000
Rollers (qty.): 4		15
VPRDO-6 VPRDO-630 Days Limited WarrantyCast Aluminum Dolly 12-1/2 In. x 8-1/2 In. 9,000 Lb. Capacity SilverUniform Static Capacity (lb.): 9,000
Rollers (qty.): 6		21

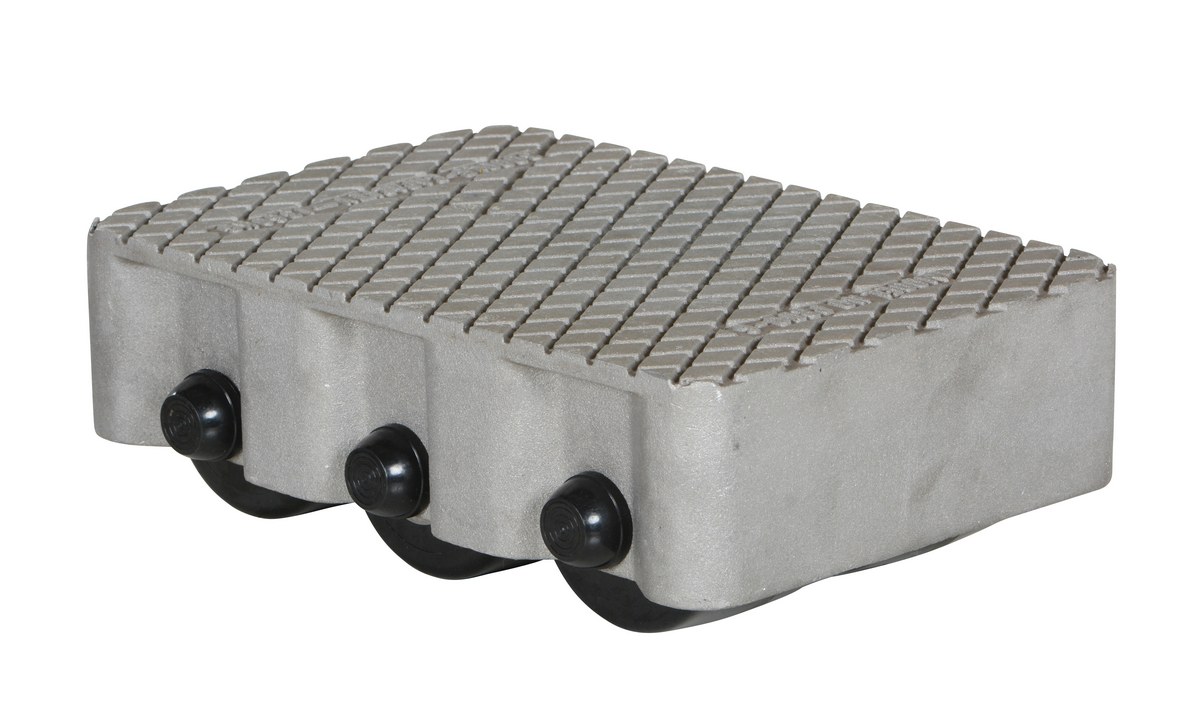

VPRDO-6T VPRDO-6T30 Days Limited WarrantyCast Aluminum Dolly 12-1/2 In. x 8-1/2 In. 3,000 Lb. Capacity SilverUniform Static Capacity (lb.): 3,000
Rollers (qty.): 6		22

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

VPRDO-1
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (lb.): 1,500
Rollers (qty.): 1
Uniform Static Capacity (lb.): 1,500
Rollers (qty.): 1

VPRDO-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (lb.): 3,000
Rollers (qty.): 2
Uniform Static Capacity (lb.): 3,000
Rollers (qty.): 2

VPRDO-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (lb.): 6,000
Rollers (qty.): 4
Uniform Static Capacity (lb.): 6,000
Rollers (qty.): 4

VPRDO-6
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (lb.): 9,000
Rollers (qty.): 6
Uniform Static Capacity (lb.): 9,000
Rollers (qty.): 6

VPRDO-6T
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (lb.): 3,000
Rollers (qty.): 6
Uniform Static Capacity (lb.): 3,000
Rollers (qty.): 6
Cast Aluminum Dollies PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings


VPRDO-6

Testing Certificates


VPRDO-1

VPRDO-2

VPRDO-4

VPRDO-6

VPRDO-6T

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: Do the wheels of this dolly rotate?

A: No
