Product Family Overview


Pallet Racking
SERIES: PRTD,BEAM,FSR
  • Scratch and Rust Resistance
  • Surface Features Powder Coat Finish
  • Structural Uniformity and Integrity

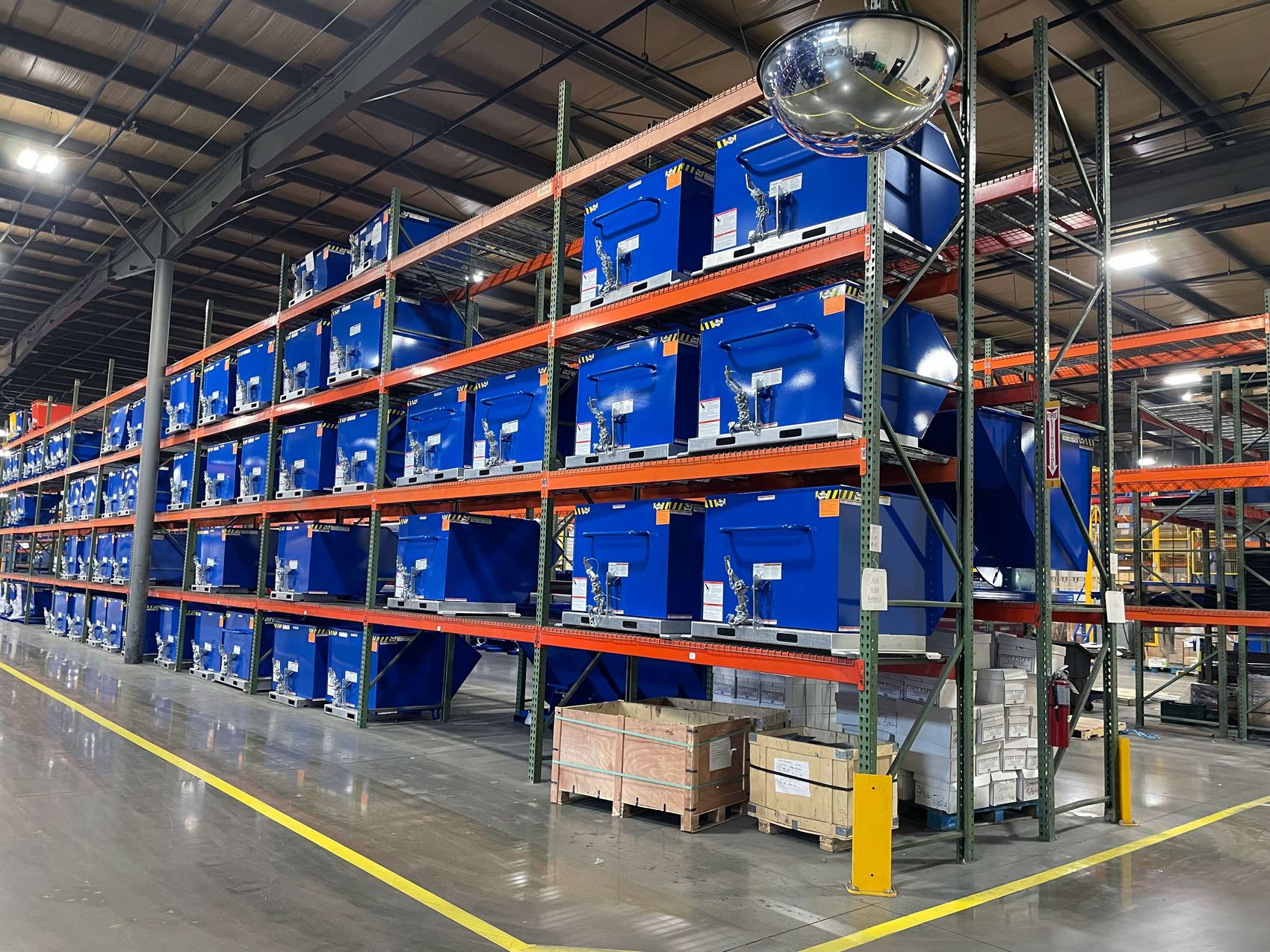

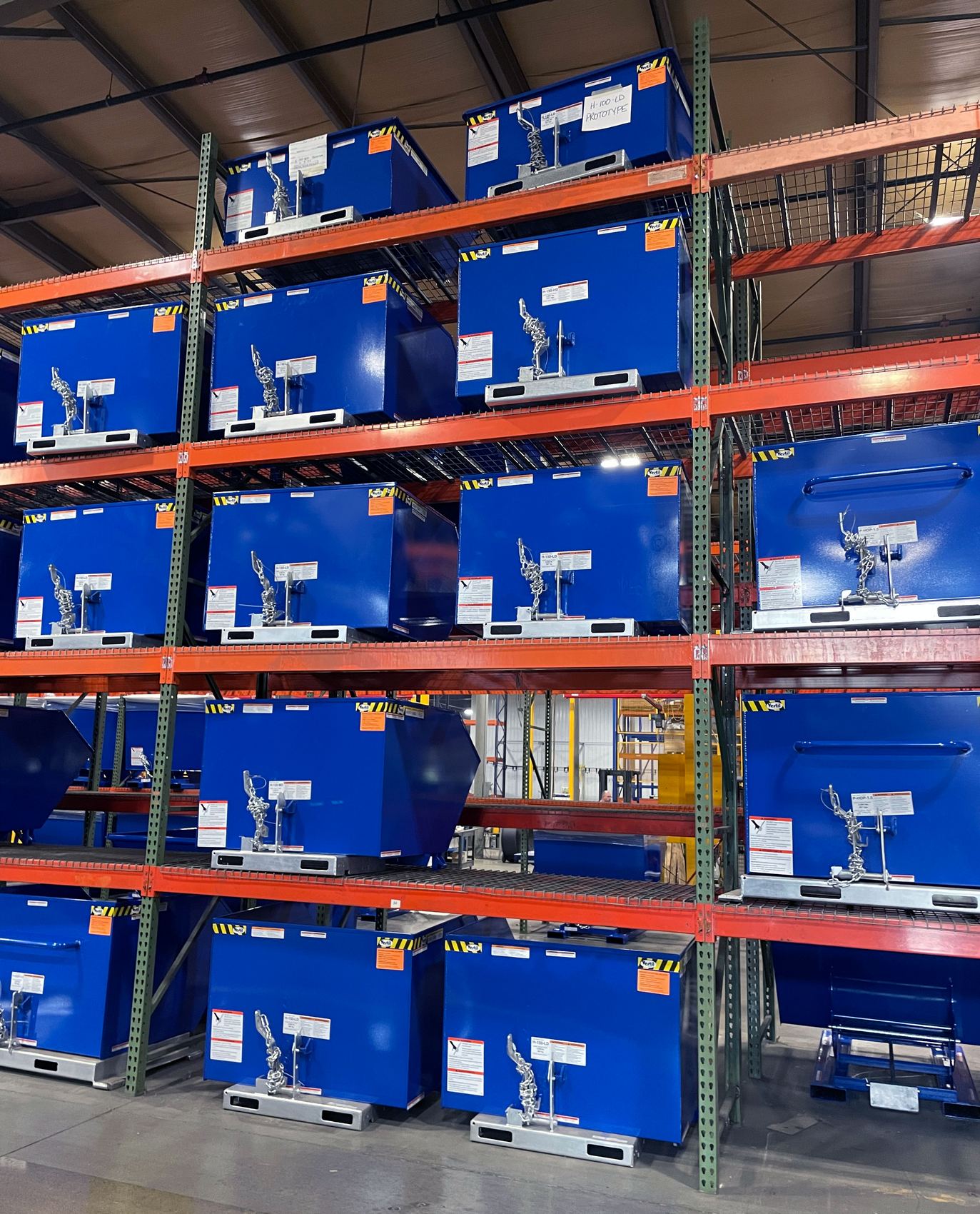

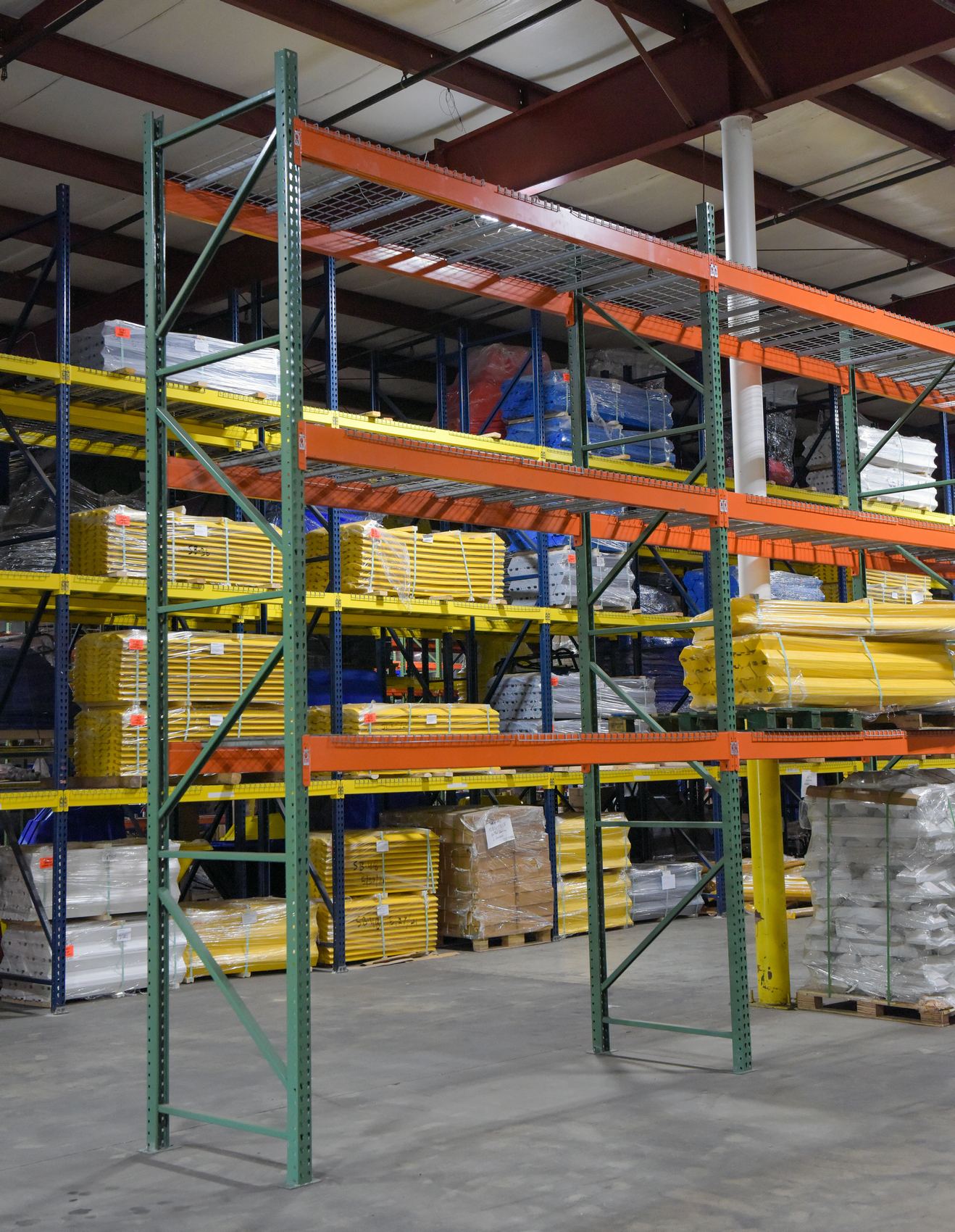

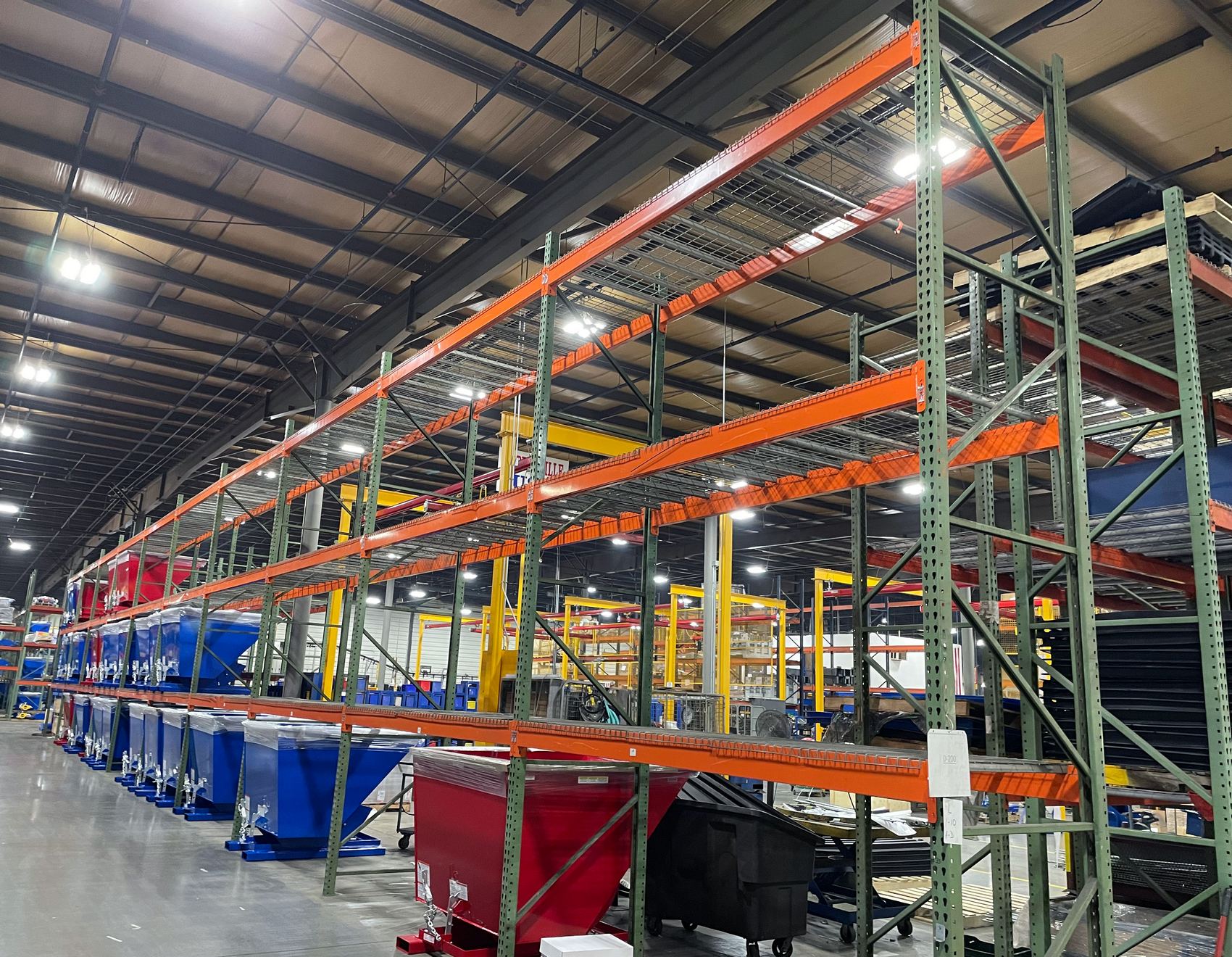

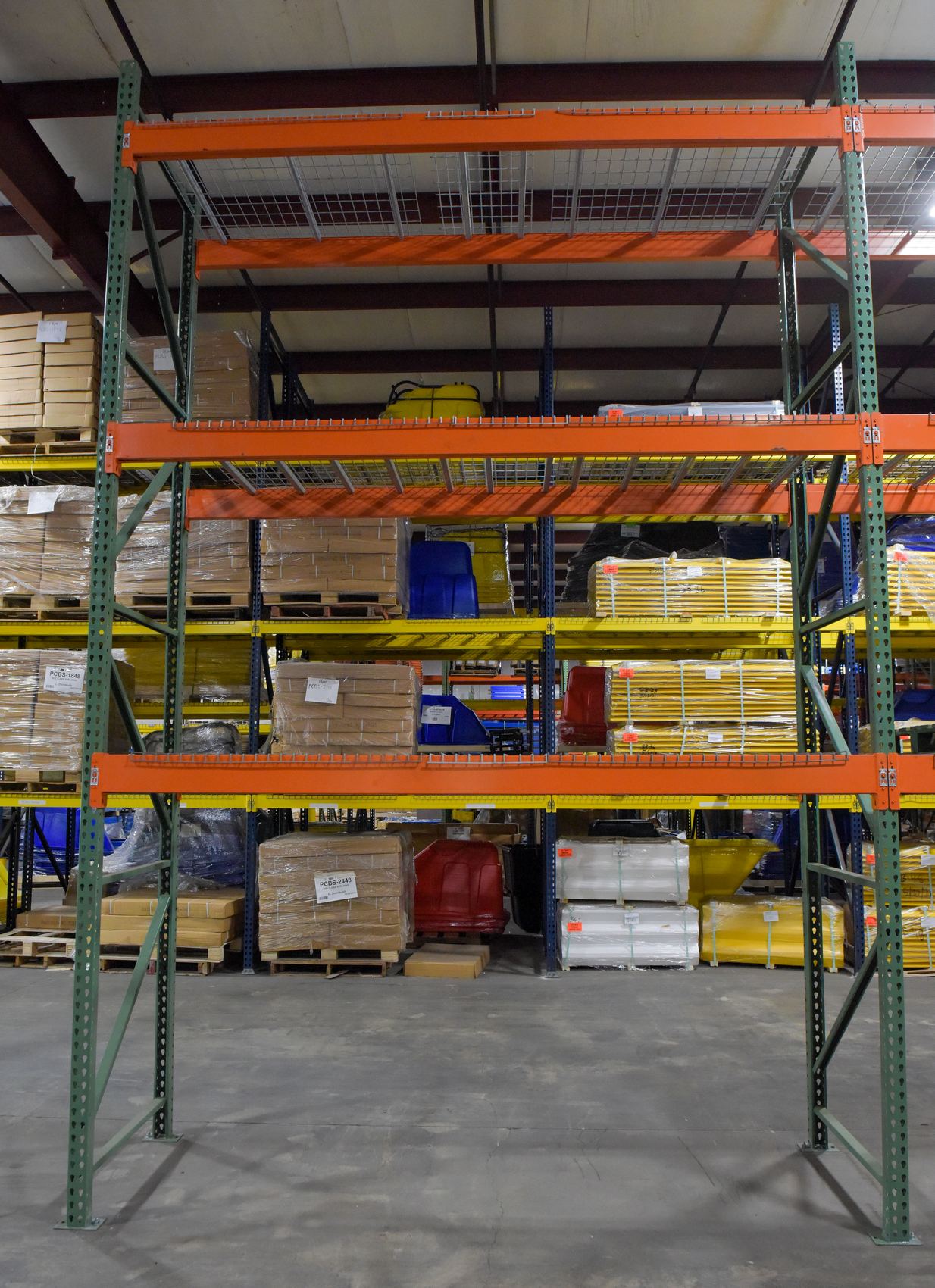

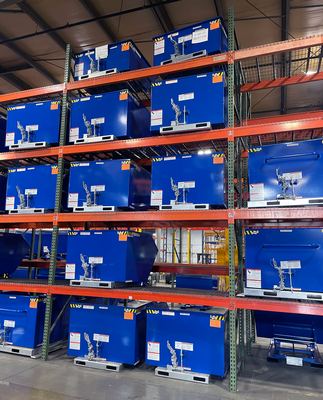

Pallet Racking solves the storage and retrieval needs faced by most industries today. Adaptability to specific layout installations is just one added feature. Units are sold 'Each'.

  • Scratch and Rust Resistance
  • Surface Features Powder Coat Finish
  • Structural Uniformity and Integrity

Pallet Racking solves the storage and retrieval needs faced by most industries today. Adaptability to specific layout installations is just one added feature. Units are sold 'Each'.

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
BEAM-S-1050 BEAM-S-105090 Days Limited WarrantySteel Pallet Racking Step Beam 10 Ft. 5000 Lb. Capacity OrangeUniform Capacity per Pair (lb.): 5,000

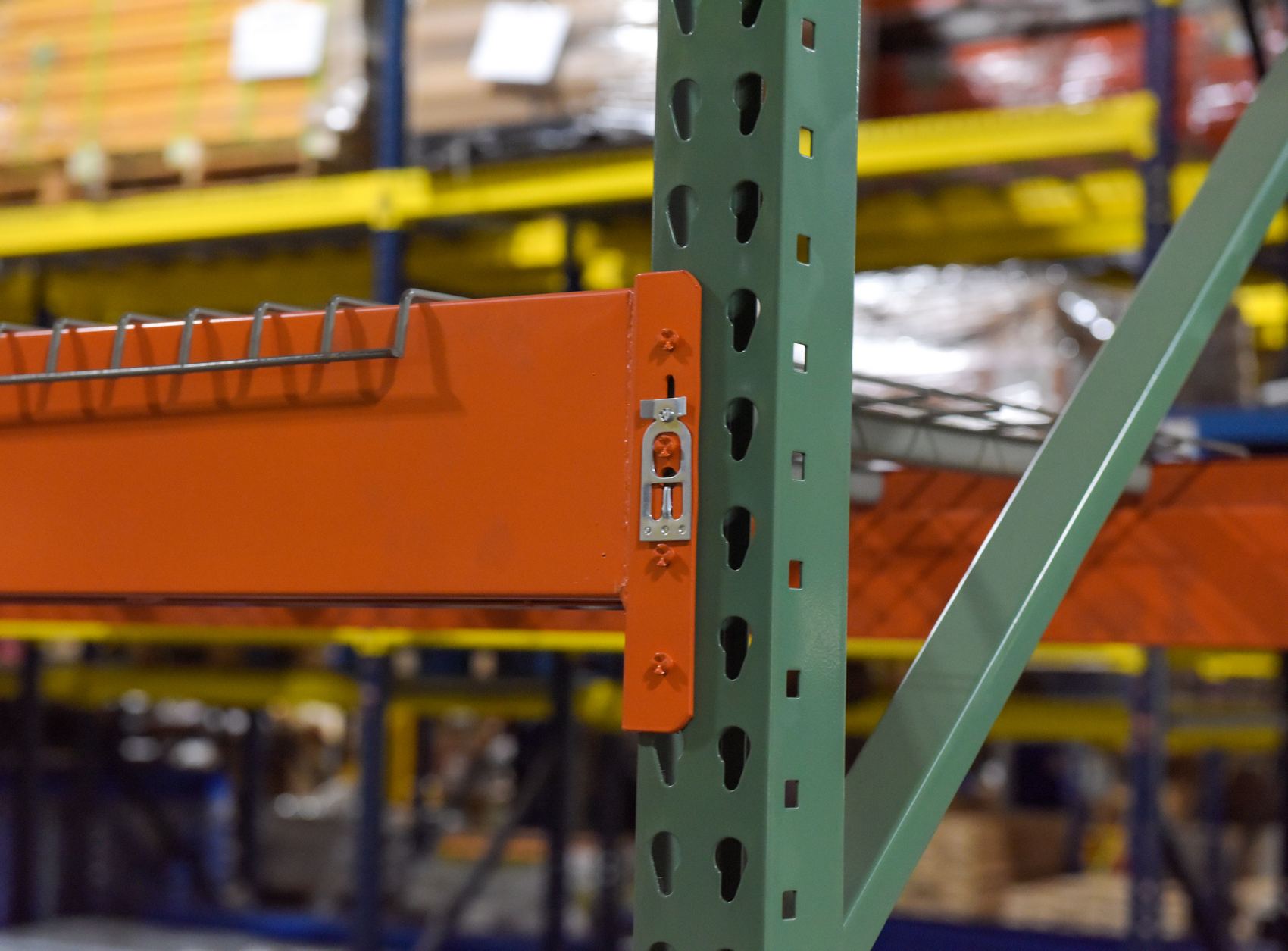

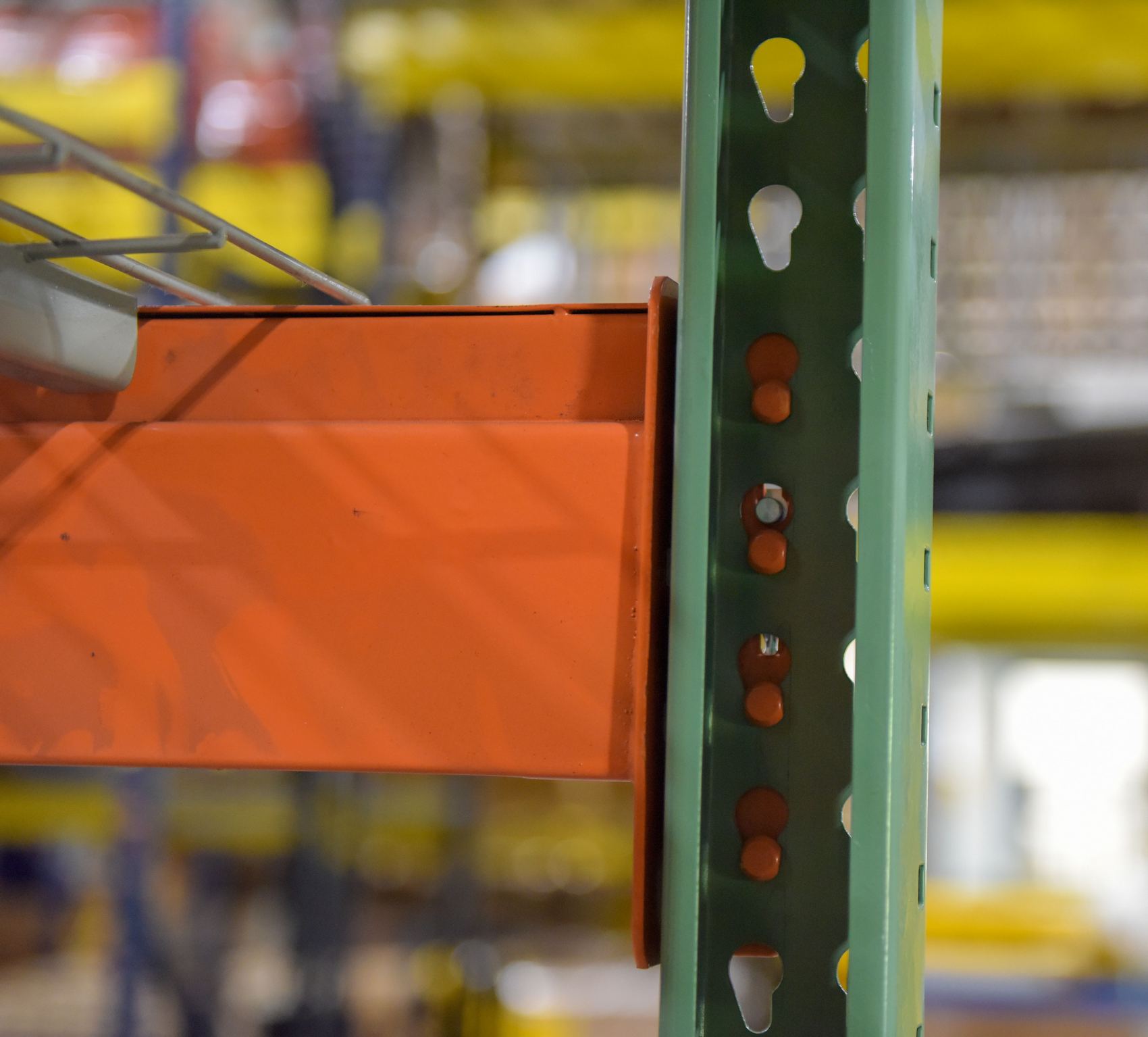

Component: Step Beam
75
BEAM-S-1070 BEAM-S-107090 Days Limited WarrantySteel Pallet Racking Step Beam 10 Ft. 7000 Lb. Capacity OrangeUniform Capacity per Pair (lb.): 7,000
Component: Step Beam
82
BEAM-S-1250 BEAM-S-125090 Days Limited WarrantySteel Pallet Racking Step Beam 12 Ft. 5000 Lb. Capacity OrangeUniform Capacity per Pair (lb.): 5,000
Component: Step Beam
105
BEAM-S-1260 BEAM-S-126090 Days Limited WarrantySteel Pallet Racking Step Beam 12 Ft. 6000 Lb. Capacity OrangeUniform Capacity per Pair (lb.): 6,000
Component: Step Beam
115
BEAM-S-850 BEAM-S-85090 Days Limited WarrantySteel Pallet Racking Step Beam 8 Ft. 5000 Lb. Capacity OrangeUniform Capacity per Pair (lb.): 5,000
Component: Step Beam
66
BEAM-S-870 BEAM-S-87090 Days Limited WarrantySteel Pallet Racking Step Beam 8 Ft. 7000 Lb. Capacity OrangeUniform Capacity per Pair (lb.): 7,000
Component: Step Beam
70
BEAM-S-960 BEAM-S-96090 Days Limited WarrantySteel Pallet Racking Step Beam 9 Ft. 6000 Lb. Capacity OrangeUniform Capacity per Pair (lb.): 6,000
Component: Step Beam
78

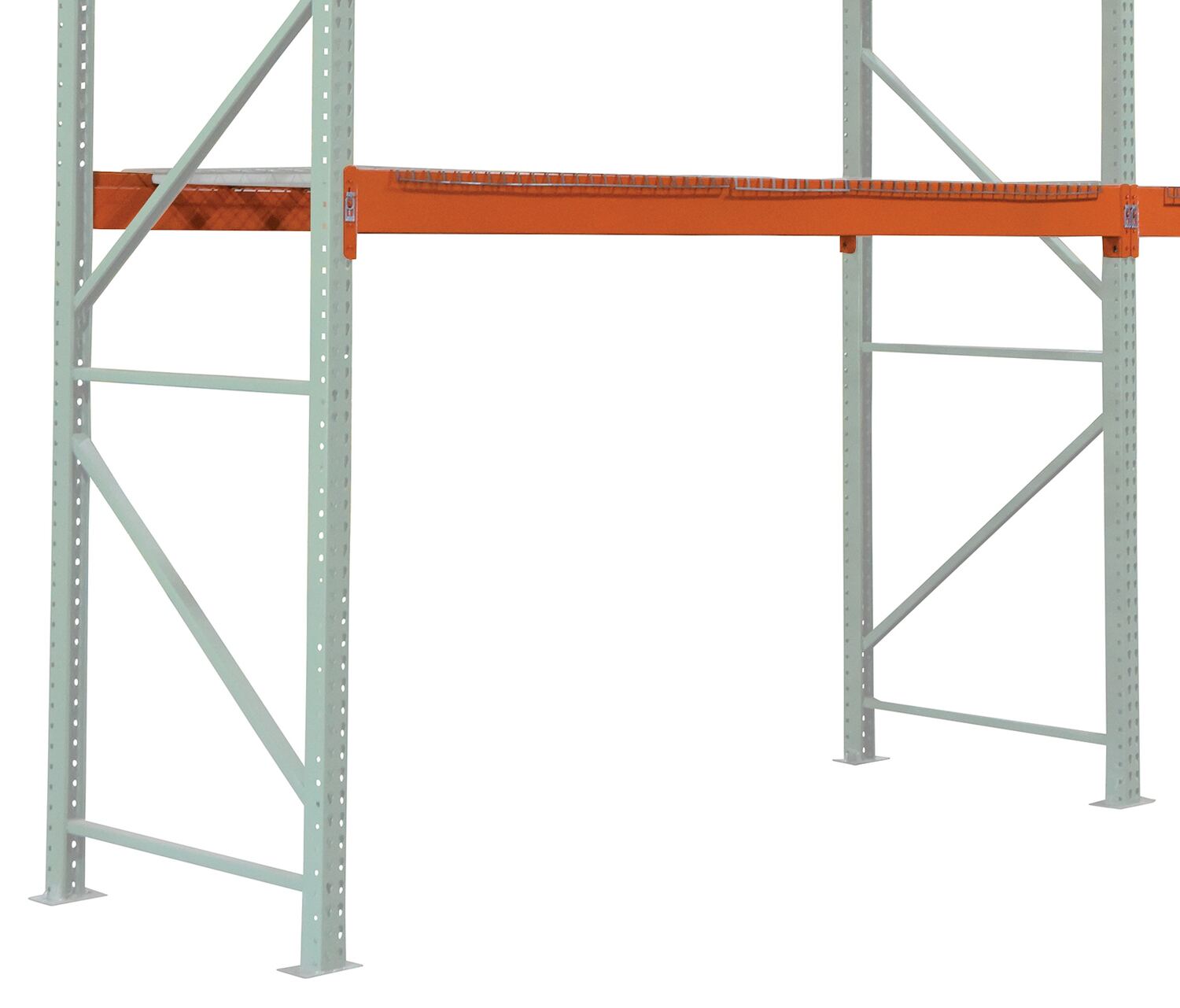

BEAM-S-970 BEAM-S-97090 Days Limited WarrantySteel Pallet Racking Step Beam 9 Ft. 7000 Lb. Capacity OrangeUniform Capacity per Pair (lb.): 7,000
Component: Step Beam
82

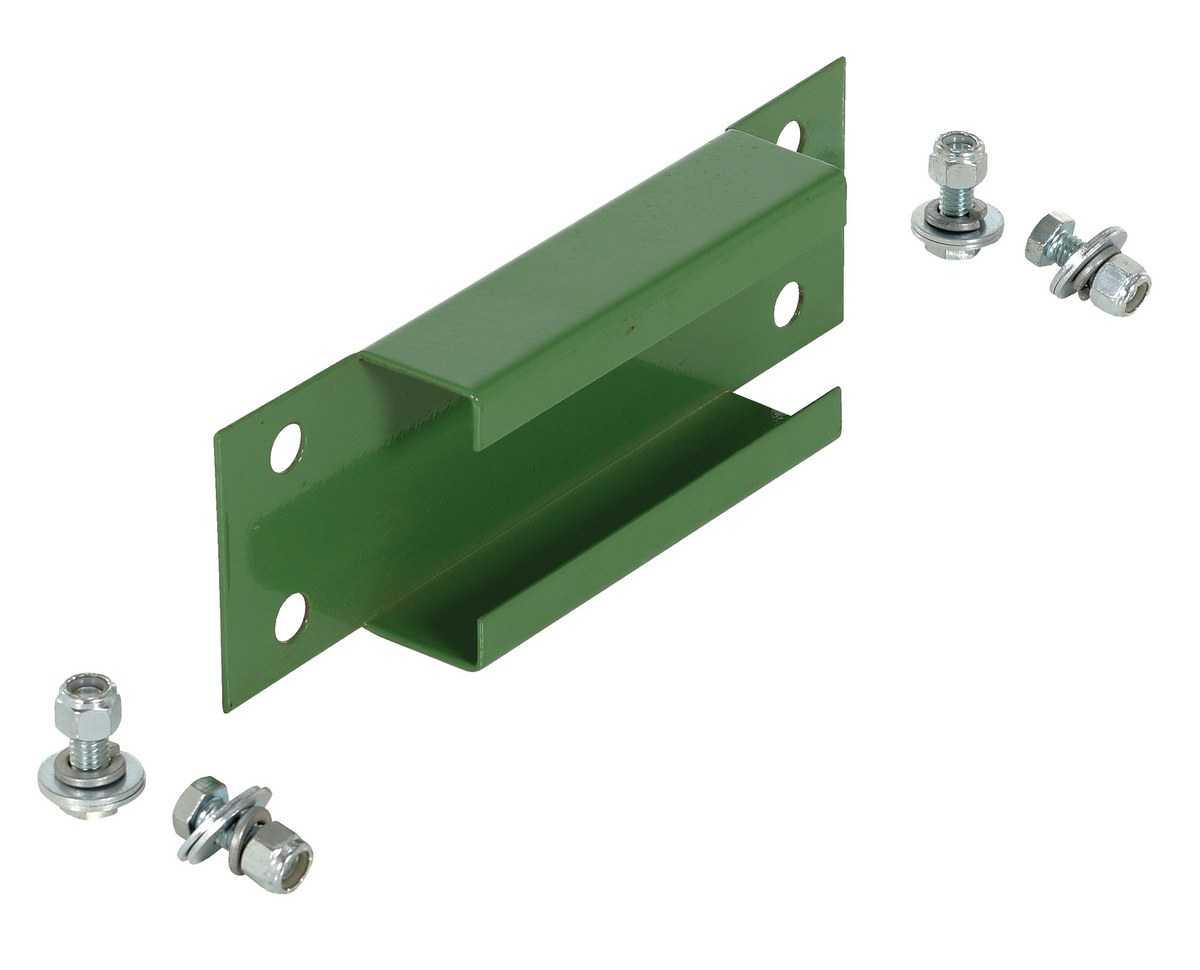

FSR-12 FSR-121 Year Limited WarrantySteel Pallet Racking Frame Spacer 12 In. Usable Length GreenUsable Length (in.): 12
Component: Frame Spacer
2
FSR-6 FSR-61 Year Limited WarrantySteel Pallet Racking Frame Spacer 6 In. Usable Length GreenUsable Length (in.): 6
Component: Frame Spacer
2
PRTD-10-42-19 PRTD-10-42-191 Year Limited WarrantySteel Pallet Racking Frame 10 Ft. x 42 In. 19,380 Lb. Capacity BlueUniform Capacity (lb.): 19,380
Component: Frame
139
PRTD-10-42-24 PRTD-10-42-241 Year Limited WarrantySteel Pallet Racking Frame 10 Ft. x 42 In. 24,000 Lb. Capacity GreenUniform Capacity (lb.): 24,000
Component: Frame
171
PRTD-12-42-19 PRTD-12-42-191 Year Limited WarrantySteel Pallet Racking Frame 12 Ft. x 42 In. 19,380 Lb. Capacity BlueUniform Capacity (lb.): 19,380
Component: Frame
162
PRTD-12-42-24 PRTD-12-42-241 Year Limited WarrantySteel Pallet Racking Frame 12 Ft. x 42 In. 24,000 Lb. Capacity GreenUniform Capacity (lb.): 24,000
Component: Frame
165
PRTD-14-42-19 PRTD-14-42-191 Year Limited WarrantySteel Pallet Racking Frame 14 Ft. x 42 In. 19,380 Lb. Capacity BlueUniform Capacity (lb.): 19,380
Component: Frame
173
PRTD-14-42-24 PRTD-14-42-241 Year Limited WarrantySteel Pallet Racking Frame 14 Ft. x 42 In. 24,000 Lb. Capacity GreenUniform Capacity (lb.): 24,000
Component: Frame
187

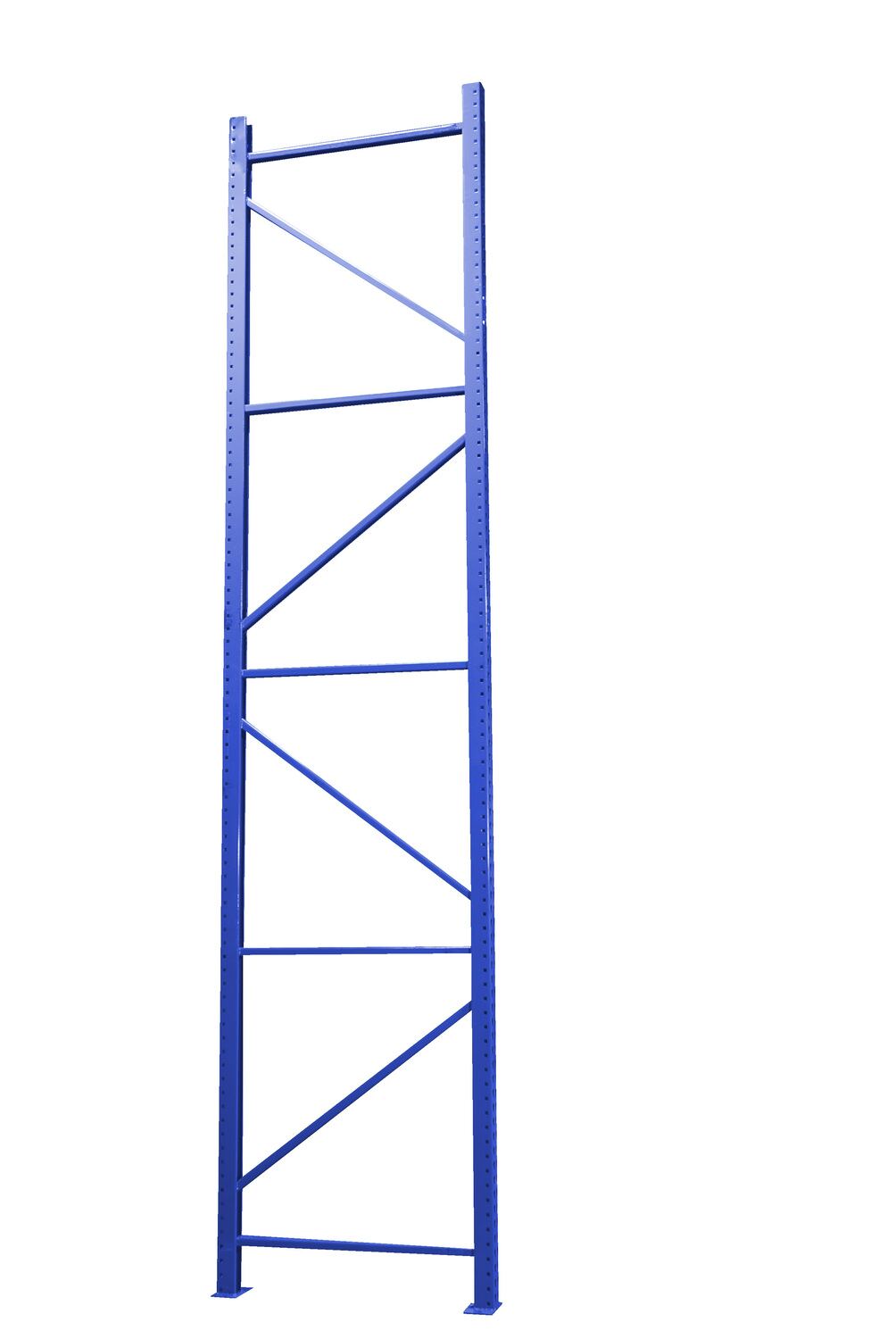

PRTD-16-42-19 PRTD-16-42-191 Year Limited WarrantySteel Pallet Racking Frame 16 Ft. x 42 In. 19,380 Lb. Capacity BlueUniform Capacity (lb.): 19,380
Component: Frame
183
PRTD-16-42-24 PRTD-16-42-241 Year Limited WarrantySteel Pallet Racking Frame 16 Ft. x 42 In. 24,000 Lb. Capacity GreenUniform Capacity (lb.): 24,000
Component: Frame
226
PRTD-18-42-24 PRTD-18-42-241 Year Limited WarrantySteel Pallet Racking Frame 18 Ft. x 42 In. 24,000 Lb. Capacity GreenUniform Capacity (lb.): 24,000
Component: Frame
180

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

BEAM-S-1050
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Pair (lb.): 5,000
Component: Step Beam
Uniform Capacity per Pair (lb.): 5,000
Component: Step Beam

BEAM-S-1070
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Pair (lb.): 7,000
Component: Step Beam
Uniform Capacity per Pair (lb.): 7,000
Component: Step Beam

BEAM-S-1250
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Pair (lb.): 5,000
Component: Step Beam
Uniform Capacity per Pair (lb.): 5,000
Component: Step Beam

BEAM-S-1260
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Pair (lb.): 6,000
Component: Step Beam
Uniform Capacity per Pair (lb.): 6,000
Component: Step Beam

BEAM-S-850
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Pair (lb.): 5,000
Component: Step Beam
Uniform Capacity per Pair (lb.): 5,000
Component: Step Beam

BEAM-S-870
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Pair (lb.): 7,000
Component: Step Beam
Uniform Capacity per Pair (lb.): 7,000
Component: Step Beam

BEAM-S-960
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Pair (lb.): 6,000
Component: Step Beam
Uniform Capacity per Pair (lb.): 6,000
Component: Step Beam

BEAM-S-970
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Pair (lb.): 7,000
Component: Step Beam
Uniform Capacity per Pair (lb.): 7,000
Component: Step Beam

FSR-12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Usable Length (in.): 12
Component: Frame Spacer
Usable Length (in.): 12
Component: Frame Spacer

FSR-6
Unit:
Size: W x L x H
Weight:
Limited Warranty
Usable Length (in.): 6
Component: Frame Spacer
Usable Length (in.): 6
Component: Frame Spacer

PRTD-10-42-19
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 19,380
Component: Frame
Uniform Capacity (lb.): 19,380
Component: Frame

PRTD-10-42-24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 24,000
Component: Frame
Uniform Capacity (lb.): 24,000
Component: Frame

PRTD-12-42-19
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 19,380
Component: Frame
Uniform Capacity (lb.): 19,380
Component: Frame

PRTD-12-42-24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 24,000
Component: Frame
Uniform Capacity (lb.): 24,000
Component: Frame

PRTD-14-42-19
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 19,380
Component: Frame
Uniform Capacity (lb.): 19,380
Component: Frame

PRTD-14-42-24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 24,000
Component: Frame
Uniform Capacity (lb.): 24,000
Component: Frame

PRTD-16-42-19
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 19,380
Component: Frame
Uniform Capacity (lb.): 19,380
Component: Frame

PRTD-16-42-24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 24,000
Component: Frame
Uniform Capacity (lb.): 24,000
Component: Frame

PRTD-18-42-24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 24,000
Component: Frame
Uniform Capacity (lb.): 24,000
Component: Frame

Pallet Racking PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


BEAM-S-1050

BEAM-S-1070

BEAM-S-1250

BEAM-S-1260

BEAM-S-850

BEAM-S-870

BEAM-S-960

BEAM-S-970

FSR-12

FSR-6

PRTD-10-42-19

PRTD-10-42-24

PRTD-12-42-19

PRTD-12-42-24

PRTD-14-42-19

PRTD-14-42-24

PRTD-16-42-19

PRTD-16-42-24

PRTD-18-42-24

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products


Q: We are going to do two "runs" on the pallet racking. How many uprights do we need?

A: For two continuous "runs" on the pallet racking you will need 3 frames (PRTD-XX-XX-XX)


Q: Is the frame on the PRTD series welded or bolted together?

A: The frame is welded together.






Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Pallet Racking



  • Scratch and Rust Resistance
  • Surface Features Powder Coat Finish
  • Structural Uniformity and Integrity

Pallet Racking solves the storage and retrieval needs faced by most industries today. Adaptability to specific layout installations is just one added feature. Units are sold 'Each'.



Model # Description Attributes Net Wt.
(lbs)
BEAM-S-1050 BEAM-S-1050Steel Pallet Racking Step Beam 10 Ft. 5000 Lb. Capacity OrangeUniform Capacity per Pair (lb.): 5,000
Component: Step Beam
75
BEAM-S-1070 BEAM-S-1070Steel Pallet Racking Step Beam 10 Ft. 7000 Lb. Capacity OrangeUniform Capacity per Pair (lb.): 7,000
Component: Step Beam
82
BEAM-S-1250 BEAM-S-1250Steel Pallet Racking Step Beam 12 Ft. 5000 Lb. Capacity OrangeUniform Capacity per Pair (lb.): 5,000
Component: Step Beam
105
BEAM-S-1260 BEAM-S-1260Steel Pallet Racking Step Beam 12 Ft. 6000 Lb. Capacity OrangeUniform Capacity per Pair (lb.): 6,000
Component: Step Beam
115
BEAM-S-850 BEAM-S-850Steel Pallet Racking Step Beam 8 Ft. 5000 Lb. Capacity OrangeUniform Capacity per Pair (lb.): 5,000
Component: Step Beam
66
BEAM-S-870 BEAM-S-870Steel Pallet Racking Step Beam 8 Ft. 7000 Lb. Capacity OrangeUniform Capacity per Pair (lb.): 7,000
Component: Step Beam
70
BEAM-S-960 BEAM-S-960Steel Pallet Racking Step Beam 9 Ft. 6000 Lb. Capacity OrangeUniform Capacity per Pair (lb.): 6,000
Component: Step Beam
78
BEAM-S-970 BEAM-S-970Steel Pallet Racking Step Beam 9 Ft. 7000 Lb. Capacity OrangeUniform Capacity per Pair (lb.): 7,000
Component: Step Beam
82

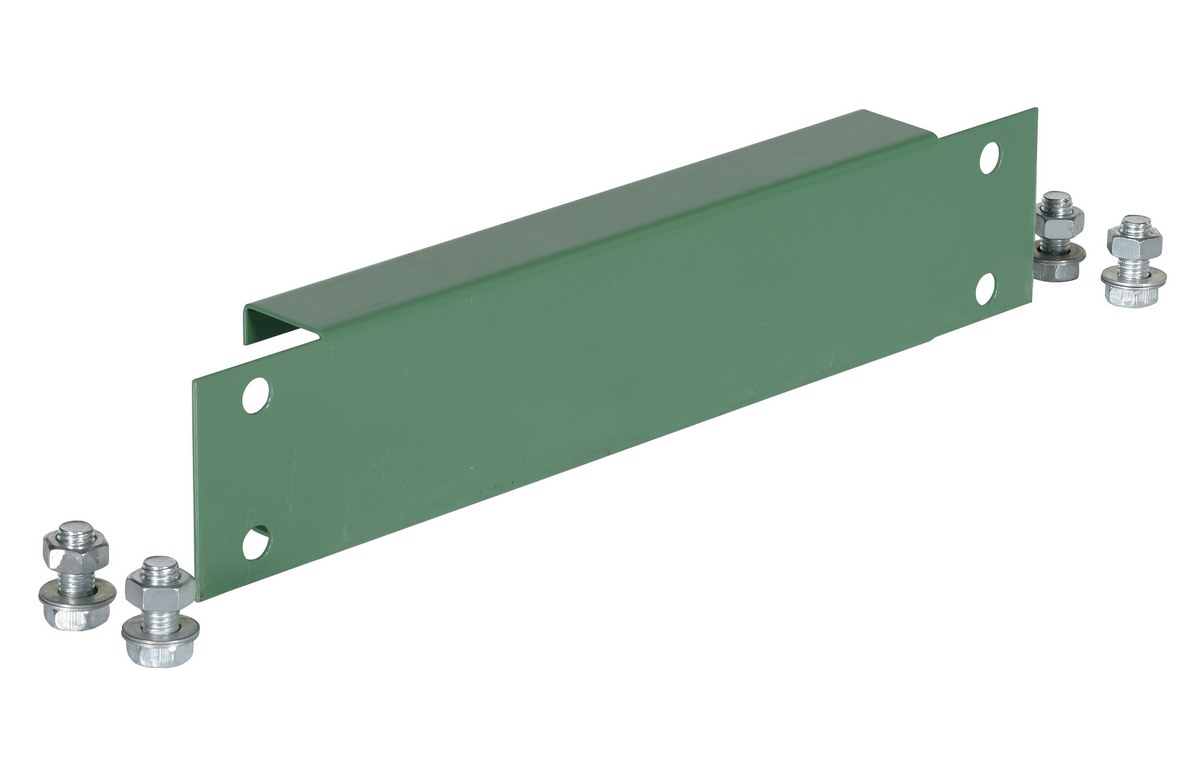

FSR-12 FSR-12Steel Pallet Racking Frame Spacer 12 In. Usable Length GreenUsable Length (in.): 12
