Bench Top Tilters

- - - -

Description
Model Chart
Options
PDF's
Image Gallery
BTT-6-46_E.jpg BTT-6-46_A.jpg BTT-6-46_B.jpg BTT-6-46_C.jpg

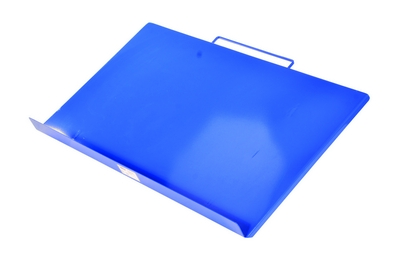

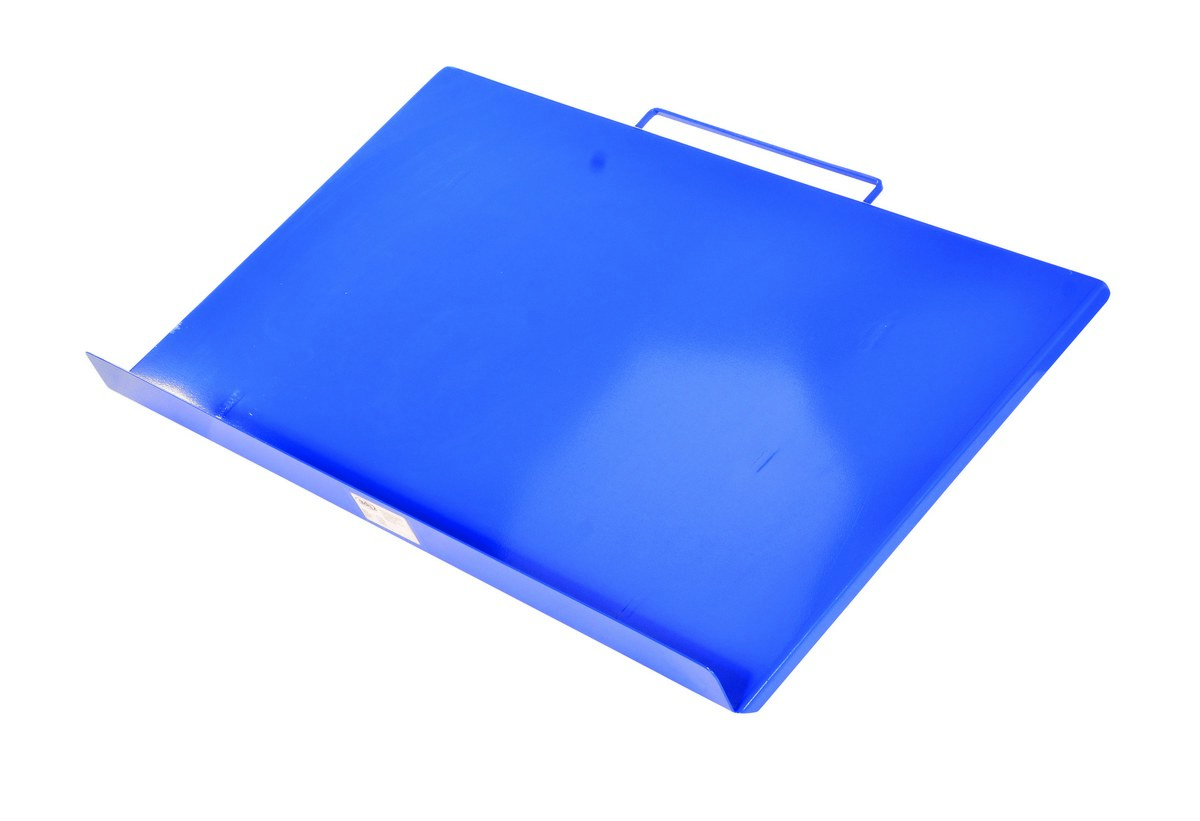

Bench Top Tilters

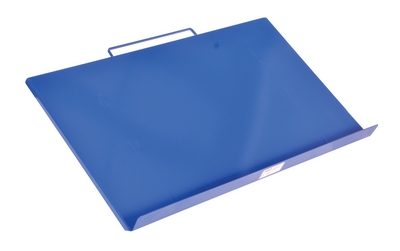

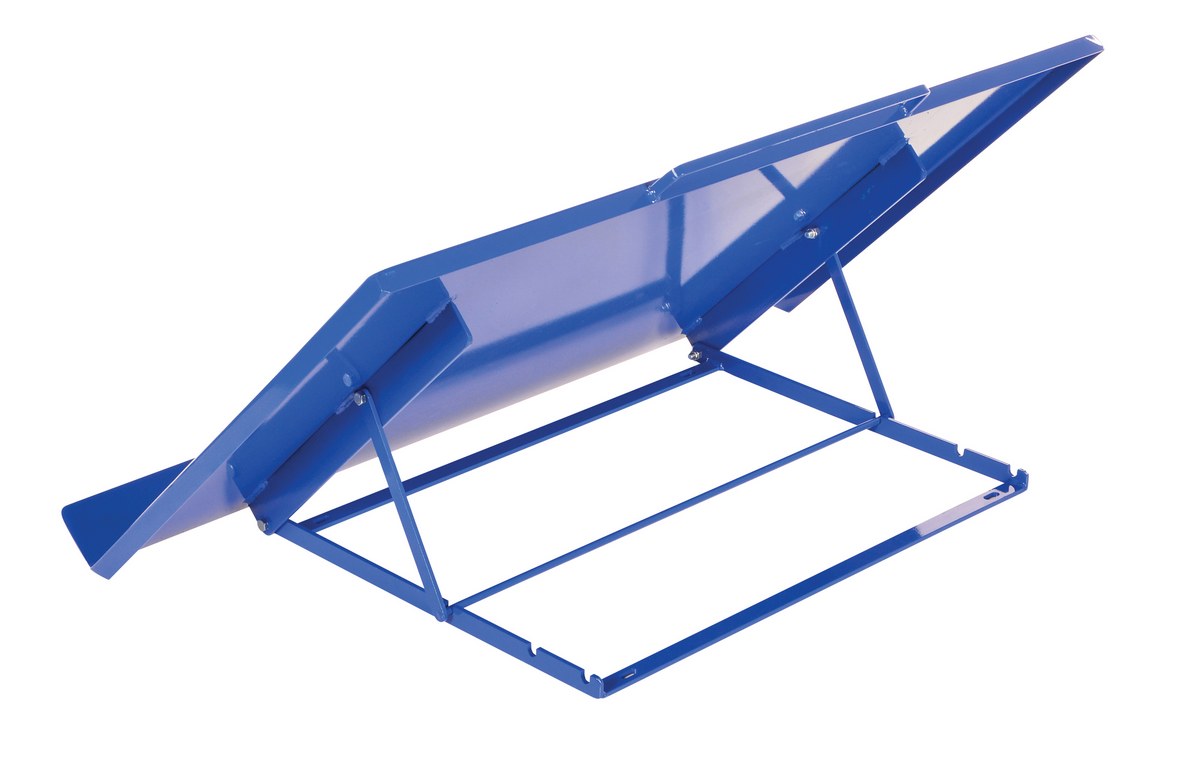

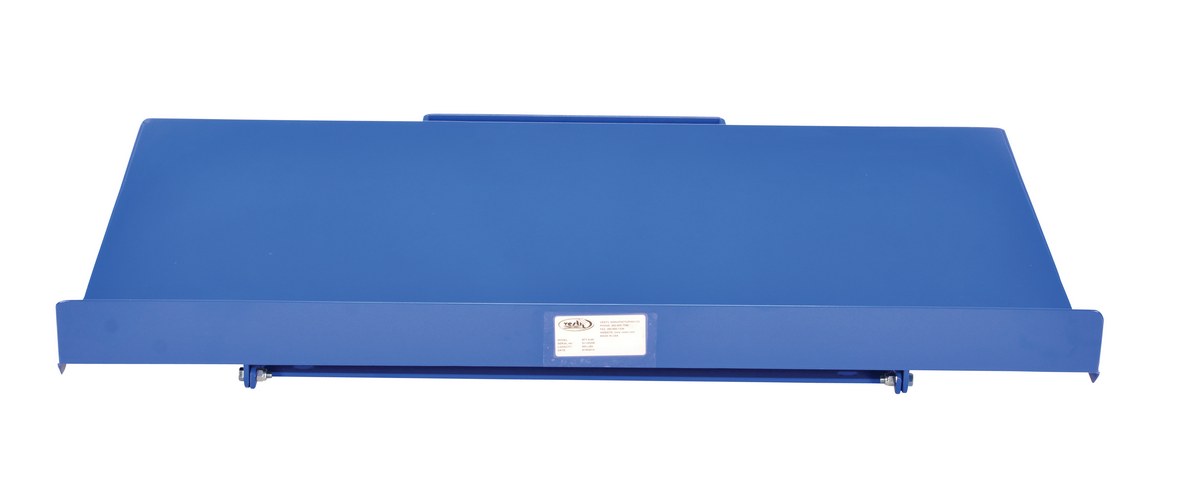

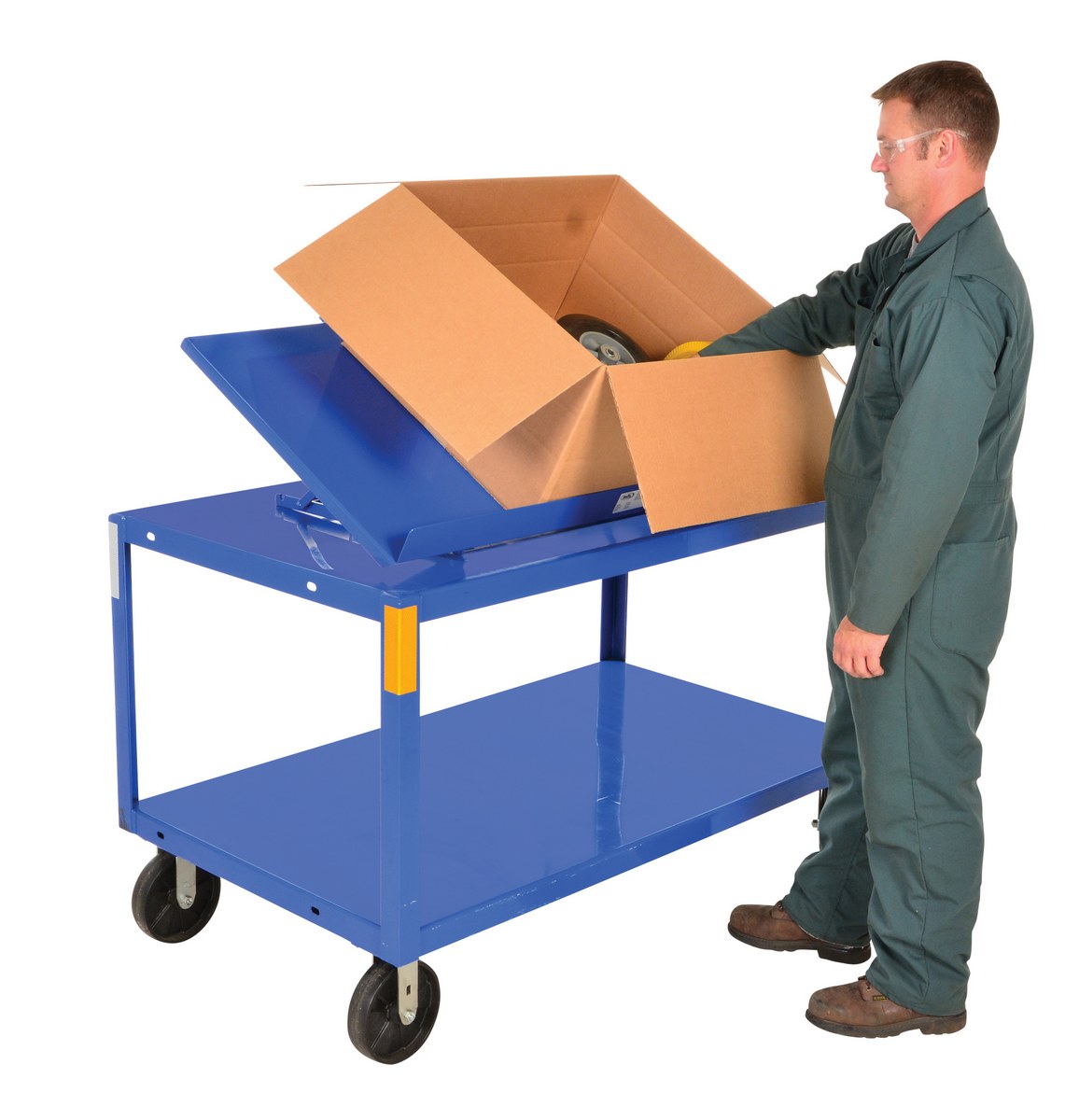

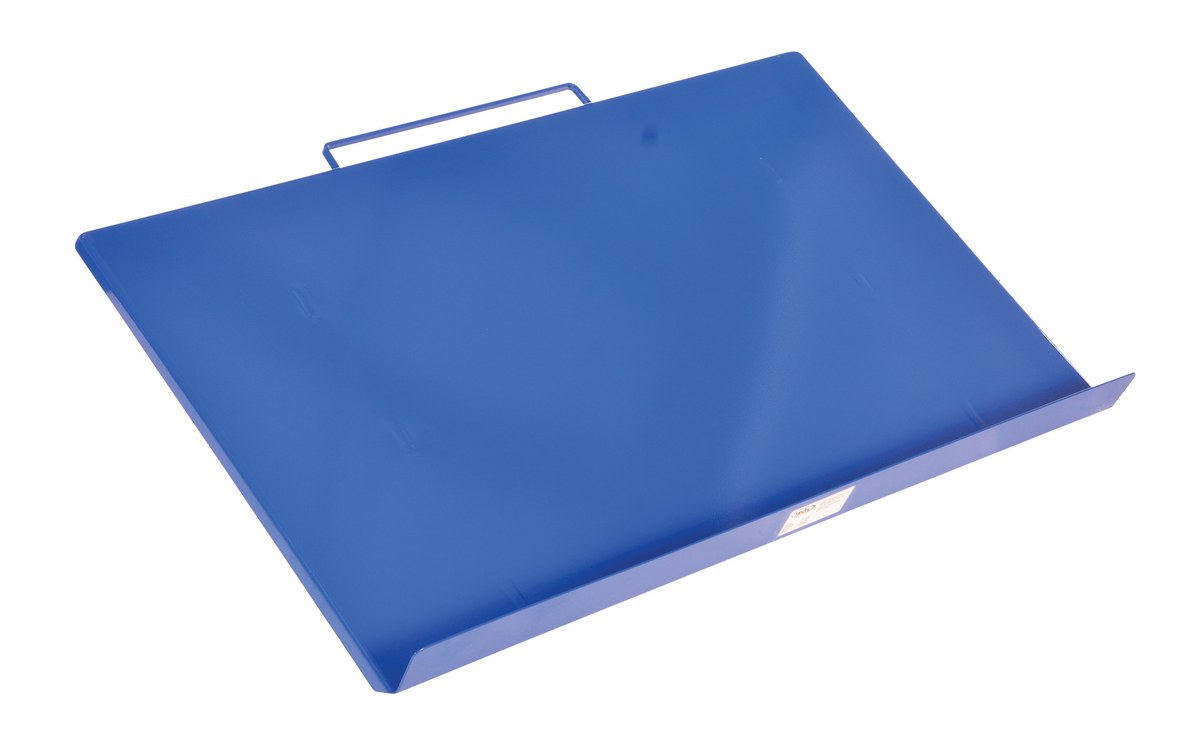

model: BTT-6-46



Featured Ergonomic Solutions


Manual Work Positioner
Portable Electric Hydraulic Lift Table w/ Attached Hoist
Self-Elevating Lift Carts
Auto-Shift Hydraulic Elevating Carts
Shorty Scissor Lift Tables
Full Featured Pallet Trucks
Narrow Scissor Lift Tables
Counter-Balanced Powered Drive Lifts
Spring Scissor Tables
model chart

Product Family Overview

Print Friendly
Bench Top Tilters
SERIES: BTT

Bench Top Tilters increase efficiency and help reduce fatigue and potential injury by placing work at a better ergonomic angle. Loads up to 1,000 pounds may be tilted from 0 degrees to 45 degrees. Heavy-duty steel Bench Top Tilters can be attached to most industrial table tops, work benches and mobile lift tables of sufficient load capacity and surface size. Pendent hand control with UP and DOWN push buttons is located on an 8 foot cord, maximizing operator convenience. Flat base plate with slotted holes for installation. Units are colored royal blue.

  • Manually Adjustable Tilter is used for applications requiring only occasional changes in tilt angle. Tilter is adjustable at 15, 30 or 45 degree angles. Three inch retaining lip prevents loads up to 600 pounds from sliding off platform.
  • Electro-Mechanical Internal Operating Mechanism will lift a maximum of 500 pounds up to a 45 degree angle from the five inch lowered height.
  • External Operating Mechanism will lift a maximum of 1,000 pounds up to a 45 degree angle from the five inch lowered height.
  • The Bench Top Tilters have a sliding top which tilts within its own base frame. The center of the platform is kept closer to the center of the base, providing for higher stability than the conventional hinge style tilter

Bench Top Tilters increase efficiency and help reduce fatigue and potential injury by placing work at a better ergonomic angle. Loads up to 1,000 pounds may be tilted from 0 degrees to 45 degrees. Heavy-duty steel Bench Top Tilters can be attached to most industrial table tops, work benches and mobile lift tables of sufficient load capacity and surface size. Pendent hand control with UP and DOWN push buttons is located on an 8 foot cord, maximizing operator convenience. Flat base plate with slotted holes for installation. Units are colored royal blue.

  • Manually Adjustable Tilter is used for applications requiring only occasional changes in tilt angle. Tilter is adjustable at 15, 30 or 45 degree angles. Three inch retaining lip prevents loads up to 600 pounds from sliding off platform.
  • Electro-Mechanical Internal Operating Mechanism will lift a maximum of 500 pounds up to a 45 degree angle from the five inch lowered height.
  • External Operating Mechanism will lift a maximum of 1,000 pounds up to a 45 degree angle from the five inch lowered height.
  • The Bench Top Tilters have a sliding top which tilts within its own base frame. The center of the platform is kept closer to the center of the base, providing for higher stability than the conventional hinge style tilter

Other Tilters

 Air Corner Tilters Tilt Master & Tilt Master Straddle Efficiency Master Tilt Tables Manual Tilt Master

Additional Models In This Family
view entire Image Gallery

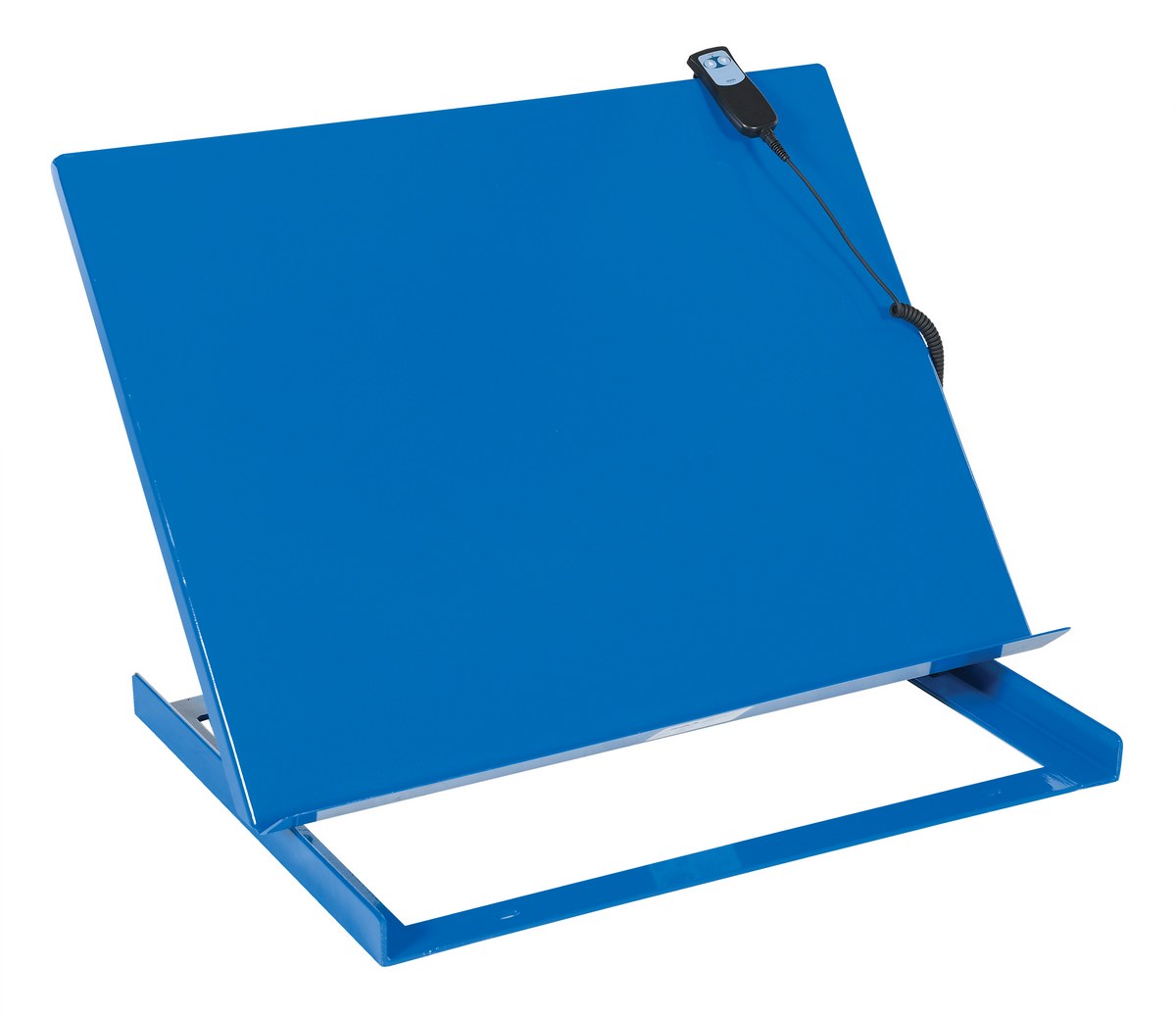

BTT-5-36

model BTT-5-36

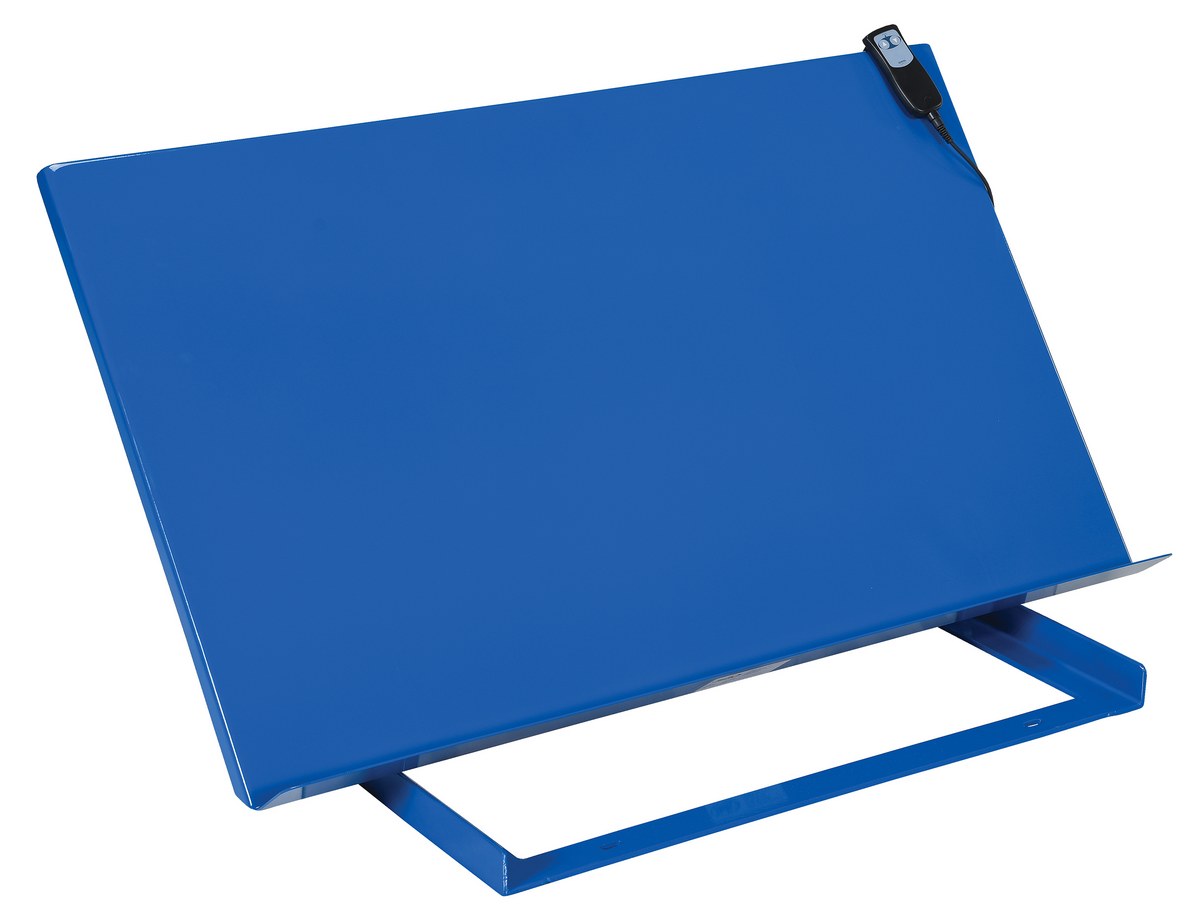

BTT-5-46

model BTT-5-46

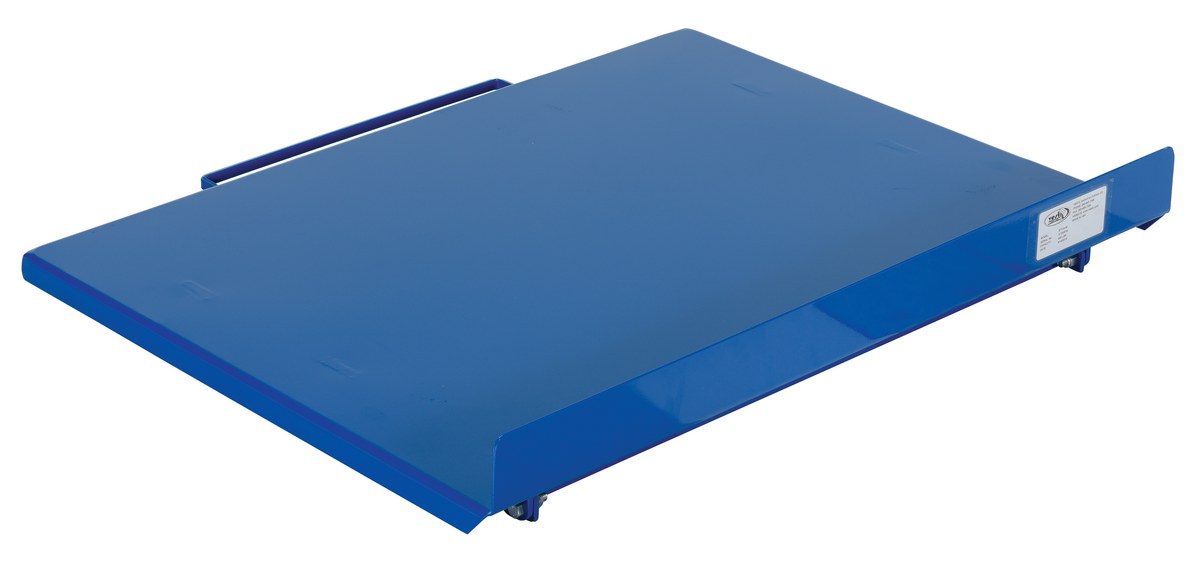

BTT-6-36

model BTT-6-36

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
BTT-5-36 BTT-5-361 Year Limited WarrantyLinear Bench Top Tilter 28 In. x 36 In. 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Platform Width (in.): 36		127
BTT-5-46 BTT-5-461 Year Limited WarrantyLinear Bench Top Tilter 28 In. x 46 In. 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Platform Width (in.): 46		127
BTT-6-36 BTT-6-361 Year Limited WarrantyLinear Bench Top Tilter 28 In. x 36 In. 600 Lb. Capacity BlueUniform Capacity (lb.): 600
Platform Width (in.): 36		112
BTT-6-46 BTT-6-461 Year Limited WarrantyLinear Bench Top Tilter 28 In. x 46 In. 600 Lb. Capacity BlueUniform Capacity (lb.): 600
Platform Width (in.): 46		116

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

BTT-5-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Platform Width (in.): 36
Uniform Capacity (lb.): 500
Platform Width (in.): 36

BTT-5-46
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Platform Width (in.): 46
Uniform Capacity (lb.): 500
Platform Width (in.): 46

BTT-6-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 600
Platform Width (in.): 36
Uniform Capacity (lb.): 600
Platform Width (in.): 36

BTT-6-46
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 600
Platform Width (in.): 46
Uniform Capacity (lb.): 600
Platform Width (in.): 46
For More Details of the Option Click the Red Model Button
HCP-2642 HCP-2642 Optional Hand Control Pedestal
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Bench Top Tilters PDF's will open in a new window when clicked.

Manuals


BTT
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


BTT-5-36

BTT-5-46

BTT-6-36

BTT-6-46

Testing Certificates


BTT-5-36

BTT-5-46

BTT-6-36

BTT-6-46

SDS Sheets

Hydraulic Oil SDS Sheet for: BTT-10-36
Hydraulic Oil SDS Sheet for: BTT-10-46
Hydraulic Oil SDS Sheet for: BTT-5-36
Hydraulic Oil SDS Sheet for: BTT-5-46
Hydraulic Oil SDS Sheet for: BTT-6-36

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Related or Similar Products:

Ground Tilter
Product

Ground Tilter

Hinge & Sliding Tilt Tables
Product

Hinge & Sliding Tilt Tables

Portable Uni-Tilts
Product

Portable Uni-Tilts

Lift & Tilt Workstation Tables
Product

Lift & Tilt Workstation Tables

Economy Transporter / Tilter
Product

Economy Transporter / Tilter

Manual Tilt Master
Product

Manual Tilt Master

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Bench Top Tilters




Bench Top Tilters increase efficiency and help reduce fatigue and potential injury by placing work at a better ergonomic angle. Loads up to 1,000 pounds may be tilted from 0 degrees to 45 degrees. Heavy-duty steel Bench Top Tilters can be attached to most industrial table tops, work benches and mobile lift tables of sufficient load capacity and surface size. Pendent hand control with UP and DOWN push buttons is located on an 8 foot cord, maximizing operator convenience. Flat base plate with slotted holes for installation. Units are colored royal blue.

  • Manually Adjustable Tilter is used for applications requiring only occasional changes in tilt angle. Tilter is adjustable at 15, 30 or 45 degree angles. Three inch retaining lip prevents loads up to 600 pounds from sliding off platform.
  • Electro-Mechanical Internal Operating Mechanism will lift a maximum of 500 pounds up to a 45 degree angle from the five inch lowered height.
  • External Operating Mechanism will lift a maximum of 1,000 pounds up to a 45 degree angle from the five inch lowered height.
  • The Bench Top Tilters have a sliding top which tilts within its own base frame. The center of the platform is kept closer to the center of the base, providing for higher stability than the conventional hinge style tilter

Model # Description Attributes Net Wt.
(lbs)
BTT-5-36 BTT-5-36Linear Bench Top Tilter 28 In. x 36 In. 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Platform Width (in.): 36		127
BTT-5-46 BTT-5-46Linear Bench Top Tilter 28 In. x 46 In. 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Platform Width (in.): 46		127
BTT-6-36 BTT-6-36Linear Bench Top Tilter 28 In. x 36 In. 600 Lb. Capacity BlueUniform Capacity (lb.): 600
Platform Width (in.): 36		112
BTT-6-46 BTT-6-46Linear Bench Top Tilter 28 In. x 46 In. 600 Lb. Capacity BlueUniform Capacity (lb.): 600
Platform Width (in.): 46		116

Options


HCP-2642 HCP-2642 Optional Hand Control Pedestal
