Spring Scissor Tables
SERIES: SST

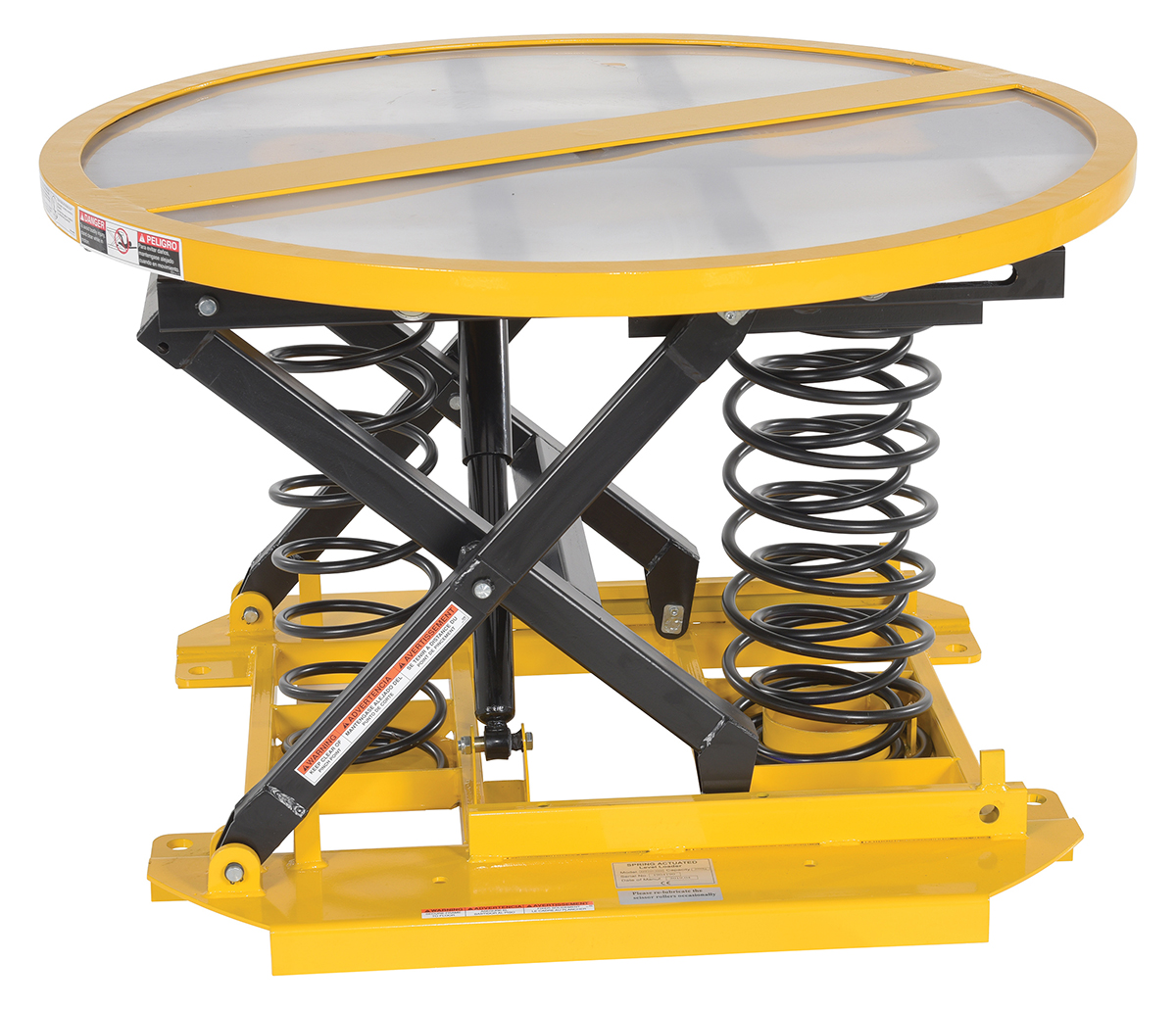

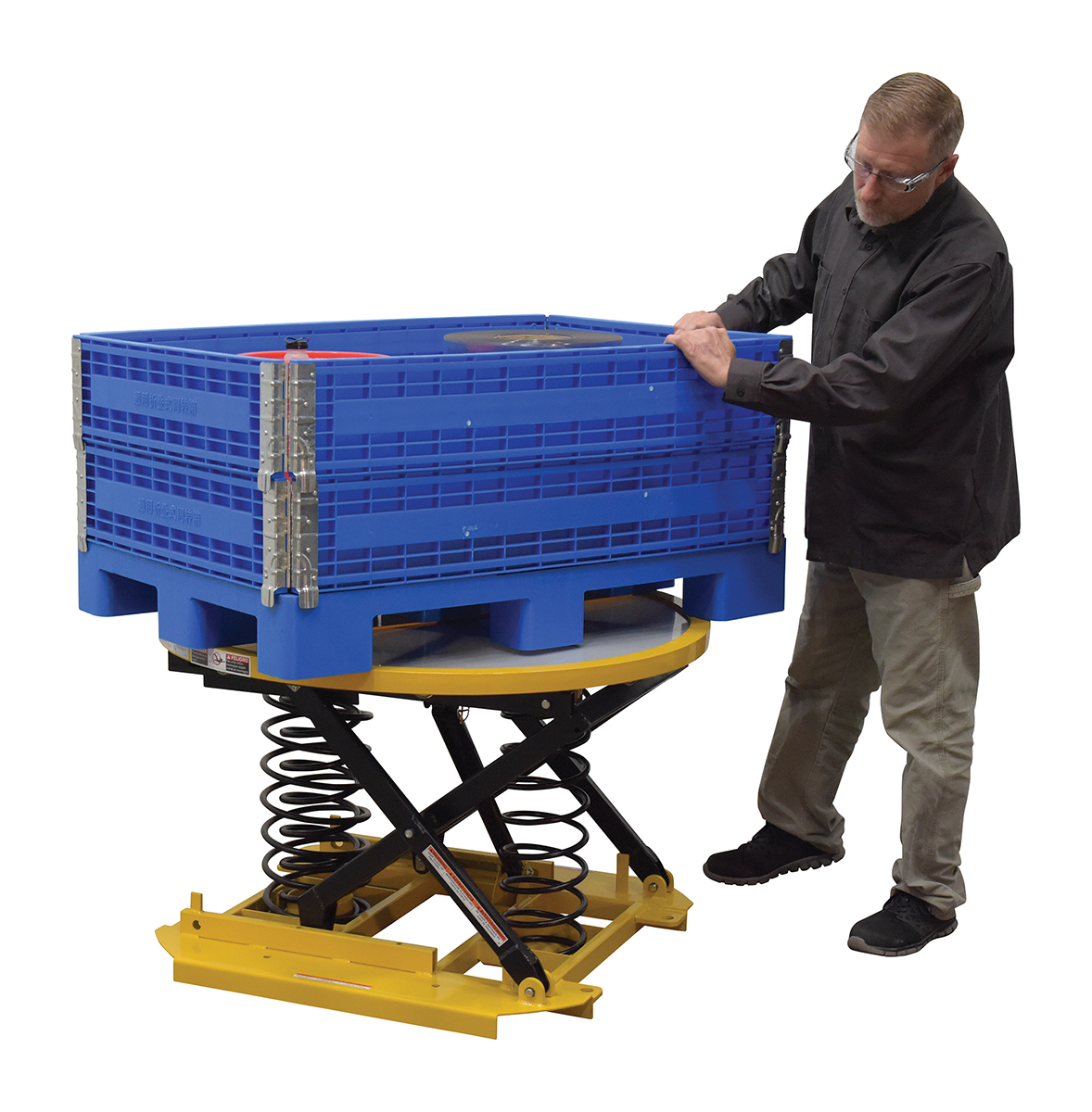

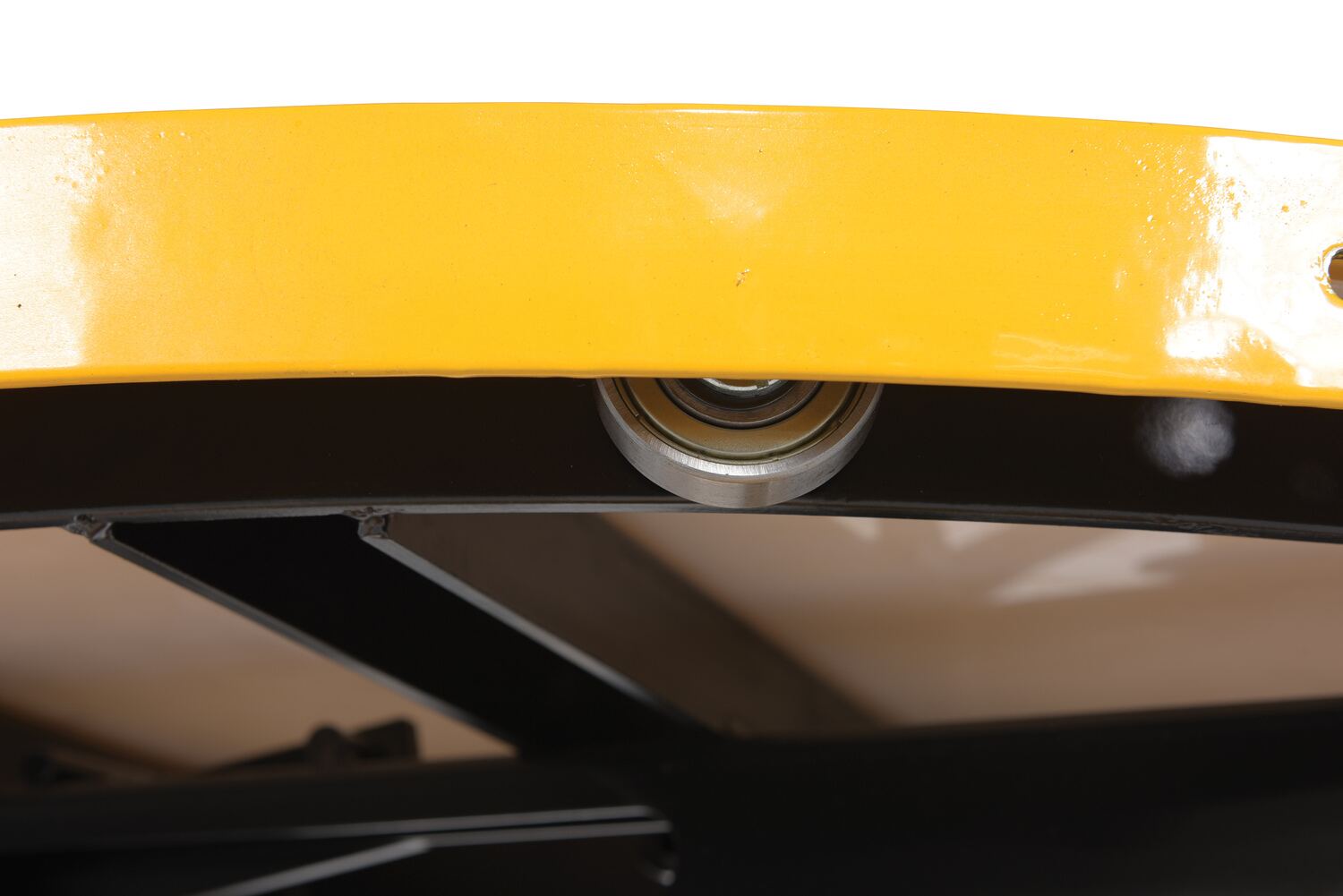

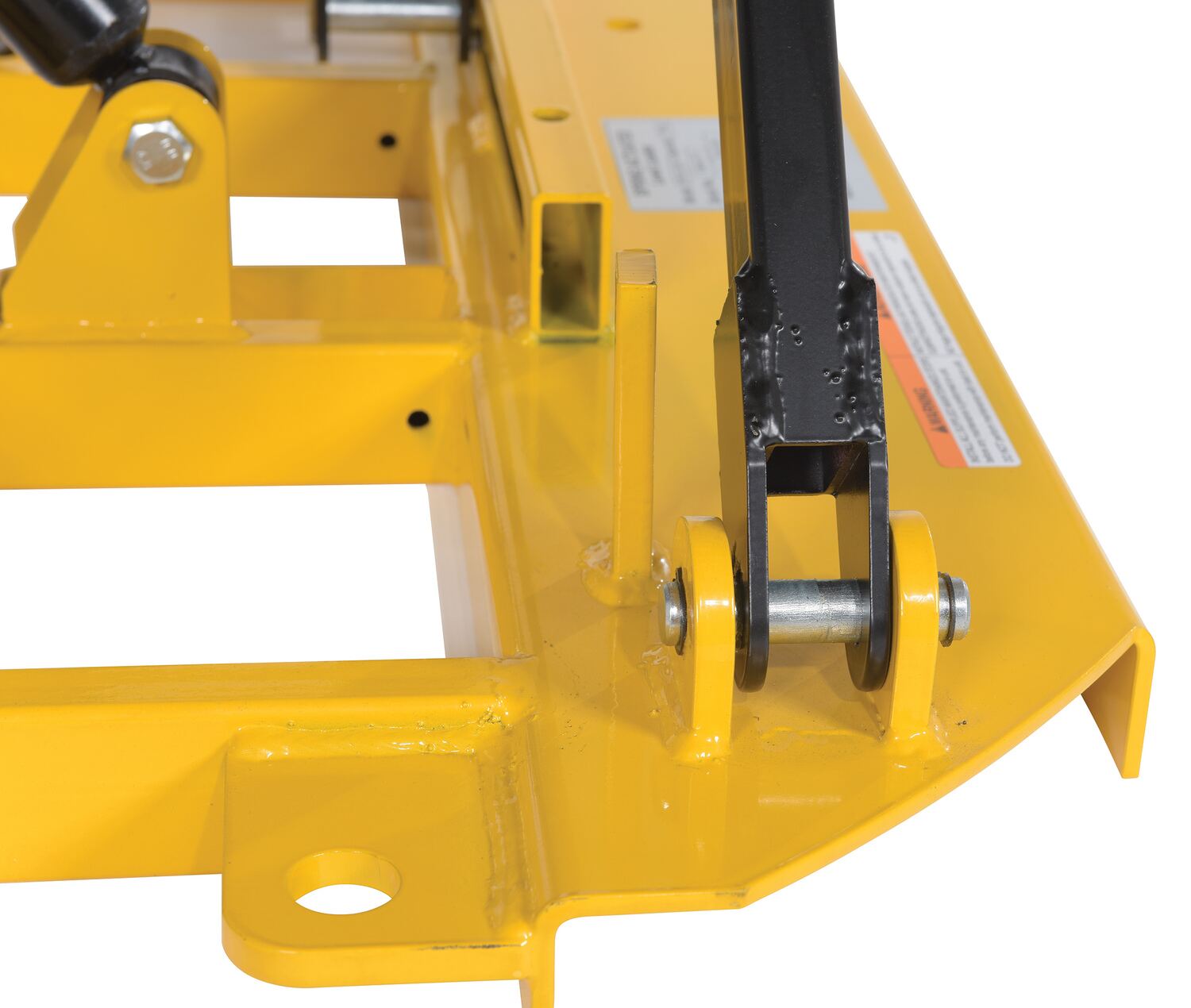

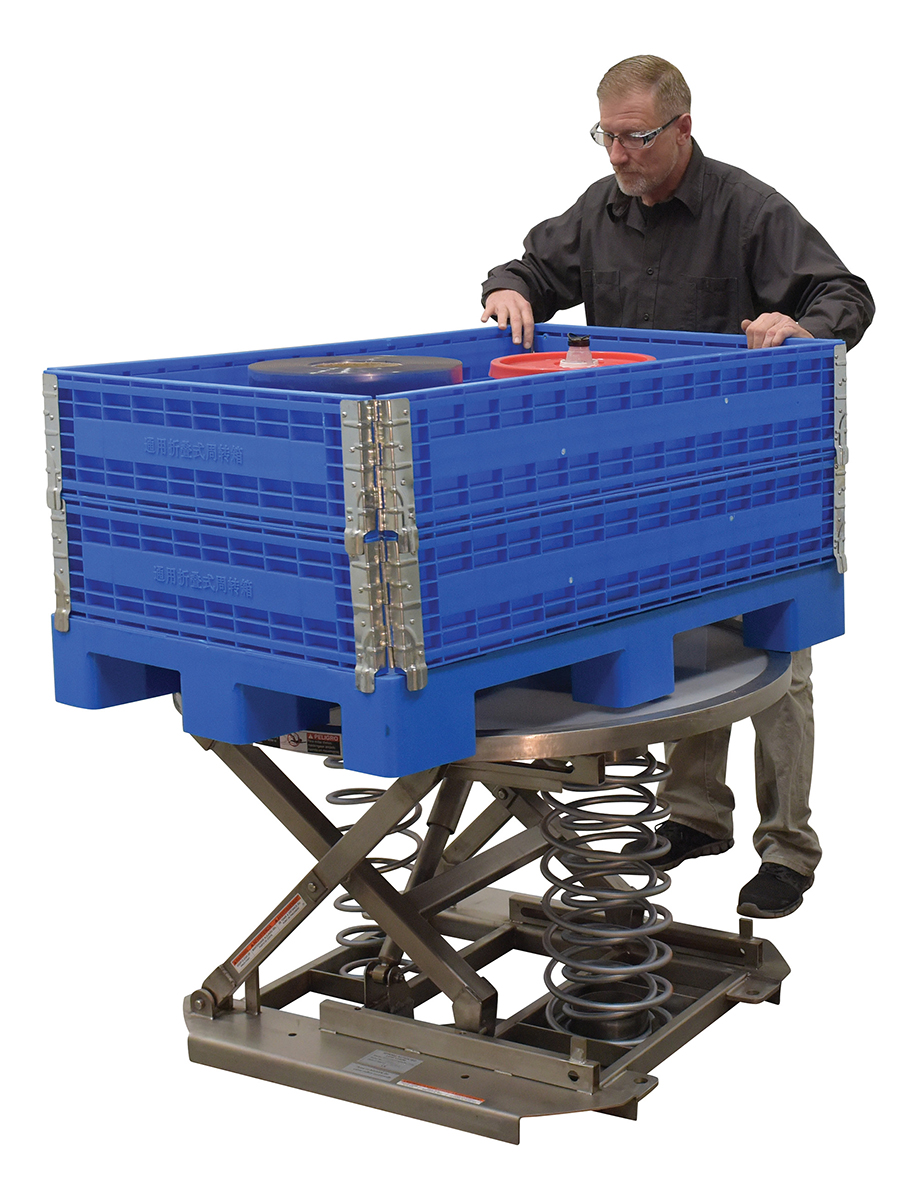

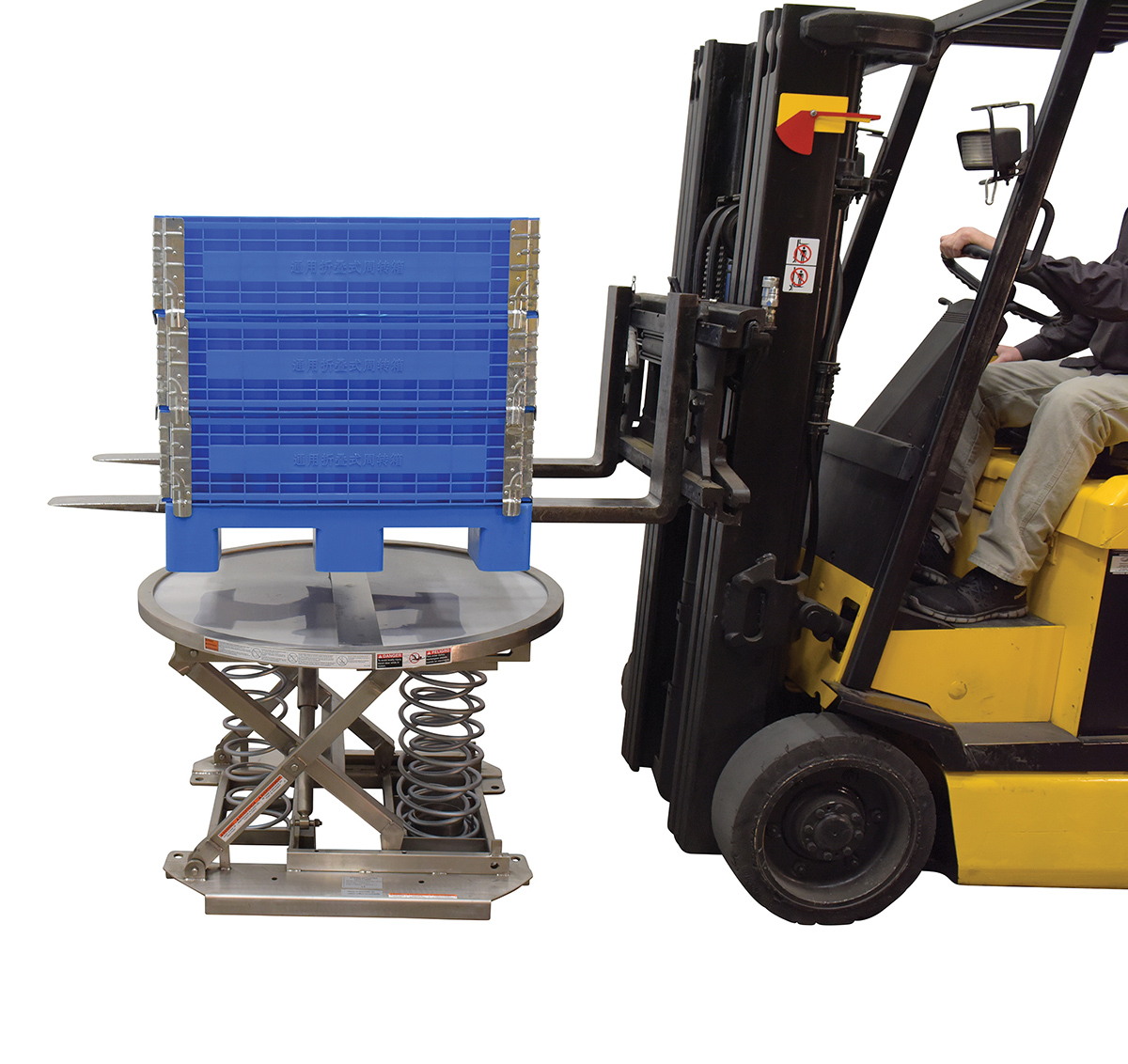

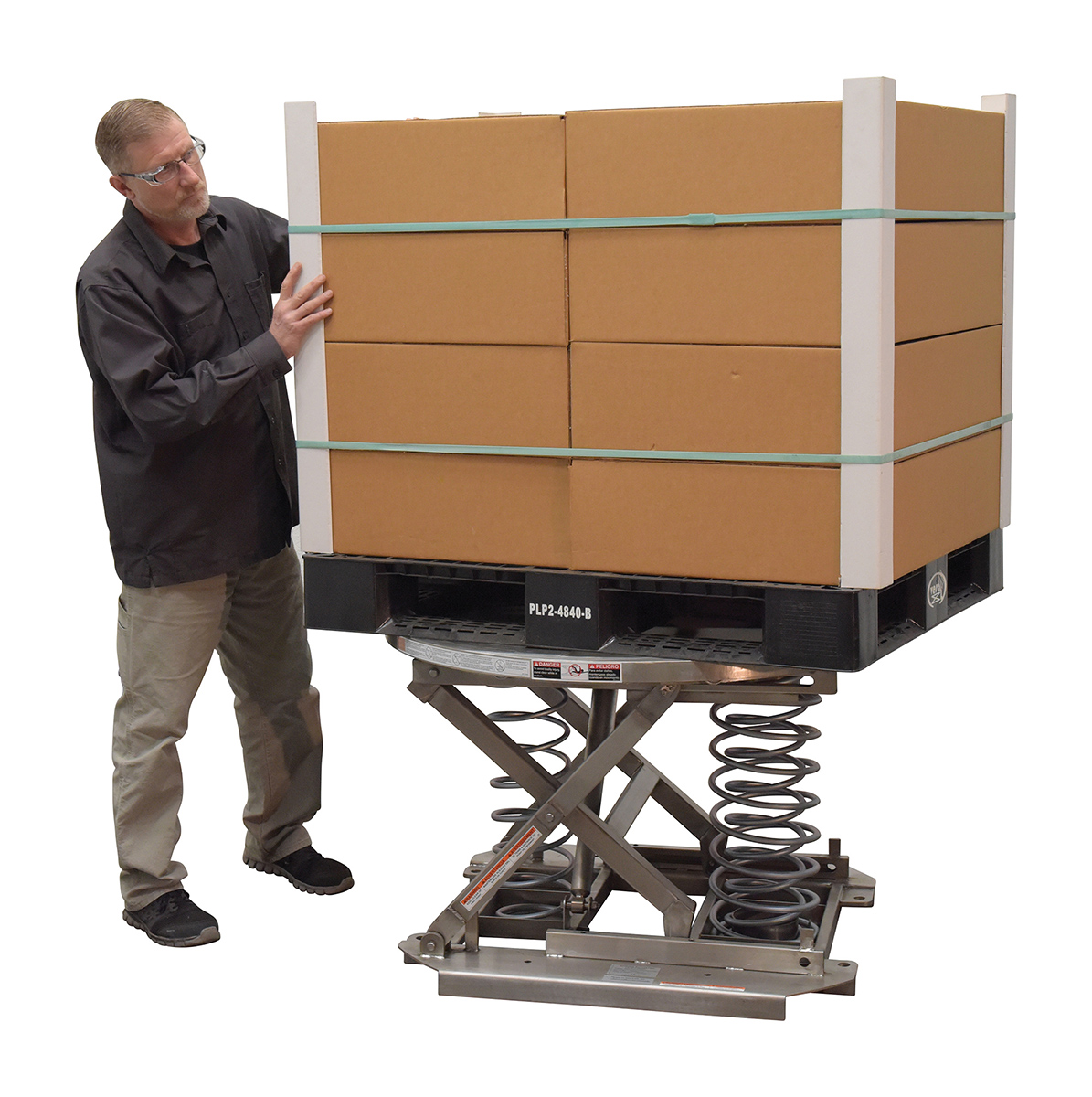

The Spring Scissor Table is ideal for distributing and shipping facilities. The unit allows the user to transfer products from work space to work space, while holding an ergonomically friendly position. The frame is designed of a steel construction, which allows for strength and durability. Uniform capacity is 400 to 4,500 pounds. The scissor mechanism raises the unit to the desired height, while the internal spring provides support when unit is being loaded and unloaded. Service range is 9" to 27-3/4". The 43-5/8" diameter top can be manually rotated 360 degrees for improved packaging and handling capabilities. Base size measures 36"W x 36-3/4"L with 6-3/4"W x 1-1/2"H fork pockets. Caster kit option available.

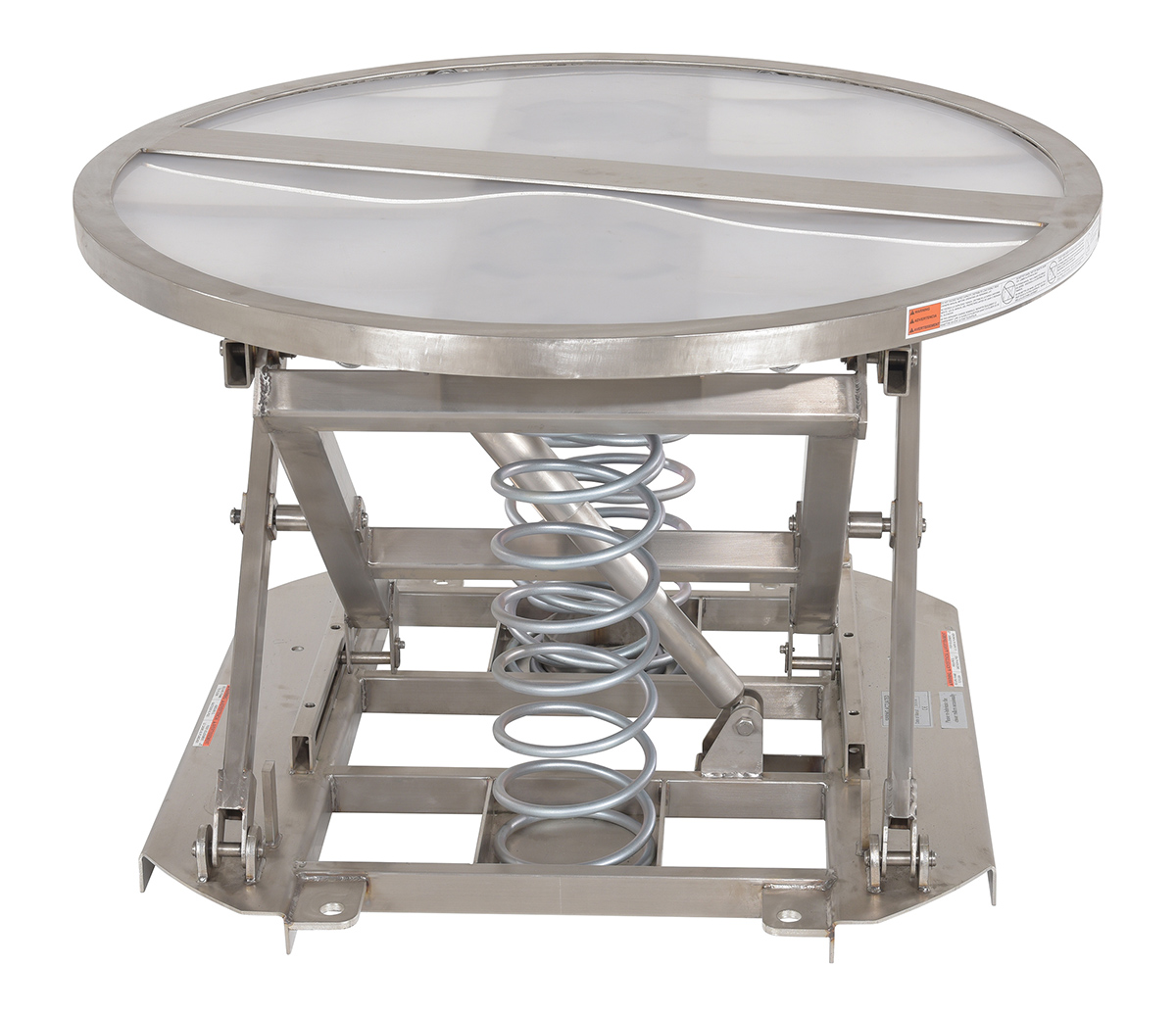

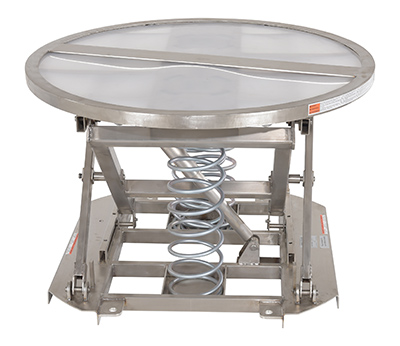

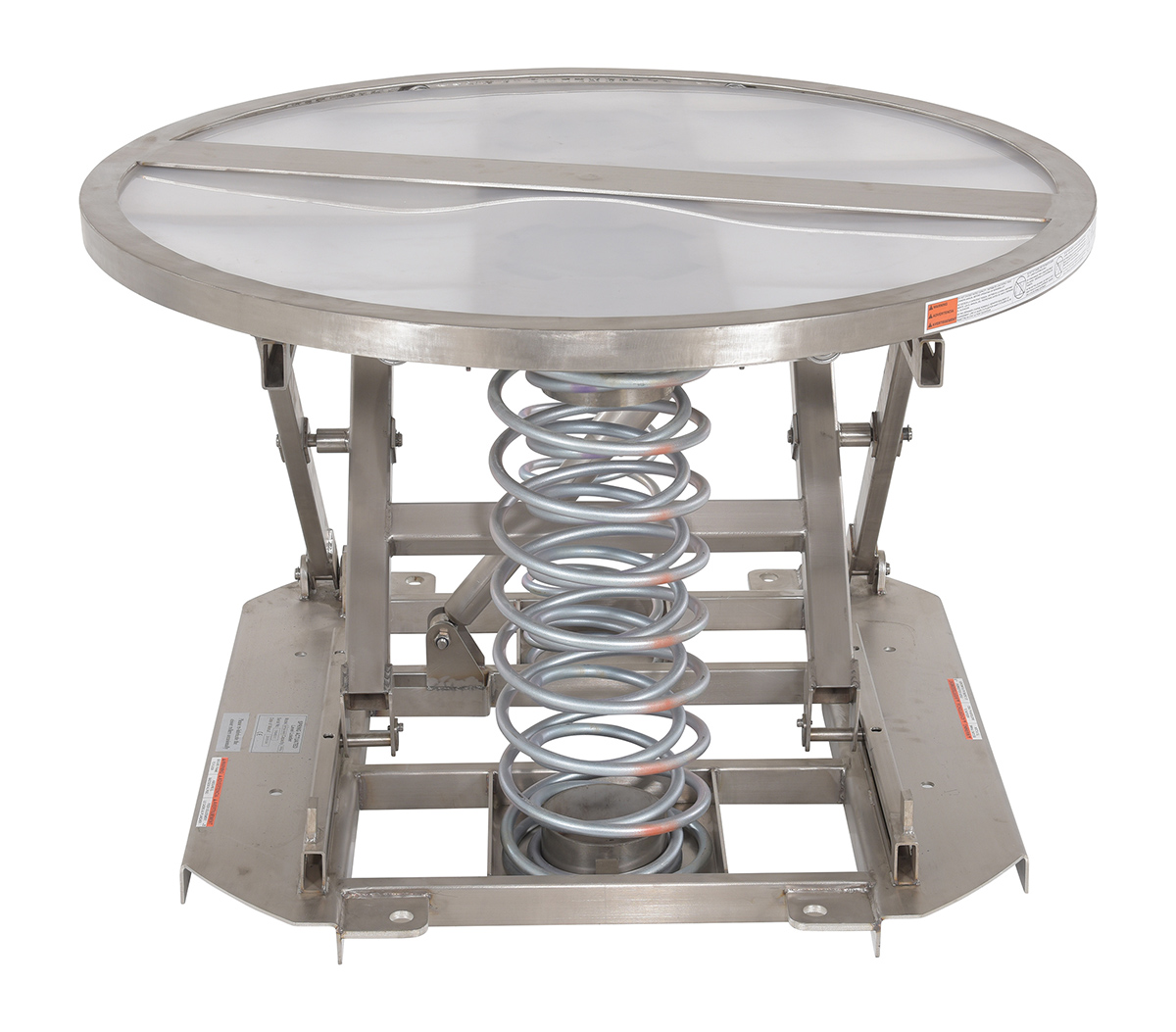

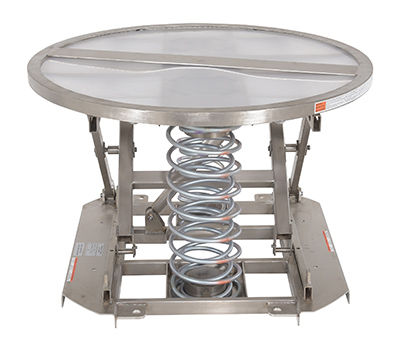

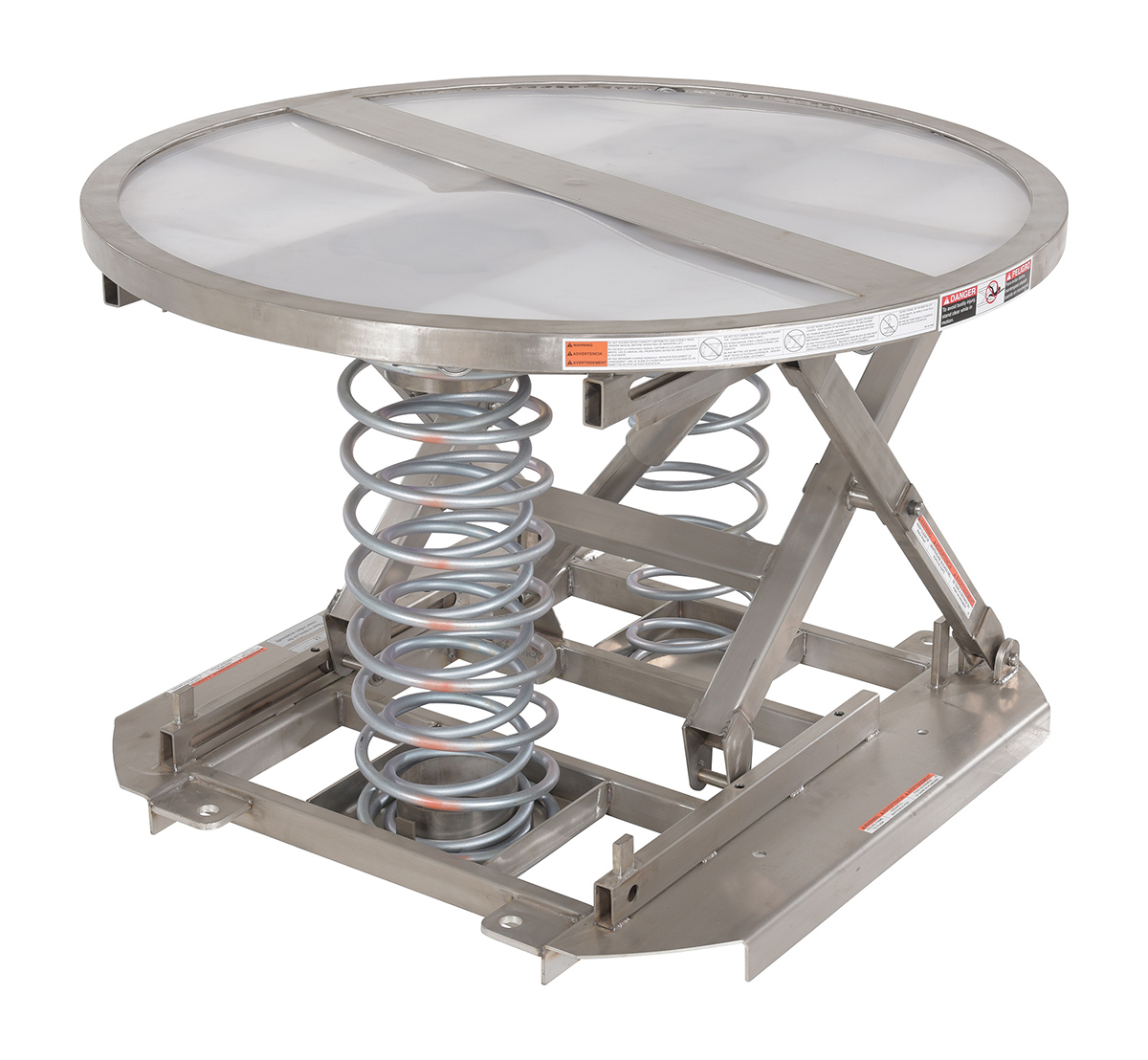

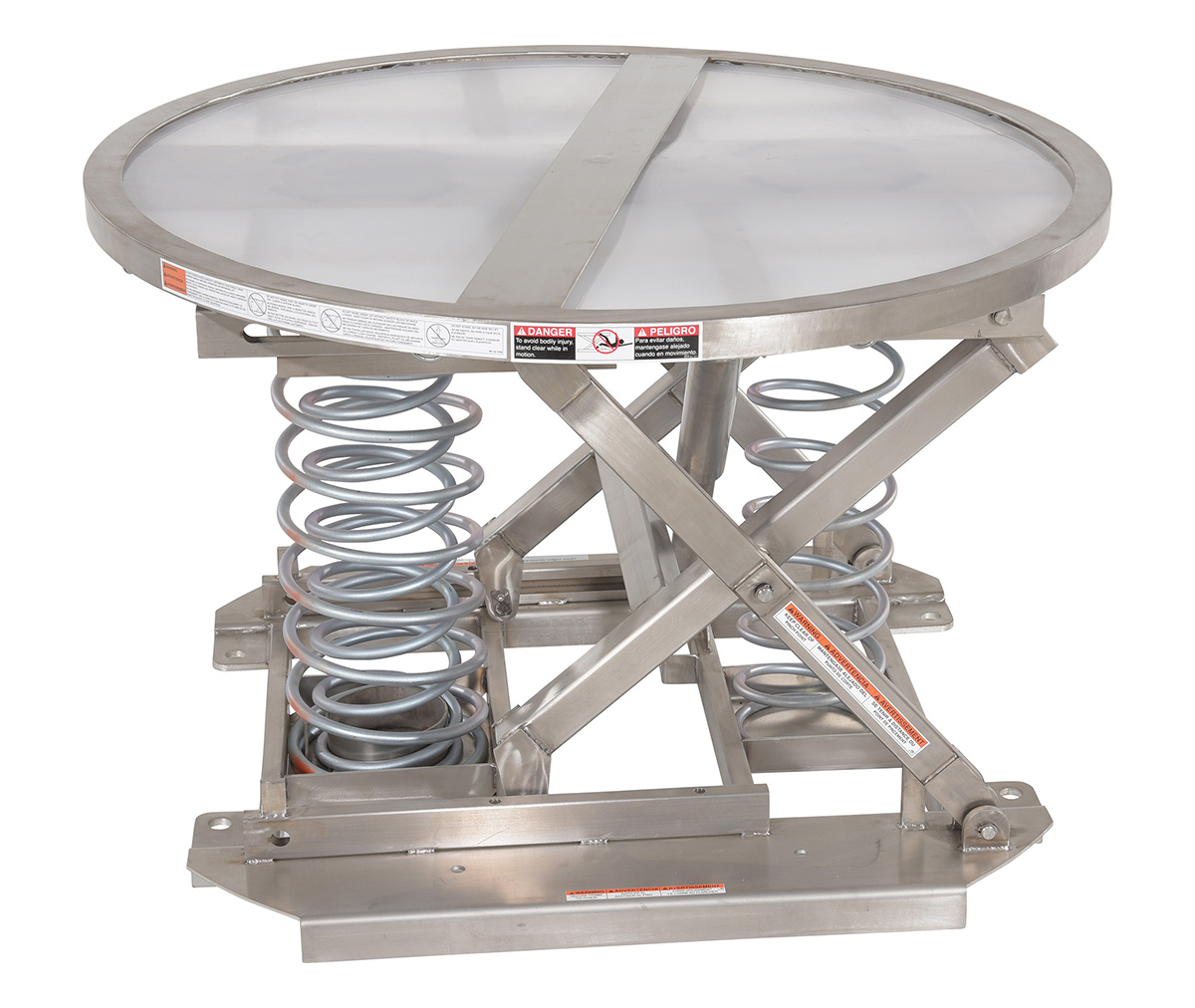

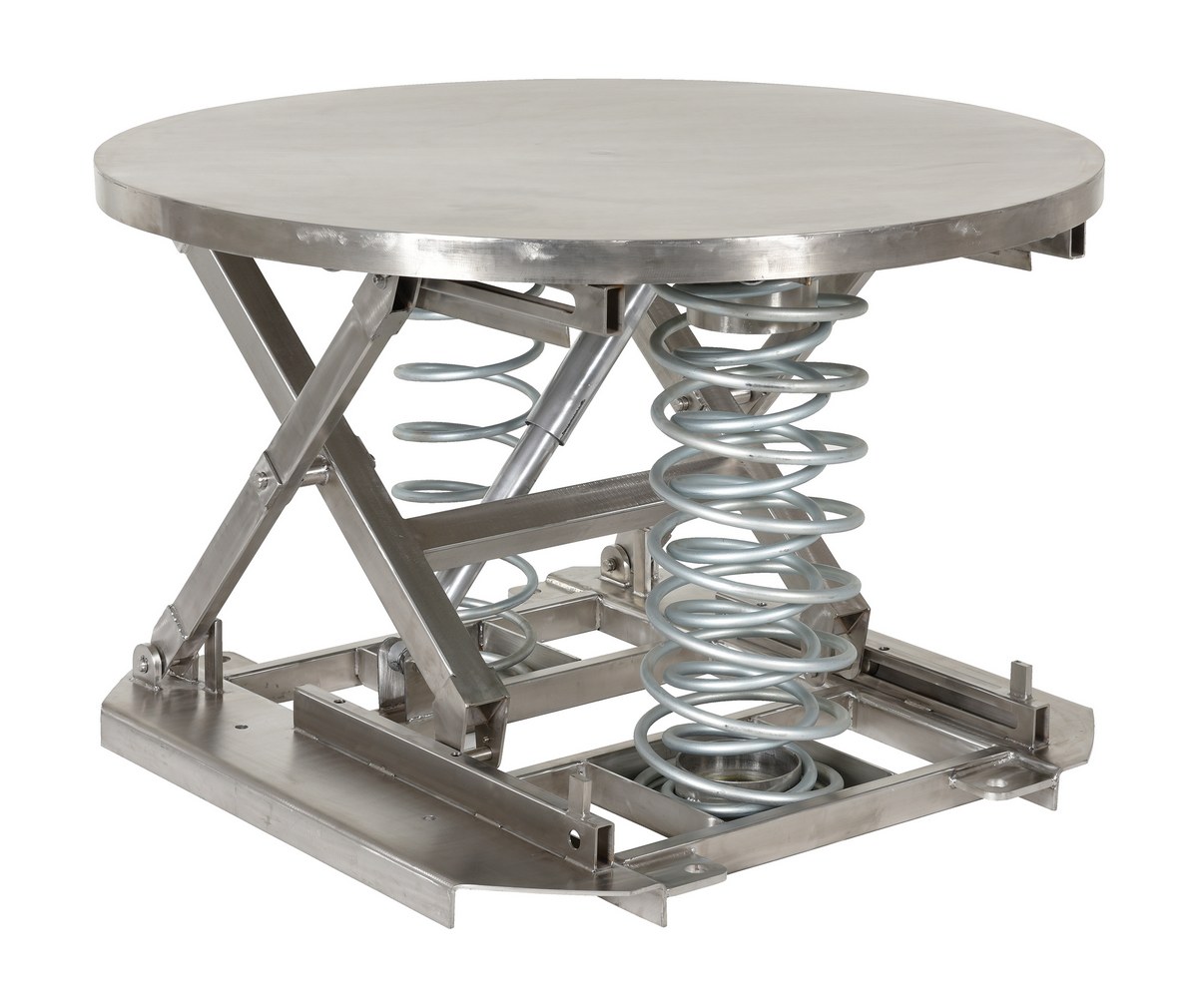

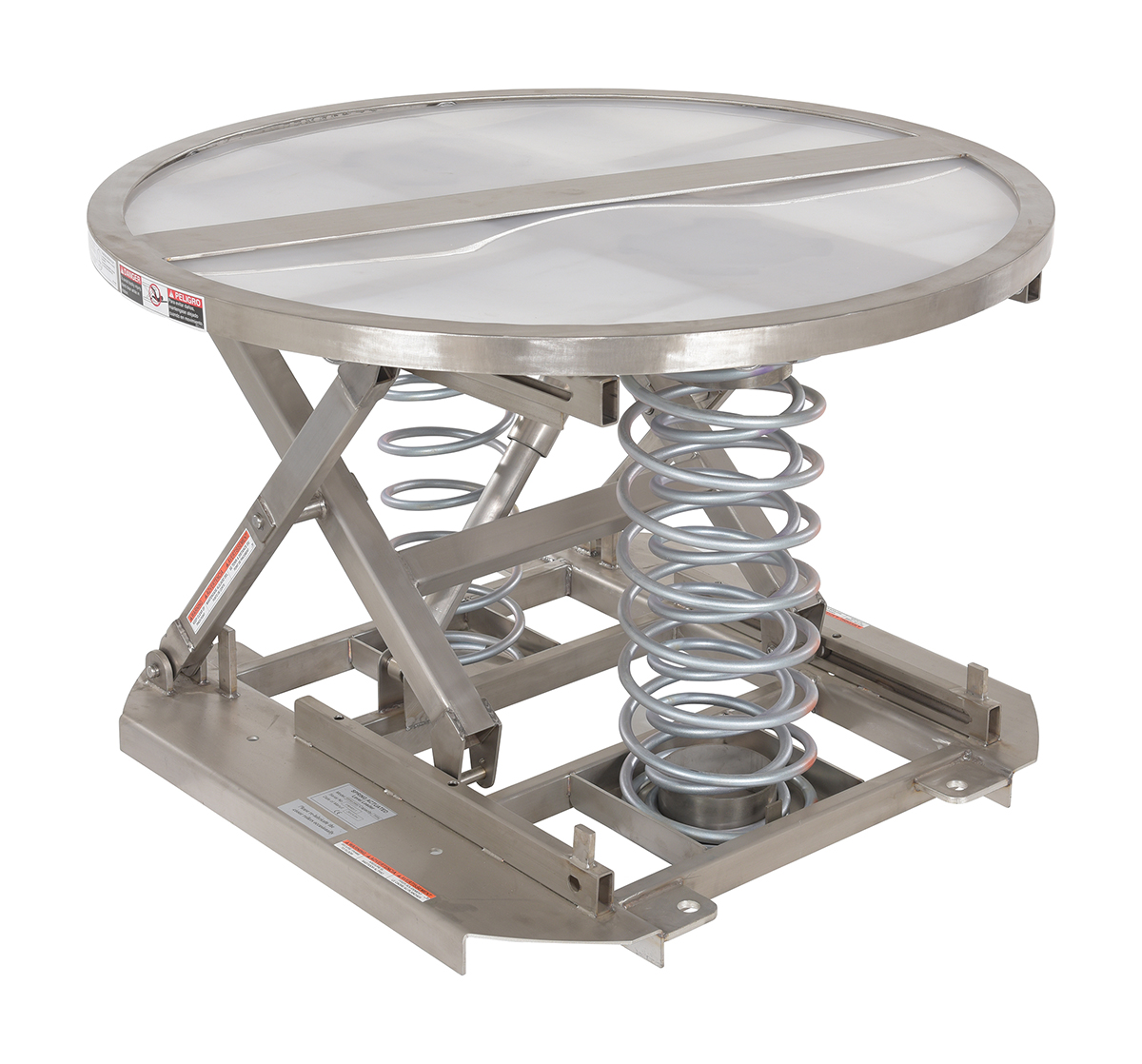

Model SST-45-PSS is constructed of a partially stainless steel base frame, top turn table & legs. Model SST-45-PSS-ST is constructed of a partially stainless steel as the model above however a solid top.

The Spring Scissor Table is ideal for distributing and shipping facilities. The unit allows the user to transfer products from work space to work space, while holding an ergonomically friendly position. The frame is designed of a steel construction, which allows for strength and durability. Uniform capacity is 400 to 4,500 pounds. The scissor mechanism raises the unit to the desired height, while the internal spring provides support when unit is being loaded and unloaded. Service range is 9" to 27-3/4". The 43-5/8" diameter top can be manually rotated 360 degrees for improved packaging and handling capabilities. Base size measures 36"W x 36-3/4"L with 6-3/4"W x 1-1/2"H fork pockets. Caster kit option available.

Model SST-45-PSS is constructed of a partially stainless steel base frame, top turn table & legs. Model SST-45-PSS-ST is constructed of a partially stainless steel as the model above however a solid top.

Other Self-Elevating Tables

 Spring Scissor Tables Self-Elevating Spring Tables Auto-Hite Carts

Additional Models In This Family
view entire Image Gallery

SST-45-ST

SST-45-ST

SST-45-CK-GFN

SST-45-CK-GFN

SST-45-ST

SST-45-ST

SST-45-CK-GFN

SST-45-CK-GFN

SST-45

SST-45

SST-45-PSS-ST

SST-45-PSS-ST

SST-45-PSS

SST-45-PSS

SST-45-CK-GFN

SST-45-CK-GFN

SST-45-PSS-ST

SST-45-PSS-ST

SST-45-ST

SST-45-ST

SST-45

SST-45

SST-45-CK-GFN

SST-45-CK-GFN

SST-45-CK-GFN

SST-45-CK-GFN

SST-45-PSS-ST

SST-45-PSS-ST

SST-45-ST

SST-45-ST

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

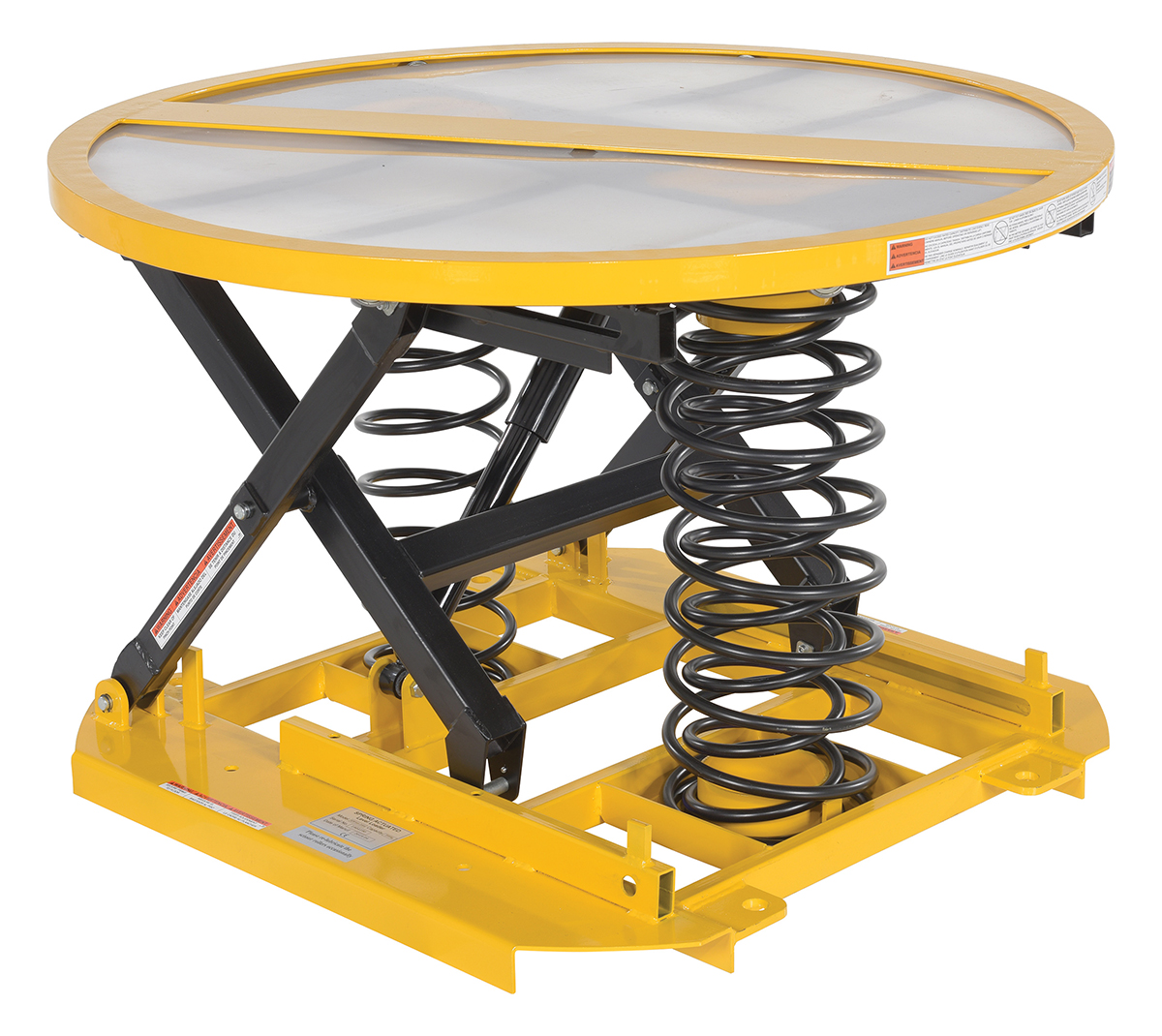

SST-45 SST-451 Year Limited WarrantySteel Spring Scissor Table 4,500 Lb. Capacity Black / YellowUniform Capacity (lb.): 400 to 4500
Platform Diameter (in.): 43-5/8		432
SST-45-ACC-4-CI
SST-45-ACC-4-CI90 Days Limited WarrantySST-45 With Vinyl Accordion Skirt Field Installed Black / YellowAttachment Method: Velcro Strips and straps
404
SST-45-ACC-4-FI

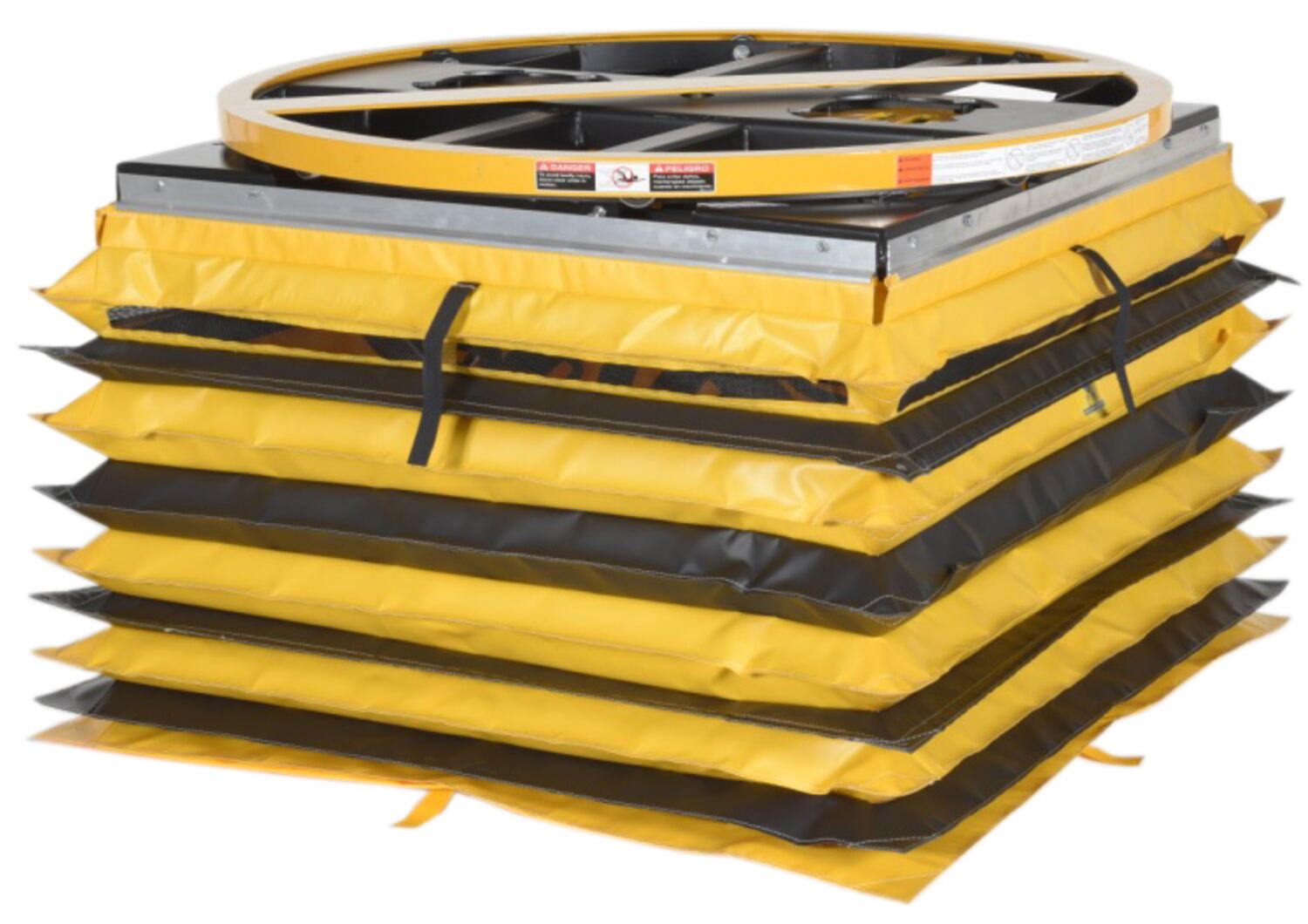

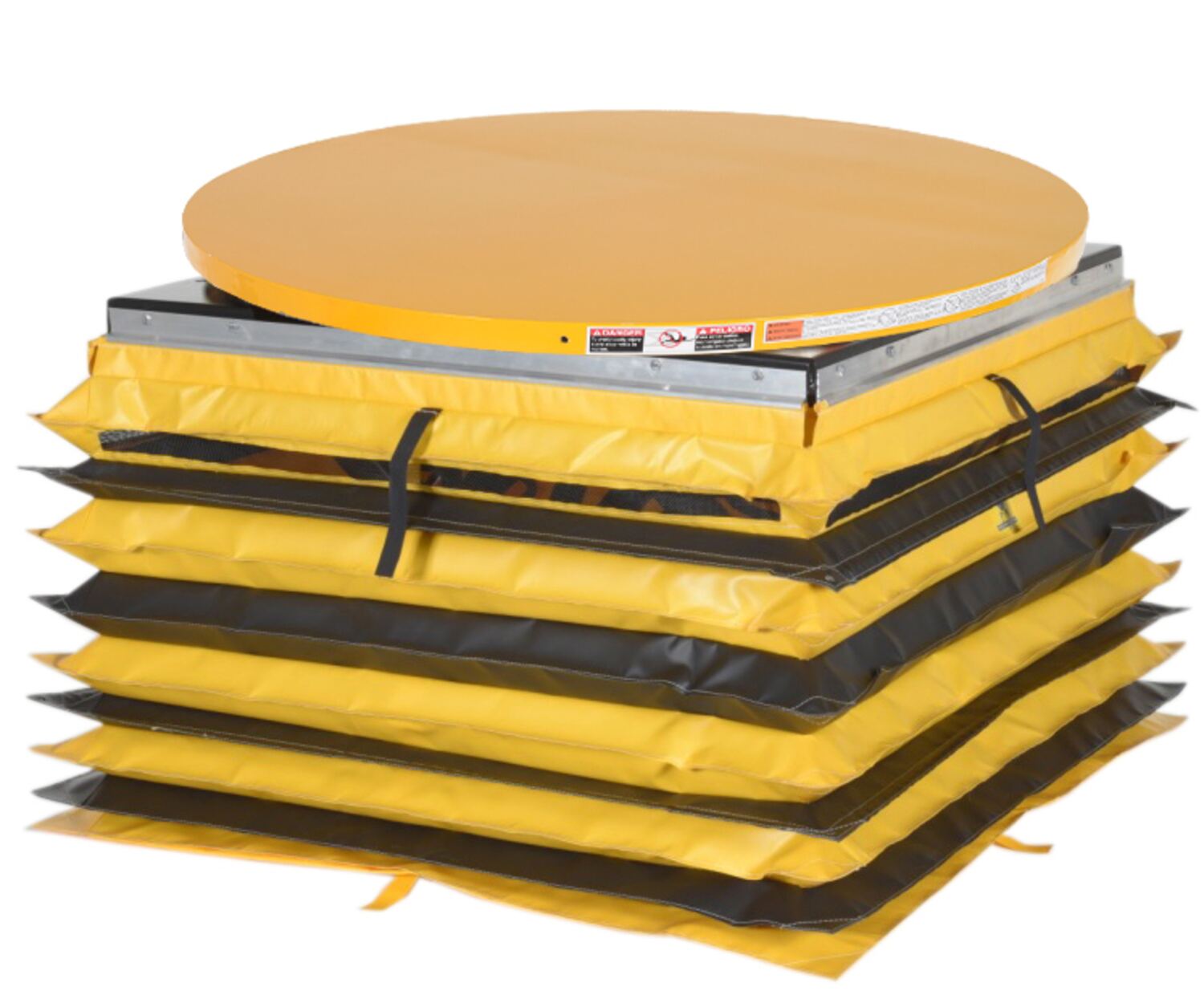

SST-45-ACC-4-FI90 Days Limited WarrantySST-45 With Factory Installed Vinyl Accordion Skirt Black / YellowAttachment Method: Factory Installed
404
SST-45-PSS SST-45-PSS1 Year Limited WarrantyPartially Stainless Steel Open Top Spring Scissor Table 4,500 Lb. Capacity SilverUniform Capacity (lb.): 400 to 4500
Platform Diameter (in.): 43-5/8		432
SST-45-PSS-ST SST-45-PSS-ST1 Year Limited WarrantyPartially Stainless Steel Solid Top Spring Scissor Table 4,500 Lb. Capacity SilverUniform Capacity (lb.): 400 to 4500
Platform Diameter (in.): 43-5/8		432

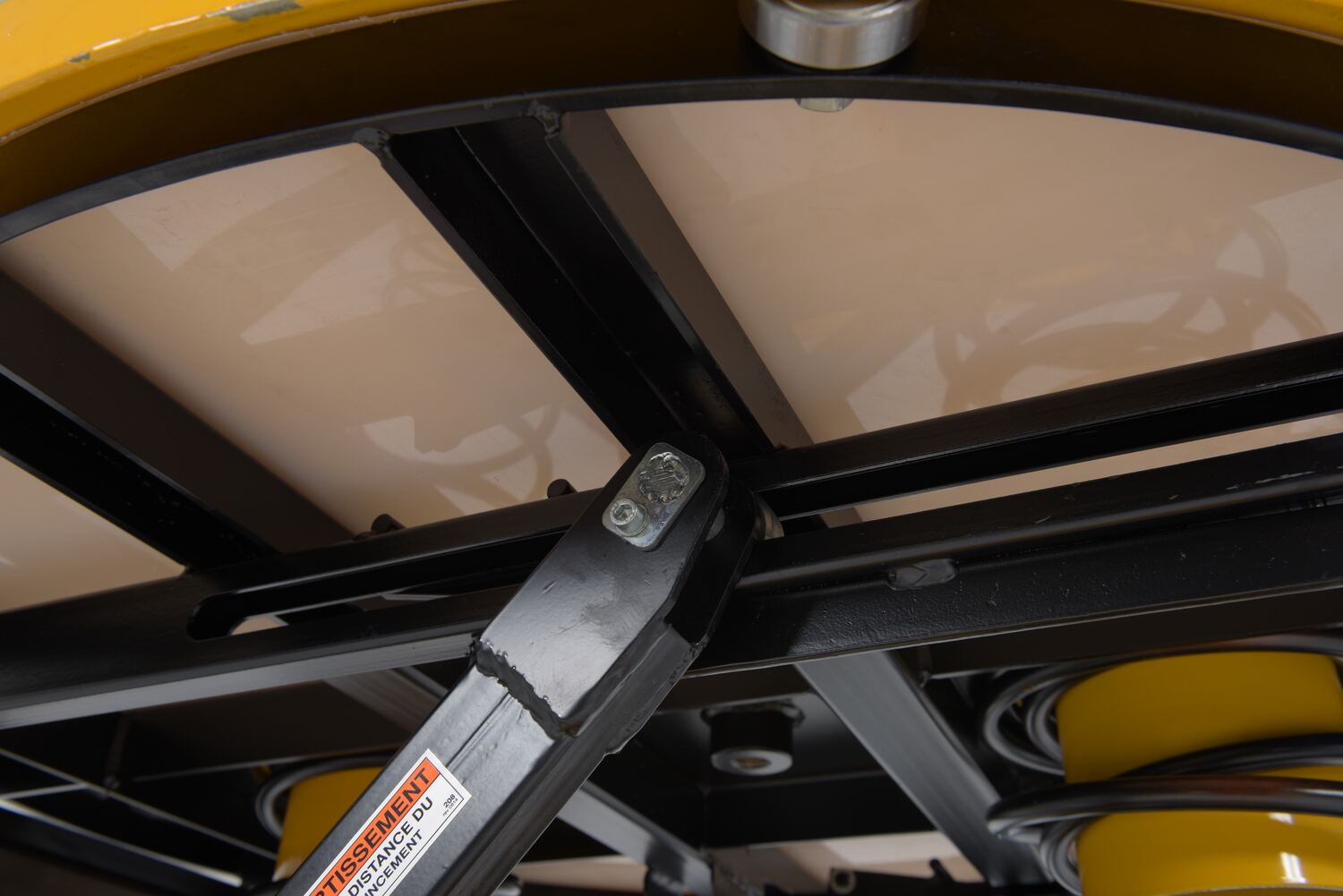

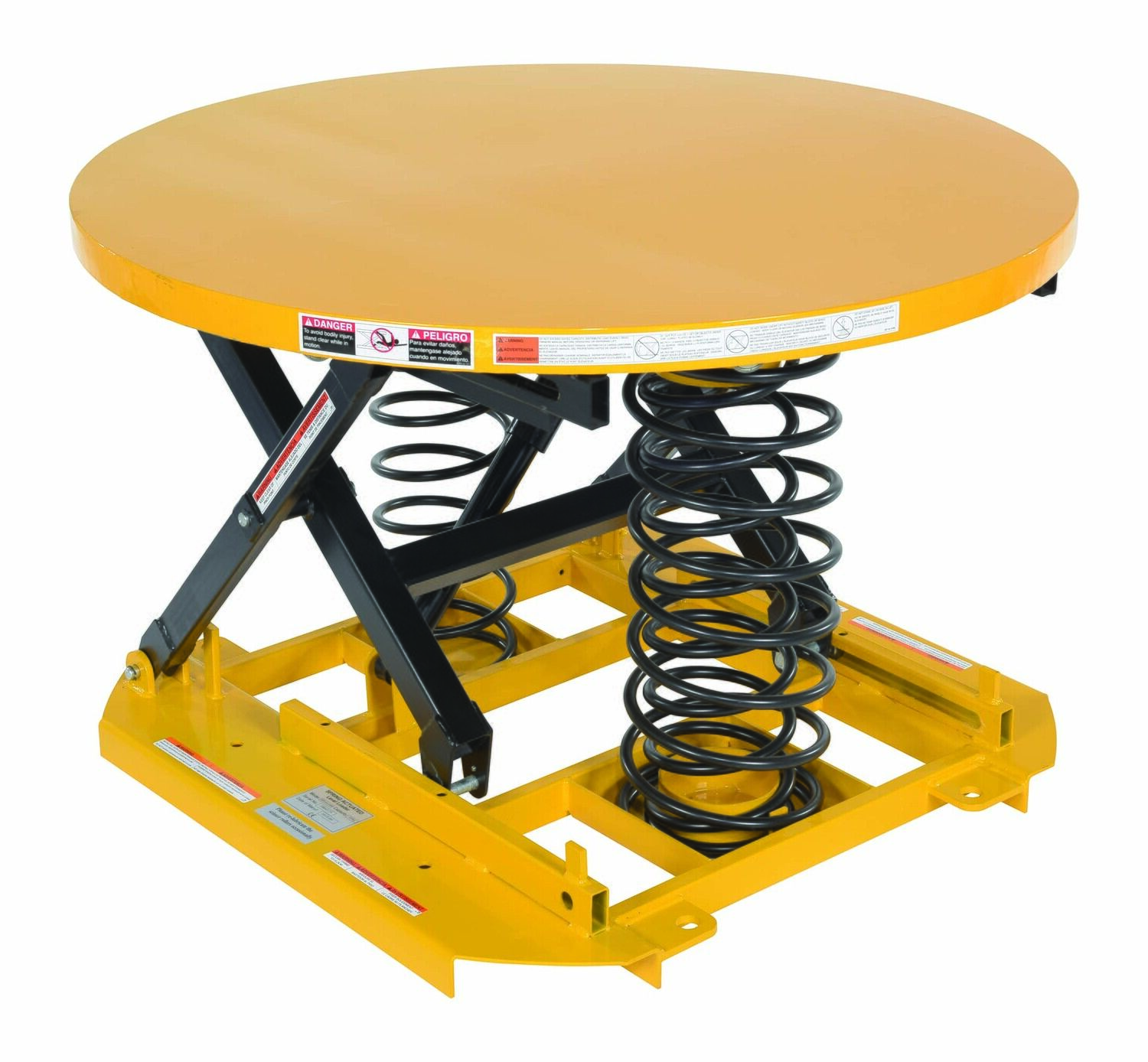

SST-45-ST SST-45-ST1 Year Limited WarrantySteel Top Spring Scissor Table 4,500 Lb. Capacity Black / YellowUniform Capacity (lb.): 400 to 4500
Platform Diameter (in.): 43-5/8		440

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

SST-45
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 400 to 4500
Platform Diameter (in.): 43-5/8
Uniform Capacity (lb.): 400 to 4500
Platform Diameter (in.): 43-5/8

SST-45-ACC-4-CI
Unit:
Size: W x L x H
Weight:
Limited Warranty
Attachment Method: Velcro Strips and straps

Attachment Method: Velcro Strips and straps

SST-45-ACC-4-FI
Unit:
Size: W x L x H
Weight:
Limited Warranty
Attachment Method: Factory Installed

Attachment Method: Factory Installed

SST-45-PSS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 400 to 4500
Platform Diameter (in.): 43-5/8
Uniform Capacity (lb.): 400 to 4500
Platform Diameter (in.): 43-5/8

SST-45-PSS-ST
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 400 to 4500
Platform Diameter (in.): 43-5/8
Uniform Capacity (lb.): 400 to 4500
Platform Diameter (in.): 43-5/8

SST-45-ST
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 400 to 4500
Platform Diameter (in.): 43-5/8
Uniform Capacity (lb.): 400 to 4500
Platform Diameter (in.): 43-5/8
For More Details of the Option Click the Red Model Button

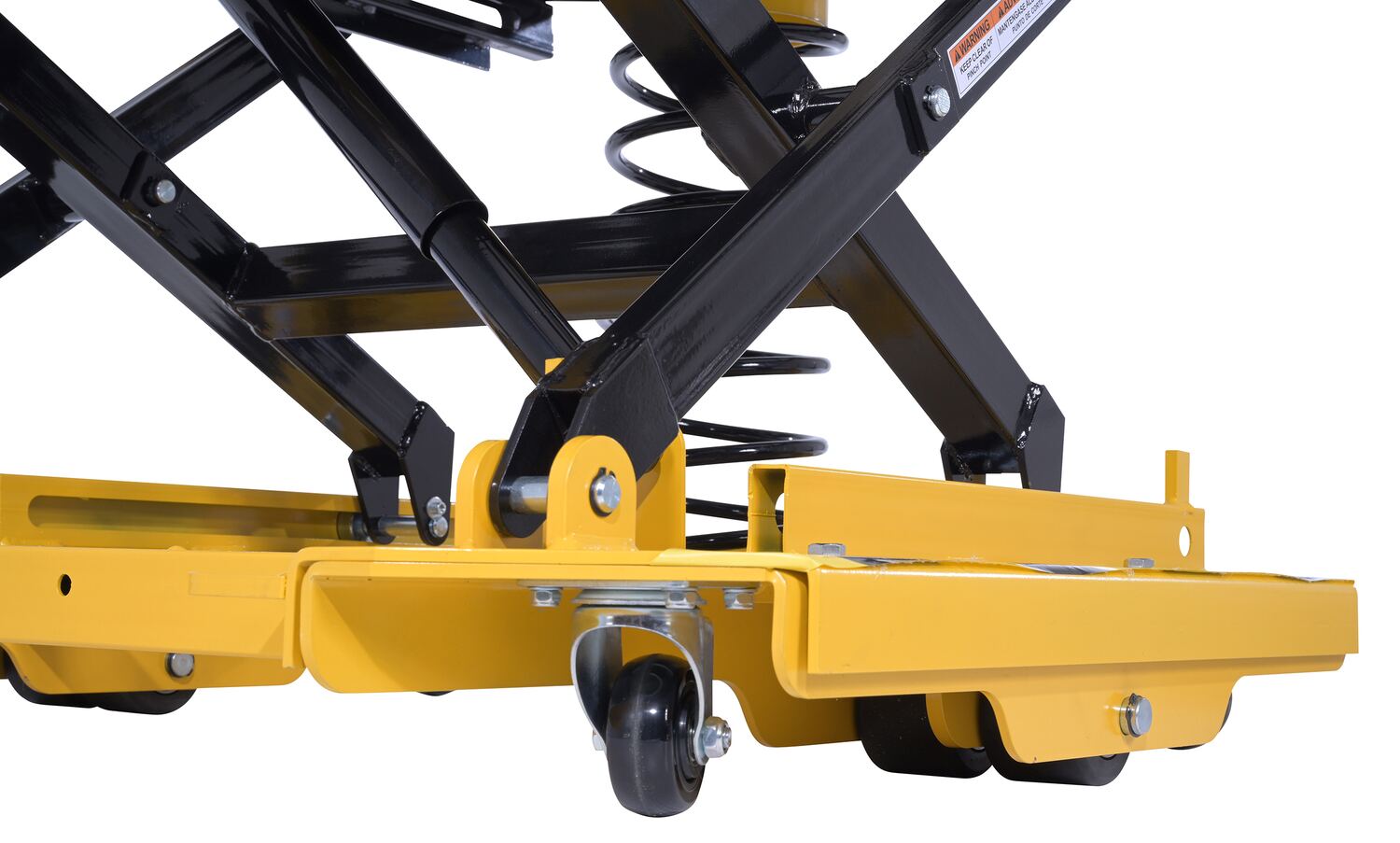

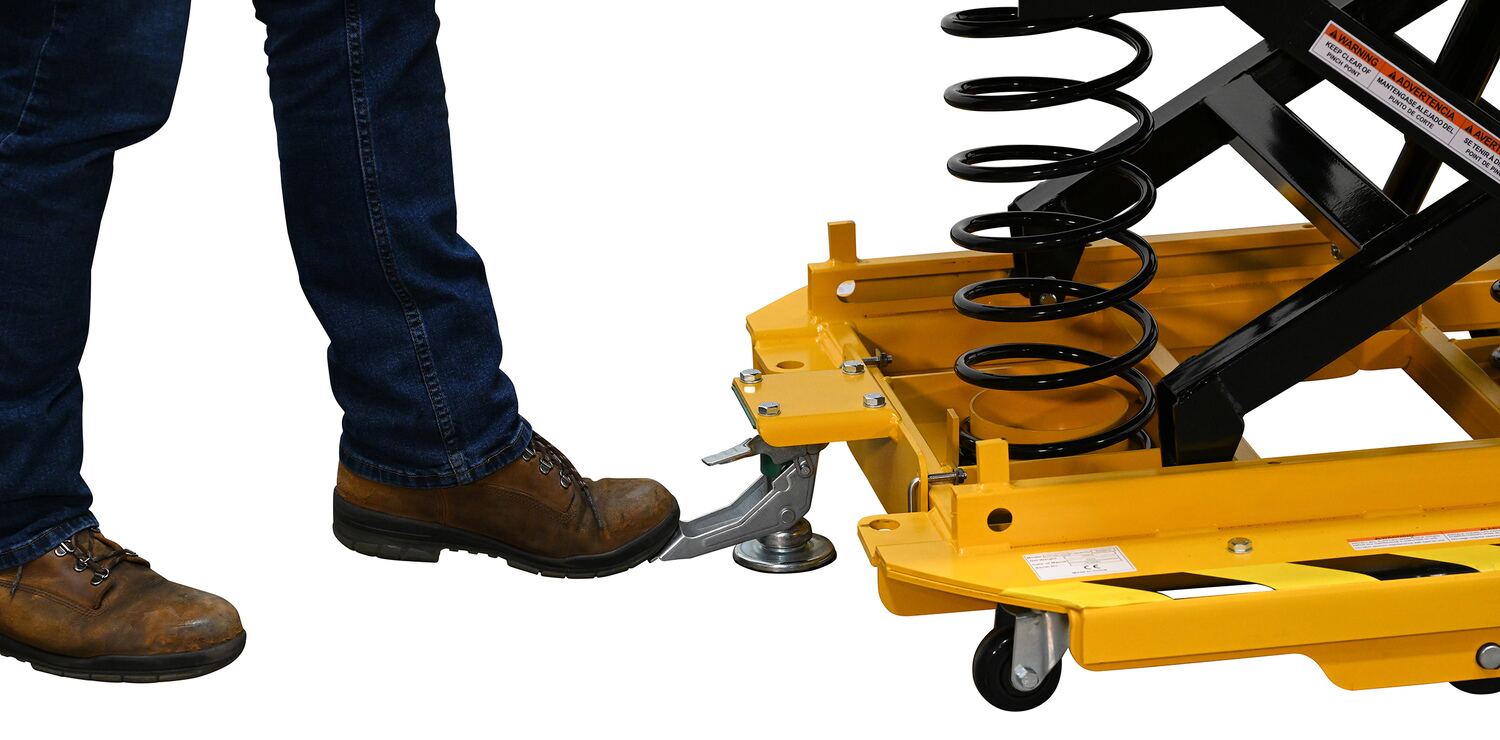

SST-45-CK-GFN NEW SST-45-CK-GFN1 Year Limited WarrantySpring Scissor Table Glass Filled Nylon Caster Kit Option 4,500 Lb. Capacity YellowUniform Capacity (Lbs.): 4500
Caster Type: Glass filled nylon		45

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Spring Scissor Tables PDF's will open in a new window when clicked.

Manuals


SST-45
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


SST-45

SST-45-ACC-4-CI

SST-45-ACC-4-FI

SST-45-CK-GFN

SST-45-PSS

Testing Certificates


SST-45

SST-45-ACC-4-CI

SST-45-ACC-4-FI

SST-45-CK-GFN

SST-45-PSS

SST-45-PSS-ST

SDS Sheets

No SDS Sheets For This Product

Other PDF's


Spring Scissor Table Mailing Brochure

Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: Does the SST-45 have a lock to stop the top from rotating ?

A: We do not have a lock option for the SST products.
