Battery Transfer Platforms| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

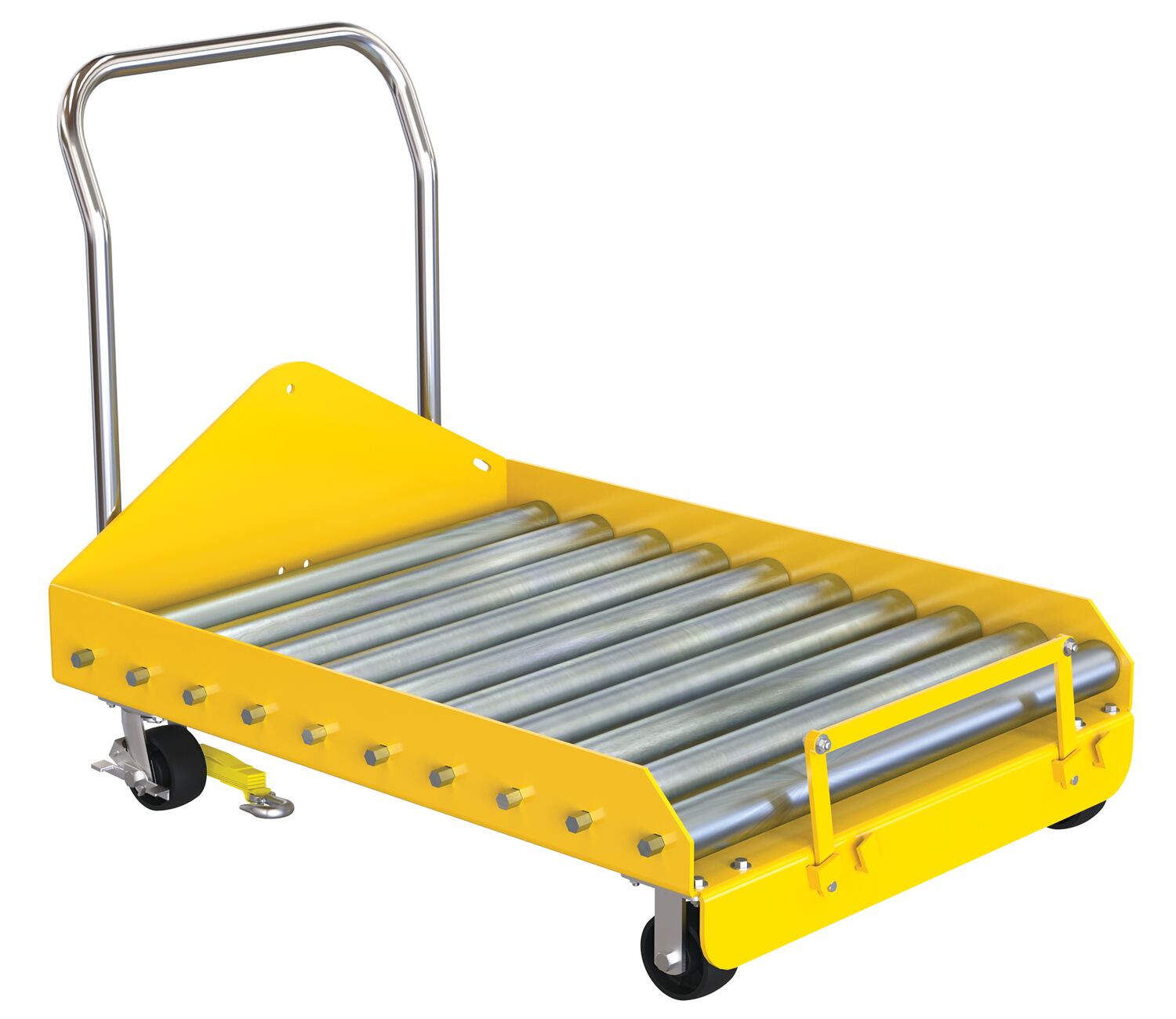

| BTC-CART |  | 90 Days Limited Warranty | Fork Truck Battery Transfer Platforms with Caster 4000 Lb. Capacity Yellow | Uniform Capacity (lb.): 4,000 Usable Width/Length (in.): 31-1/2 x 40-5/16 | 303 | ||

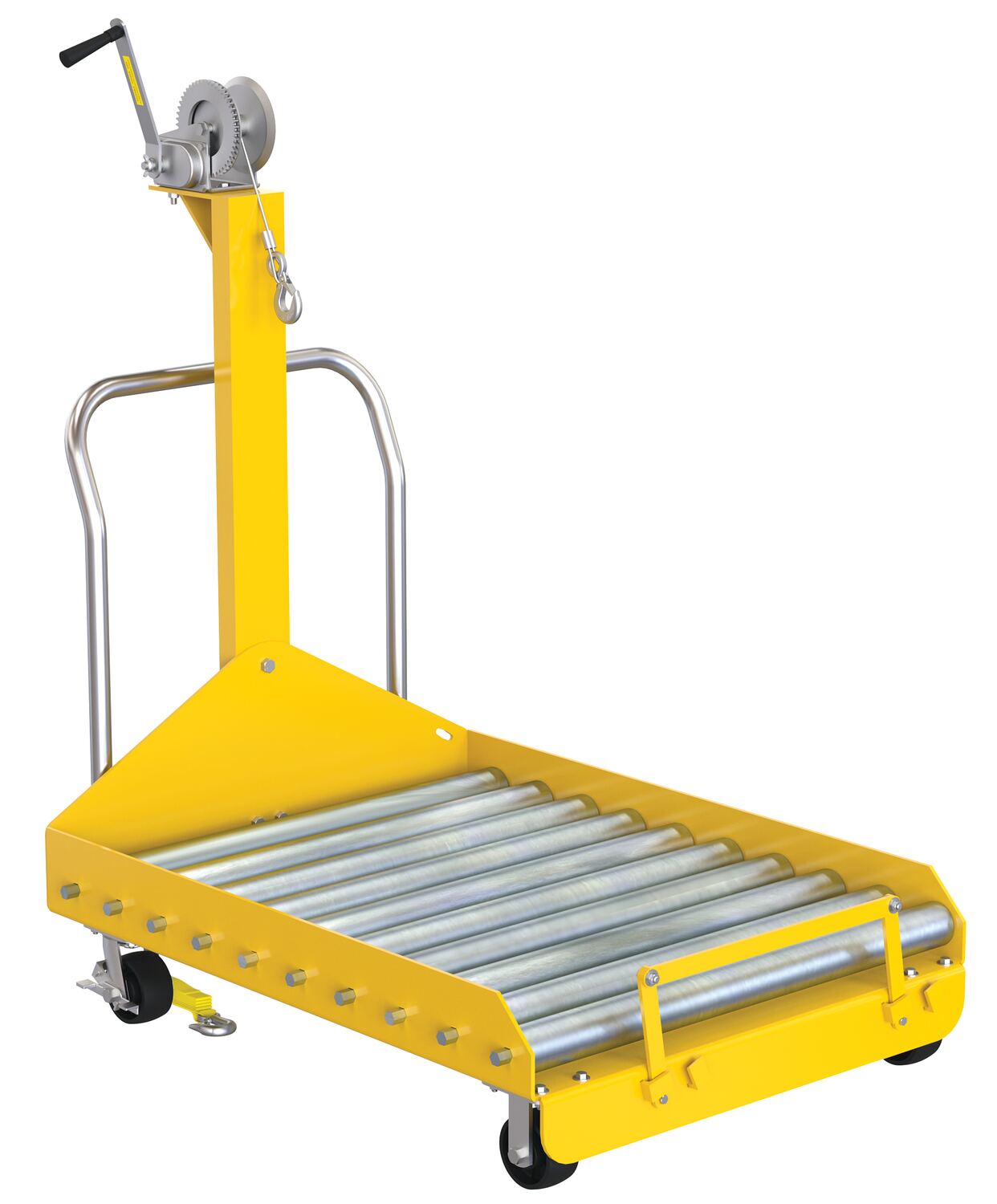

| BTC-CART-WINCH |  | 90 Days Limited Warranty | Fork Truck Battery Transfer Platforms with Winch and Caster 4000 Lb. Capacity Yellow | Uniform Capacity (lb.): 4,000 Usable Width/Length (in.): 31-1/8 x 41 | 334 | ||

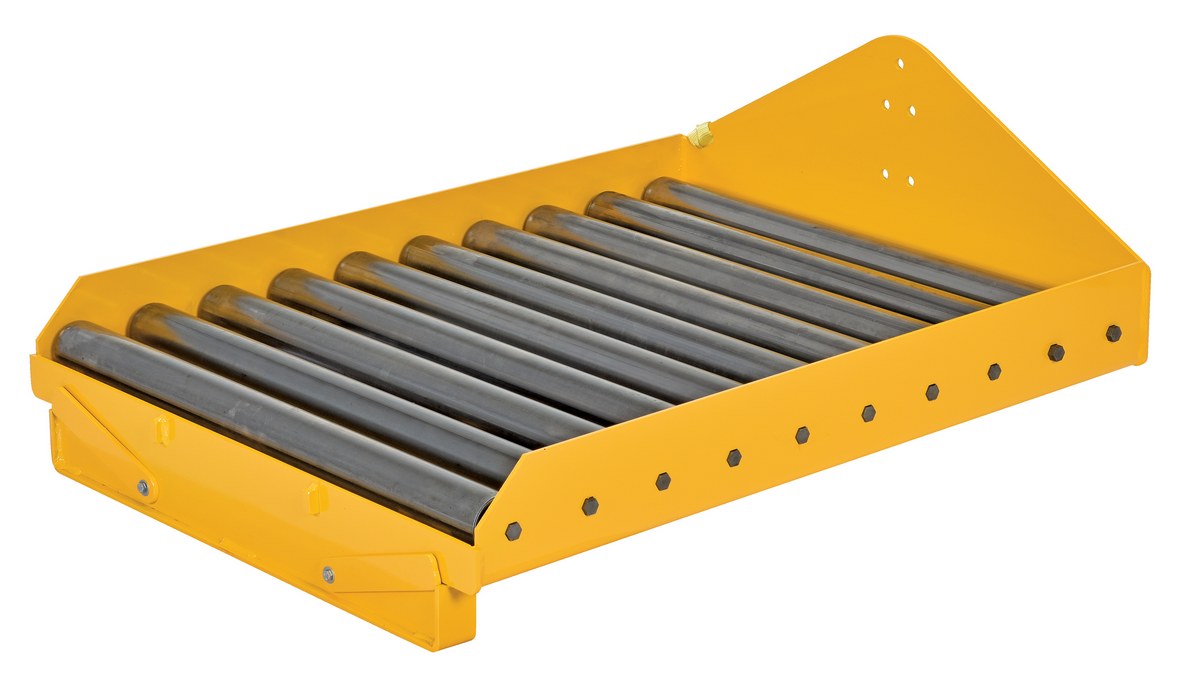

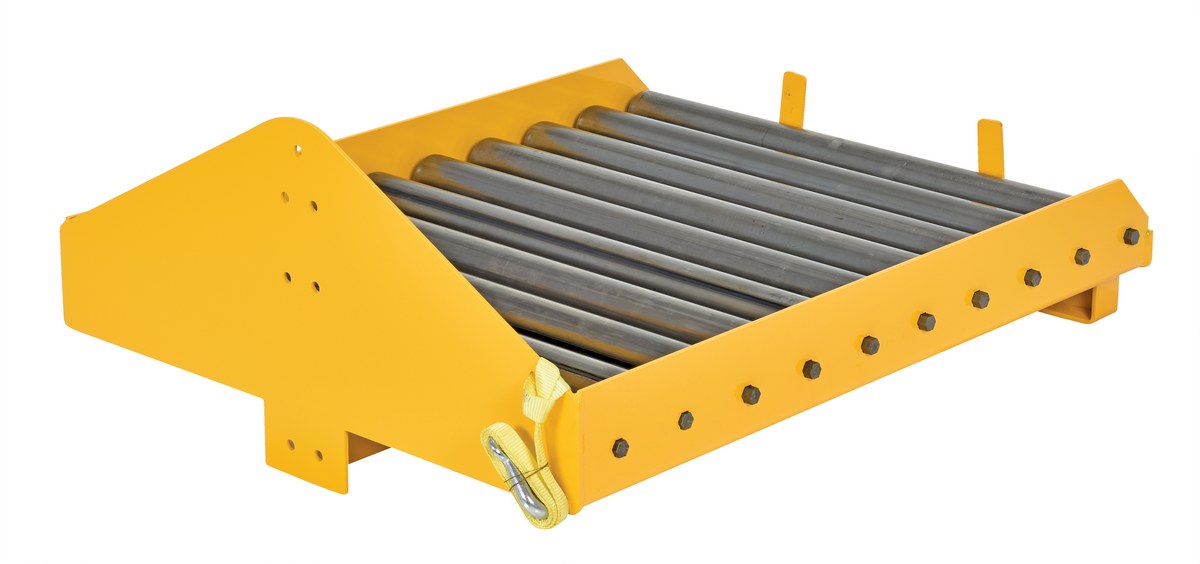

| BTC-PJ |  | 90 Days Limited Warranty | Fork Truck Battery Transfer Platform 4000 Lb. Capacity Yellow | Uniform Capacity (lb.): 4,000 Usable Width/Length (in.): 31-1/2 x 40-5/16 | 276 | ||

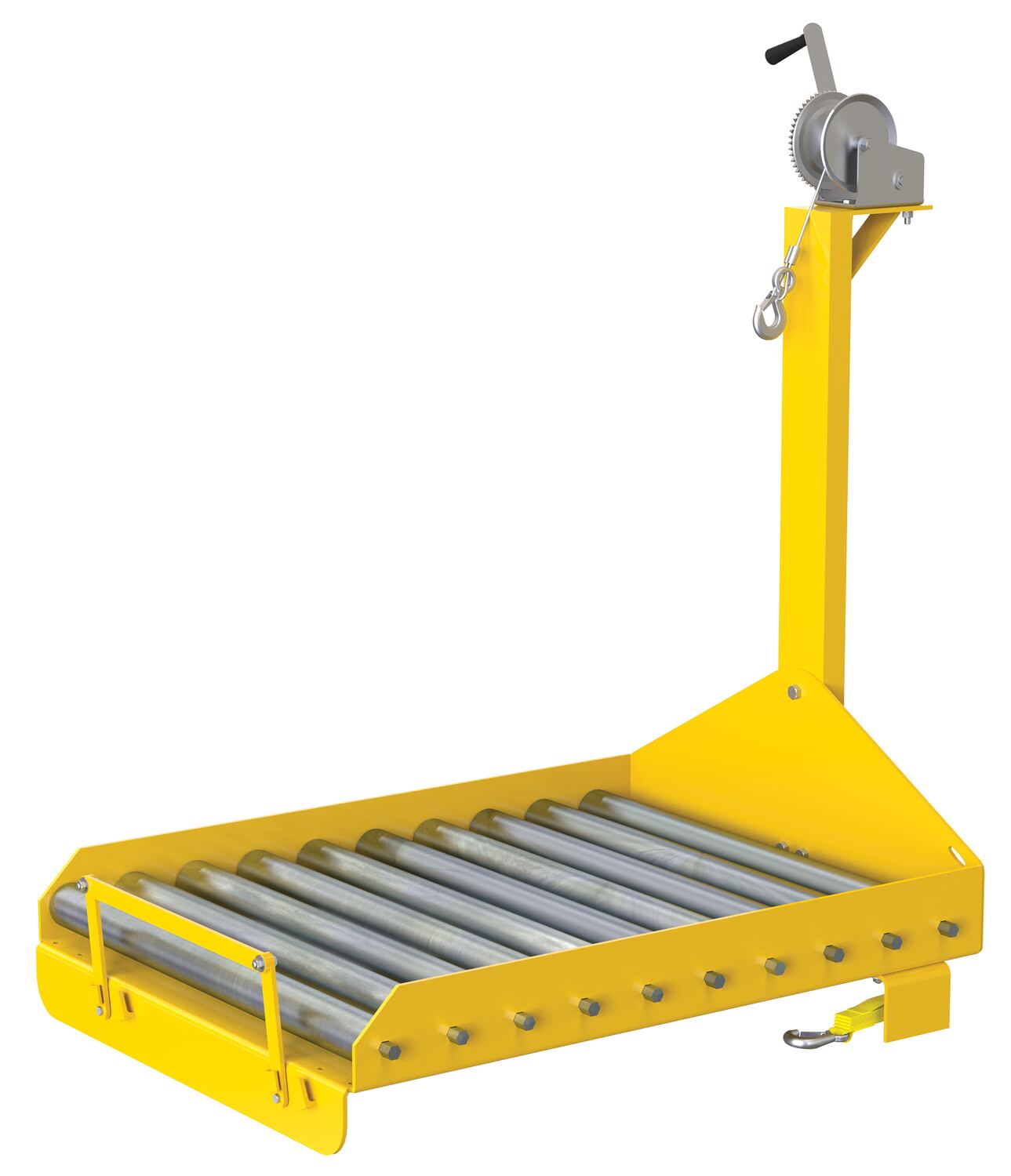

| BTC-PJ-WINCH |  | 90 Days Limited Warranty | Fork Truck Battery Transfer Platform with Winch 4000 Lb. Capacity Yellow | Uniform Capacity (lb.): 4,000 Usable Width/Length (in.): 31-1/2 x 40-5/16 | 318 | ||

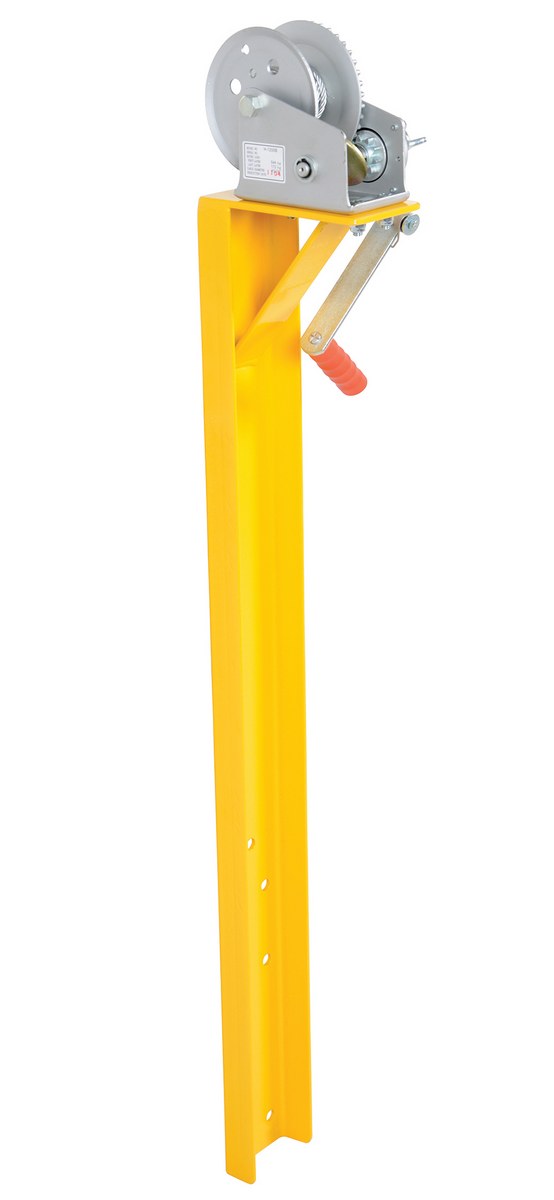

| BTC-WINCH |  | 90 Days Limited Warranty | Steel Manual Winch Attachment With 15 Ft Air Craft Cable 1200 Lb. Pulling Capacity Yellow | Winch Pulling Capacity (lb.): 1,200 | 38 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
A: The BTC-PJ can be use with both a fork truck and a pallet truck.
|
||||||||||||||||||||||||||||||||
Battery Transfer Platforms |
||||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||||

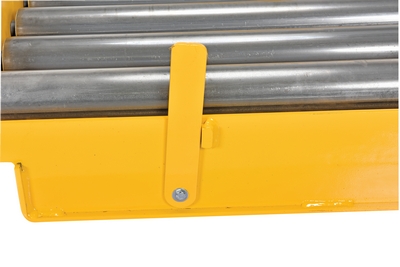

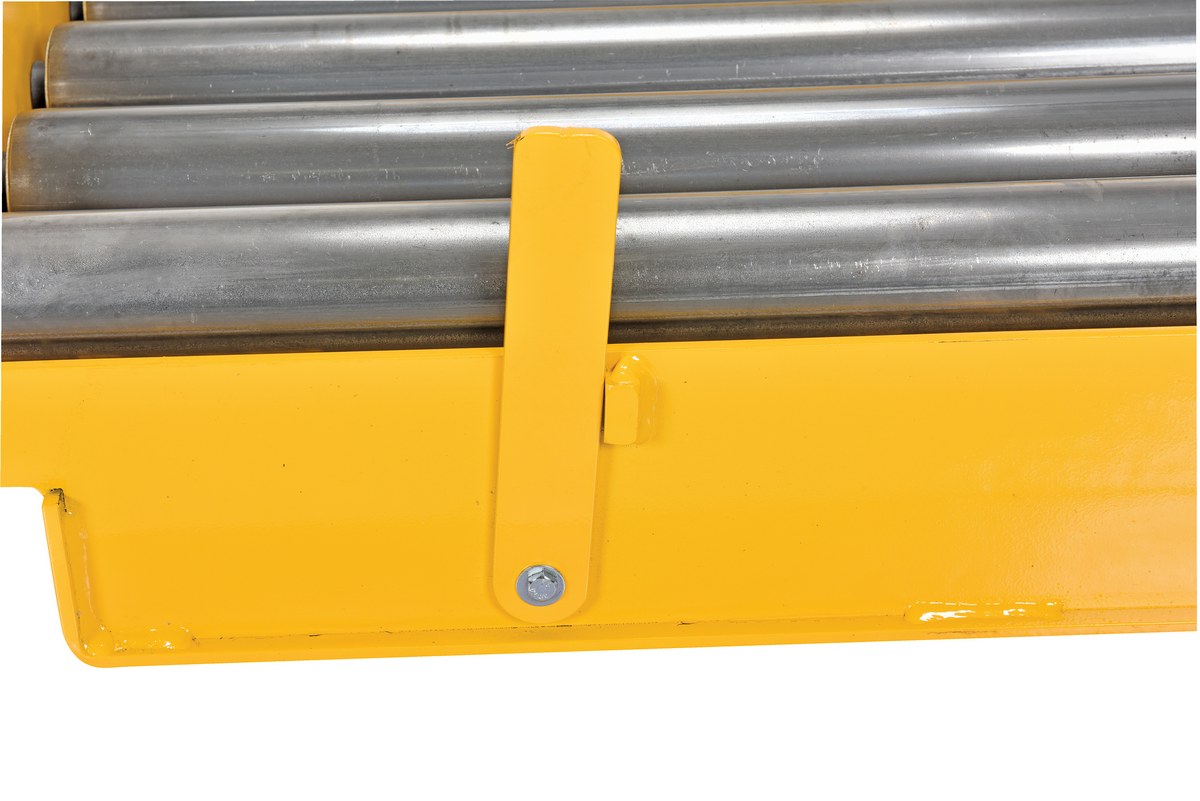

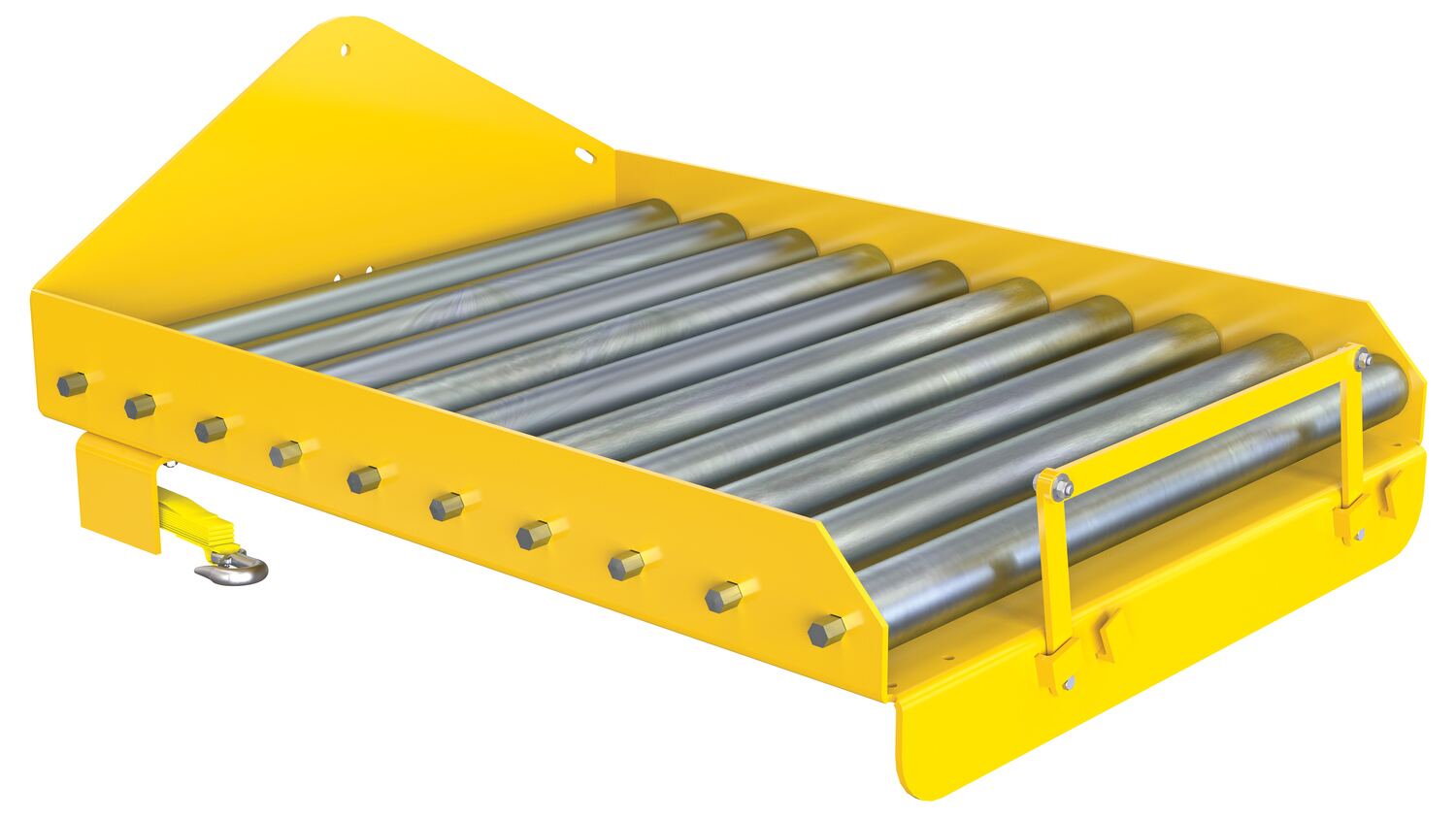

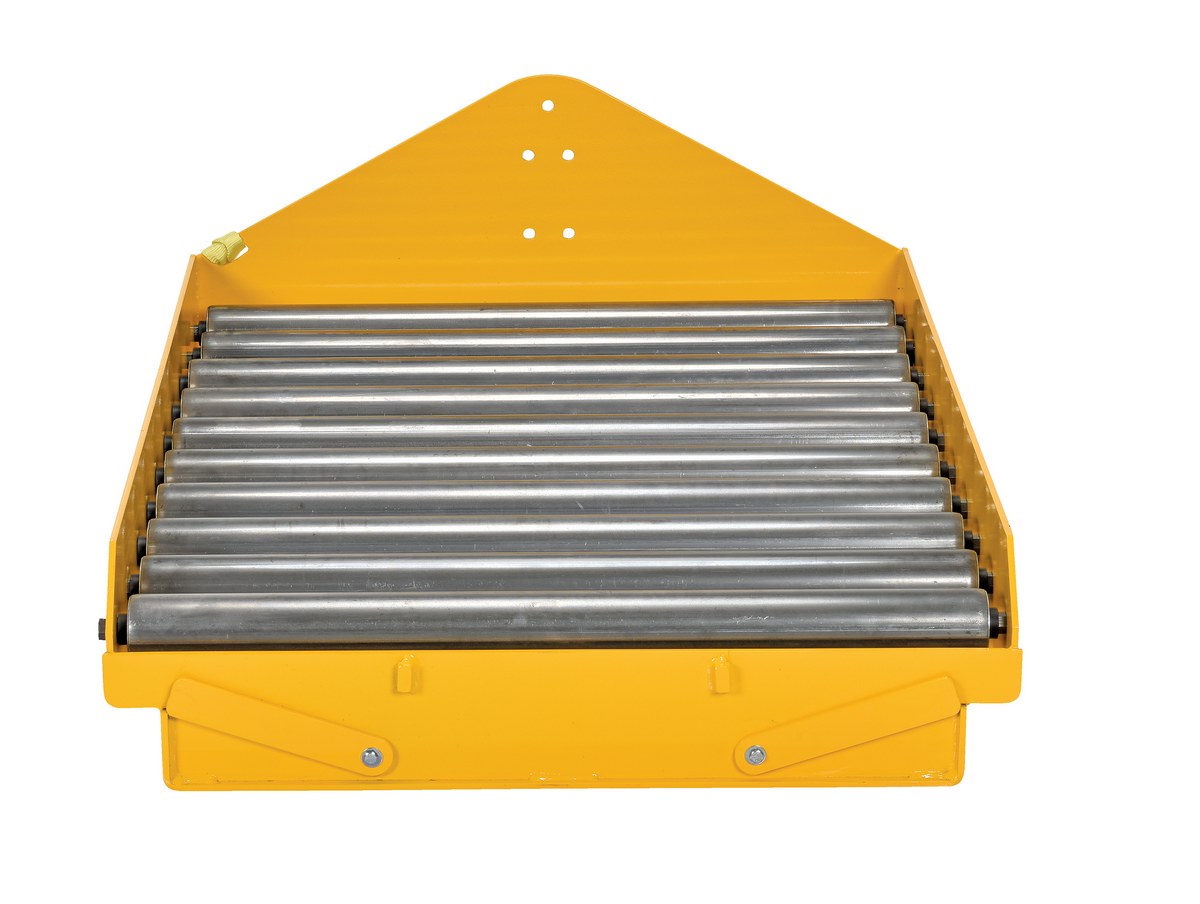

The Battery Transfer Platform is designed to load, unload, and transfer fork truck batteries. Features roller deck for easy battery movement. Front locking safety tabs to secure battery in cart. Welded steel construction with baked-in powder coated finish for added toughness. Models BTC-CART and BTC-Cart-WINCH, includes two (2) rigid and two (2) swivel 4" x 2" glass filled nylon casters for portability. Not pallet truck accessible, but can be lifted with a fork lift. Models BTC-PJ and BTC-PJ-WINCH designed to accommodate most pallet trucks. Pallet truck sold separately. Optional winch attachment, model BTC-WINCH, can be installed easily to either BTC unit with the supplied hardware. The manual winch is designed to pull battery out of fork truck. |
||||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||
