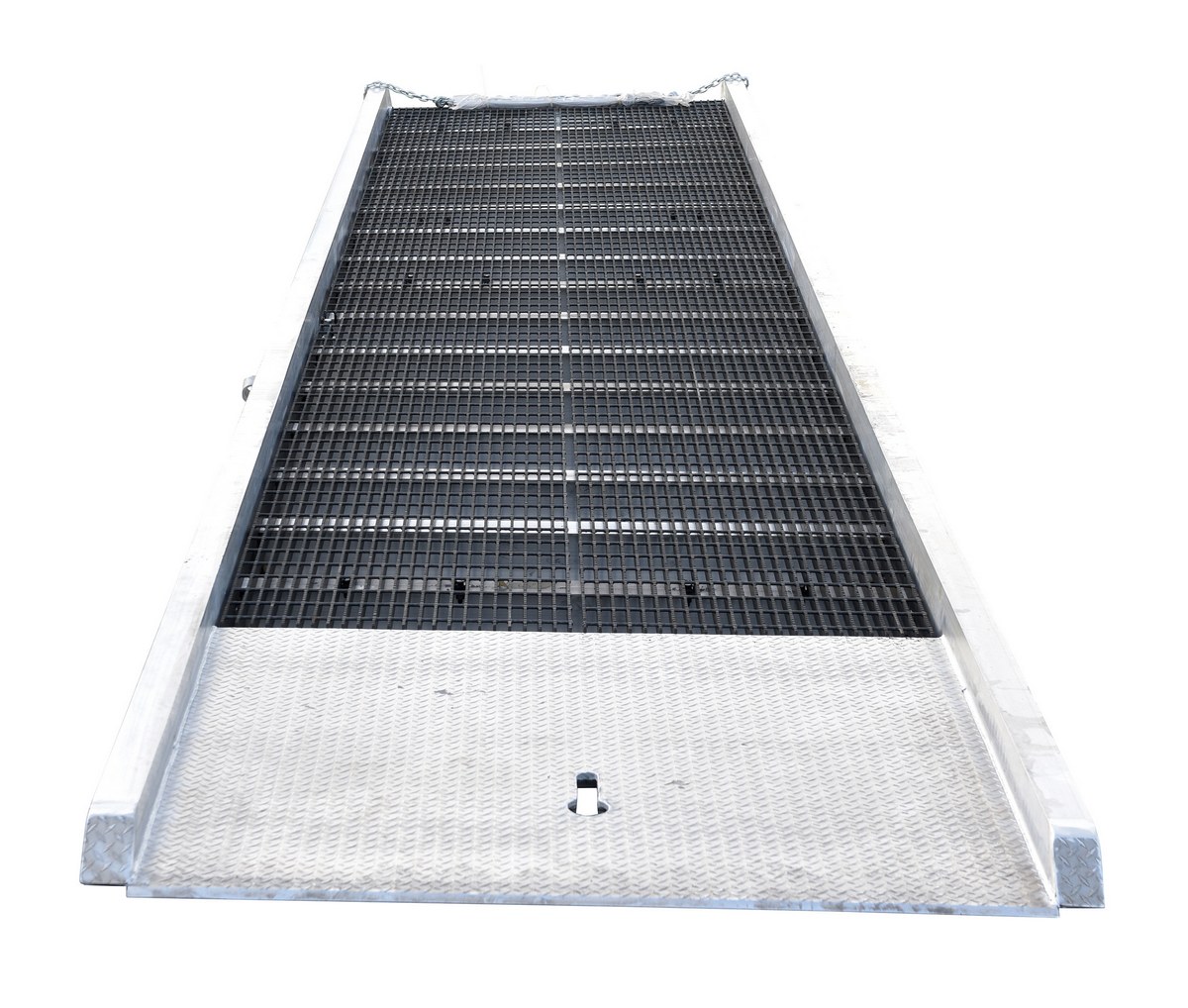

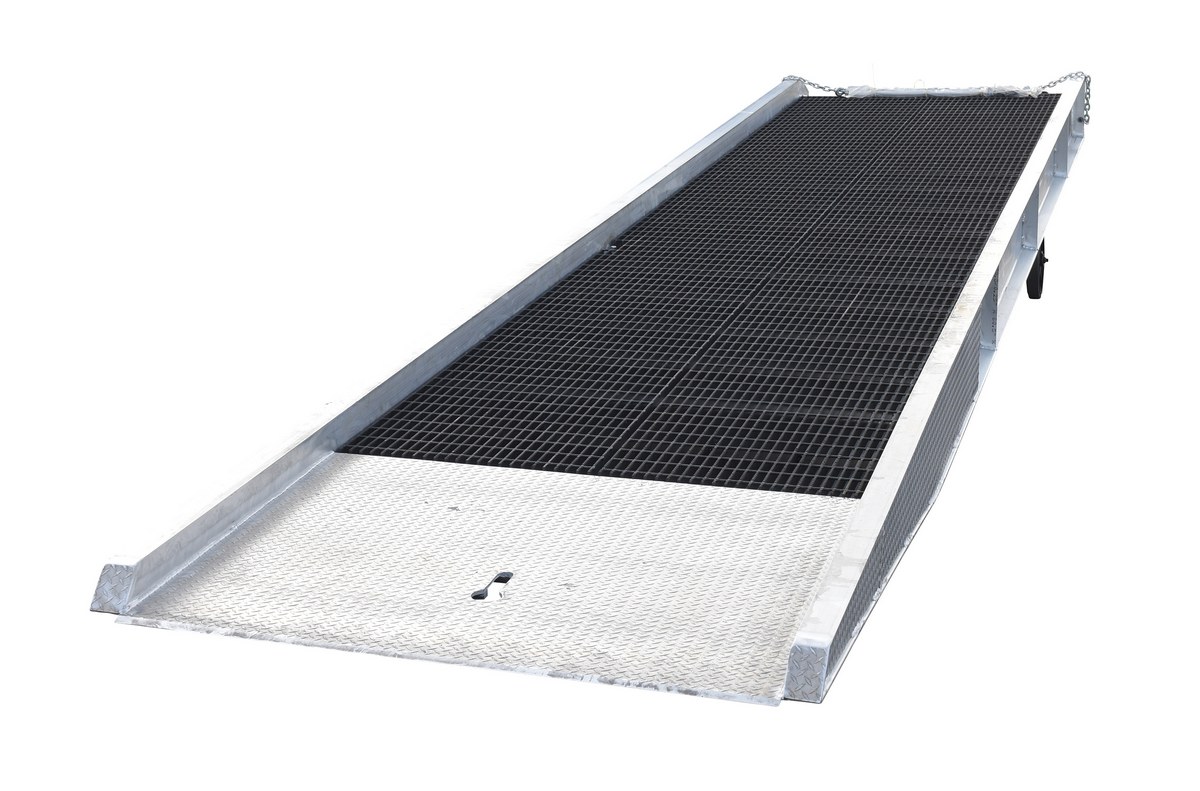

SY-167230_A.jpg SY-167230_B.jpg SY-167230_C.jpg SY-167230_D.jpg
SY-167230_E.jpg SY-167230_F.jpg

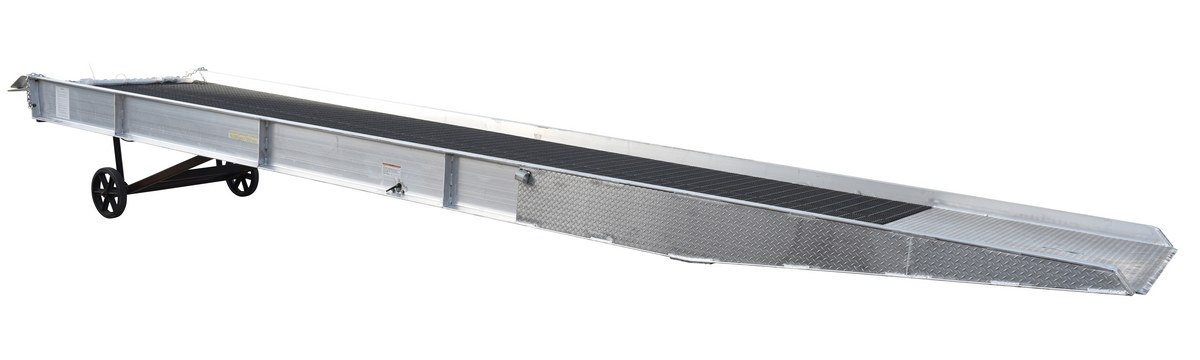

Aluminum Yard Ramps

model: SY-167230



Featured Loading Dock Equipment


Dock Seals
Electric Hydraulic Dock Levelers
Aluminum Economizer Dockplates
Reusable Inflatable Dunnage Bags
Lockable Load Binders
Wheel Alignment Curbs
Magnetic Rail Car Wheel Chock
Aluminum Hand Truck Dockboards
Economical Overhead Door Warning Barriers
model chart

Product Family Overview

Print Friendly
Aluminum Yard Ramps
SERIES: AY, SY

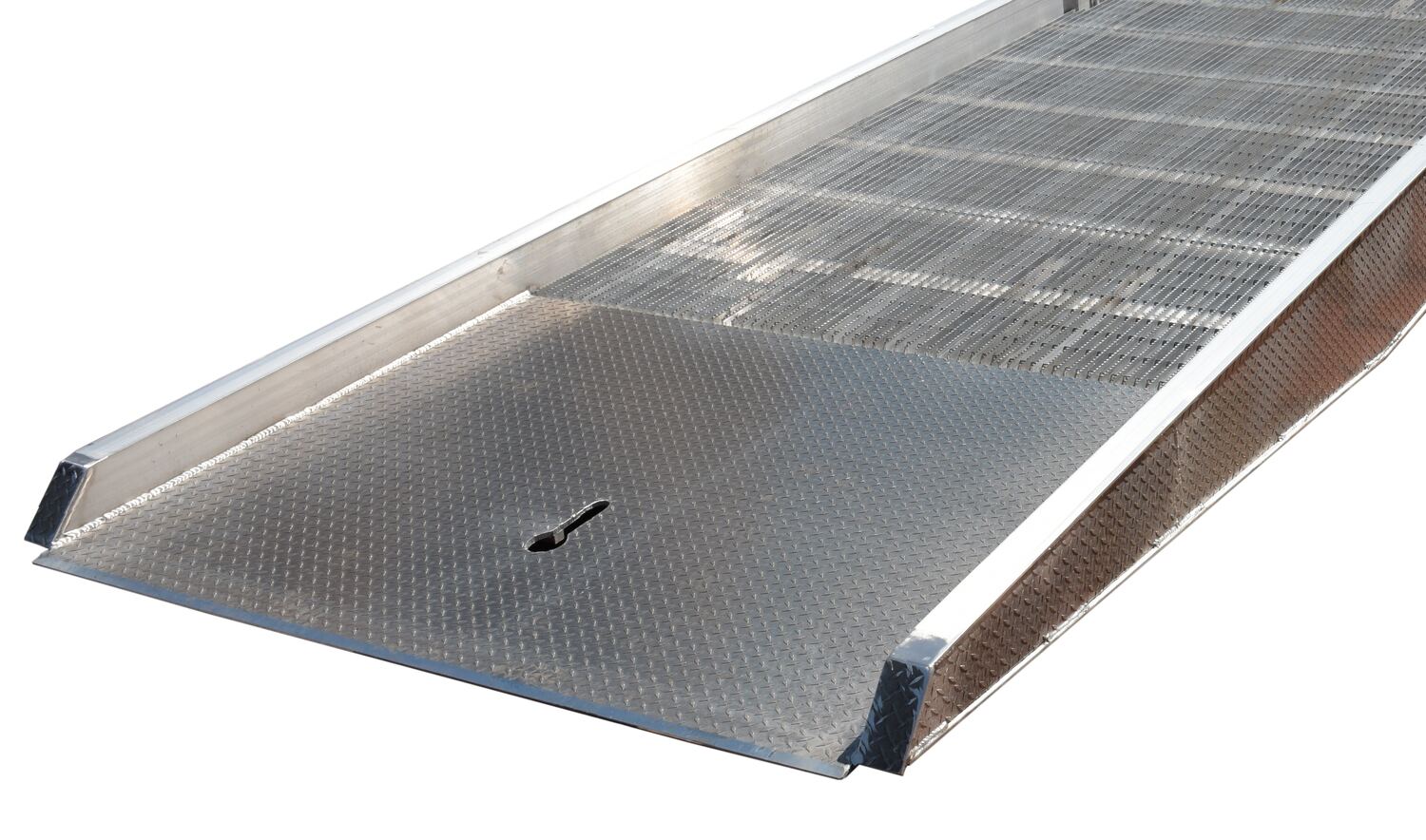

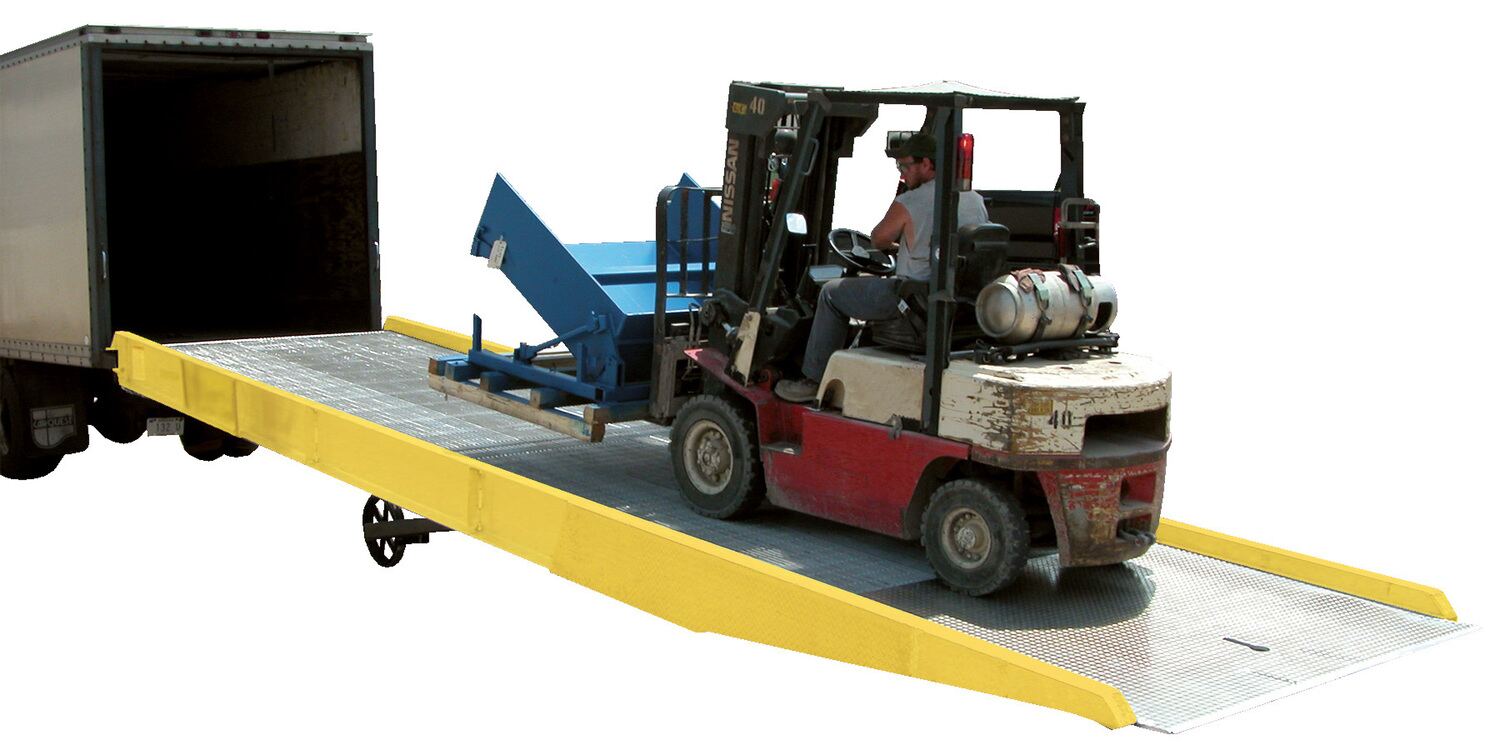

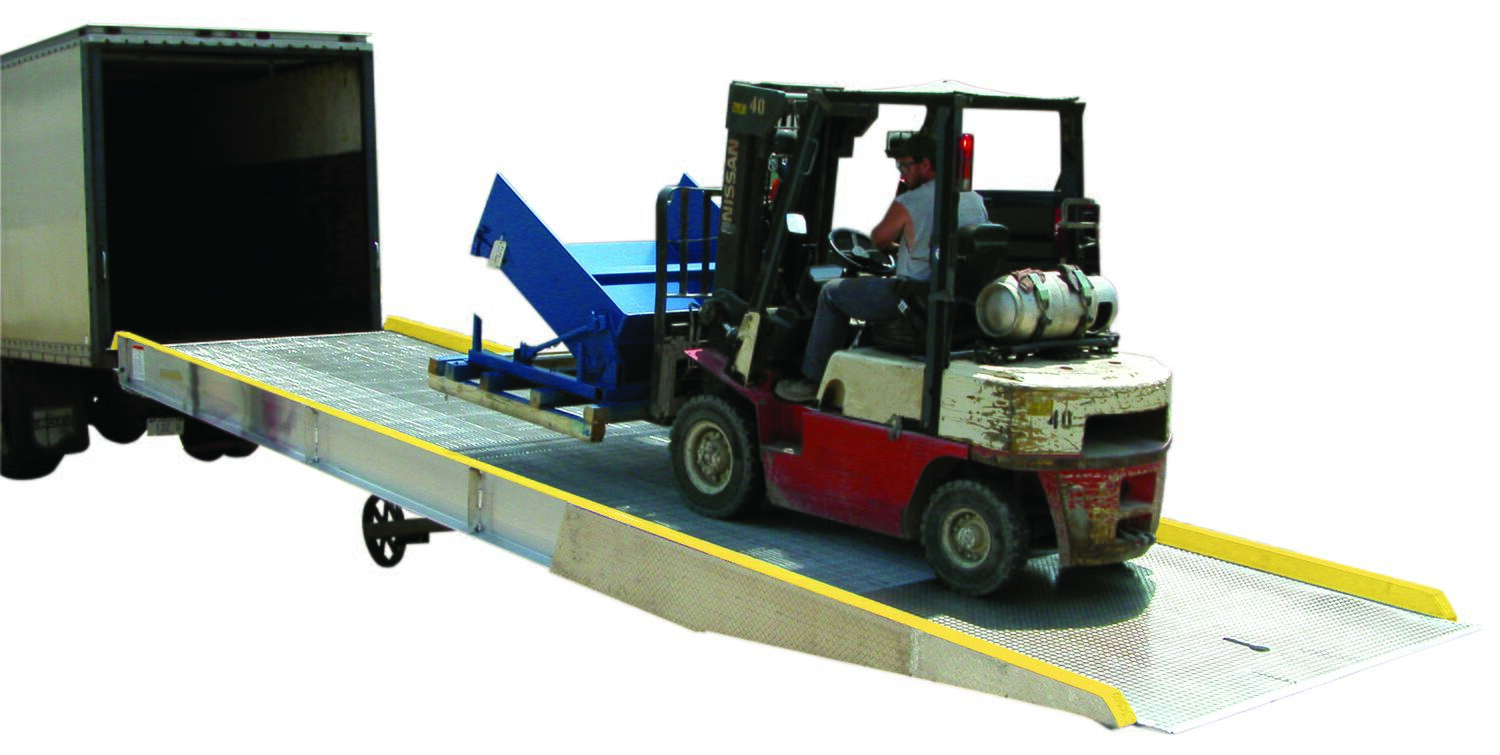

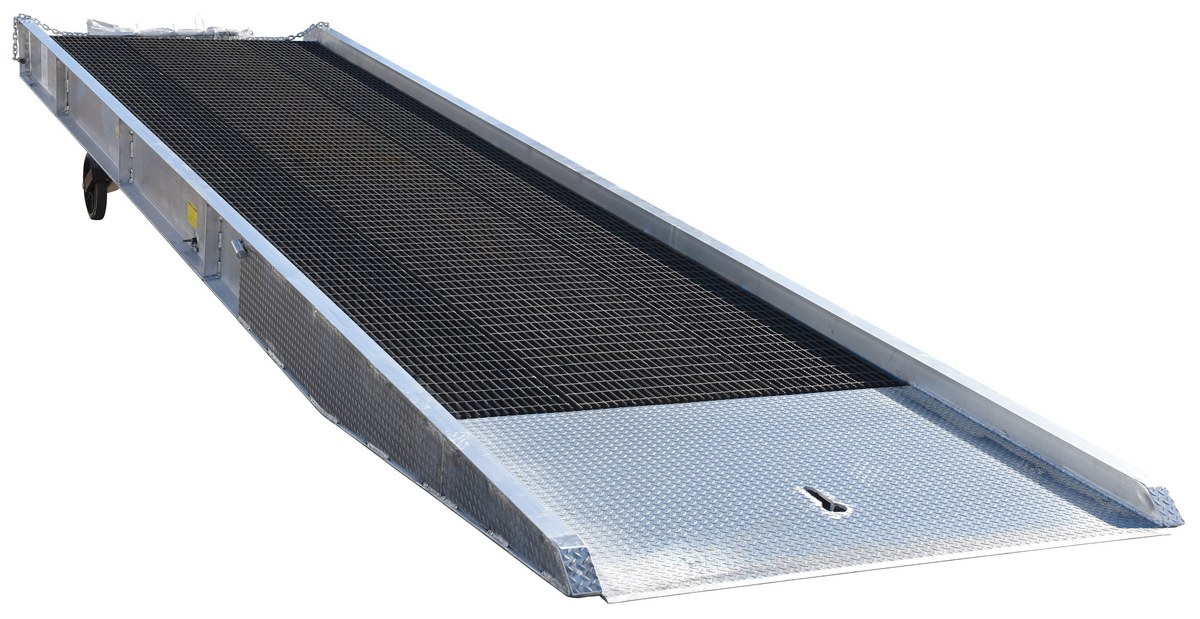

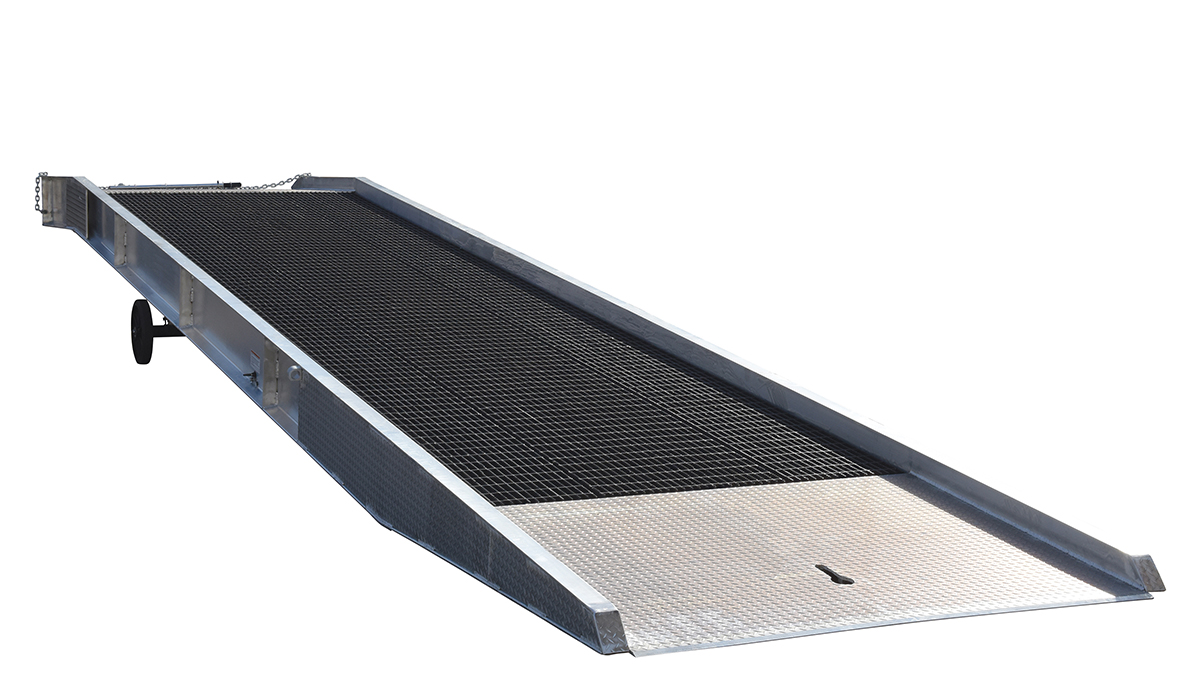

yard_r79.jpgPortable Aluminum Yard Ramps have a unique design that allows one person to position the ramp, adjust its service height, and load or unload trailers from ground level. Available with steel or rust resistant aluminum grating. Standard features: Manual hydraulic hand pump (safety pressure relief valve),18" x 5" mold-on-rubber tires, 4" high curbs, service range of 45" to 62", anchor chains, and tow bar pocket. Yard ramps ship flatbed truck. (Yellow guards are optional)

Check out our Steel Yard Ramps

  • Aluminum side curbs prevent fork truck run-off
  • Overlap style lip with safety chains secures ramp to trailer
  • Steel grating allows snow, ice and rain to fall through

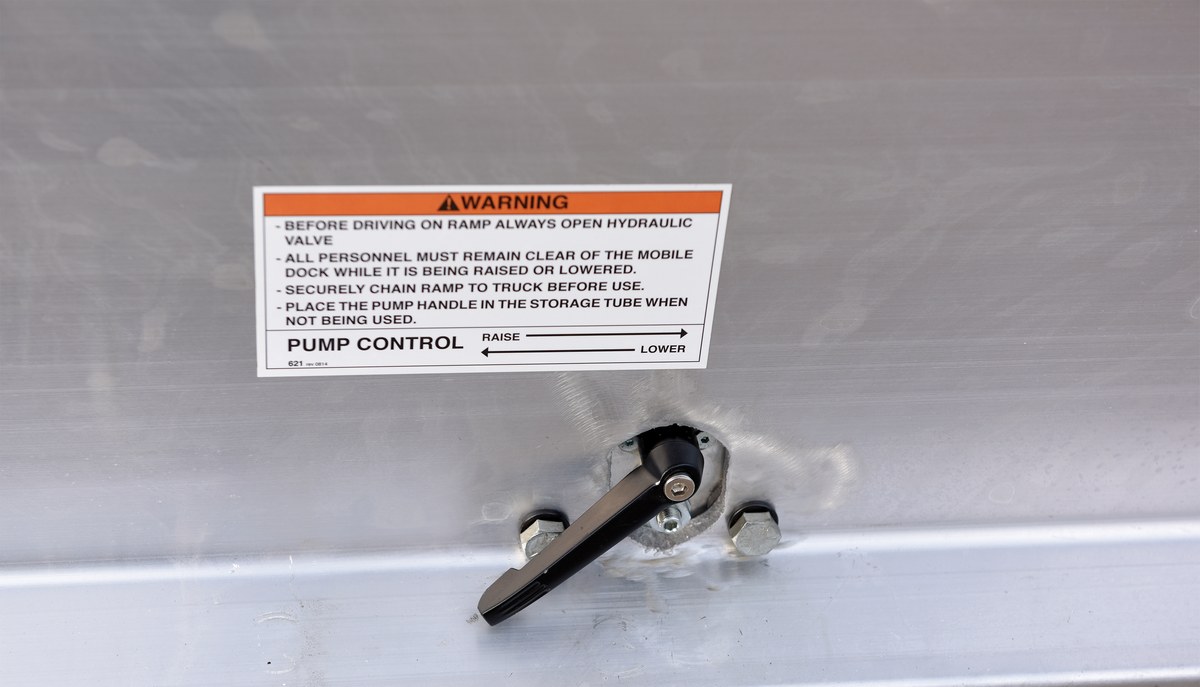

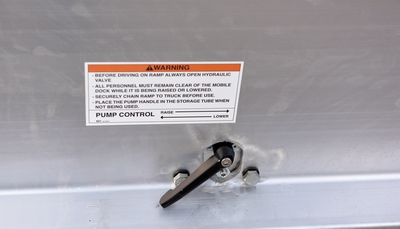

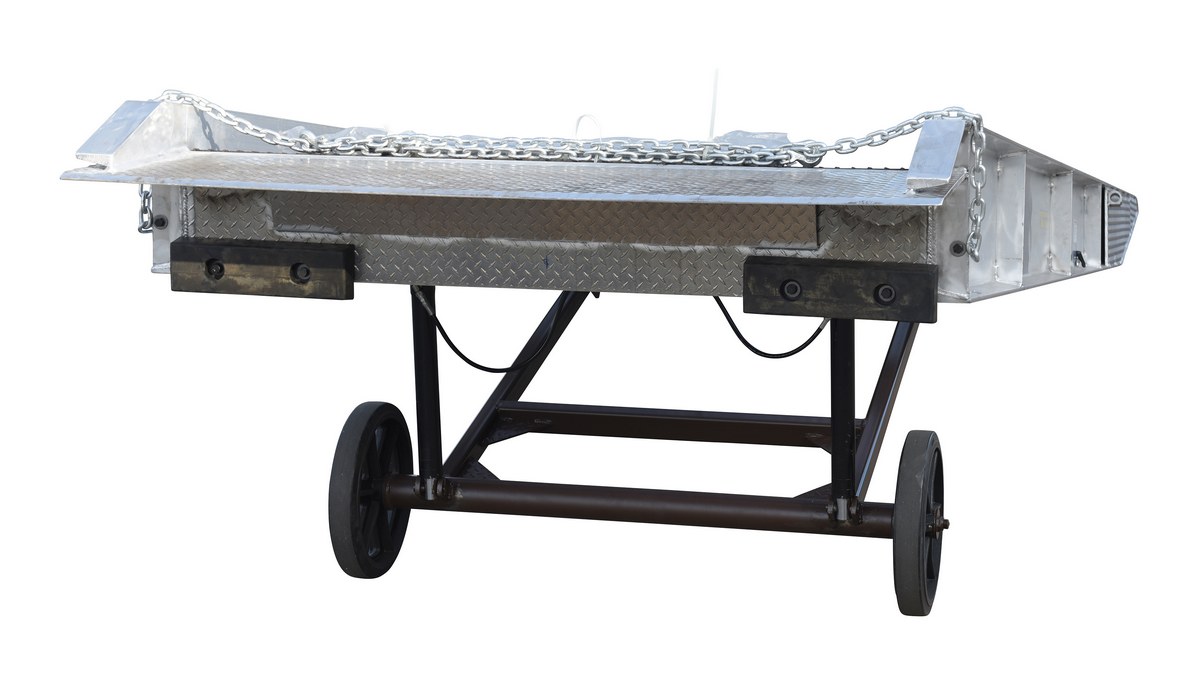

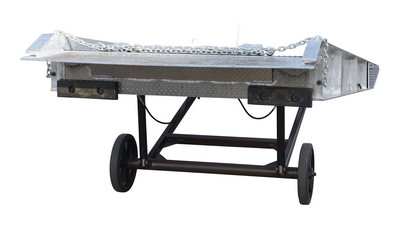

  • Hand pump hydraulic lift easily adjusts to different dock heights

yard_r79.jpgPortable Aluminum Yard Ramps have a unique design that allows one person to position the ramp, adjust its service height, and load or unload trailers from ground level. Available with steel or rust resistant aluminum grating. Standard features: Manual hydraulic hand pump (safety pressure relief valve),18" x 5" mold-on-rubber tires, 4" high curbs, service range of 45" to 62", anchor chains, and tow bar pocket. Yard ramps ship flatbed truck. (Yellow guards are optional)

Check out our Steel Yard Ramps

  • Aluminum side curbs prevent fork truck run-off
  • Overlap style lip with safety chains secures ramp to trailer
  • Steel grating allows snow, ice and rain to fall through
  • Hand pump hydraulic lift easily adjusts to different dock heights

Other Yard Ramps

 Aluminum Yard Ramps Mini Yard Ramps

Additional Models In This Family
view entire Image Gallery

AY-257236-L

AY-257236-L

SY-258436-L

SY-258436-L

SY-208430

SY-208430

SY-169330

SY-169330

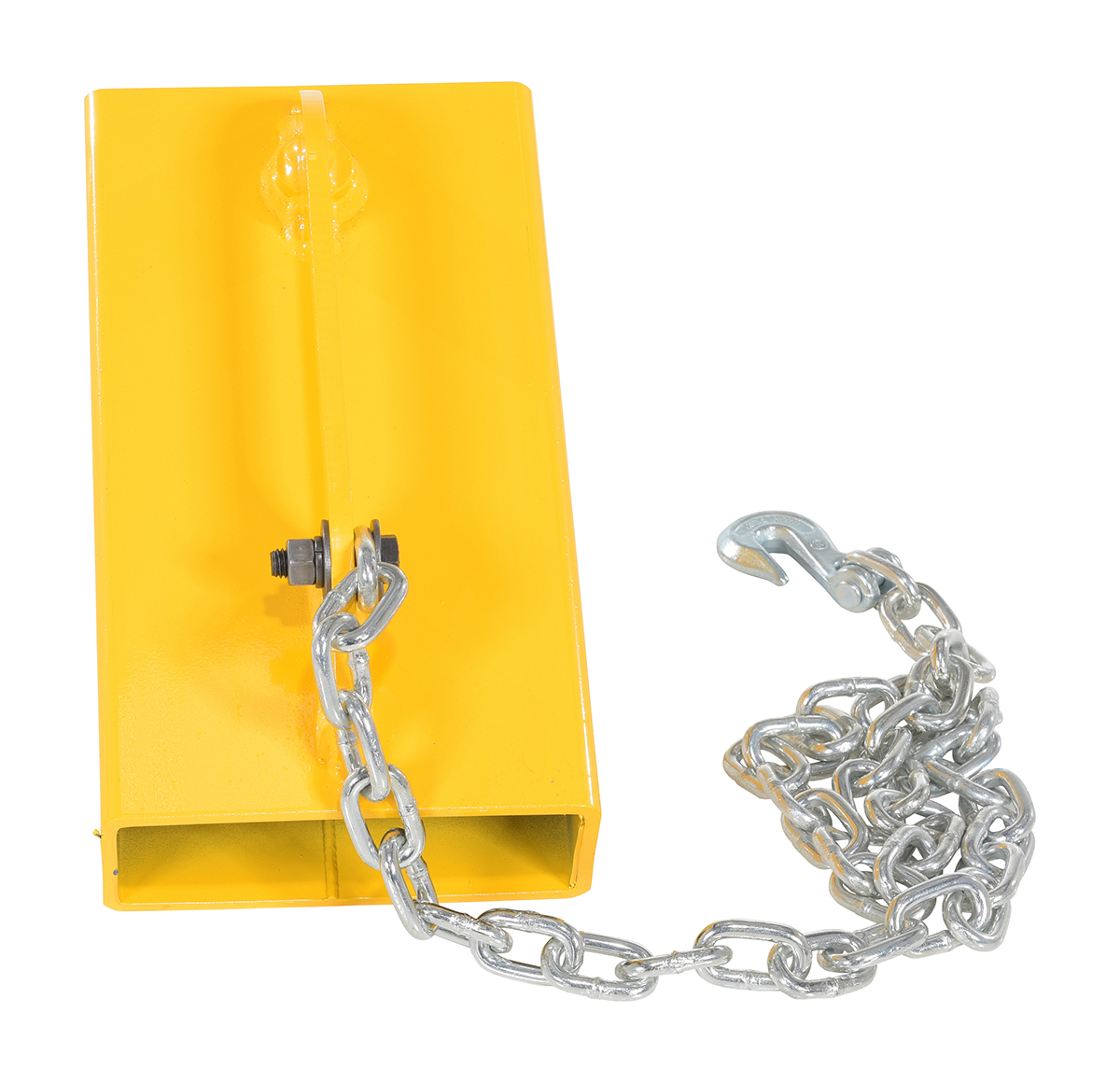

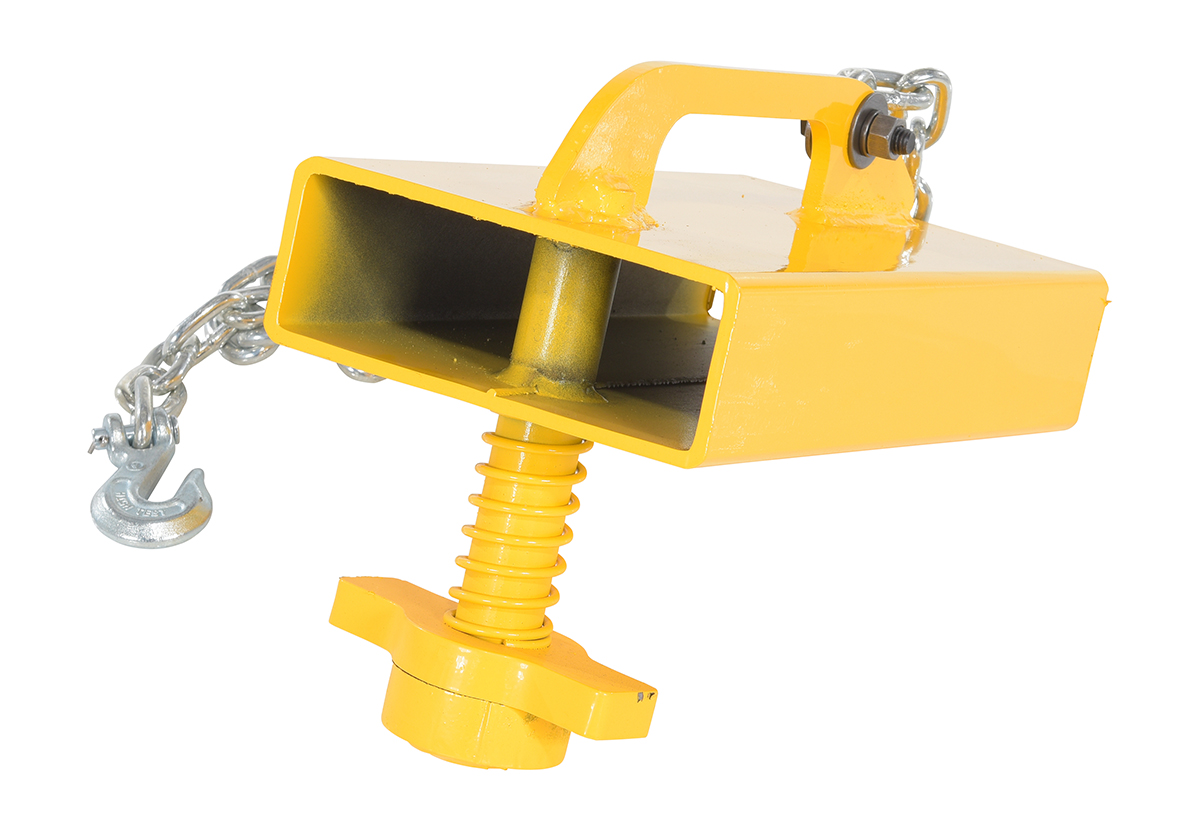

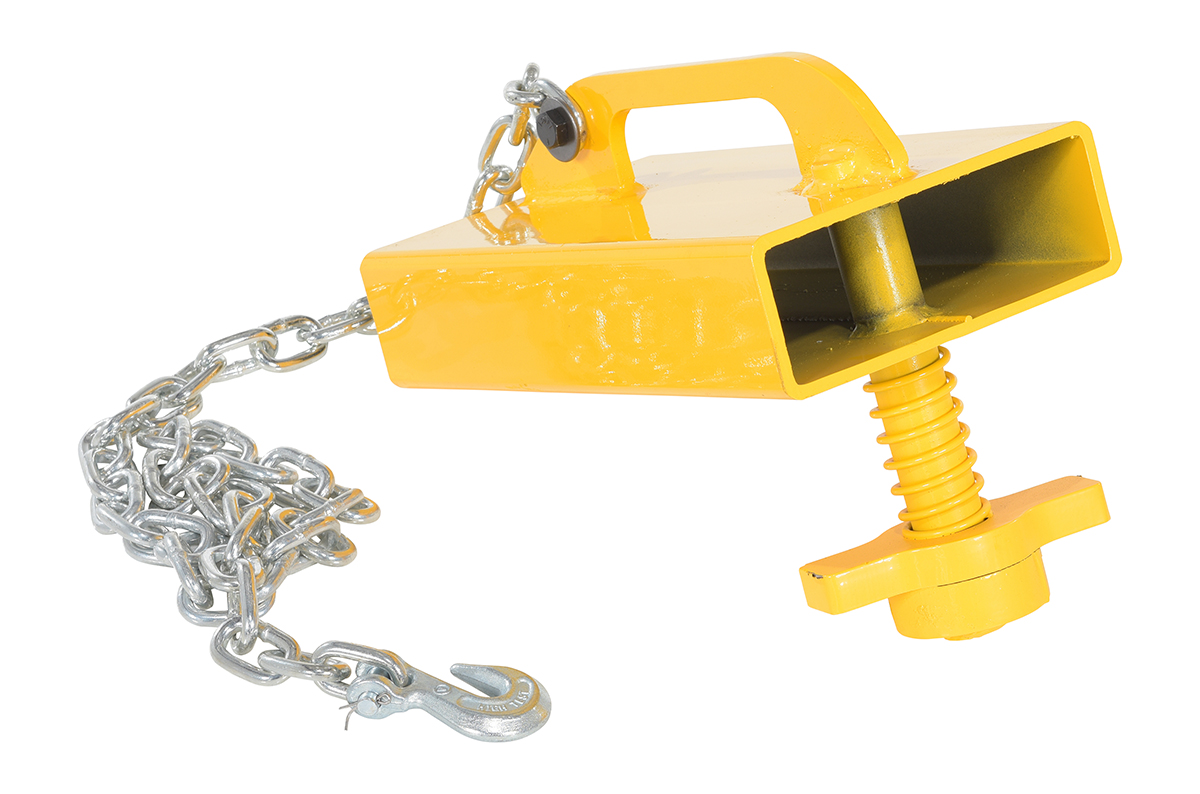

AYR-TB-P

AYR-TB-P

SY-167230

SY-167230

AY-208436-L

AY-208436-L

SY-167230

SY-167230

SY-307230

SY-307230

SY-168436-L

SY-168436-L

SY-167230

SY-167230

SY-257236-L

SY-257236-L

AY-207236-L

AY-207236-L

SY-168430

SY-168430

AY-307236-L

AY-307236-L

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

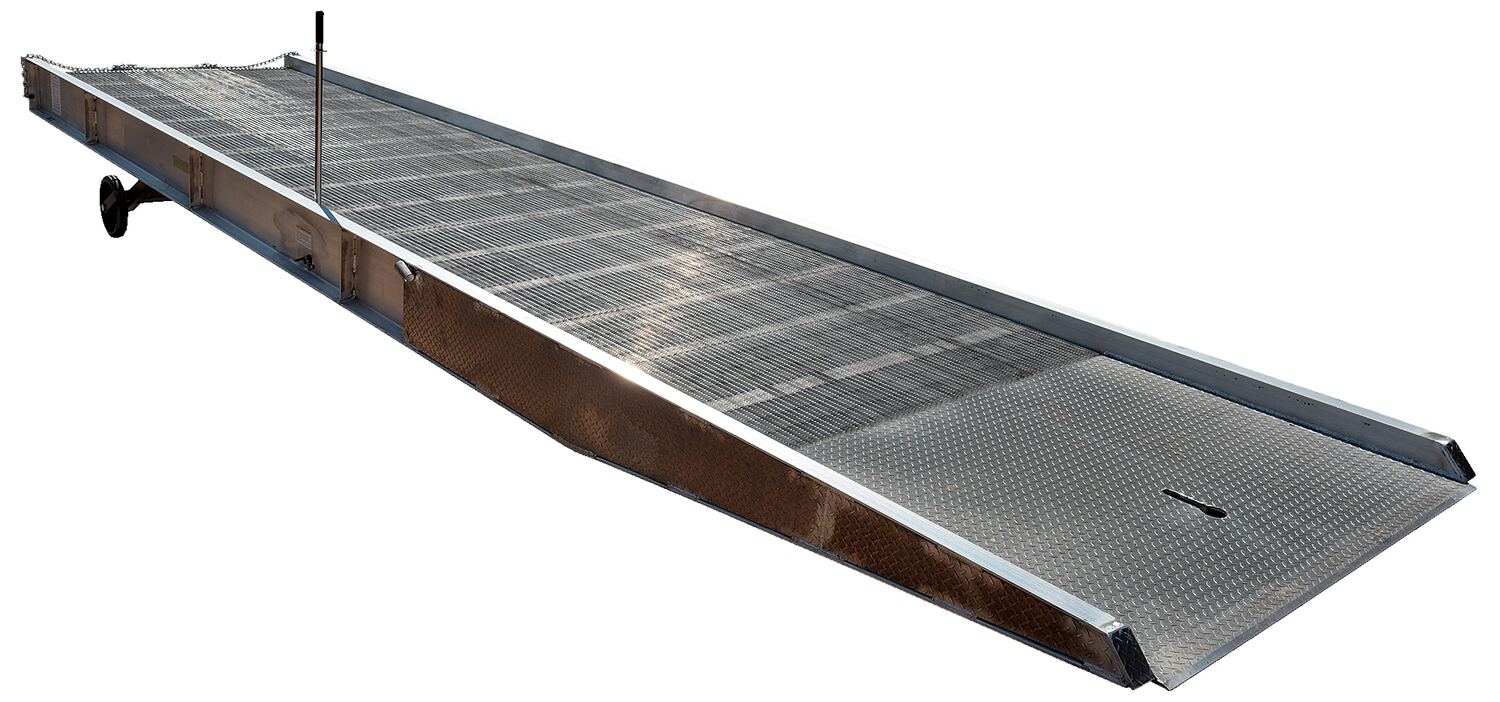

AY-167230
AY-1672301 Year Limited WarrantyAluminum Yard Ramp 360 In. x 74 In. 16000 Lb. Capacity SilverUniform Capacity (lb.): 16000
Usable Width (in.): 66		2783
AY-167236-L
AY-167236-L1 Year Limited WarrantyAluminum Yard Ramp 432 In. x 74 In. 16000 Lb. Capacity SilverUniform Capacity (lb.): 16000
Usable Width (in.): 66		3360
AY-168430
AY-1684301 Year Limited WarrantyAluminum Yard Ramp 360 In. x 86 In. 16000 Lb. Capacity SilverUniform Capacity (lb.): 16000
Usable Width (in.): 78		3150
AY-168436-L
AY-168436-L1 Year Limited WarrantyAluminum Yard Ramp 432 In. x 86 In. 16000 Lb. Capacity SilverUniform Capacity (lb.): 16000
Usable Width (in.): 78		3728

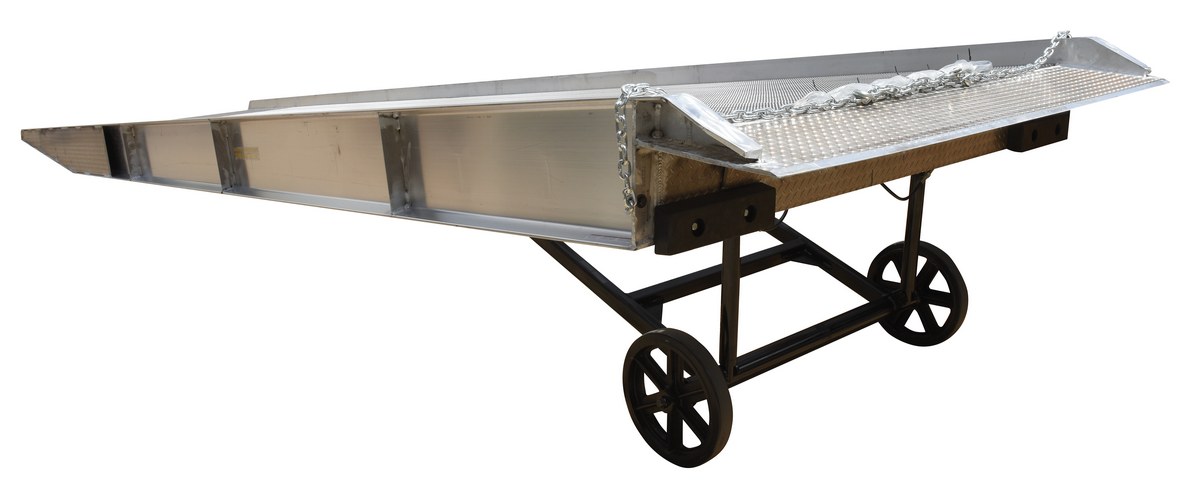

AY-169330
AY-1693301 Year Limited WarrantyAluminum Yard Ramp 360 In. x 95 In. 16000 Lb. Capacity SilverUniform Capacity (lb.): 16000
Usable Width (in.): 87		3465
AY-169336-L
AY-169336-L1 Year Limited WarrantyAluminum Yard Ramp 432 In. x 95 In. 16000 Lb. Capacity SilverUniform Capacity (lb.): 16000
Usable Width (in.): 87		3990
AY-207230
AY-2072301 Year Limited WarrantyAluminum Yard Ramp 360 In. x 74 In. 20000 Lb. Capacity SilverUniform Capacity (lb.): 20000
Usable Width (in.): 66		3565
AY-207236-L
AY-207236-L1 Year Limited WarrantyAluminum Yard Ramp 432 In. x 74 In. 20000 Lb. Capacity SilverUniform Capacity (lb.): 20000
Usable Width (in.): 66		3465
AY-208430
AY-2084301 Year Limited WarrantyAluminum Yard Ramp 360 In. x 86 In. 20000 Lb. Capacity SilverUniform Capacity (lb.): 20000
Usable Width (in.): 78		3255
AY-208436-L
AY-208436-L1 Year Limited WarrantyAluminum Yard Ramp 432 In. x 86 In. 20000 Lb. Capacity SilverUniform Capacity (lb.): 20000
Usable Width (in.): 78		3833
AY-209330
AY-2093301 Year Limited WarrantyAluminum Yard Ramp 360 In. x 95 In. 20000 Lb. Capacity SilverUniform Capacity (lb.): 20000
Usable Width (in.): 87		3570

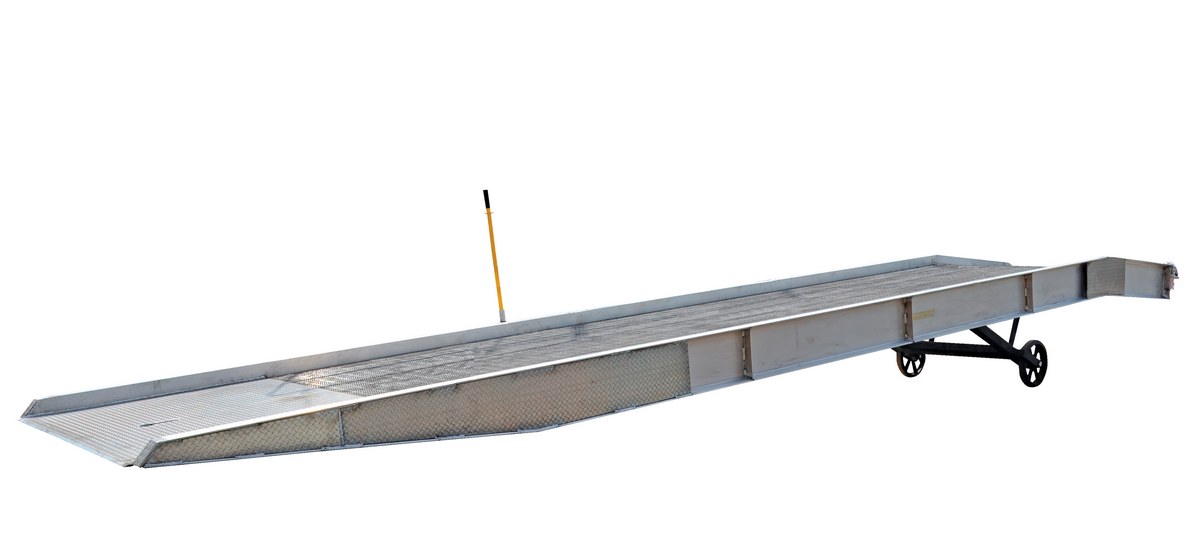

AY-209336-L
AY-209336-L1 Year Limited WarrantyAluminum Yard Ramp 432 In. x 95 In. 20000 Lb. Capacity SilverUniform Capacity (lb.): 20000
Usable Width (in.): 87		4095
AY-257230
AY-2572301 Year Limited WarrantyAluminum Yard Ramp 360 In. x 74 In. 20000 Lb. Capacity SilverUniform Capacity (lb.): 25000
Usable Width (in.): 66		2940
AY-257236-L
AY-257236-L1 Year Limited WarrantyAluminum Yard Ramp 432 In. x 74 In. 25000 Lb. Capacity SilverUniform Capacity (lb.): 25000
Usable Width (in.): 66		3578
AY-258430
AY-2584301 Year Limited WarrantyAluminum Yard Ramp 360 In. x 86 In. 25000 Lb. Capacity SilverUniform Capacity (lb.): 25000
Usable Width (in.): 78		3308
AY-258436-L
AY-258436-L1 Year Limited WarrantyAluminum Yard Ramp 432 In. x 86 In. 25000 Lb. Capacity SilverUniform Capacity (lb.): 25000
Usable Width (in.): 78		3885
AY-259330
AY-2593301 Year Limited WarrantyAluminum Yard Ramp 360 In. x 95 In. 25000 Lb. Capacity SilverUniform Capacity (lb.): 25000
Usable Width (in.): 87		3675
AY-259336-L
AY-259336-L1 Year Limited WarrantyAluminum Yard Ramp 432 In. x 95 In. 25000 Lb. Capacity SilverUniform Capacity (lb.): 25000
Usable Width (in.): 87		4200
AY-307230
AY-3072301 Year Limited WarrantyAluminum Yard Ramp 360 In. x 74 In. 30000 Lb. Capacity SilverUniform Capacity (lb.): 30000
Usable Width (in.): 66		3092
AY-307236-L
AY-307236-L1 Year Limited WarrantyAluminum Yard Ramp 432 In. x 74 In. 30000 Lb. Capacity SilverUniform Capacity (lb.): 30000
Usable Width (in.): 66		3570
AY-308430
AY-3084301 Year Limited WarrantyAluminum Yard Ramp 360 In. x 86 In. 30000 Lb. Capacity SilverUniform Capacity (lb.): 30000
Usable Width (in.): 78		3360
AY-308436-L
AY-308436-L1 Year Limited WarrantyAluminum Yard Ramp 432 In. x 86 In. 30000 Lb. Capacity SilverUniform Capacity (lb.): 30000
Usable Width (in.): 78		3938
SY-167230
SY-1672301 Year Limited WarrantyAluminum/Steel Yard Ramp Grating 74 In. x 30 Ft. 16,000 Lb. Capacity SilverUniform Capacity (lb.): 16000
Usable Width (in.): 66		3518
SY-167236-L
SY-167236-L1 Year Limited WarrantyAluminum/Steel Yard Ramp Grating 74 In. x 36 Ft. 16,000 Lb. Capacity SilverUniform Capacity (lb.): 16000
Usable Width (in.): 66		4305
SY-168430
SY-1684301 Year Limited WarrantyAluminum/Steel Yard Ramp Grating 86 In. x 30 Ft. 16,000 Lb. Capacity SilverUniform Capacity (lb.): 16000
Usable Width (in.): 78		4043

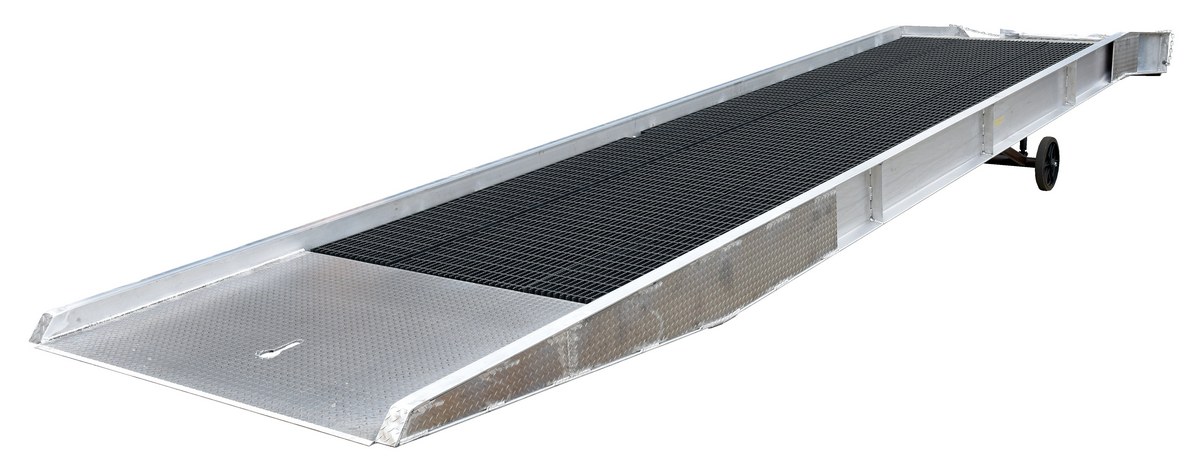

SY-168436-L
SY-168436-L1 Year Limited WarrantyAluminum/Steel Yard Ramp Grating 86 In. x 36 Ft. 16,000 Lb. Capacity SilverUniform Capacity (lb.): 16000
Usable Width (in.): 78		4830
SY-169330
SY-1693301 Year Limited WarrantyAluminum/Steel Yard Ramp Grating 95 In. x 30 Ft. 16,000 Lb. Capacity SilverUniform Capacity (lb.): 16000
Usable Width (in.): 87		4515
SY-169336-L
SY-169336-L1 Year Limited WarrantyAluminum/Steel Yard Ramp Grating 95 In. x 36 Ft. 16,000 Lb. Capacity SilverUniform Capacity (lb.): 16000
Usable Width (in.): 87		5303
SY-207230
SY-2072301 Year Limited WarrantyAluminum/Steel Yard Ramp Grating 74 In. x 30 Ft. 20,000 Lb. Capacity SilverUniform Capacity (lb.): 20000
Usable Width (in.): 66		3623
SY-207236-L
SY-207236-L1 Year Limited WarrantyAluminum/Steel Yard Ramp Grating 74 In. x 36 Ft. 20,000 Lb. Capacity SilverUniform Capacity (lb.): 20000
Usable Width (in.): 66		4410
SY-208430
SY-2084301 Year Limited WarrantyAluminum/Steel Yard Ramp Grating 86 In. x 30 Ft. 20,000 Lb. Capacity SilverUniform Capacity (lb.): 20000
Usable Width (in.): 78		4148
SY-208436-L
SY-208436-L1 Year Limited WarrantyAluminum/Steel Yard Ramp Grating 86 In. x 36 Ft. 20,000 Lb. Capacity SilverUniform Capacity (lb.): 20000
Usable Width (in.): 78		4935
SY-209330
SY-2093301 Year Limited WarrantyAluminum/Steel Yard Ramp Grating 95 In. x 30 Ft. 20,000 Lb. Capacity SilverUniform Capacity (lb.): 20000
Usable Width (in.): 87		4620
SY-209336-L
SY-209336-L1 Year Limited WarrantyAluminum/Steel Yard Ramp Grating 95 In. x 36 Ft. 20,000 Lb. Capacity SilverUniform Capacity (lb.): 20000
Usable Width (in.): 87		5408
SY-257230
SY-2572301 Year Limited WarrantyAluminum/Steel Yard Ramp Grating 74 In. x 30 Ft. 25,000 Lb. Capacity SilverUniform Capacity (lb.): 25000
Usable Width (in.): 66		3675
SY-257236-L
SY-257236-L1 Year Limited WarrantyAluminum/Steel Yard Ramp Grating 74 In. x 36 Ft. 25,000 Lb. Capacity SilverUniform Capacity (lb.): 25000
Usable Width (in.): 66		4463

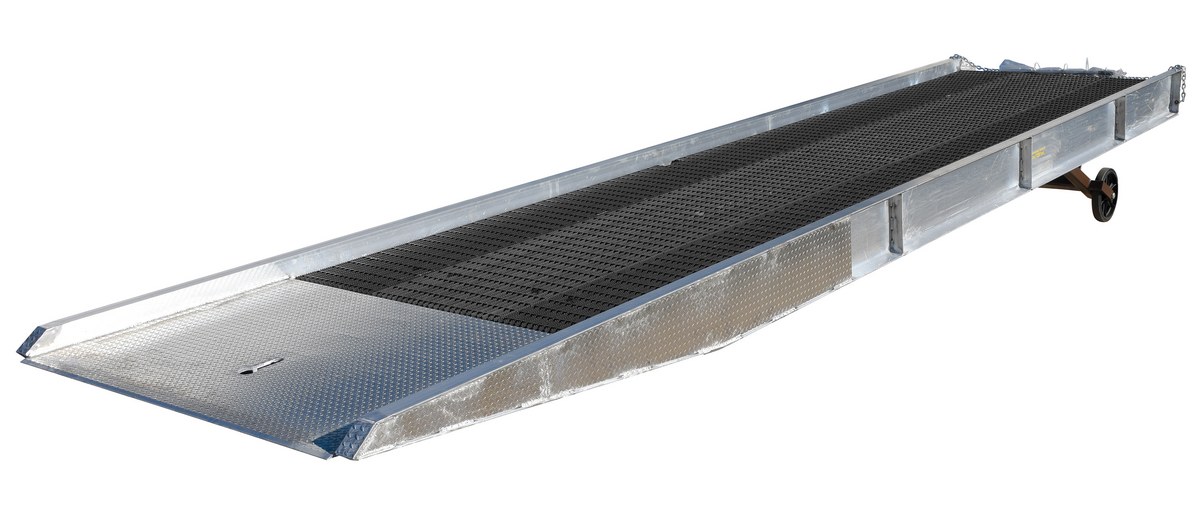

SY-258430
SY-2584301 Year Limited WarrantyAluminum/Steel Yard Ramp Grating 86 In. x 30 Ft. 25,000 Lb. Capacity SilverUniform Capacity (lb.): 25000
Usable Width (in.): 78		4200
SY-258436-L
SY-258436-L1 Year Limited WarrantyAluminum/Steel Yard Ramp Grating 86 In. x 36 Ft. 25,000 Lb. Capacity SilverUniform Capacity (lb.): 25000
Usable Width (in.): 78		4988
SY-259330
SY-2593301 Year Limited WarrantyAluminum/Steel Yard Ramp Grating 95 In. x 30 Ft. 25,000 Lb. Capacity SilverUniform Capacity (lb.): 25000
Usable Width (in.): 87		4725
SY-259336-L
SY-259336-L1 Year Limited WarrantyAluminum/Steel Yard Ramp Grating 95 In. x 36 Ft. 25,000 Lb. Capacity SilverUniform Capacity (lb.): 25000
Usable Width (in.): 87		5513

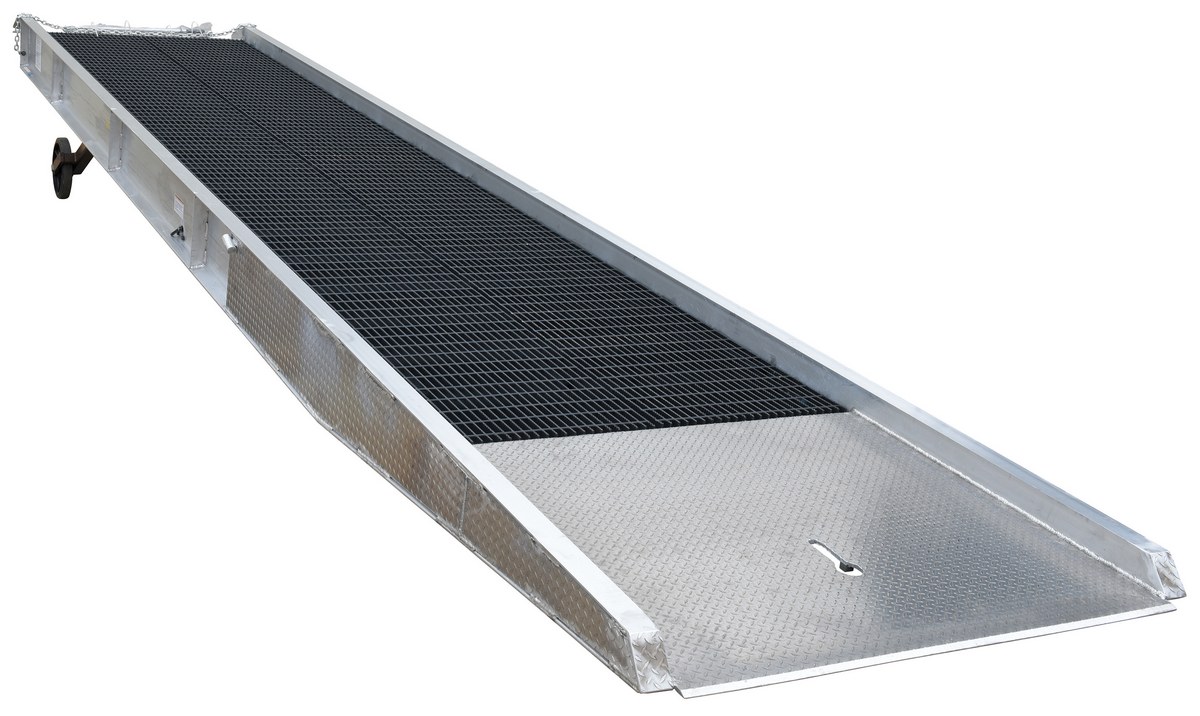

SY-307230
SY-3072301 Year Limited WarrantyAluminum/Steel Yard Ramp Grating 74 In. x 30 Ft. 30,000 Lb. Capacity SilverUniform Capacity (lb.): 30000
Usable Width (in.): 66		3728
SY-307236-L
SY-307236-L1 Year Limited WarrantyAluminum/Steel Yard Ramp Grating 74 In. x 36 Ft. 30,000 Lb. Capacity SilverUniform Capacity (lb.): 30000
Usable Width (in.): 66		4515
SY-308430
SY-3084301 Year Limited WarrantyAluminum/Steel Yard Ramp Grating 86 In. x 30 Ft. 30,000 Lb. Capacity SilverUniform Capacity (lb.): 30000
Usable Width (in.): 78		4253

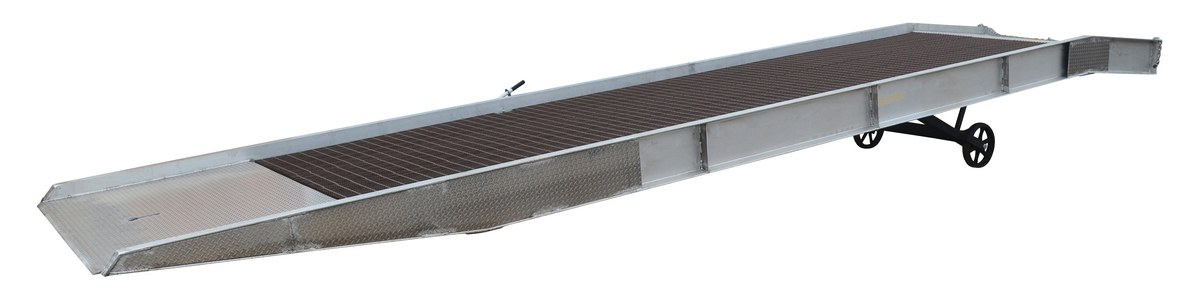

SY-308436-L
SY-308436-L1 Year Limited WarrantyAluminum/Steel Yard Ramp Grating 86 In. x 36 Ft. 30,000 Lb. Capacity SilverUniform Capacity (lb.): 30000
Usable Width (in.): 78		5040

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

AY-167230
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 16000
Usable Width (in.): 66
Uniform Capacity (lb.): 16000
Usable Width (in.): 66

AY-167236-L
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 16000
Usable Width (in.): 66
Uniform Capacity (lb.): 16000
Usable Width (in.): 66

AY-168430
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 16000
Usable Width (in.): 78
Uniform Capacity (lb.): 16000
Usable Width (in.): 78

AY-168436-L
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 16000
Usable Width (in.): 78
Uniform Capacity (lb.): 16000
Usable Width (in.): 78

AY-169330
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 16000
Usable Width (in.): 87
Uniform Capacity (lb.): 16000
Usable Width (in.): 87

AY-169336-L
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 16000
Usable Width (in.): 87
Uniform Capacity (lb.): 16000
Usable Width (in.): 87

AY-207230
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20000
Usable Width (in.): 66
Uniform Capacity (lb.): 20000
Usable Width (in.): 66

AY-207236-L
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20000
Usable Width (in.): 66
Uniform Capacity (lb.): 20000
Usable Width (in.): 66

AY-208430
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20000
Usable Width (in.): 78
Uniform Capacity (lb.): 20000
Usable Width (in.): 78

AY-208436-L
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20000
Usable Width (in.): 78
Uniform Capacity (lb.): 20000
Usable Width (in.): 78

AY-209330
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20000
Usable Width (in.): 87
Uniform Capacity (lb.): 20000
Usable Width (in.): 87

AY-209336-L
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20000
Usable Width (in.): 87
Uniform Capacity (lb.): 20000
Usable Width (in.): 87

AY-257230
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 25000
Usable Width (in.): 66
Uniform Capacity (lb.): 25000
Usable Width (in.): 66

AY-257236-L
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 25000
Usable Width (in.): 66
Uniform Capacity (lb.): 25000
Usable Width (in.): 66

AY-258430
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 25000
Usable Width (in.): 78
Uniform Capacity (lb.): 25000
Usable Width (in.): 78

AY-258436-L
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 25000
Usable Width (in.): 78
Uniform Capacity (lb.): 25000
Usable Width (in.): 78

AY-259330
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 25000
Usable Width (in.): 87
Uniform Capacity (lb.): 25000
Usable Width (in.): 87

AY-259336-L
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 25000
Usable Width (in.): 87
Uniform Capacity (lb.): 25000
Usable Width (in.): 87

AY-307230
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 30000
Usable Width (in.): 66
Uniform Capacity (lb.): 30000
Usable Width (in.): 66

AY-307236-L
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 30000
Usable Width (in.): 66
Uniform Capacity (lb.): 30000
Usable Width (in.): 66

AY-308430
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 30000
Usable Width (in.): 78
Uniform Capacity (lb.): 30000
Usable Width (in.): 78

AY-308436-L
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 30000
Usable Width (in.): 78
Uniform Capacity (lb.): 30000
Usable Width (in.): 78

SY-167230
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 16000
Usable Width (in.): 66
Uniform Capacity (lb.): 16000
Usable Width (in.): 66

SY-167236-L
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 16000
Usable Width (in.): 66
Uniform Capacity (lb.): 16000
Usable Width (in.): 66

SY-168430
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 16000
Usable Width (in.): 78
Uniform Capacity (lb.): 16000
Usable Width (in.): 78

SY-168436-L
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 16000
Usable Width (in.): 78
Uniform Capacity (lb.): 16000
Usable Width (in.): 78

SY-169330
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 16000
Usable Width (in.): 87
Uniform Capacity (lb.): 16000
Usable Width (in.): 87

SY-169336-L
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 16000
Usable Width (in.): 87
Uniform Capacity (lb.): 16000
Usable Width (in.): 87

SY-207230
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20000
Usable Width (in.): 66
Uniform Capacity (lb.): 20000
Usable Width (in.): 66

SY-207236-L
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20000
Usable Width (in.): 66
Uniform Capacity (lb.): 20000
Usable Width (in.): 66

SY-208430
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20000
Usable Width (in.): 78
Uniform Capacity (lb.): 20000
Usable Width (in.): 78

SY-208436-L
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20000
Usable Width (in.): 78
Uniform Capacity (lb.): 20000
Usable Width (in.): 78

SY-209330
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20000
Usable Width (in.): 87
Uniform Capacity (lb.): 20000
Usable Width (in.): 87

SY-209336-L
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20000
Usable Width (in.): 87
Uniform Capacity (lb.): 20000
Usable Width (in.): 87

SY-257230
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 25000
Usable Width (in.): 66
Uniform Capacity (lb.): 25000
Usable Width (in.): 66

SY-257236-L
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 25000
Usable Width (in.): 66
Uniform Capacity (lb.): 25000
Usable Width (in.): 66

SY-258430
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 25000
Usable Width (in.): 78
Uniform Capacity (lb.): 25000
Usable Width (in.): 78

SY-258436-L
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 25000
Usable Width (in.): 78
Uniform Capacity (lb.): 25000
Usable Width (in.): 78

SY-259330
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 25000
Usable Width (in.): 87
Uniform Capacity (lb.): 25000
Usable Width (in.): 87

SY-259336-L
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 25000
Usable Width (in.): 87
Uniform Capacity (lb.): 25000
Usable Width (in.): 87

SY-307230
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 30000
Usable Width (in.): 66
Uniform Capacity (lb.): 30000
Usable Width (in.): 66

SY-307236-L
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 30000
Usable Width (in.): 66
Uniform Capacity (lb.): 30000
Usable Width (in.): 66

SY-308430
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 30000
Usable Width (in.): 78
Uniform Capacity (lb.): 30000
Usable Width (in.): 78

SY-308436-L
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 30000
Usable Width (in.): 78
Uniform Capacity (lb.): 30000
Usable Width (in.): 78
For More Details of the Option Click the Red Model Button
AY-AHDRL 90 Days Limited WarrantyFactory Installed Aluminum Non-Removable 42 In. Height Handrails with 21 In. Welded Mid Rail For Aluminum Yard Ramp ModelsHandrail Height (in.): 42
Midrail Height (in.): 21		10
AY-CRB6 AY-CRB61 Year Limited WarrantyFactory Installed Additional 6 In. Aluminum Curb Height For Steel & Aluminum Yard Ramps-
AY-PNTR AY-PNTR90 Days Limited WarrantyFactory Installed Rubber Pneumatic Tires 20-1/2 In. x 8 In. For Aluminum & Steel Yard RampsLowered Height (in.): 40
Raised Height (in.): 66		200

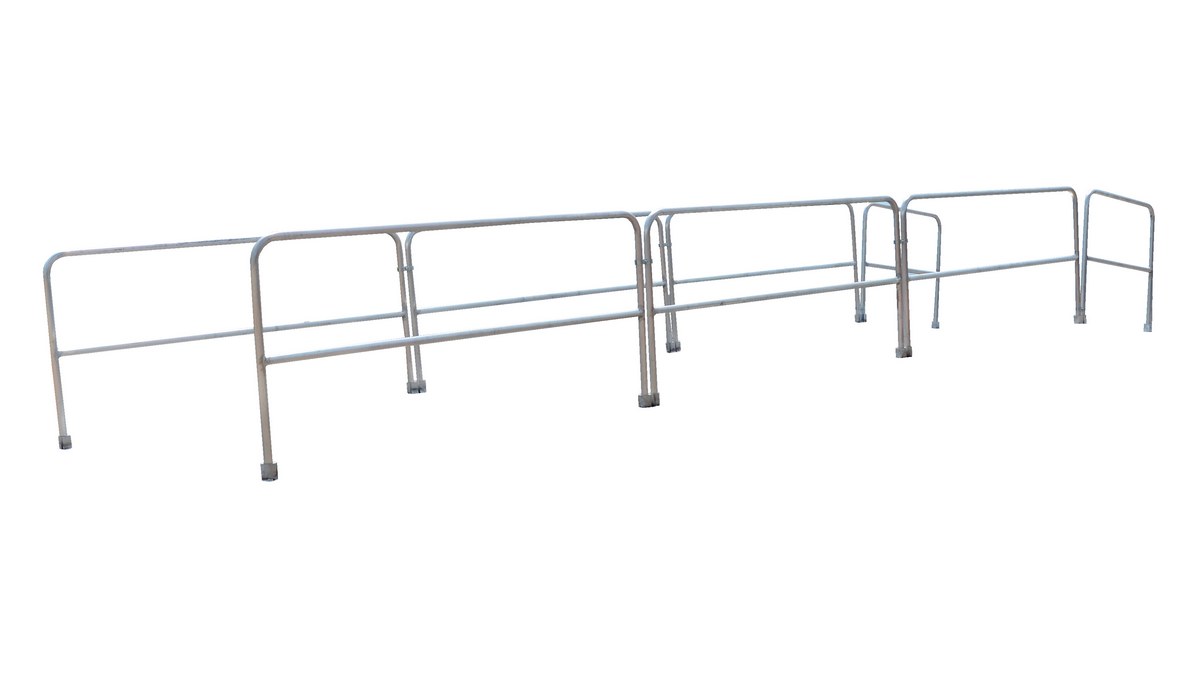

AY-RAHDRL AY-RAHDRL90 Days Limited WarrantyFactory Installed Aluminum Removable 42 In. Height Handrails with 21 In. Welded Mid Rail For Aluminum & Steel Yard Ramp ModelsHandrail Height (in.): 42
Midrail Height (in.): 21		10

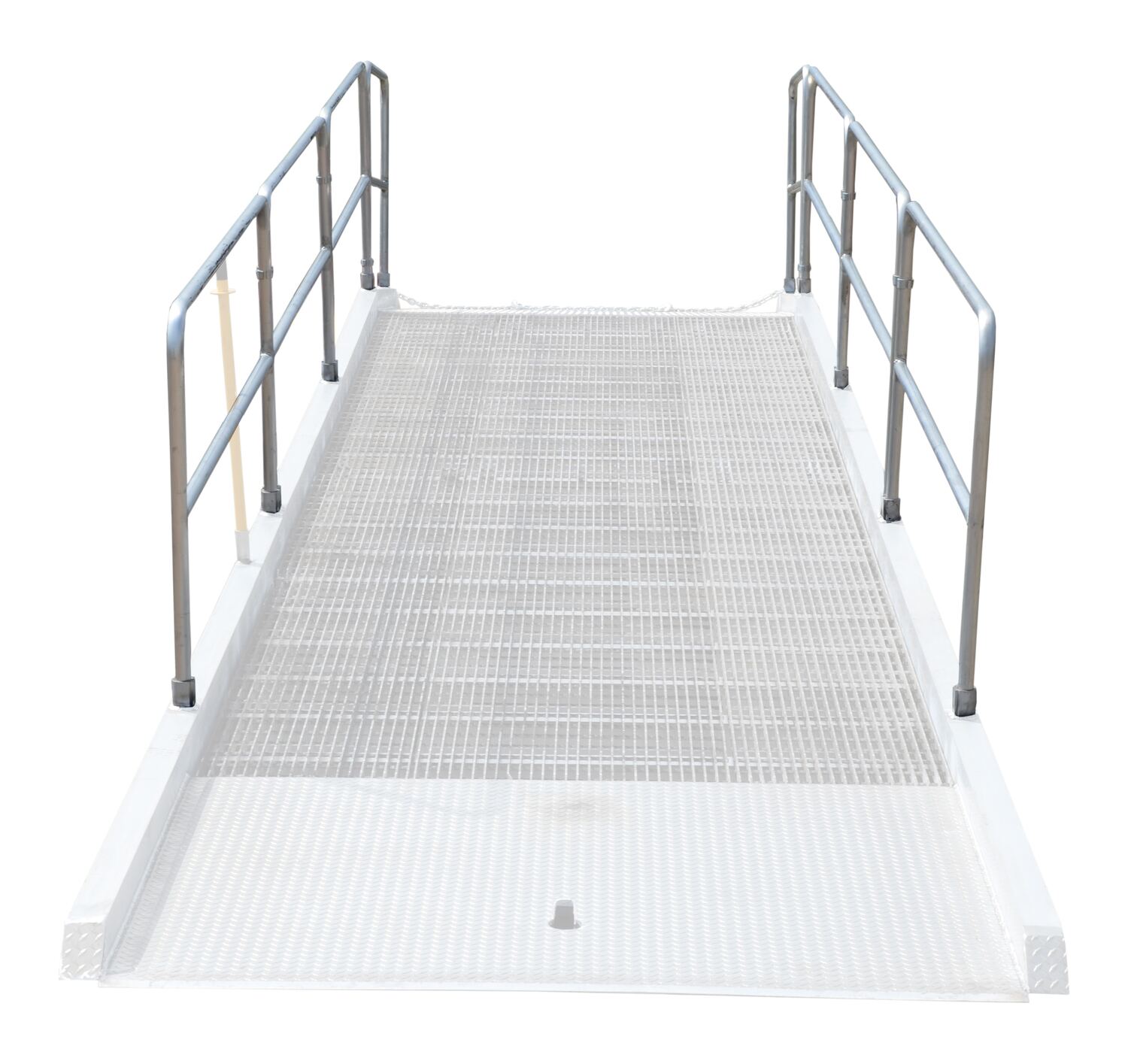

AY-RHDRL AY-RHDRL90 Days Limited WarrantySteel Removable 42 In. Height Handrails with 21 In. Welded Mid Rail For Aluminum & Steel Yard Ramp ModelsHandrail Height (in.): 42
Midrail Height (in.): 21		10
AY-YEL AY-YEL30 Days Limited WarrantyFactory Installed Steel Yellow Factory Painted Safety Curb For Steel & Aluminum Yard Ramps-
0
AYR-CRB6 1 Year Limited WarrantyFactory Installed Additional 6 In. Steel Curb Height For Steel & Aluminum Yard Ramps-
AYR-DH 1 Year Limited WarrantyFactory Installed Steel Lip Lag Holes For Aluminum & Steel Yard Ramps-
AYR-GR-30 90 Days Limited WarrantyFactory Installed Aluminum Guard Rail 12 In. Height For 30 Ft. Aluminum & Steel Yard Ramps Silver-
456
AYR-GR-36 90 Days Limited WarrantyFactory Installed Aluminum Guard Rail 12 In. Height For 36 Ft. Aluminum & Steel Yard Ramps Silver-
550
AYR-HL-DC 90 Days Limited WarrantyFactory Installed 12 Volt DC Hydraulic Lift With On Board Charger For Aluminum & Steel Yard RampsSize: Fabricated to Fit Unit
Rubber Tire Diameter (in.): 20-1/2		42

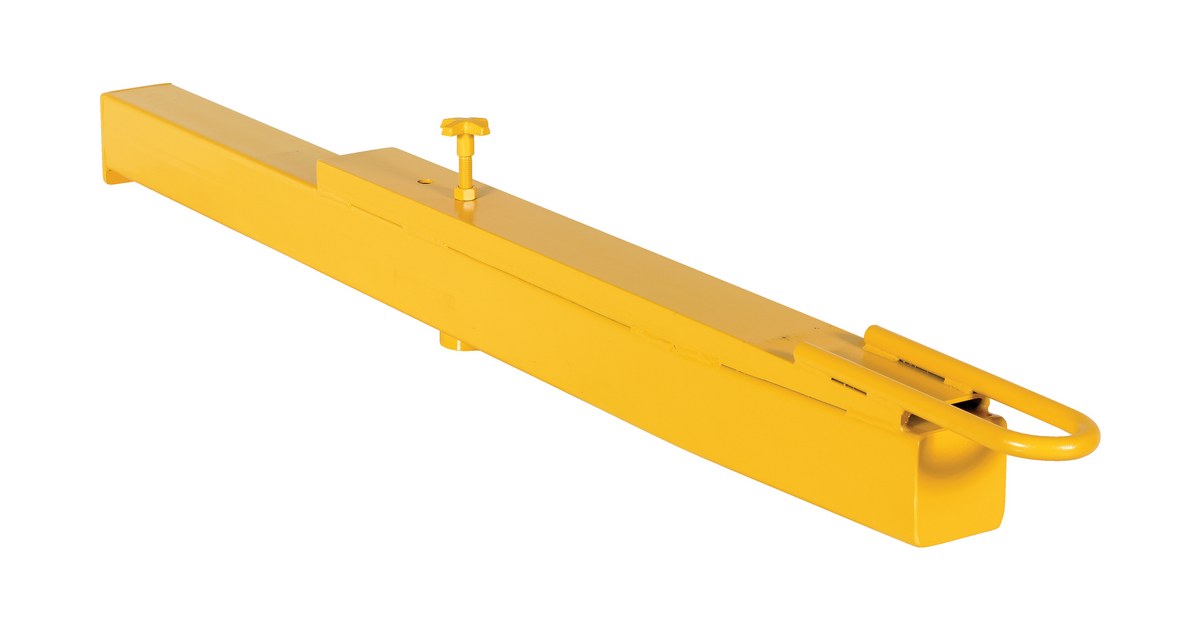

AYR-TB-H AYR-TB-H30 Days Limited WarrantyFactory Installed Steel Tow Bar Hitch For Aluminum & Steel Yard Ramps Yellow-
145
AYR-TB-P AYR-TB-P30 Days Limited WarrantyReplacement Tow Bar Pocket For Steel & Aluminum Yard Ramps YellowFork Pocket Width/Height (in.): 7-1/2 x 2-1/2
Chain with Hook Length (in.): 56		41
AYR-YEL 30 Days Limited WarrantyFactory Installed Steel Yellow Factory Painted Safety Curb For Aluminum Yard Ramps-
SY-CRB6 90 Days Limited WarrantyFactory Installed Steel 6 In. Curb Height For Aluminum/Steel Yard Ramp UnitsSide Rail (in.): 6

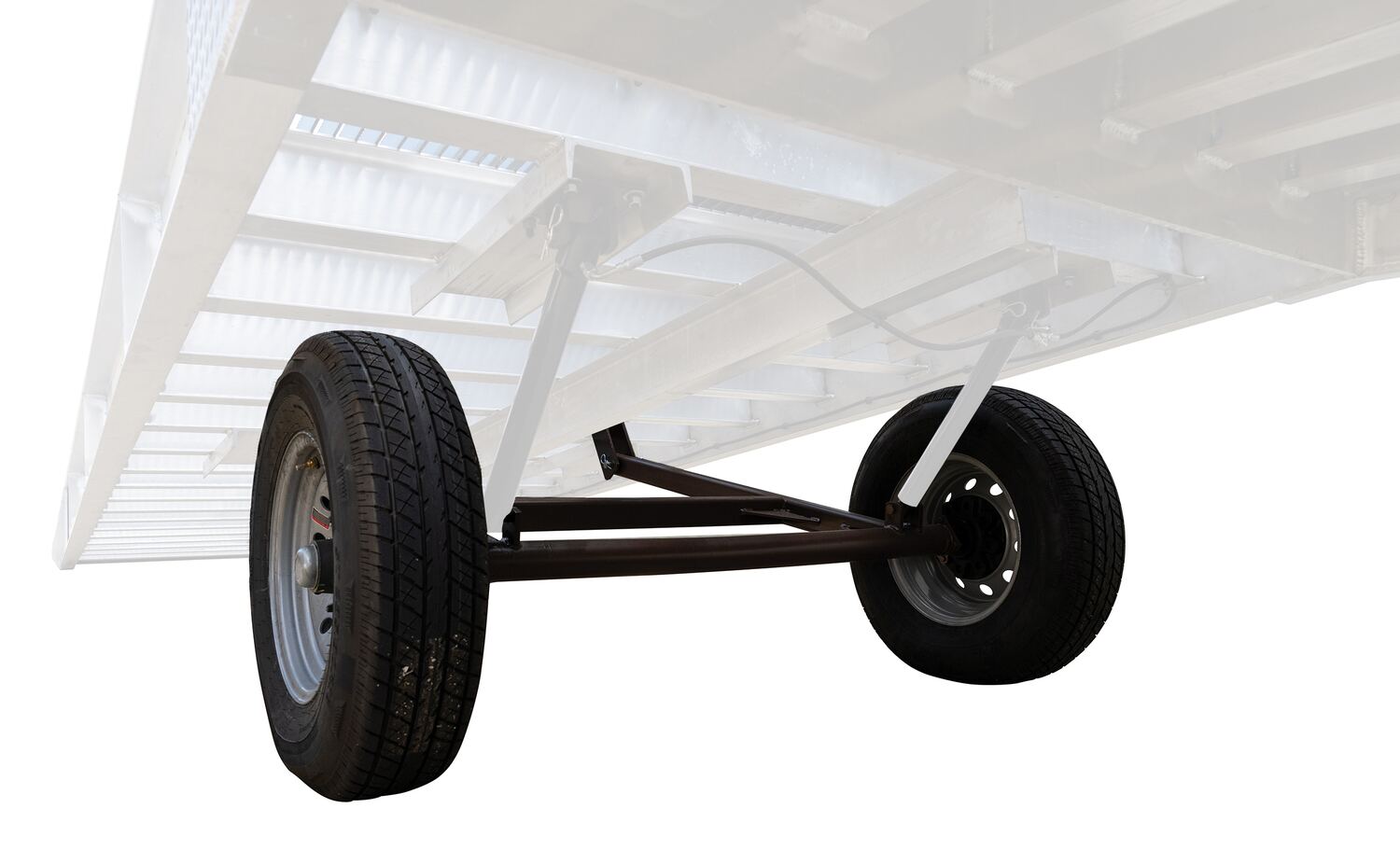

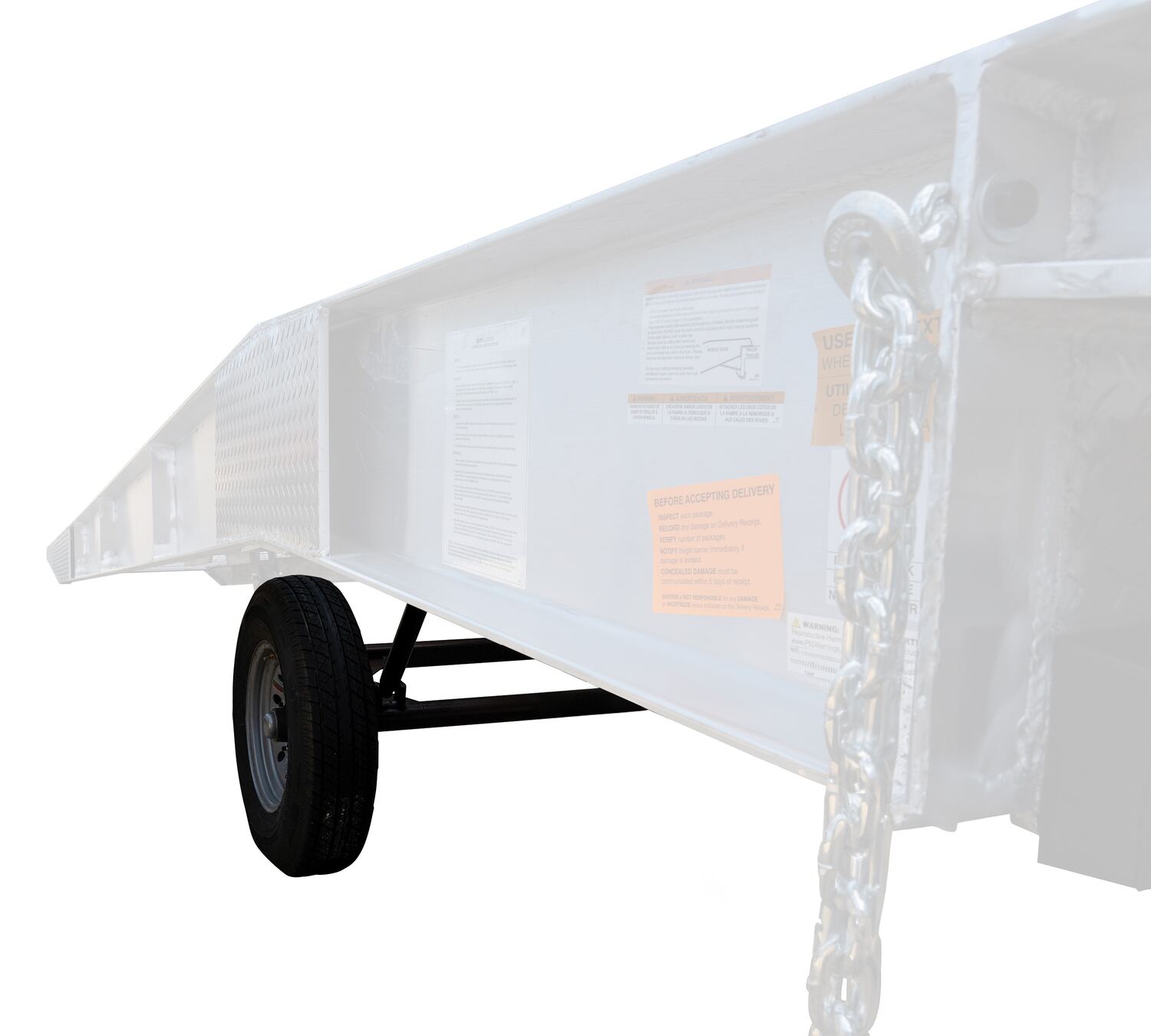

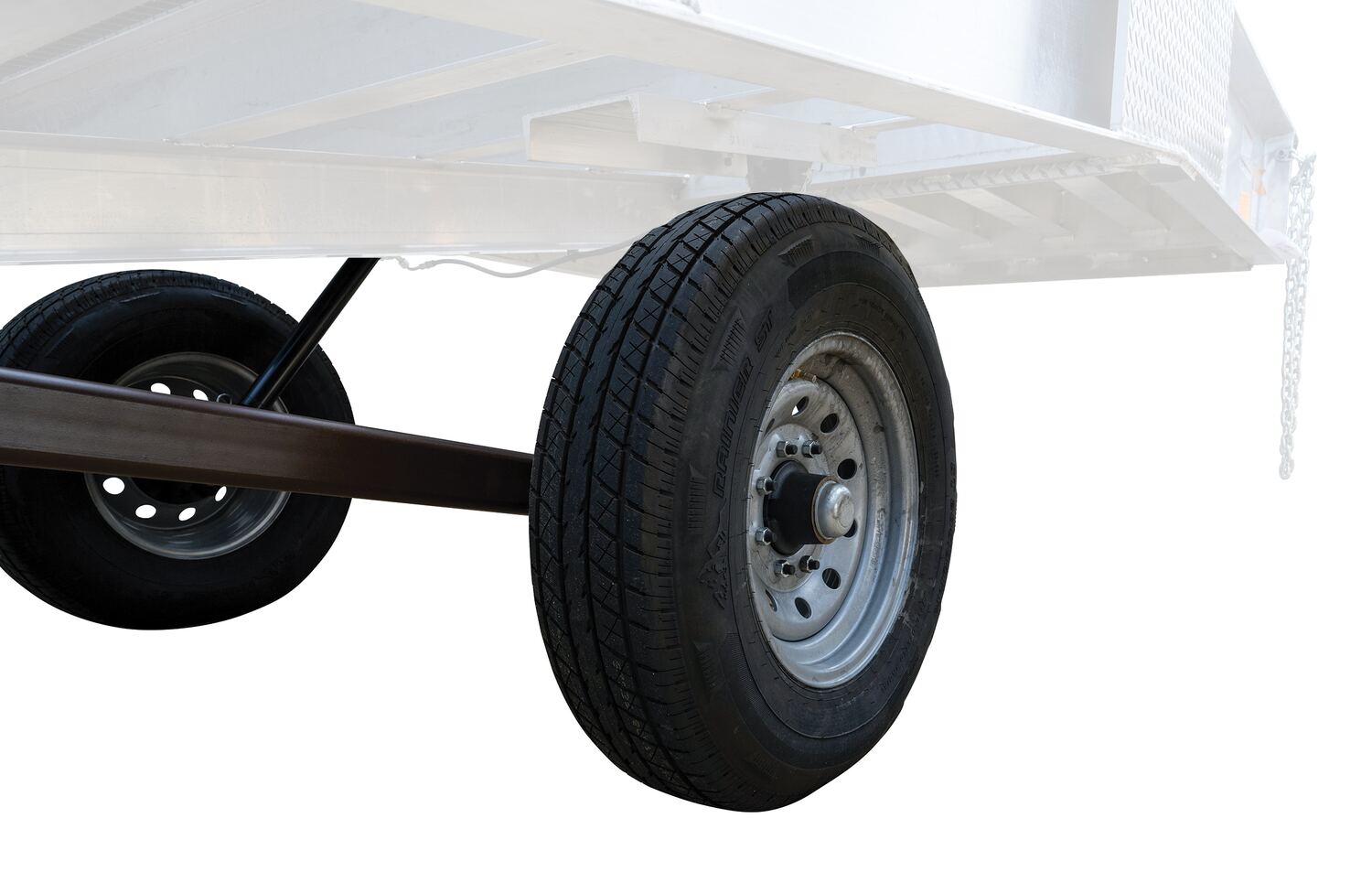

SY-PNTR SY-PNTR90 Days Limited WarrantyFactory Installed/Fabricated Pneumatic Tire For Aluminum/Steel Yard Ramp UnitsSize: Fabricated to Fit Unit
Lowered Height (in.): 40
SY-YEL SY-YEL30 Days Limited WarrantyFactory Installed Steel Yellow Factory Painted Safety Curb For Aluminum/Steel Yard RampsFormula Base: Styrene-Acrylic Polymer
Tintable: No
Model Number Image Description Wt.
(lbs.)
YR-WH icon_approvaldrawings.jpgYard ramp wall hooks --
YR-PAD Foot Pad For Yard Ramp Landing Gear (10"x10"x2.5") 15(each)
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Aluminum Yard Ramps PDF's will open in a new window when clicked.

Manuals


AY
Owners Manual

SY
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


AY-167230

AY-167236-L

AY-168430

AY-168436-L

AY-169330

AY-169336-L

AY-207230

AY-207236-L

AY-208430

AY-208436-L

AY-209330

AY-209336-L

AY-257230

AY-257236-L

AY-258430

AY-258436-L

AY-259330

AY-259336-L

AY-307230

AY-307236-L

AY-308430

AY-308436-L

SY-167230

SY-167236-L

SY-168430

SY-168436-L

SY-169330

SY-169336-L

SY-207230

SY-207236-L

SY-208430

SY-208436-L

SY-209330

SY-209336-L

SY-257230

SY-257236-L

SY-258430

SY-258436-L

SY-259330

SY-259336-L

SY-307230

SY-307236-L

SY-308430

SY-308436-L

Testing Certificates


AY-167230

AY-167236-L

AY-168430

AY-168436-L

AY-169330

AY-169336-L

AY-207230

AY-207236-L

AY-208430

AY-208436-L

AY-209330

AY-209336-L

AY-257230

AY-257236-L

AY-258430

AY-258436-L

AY-259330

AY-259336-L

AY-307230

AY-307236-L

AY-308430

AY-308436-L

AY-AHDRL

AY-CRB6

AY-PNTR

AY-RAHDRL

AY-YEL

AYR-CRB6

AYR-DH

AYR-GR-30

AYR-GR-36

AYR-HL-DC

AYR-TB-H

AYR-TB-P

AYR-YEL

SY-167230

SY-167236-L

SY-168430

SY-168436-L

SY-169330

SY-169336-L

SY-207230

SY-207236-L

SY-208430

SY-208436-L

SY-209330

SY-209336-L

SY-257230

SY-257236-L

SY-258430

SY-258436-L

SY-259330

SY-259336-L

SY-307230

SY-307236-L

SY-308430

SY-308436-L

SY-CRB6

SY-PNTR

SY-YEL

SDS Sheets

Hydraulic Oil SDS Sheet for: AYR-HL-DC
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: AYR-HL-DC

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Related or Similar Products:

Steel Yard Ramps
Product

Steel Yard Ramps

Mini Yard Ramps
Product

Mini Yard Ramps

Walk & Service Ramps
Product

Walk & Service Ramps

Docklevelers
Product

Docklevelers

Wheel Risers
Product

Wheel Risers

Premium Truck Scissor Dock Lifts
Product

Premium Truck Scissor Dock Lifts

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Aluminum Yard Ramps




yard_r79.jpgPortable Aluminum Yard Ramps have a unique design that allows one person to position the ramp, adjust its service height, and load or unload trailers from ground level. Available with steel or rust resistant aluminum grating. Standard features: Manual hydraulic hand pump (safety pressure relief valve),18" x 5" mold-on-rubber tires, 4" high curbs, service range of 45" to 62", anchor chains, and tow bar pocket. Yard ramps ship flatbed truck. (Yellow guards are optional)

Check out our Steel Yard Ramps

  • Aluminum side curbs prevent fork truck run-off
  • Overlap style lip with safety chains secures ramp to trailer
  • Steel grating allows snow, ice and rain to fall through
  • Hand pump hydraulic lift easily adjusts to different dock heights

Model # Description Attributes Net Wt.
(lbs)
AY-167230 AY-167230Aluminum Yard Ramp 360 In. x 74 In. 16000 Lb. Capacity SilverUniform Capacity (lb.): 16000
Usable Width (in.): 66		2783
AY-167236-L AY-167236-LAluminum Yard Ramp 432 In. x 74 In. 16000 Lb. Capacity SilverUniform Capacity (lb.): 16000
Usable Width (in.): 66		3360
AY-168430 AY-168430Aluminum Yard Ramp 360 In. x 86 In. 16000 Lb. Capacity SilverUniform Capacity (lb.): 16000
Usable Width (in.): 78		3150
AY-168436-L AY-168436-LAluminum Yard Ramp 432 In. x 86 In. 16000 Lb. Capacity SilverUniform Capacity (lb.): 16000
Usable Width (in.): 78		3728
AY-169330 AY-169330Aluminum Yard Ramp 360 In. x 95 In. 16000 Lb. Capacity SilverUniform Capacity (lb.): 16000
Usable Width (in.): 87		3465
AY-169336-L AY-169336-LAluminum Yard Ramp 432 In. x 95 In. 16000 Lb. Capacity SilverUniform Capacity (lb.): 16000
Usable Width (in.): 87		3990
AY-207230 AY-207230Aluminum Yard Ramp 360 In. x 74 In. 20000 Lb. Capacity SilverUniform Capacity (lb.): 20000
Usable Width (in.): 66		3565
AY-207236-L AY-207236-LAluminum Yard Ramp 432 In. x 74 In. 20000 Lb. Capacity SilverUniform Capacity (lb.): 20000
Usable Width (in.): 66		3465
AY-208430 AY-208430Aluminum Yard Ramp 360 In. x 86 In. 20000 Lb. Capacity SilverUniform Capacity (lb.): 20000
Usable Width (in.): 78		3255
AY-208436-L AY-208436-LAluminum Yard Ramp 432 In. x 86 In. 20000 Lb. Capacity SilverUniform Capacity (lb.): 20000
Usable Width (in.): 78		3833
AY-209330 AY-209330Aluminum Yard Ramp 360 In. x 95 In. 20000 Lb. Capacity SilverUniform Capacity (lb.): 20000
Usable Width (in.): 87		3570
AY-209336-L AY-209336-LAluminum Yard Ramp 432 In. x 95 In. 20000 Lb. Capacity SilverUniform Capacity (lb.): 20000
Usable Width (in.): 87		4095
AY-257230 AY-257230Aluminum Yard Ramp 360 In. x 74 In. 20000 Lb. Capacity SilverUniform Capacity (lb.): 25000
Usable Width (in.): 66		2940
AY-257236-L AY-257236-LAluminum Yard Ramp 432 In. x 74 In. 25000 Lb. Capacity SilverUniform Capacity (lb.): 25000
Usable Width (in.): 66		3578
AY-258430 AY-258430Aluminum Yard Ramp 360 In. x 86 In. 25000 Lb. Capacity SilverUniform Capacity (lb.): 25000
Usable Width (in.): 78		3308
AY-258436-L AY-258436-LAluminum Yard Ramp 432 In. x 86 In. 25000 Lb. Capacity SilverUniform Capacity (lb.): 25000
Usable Width (in.): 78		3885
AY-259330 AY-259330Aluminum Yard Ramp 360 In. x 95 In. 25000 Lb. Capacity SilverUniform Capacity (lb.): 25000
Usable Width (in.): 87		3675
AY-259336-L AY-259336-LAluminum Yard Ramp 432 In. x 95 In. 25000 Lb. Capacity SilverUniform Capacity (lb.): 25000
Usable Width (in.): 87		4200
AY-307230 AY-307230Aluminum Yard Ramp 360 In. x 74 In. 30000 Lb. Capacity SilverUniform Capacity (lb.): 30000
Usable Width (in.): 66		3092
AY-307236-L AY-307236-LAluminum Yard Ramp 432 In. x 74 In. 30000 Lb. Capacity SilverUniform Capacity (lb.): 30000
Usable Width (in.): 66		3570
AY-308430 AY-308430Aluminum Yard Ramp 360 In. x 86 In. 30000 Lb. Capacity SilverUniform Capacity (lb.): 30000
Usable Width (in.): 78		3360
AY-308436-L AY-308436-LAluminum Yard Ramp 432 In. x 86 In. 30000 Lb. Capacity SilverUniform Capacity (lb.): 30000
Usable Width (in.): 78		3938
SY-167230 SY-167230Aluminum/Steel Yard Ramp Grating 74 In. x 30 Ft. 16,000 Lb. Capacity SilverUniform Capacity (lb.): 16000
Usable Width (in.): 66		3518
SY-167236-L SY-167236-LAluminum/Steel Yard Ramp Grating 74 In. x 36 Ft. 16,000 Lb. Capacity SilverUniform Capacity (lb.): 16000
Usable Width (in.): 66		4305
SY-168430 SY-168430Aluminum/Steel Yard Ramp Grating 86 In. x 30 Ft. 16,000 Lb. Capacity SilverUniform Capacity (lb.): 16000
Usable Width (in.): 78		4043
SY-168436-L SY-168436-LAluminum/Steel Yard Ramp Grating 86 In. x 36 Ft. 16,000 Lb. Capacity SilverUniform Capacity (lb.): 16000
Usable Width (in.): 78		4830
SY-169330 SY-169330Aluminum/Steel Yard Ramp Grating 95 In. x 30 Ft. 16,000 Lb. Capacity SilverUniform Capacity (lb.): 16000
Usable Width (in.): 87		4515
SY-169336-L SY-169336-LAluminum/Steel Yard Ramp Grating 95 In. x 36 Ft. 16,000 Lb. Capacity SilverUniform Capacity (lb.): 16000
Usable Width (in.): 87		5303
SY-207230 SY-207230Aluminum/Steel Yard Ramp Grating 74 In. x 30 Ft. 20,000 Lb. Capacity SilverUniform Capacity (lb.): 20000
Usable Width (in.): 66		3623
SY-207236-L SY-207236-LAluminum/Steel Yard Ramp Grating 74 In. x 36 Ft. 20,000 Lb. Capacity SilverUniform Capacity (lb.): 20000
Usable Width (in.): 66		4410
SY-208430 SY-208430Aluminum/Steel Yard Ramp Grating 86 In. x 30 Ft. 20,000 Lb. Capacity SilverUniform Capacity (lb.): 20000
Usable Width (in.): 78		4148
SY-208436-L SY-208436-LAluminum/Steel Yard Ramp Grating 86 In. x 36 Ft. 20,000 Lb. Capacity SilverUniform Capacity (lb.): 20000
Usable Width (in.): 78		4935
SY-209330 SY-209330Aluminum/Steel Yard Ramp Grating 95 In. x 30 Ft. 20,000 Lb. Capacity SilverUniform Capacity (lb.): 20000
Usable Width (in.): 87		4620
SY-209336-L SY-209336-LAluminum/Steel Yard Ramp Grating 95 In. x 36 Ft. 20,000 Lb. Capacity SilverUniform Capacity (lb.): 20000
Usable Width (in.): 87		5408
SY-257230 SY-257230Aluminum/Steel Yard Ramp Grating 74 In. x 30 Ft. 25,000 Lb. Capacity SilverUniform Capacity (lb.): 25000
Usable Width (in.): 66		3675
SY-257236-L SY-257236-LAluminum/Steel Yard Ramp Grating 74 In. x 36 Ft. 25,000 Lb. Capacity SilverUniform Capacity (lb.): 25000
Usable Width (in.): 66		4463
SY-258430 SY-258430Aluminum/Steel Yard Ramp Grating 86 In. x 30 Ft. 25,000 Lb. Capacity SilverUniform Capacity (lb.): 25000
Usable Width (in.): 78		4200
SY-258436-L SY-258436-LAluminum/Steel Yard Ramp Grating 86 In. x 36 Ft. 25,000 Lb. Capacity SilverUniform Capacity (lb.): 25000
Usable Width (in.): 78		4988
SY-259330 SY-259330Aluminum/Steel Yard Ramp Grating 95 In. x 30 Ft. 25,000 Lb. Capacity SilverUniform Capacity (lb.): 25000
Usable Width (in.): 87		4725
SY-259336-L SY-259336-LAluminum/Steel Yard Ramp Grating 95 In. x 36 Ft. 25,000 Lb. Capacity SilverUniform Capacity (lb.): 25000
Usable Width (in.): 87		5513
SY-307230 SY-307230Aluminum/Steel Yard Ramp Grating 74 In. x 30 Ft. 30,000 Lb. Capacity SilverUniform Capacity (lb.): 30000
Usable Width (in.): 66		3728
SY-307236-L SY-307236-LAluminum/Steel Yard Ramp Grating 74 In. x 36 Ft. 30,000 Lb. Capacity SilverUniform Capacity (lb.): 30000
Usable Width (in.): 66		4515
SY-308430 SY-308430Aluminum/Steel Yard Ramp Grating 86 In. x 30 Ft. 30,000 Lb. Capacity SilverUniform Capacity (lb.): 30000
Usable Width (in.): 78		4253
SY-308436-L SY-308436-LAluminum/Steel Yard Ramp Grating 86 In. x 36 Ft. 30,000 Lb. Capacity SilverUniform Capacity (lb.): 30000
Usable Width (in.): 78		5040

Options


Model Number Image Description Wt.
(lbs.)
YR-WH icon_approvaldrawings.jpgYard ramp wall hooks --
YR-PAD Foot Pad For Yard Ramp Landing Gear (10"x10"x2.5") 15(each)

Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
