Mechanical Dock Levelers

- - - -

Description
Model Chart
Options
PDF's
Image Gallery

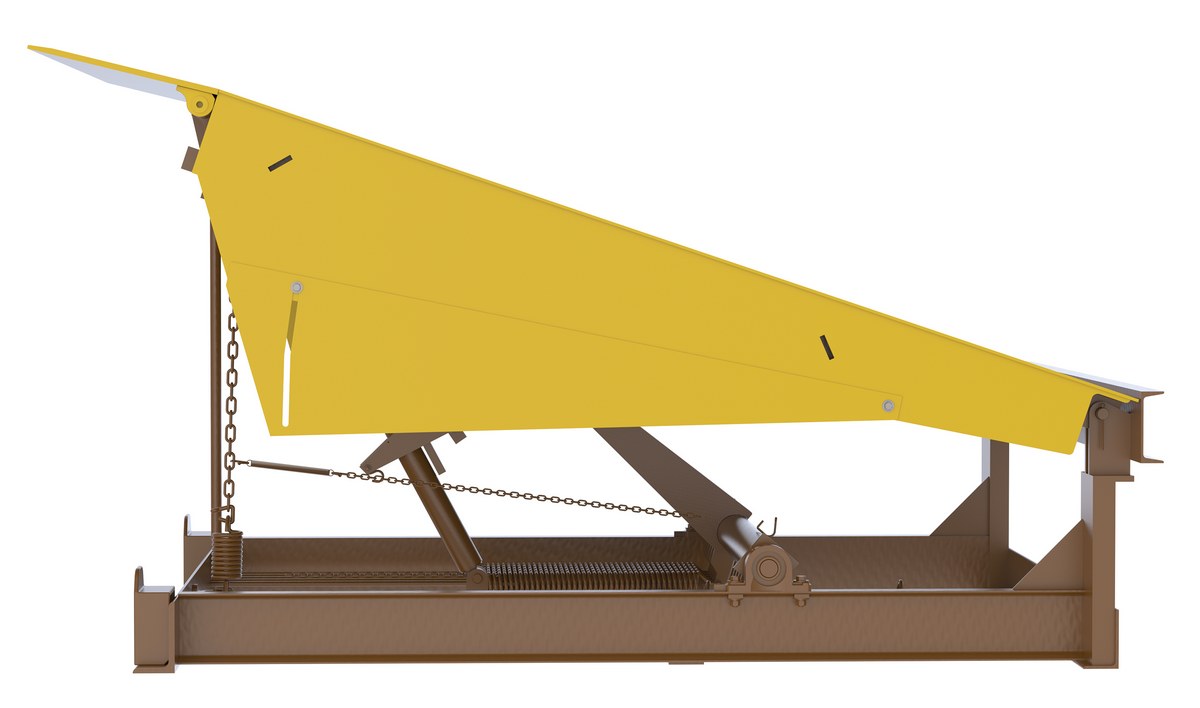

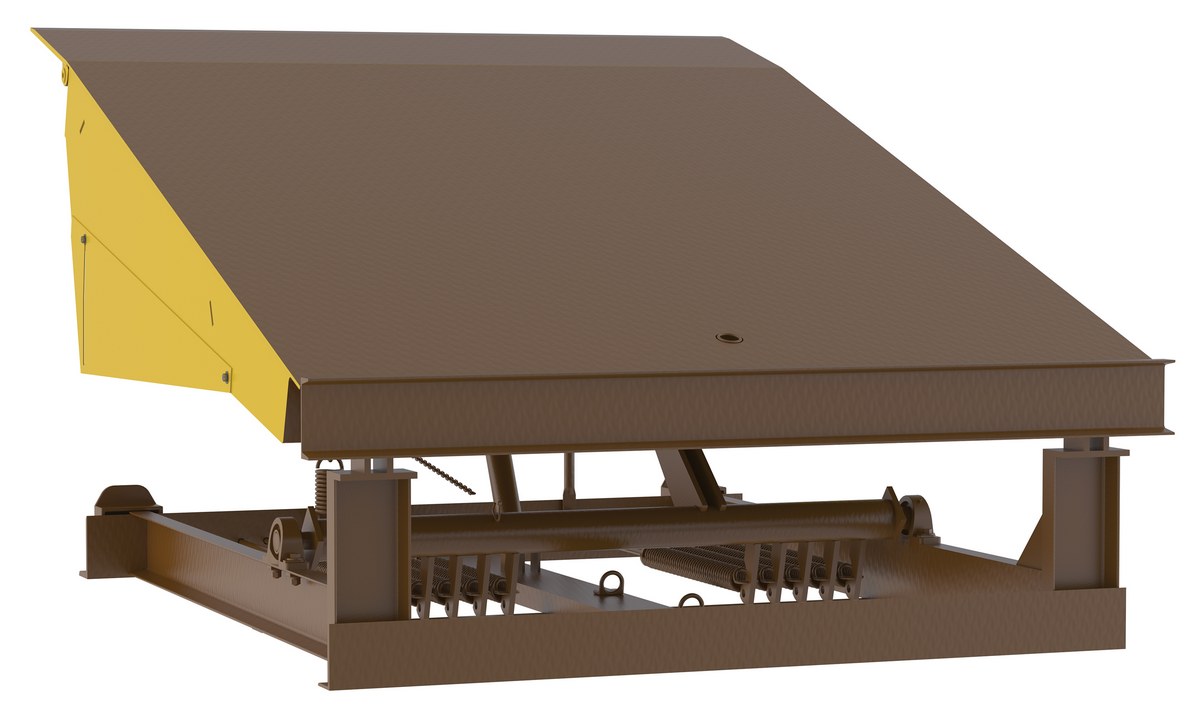

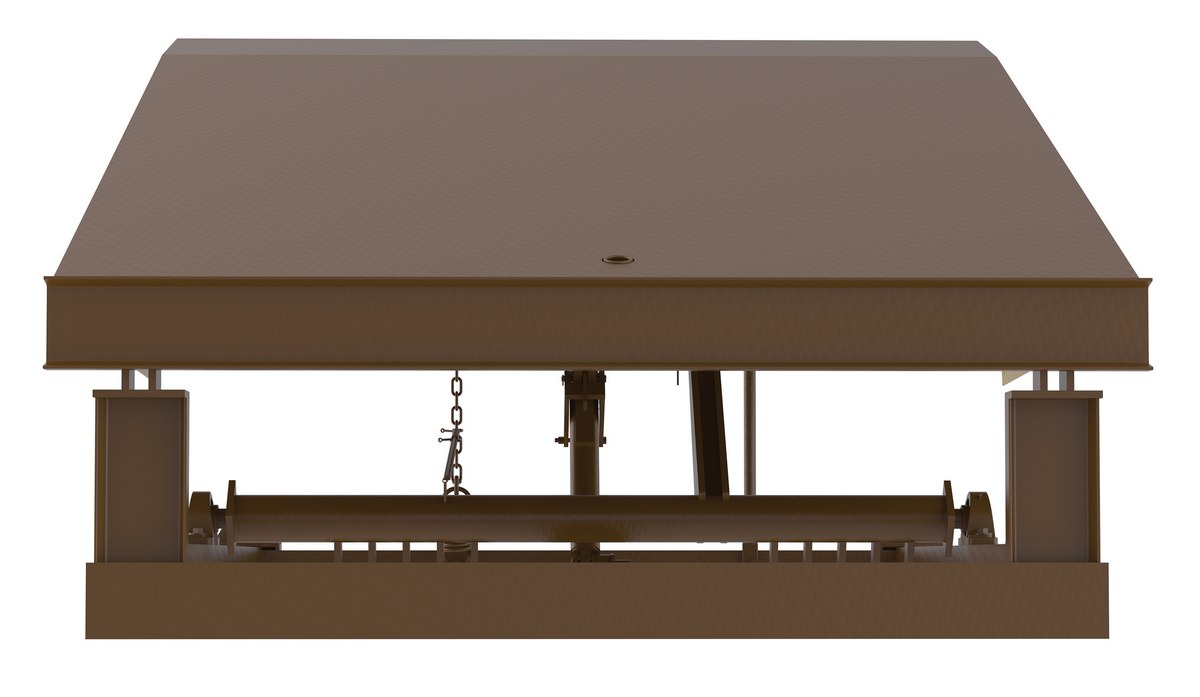

RR-68-20_A.jpg RR-68-20_B.jpg RR-68-20_C.jpg RR-68-20_D.jpg
Mechanical Dock Levelers

model: RR-68-20



Featured Loading Dock Equipment


Retractable Dock Shelter
Fabricated Aluminum Hose & Cable Crossovers
Loading Lights
Cargo Strapping
Folding Ramp
Steel Wheel Riser with Central Fork Pocket
Steel Pick-Up/Van Ramps
Dock Seals
Hose & Cable Crossovers
model chart

Product Family Overview

Print Friendly
Mechanical Dock Levelers
SERIES: RR

The Mechanical Dock levelers are constructed of heavy duty diamond plate deck (55,000 PSI) steel for long term support of the steel channel understructure. The dock leveler allows for easy truck loading and unloading. The leveler is engineered and designed for minimum maintenance and features a smooth pull chain operation. Lip is 16" long. Service range 12" above and below dock. Includes (2) 1014-4.5 laminated bumpers. Uniform capacities available up to 50,000 pounds.

Quoting a dockleveler installation for an existing pit can be difficult. We recommend that you complete this Survey Sheet

  • Pit-mounted dock leveler allows for easy trailer loading and unloading at loading docks

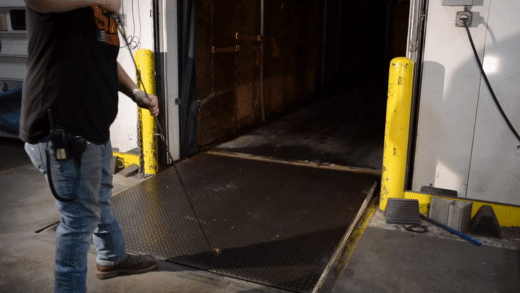

  • Spring operated mechanical pull-chain makes use easy
  • Telescopic side-mounted toe guards cover opening through the entire service range
  • Complies with CS 202-56, OSHA and ANSI MH14.5

Everything You'll Need For Your Dock!

Loading Dock Lights

Dock Insulated Blanket

Wheel Chocks

Trailer Stabilizing Jacks

The Mechanical Dock levelers are constructed of heavy duty diamond plate deck (55,000 PSI) steel for long term support of the steel channel understructure. The dock leveler allows for easy truck loading and unloading. The leveler is engineered and designed for minimum maintenance and features a smooth pull chain operation. Lip is 16" long. Service range 12" above and below dock. Includes (2) 1014-4.5 laminated bumpers. Uniform capacities available up to 50,000 pounds.

Quoting a dockleveler installation for an existing pit can be difficult. We recommend that you complete this Survey Sheet

  • Pit-mounted dock leveler allows for easy trailer loading and unloading at loading docks
  • Spring operated mechanical pull-chain makes use easy
  • Telescopic side-mounted toe guards cover opening through the entire service range
  • Complies with CS 202-56, OSHA and ANSI MH14.5

Everything You'll Need For Your Dock!

Loading Dock Lights

Dock Insulated Blanket

Wheel Chocks

Trailer Stabilizing Jacks

Other Dock Levelers

 Truck Actuated Dock Levelers Edge-O-Dock Levelers Mechanical Dock Levelers Weather Stripping (for pit mounted dock levelers)

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
RR-610-20
RR-610-201 Year Limited WarrantySteel Pull Chain Mechanical Dock Leveler 74"W x 110"L x 24"D Pit Dimensions 20000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 20,000
Steel Checkered Plate Deck (in.): 1/4		22563
RR-610-25
RR-610-251 Year Limited WarrantySteel Pull Chain Mechanical Dock Leveler 74"W x 110"L x 24"D Pit Dimensions 25000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 25,000
Steel Checkered Plate Deck (in.): 1/4		22563
RR-610-30
RR-610-301 Year Limited WarrantySteel Pull Chain Mechanical Dock Leveler 74"W x 110"L x 24"D Pit Dimensions 30000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 30,000
Steel Checkered Plate Deck (in.): 1/4		22601
RR-610-35
RR-610-351 Year Limited WarrantySteel Pull Chain Mechanical Dock Leveler 74"W x 110"L x 24"D Pit Dimensions 35000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 35,000
Steel Checkered Plate Deck (in.): 1/4		22738
RR-610-40
RR-610-401 Year Limited WarrantySteel Pull Chain Mechanical Dock Leveler 74"W x 110"L x 24"D Pit Dimensions 40000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 40,000
Steel Checkered Plate Deck (in.): 1/4		22738
RR-610-45
RR-610-451 Year Limited WarrantySteel Pull Chain Mechanical Dock Leveler 74"W x 110"L x 24"D Pit Dimensions 45000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 45,000
Steel Checkered Plate Deck (in.): 3/8		23151
RR-610-50
RR-610-501 Year Limited WarrantySteel Pull Chain Mechanical Dock Leveler 74"W x 110"L x 24"D Pit Dimensions 50000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 50,000
Steel Checkered Plate Deck (in.): 3/8		3105
RR-65-20
RR-65-201 Year Limited WarrantySteel Pull Chain Mechanical Dock Leveler 74"W x 50"L x 24"D Pit Dimensions 20000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 20,000
Steel Checkered Plate Deck (in.): 1/4		21696
RR-65-25
RR-65-251 Year Limited WarrantySteel Pull Chain Mechanical Dock Leveler 74"W x 50"L x 24"D Pit Dimensions 25000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 25,000
Steel Checkered Plate Deck (in.): 1/4		21616
RR-65-30
RR-65-301 Year Limited WarrantySteel Pull Chain Mechanical Dock Leveler 74"W x 50"L x 24"D Pit Dimensions 30000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 30,000
Steel Checkered Plate Deck (in.): 1/4		21655
RR-65-35
RR-65-351 Year Limited WarrantySteel Pull Chain Mechanical Dock Leveler 74"W x 50"L x 24"D Pit Dimensions 35000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 35,000
Steel Checkered Plate Deck (in.): 1/4		21709
RR-65-40
RR-65-401 Year Limited WarrantySteel Pull Chain Mechanical Dock Leveler 74"W x 50"L x 24"D Pit Dimensions 40000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 40,000
Steel Checkered Plate Deck (in.): 1/4		21709
RR-65-45
RR-65-451 Year Limited WarrantySteel Pull Chain Mechanical Dock Leveler 74"W x 50"L x 24"D Pit Dimensions 45000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 45,000
Steel Checkered Plate Deck (in.): 3/8		21919
RR-65-50
RR-65-501 Year Limited WarrantySteel Pull Chain Mechanical Dock Leveler 74"W x 50"L x 24"D Pit Dimensions 50000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 50,000
Steel Checkered Plate Deck (in.): 3/8		21919
RR-66-20
RR-66-201 Year Limited WarrantySteel Pull Chain Mechanical Dock Leveler 74"W x 62"L x 24"D Pit Dimensions 20000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 20,000
Steel Checkered Plate Deck (in.): 1/4		21812
RR-66-25
RR-66-251 Year Limited WarrantySteel Pull Chain Mechanical Dock Leveler 74"W x 62"L x 24"D Pit Dimensions 25000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 25,000
Steel checkered plate deck (in.): 1/4		21812
RR-66-30
RR-66-301 Year Limited WarrantySteel Pull Chain Mechanical Dock Leveler 74"W x 62"L x 24"D Pit Dimensions 30000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 30,000
Steel Checkered Plate Deck (in.): 1/4		21850
RR-66-35
RR-66-351 Year Limited WarrantySteel Pull Chain Mechanical Dock Leveler 74"W x 62"L x 24"D Pit Dimensions 35000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 35,000
Steel Checkered Plate Deck (in.): 1/4		21921
RR-66-40
RR-66-401 Year Limited WarrantySteel Pull Chain Mechanical Dock Leveler 74"W x 62"L x 24"D Pit Dimensions 40000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 40,000
Steel Checkered Plate Deck (in.): 1/4		21921
RR-66-45
RR-66-451 Year Limited WarrantySteel Pull Chain Mechanical Dock Leveler Pit Dimensions 74"W x 62"L x 24"D 45000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 45,000
Steel Checkered Plate Deck (in.): 3/8		22172
RR-66-50
RR-66-501 Year Limited WarrantySteel Pull Chain Mechanical Dock Leveler 74"W x 62"L x 24"D Pit Dimensions 50000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 50,000
Steel Checkered Plate Deck (in.): 3/8		22172
RR-68-20
RR-68-201 Year Limited WarrantySteel Pull Chain Mechanical Dock Leveler 74"W x 86"L x 24"D Pit Dimensions 20000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 20,000
Steel Checkered Plate Deck (in.): 1/4		22211
RR-68-25
RR-68-251 Year Limited WarrantySteel Pull Chain Mechanical Dock Leveler 74"W x 86"L x 24"D Pit Dimensions 25000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 25,000
Steel Checkered Plate Deck (in.): 1/4		22190
RR-68-30
RR-68-301 Year Limited WarrantySteel Pull Chain Mechanical Dock Leveler 74"W x 86"L x 24"D Pit Dimensions 30000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 30,000
Steel Checkered Plate Deck (in.): 1/4		22228
RR-68-35
RR-68-351 Year Limited WarrantySteel Pull Chain Mechanical Dock Leveler 74"W x 86"L x 24"D Pit Dimensions 35000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 35,000
Steel Checkered Plate Deck (in.): 1/4		22332
RR-68-40
RR-68-401 Year Limited WarrantySteel Pull Chain Mechanical Dock Leveler 74"W x 86"L x 24"D Pit Dimensions 40000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 40,000
Steel Checkered Plate Deck (in.): 1/4		22332
RR-68-45
RR-68-451 Year Limited WarrantySteel Pull Chain Mechanical Dock Leveler 74"W x 86"L x 24"D Pit Dimensions 45000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 45,000
Steel Checkered Plate Deck (in.): 3/8		22664
RR-68-50
RR-68-501 Year Limited WarrantySteel Pull Chain Mechanical Dock Leveler 74"W x 86"L x 24"D Pit Dimensions 50000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 50,000
Steel checkered plate deck (in.): 3/8		22664
RR-710-20
RR-710-201 Year Limited WarrantySteel Pull Chain Mechanical Dock Leveler 86"W x 110"L x 24"D Pit Dimensions 20000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 20,000
Steel Checkered Plate Deck (in.): 1/4		22854
RR-710-25
RR-710-251 Year Limited WarrantySteel Pull Chain Mechanical Dock Leveler 86"W x 110"L x 24"D Pit Dimensions 25000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 25,000
Steel Checkered Plate Deck (in.): 1/4		22854
RR-710-30
RR-710-301 Year Limited WarrantySteel Pull Chain Mechanical Dock Leveler 86"W x 110"L x 24"D Pit Dimensions 30000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 30,000
Steel Checkered Plate Deck (in.): 1/4		22898
RR-710-35
RR-710-351 Year Limited WarrantySteel Pull Chain Mechanical Dock Leveler 86"W x 110"L x 24"D Pit Dimensions 35000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 35,000
Steel Checkered Plate Deck (in.): 1/4		23028
RR-710-40
RR-710-401 Year Limited WarrantySteel Pull Chain Mechanical Dock Leveler 86"W x 110"L x 24"D Pit Dimensions 40000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 40,000
Steel Checkered Plate Deck (in.): 1/4		23028
RR-710-45
RR-710-451 Year Limited WarrantySteel Pull Chain Mechanical Dock Leveler 86"W x 110"L x 24"D Pit Dimensions 45000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 45,000
Steel Checkered Plate Deck (in.): 3/8		23146
RR-710-50
RR-710-501 Year Limited WarrantySteel Pull Chain Mechanical Dock Leveler 86"W x 110"L x 24"D Pit Dimensions 50000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 50,000
Steel Checkered Plate Deck (in.): 3/8		23146
RR-75-20
RR-75-201 Year Limited WarrantySteel Pull Chain Mechanical Dock Leveler 86"W x 50"L x 24"D Pit Dimensions 20000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 20,000
Steel Checkered Plate Deck (in.): 1/4		21812
RR-75-25
RR-75-251 Year Limited WarrantySteel Pull Chain Mechanical Dock Leveler 86"W x 50"L x 24"D Pit Dimensions 25000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 25,000
Steel Checkered Plate Deck (in.): 1/4		21812
RR-75-30
RR-75-301 Year Limited WarrantySteel Pull Chain Mechanical Dock Leveler 86"W x 50"L x 24"D Pit Dimensions 30000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 30,000
Steel Checkered Plate Deck (in.): 1/4		21856
RR-75-35
RR-75-351 Year Limited WarrantySteel Pull Chain Mechanical Dock Leveler 86"W x 50"L x 24"D Pit Dimensions 35000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 35,000
Steel Checkered Plate Deck (in.): 1/4		21889
RR-75-40
RR-75-401 Year Limited WarrantySteel Pull Chain Mechanical Dock Leveler 86"W x 50"L x 24"D Pit Dimensions 40000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 40,000
Steel Checkered Plate Deck (in.): 1/4		21889
RR-75-45
RR-75-451 Year Limited WarrantySteel Pull Chain Mechanical Dock Leveler 86"W x 50"L x 24"D Pit Dimensions 45000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 45,000
Steel Checkered Plate Deck (in.): 3/8		21957
RR-75-50
RR-75-501 Year Limited WarrantySteel Pull Chain Mechanical Dock Leveler 86"W x 50"L x 24"D Pit Dimensions 50000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 50,000
Steel Checkered Plate Deck (in.): 3/8		21957
RR-76-20
RR-76-201 Year Limited WarrantySteel Pull Chain Mechanical Dock Leveler 86"W x 62"L x 24"D Pit Dimensions 20000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 20,000
Steel Checkered Plate Deck (in.): 1/4		22016
RR-76-25
RR-76-251 Year Limited WarrantySteel Pull Chain Mechanical Dock Leveler 86"W x 62"L x 24"D Pit Dimensions 25000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 25,000
Steel Checkered Plate Deck (in.): 1/4		22016
RR-76-30
RR-76-301 Year Limited WarrantySteel Pull Chain Mechanical Dock Leveler 86"W x 62"L x 24"D Pit Dimensions 30000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 30,000
Steel Checkered Plate Deck (in.): 1/4		22059
RR-76-35
RR-76-351 Year Limited WarrantySteel Pull Chain Mechanical Dock Leveler 86"W x 62"L x 24"D Pit Dimensions 35000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 35,000
Steel Checkered Plate Deck (in.): 1/4		22124
RR-76-40
RR-76-401 Year Limited WarrantySteel Pull Chain Mechanical Dock Leveler 86"W x 62"L x 24"D Pit Dimensions 40000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 40,000
Steel checkered plate deck (in.): 1/4		22124
RR-76-45
RR-76-451 Year Limited WarrantySteel Pull Chain Mechanical Dock Leveler 86"W x 62"L x 24"D Pit Dimensions 45000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 45,000
Steel Checkered Plate Deck (in.): 3/8		22202
RR-76-50
RR-76-501 Year Limited WarrantySteel Pull Chain Mechanical Dock Leveler 86"W x 62"L x 24"D Pit Dimensions 50000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 50,000
Steel Checkered Plate Deck (in.): 3/8		22202
RR-78-20
RR-78-201 Year Limited WarrantySteel Pull Chain Mechanical Dock Leveler 86"W x 86"L x 24"D Pit Dimensions 20000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 20,000
Steel Checkered Plate Deck (in.): 1/4		22428
RR-78-25
RR-78-251 Year Limited WarrantySteel Pull Chain Mechanical Dock Leveler 86"W x 86"L x 24"D Pit Dimensions 25000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 25,000
Steel Checkered Plate Deck (in.): 1/4		22428
RR-78-30
RR-78-301 Year Limited WarrantySteel Pull Chain Mechanical Dock Leveler 86"W x 86"L x 24"D Pit Dimensions 30000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 30,000
Steel Checkered Plate Deck (in.): 1/4		22471
RR-78-35
RR-78-351 Year Limited WarrantySteel Pull Chain Mechanical Dock Leveler 86"W x 86"L x 24"D Pit Dimensions 35000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 35,000
Steel Checkered Plate Deck (in.): 1/4		22569
RR-78-40
RR-78-401 Year Limited WarrantySteel Pull Chain Mechanical Dock Leveler 86"W x 86"L x 24"D Pit Dimensions 40000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 40,000
Steel Checkered Plate Deck (in.): 1/4		22569
RR-78-45
RR-78-451 Year Limited WarrantySteel Pull Chain Mechanical Dock Leveler 86"W x 86"L x 24"D Pit Dimensions 45000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 45,000
Steel Checkered Plate Deck (in.): 3/8		22667
RR-78-50
RR-78-501 Year Limited WarrantySteel Pull Chain Mechanical Dock Leveler 86"W x 86"L x 24"D Pit Dimensions 50000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 50,000
Steel Checkered Plate Deck (in.): 3/8		22667

* All Capacities listed are 20,000 pounds For capacities to 50,000 pounds - contact factory

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

RR-610-20
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20,000
Steel Checkered Plate Deck (in.): 1/4
Uniform Capacity (lb.): 20,000
Steel Checkered Plate Deck (in.): 1/4

RR-610-25
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 25,000
Steel Checkered Plate Deck (in.): 1/4
Uniform Capacity (lb.): 25,000
Steel Checkered Plate Deck (in.): 1/4

RR-610-30
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 30,000
Steel Checkered Plate Deck (in.): 1/4
Uniform Capacity (lb.): 30,000
Steel Checkered Plate Deck (in.): 1/4

RR-610-35
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 35,000
Steel Checkered Plate Deck (in.): 1/4
Uniform Capacity (lb.): 35,000
Steel Checkered Plate Deck (in.): 1/4

RR-610-40
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 40,000
Steel Checkered Plate Deck (in.): 1/4
Uniform Capacity (lb.): 40,000
Steel Checkered Plate Deck (in.): 1/4

RR-610-45
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 45,000
Steel Checkered Plate Deck (in.): 3/8
Uniform Capacity (lb.): 45,000
Steel Checkered Plate Deck (in.): 3/8

RR-610-50
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 50,000
Steel Checkered Plate Deck (in.): 3/8
Uniform Capacity (lb.): 50,000
Steel Checkered Plate Deck (in.): 3/8

RR-65-20
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20,000
Steel Checkered Plate Deck (in.): 1/4
Uniform Capacity (lb.): 20,000
Steel Checkered Plate Deck (in.): 1/4

RR-65-25
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 25,000
Steel Checkered Plate Deck (in.): 1/4
Uniform Capacity (lb.): 25,000
Steel Checkered Plate Deck (in.): 1/4

RR-65-30
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 30,000
Steel Checkered Plate Deck (in.): 1/4
Uniform Capacity (lb.): 30,000
Steel Checkered Plate Deck (in.): 1/4

RR-65-35
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 35,000
Steel Checkered Plate Deck (in.): 1/4
Uniform Capacity (lb.): 35,000
Steel Checkered Plate Deck (in.): 1/4

RR-65-40
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 40,000
Steel Checkered Plate Deck (in.): 1/4
Uniform Capacity (lb.): 40,000
Steel Checkered Plate Deck (in.): 1/4

RR-65-45
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 45,000
Steel Checkered Plate Deck (in.): 3/8
Uniform Capacity (lb.): 45,000
Steel Checkered Plate Deck (in.): 3/8

RR-65-50
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 50,000
Steel Checkered Plate Deck (in.): 3/8
Uniform Capacity (lb.): 50,000
Steel Checkered Plate Deck (in.): 3/8

RR-66-20
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20,000
Steel Checkered Plate Deck (in.): 1/4
Uniform Capacity (lb.): 20,000
Steel Checkered Plate Deck (in.): 1/4

RR-66-25
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 25,000
Steel checkered plate deck (in.): 1/4
Uniform Capacity (lb.): 25,000
Steel checkered plate deck (in.): 1/4

RR-66-30
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 30,000
Steel Checkered Plate Deck (in.): 1/4
Uniform Capacity (lb.): 30,000
Steel Checkered Plate Deck (in.): 1/4

RR-66-35
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 35,000
Steel Checkered Plate Deck (in.): 1/4
Uniform Capacity (lb.): 35,000
Steel Checkered Plate Deck (in.): 1/4

RR-66-40
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 40,000
Steel Checkered Plate Deck (in.): 1/4
Uniform Capacity (lb.): 40,000
Steel Checkered Plate Deck (in.): 1/4

RR-66-45
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 45,000
Steel Checkered Plate Deck (in.): 3/8
Uniform Capacity (lb.): 45,000
Steel Checkered Plate Deck (in.): 3/8

RR-66-50
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 50,000
Steel Checkered Plate Deck (in.): 3/8
Uniform Capacity (lb.): 50,000
Steel Checkered Plate Deck (in.): 3/8

RR-68-20
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20,000
Steel Checkered Plate Deck (in.): 1/4
Uniform Capacity (lb.): 20,000
Steel Checkered Plate Deck (in.): 1/4

RR-68-25
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 25,000
Steel Checkered Plate Deck (in.): 1/4
Uniform Capacity (lb.): 25,000
Steel Checkered Plate Deck (in.): 1/4

RR-68-30
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 30,000
Steel Checkered Plate Deck (in.): 1/4
Uniform Capacity (lb.): 30,000
Steel Checkered Plate Deck (in.): 1/4

RR-68-35
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 35,000
Steel Checkered Plate Deck (in.): 1/4
Uniform Capacity (lb.): 35,000
Steel Checkered Plate Deck (in.): 1/4

RR-68-40
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 40,000
Steel Checkered Plate Deck (in.): 1/4
Uniform Capacity (lb.): 40,000
Steel Checkered Plate Deck (in.): 1/4

RR-68-45
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 45,000
Steel Checkered Plate Deck (in.): 3/8
Uniform Capacity (lb.): 45,000
Steel Checkered Plate Deck (in.): 3/8

RR-68-50
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 50,000
Steel checkered plate deck (in.): 3/8
Uniform Capacity (lb.): 50,000
Steel checkered plate deck (in.): 3/8

RR-710-20
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20,000
Steel Checkered Plate Deck (in.): 1/4
Uniform Capacity (lb.): 20,000
Steel Checkered Plate Deck (in.): 1/4

RR-710-25
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 25,000
Steel Checkered Plate Deck (in.): 1/4
Uniform Capacity (lb.): 25,000
Steel Checkered Plate Deck (in.): 1/4

RR-710-30
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 30,000
Steel Checkered Plate Deck (in.): 1/4
Uniform Capacity (lb.): 30,000
Steel Checkered Plate Deck (in.): 1/4

RR-710-35
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 35,000
Steel Checkered Plate Deck (in.): 1/4
Uniform Capacity (lb.): 35,000
Steel Checkered Plate Deck (in.): 1/4

RR-710-40
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 40,000
Steel Checkered Plate Deck (in.): 1/4
Uniform Capacity (lb.): 40,000
Steel Checkered Plate Deck (in.): 1/4

RR-710-45
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 45,000
Steel Checkered Plate Deck (in.): 3/8
Uniform Capacity (lb.): 45,000
Steel Checkered Plate Deck (in.): 3/8

RR-710-50
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 50,000
Steel Checkered Plate Deck (in.): 3/8
Uniform Capacity (lb.): 50,000
Steel Checkered Plate Deck (in.): 3/8

RR-75-20
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20,000
Steel Checkered Plate Deck (in.): 1/4
Uniform Capacity (lb.): 20,000
Steel Checkered Plate Deck (in.): 1/4

RR-75-25
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 25,000
Steel Checkered Plate Deck (in.): 1/4
Uniform Capacity (lb.): 25,000
Steel Checkered Plate Deck (in.): 1/4

RR-75-30
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 30,000
Steel Checkered Plate Deck (in.): 1/4
Uniform Capacity (lb.): 30,000
Steel Checkered Plate Deck (in.): 1/4

RR-75-35
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 35,000
Steel Checkered Plate Deck (in.): 1/4
Uniform Capacity (lb.): 35,000
Steel Checkered Plate Deck (in.): 1/4

RR-75-40
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 40,000
Steel Checkered Plate Deck (in.): 1/4
Uniform Capacity (lb.): 40,000
Steel Checkered Plate Deck (in.): 1/4

RR-75-45
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 45,000
Steel Checkered Plate Deck (in.): 3/8
Uniform Capacity (lb.): 45,000
Steel Checkered Plate Deck (in.): 3/8

RR-75-50
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 50,000
Steel Checkered Plate Deck (in.): 3/8
Uniform Capacity (lb.): 50,000
Steel Checkered Plate Deck (in.): 3/8

RR-76-20
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20,000
Steel Checkered Plate Deck (in.): 1/4
Uniform Capacity (lb.): 20,000
Steel Checkered Plate Deck (in.): 1/4

RR-76-25
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 25,000
Steel Checkered Plate Deck (in.): 1/4
Uniform Capacity (lb.): 25,000
Steel Checkered Plate Deck (in.): 1/4

RR-76-30
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 30,000
Steel Checkered Plate Deck (in.): 1/4
Uniform Capacity (lb.): 30,000
Steel Checkered Plate Deck (in.): 1/4

RR-76-35
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 35,000
Steel Checkered Plate Deck (in.): 1/4
Uniform Capacity (lb.): 35,000
Steel Checkered Plate Deck (in.): 1/4

RR-76-40
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 40,000
Steel checkered plate deck (in.): 1/4
Uniform Capacity (lb.): 40,000
Steel checkered plate deck (in.): 1/4

RR-76-45
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 45,000
Steel Checkered Plate Deck (in.): 3/8
Uniform Capacity (lb.): 45,000
Steel Checkered Plate Deck (in.): 3/8

RR-76-50
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 50,000
Steel Checkered Plate Deck (in.): 3/8
Uniform Capacity (lb.): 50,000
Steel Checkered Plate Deck (in.): 3/8

RR-78-20
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20,000
Steel Checkered Plate Deck (in.): 1/4
Uniform Capacity (lb.): 20,000
Steel Checkered Plate Deck (in.): 1/4

RR-78-25
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 25,000
Steel Checkered Plate Deck (in.): 1/4
Uniform Capacity (lb.): 25,000
Steel Checkered Plate Deck (in.): 1/4

RR-78-30
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 30,000
Steel Checkered Plate Deck (in.): 1/4
Uniform Capacity (lb.): 30,000
Steel Checkered Plate Deck (in.): 1/4

RR-78-35
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 35,000
Steel Checkered Plate Deck (in.): 1/4
Uniform Capacity (lb.): 35,000
Steel Checkered Plate Deck (in.): 1/4

RR-78-40
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 40,000
Steel Checkered Plate Deck (in.): 1/4
Uniform Capacity (lb.): 40,000
Steel Checkered Plate Deck (in.): 1/4

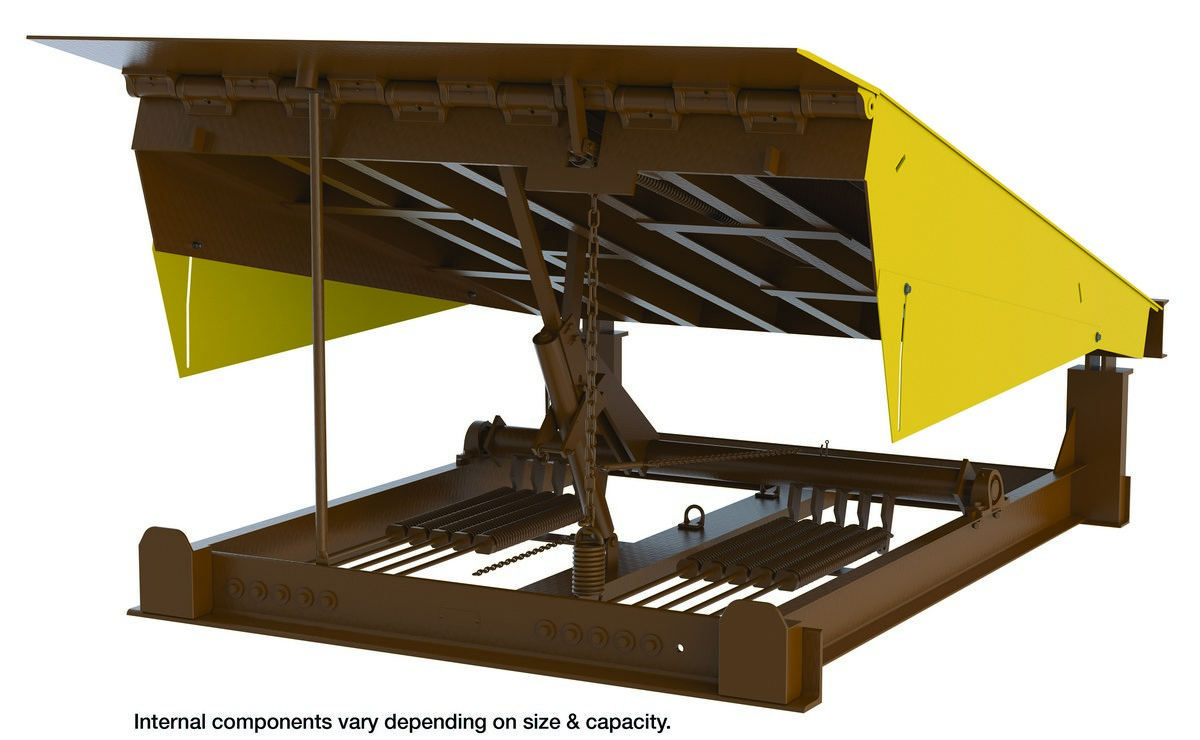

RR-78-45
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 45,000
Steel Checkered Plate Deck (in.): 3/8
Uniform Capacity (lb.): 45,000
Steel Checkered Plate Deck (in.): 3/8

RR-78-50
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 50,000
Steel Checkered Plate Deck (in.): 3/8
Uniform Capacity (lb.): 50,000
Steel Checkered Plate Deck (in.): 3/8
For More Details of the Option Click the Red Model Button
Model Image Description Wt. (lbs)
WS-DV Dual vinyl weather stripping (factory installed) -
ES Emergency Stop (RR-Models Only) 54
SPO Shallow Pit Option (17-1/2" Min. Depth) -
FI Under-Deck Foam Insulation 6
18"LIP/6 18" Long Lip for 6' Wide Dockleveler 31
18"LIP/7 18" Long Lip for 7' Wide Dockleveler 36
FOD/6' Leg Option for in Front of Dock Placement (6' Length) 240
FOD/8' Leg Option for in Front of Dock Placement (8' Length) 240
FOD/10' Leg Option for in Front of Dock Placement (10' Length) 240
CAS-65 Curb Angle Set for 6' x 5' Dock Leveler 149
CAS-66 Curb Angle Set for 6' x 6' Dock Leveler 159
CAS-68 Curb Angle Set for 6' x 8' Dock Leveler 178
CAS-610 Curb Angle Set for 6' x 10' Dock Leveler 198
CAS-75 Curb Angle Set for 7' x 5' Dock Leveler 161
CAS-76 Curb Angle Set for 7' x 6' Dock Leveler 171
CAS-78 Curb Angle Set for 7' x 8' Dock Leveler 190
CAS-710 Curb Angle Set for 7' x 10' Dock Leveler 120
SS/65 Steel Shell For 6'x5' Pour In Place Installation 218
SS/66 Steel Shell For 6'x6' Pour In Place Installation 285
SS/68 Steel Shell For 6'x8' Pour In Place Installation 290
SS/610 Steel Shell For 6'x10' Pour In Place Installation 298
SS/75 Steel Shell For 7'x5' Pour In Place Installation 238
SS/76 Steel Shell For 7'x6' Pour In Place Installation 252
SS/78 Steel Shell For 7'x8' Pour In Place Installation 264
SS/710 Steel Shell For 7'x10' Pour In Place Installation 277

20" Lip Recommended For Refrigerated Trucks, Consult Factory for Pricing
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Mechanical Dock Levelers PDF's will open in a new window when clicked.

Manuals


RR
Owners Manual

RR,%20POUR-IN-PLACE%20IN
Owners Manual

WS
Owners Manual

RR%20&%20EH
Owners Manual

Survey Sheets


DOCK%20LEVELER
Survey Sheet

Approval Drawings


RR-610-20

RR-610-25

RR-610-30

RR-610-40

RR-610-50

RR-65-20

RR-65-25

RR-65-30

RR-65-40

RR-65-50

RR-66-20

RR-66-25

RR-66-30

RR-66-40

RR-66-50

RR-68-20

RR-68-25

RR-68-30

RR-68-40

RR-68-50

RR-710-20

RR-710-25

RR-710-30

RR-710-40

RR-710-50

RR-75-20

RR-75-25

RR-75-30

RR-75-40

RR-75-50

RR-76-20

RR-76-25

RR-76-30

RR-76-40

RR-76-50

RR-78-20

RR-78-25

RR-78-30

RR-78-40

RR-78-50

Testing Certificates


RR-610-20

RR-610-25

RR-610-30

RR-610-35

RR-610-40

RR-610-45

RR-610-50

RR-65-20

RR-65-25

RR-65-30

RR-65-35

RR-65-40

RR-65-45

RR-65-50

RR-66-20

RR-66-25

RR-66-30

RR-66-35

RR-66-40

RR-66-45

RR-66-50

RR-68-20

RR-68-25

RR-68-30

RR-68-35

RR-68-40

RR-68-45

RR-68-50

RR-710-20

RR-710-25

RR-710-30

RR-710-35

RR-710-40

RR-710-45

RR-710-50

RR-75-20

RR-75-25

RR-75-30

RR-75-35

RR-75-40

RR-75-45

RR-75-50

RR-76-20

RR-76-25

RR-76-30

RR-76-35

RR-76-40

RR-76-45

RR-76-50

RR-78-20

RR-78-25

RR-78-30

RR-78-35

RR-78-40

RR-78-45

RR-78-50

SDS Sheets

Hydraulic Oil SDS Sheet for: RR-610-20
Hydraulic Oil SDS Sheet for: RR-610-25
Hydraulic Oil SDS Sheet for: RR-610-30
Hydraulic Oil SDS Sheet for: RR-610-35
Hydraulic Oil SDS Sheet for: RR-610-40
Hydraulic Oil SDS Sheet for: RR-610-45
Hydraulic Oil SDS Sheet for: RR-610-50
Hydraulic Oil SDS Sheet for: RR-65-20
Hydraulic Oil SDS Sheet for: RR-65-25
Hydraulic Oil SDS Sheet for: RR-65-30
Hydraulic Oil SDS Sheet for: RR-65-35
Hydraulic Oil SDS Sheet for: RR-65-40
Hydraulic Oil SDS Sheet for: RR-65-45
Hydraulic Oil SDS Sheet for: RR-65-50
Hydraulic Oil SDS Sheet for: RR-66-20
Hydraulic Oil SDS Sheet for: RR-66-25
Hydraulic Oil SDS Sheet for: RR-66-30
Hydraulic Oil SDS Sheet for: RR-66-35
Hydraulic Oil SDS Sheet for: RR-66-40
Hydraulic Oil SDS Sheet for: RR-66-45
Hydraulic Oil SDS Sheet for: RR-66-50
Hydraulic Oil SDS Sheet for: RR-68-20
Hydraulic Oil SDS Sheet for: RR-68-25
Hydraulic Oil SDS Sheet for: RR-68-30
Hydraulic Oil SDS Sheet for: RR-68-35
Hydraulic Oil SDS Sheet for: RR-68-40
Hydraulic Oil SDS Sheet for: RR-68-45
Hydraulic Oil SDS Sheet for: RR-68-50
Hydraulic Oil SDS Sheet for: RR-710-20
Hydraulic Oil SDS Sheet for: RR-710-25
Hydraulic Oil SDS Sheet for: RR-710-30
Hydraulic Oil SDS Sheet for: RR-710-35
Hydraulic Oil SDS Sheet for: RR-710-40
Hydraulic Oil SDS Sheet for: RR-710-45
Hydraulic Oil SDS Sheet for: RR-710-50
Hydraulic Oil SDS Sheet for: RR-75-20
Hydraulic Oil SDS Sheet for: RR-75-25
Hydraulic Oil SDS Sheet for: RR-75-30
Hydraulic Oil SDS Sheet for: RR-75-35
Hydraulic Oil SDS Sheet for: RR-75-40
Hydraulic Oil SDS Sheet for: RR-75-45
Hydraulic Oil SDS Sheet for: RR-75-50
Hydraulic Oil SDS Sheet for: RR-76-20
Hydraulic Oil SDS Sheet for: RR-76-25
Hydraulic Oil SDS Sheet for: RR-76-30
Hydraulic Oil SDS Sheet for: RR-76-35
Hydraulic Oil SDS Sheet for: RR-76-40
Hydraulic Oil SDS Sheet for: RR-76-45
Hydraulic Oil SDS Sheet for: RR-76-50
Hydraulic Oil SDS Sheet for: RR-78-20
Hydraulic Oil SDS Sheet for: RR-78-25
Hydraulic Oil SDS Sheet for: RR-78-30
Hydraulic Oil SDS Sheet for: RR-78-35
Hydraulic Oil SDS Sheet for: RR-78-40
Hydraulic Oil SDS Sheet for: RR-78-45
Hydraulic Oil SDS Sheet for: RR-78-50

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Related or Similar Products:

Weather Stripping (for pit mounted dock levelers)
Product

Weather Stripping (for pit mounted dock levelers)

Electric Hydraulic Dock Levelers
Product

Electric Hydraulic Dock Levelers

Edge-O-Dock Levelers
Product

Edge-O-Dock Levelers

Dock Doors
Product

Dock Doors

Truck Actuated Dock Levelers
Product

Truck Actuated Dock Levelers

Premium Truck Scissor Dock Lifts
Product

Premium Truck Scissor Dock Lifts

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Mechanical Dock Levelers




The Mechanical Dock levelers are constructed of heavy duty diamond plate deck (55,000 PSI) steel for long term support of the steel channel understructure. The dock leveler allows for easy truck loading and unloading. The leveler is engineered and designed for minimum maintenance and features a smooth pull chain operation. Lip is 16" long. Service range 12" above and below dock. Includes (2) 1014-4.5 laminated bumpers. Uniform capacities available up to 50,000 pounds.

Quoting a dockleveler installation for an existing pit can be difficult. We recommend that you complete this Survey Sheet

  • Pit-mounted dock leveler allows for easy trailer loading and unloading at loading docks
  • Spring operated mechanical pull-chain makes use easy
  • Telescopic side-mounted toe guards cover opening through the entire service range
  • Complies with CS 202-56, OSHA and ANSI MH14.5

Everything You'll Need For Your Dock!

Loading Dock Lights

Dock Insulated Blanket

Wheel Chocks

Trailer Stabilizing Jacks

Model # Description Attributes Net Wt.
(lbs)
RR-610-20 RR-610-20Steel Pull Chain Mechanical Dock Leveler 74"W x 110"L x 24"D Pit Dimensions 20000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 20,000
Steel Checkered Plate Deck (in.): 1/4		2517
RR-610-25 RR-610-25Steel Pull Chain Mechanical Dock Leveler 74"W x 110"L x 24"D Pit Dimensions 25000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 25,000
Steel Checkered Plate Deck (in.): 1/4		2517
RR-610-30 RR-610-30Steel Pull Chain Mechanical Dock Leveler 74"W x 110"L x 24"D Pit Dimensions 30000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 30,000
Steel Checkered Plate Deck (in.): 1/4		2555
RR-610-35 RR-610-35Steel Pull Chain Mechanical Dock Leveler 74"W x 110"L x 24"D Pit Dimensions 35000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 35,000
Steel Checkered Plate Deck (in.): 1/4		2692
RR-610-40 RR-610-40Steel Pull Chain Mechanical Dock Leveler 74"W x 110"L x 24"D Pit Dimensions 40000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 40,000
Steel Checkered Plate Deck (in.): 1/4		2692
RR-610-45 RR-610-45Steel Pull Chain Mechanical Dock Leveler 74"W x 110"L x 24"D Pit Dimensions 45000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 45,000
Steel Checkered Plate Deck (in.): 3/8		3105
RR-610-50 RR-610-50Steel Pull Chain Mechanical Dock Leveler 74"W x 110"L x 24"D Pit Dimensions 50000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 50,000
Steel Checkered Plate Deck (in.): 3/8		3105
RR-65-20 RR-65-20Steel Pull Chain Mechanical Dock Leveler 74"W x 50"L x 24"D Pit Dimensions 20000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 20,000
Steel Checkered Plate Deck (in.): 1/4		1650
RR-65-25 RR-65-25Steel Pull Chain Mechanical Dock Leveler 74"W x 50"L x 24"D Pit Dimensions 25000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 25,000
Steel Checkered Plate Deck (in.): 1/4		1570
RR-65-30 RR-65-30Steel Pull Chain Mechanical Dock Leveler 74"W x 50"L x 24"D Pit Dimensions 30000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 30,000
Steel Checkered Plate Deck (in.): 1/4		1609
RR-65-35 RR-65-35Steel Pull Chain Mechanical Dock Leveler 74"W x 50"L x 24"D Pit Dimensions 35000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 35,000
Steel Checkered Plate Deck (in.): 1/4		1663
RR-65-40 RR-65-40Steel Pull Chain Mechanical Dock Leveler 74"W x 50"L x 24"D Pit Dimensions 40000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 40,000
Steel Checkered Plate Deck (in.): 1/4		1663
RR-65-45 RR-65-45Steel Pull Chain Mechanical Dock Leveler 74"W x 50"L x 24"D Pit Dimensions 45000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 45,000
Steel Checkered Plate Deck (in.): 3/8		1873
RR-65-50 RR-65-50Steel Pull Chain Mechanical Dock Leveler 74"W x 50"L x 24"D Pit Dimensions 50000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 50,000
Steel Checkered Plate Deck (in.): 3/8		1873
RR-66-20 RR-66-20Steel Pull Chain Mechanical Dock Leveler 74"W x 62"L x 24"D Pit Dimensions 20000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 20,000
Steel Checkered Plate Deck (in.): 1/4		1766
RR-66-25 RR-66-25Steel Pull Chain Mechanical Dock Leveler 74"W x 62"L x 24"D Pit Dimensions 25000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 25,000
Steel checkered plate deck (in.): 1/4		1766
RR-66-30 RR-66-30Steel Pull Chain Mechanical Dock Leveler 74"W x 62"L x 24"D Pit Dimensions 30000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 30,000
Steel Checkered Plate Deck (in.): 1/4		1804
RR-66-35 RR-66-35Steel Pull Chain Mechanical Dock Leveler 74"W x 62"L x 24"D Pit Dimensions 35000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 35,000
Steel Checkered Plate Deck (in.): 1/4		1875
RR-66-40 RR-66-40Steel Pull Chain Mechanical Dock Leveler 74"W x 62"L x 24"D Pit Dimensions 40000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 40,000
Steel Checkered Plate Deck (in.): 1/4		1875
RR-66-45 RR-66-45Steel Pull Chain Mechanical Dock Leveler Pit Dimensions 74"W x 62"L x 24"D 45000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 45,000
Steel Checkered Plate Deck (in.): 3/8		2126
RR-66-50 RR-66-50Steel Pull Chain Mechanical Dock Leveler 74"W x 62"L x 24"D Pit Dimensions 50000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 50,000
Steel Checkered Plate Deck (in.): 3/8		2126
RR-68-20 RR-68-20Steel Pull Chain Mechanical Dock Leveler 74"W x 86"L x 24"D Pit Dimensions 20000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 20,000
Steel Checkered Plate Deck (in.): 1/4		2165
RR-68-25 RR-68-25Steel Pull Chain Mechanical Dock Leveler 74"W x 86"L x 24"D Pit Dimensions 25000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 25,000
Steel Checkered Plate Deck (in.): 1/4		2144
RR-68-30 RR-68-30Steel Pull Chain Mechanical Dock Leveler 74"W x 86"L x 24"D Pit Dimensions 30000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 30,000
Steel Checkered Plate Deck (in.): 1/4		2182
RR-68-35 RR-68-35Steel Pull Chain Mechanical Dock Leveler 74"W x 86"L x 24"D Pit Dimensions 35000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 35,000
Steel Checkered Plate Deck (in.): 1/4		2286
RR-68-40 RR-68-40Steel Pull Chain Mechanical Dock Leveler 74"W x 86"L x 24"D Pit Dimensions 40000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 40,000
Steel Checkered Plate Deck (in.): 1/4		2286
RR-68-45 RR-68-45Steel Pull Chain Mechanical Dock Leveler 74"W x 86"L x 24"D Pit Dimensions 45000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 45,000
Steel Checkered Plate Deck (in.): 3/8		2618
RR-68-50 RR-68-50Steel Pull Chain Mechanical Dock Leveler 74"W x 86"L x 24"D Pit Dimensions 50000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 50,000
Steel checkered plate deck (in.): 3/8		2618
RR-710-20 RR-710-20Steel Pull Chain Mechanical Dock Leveler 86"W x 110"L x 24"D Pit Dimensions 20000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 20,000
Steel Checkered Plate Deck (in.): 1/4		2808
RR-710-25 RR-710-25Steel Pull Chain Mechanical Dock Leveler 86"W x 110"L x 24"D Pit Dimensions 25000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 25,000
Steel Checkered Plate Deck (in.): 1/4		2808
RR-710-30 RR-710-30Steel Pull Chain Mechanical Dock Leveler 86"W x 110"L x 24"D Pit Dimensions 30000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 30,000
Steel Checkered Plate Deck (in.): 1/4		2852
RR-710-35 RR-710-35Steel Pull Chain Mechanical Dock Leveler 86"W x 110"L x 24"D Pit Dimensions 35000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 35,000
Steel Checkered Plate Deck (in.): 1/4		2982
RR-710-40 RR-710-40Steel Pull Chain Mechanical Dock Leveler 86"W x 110"L x 24"D Pit Dimensions 40000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 40,000
Steel Checkered Plate Deck (in.): 1/4		2982
RR-710-45 RR-710-45Steel Pull Chain Mechanical Dock Leveler 86"W x 110"L x 24"D Pit Dimensions 45000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 45,000
Steel Checkered Plate Deck (in.): 3/8		3100
RR-710-50 RR-710-50Steel Pull Chain Mechanical Dock Leveler 86"W x 110"L x 24"D Pit Dimensions 50000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 50,000
Steel Checkered Plate Deck (in.): 3/8		3100
RR-75-20 RR-75-20Steel Pull Chain Mechanical Dock Leveler 86"W x 50"L x 24"D Pit Dimensions 20000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 20,000
Steel Checkered Plate Deck (in.): 1/4		1766
RR-75-25 RR-75-25Steel Pull Chain Mechanical Dock Leveler 86"W x 50"L x 24"D Pit Dimensions 25000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 25,000
Steel Checkered Plate Deck (in.): 1/4		1766
RR-75-30 RR-75-30Steel Pull Chain Mechanical Dock Leveler 86"W x 50"L x 24"D Pit Dimensions 30000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 30,000
Steel Checkered Plate Deck (in.): 1/4		1810
RR-75-35 RR-75-35Steel Pull Chain Mechanical Dock Leveler 86"W x 50"L x 24"D Pit Dimensions 35000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 35,000
Steel Checkered Plate Deck (in.): 1/4		1843
RR-75-40 RR-75-40Steel Pull Chain Mechanical Dock Leveler 86"W x 50"L x 24"D Pit Dimensions 40000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 40,000
Steel Checkered Plate Deck (in.): 1/4		1843
RR-75-45 RR-75-45Steel Pull Chain Mechanical Dock Leveler 86"W x 50"L x 24"D Pit Dimensions 45000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 45,000
Steel Checkered Plate Deck (in.): 3/8		1911
RR-75-50 RR-75-50Steel Pull Chain Mechanical Dock Leveler 86"W x 50"L x 24"D Pit Dimensions 50000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 50,000
Steel Checkered Plate Deck (in.): 3/8		1911
RR-76-20 RR-76-20Steel Pull Chain Mechanical Dock Leveler 86"W x 62"L x 24"D Pit Dimensions 20000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 20,000
Steel Checkered Plate Deck (in.): 1/4		1970
RR-76-25 RR-76-25Steel Pull Chain Mechanical Dock Leveler 86"W x 62"L x 24"D Pit Dimensions 25000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 25,000
Steel Checkered Plate Deck (in.): 1/4		1970
RR-76-30 RR-76-30Steel Pull Chain Mechanical Dock Leveler 86"W x 62"L x 24"D Pit Dimensions 30000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 30,000
Steel Checkered Plate Deck (in.): 1/4		2013
RR-76-35 RR-76-35Steel Pull Chain Mechanical Dock Leveler 86"W x 62"L x 24"D Pit Dimensions 35000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 35,000
Steel Checkered Plate Deck (in.): 1/4		2078
RR-76-40 RR-76-40Steel Pull Chain Mechanical Dock Leveler 86"W x 62"L x 24"D Pit Dimensions 40000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 40,000
Steel checkered plate deck (in.): 1/4		2078
RR-76-45 RR-76-45Steel Pull Chain Mechanical Dock Leveler 86"W x 62"L x 24"D Pit Dimensions 45000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 45,000
Steel Checkered Plate Deck (in.): 3/8		2156
RR-76-50 RR-76-50Steel Pull Chain Mechanical Dock Leveler 86"W x 62"L x 24"D Pit Dimensions 50000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 50,000
Steel Checkered Plate Deck (in.): 3/8		2156
RR-78-20 RR-78-20Steel Pull Chain Mechanical Dock Leveler 86"W x 86"L x 24"D Pit Dimensions 20000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 20,000
Steel Checkered Plate Deck (in.): 1/4		2382
RR-78-25 RR-78-25Steel Pull Chain Mechanical Dock Leveler 86"W x 86"L x 24"D Pit Dimensions 25000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 25,000
Steel Checkered Plate Deck (in.): 1/4		2382
RR-78-30 RR-78-30Steel Pull Chain Mechanical Dock Leveler 86"W x 86"L x 24"D Pit Dimensions 30000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 30,000
Steel Checkered Plate Deck (in.): 1/4		2425
RR-78-35 RR-78-35Steel Pull Chain Mechanical Dock Leveler 86"W x 86"L x 24"D Pit Dimensions 35000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 35,000
Steel Checkered Plate Deck (in.): 1/4		2523
RR-78-40 RR-78-40Steel Pull Chain Mechanical Dock Leveler 86"W x 86"L x 24"D Pit Dimensions 40000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 40,000
Steel Checkered Plate Deck (in.): 1/4		2523
RR-78-45 RR-78-45Steel Pull Chain Mechanical Dock Leveler 86"W x 86"L x 24"D Pit Dimensions 45000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 45,000
Steel Checkered Plate Deck (in.): 3/8		2621
RR-78-50 RR-78-50Steel Pull Chain Mechanical Dock Leveler 86"W x 86"L x 24"D Pit Dimensions 50000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 50,000
Steel Checkered Plate Deck (in.): 3/8		2621

Options


Model Image Description Wt. (lbs)
WS-DV Dual vinyl weather stripping (factory installed) -
ES Emergency Stop (RR-Models Only) 54
SPO Shallow Pit Option (17-1/2" Min. Depth) -
FI Under-Deck Foam Insulation 6
18"LIP/6 18" Long Lip for 6' Wide Dockleveler 31
18"LIP/7 18" Long Lip for 7' Wide Dockleveler 36
FOD/6' Leg Option for in Front of Dock Placement (6' Length) 240
FOD/8' Leg Option for in Front of Dock Placement (8' Length) 240
FOD/10' Leg Option for in Front of Dock Placement (10' Length) 240
CAS-65 Curb Angle Set for 6' x 5' Dock Leveler 149
CAS-66 Curb Angle Set for 6' x 6' Dock Leveler 159
CAS-68 Curb Angle Set for 6' x 8' Dock Leveler 178
CAS-610 Curb Angle Set for 6' x 10' Dock Leveler 198
CAS-75 Curb Angle Set for 7' x 5' Dock Leveler 161
CAS-76 Curb Angle Set for 7' x 6' Dock Leveler 171
CAS-78 Curb Angle Set for 7' x 8' Dock Leveler 190
CAS-710 Curb Angle Set for 7' x 10' Dock Leveler 120
SS/65 Steel Shell For 6'x5' Pour In Place Installation 218
SS/66 Steel Shell For 6'x6' Pour In Place Installation 285
SS/68 Steel Shell For 6'x8' Pour In Place Installation 290
SS/610 Steel Shell For 6'x10' Pour In Place Installation 298
SS/75 Steel Shell For 7'x5' Pour In Place Installation 238
SS/76 Steel Shell For 7'x6' Pour In Place Installation 252
SS/78 Steel Shell For 7'x8' Pour In Place Installation 264
SS/710 Steel Shell For 7'x10' Pour In Place Installation 277

20" Lip Recommended For Refrigerated Trucks, Consult Factory for Pricing

Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
