Low Profile Pallet Trucks

- - - -

Description
Model Chart
PDF's
Image Gallery

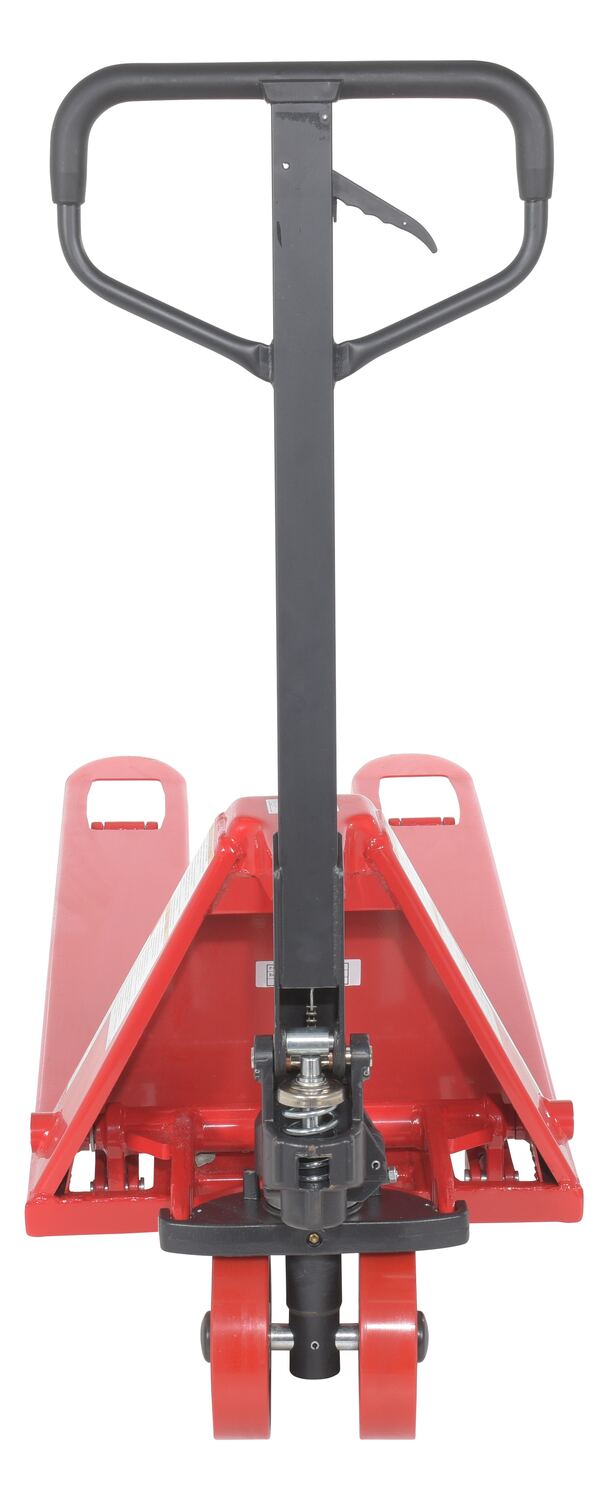

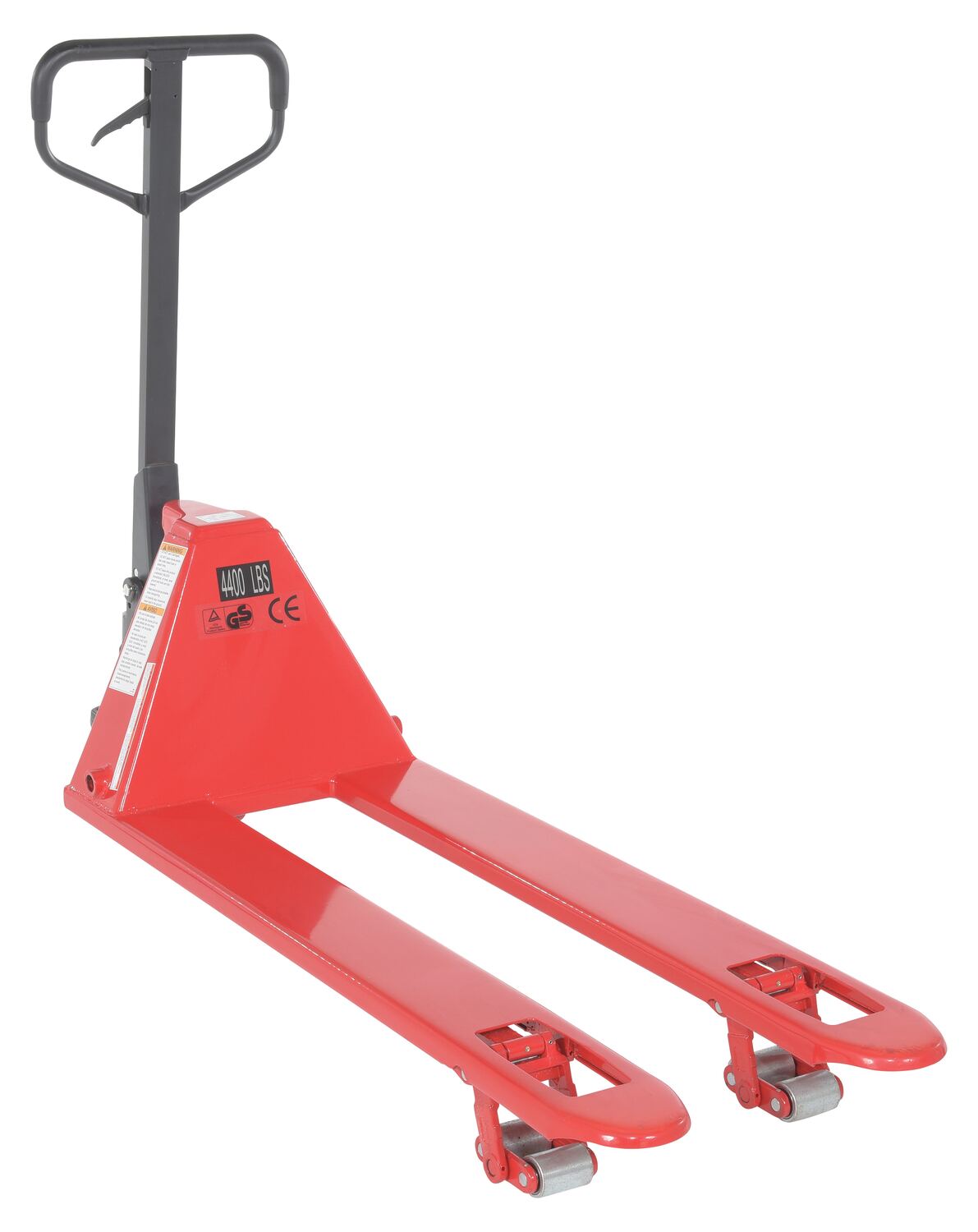

PM4-2148-LP_A.jpg PM4-2148-LP_B.jpg PM4-2148-LP_C.jpg PM4-2148-LP_D.jpg
PM4-2148-LP_E.jpg PM4-2148-LP_F.jpg PM4-2148-LP_G.jpg
Low Profile Pallet Trucks

model: PM4-2148-LP



Featured Ergonomic Solutions


Tote-A-Loads
Lift & Tilt Scissor Tables
Pop-Up Ball Transfer Platforms
Fully Electric Pallet Truck with Backrest (6,000 lb. Capacity)
Die Tables
Adjustable Height Work Stand
Trash Can Carts
All Terrain Pallet Trucks
Folding Arm Chair
model chart

Product Family Overview

Print Friendly
Low Profile Pallet Trucks
SERIES: PM4

Ships with the Handle Detached Standard

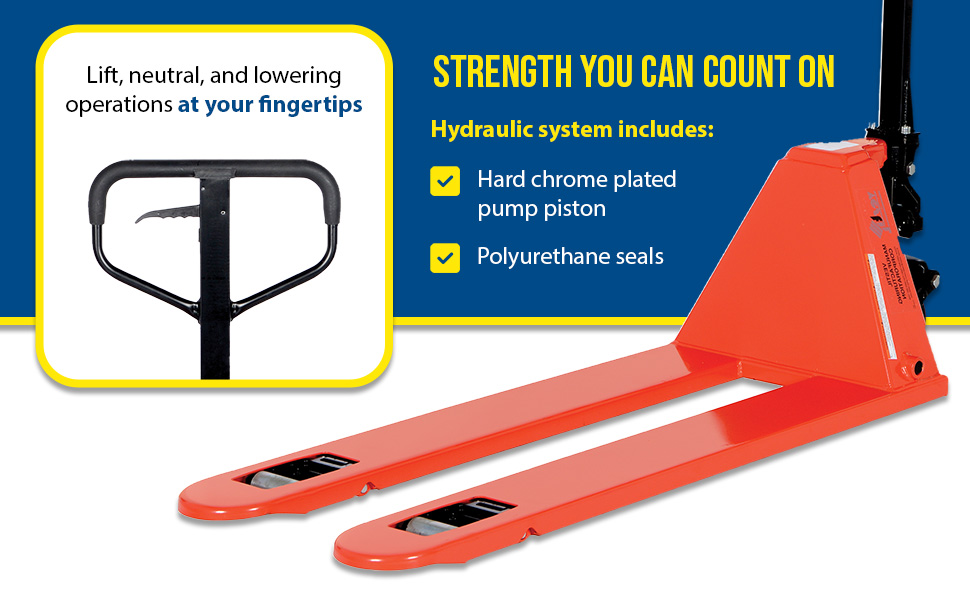

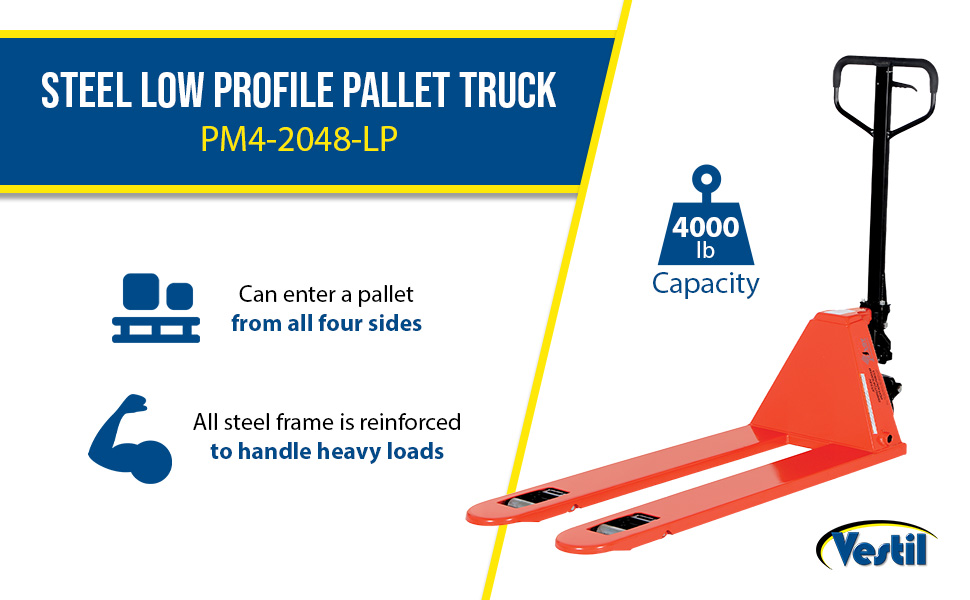

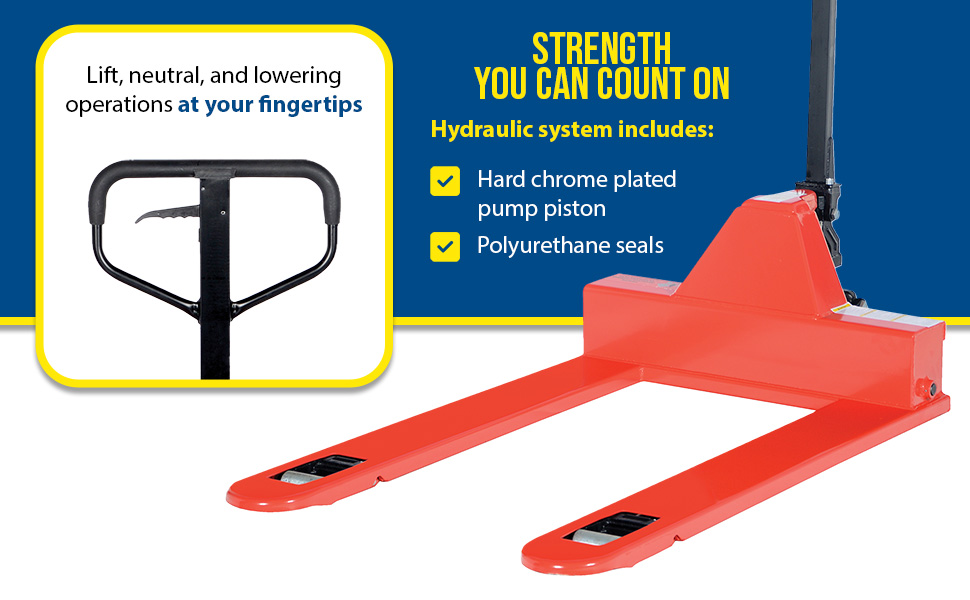

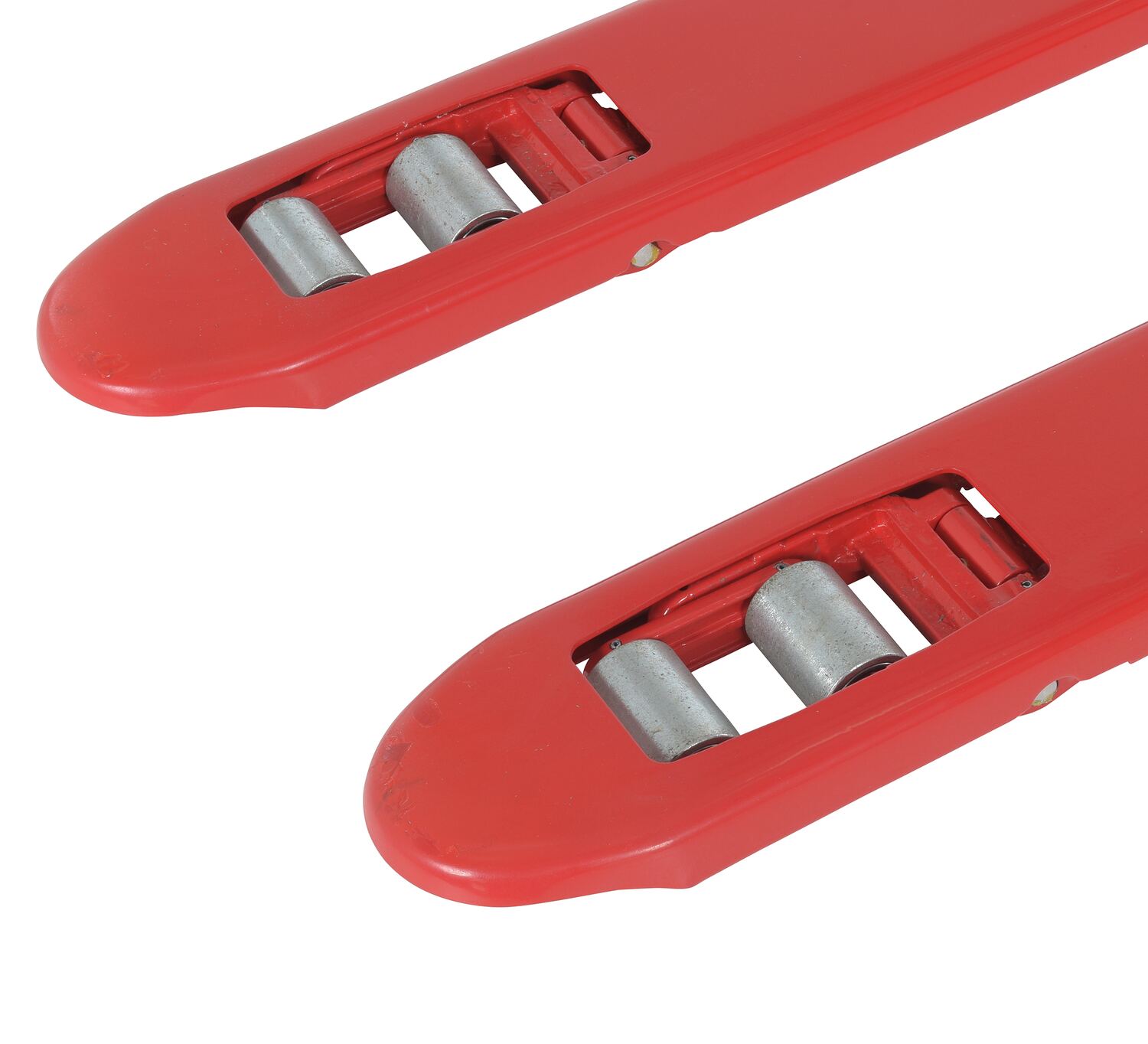

The Low Profile Pallet Truck enters pallets from all four sides. All steel frame is reinforced to handle 4,000 lb. capacity loads. Individual fork width is 7" wide. Wide loop control handle with lift, neutral, and lower functions provides fingertip control. Lifetime lubricated bearings. Hydraulic system has hard chrome plated pump piston with polyurethane seals. Suspension system has a heavy-duty thrust bearing. Complete with adjustable push rods, polyurethane wheels, steel load rollers and red baked-in powder-coated toughness.

  • Wide loop handle offers easy unit maneuverability
  • Fingertip lever provides an easy lift, lower and neutral operation

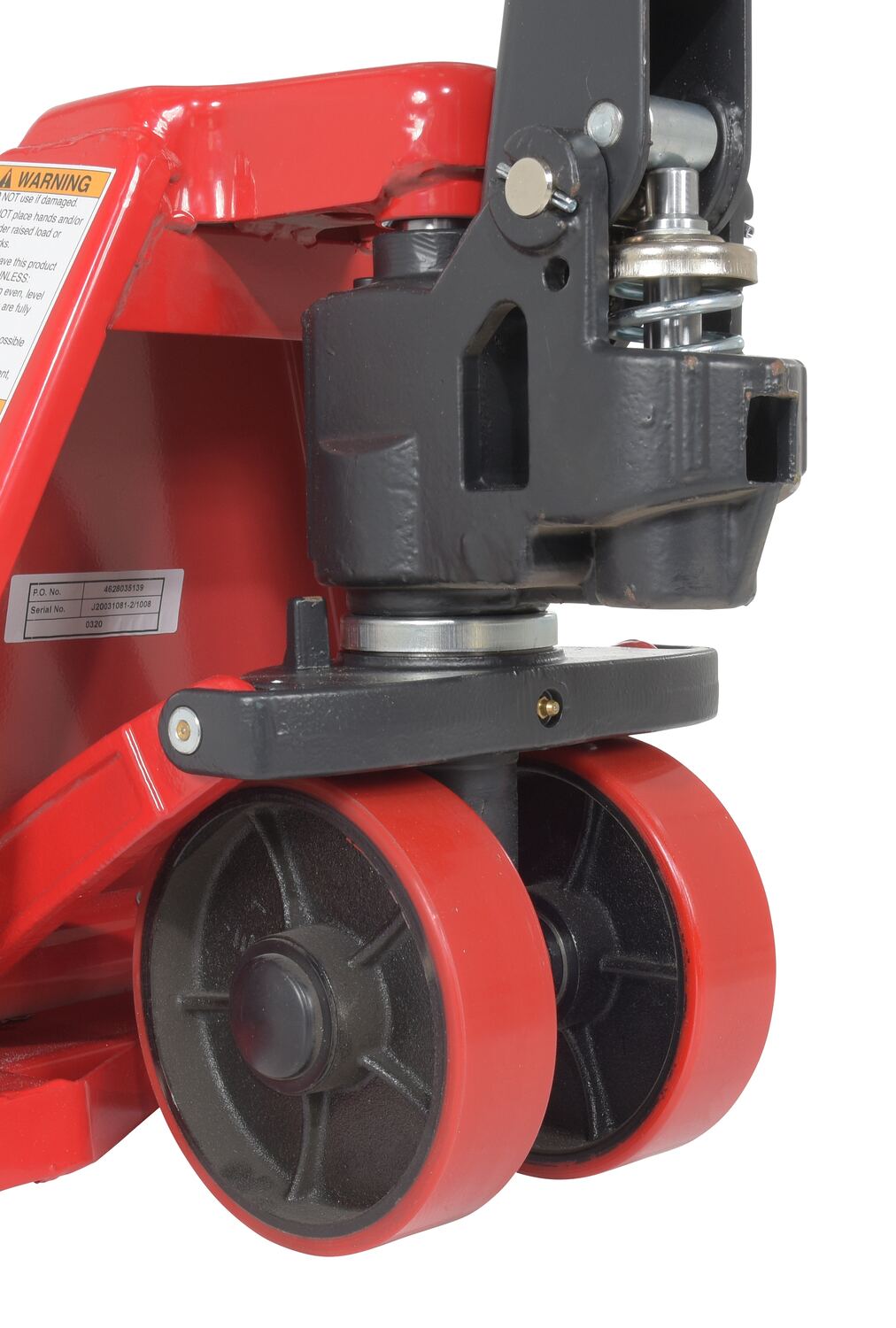

  • Suspension system has heavy-duty thrust bearing for long lasting use
  • Lifetime lubricated bearings never need maintenance work

Ships with the Handle Detached Standard

The Low Profile Pallet Truck enters pallets from all four sides. All steel frame is reinforced to handle 4,000 lb. capacity loads. Individual fork width is 7" wide. Wide loop control handle with lift, neutral, and lower functions provides fingertip control. Lifetime lubricated bearings. Hydraulic system has hard chrome plated pump piston with polyurethane seals. Suspension system has a heavy-duty thrust bearing. Complete with adjustable push rods, polyurethane wheels, steel load rollers and red baked-in powder-coated toughness.

  • Wide loop handle offers easy unit maneuverability
  • Fingertip lever provides an easy lift, lower and neutral operation
  • Suspension system has heavy-duty thrust bearing for long lasting use
  • Lifetime lubricated bearings never need maintenance work

Other Manual Pallet Trucks

 Mini Hand Pallet Trucks Specialized Pallet Trucks Single Fork Pallet Master Ergonomic Power Assist Pallet Trucks

Additional Models In This Family
view entire Image Gallery

PM4-2048-LP

model PM4-2048-LP

PM4-3348-LP

model PM4-3348-LP

PM4-2748-LP

model PM4-2748-LP

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

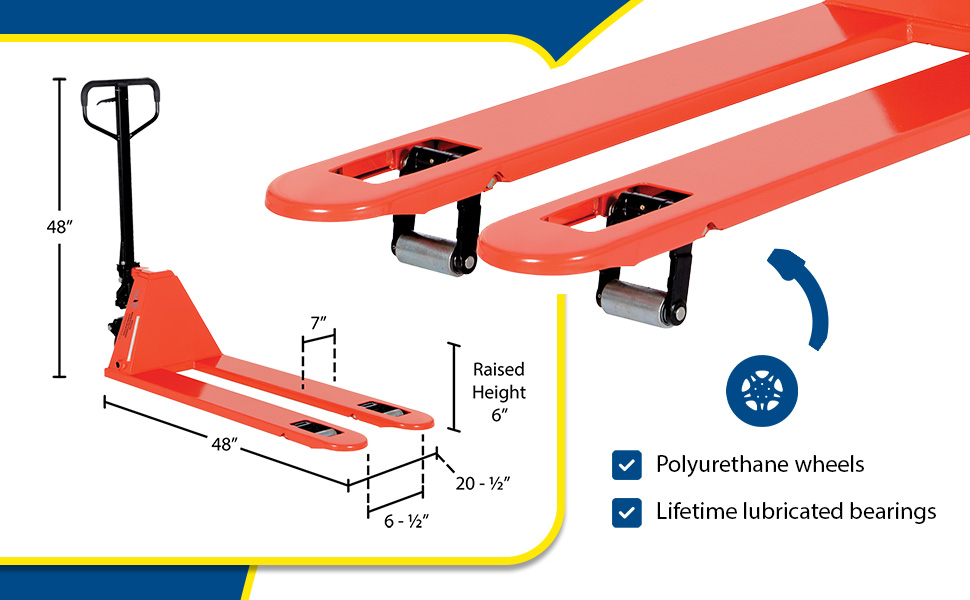

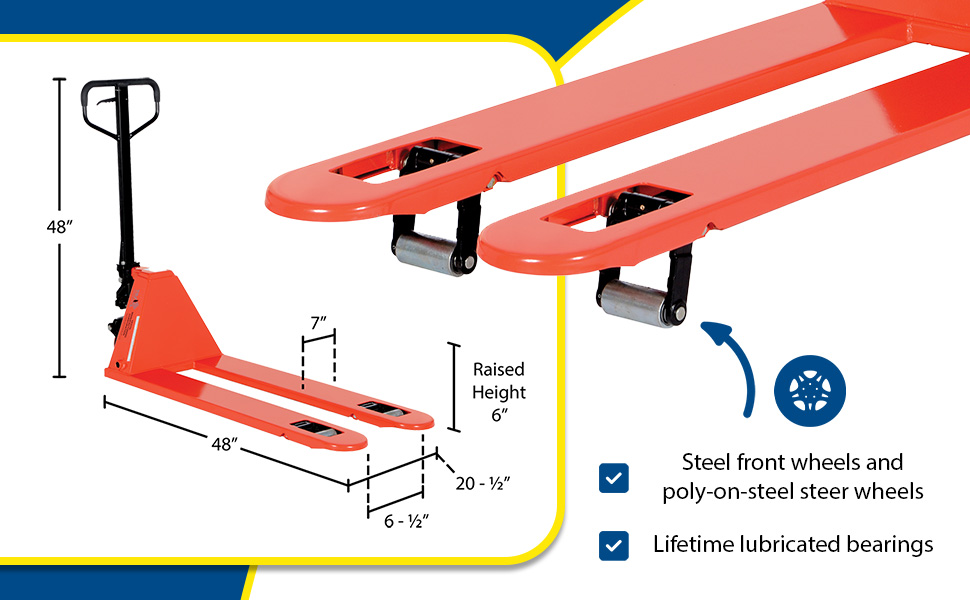

PM4-2048-LP PM4-2048-LP1 Year Limited WarrantySteel Low Profile Pallet Truck 61 In. x 20-1/2 In. x 49 In. 4000 Lb. Capacity RedUniform Capacity (lb.): 4000
Overall Fork Width (in.): 20-5/8		229

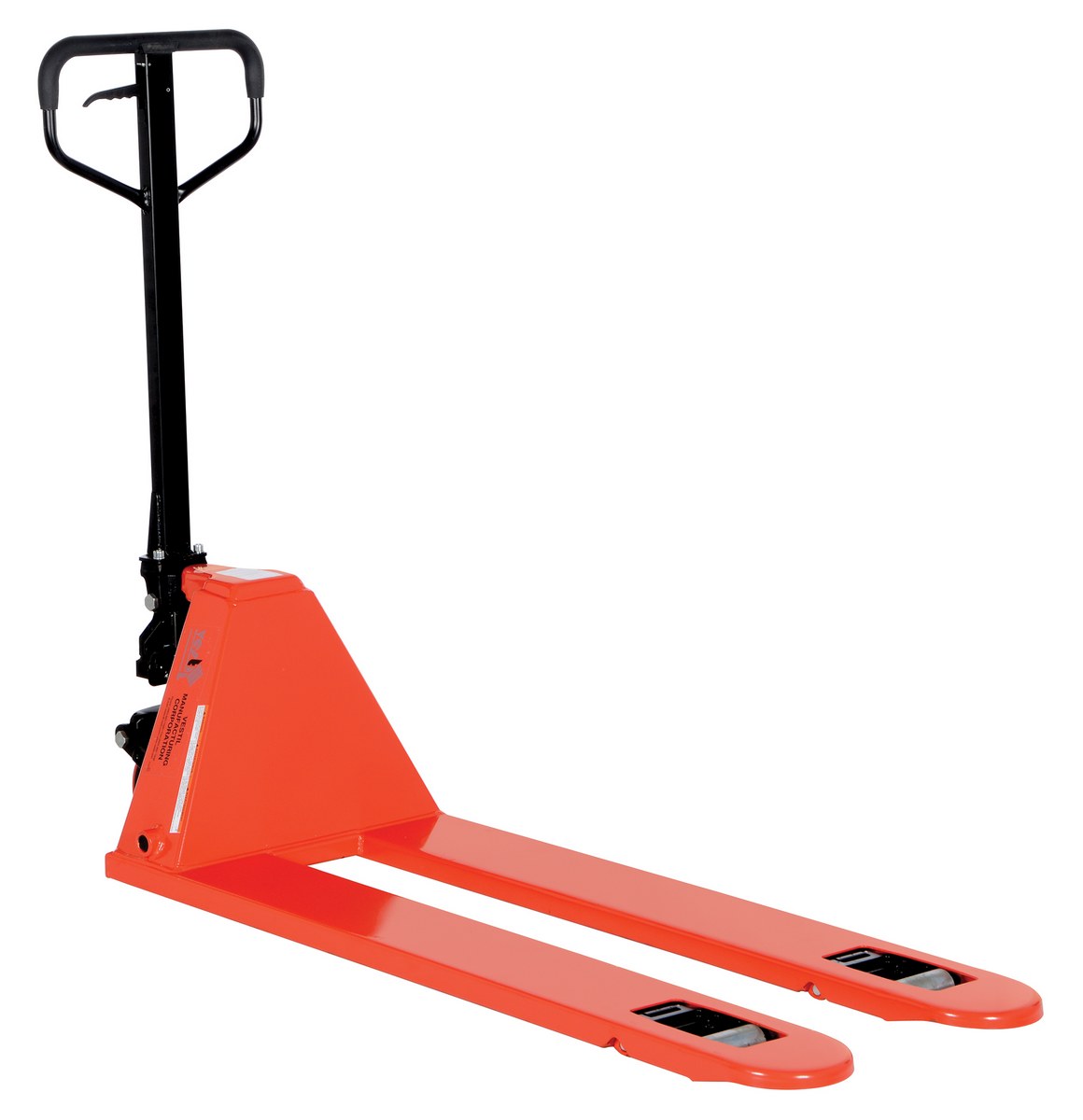

PM4-2048-LP-6PKG PM4-2048-LP-6PKG1 Year Limited WarrantySteel (Quantity 6) Low Profile Pallet Truck 61 In. x 20-1/2 In. x 49 In. 4000 Lb. Capacity RedUniform Capacity (lb.): 4000
Overall Fork Width (in.): 20-5/8		1123

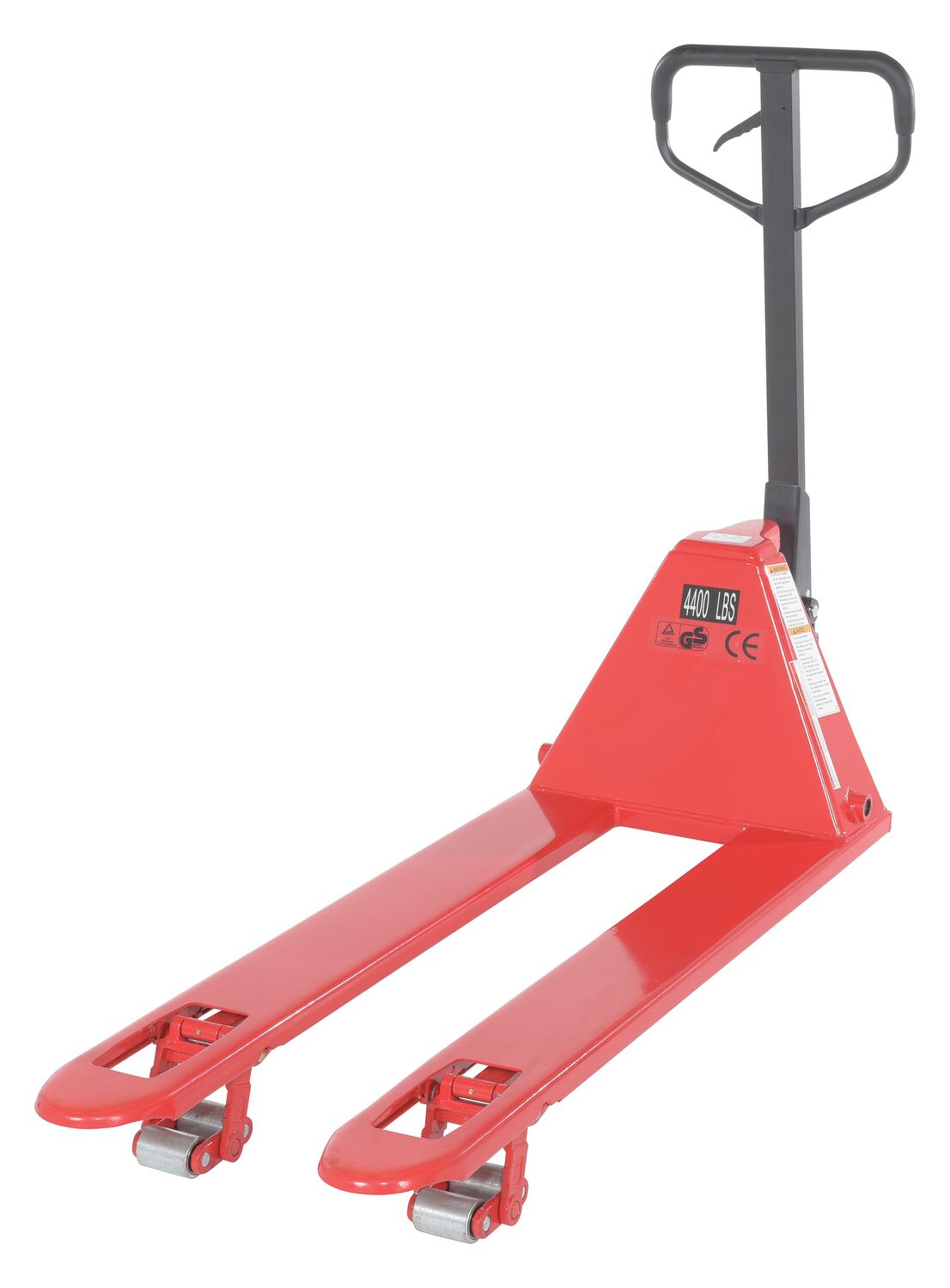

PM4-2148-LP PM4-2148-LP1 Year Limited WarrantySteel Low Profile Pallet Truck 21 In. x 48 In. 4,000 Lb. Capacity RedUniform Capacity (lb.): 4000
Overall Fork Width (in.): 21		241
PM4-2148-LP-6PKG PM4-2148-LP-6PKG1 Year Limited WarrantySteel Low Profile Pallet Trucks 6 Pack 21 In. x 48 In. 4,000 Lb. Capacity RedUniform Capacity (lb.): 4000
Overall Fork Width (in.): 21		1140

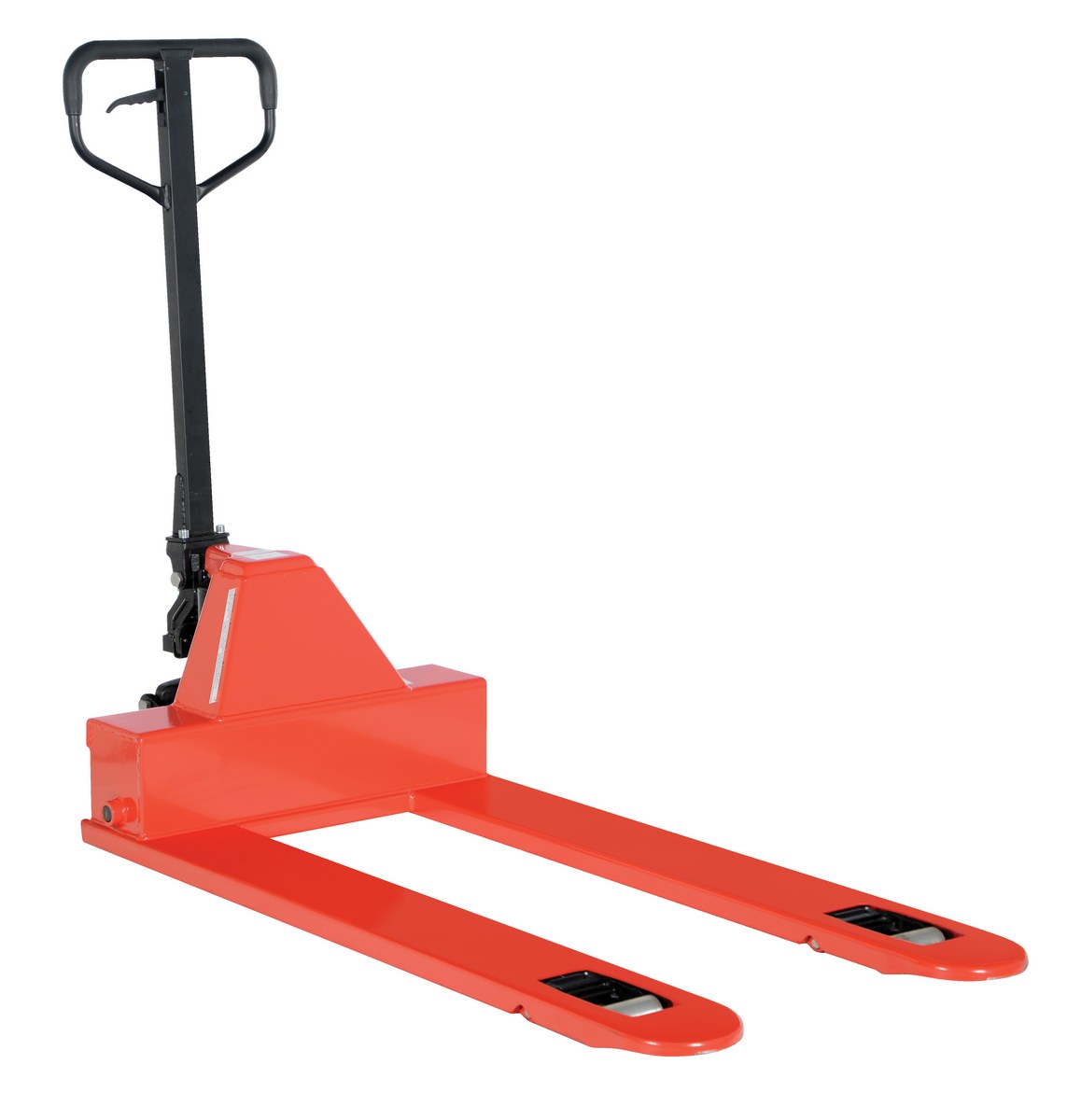

PM4-2748-LP PM4-2748-LP1 Year Limited WarrantySteel Low Profile Pallet Truck 64 In. x 27 In. x 48 In. 4000 Lb. Capacity RedUniform Capacity (lb.): 4000
Overall Fork Width (in.): 27		253
PM4-2748-LP-6PKG PM4-2748-LP-6PKG1 Year Limited WarrantySteel (Quantity 6) Low Profile Pallet Truck 64 In. x 27 In. x 48 In. 4000 Lb. Capacity RedUniform Capacity (lb.): 4000
Overall Fork Width (in.): 27		1372

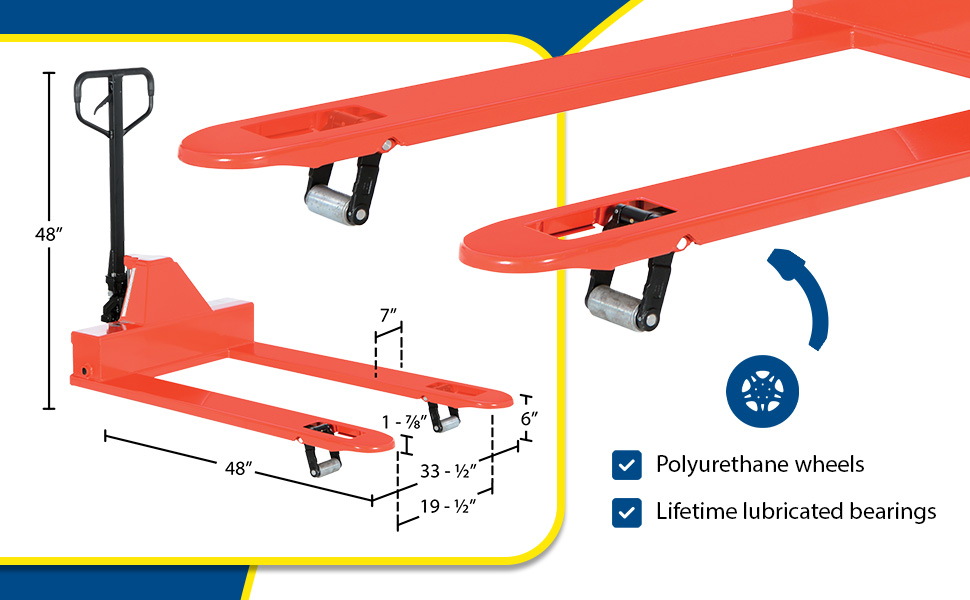

PM4-3348-LP PM4-3348-LP1 Year Limited WarrantySteel Low Profile Pallet Truck 63 In. x 33 In. x 48 In. 4000 Lb. Capacity RedUniform Capacity (lb.): 4000
Overall Fork Width (in.): 33		286
PM4-3348-LP-6PKG PM4-3348-LP-6PKG1 Year Limited WarrantySteel (Quantity 6) Low Profile Pallet Truck 63 In. x 33 In. x 48 In. 4000 Lb. Capacity RedUniform Capacity (lb.): 4000
Overall Fork Width (in.): 33		1538

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

PM4-2048-LP
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Overall Fork Width (in.): 20-5/8
Uniform Capacity (lb.): 4000
Overall Fork Width (in.): 20-5/8

PM4-2048-LP-6PKG
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Overall Fork Width (in.): 20-5/8
Uniform Capacity (lb.): 4000
Overall Fork Width (in.): 20-5/8

PM4-2148-LP
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Overall Fork Width (in.): 21
Uniform Capacity (lb.): 4000
Overall Fork Width (in.): 21

PM4-2148-LP-6PKG
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Overall Fork Width (in.): 21
Uniform Capacity (lb.): 4000
Overall Fork Width (in.): 21

PM4-2748-LP
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Overall Fork Width (in.): 27
Uniform Capacity (lb.): 4000
Overall Fork Width (in.): 27

PM4-2748-LP-6PKG
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Overall Fork Width (in.): 27
Uniform Capacity (lb.): 4000
Overall Fork Width (in.): 27

PM4-3348-LP
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Overall Fork Width (in.): 33
Uniform Capacity (lb.): 4000
Overall Fork Width (in.): 33

PM4-3348-LP-6PKG
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Overall Fork Width (in.): 33
Uniform Capacity (lb.): 4000
Overall Fork Width (in.): 33
Low Profile Pallet Trucks PDF's will open in a new window when clicked.

Manuals


PM4-LP
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


PM4-2048-LP

PM4-2748-LP

PM4-3348-LP

Testing Certificates


PM4-2048-LP

PM4-2048-LP-6PKG

PM4-2148-LP

PM4-2148-LP-6PKG

PM4-2748-LP

PM4-2748-LP-6PKG

PM4-3348-LP

PM4-3348-LP-6PKG

SDS Sheets

Hydraulic Oil SDS Sheet for: PM4-2048-LP
Hydraulic Oil SDS Sheet for: PM4-2048-LP-6PKG
Hydraulic Oil SDS Sheet for: PM4-2748-LP
Hydraulic Oil SDS Sheet for: PM4-2748-LP-6PKG
Hydraulic Oil SDS Sheet for: PM4-3348-LP
Hydraulic Oil SDS Sheet for: PM4-3348-LP-6PKG

Other PDF's

MEZZ-R5
Low Profile Pallet Jack Mailing Brochure

Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: What is the distance in between the forks for PM4-2148-LP?

A: The distance between the forks is about 8"
