Product Family Overview


Posi-Crank Worker Platforms
SERIES: POS

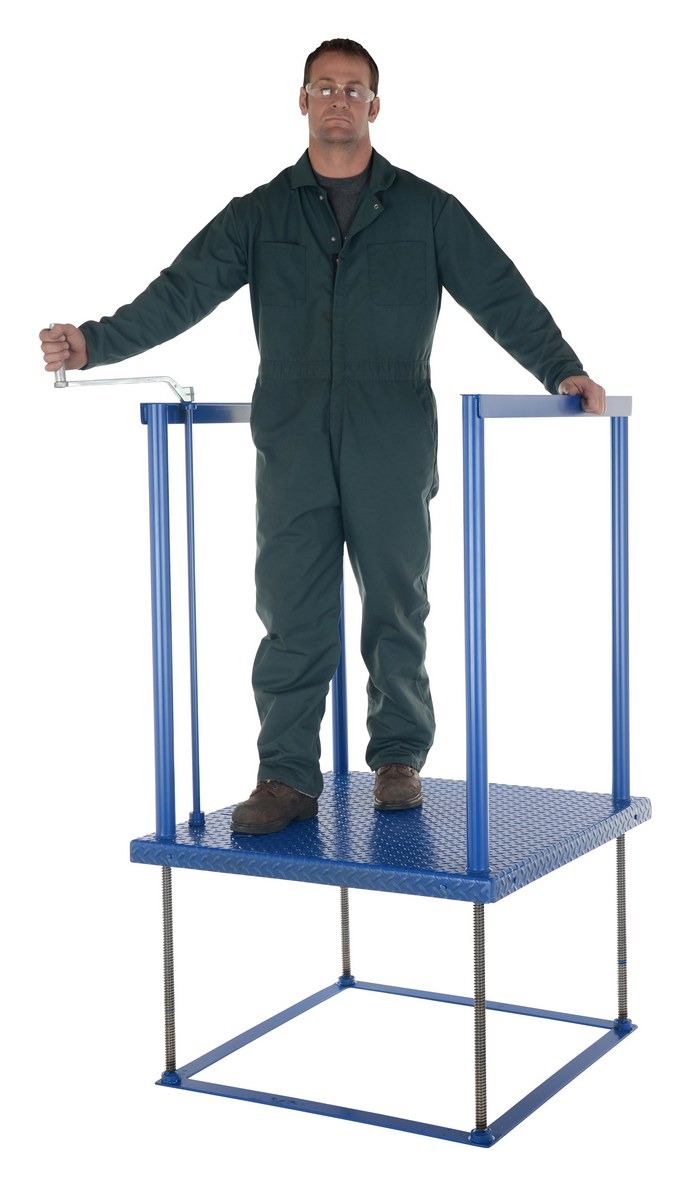

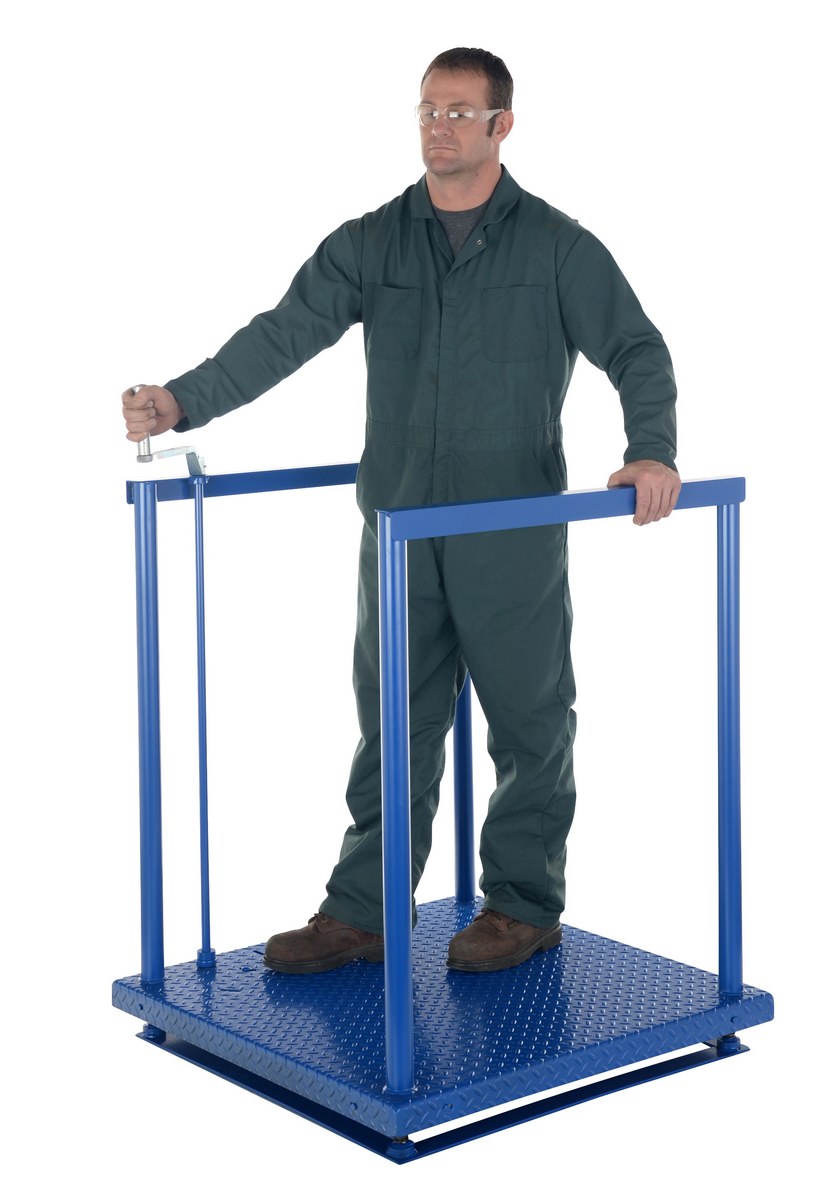

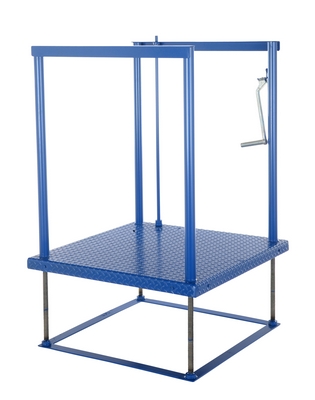

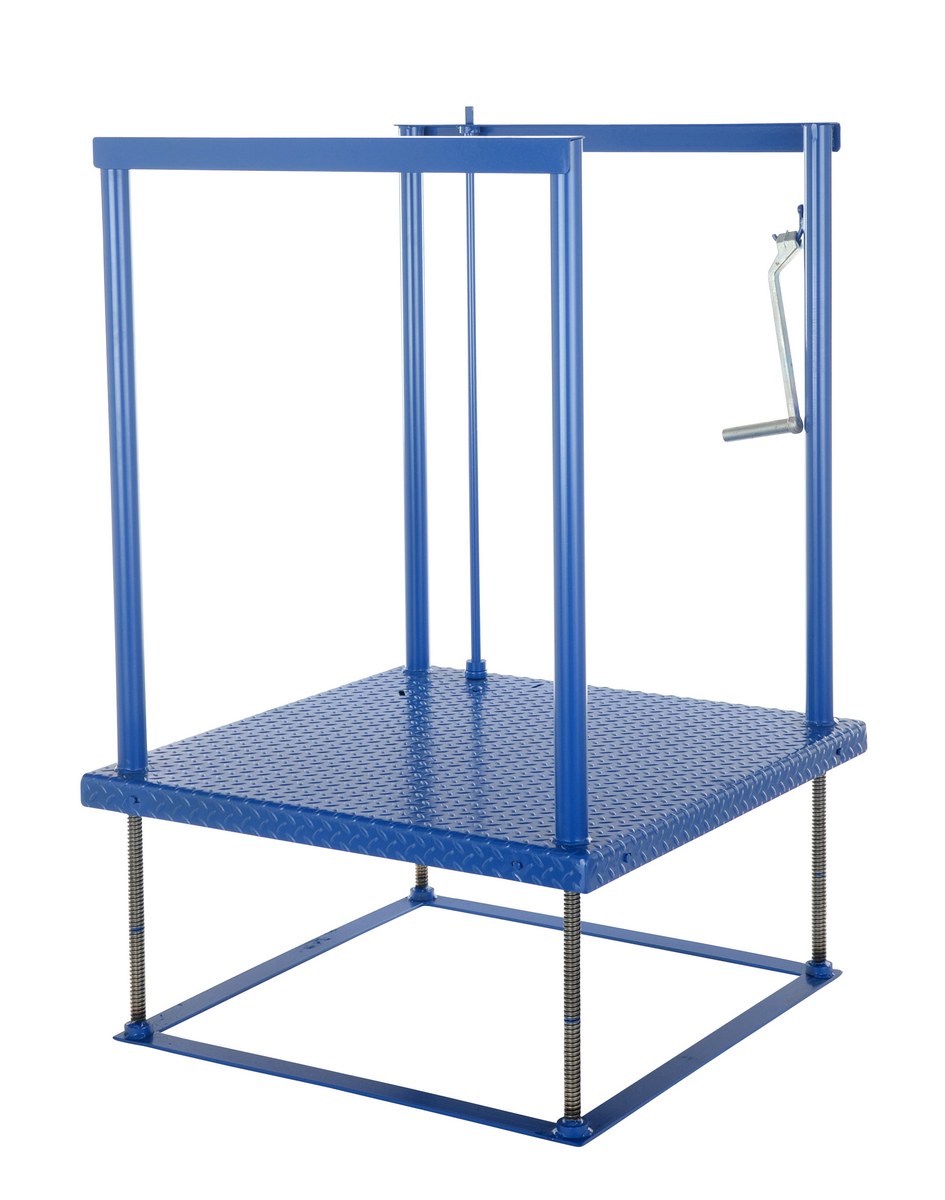

The Posi-Crank ergonomic work station is an economical variable height worker positioner. With a simple turn of a crank, the platform height may be adjusted to the optimum ergonomic level suitable for each operator. Benefits of the Posi-Crank include minimizing the risk of cumulative trauma injuries, back injuries and fatigue while maximizing efficiency and operator morale.

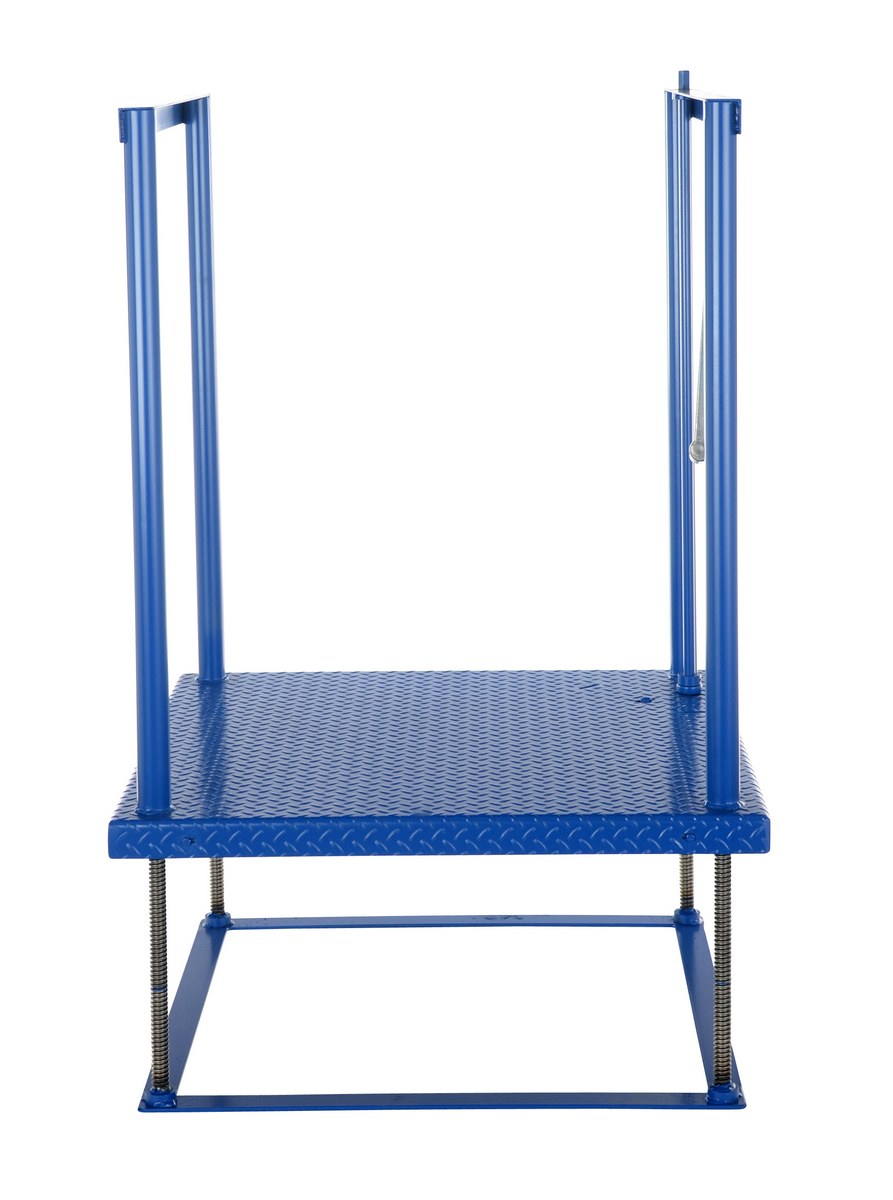

The Posi-Crank incorporates the use of acme threaded rods and a series of gears for simple yet effective height adjustment. A heavy duty chain is used in lieu of a belt to ensure a positive working height without risk of slippage. The crank handle may be removed and placed on the handle holder for maximizing the operating space. The deck is constructed of 1/8" steel tread plate for strength and the best traction. Maximum capacity is 500 pounds. Vertical travel range is 3" lowered to 19" raised. The Posi-Crank is constructed of steel to provide for years of service. The unit is painted blue, while the ergonomic anti-fatigue matting is also blue.

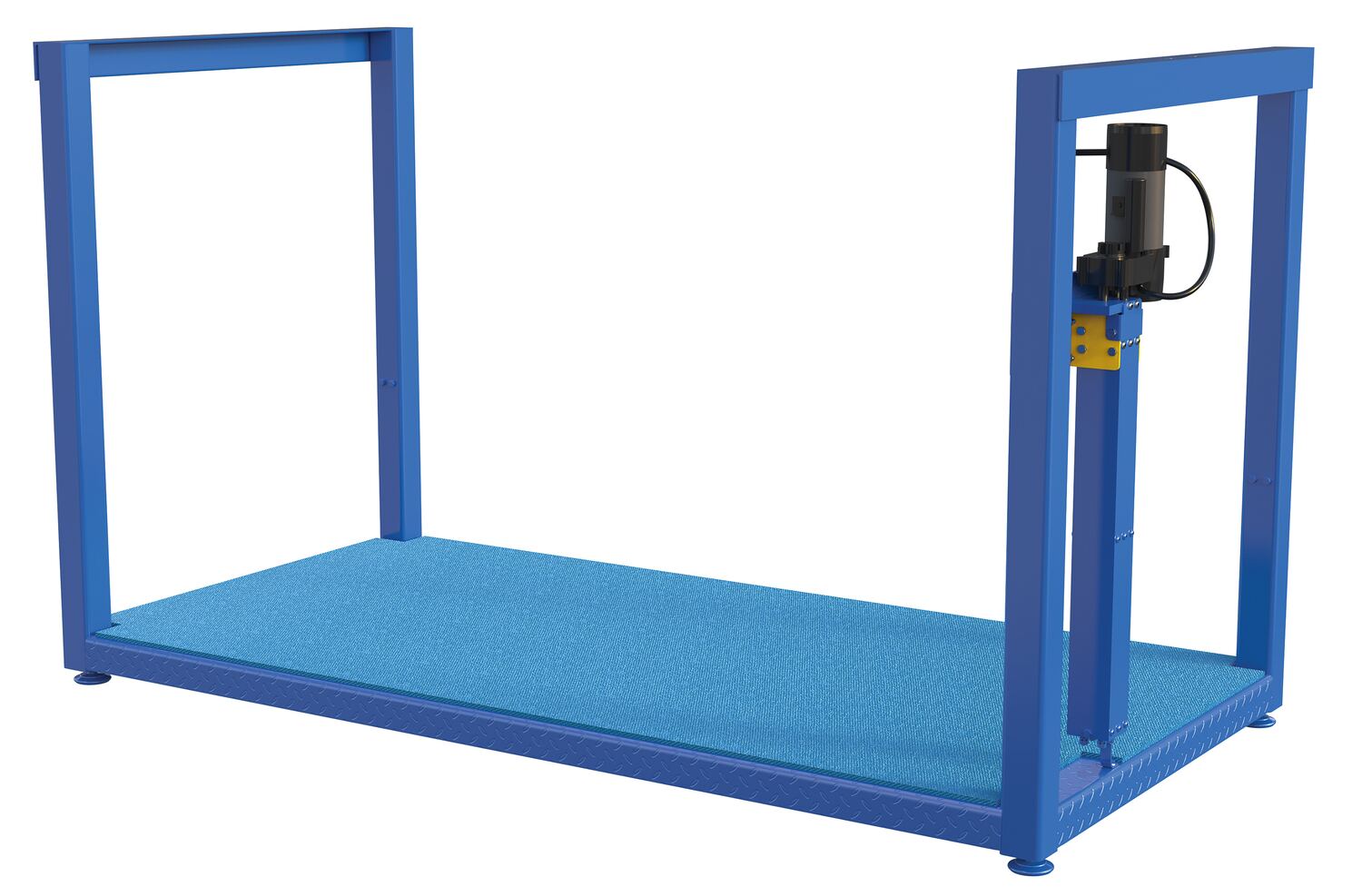

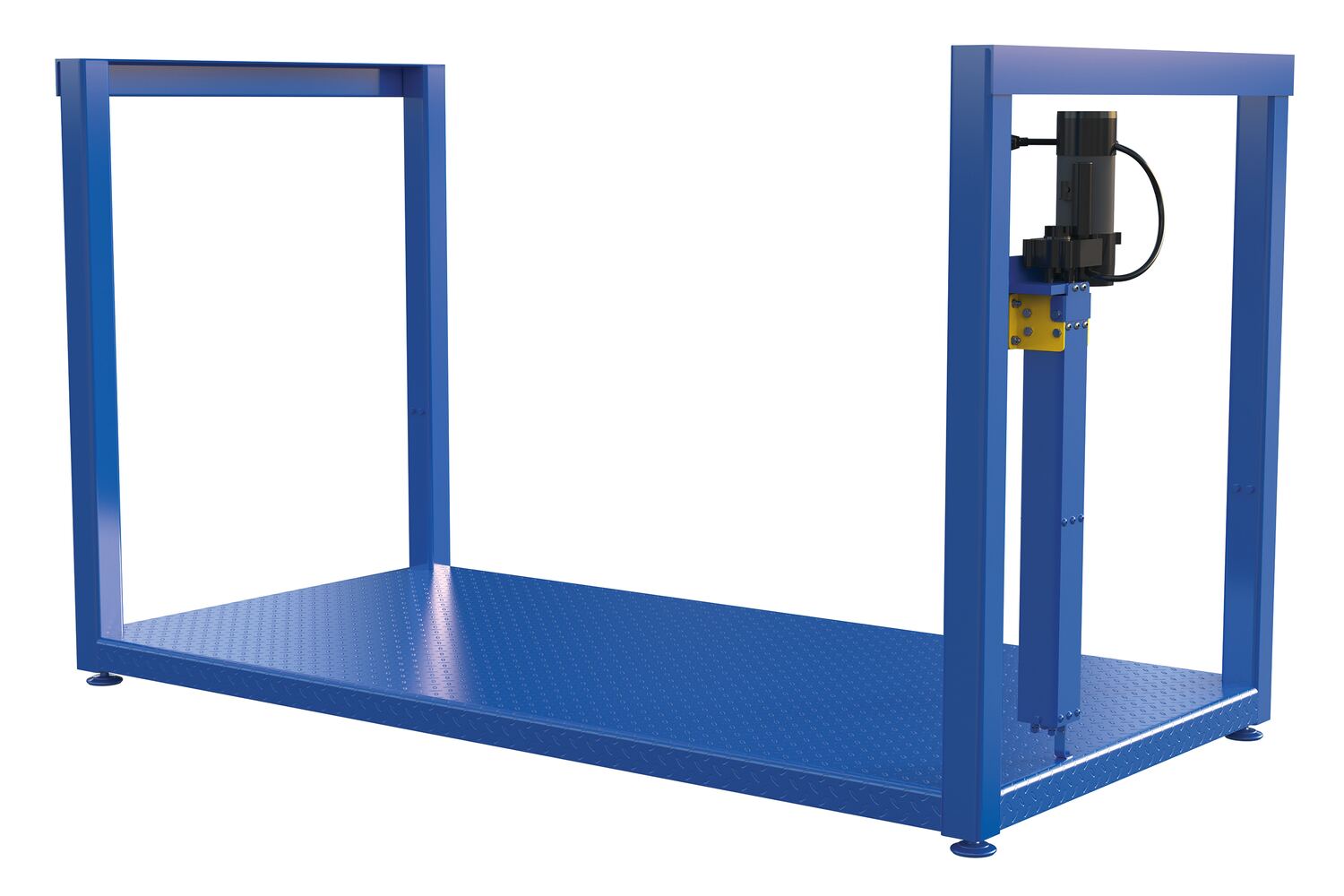

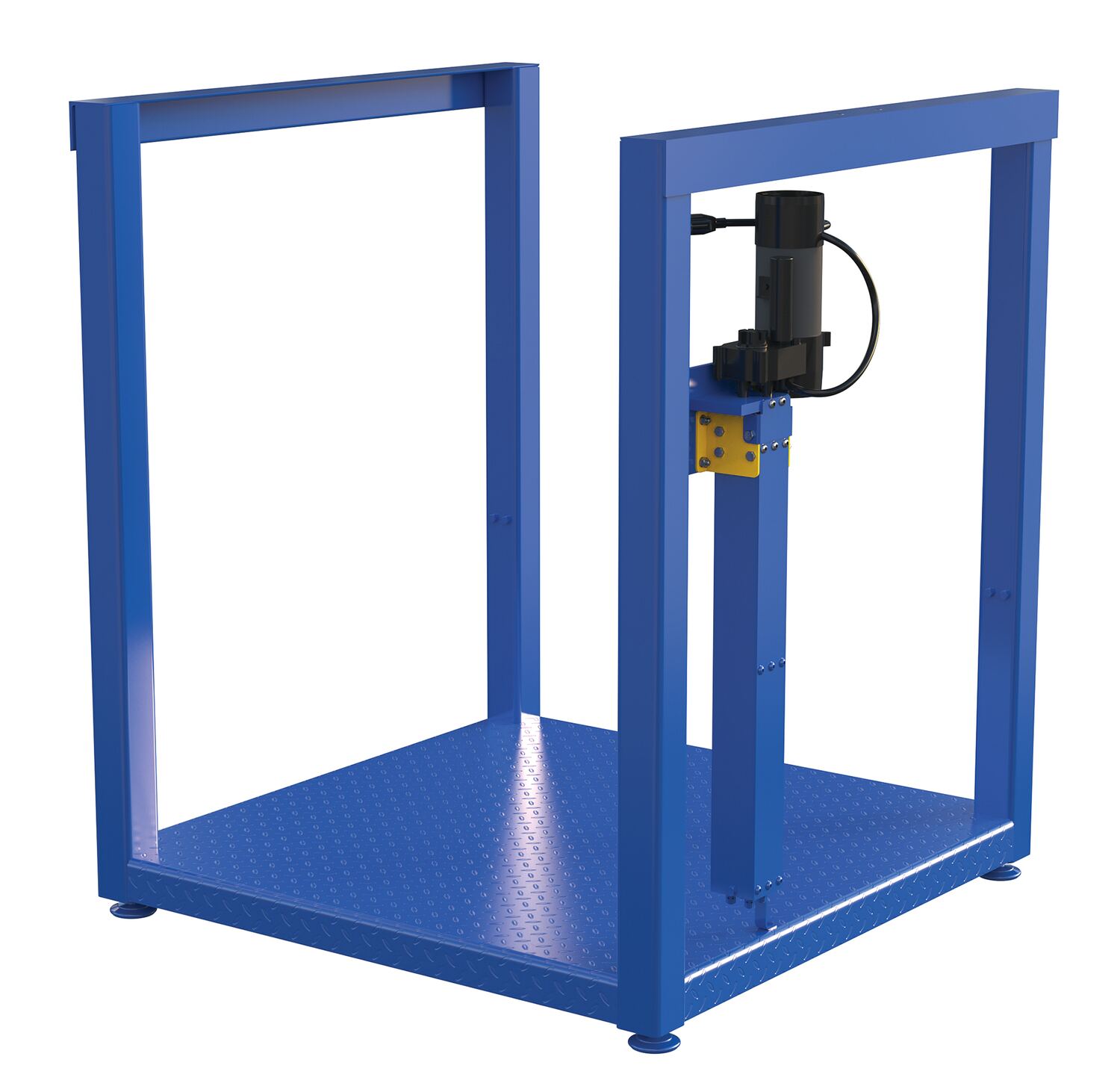

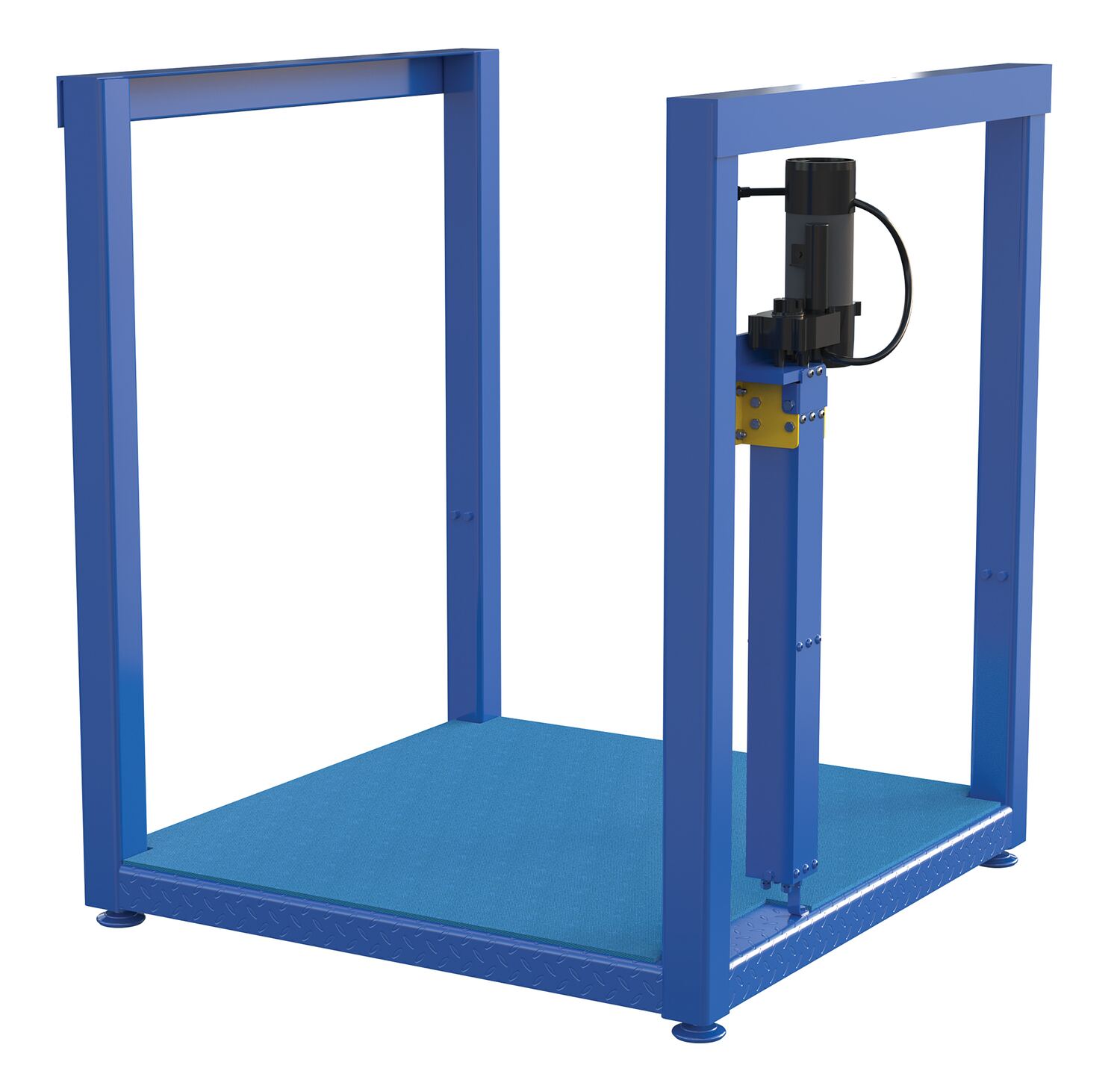

The electric hydraulic platform maintains the performance of the original manual crank version, but with increased user functionality. An electric version creates a more work friendly environment by minimizing manual labor. Raising and lowering personnel quickly and in a safe manner.

The Posi-Crank ergonomic work station is an economical variable height worker positioner. With a simple turn of a crank, the platform height may be adjusted to the optimum ergonomic level suitable for each operator. Benefits of the Posi-Crank include minimizing the risk of cumulative trauma injuries, back injuries and fatigue while maximizing efficiency and operator morale.

The Posi-Crank incorporates the use of acme threaded rods and a series of gears for simple yet effective height adjustment. A heavy duty chain is used in lieu of a belt to ensure a positive working height without risk of slippage. The crank handle may be removed and placed on the handle holder for maximizing the operating space. The deck is constructed of 1/8" steel tread plate for strength and the best traction. Maximum capacity is 500 pounds. Vertical travel range is 3" lowered to 19" raised. The Posi-Crank is constructed of steel to provide for years of service. The unit is painted blue, while the ergonomic anti-fatigue matting is also blue.

The electric hydraulic platform maintains the performance of the original manual crank version, but with increased user functionality. An electric version creates a more work friendly environment by minimizing manual labor. Raising and lowering personnel quickly and in a safe manner.

Additional Models In This Family

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

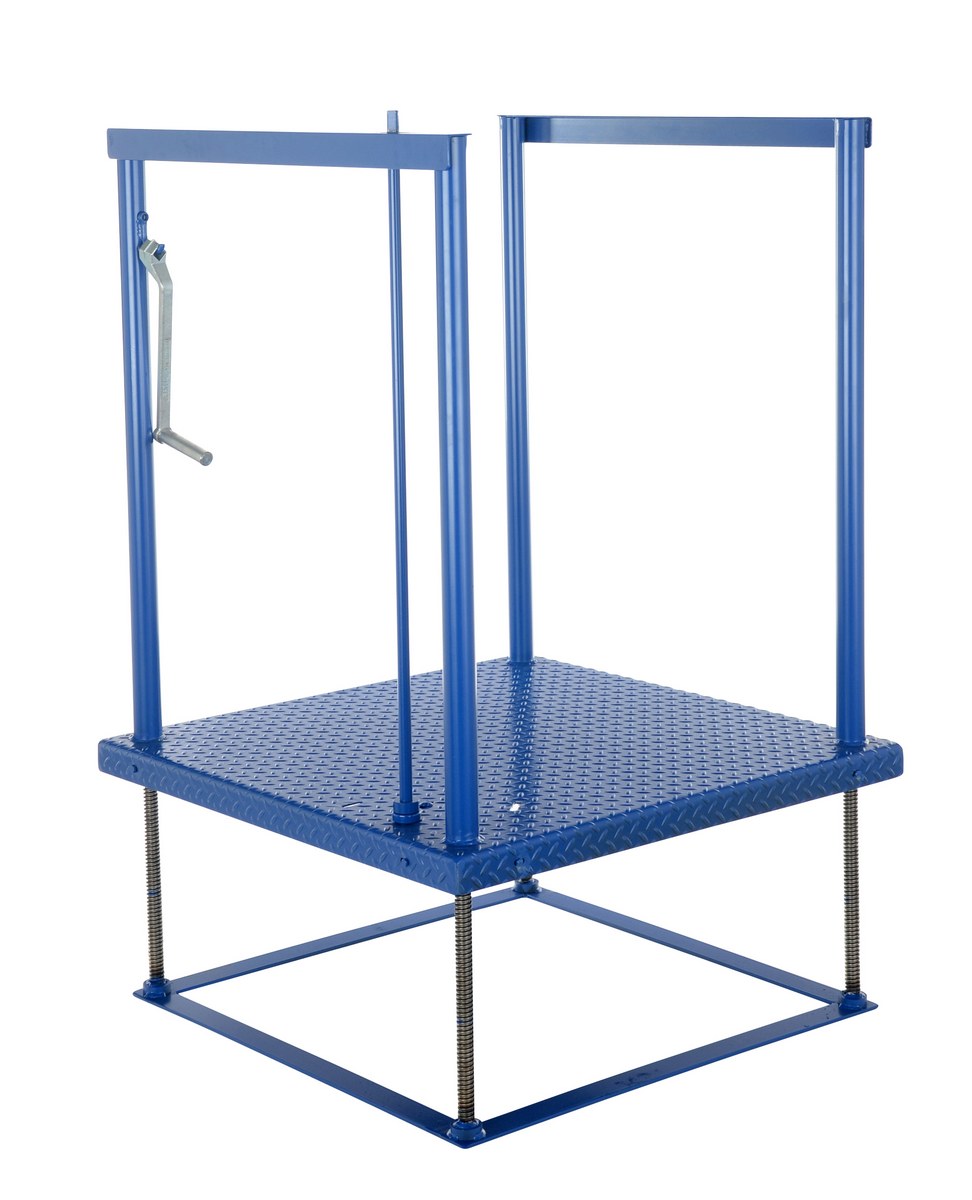

POS-3636
POS-363690 Days Limited WarrantySteel Ergonomic Post-Crank Worker Platform 36 In. x 36 In. x 65-5/8 In. 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Platform Width (in.): 36
192
POS-3636-EH
POS-3636-EH1 Year Limited WarrantySteel Ergonomic Electric/Hydraulic Post-Crank Worker Platform 36-1/4 In. x 37-3/16 In. x 42-5/8 In. 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Platform Width (in.): 31
429
POS-3636-EH-MAT
POS-3636-EH-MAT1 Year Limited WarrantySteel Ergonomic Electric/Hydraulic Post-Crank Worker Platform With Mat 36-1/4 In. x 37-3/16 In. x 42-5/8 In. 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Platform Width (in.): 31
431
POS-3636-MAT
POS-3636-MAT90 Days Limited WarrantySteel Ergonomic Post-Crank Worker Platform With Mat 36 In. x 36 In. x 65-5/8 In. 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Platform Width (in.): 36
196

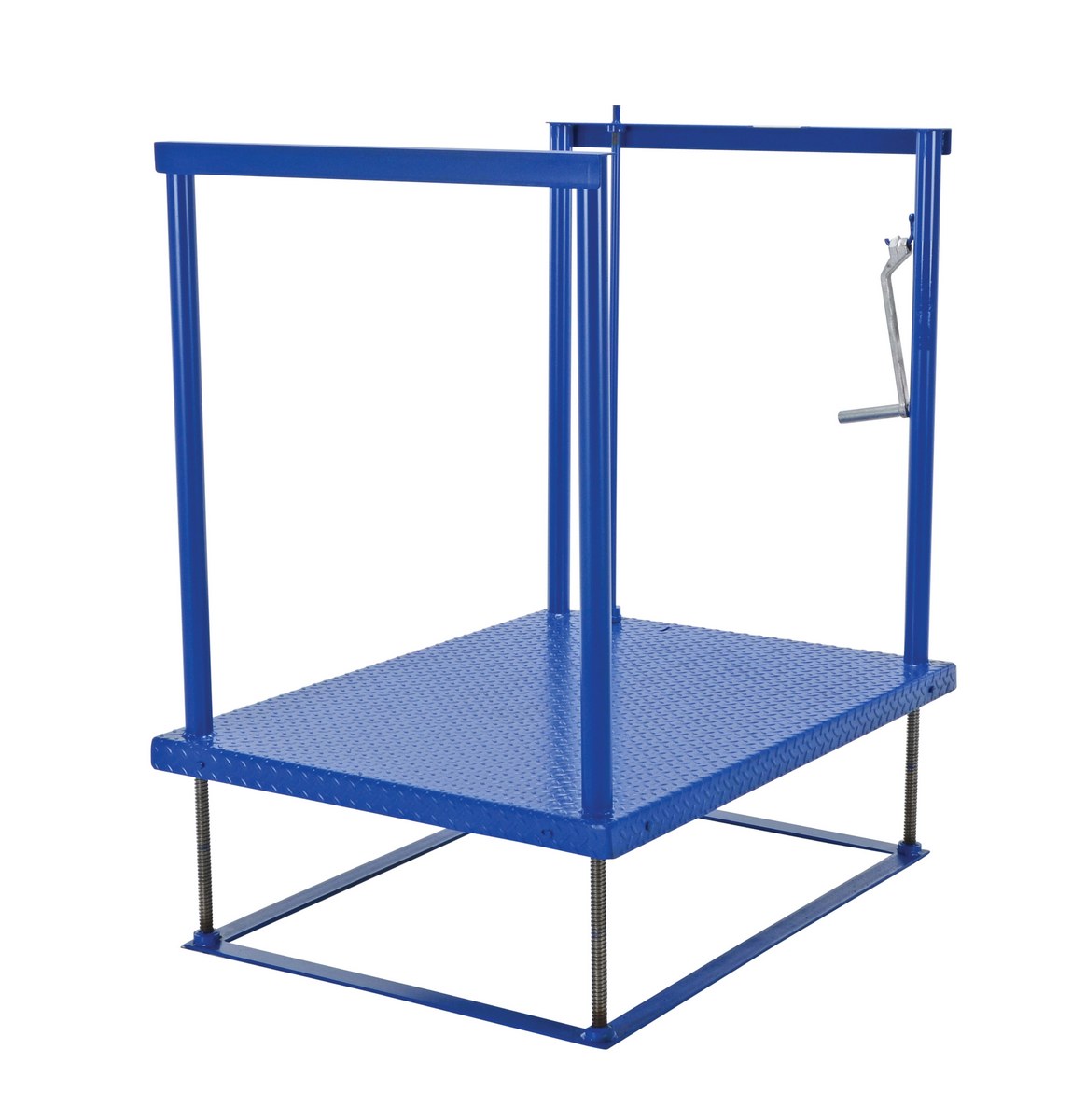

POS-3648
POS-364890 Days Limited WarrantySteel Ergonomic Post-Crank Worker Platform 48 In. x 36 In. x 65-5/8 In. 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Platform Width (in.): 36
215

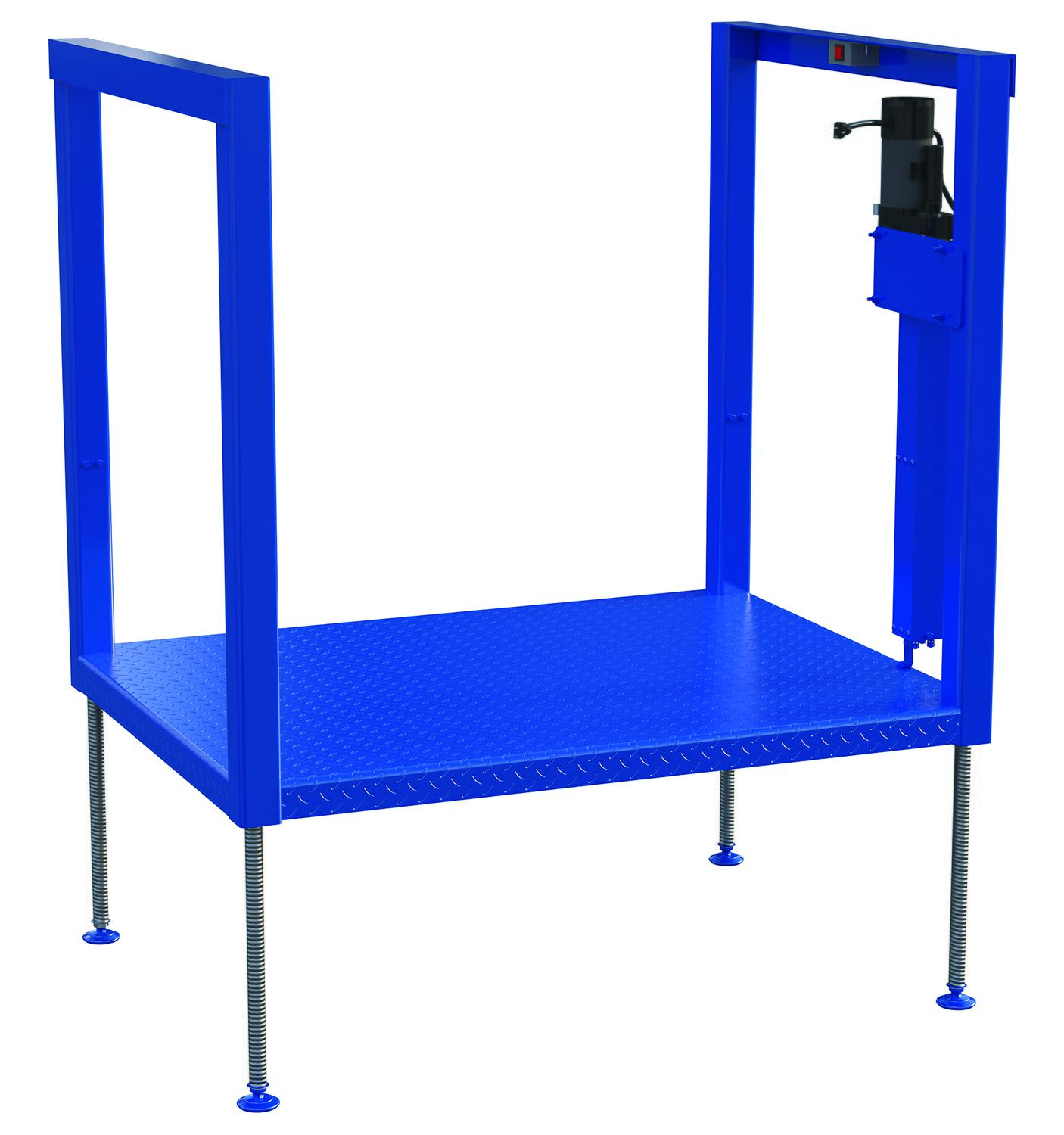

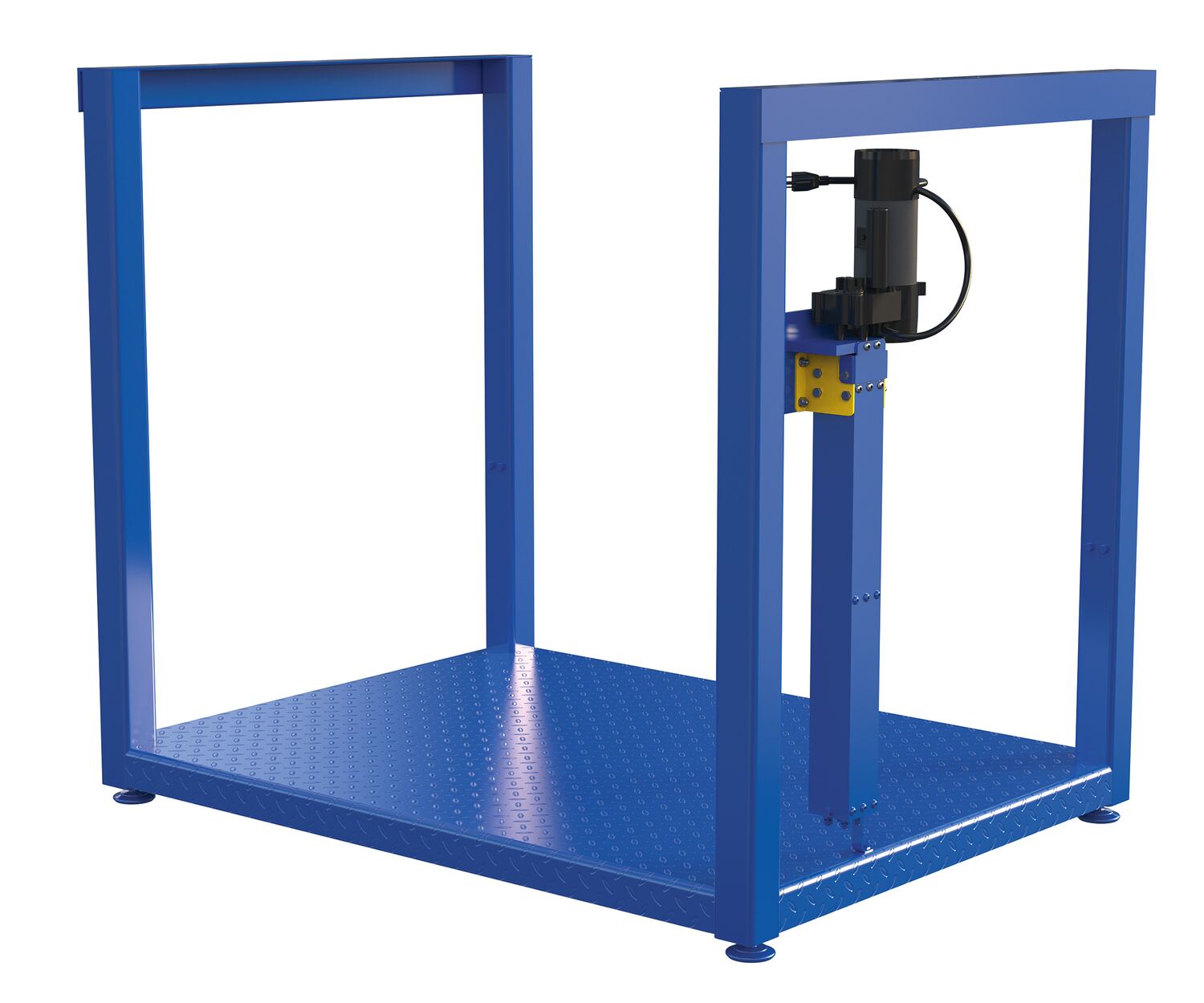

POS-3648-EH
POS-3648-EH1 Year Limited WarrantySteel Ergonomic Electric/Hydraulic Post-Crank Worker Platform 36-1/4 In. x 49-3/16 In. x 42-5/8 In. 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Platform Width (in.): 43
472

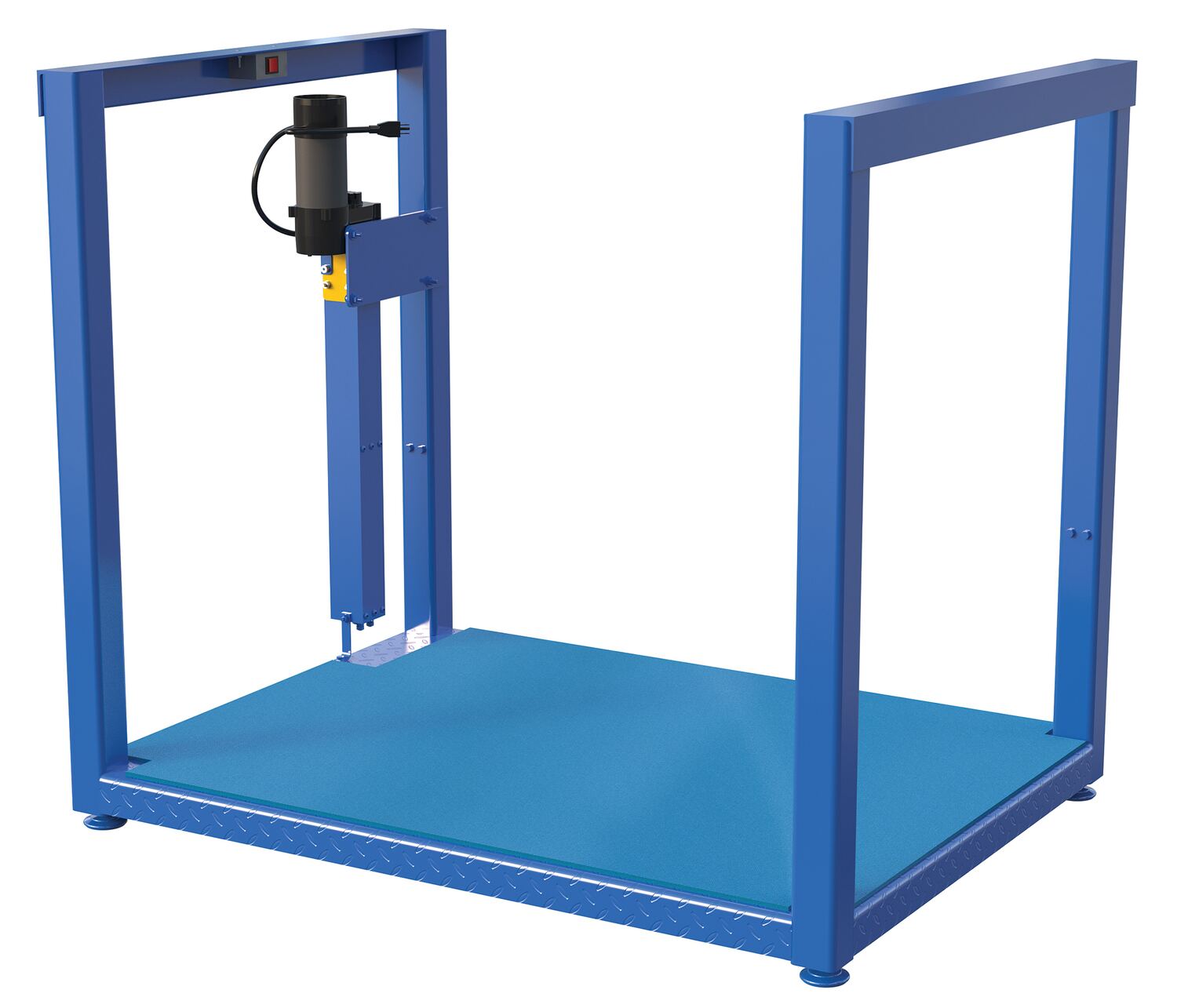

POS-3648-EH-MAT
POS-3648-EH-MAT1 Year Limited WarrantySteel Ergonomic Electric/Hydraulic Post-Crank Worker Platform With Mat 36-1/4 In. x 49-3/16 In. x 42-5/8 In. 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Platform Width (in.): 43
464

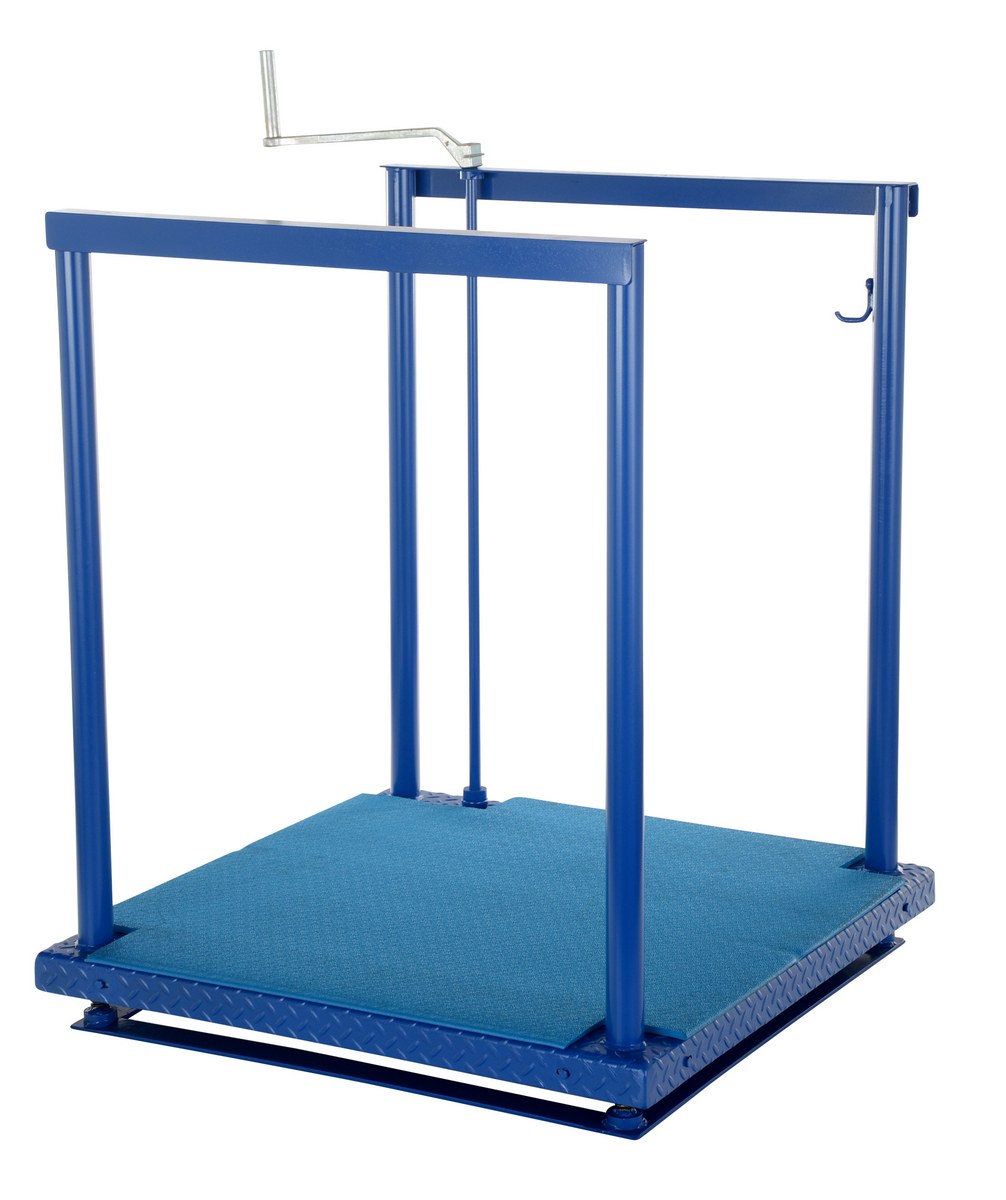

POS-3648-MAT
POS-3648-MAT90 Days Limited WarrantySteel Ergonomic Post-Crank Worker Platform With Mat 48 In. x 36 In. x 65-5/8 In. 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Platform Width (in.): 36
219

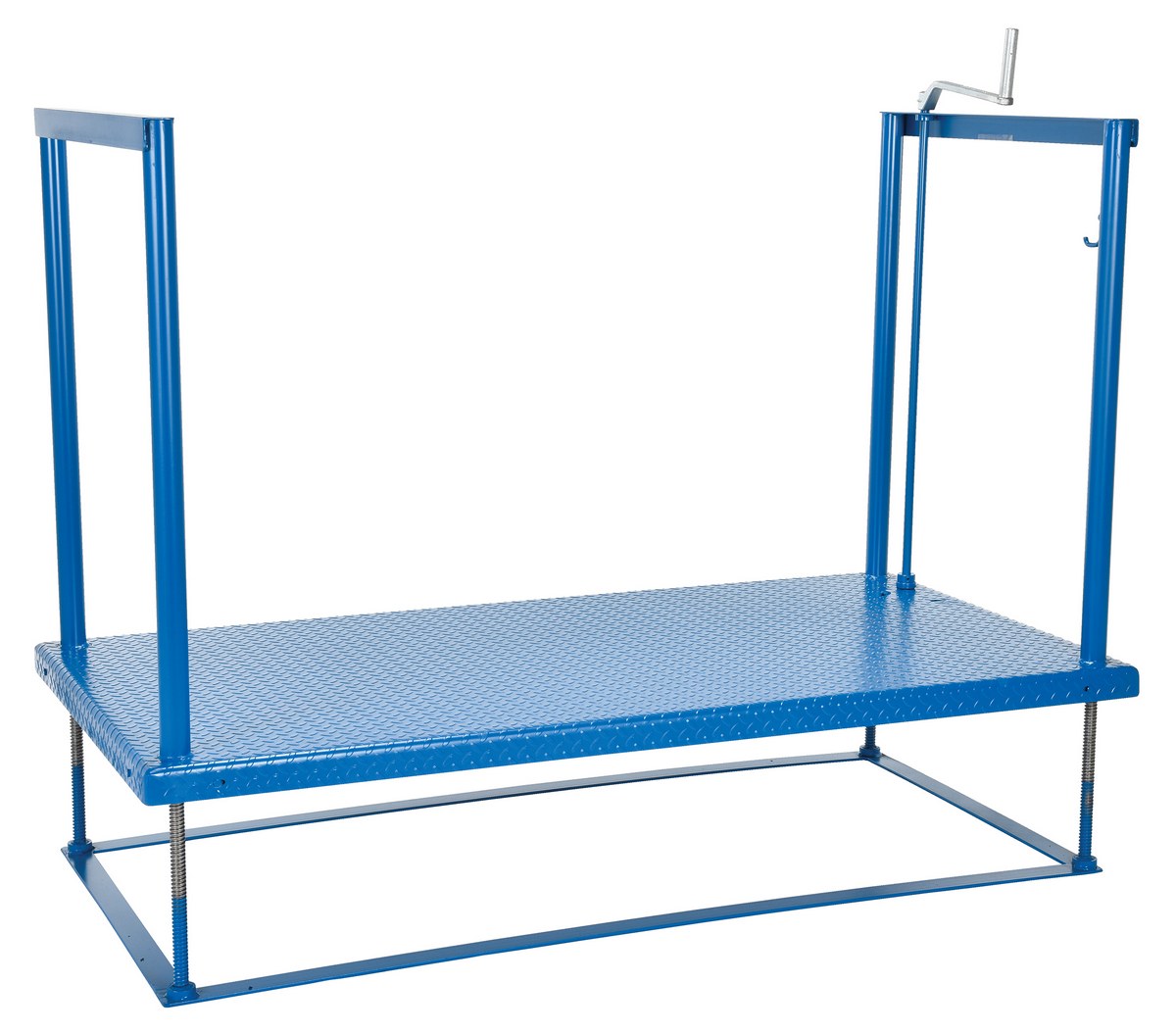

POS-3672
POS-367290 Days Limited WarrantySteel Ergonomic Post-Crank Worker Platform 72 In. x 36 In. x 65-5/8 In. 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Platform Width (in.): 36
403
POS-3672-EH
POS-3672-EH1 Year Limited WarrantySteel Ergonomic Electric/Hydraulic Post-Crank Worker Platform 36-1/4 In. x 73-3/16 In. x 39-1/4 In. 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Platform Width (in.): 67
528
POS-3672-EH-MAT
POS-3672-EH-MAT1 Year Limited WarrantySteel Ergonomic Electric/Hydraulic Post-Crank Worker Platform With Mat 36-1/4 In. x 73-3/16 In. x 39-1/4 In. 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Platform Width (in.): 67
540
POS-3672-MAT
POS-3672-MAT90 Days Limited WarrantySteel Ergonomic Post-Crank Worker Platform With Mat 72 In. x 36 In. x 65-5/8 In. 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Platform Width (in.): 36
432

* Models with suffix -MAT include an anti-fatigue mat

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

POS-3636
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Platform Width (in.): 36
Uniform Capacity (lb.): 500
Platform Width (in.): 36

POS-3636-EH
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Platform Width (in.): 31
Uniform Capacity (lb.): 500
Platform Width (in.): 31

POS-3636-EH-MAT
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Platform Width (in.): 31
Uniform Capacity (lb.): 500
Platform Width (in.): 31

POS-3636-MAT
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Platform Width (in.): 36
Uniform Capacity (lb.): 500
Platform Width (in.): 36

POS-3648
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Platform Width (in.): 36
Uniform Capacity (lb.): 500
Platform Width (in.): 36

POS-3648-EH
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Platform Width (in.): 43
Uniform Capacity (lb.): 500
Platform Width (in.): 43

POS-3648-EH-MAT
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Platform Width (in.): 43
Uniform Capacity (lb.): 500
Platform Width (in.): 43

POS-3648-MAT
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Platform Width (in.): 36
Uniform Capacity (lb.): 500
Platform Width (in.): 36

POS-3672
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Platform Width (in.): 36
Uniform Capacity (lb.): 500
Platform Width (in.): 36

POS-3672-EH
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Platform Width (in.): 67
Uniform Capacity (lb.): 500
Platform Width (in.): 67

POS-3672-EH-MAT
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Platform Width (in.): 67
Uniform Capacity (lb.): 500
Platform Width (in.): 67

POS-3672-MAT
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Platform Width (in.): 36
Uniform Capacity (lb.): 500
Platform Width (in.): 36

Posi-Crank Worker Platforms PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


POS-3636

POS-3636-EH

POS-3636-EH-MAT

POS-3636-MAT

POS-3648

POS-3648-EH

POS-3648-EH-MAT

POS-3648-MAT

POS-3672

POS-3672-EH

POS-3672-EH-MAT

POS-3672-MAT

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products


Q: How fast does model POS-3636-EH raise and lower?

A: Speed is approximately 3.5 seconds per inch, 55 seconds for 16"






Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Posi-Crank Worker Platforms




The Posi-Crank ergonomic work station is an economical variable height worker positioner. With a simple turn of a crank, the platform height may be adjusted to the optimum ergonomic level suitable for each operator. Benefits of the Posi-Crank include minimizing the risk of cumulative trauma injuries, back injuries and fatigue while maximizing efficiency and operator morale.

The Posi-Crank incorporates the use of acme threaded rods and a series of gears for simple yet effective height adjustment. A heavy duty chain is used in lieu of a belt to ensure a positive working height without risk of slippage. The crank handle may be removed and placed on the handle holder for maximizing the operating space. The deck is constructed of 1/8" steel tread plate for strength and the best traction. Maximum capacity is 500 pounds. Vertical travel range is 3" lowered to 19" raised. The Posi-Crank is constructed of steel to provide for years of service. The unit is painted blue, while the ergonomic anti-fatigue matting is also blue.

The electric hydraulic platform maintains the performance of the original manual crank version, but with increased user functionality. An electric version creates a more work friendly environment by minimizing manual labor. Raising and lowering personnel quickly and in a safe manner.



Model # Description Attributes Net Wt.
(lbs)
POS-3636 POS-3636Steel Ergonomic Post-Crank Worker Platform 36 In. x 36 In. x 65-5/8 In. 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Platform Width (in.): 36
192
POS-3636-EH POS-3636-EHSteel Ergonomic Electric/Hydraulic Post-Crank Worker Platform 36-1/4 In. x 37-3/16 In. x 42-5/8 In. 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Platform Width (in.): 31
429
POS-3636-EH-MAT POS-3636-EH-MATSteel Ergonomic Electric/Hydraulic Post-Crank Worker Platform With Mat 36-1/4 In. x 37-3/16 In. x 42-5/8 In. 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Platform Width (in.): 31
431
POS-3636-MAT POS-3636-MATSteel Ergonomic Post-Crank Worker Platform With Mat 36 In. x 36 In. x 65-5/8 In. 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Platform Width (in.): 36
196
POS-3648 POS-3648Steel Ergonomic Post-Crank Worker Platform 48 In. x 36 In. x 65-5/8 In. 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Platform Width (in.): 36
215
POS-3648-EH POS-3648-EHSteel Ergonomic Electric/Hydraulic Post-Crank Worker Platform 36-1/4 In. x 49-3/16 In. x 42-5/8 In. 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Platform Width (in.): 43
472
POS-3648-EH-MAT POS-3648-EH-MATSteel Ergonomic Electric/Hydraulic Post-Crank Worker Platform With Mat 36-1/4 In. x 49-3/16 In. x 42-5/8 In. 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Platform Width (in.): 43
464
POS-3648-MAT POS-3648-MATSteel Ergonomic Post-Crank Worker Platform With Mat 48 In. x 36 In. x 65-5/8 In. 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Platform Width (in.): 36
219
POS-3672 POS-3672Steel Ergonomic Post-Crank Worker Platform 72 In. x 36 In. x 65-5/8 In. 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Platform Width (in.): 36
403
POS-3672-EH POS-3672-EHSteel Ergonomic Electric/Hydraulic Post-Crank Worker Platform 36-1/4 In. x 73-3/16 In. x 39-1/4 In. 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Platform Width (in.): 67
528
POS-3672-EH-MAT POS-3672-EH-MATSteel Ergonomic Electric/Hydraulic Post-Crank Worker Platform With Mat 36-1/4 In. x 73-3/16 In. x 39-1/4 In. 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Platform Width (in.): 67
540
POS-3672-MAT POS-3672-MATSteel Ergonomic Post-Crank Worker Platform With Mat 72 In. x 36 In. x 65-5/8 In. 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Platform Width (in.): 36
432
