Fork Truck Jacks

- - - -

Description
Model Chart
PDF's
Image Gallery

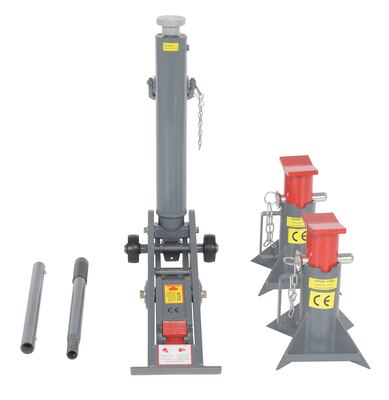

FORK-J-HD_A.jpg FORK-J-HD_B.jpg FORK-J-HD_C.jpg FORK-J-HD_E.jpg
FORK-J-HD_G.jpg FORK-J-HD_H.jpg FORK-J-HD_I.jpg FORK-J-HD_J.jpg
Fork Truck Jacks

model: FORK-J-HD



Featured Ergonomic Solutions


Mechanical Post Tables
Economical Powered Lift Table
Add-A-Levels
Electric Powered Roll Pallet Trucks
Powered Stacker with Power Drive, Power Lift, & Power Fork Reach
Dual Power Tote Lifter
Pallet Truck with Digital Scale (Pramac)
Electric/Hydraulic Corner Tilters
Pallet Trucks (Pallet Jacks)
model chart

Product Family Overview

Print Friendly
Fork Truck Jacks
SERIES: AIR-J,FORK-J

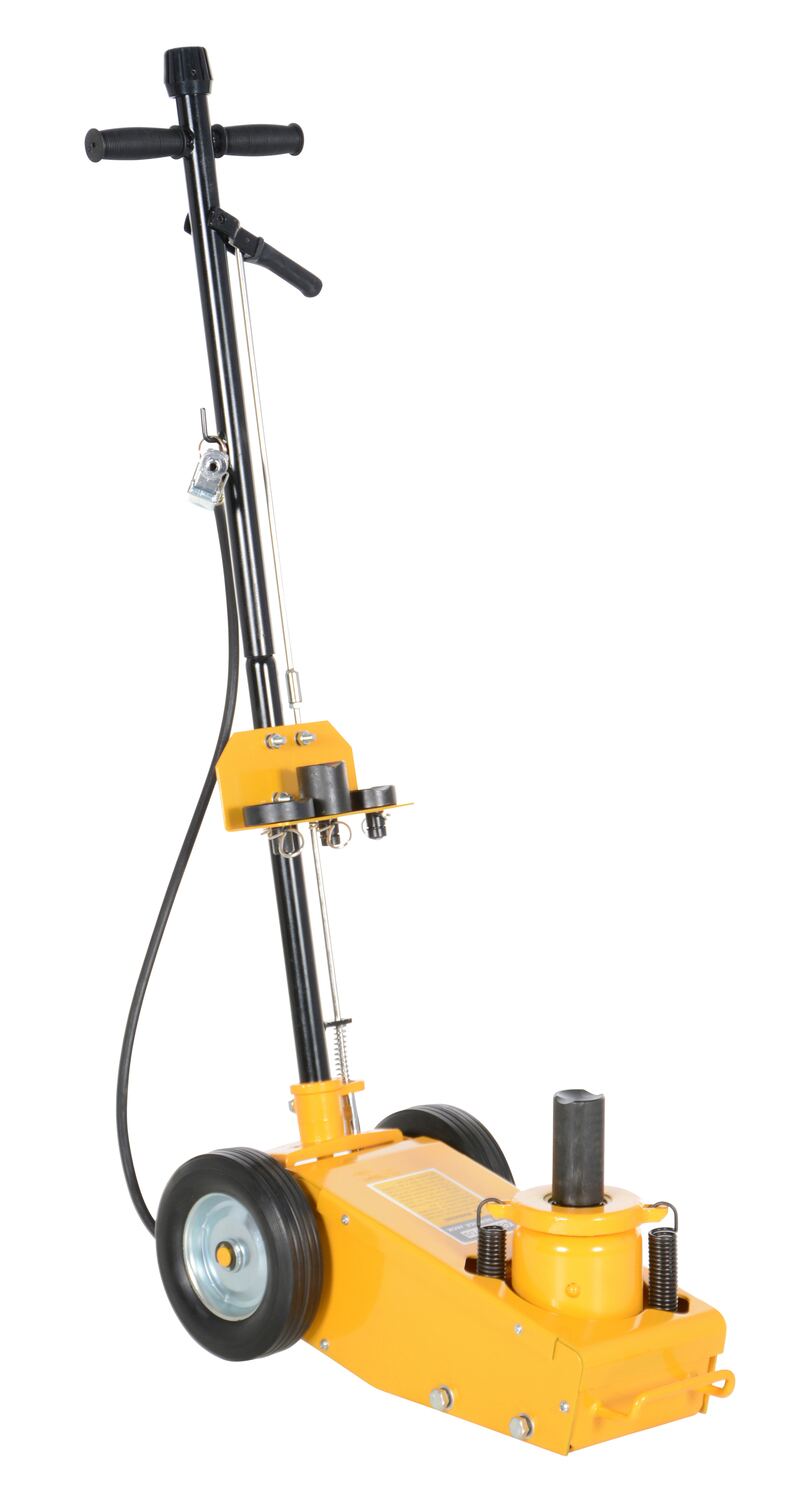

Air Powered Fork Truck Jack Air-assist motor quickly raises saddle to lift point and then lifts load to desired height. Air powered for quick and easy operation. Uses standard coupler hook-up to a shop air compressor with air regulator control lever handle. Pressure relief valve is located on top of handle for metered control and load height adjustment.

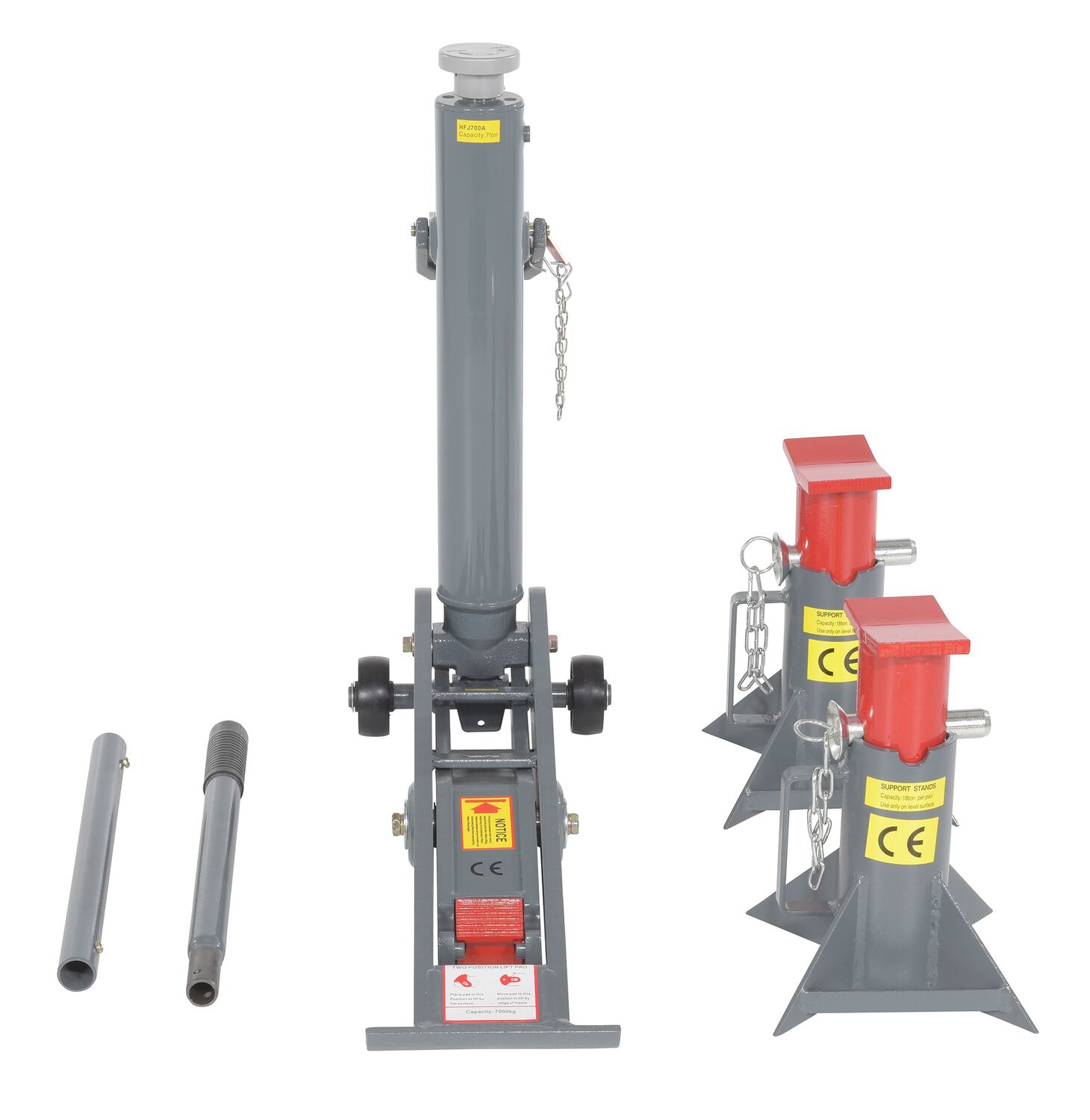

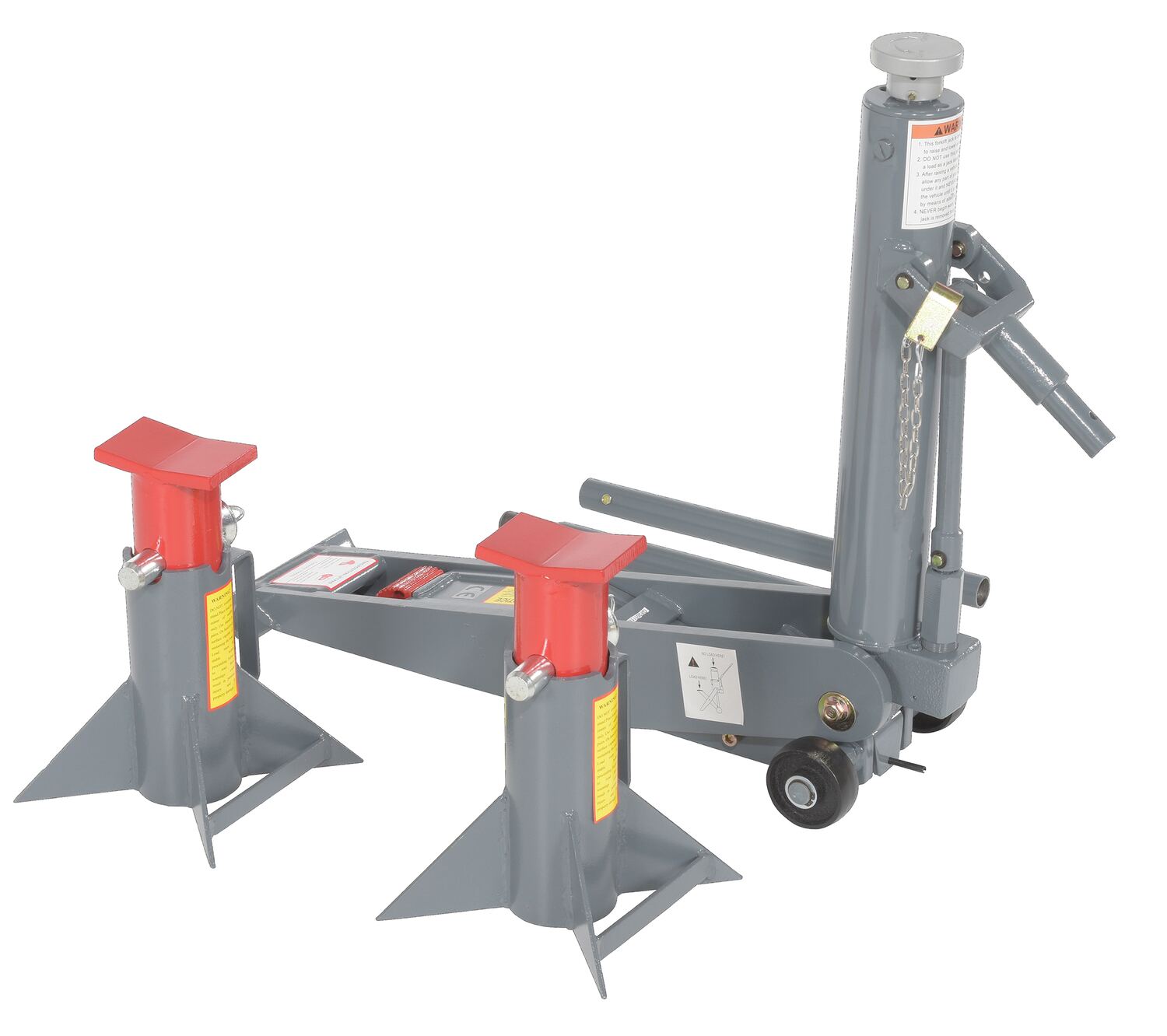

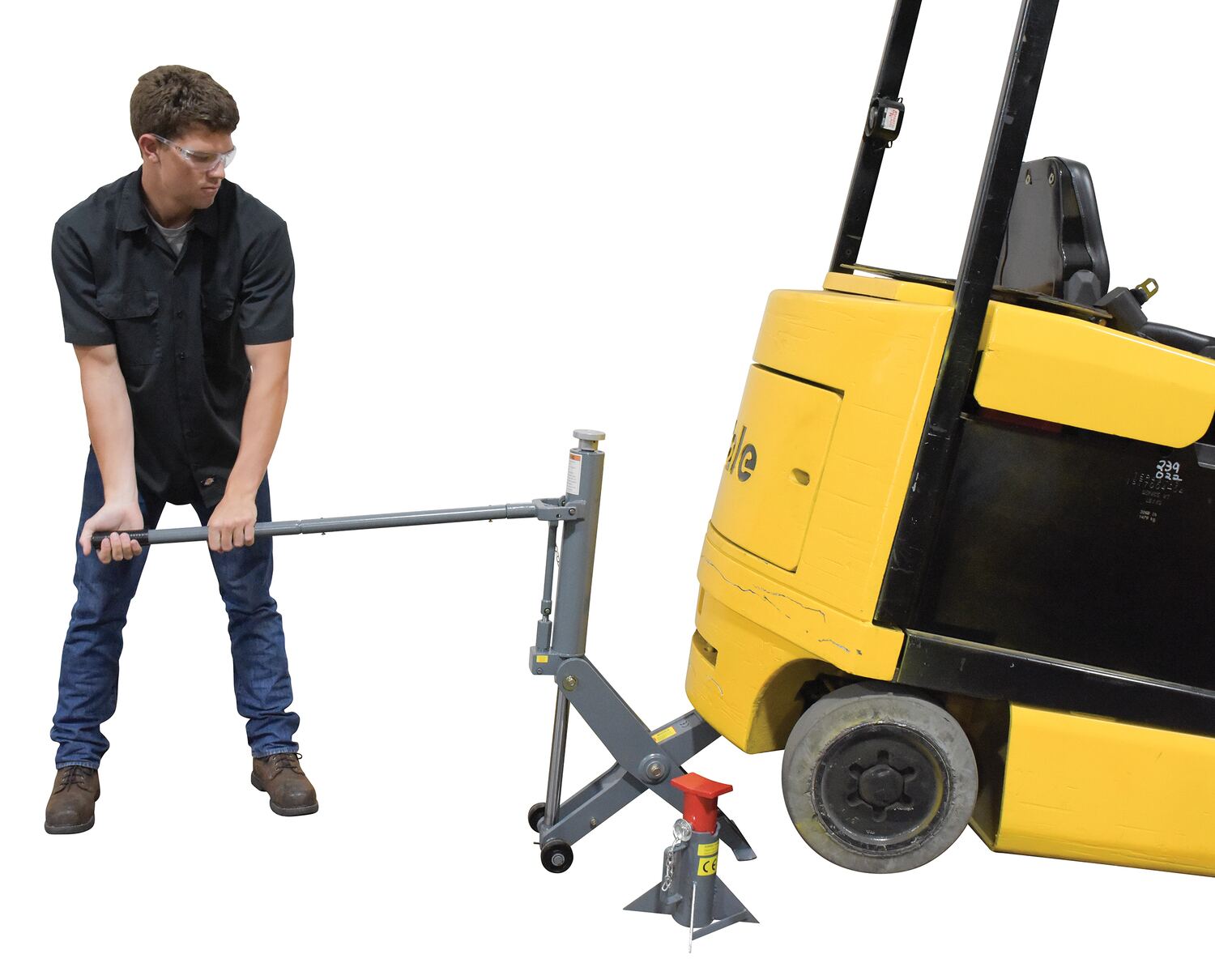

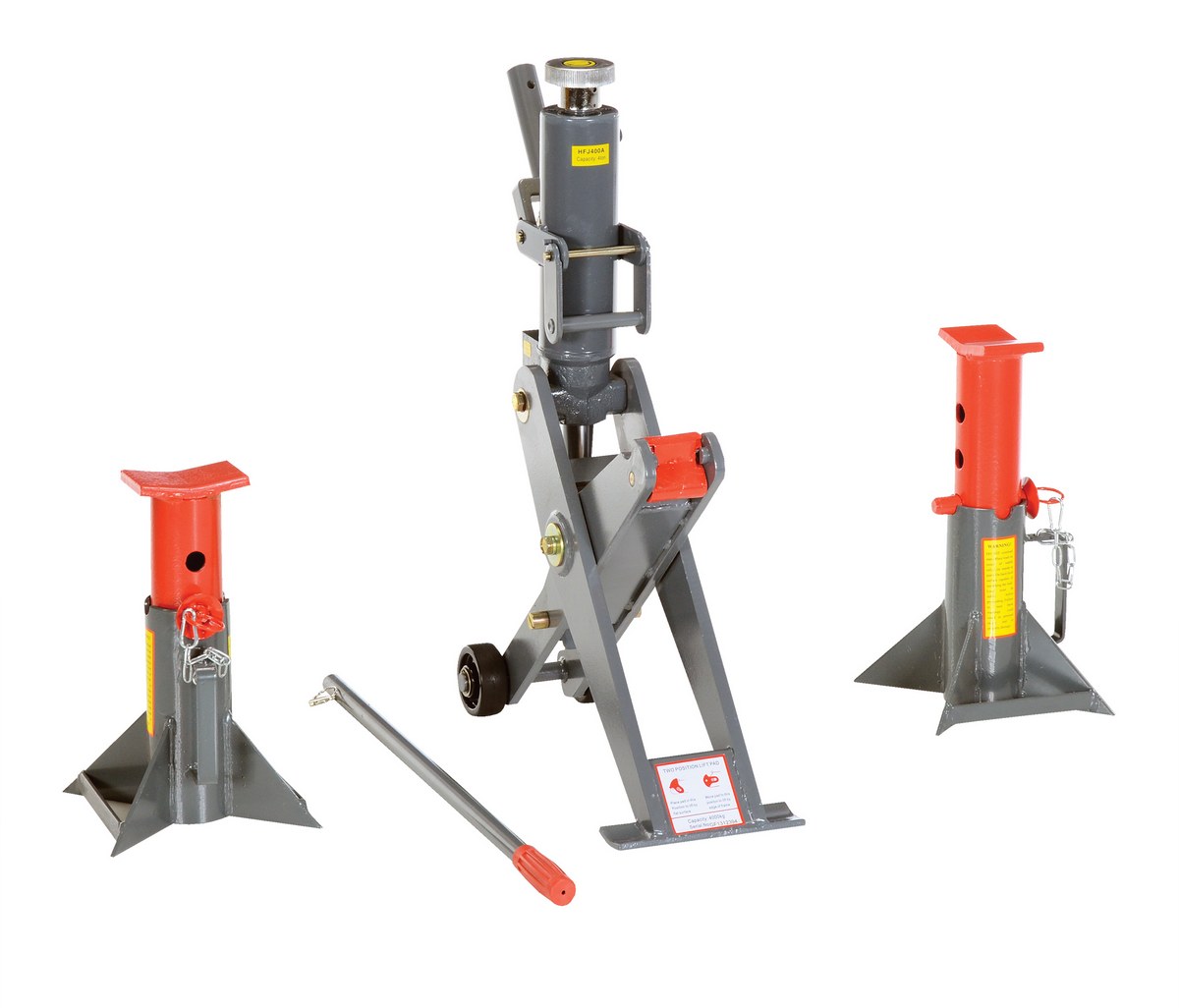

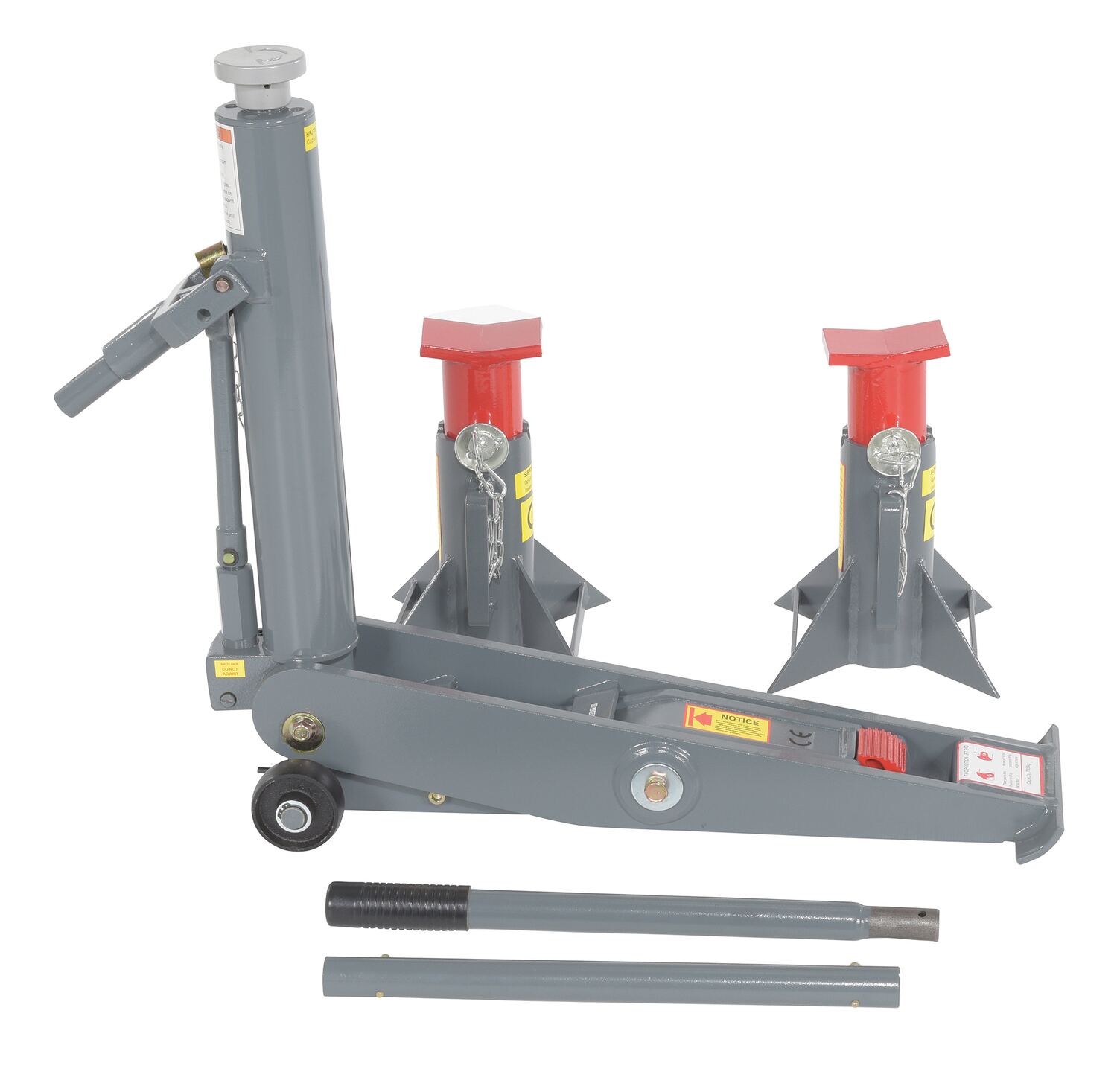

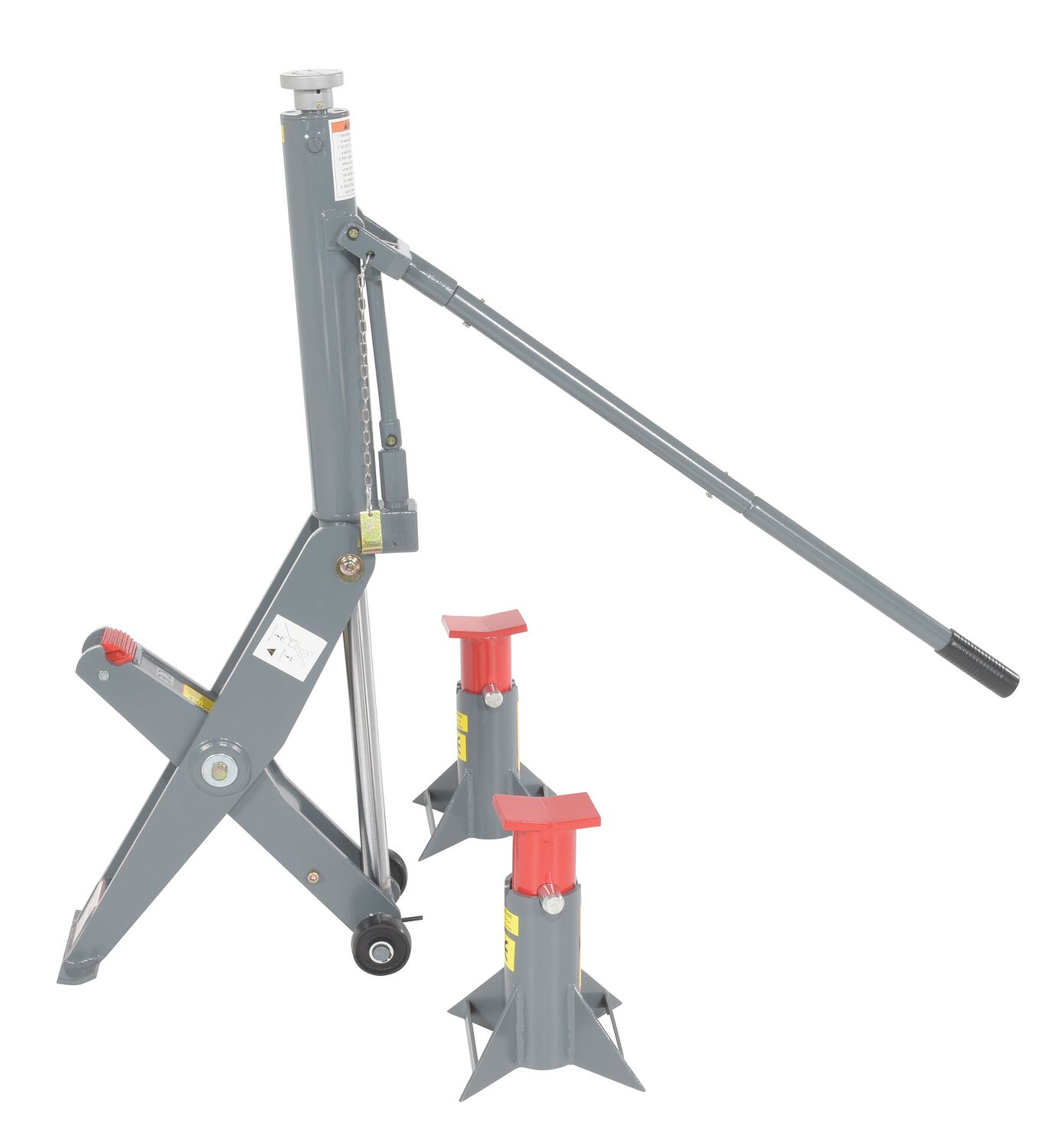

Manual Hydraulic Fork Truck Jack Designed to raise your fork truck for maintenance. Features high-quality seals, chrome plated internal components and rugged steel construction. Maximum lift of 16" provides room needed to perform a variety of repairs. Manually raised by hand pump lever. Removable handle and compact size makes it easy to maneuver and transport. Includes two jack stands (13 ton capacity per pair), with holding pins for adjustable heights.

Air Powered Fork Truck Jack Air-assist motor quickly raises saddle to lift point and then lifts load to desired height. Air powered for quick and easy operation. Uses standard coupler hook-up to a shop air compressor with air regulator control lever handle. Pressure relief valve is located on top of handle for metered control and load height adjustment.

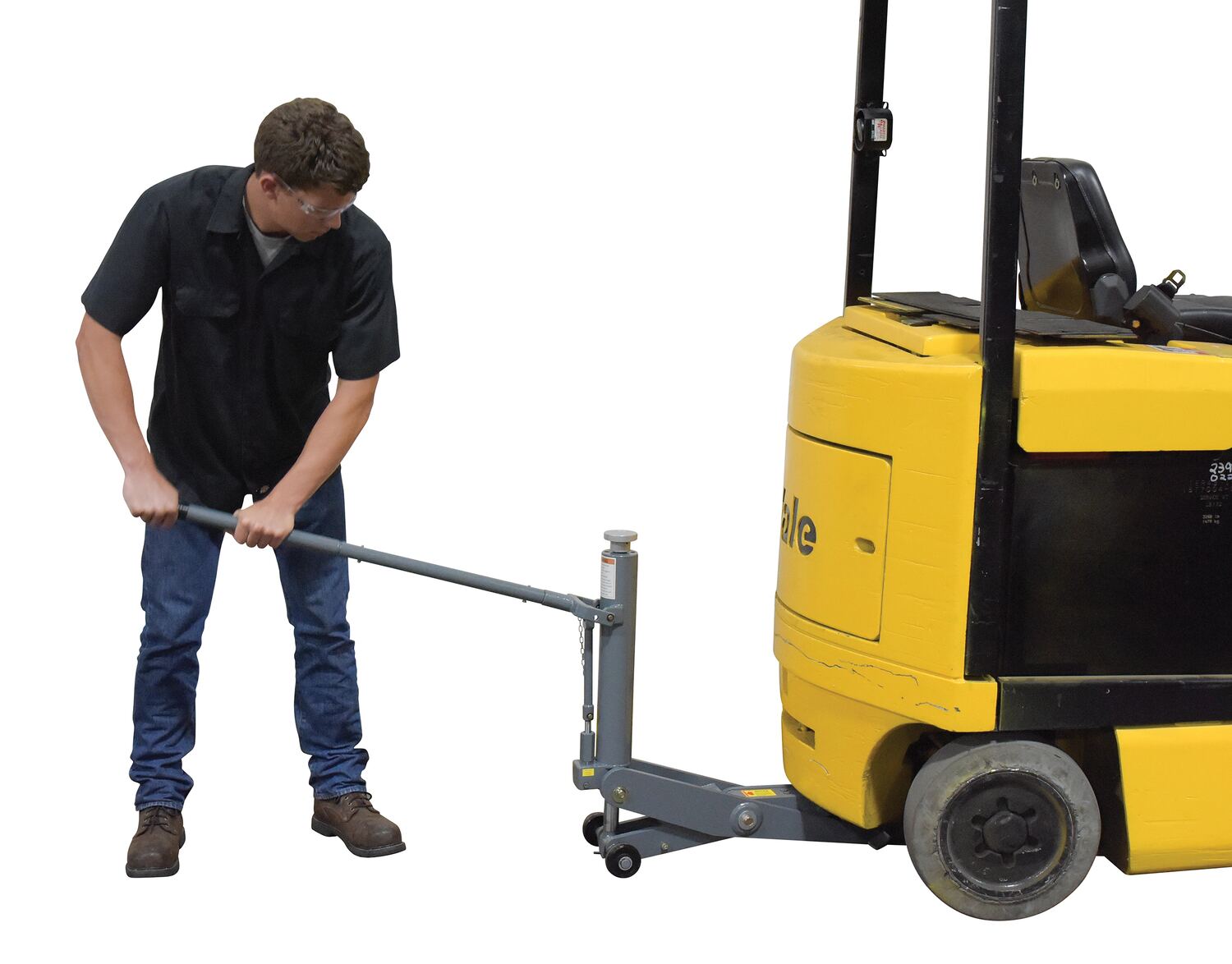

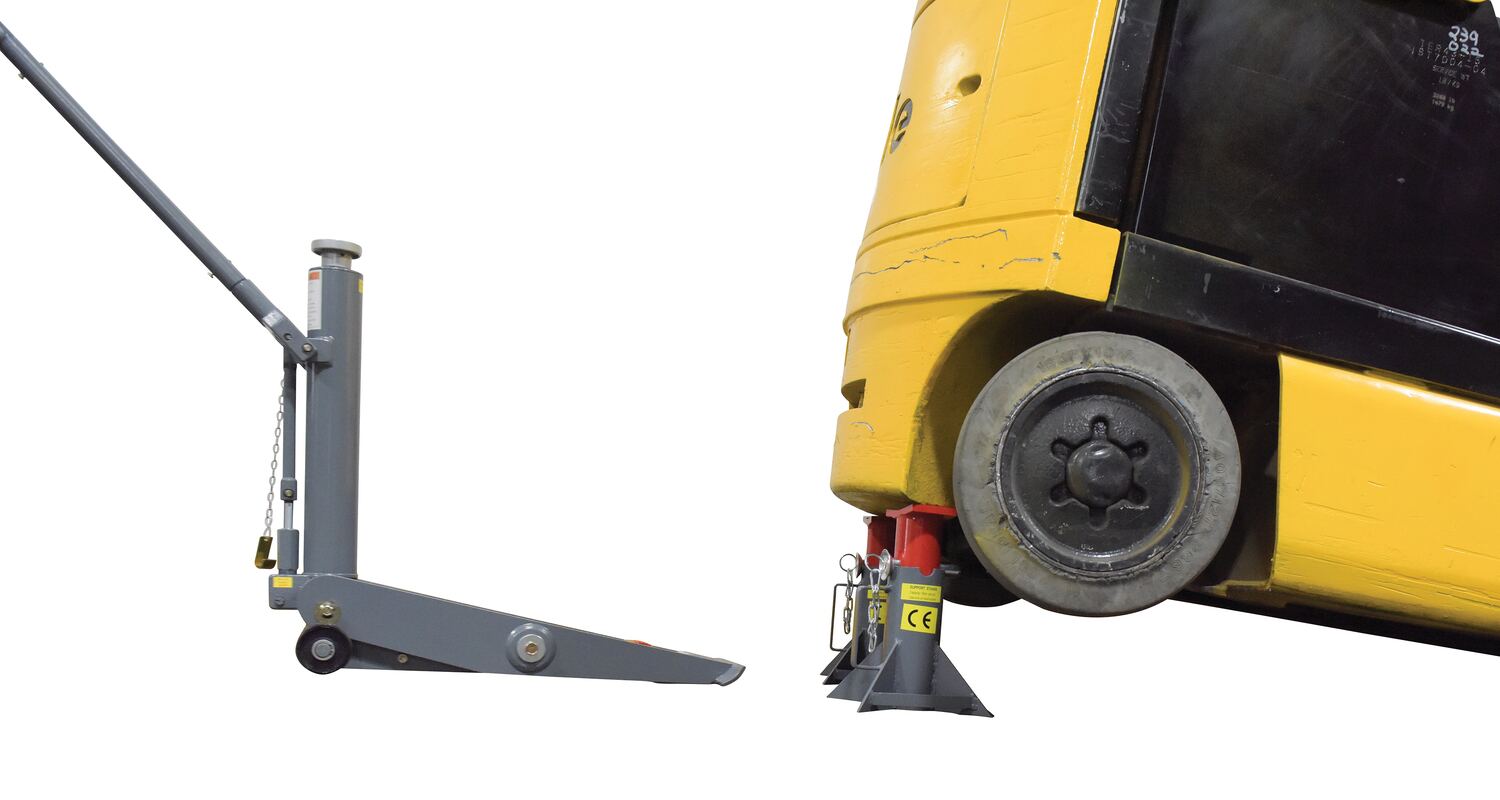

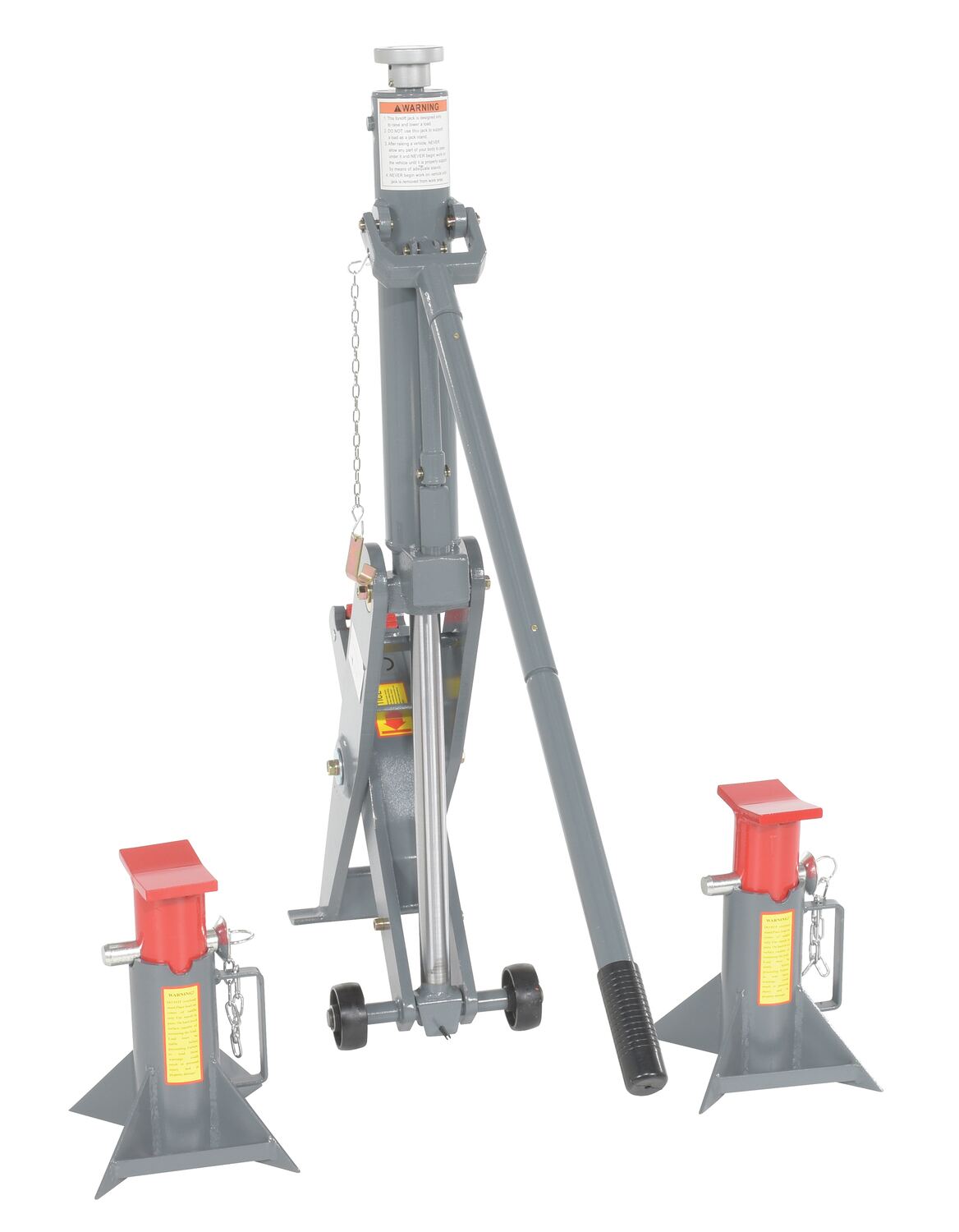

Manual Hydraulic Fork Truck Jack Designed to raise your fork truck for maintenance. Features high-quality seals, chrome plated internal components and rugged steel construction. Maximum lift of 16" provides room needed to perform a variety of repairs. Manually raised by hand pump lever. Removable handle and compact size makes it easy to maneuver and transport. Includes two jack stands (13 ton capacity per pair), with holding pins for adjustable heights.

Other Machinery Jacks

 Portable Hydraulic Equipment Kit Mechanical Machinery Jacks

Additional Models In This Family
view entire Image Gallery

AIR-J

model AIR-J

FORK-J

model FORK-J

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
AIR-J AIR-J90 Days Limited WarrantySteel Air Powered Fork Truck Jack 8-1/2 In. - 18-1/4 In. Lift Height 44,000 Lb. Capacity YellowUniform Capacity (lb.): 44,000
Lowered Height (in.): 8-1/4		146
FORK-J FORK-J90 Days Limited WarrantySteel Manual Hydraulic Fork Truck Jack 43-1/4 In. x 7-7/8 In. x 36 In. 8,000 Lb. Capacity GrayUniform Capacity (lb.): 8,000
Lowered Height partial pad (in.): 2-1/4		124

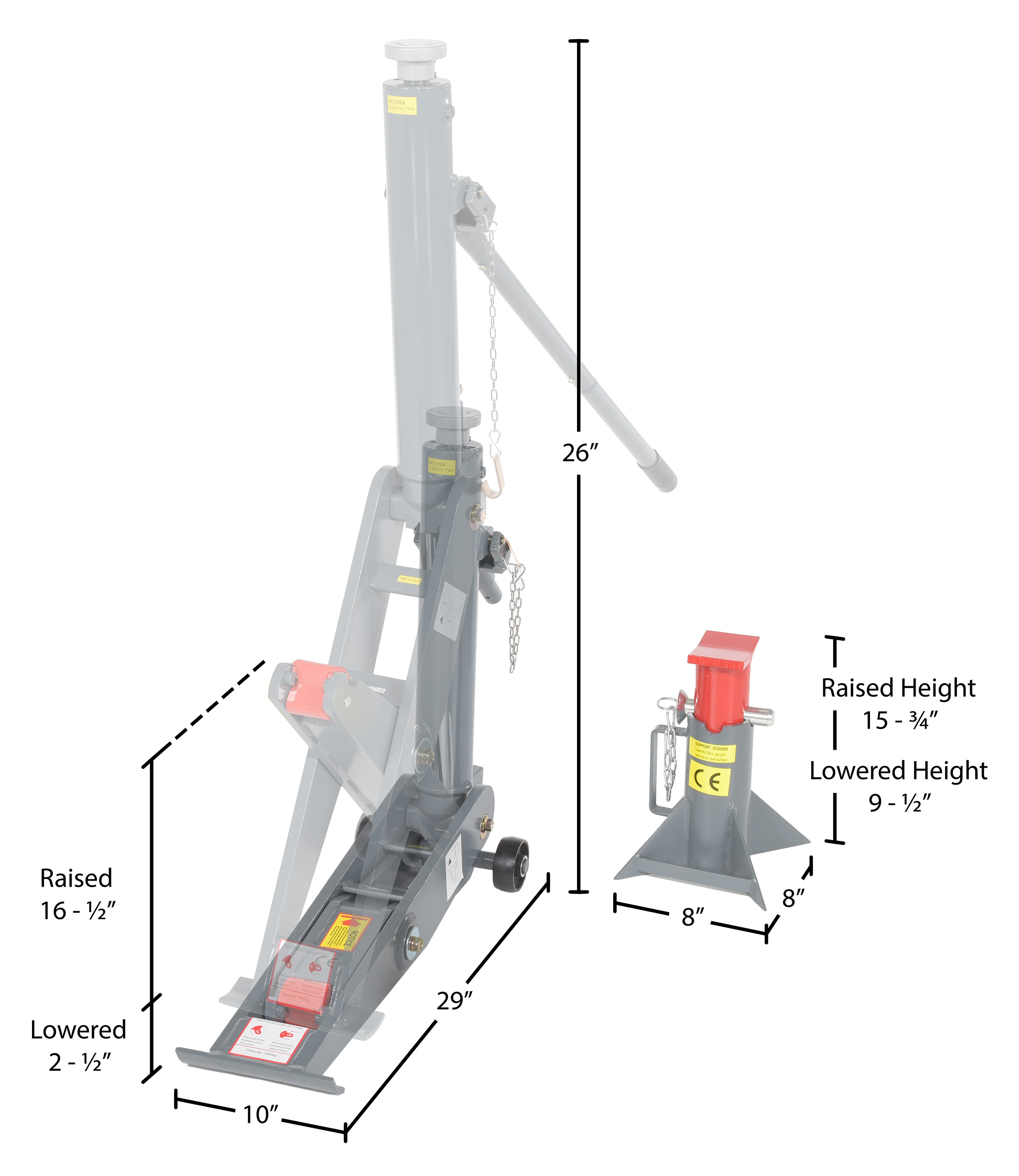

FORK-J-HD FORK-J-HD90 Days Limited WarrantySteel Manual Hydraulic Fork Truck Jack 29 In. x 10 In. x 26 In. 15,000 Lb. Capacity GrayUniform Capacity (lb.): 15,000
Lowered Height partial pad (in.): 2-1/4		192

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

AIR-J
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 44,000
Lowered Height (in.): 8-1/4
Uniform Capacity (lb.): 44,000
Lowered Height (in.): 8-1/4

FORK-J
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 8,000
Lowered Height partial pad (in.): 2-1/4
Uniform Capacity (lb.): 8,000
Lowered Height partial pad (in.): 2-1/4

FORK-J-HD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 15,000
Lowered Height partial pad (in.): 2-1/4
Uniform Capacity (lb.): 15,000
Lowered Height partial pad (in.): 2-1/4
Fork Truck Jacks PDF's will open in a new window when clicked.

Manuals


FORK-J
Owners Manual

AIR-J
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings

No Approval Drawings For This Product

Testing Certificates


AIR-J

FORK-J

FORK-J-HD

SDS Sheets

Hydraulic Oil SDS Sheet for: AIR-J
Hydraulic Oil SDS Sheet for: FORK-J
Hydraulic Oil SDS Sheet for: FORK-J-HD

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: We are interested in the AIR-J fork truck jack. If an air compressor is not available can we use a manual pump.

A: The AIR-J will not operate with the use of a manual pump.

Q: What is the PSI required to operate the AIR-J?

A: 102-145 PSI is required.
