Product Family Overview


Semi-Automatic Pallet Probe Strapping Machine
SERIES: DBA

* User Friendly

* Tension up to 175lbs.

* 40" Foldable Arm Probe uses 1/2" poly strapping (option is available for 3/8" and 5/8" poly strapping upon request)

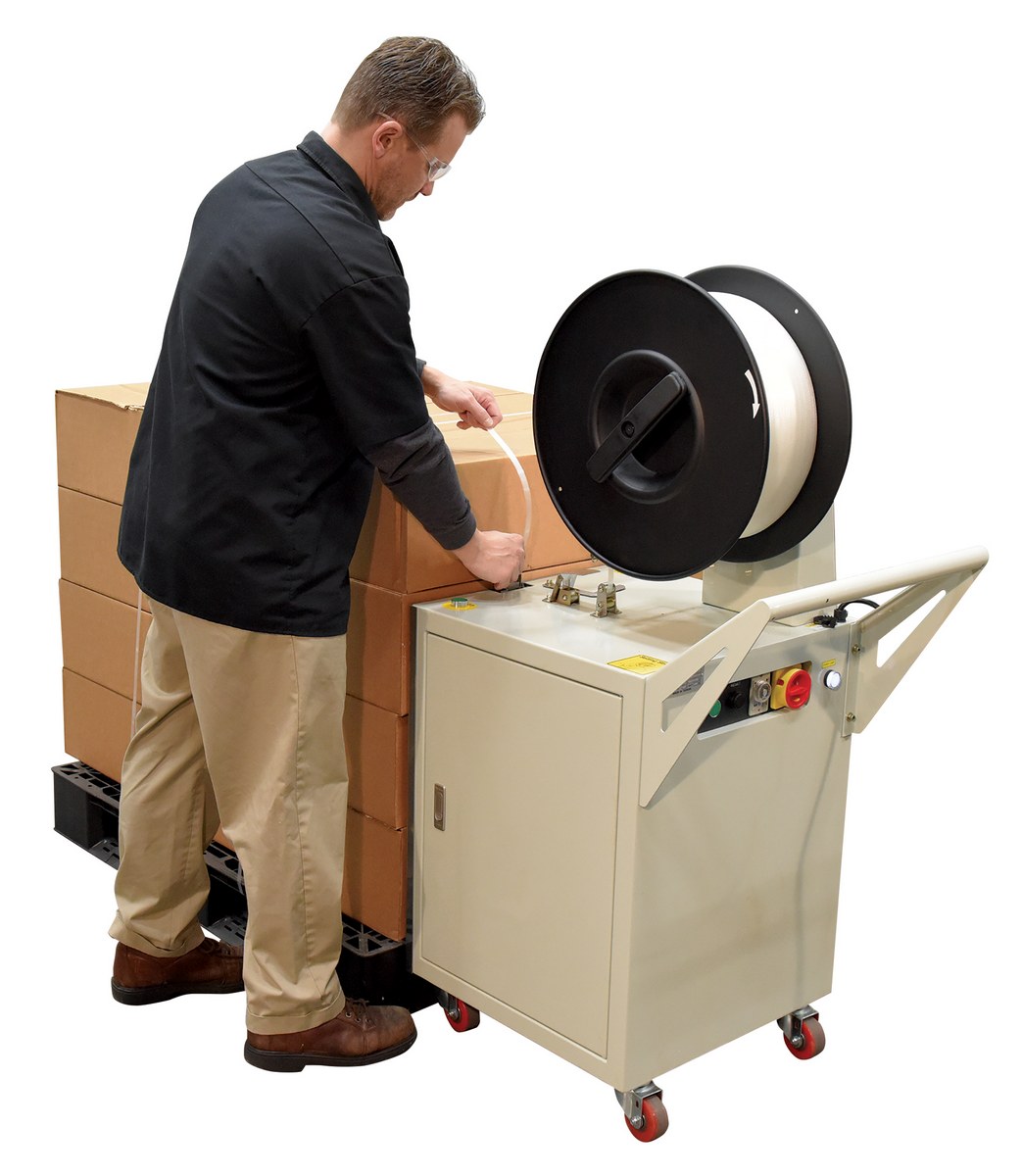

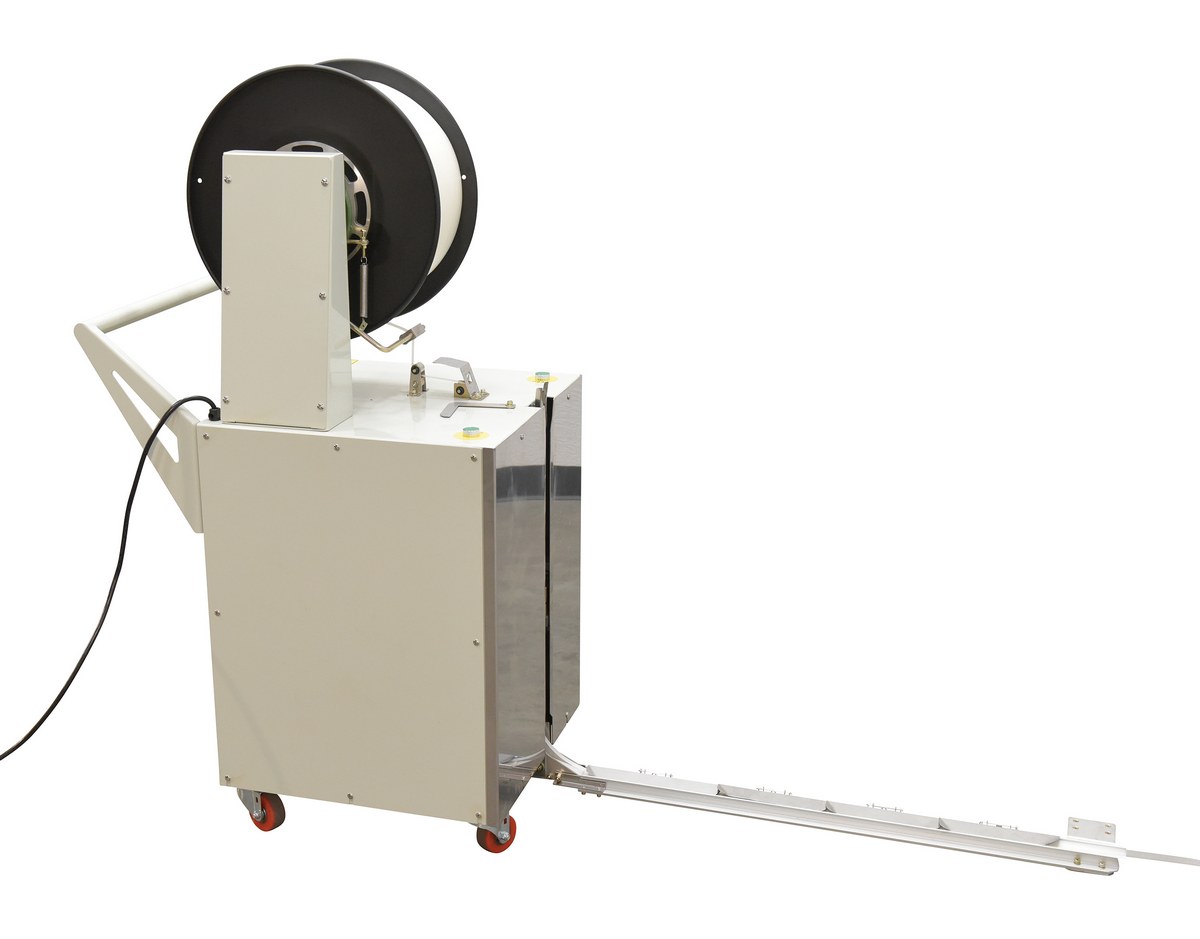

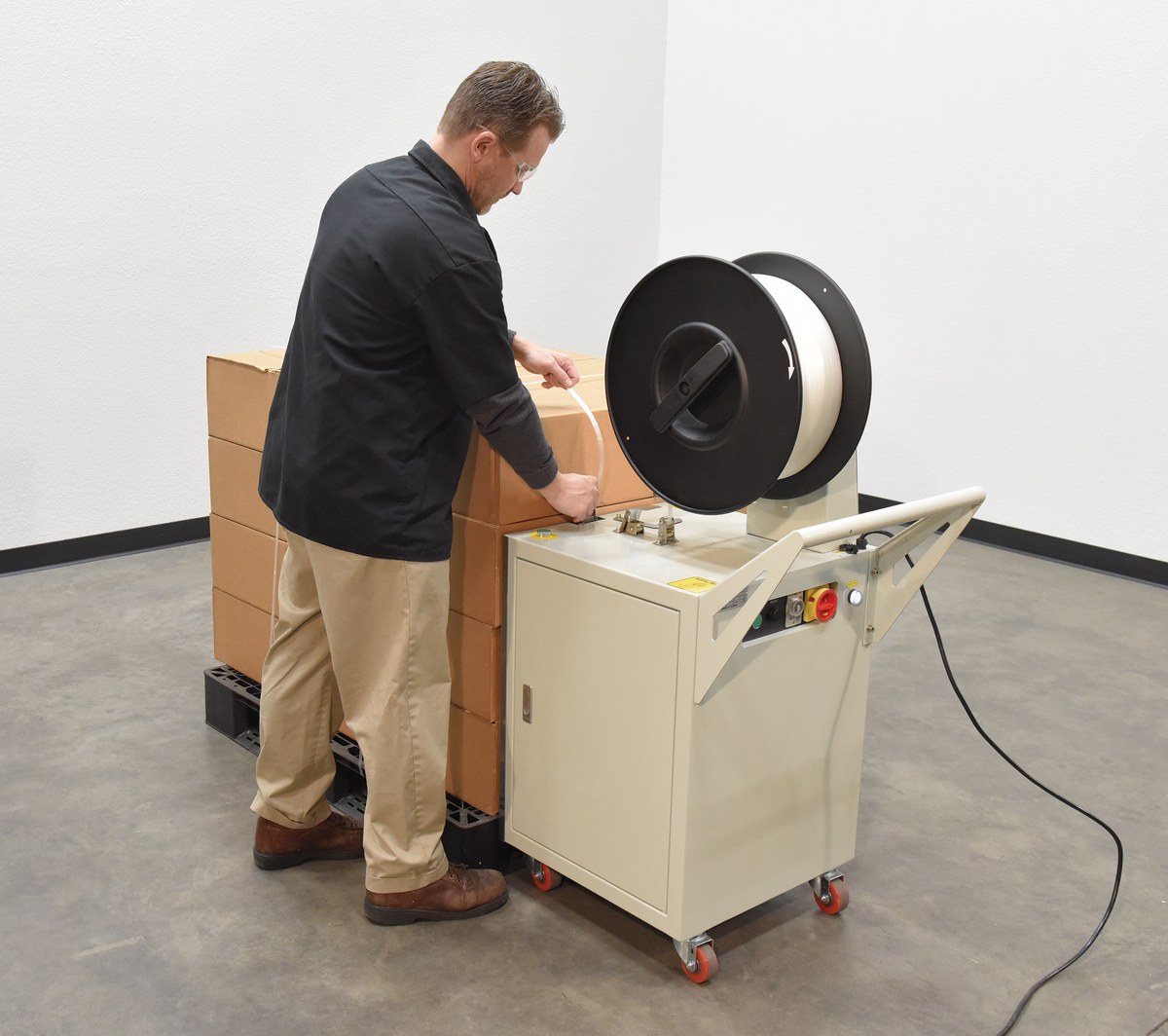

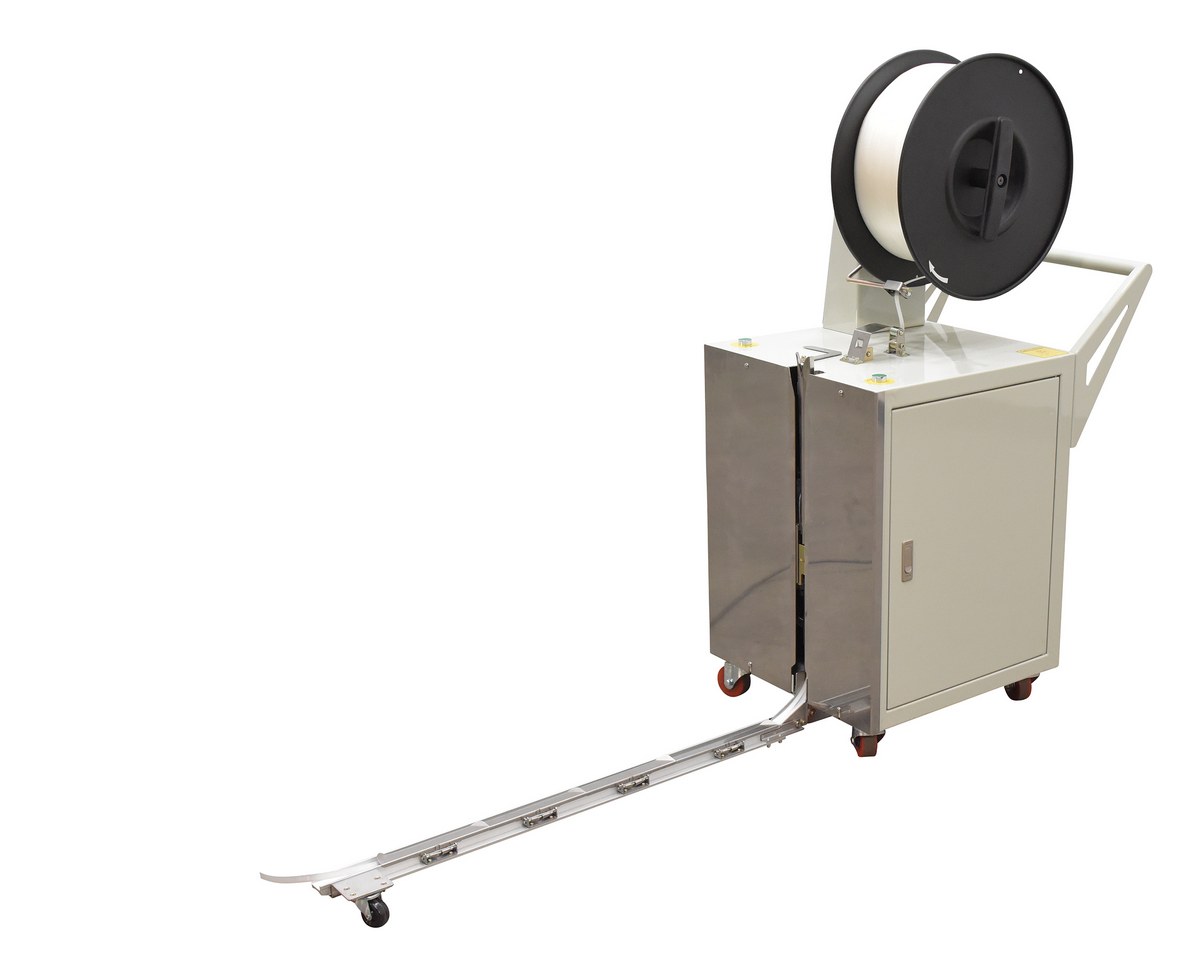

Eliminate hand strapping and speed up the process of pallet strapping with this Semi-Automatic Pallet Strapper. Unit automatically feeds the desired polypropylene strap through the pallet, tightens and seals the strap around the pallet. 115V power supply.

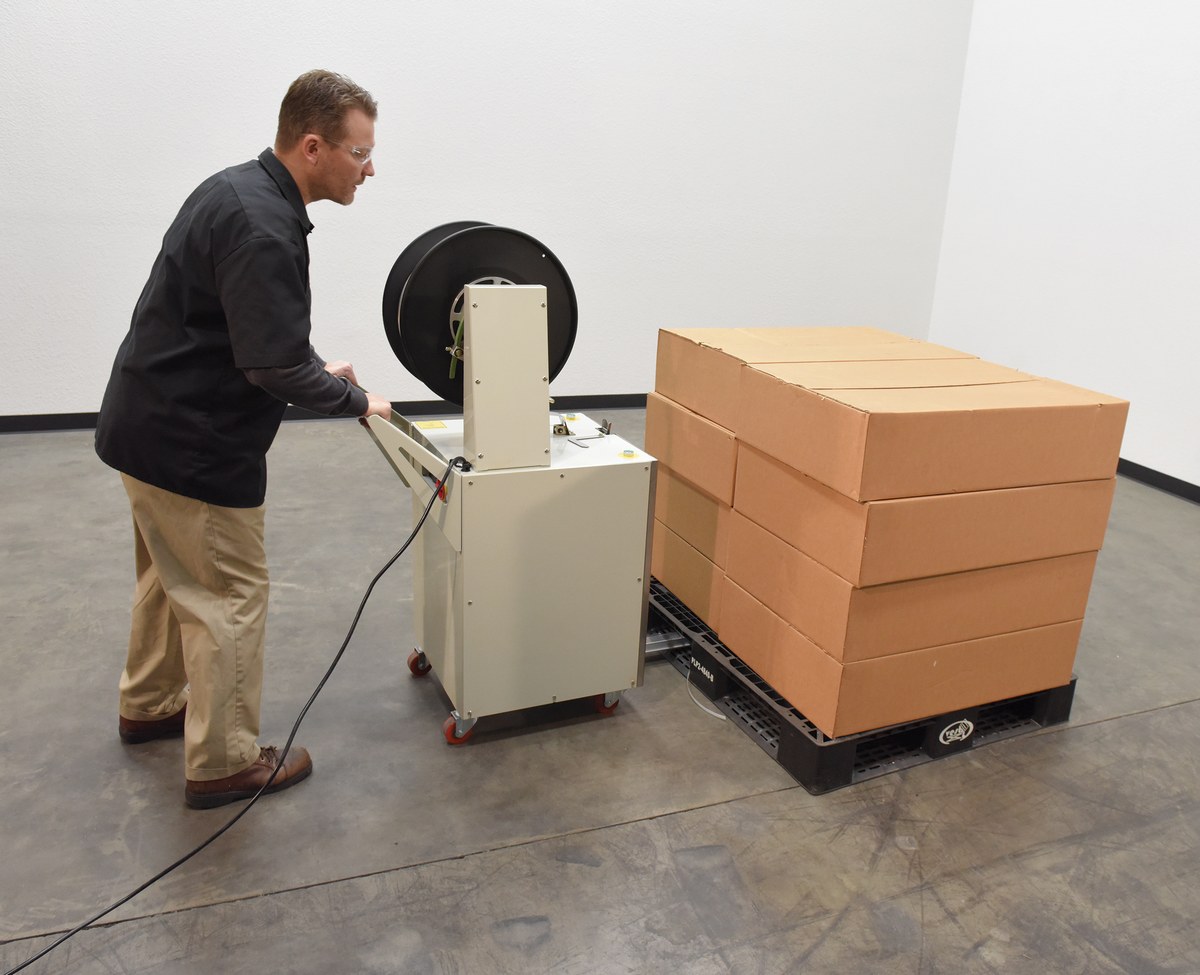

The pallet strapping process is as follows: (1) Unfold pallet probe, (2) Push pallet probe into pallet, (3) Feed polypropylene strap, (4) Insert tip of strap into strap way, (5) Adjust tension, pulling automatically into heat seal, (6) Strip is then cut off to feed the strap out, (7) One-cycle automatically complete, (8) Remove machine and insert into next pallet. Strapping is not included.

  • Speed up the process of pallet strapping
  • Automatically straps, tightens, and seals around the pallet
  • Adjust tension, cut off, and feed strap out in one cycle
  • Remove machine and insert into next pallet

* User Friendly

* Tension up to 175lbs.

* 40" Foldable Arm Probe uses 1/2" poly strapping (option is available for 3/8" and 5/8" poly strapping upon request)

Eliminate hand strapping and speed up the process of pallet strapping with this Semi-Automatic Pallet Strapper. Unit automatically feeds the desired polypropylene strap through the pallet, tightens and seals the strap around the pallet. 115V power supply.

The pallet strapping process is as follows: (1) Unfold pallet probe, (2) Push pallet probe into pallet, (3) Feed polypropylene strap, (4) Insert tip of strap into strap way, (5) Adjust tension, pulling automatically into heat seal, (6) Strip is then cut off to feed the strap out, (7) One-cycle automatically complete, (8) Remove machine and insert into next pallet. Strapping is not included.

  • Speed up the process of pallet strapping
  • Automatically straps, tightens, and seals around the pallet
  • Adjust tension, cut off, and feed strap out in one cycle
  • Remove machine and insert into next pallet

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
DBA-130 DBA-13090 Days Limited WarrantySteel Semi Automatic Pallet Probe Strapping Machine 23 In. x 31-1/2 In. x 55 In. 175 Lb. Maximum Tension WhiteTension Maximum (lb.): 175
Acceptable Poly Strapping (in.): 1/2
393

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

DBA-130
Unit:
Size: W x L x H
Weight:
Limited Warranty
Tension Maximum (lb.): 175
Acceptable Poly Strapping (in.): 1/2
Tension Maximum (lb.): 175
Acceptable Poly Strapping (in.): 1/2

Semi-Automatic Pallet Probe Strapping Machine PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


DBA-130

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Semi-Automatic Pallet Probe St...




* User Friendly

* Tension up to 175lbs.

* 40" Foldable Arm Probe uses 1/2" poly strapping (option is available for 3/8" and 5/8" poly strapping upon request)

Eliminate hand strapping and speed up the process of pallet strapping with this Semi-Automatic Pallet Strapper. Unit automatically feeds the desired polypropylene strap through the pallet, tightens and seals the strap around the pallet. 115V power supply.

The pallet strapping process is as follows: (1) Unfold pallet probe, (2) Push pallet probe into pallet, (3) Feed polypropylene strap, (4) Insert tip of strap into strap way, (5) Adjust tension, pulling automatically into heat seal, (6) Strip is then cut off to feed the strap out, (7) One-cycle automatically complete, (8) Remove machine and insert into next pallet. Strapping is not included.

  • Speed up the process of pallet strapping
  • Automatically straps, tightens, and seals around the pallet
  • Adjust tension, cut off, and feed strap out in one cycle
  • Remove machine and insert into next pallet



Model # Description Attributes Net Wt.
(lbs)
DBA-130 DBA-130Steel Semi Automatic Pallet Probe Strapping Machine 23 In. x 31-1/2 In. x 55 In. 175 Lb. Maximum Tension WhiteTension Maximum (lb.): 175
Acceptable Poly Strapping (in.): 1/2
393
