Fork Truck Mounted Trash Can Dumper

model: FM-T-DUMP



Featured Fork Truck Attachments


Drum Carrier Right Angle
Fork Lift Loading Attachment
Fork Truck Reel Attachment
Fork Truck Bases with Optional Tow Balls & Pintle Hook
Fork Extensions with Side Brackets For Load Straps
Hoppers
Forged Steel Forks
Drum Attachments
Fabric Hoppers
model chart

Product Family Overview

Print Friendly

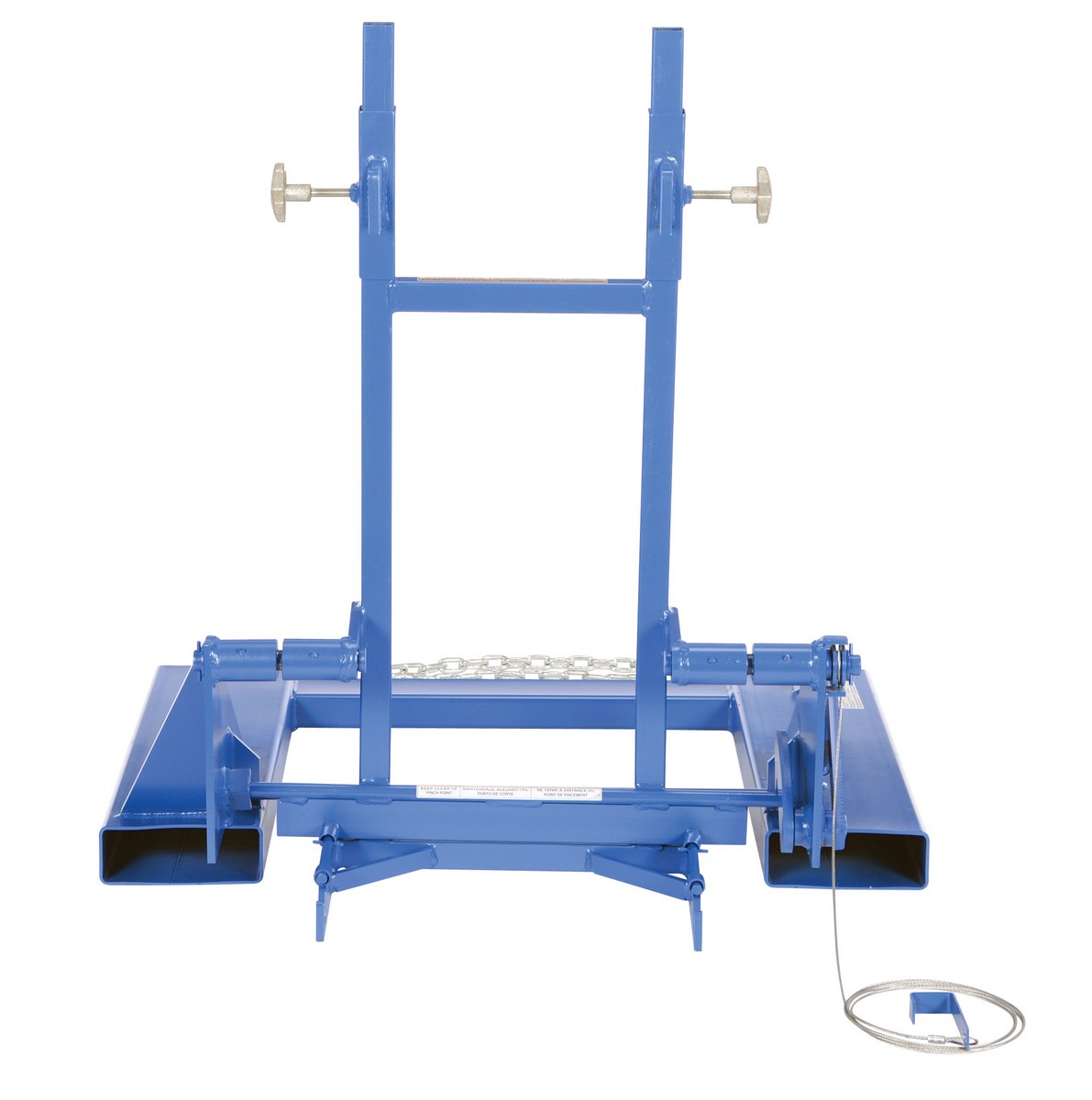

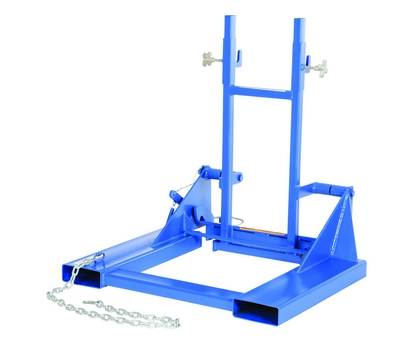

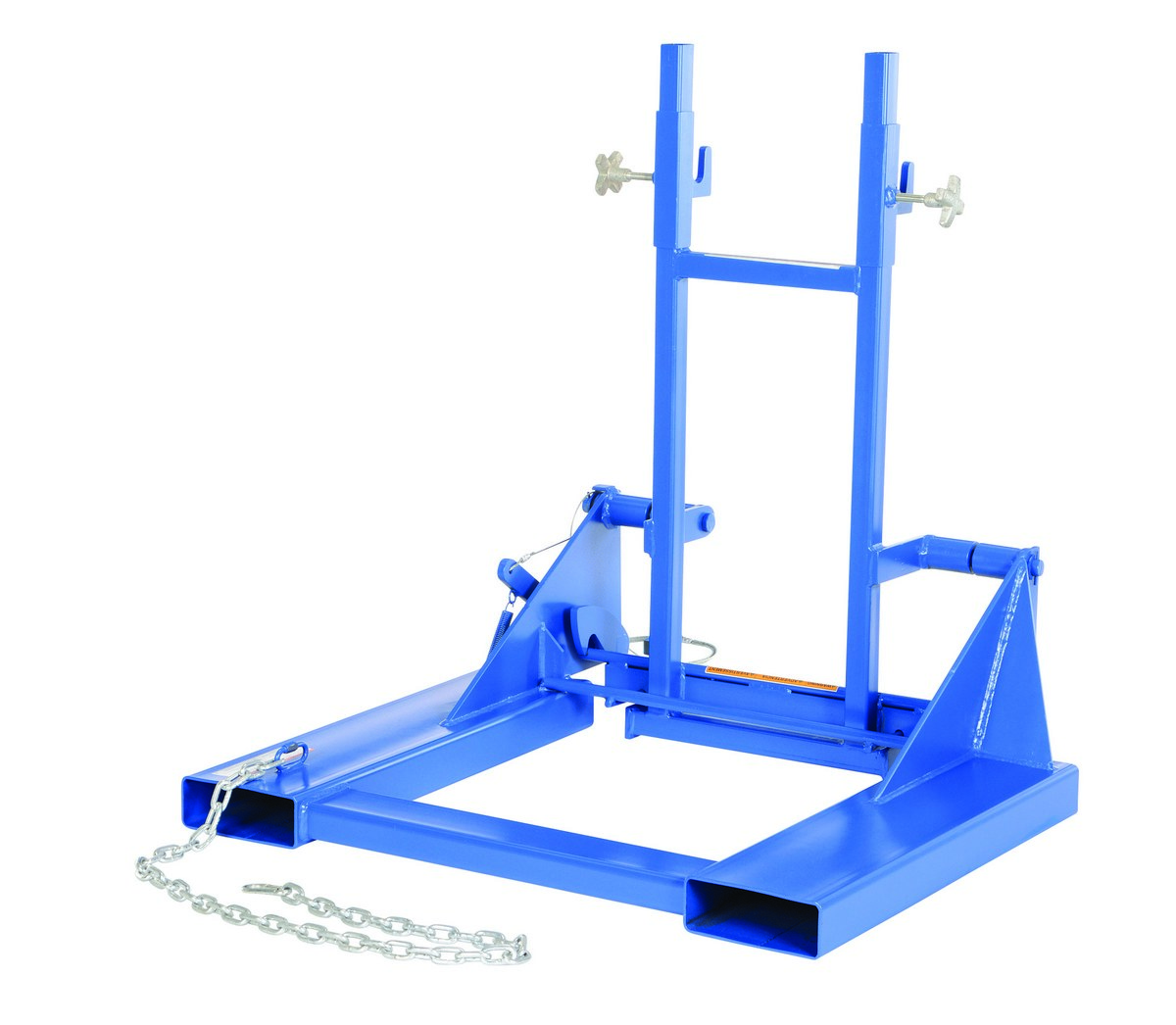

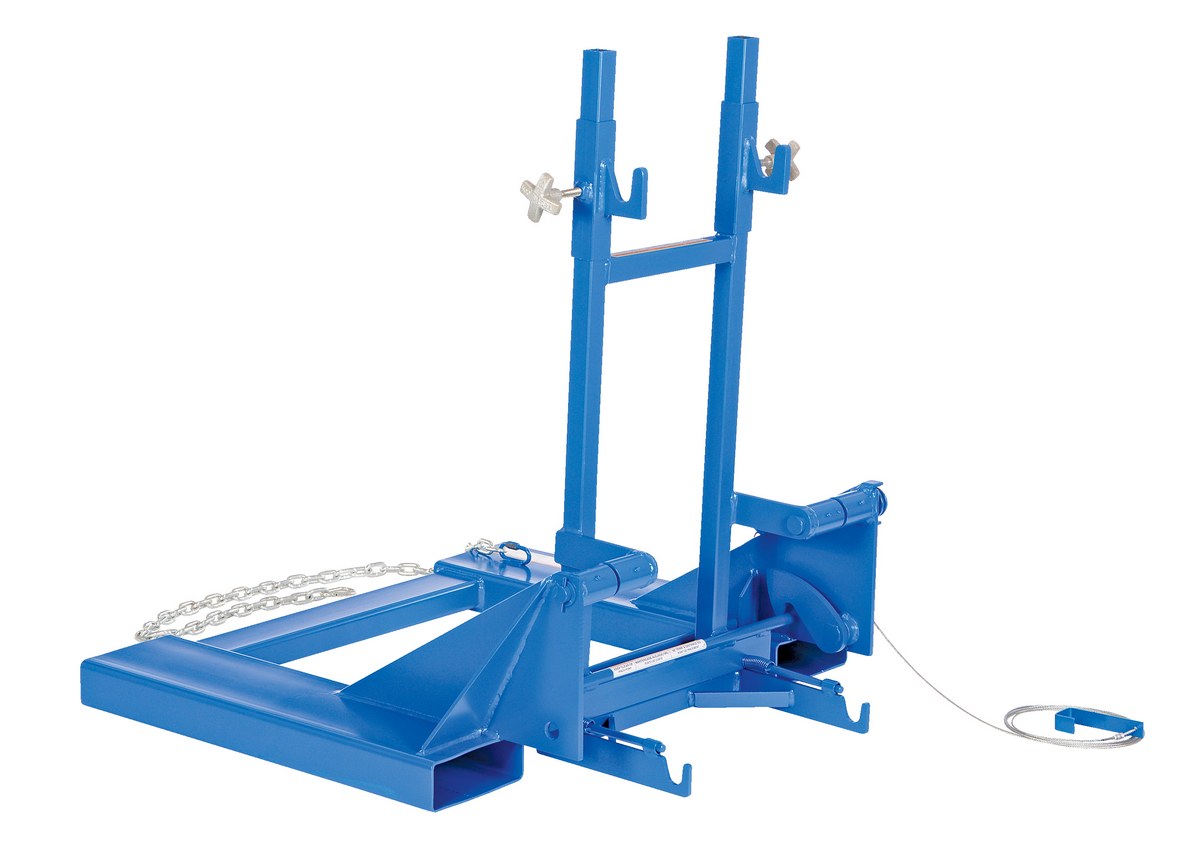

Fork Truck Mounted Trash Can Dumper
SERIES: FM-T

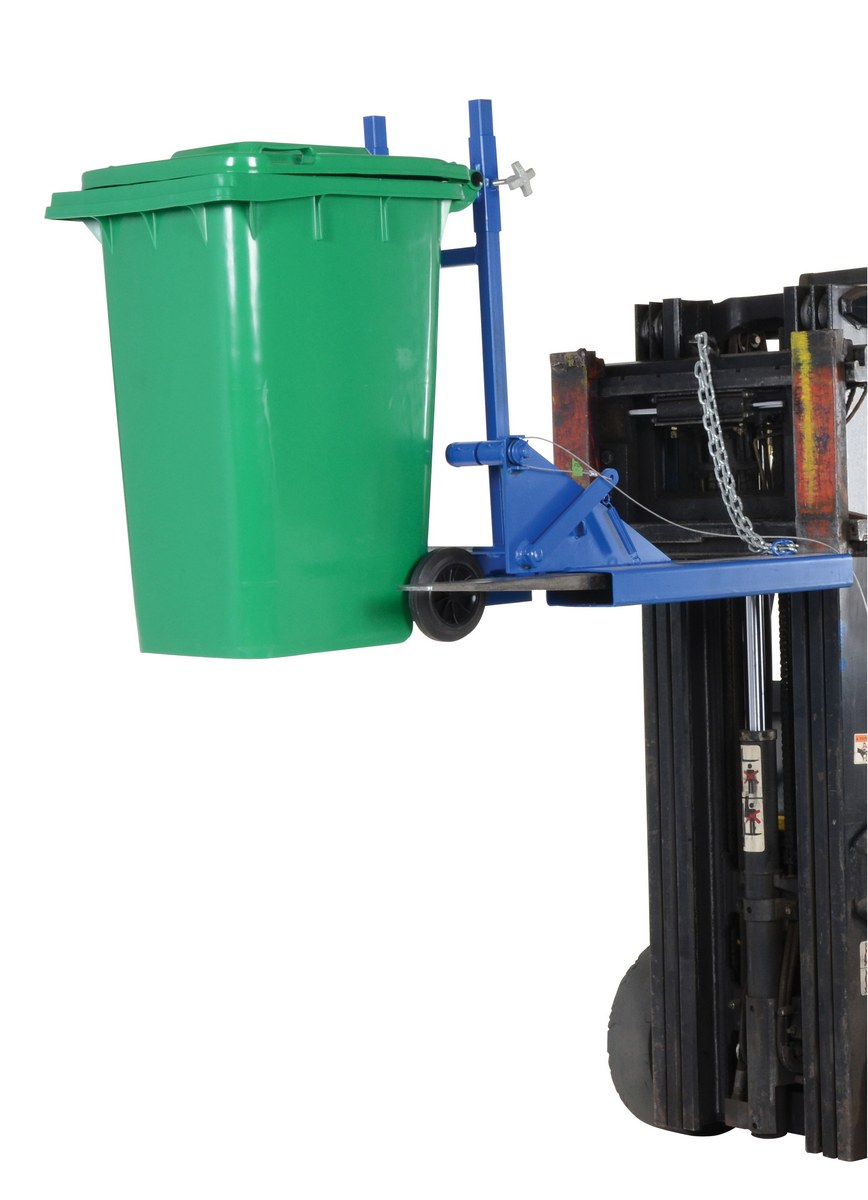

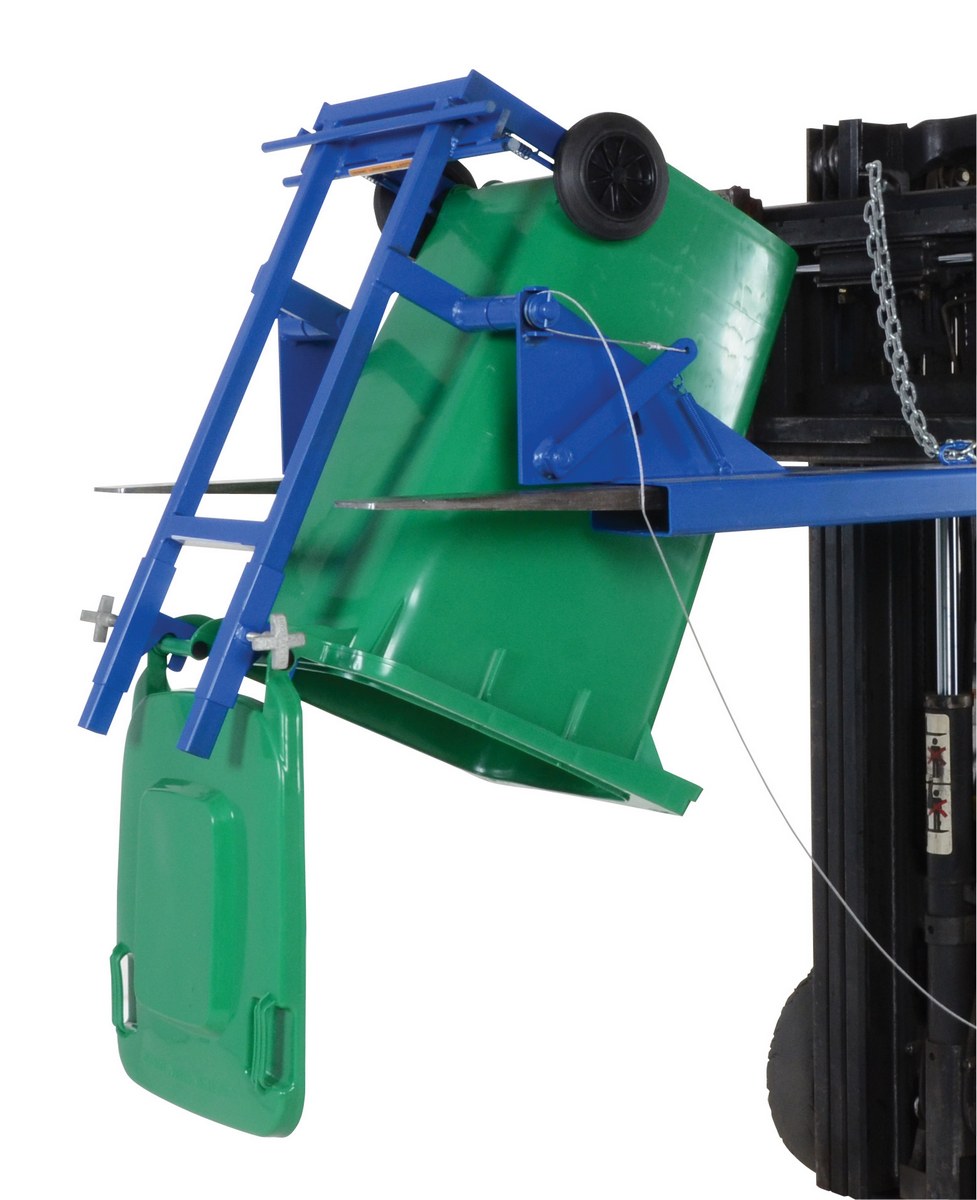

Save time and reduce work-related injuries caused by lifting and dumping heavy waste containers. This innovative product will allow a fork truck driver to lift and dump refuse containers weighing up to 1,000 pounds without ever leaving the seat of the fork truck! Secure dumper to fork truck with safety chain and run cable to driver's seat. Align trash can with dumper and lock into place. Once locked in place, transport trash can to refuse container, align, and pull chain to dump refuse container contents. Only for use with 64 gallon trash can, series TH-64 or approved equal. Fork pockets are 2-5/8" high by 7-5/8" wide usable. Steel construction for years of dependable use.

  • Fork pockets enable quick and easy attachment
  • Powder coated for a smooth finish
  • Safely secures cans for proper dumping
  • Easily dumped while still seated in lifting equipment

Save time and reduce work-related injuries caused by lifting and dumping heavy waste containers. This innovative product will allow a fork truck driver to lift and dump refuse containers weighing up to 1,000 pounds without ever leaving the seat of the fork truck! Secure dumper to fork truck with safety chain and run cable to driver's seat. Align trash can with dumper and lock into place. Once locked in place, transport trash can to refuse container, align, and pull chain to dump refuse container contents. Only for use with 64 gallon trash can, series TH-64 or approved equal. Fork pockets are 2-5/8" high by 7-5/8" wide usable. Steel construction for years of dependable use.

  • Fork pockets enable quick and easy attachment
  • Powder coated for a smooth finish
  • Safely secures cans for proper dumping
  • Easily dumped while still seated in lifting equipment

Other Trash Bin Equipment

 Battery Powered Trash Drum Dumper and Container Fork Mounted Front Load Dumpster Mover Trash Can Dumper Fork Mounted Trash Bin Compactors

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
FM-T-DUMP FM-T-DUMP90 Days Limited WarrantySteel Fork Mount Trash Can Dumper 39-9/16 In. x 40-5/8 In. x 41-15/16 In. 1,000 Lb. Capacity BlueUniform Capacity (lb.): 1,000
Fork Pocket Width (in.): 7-5/8		254

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

FM-T-DUMP
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Fork Pocket Width (in.): 7-5/8
Uniform Capacity (lb.): 1,000
Fork Pocket Width (in.): 7-5/8
For More Details of the Option Click the Red Model Button

Works With Our Series TH-64 Trash Cans

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Fork Truck Mounted Trash Can Dumper PDF's will open in a new window when clicked.

Manuals


FM-T-Dump
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


FM-T-DUMP

Testing Certificates


FM-T-DUMP

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Related or Similar Products:

Battery Powered Trash Drum Dumper and Container
Product

Battery Powered Trash Drum Dumper and Container

Trash Can Dumper
Product

Trash Can Dumper

Pallet Dumper/Retainer
Product

Pallet Dumper/Retainer

DC Power Trash Can Dumper
Product

DC Power Trash Can Dumper

Bulk Containers
Product

Bulk Containers

Fabric Hoppers
Product

Fabric Hoppers

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Fork Truck Mounted Trash Can D...




Save time and reduce work-related injuries caused by lifting and dumping heavy waste containers. This innovative product will allow a fork truck driver to lift and dump refuse containers weighing up to 1,000 pounds without ever leaving the seat of the fork truck! Secure dumper to fork truck with safety chain and run cable to driver's seat. Align trash can with dumper and lock into place. Once locked in place, transport trash can to refuse container, align, and pull chain to dump refuse container contents. Only for use with 64 gallon trash can, series TH-64 or approved equal. Fork pockets are 2-5/8" high by 7-5/8" wide usable. Steel construction for years of dependable use.

  • Fork pockets enable quick and easy attachment
  • Powder coated for a smooth finish
  • Safely secures cans for proper dumping
  • Easily dumped while still seated in lifting equipment

Model # Description Attributes Net Wt.
(lbs)
FM-T-DUMP FM-T-DUMPSteel Fork Mount Trash Can Dumper 39-9/16 In. x 40-5/8 In. x 41-15/16 In. 1,000 Lb. Capacity BlueUniform Capacity (lb.): 1,000
Fork Pocket Width (in.): 7-5/8		254

Options


Works With Our Series TH-64 Trash Cans
