Hoisting Hooks

- - - -

Description
Model Chart
PDF's
Image Gallery
D-FORK-10-SL_B.jpg D-FORK-10-SL_A.jpg D-FORK-10-SL_C.jpg D-FORK-10-SL_D.jpg
D-FORK-10-SL_E.jpg D-FORK-10-SL_Z.gif
Hoisting Hooks

model: D-FORK-10-SL



Featured Fork Truck Attachments


Fork Mounted Snow Plow Blades
Round or Triangular Fork Extensions
High Strength Self-Dumping Steel Hoppers
Pallet Dumper/Retainer
Rug Rams/Carpet Poles
Hook Plates
Fork Truck Floor Scraper
Bag Lifter
Fork Truck Plastic Magnetic Storage Bin
model chart

Product Family Overview

Print Friendly
Hoisting Hooks
SERIES: D-FORK,S-FORK

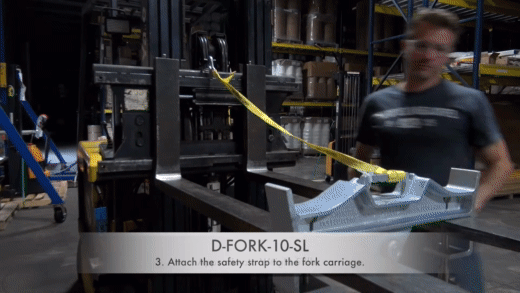

Convert your fork truck into a hook with anchor in a matter of seconds. The easy to attach Hoisting Hook does not require the assistance of special tools. Secured to the fork truck by means of a 48" long safety restraint and screw clamps. Available in single or double fork design. Units are zinc plated. Hook with shackle included. Model S-FORK-4-AT, Auto-Tension Hoisting Hook, offers a unique design and adds tension as weight is added, this unit has a yellow baked-in powder-coated toughness.

Convert your fork truck into a hook with anchor in a matter of seconds. The easy to attach Hoisting Hook does not require the assistance of special tools. Secured to the fork truck by means of a 48" long safety restraint and screw clamps. Available in single or double fork design. Units are zinc plated. Hook with shackle included. Model S-FORK-4-AT, Auto-Tension Hoisting Hook, offers a unique design and adds tension as weight is added, this unit has a yellow baked-in powder-coated toughness.

Other Hoisting Hooks & Hitch

 Hoisting Hooks Hooks with Shackle Bulk Bag Filling Station Push Bumper

Additional Models In This Family
view entire Image Gallery

S-FORK-4-AT

S-FORK-4-AT

D-FORK-4-RL

D-FORK-4-RL

S-FORK-4-AT

S-FORK-4-AT

S-FORK-4-AT

S-FORK-4-AT

D-FORK-10-SL

D-FORK-10-SL

S-FORK-4-AT

S-FORK-4-AT

S-FORK-4/6-RL

S-FORK-4/6-RL

D-FORK-4-SL

D-FORK-4-SL

S-FORK-4/6-SL

S-FORK-4/6-SL

D-FORK-10-SL

D-FORK-10-SL

D-FORK-4-SL

D-FORK-4-SL

S-FORK-4/6-SL

S-FORK-4/6-SL

S-FORK-4-AT

S-FORK-4-AT

D-FORK-10-SL

D-FORK-10-SL

D-FORK-10-SL

D-FORK-10-SL

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

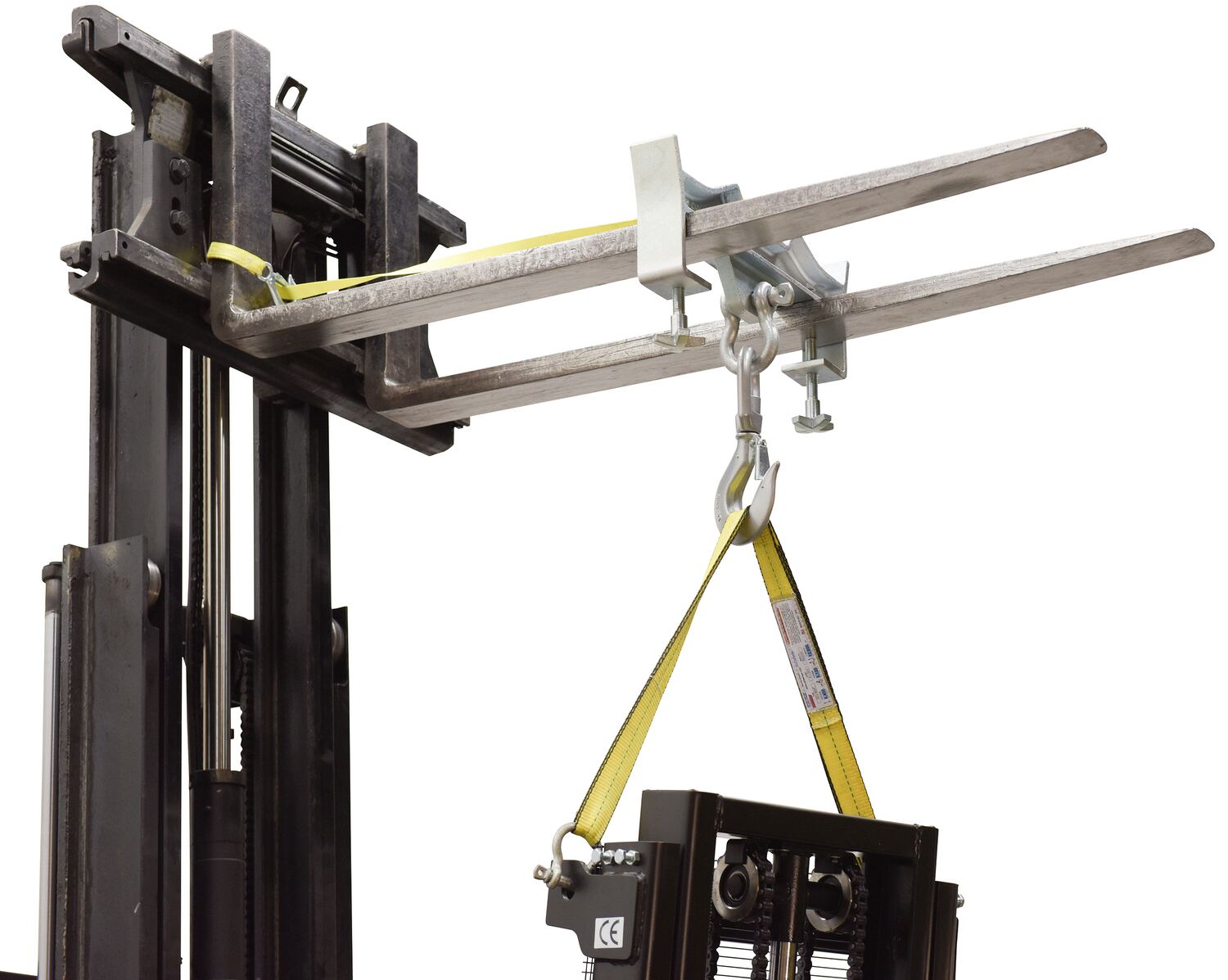

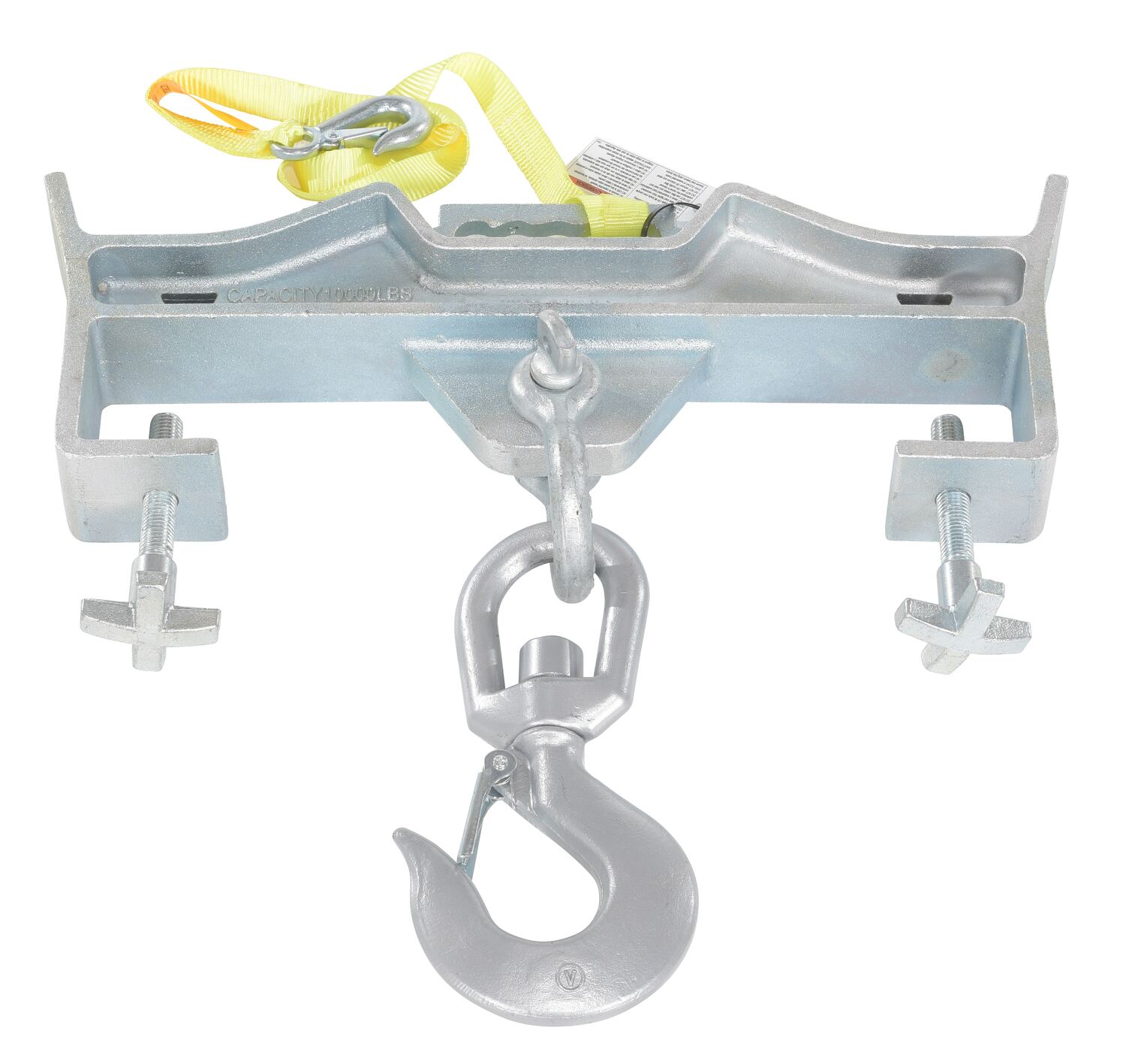

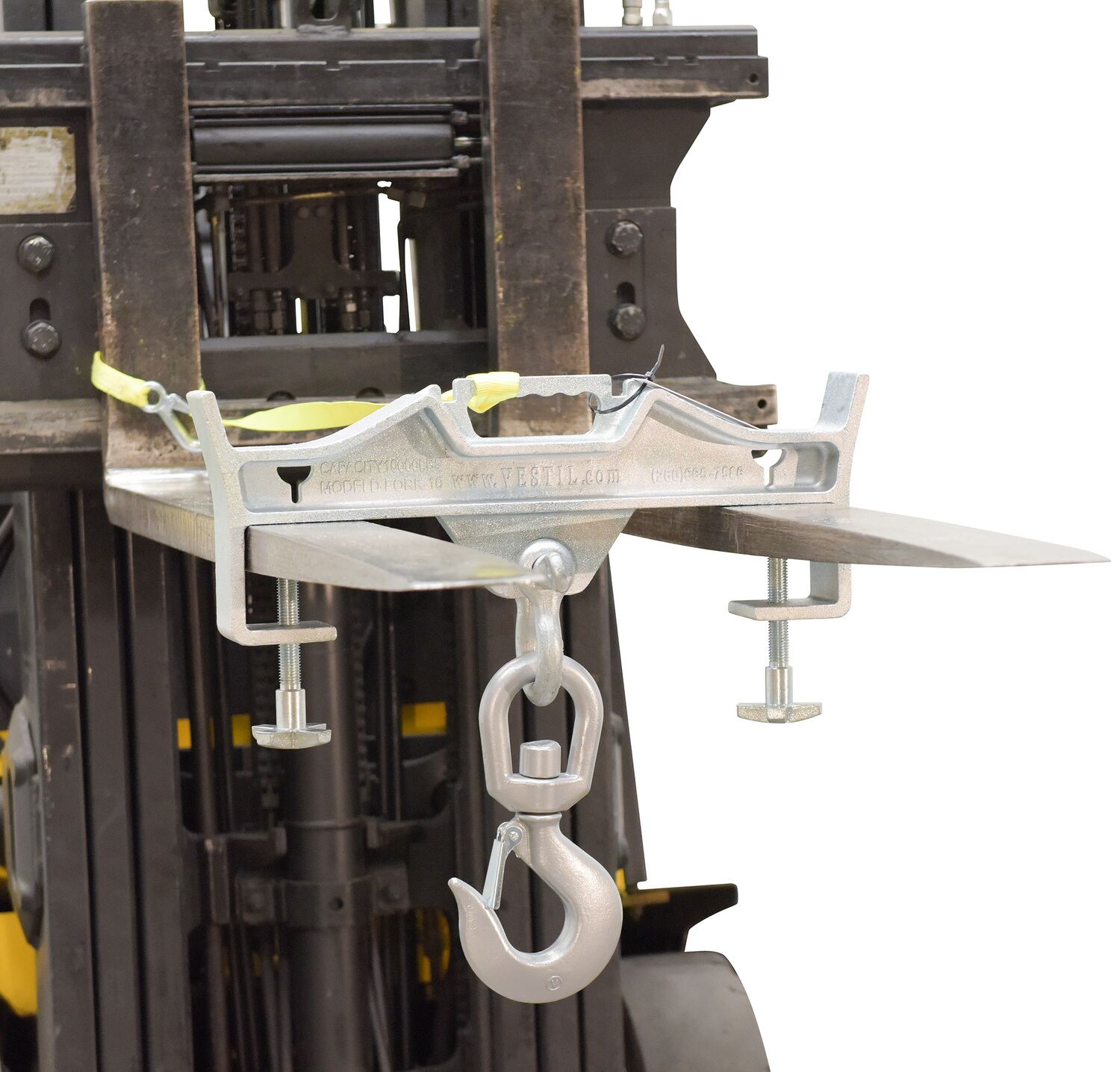

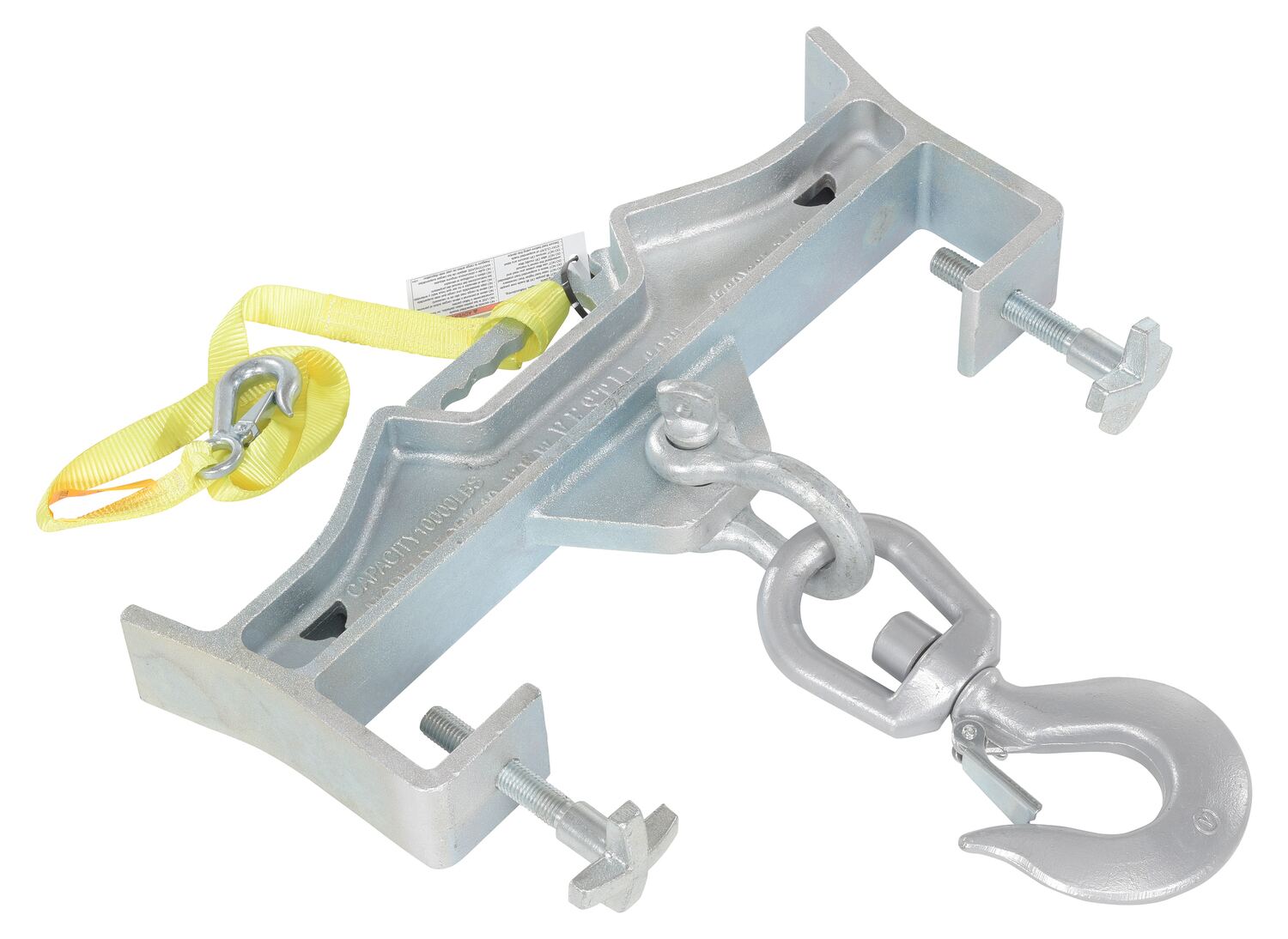

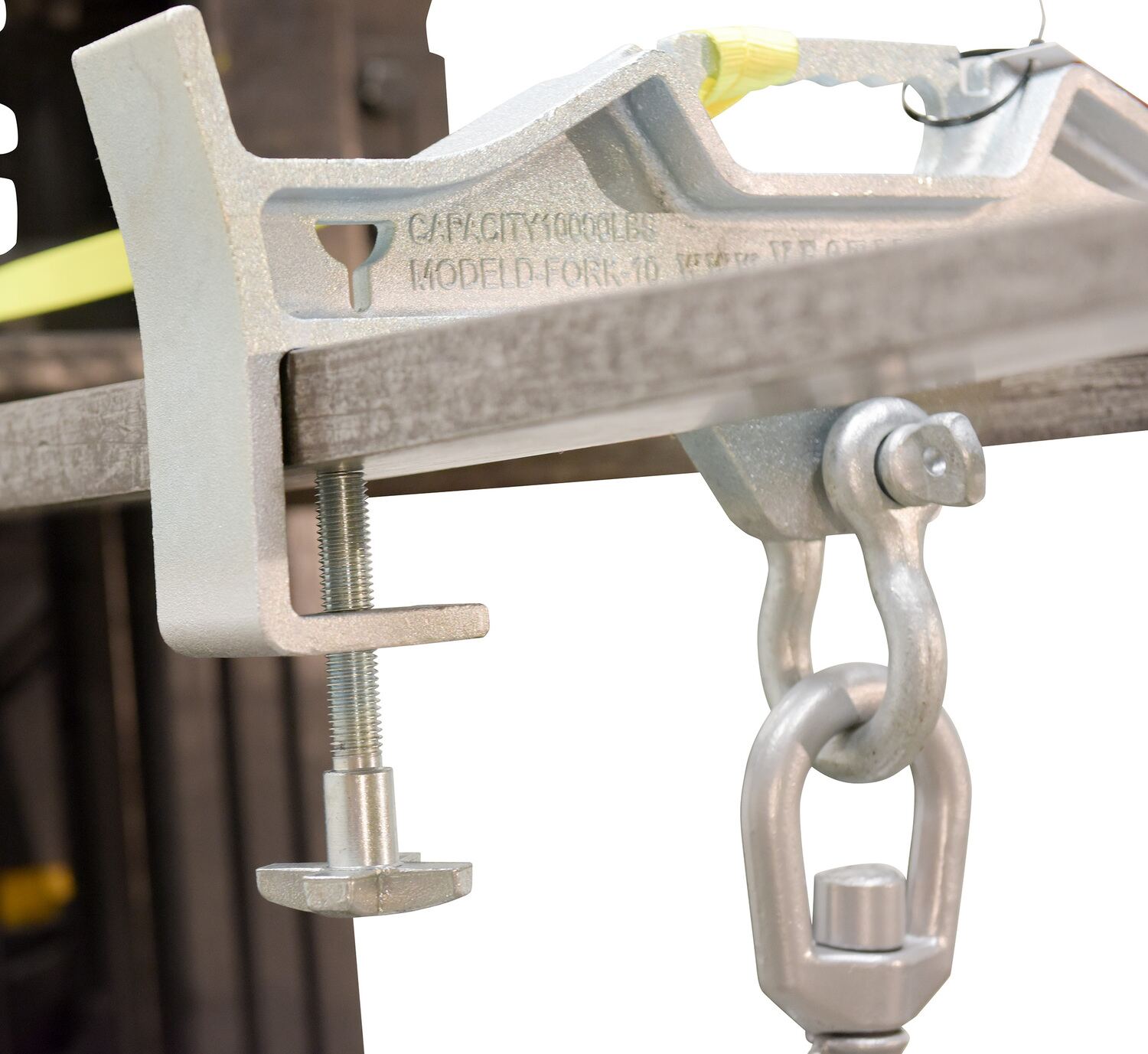

D-FORK-10-SL D-FORK-10-SL90 Days Limited WarrantySteel Double Swivel Hoist Optioning Hook 3 In x 23 In x 21-5/8 In 10000 Lb. Capacity SilverUniform Capacity (lb.): 10,000
Safety Restraint Length (in.): 48		55

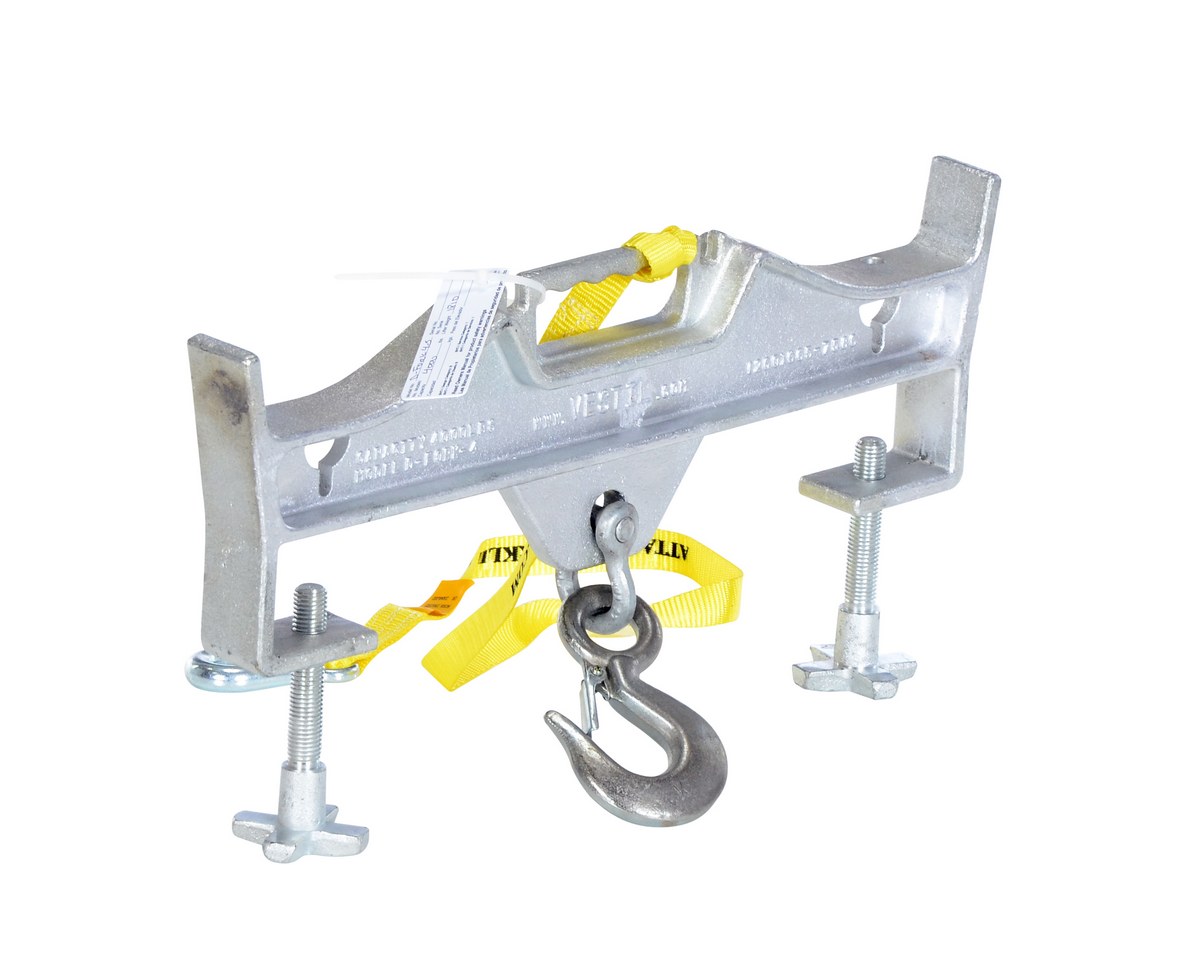

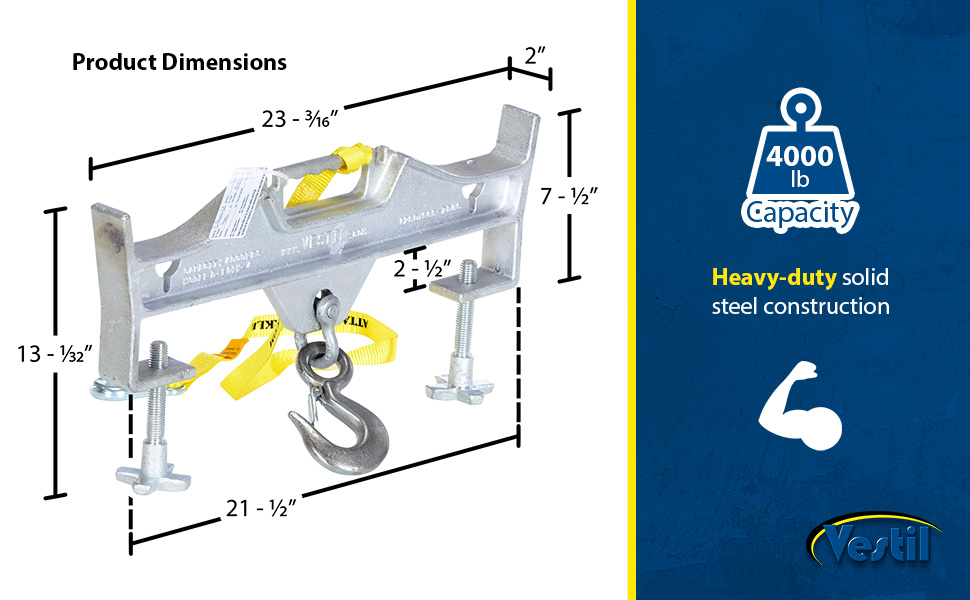

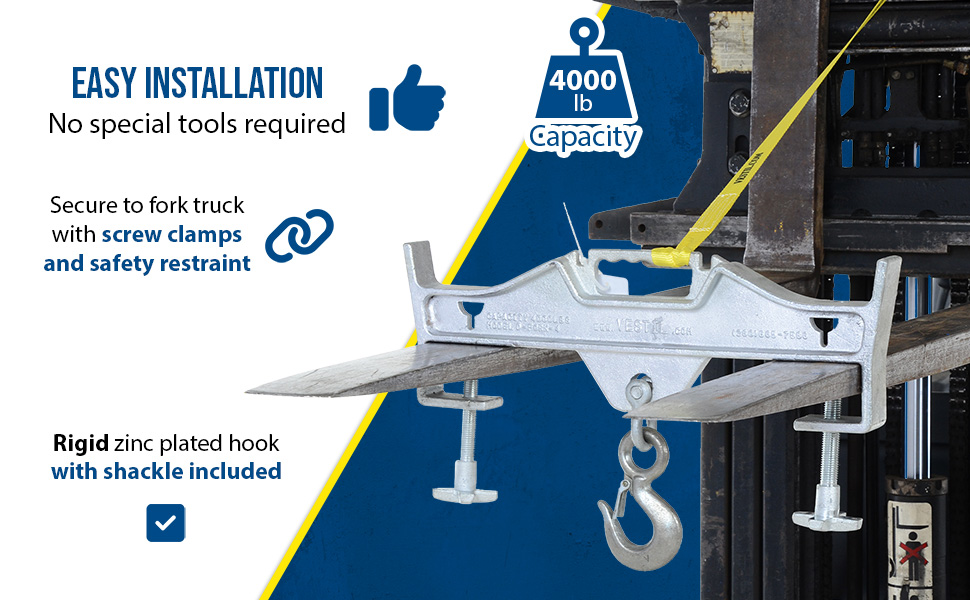

D-FORK-4-RL D-FORK-4-RL90 Days Limited WarrantySteel Double Rigid Hoist Optioning Hook 2 In x 23-3/16 In x 13-1/32 In 4000 Lb. Capacity SilverUniform Capacity (lb.): 4,000
Safety Restraint Length (in.): 48		31

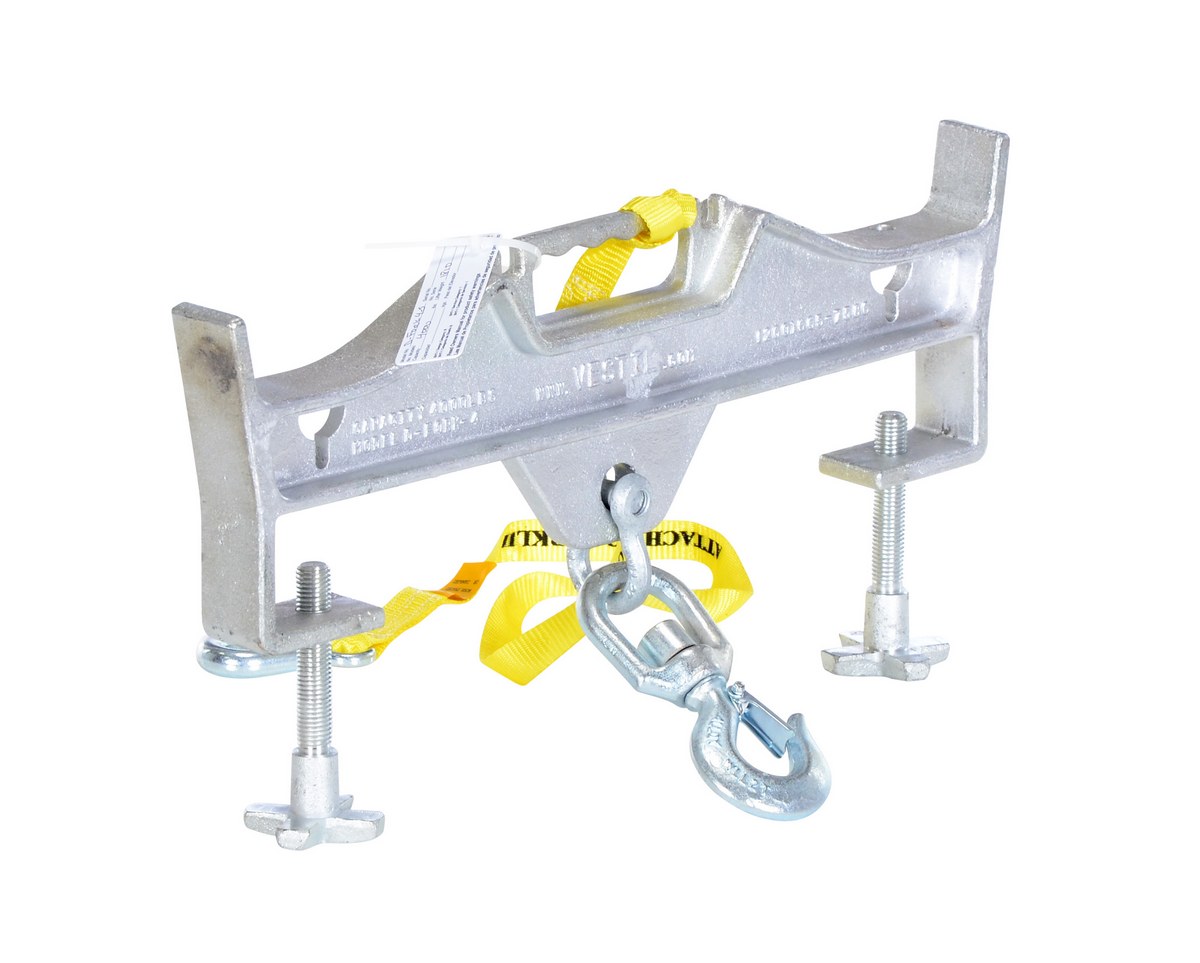

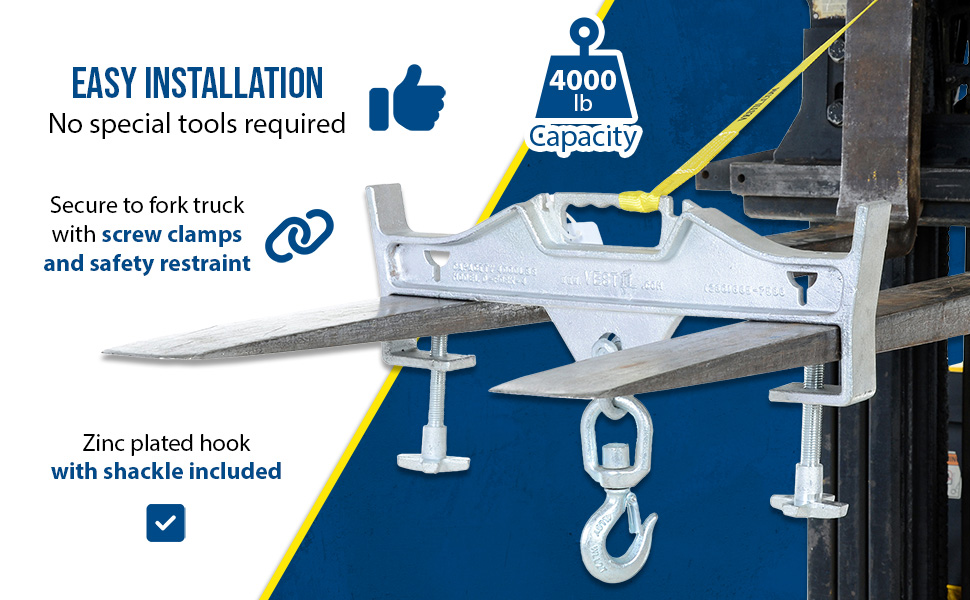

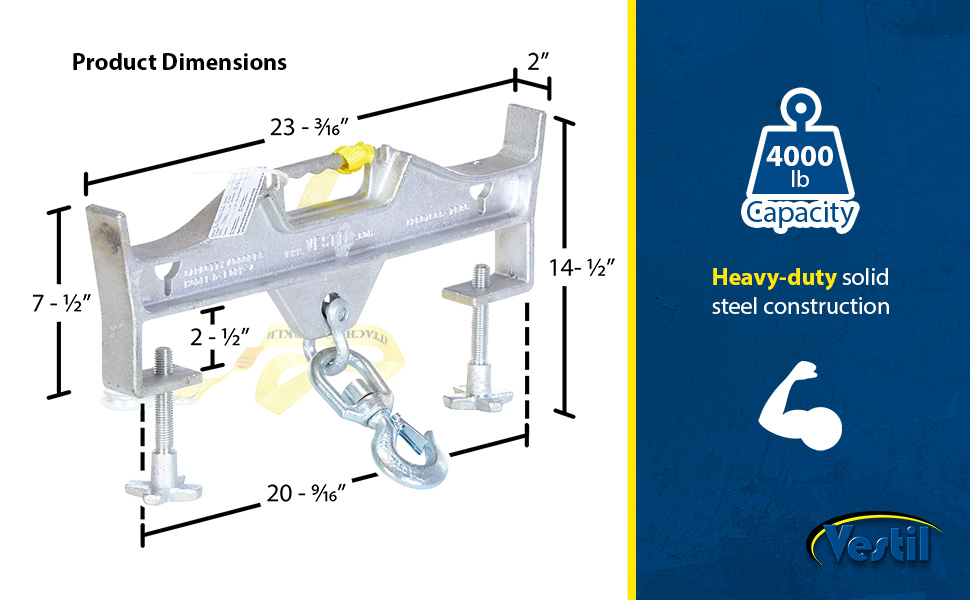

D-FORK-4-SL D-FORK-4-SL90 Days Limited WarrantySteel Double Swivel Hoist Optioning Hook 2 In x 23-3/16 In x 14-1/2 In 4000 Lb. Capacity SilverUniform Capacity (lb.): 4,000
Safety Restraint Length (in.): 48		33

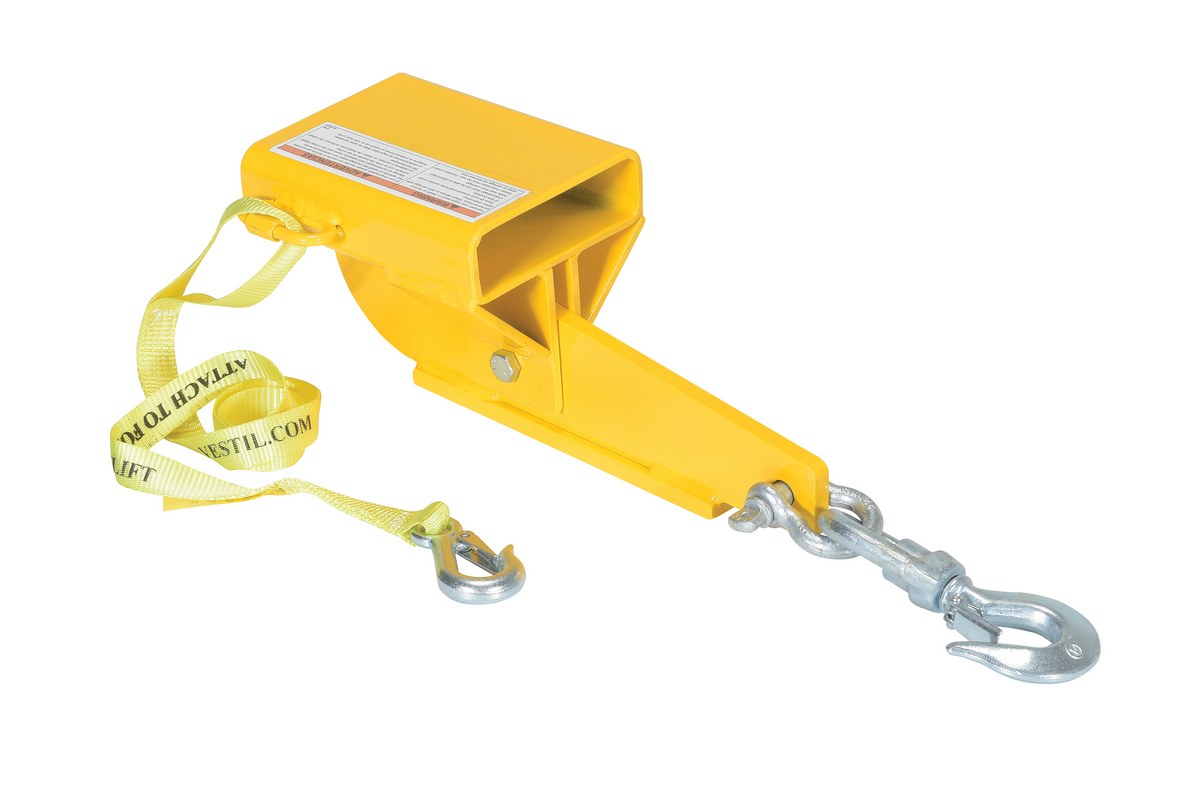

S-FORK-4-AT S-FORK-4-AT90 Days Limited WarrantySteel Hoist Single Auto Tension Swivel Hook 16 In x 6 In x 14-5/16 In 4,000 Lb. Capacity YellowUniform Capacity (lb.): 4,000
Safety Restraint Length (in.): 48		24

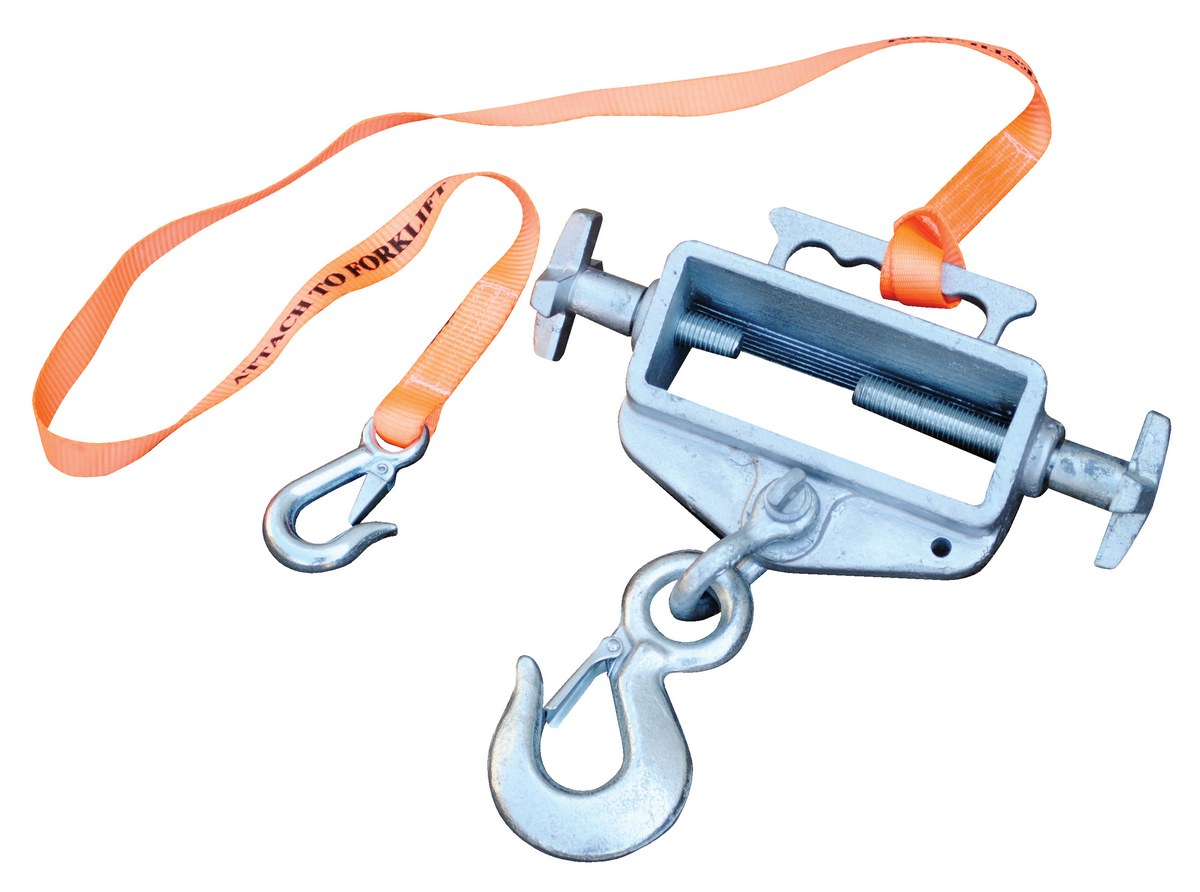

S-FORK-4/6-RL S-FORK-4/6-RL90 Days Limited WarrantySteel Hoist Single Hook Rigid Latch 3-7/8 In x 13-1/2 In x 13-13/32 In 4,000 Lb. Capacity SilverUniform Capacity (lb.): 4,000
Safety Restraint Length (in.): 48		15

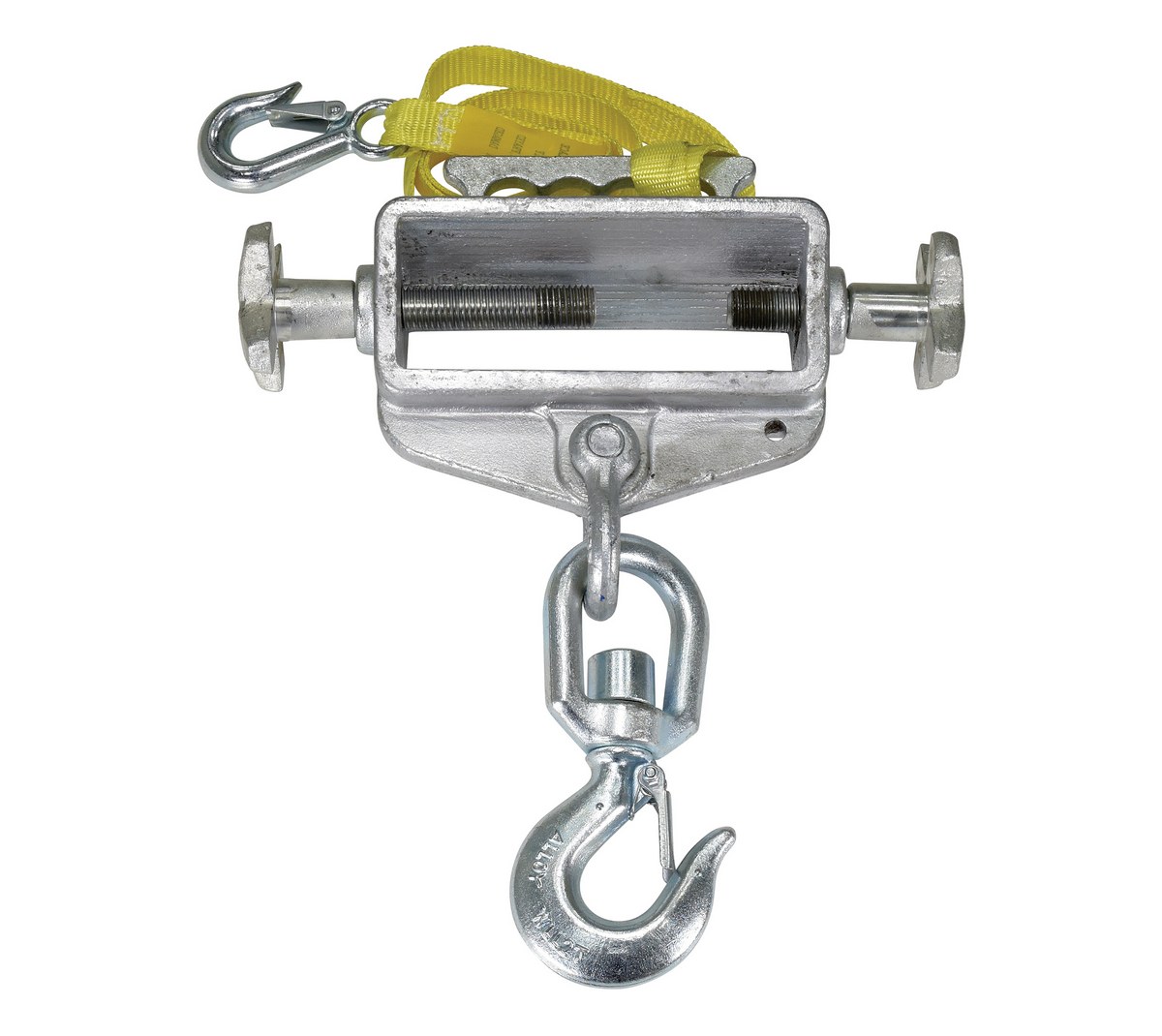

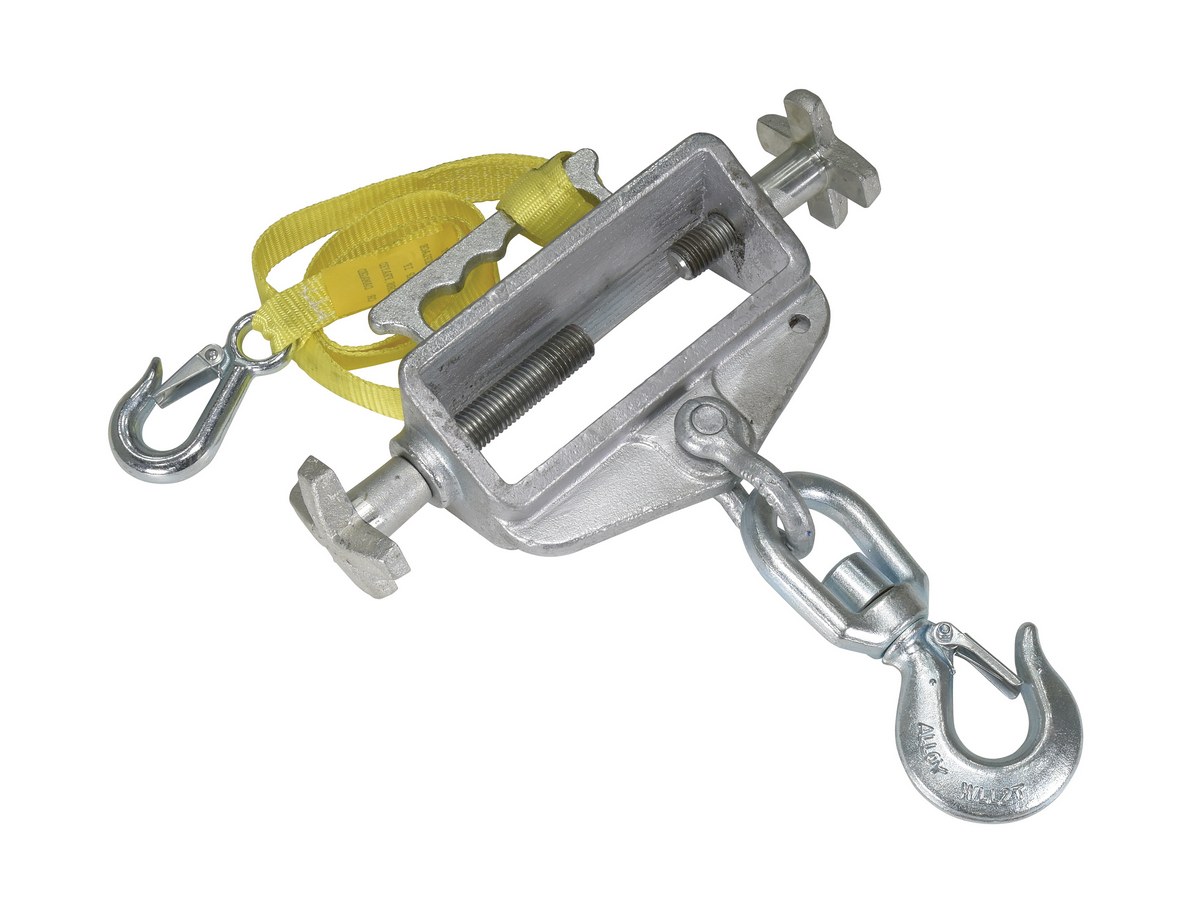

S-FORK-4/6-SL S-FORK-4/6-SL90 Days Limited WarrantySteel Hoist Single Hook Swivel Latch 3-7/8 In x 13-1/2 In x 14-13/16 In 4,000 Lb. Capacity SilverUniform Capacity (lb.): 4,000
Safety Restraint Length (in.): 48		15

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

D-FORK-10-SL
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10,000
Safety Restraint Length (in.): 48
Uniform Capacity (lb.): 10,000
Safety Restraint Length (in.): 48

D-FORK-4-RL
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Safety Restraint Length (in.): 48
Uniform Capacity (lb.): 4,000
Safety Restraint Length (in.): 48

D-FORK-4-SL
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Safety Restraint Length (in.): 48
Uniform Capacity (lb.): 4,000
Safety Restraint Length (in.): 48

S-FORK-4-AT
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Safety Restraint Length (in.): 48
Uniform Capacity (lb.): 4,000
Safety Restraint Length (in.): 48

S-FORK-4/6-RL
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Safety Restraint Length (in.): 48
Uniform Capacity (lb.): 4,000
Safety Restraint Length (in.): 48

S-FORK-4/6-SL
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Safety Restraint Length (in.): 48
Uniform Capacity (lb.): 4,000
Safety Restraint Length (in.): 48
Hoisting Hooks PDF's will open in a new window when clicked.

Manuals


D-Fork
Owners Manual

S-FORK
Owners Manual

S-FORK-4-AT
Owners Manual

S-FO
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


D-FORK-10-SL

D-FORK-4-RL

D-FORK-4-SL

S-FORK-4-AT

S-FORK-4/6-RL

S-FORK-4/6-SL

Testing Certificates


D-FORK-10-SL

D-FORK-4-RL

D-FORK-4-SL

S-FORK-4-AT

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: What is the width of the actual hook on the D-FORK-10-SL at it's widest point?

A: The width is 5"




Related or Similar Products:

Fold Down Work Platforms
Product

Fold Down Work Platforms

Forklift Lifting Beam
Product

Forklift Lifting Beam

Hook Plates
Product

Hook Plates

Fork Truck Bases with Optional Tow Balls & Pintle Hook
Product

Fork Truck Bases with Optional Tow Balls & Pintle Hook

Three Ball Tow Hitch
Product

Three Ball Tow Hitch

Shorty Lift Master Fork Truck Booms
Product

Shorty Lift Master Fork Truck Booms

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Hoisting Hooks




Convert your fork truck into a hook with anchor in a matter of seconds. The easy to attach Hoisting Hook does not require the assistance of special tools. Secured to the fork truck by means of a 48" long safety restraint and screw clamps. Available in single or double fork design. Units are zinc plated. Hook with shackle included. Model S-FORK-4-AT, Auto-Tension Hoisting Hook, offers a unique design and adds tension as weight is added, this unit has a yellow baked-in powder-coated toughness.


Model # Description Attributes Net Wt.
(lbs)
D-FORK-10-SL D-FORK-10-SLSteel Double Swivel Hoist Optioning Hook 3 In x 23 In x 21-5/8 In 10000 Lb. Capacity SilverUniform Capacity (lb.): 10,000
Safety Restraint Length (in.): 48		55
D-FORK-4-RL D-FORK-4-RLSteel Double Rigid Hoist Optioning Hook 2 In x 23-3/16 In x 13-1/32 In 4000 Lb. Capacity SilverUniform Capacity (lb.): 4,000
Safety Restraint Length (in.): 48		31
D-FORK-4-SL D-FORK-4-SLSteel Double Swivel Hoist Optioning Hook 2 In x 23-3/16 In x 14-1/2 In 4000 Lb. Capacity SilverUniform Capacity (lb.): 4,000
Safety Restraint Length (in.): 48		33
S-FORK-4-AT S-FORK-4-ATSteel Hoist Single Auto Tension Swivel Hook 16 In x 6 In x 14-5/16 In 4,000 Lb. Capacity YellowUniform Capacity (lb.): 4,000
Safety Restraint Length (in.): 48		24
S-FORK-4/6-RL S-FORK-4/6-RLSteel Hoist Single Hook Rigid Latch 3-7/8 In x 13-1/2 In x 13-13/32 In 4,000 Lb. Capacity SilverUniform Capacity (lb.): 4,000
Safety Restraint Length (in.): 48		15
S-FORK-4/6-SL S-FORK-4/6-SLSteel Hoist Single Hook Swivel Latch 3-7/8 In x 13-1/2 In x 14-13/16 In 4,000 Lb. Capacity SilverUniform Capacity (lb.): 4,000
Safety Restraint Length (in.): 48		15

Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
