Product Family Overview

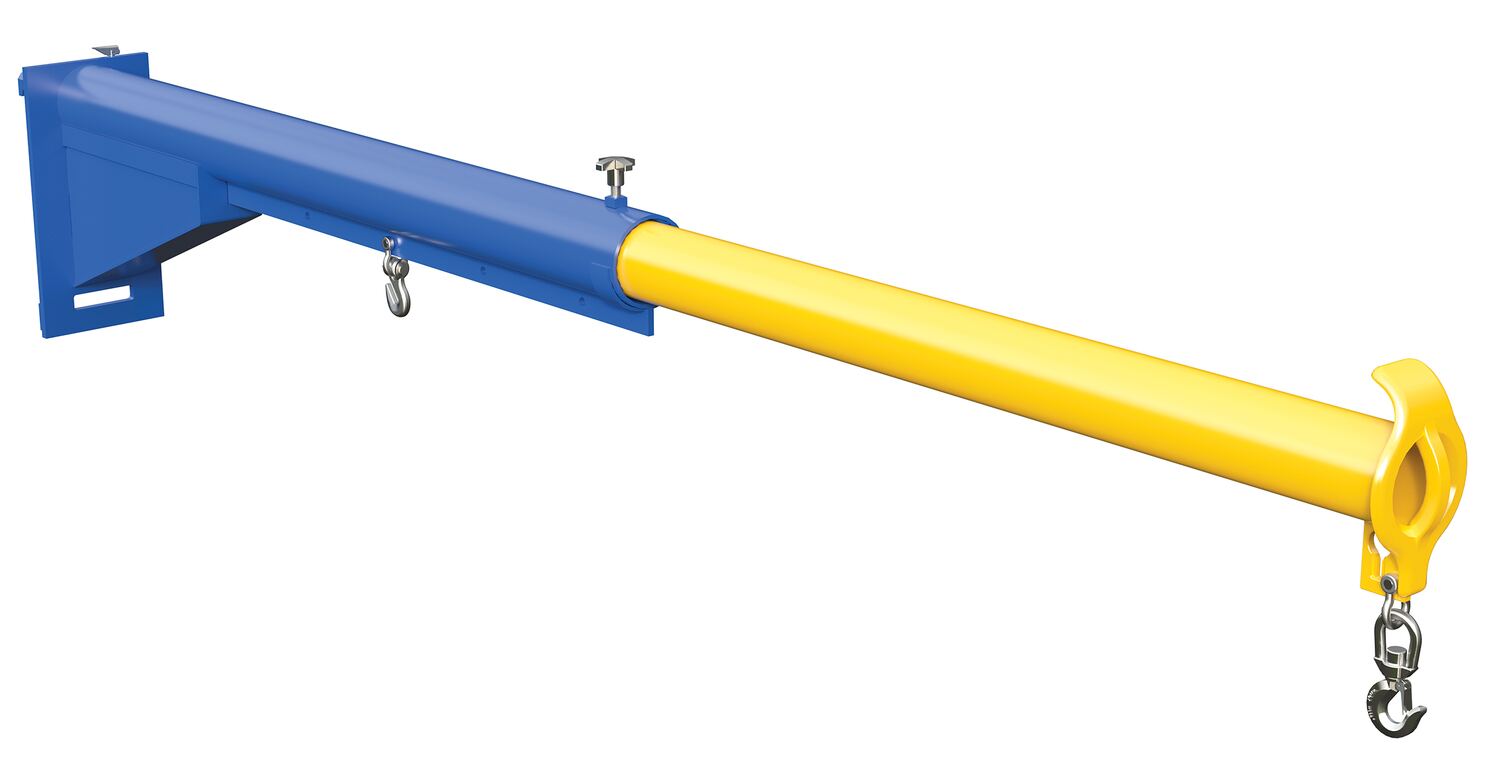

Carriage Mounted Fork Truck Booms
SERIES: LM-CM

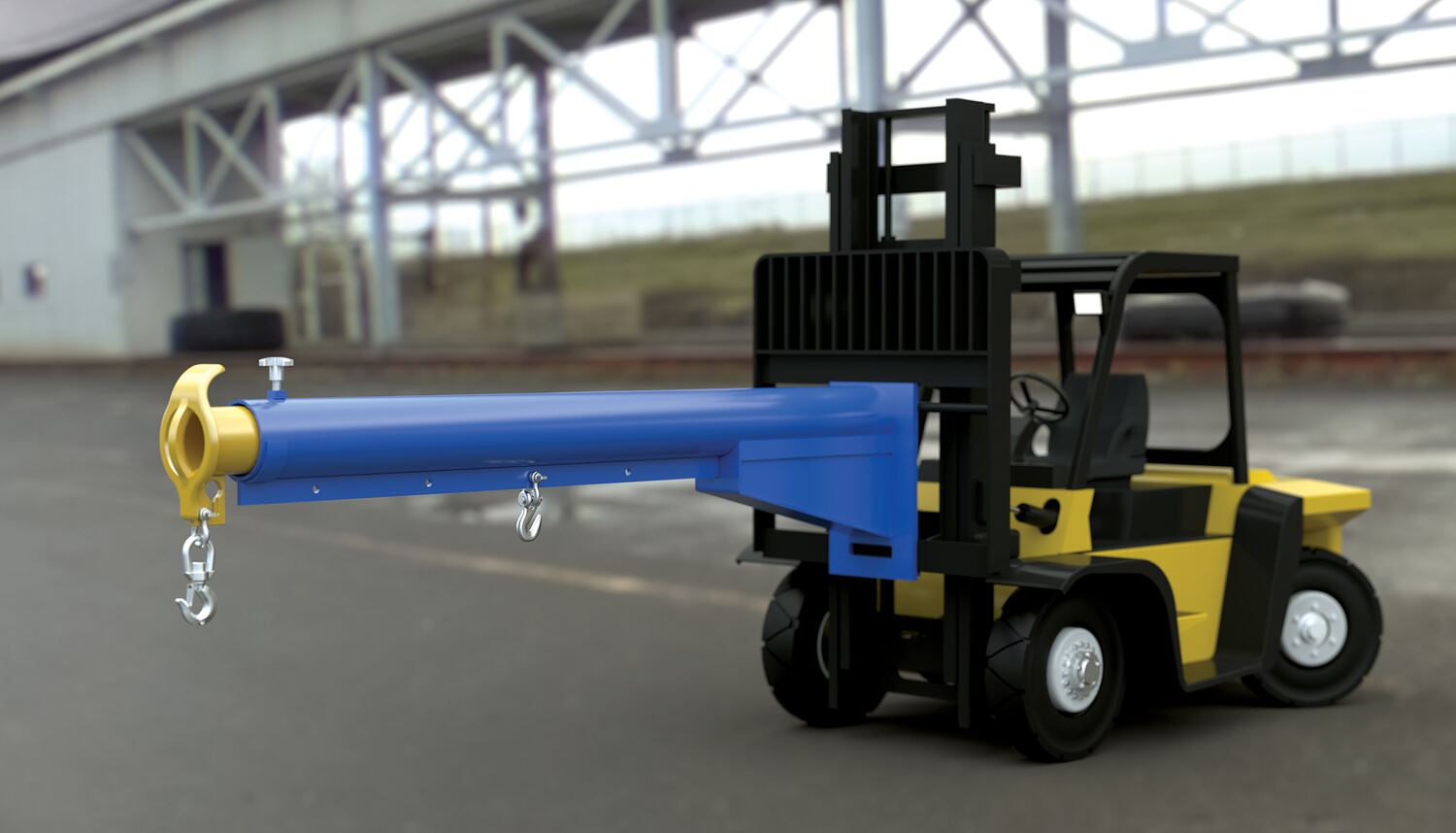

Unique performance, convenience and safety features are built into every lift master boom. Fabricated from structural steel this boom is resilient and durable during constant daily use. The boom is connected and secured to a new or existing fork truck by utilizes the carriage mount feature of the boom. Once secured in place, the fork truck can lift and maneuver a variety of items. Powder-coat finish for baked in added toughness.

Carriage Mount Lift Master
These booms are connected and secured to a new or existing fork truck by class 2 or class 3 carriage mount. Once secured in place, the fork truck can lift and maneuver a variety of items. Powder-coat finish for baked in added toughness.


Maximum Single Hook Capacities (lbs.)
Hook Diagram
Model A
36"
B
48"
C
60"
D
72"
E
84"
F
96"
G
108"
H
120"
I
132"
J
144"
LM-CM2-EBT-4 4000 3750 3500 3250 3000 2750 2500 2250 2000 1750
LM-CM2-EBT-6 6000 5000 4500 4000 3500 3000 2600 2300 2000 1800
LM-CM3-EBT-4 4000 3750 3500 3250 3000 2750 2500 2250 2000 1750
LM-CM3-EBT-6 6000 5000 4500 4000 3500 3000 2600 2300 2000 1800

Check Out Vestil's Other Fork Truck Boom Styles:


Lift Master Fork Truck Booms

Hydraulic Powered Fork Truck Booms

High Rise Fork Truck Booms

Orbiting Fork Truck Booms
.
Shorty Fork Truck Booms

Unique performance, convenience and safety features are built into every lift master boom. Fabricated from structural steel this boom is resilient and durable during constant daily use. The boom is connected and secured to a new or existing fork truck by utilizes the carriage mount feature of the boom. Once secured in place, the fork truck can lift and maneuver a variety of items. Powder-coat finish for baked in added toughness.

Carriage Mount Lift Master
These booms are connected and secured to a new or existing fork truck by class 2 or class 3 carriage mount. Once secured in place, the fork truck can lift and maneuver a variety of items. Powder-coat finish for baked in added toughness.


Maximum Single Hook Capacities (lbs.)
Hook Diagram
Model A
36"
B
48"
C
60"
D
72"
E
84"
F
96"
G
108"
H
120"
I
132"
J
144"
LM-CM2-EBT-4 4000 3750 3500 3250 3000 2750 2500 2250 2000 1750
LM-CM2-EBT-6 6000 5000 4500 4000 3500 3000 2600 2300 2000 1800
LM-CM3-EBT-4 4000 3750 3500 3250 3000 2750 2500 2250 2000 1750
LM-CM3-EBT-6 6000 5000 4500 4000 3500 3000 2600 2300 2000 1800

Check Out Vestil's Other Fork Truck Boom Styles:


Lift Master Fork Truck Booms

Hydraulic Powered Fork Truck Booms

High Rise Fork Truck Booms

Orbiting Fork Truck Booms
.
Shorty Fork Truck Booms

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
LM-CM2-EBT-4 LM-CM2-EBT-41 Year Limited WarrantySteel Carriage Mount Lift Master Boom Class II 4,000 Lb. Capacity Blue and YellowMounting Style: Carriage Mount Class 2
Uniform Capacity (lbs): 4,000
375
LM-CM2-EBT-6 LM-CM2-EBT-61 Year Limited WarrantySteel Carriage Mount Lift Master Boom Class II 6,000 Lb. Capacity Blue and YellowMounting Style: Carriage Mount Class 2
Uniform Capacity (lbs): 6,000
409
LM-CM3-EBT-4 NEW LM-CM3-EBT-41 Year Limited Limited WarrantySteel Carriage Mount Lift Master Boom Class III 4,000 Lb. Capacity Blue and YellowMounting Style: Carriage Mount Class 3
Uniform Capacity (lbs): 4,000
414
LM-CM3-EBT-6 NEW LM-CM3-EBT-61 Year Limited Limited WarrantySteel Carriage Mount Lift Master Boom Class III 6,000 Lb. Capacity Blue and YellowMounting Style: Carriage Mount Class 3
Uniform Capacity (lbs): 6,000
416

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

LM-CM2-EBT-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mounting Style: Carriage Mount Class 2
Uniform Capacity (lbs): 4,000
Mounting Style: Carriage Mount Class 2
Uniform Capacity (lbs): 4,000

LM-CM2-EBT-6
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mounting Style: Carriage Mount Class 2
Uniform Capacity (lbs): 6,000
Mounting Style: Carriage Mount Class 2
Uniform Capacity (lbs): 6,000

LM-CM3-EBT-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mounting Style: Carriage Mount Class 3
Uniform Capacity (lbs): 4,000
Mounting Style: Carriage Mount Class 3
Uniform Capacity (lbs): 4,000

LM-CM3-EBT-6
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mounting Style: Carriage Mount Class 3
Uniform Capacity (lbs): 6,000
Mounting Style: Carriage Mount Class 3
Uniform Capacity (lbs): 6,000

Carriage Mounted Fork Truck Booms PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


LM-CM2-EBT-4

LM-CM2-EBT-6

LM-CM3-EBT-4

LM-CM3-EBT-6

SDS Sheets

No SDS Sheets For This Product

Other PDF's


Directory Links Of Available PDF's For All Products

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date
