Coil Rams/Lifters

- - - -

Description
Model Chart
PDF's
Image Gallery

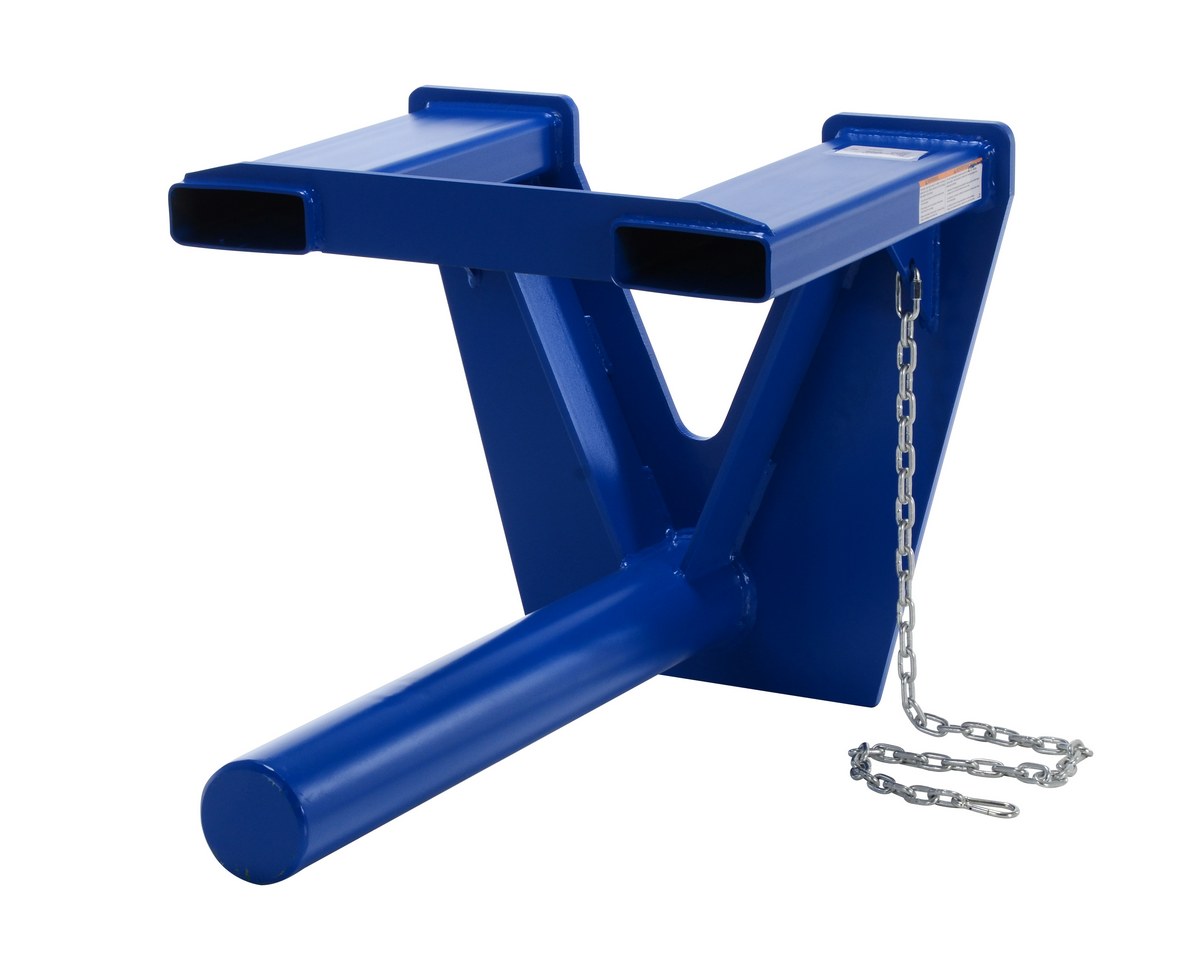

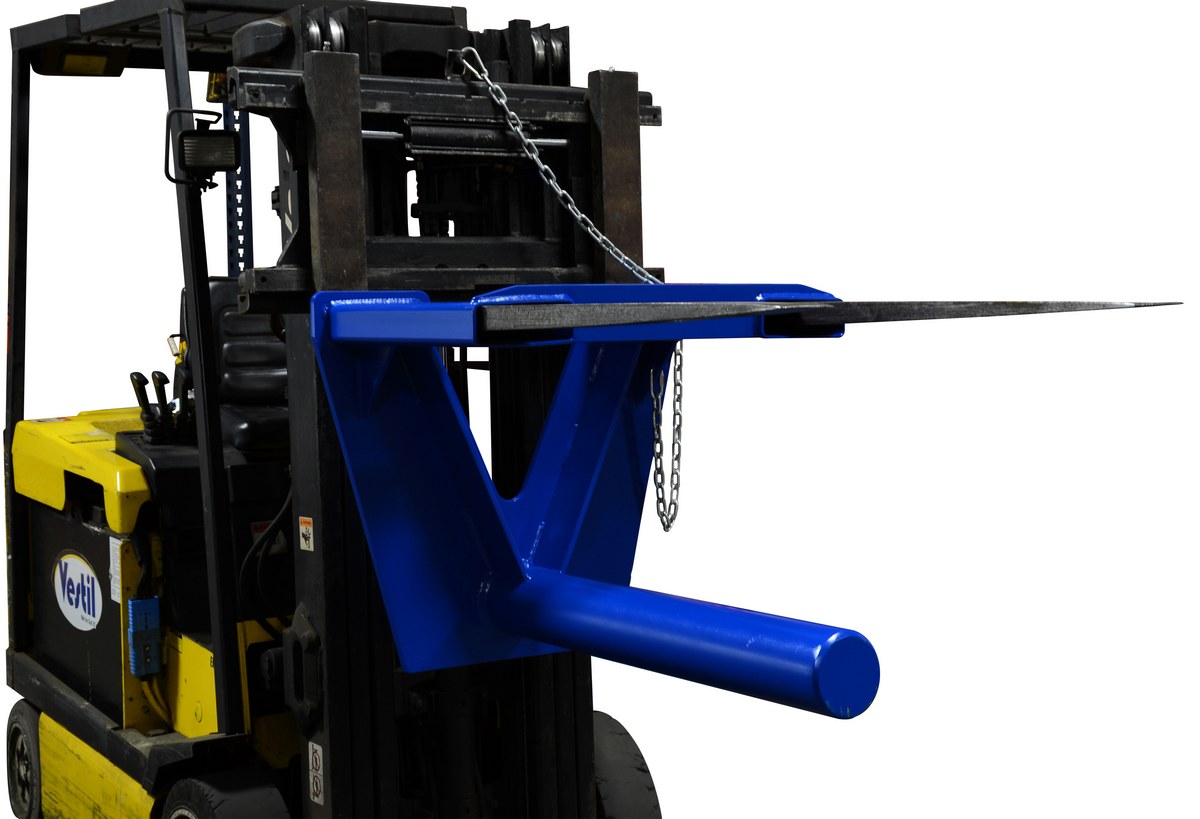

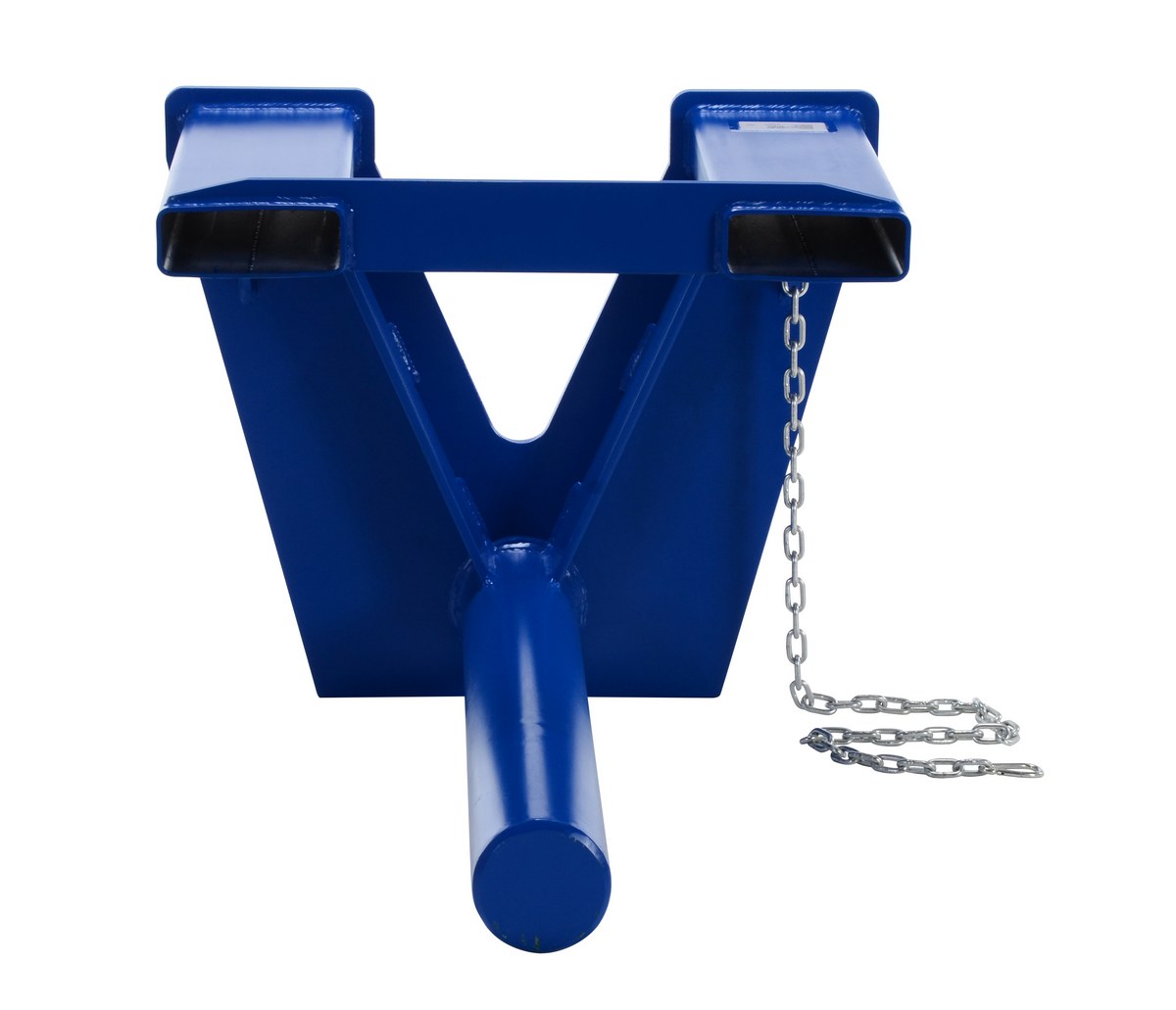

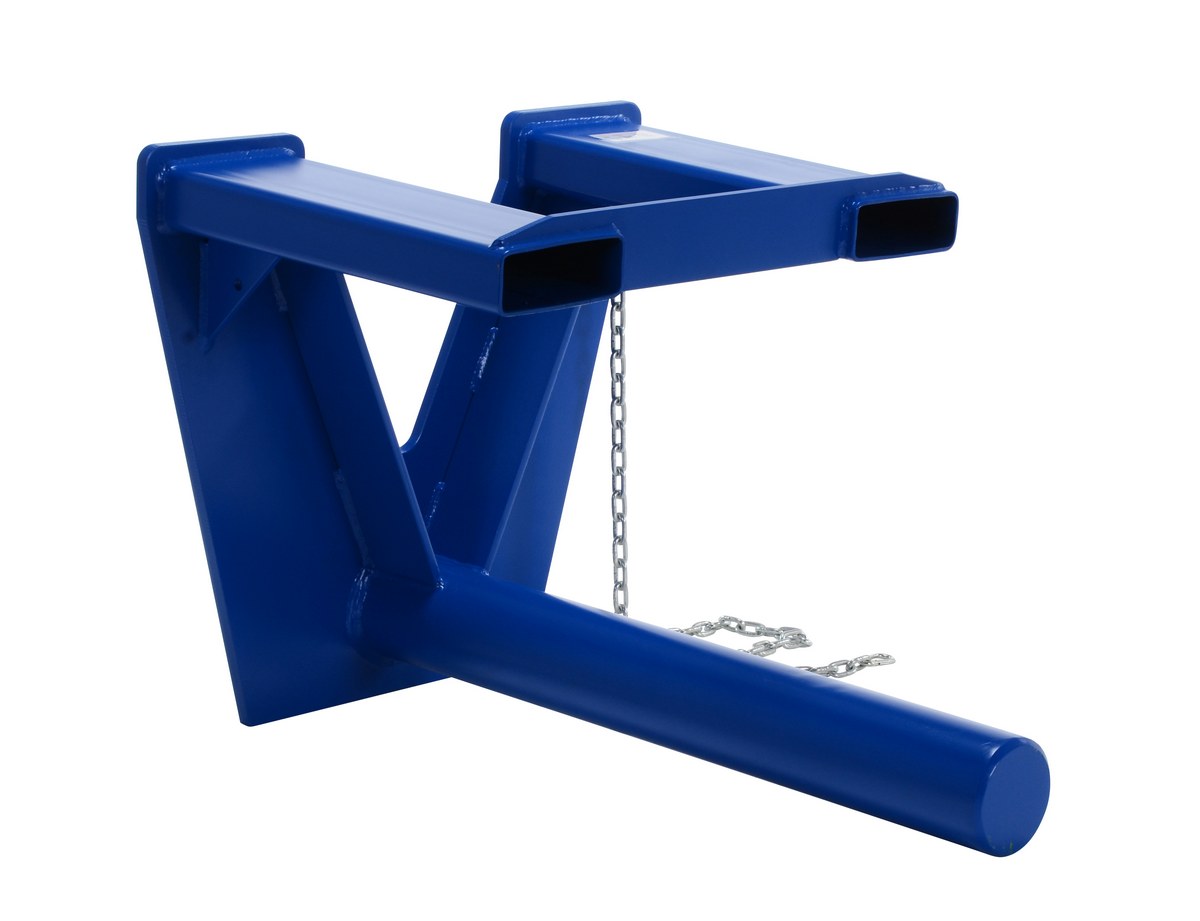

CCF-36-5_D.jpg CCF-36-5_C.jpg CCF-36-5_B.jpg CCF-36-5_A.jpg
Coil Rams/Lifters

model: CCF-36-5



Featured Fork Truck Attachments


Fork Truck Floor Scraper
Pin Style Fork Extensions
Portable Steel Hopper with Power Traction Drive
Hooks with Shackle
Fork Tip Protectors
Stockpicker Work Platforms
Fork Extensions with Rear Spacers
Fork Rear Spacers
Fork Truck LED DC Strobe Beacon
model chart

Product Family Overview

Print Friendly
Coil Rams/Lifters
SERIES: CCF

The Coil Lifter is used to easily maneuver many types of coiled material. The Coil Lifter is available in both carriage mount and fork mount. To accommodate multiple core sizes and capacities, units can be ordered with either a 4-1/2" or 5-5/8" diameter rams. Sturdy steel construction and painted blue. Fork mounted units feature 7-1/2" wide x 2-1/2" tall (usable) fork pockets on 24" centers while the carriage mounted units are secured to the fork truck carriage with a spring loaded lock pin.

  • Unique design easily maneuvers many types of coiled material
  • Painted blue coat provides a long lasting tough finish
  • Safety device secures unit to fork truck
  • Sturdy steel construction provides long lasting rugged use

Fork Mounted (CCF)
**NOTE**
Never exceed load center rating per fork truck manuafacturer's guidlines. Do not use this fork truck attachment if load will exceed fork truck manuafacturer's Load Center Rating. See Engineering Drawing below to see each Model's Load Center Rating.

The Coil Lifter is used to easily maneuver many types of coiled material. The Coil Lifter is available in both carriage mount and fork mount. To accommodate multiple core sizes and capacities, units can be ordered with either a 4-1/2" or 5-5/8" diameter rams. Sturdy steel construction and painted blue. Fork mounted units feature 7-1/2" wide x 2-1/2" tall (usable) fork pockets on 24" centers while the carriage mounted units are secured to the fork truck carriage with a spring loaded lock pin.

  • Unique design easily maneuvers many types of coiled material
  • Painted blue coat provides a long lasting tough finish
  • Safety device secures unit to fork truck
  • Sturdy steel construction provides long lasting rugged use

Fork Mounted (CCF)
**NOTE**
Never exceed load center rating per fork truck manuafacturer's guidlines. Do not use this fork truck attachment if load will exceed fork truck manuafacturer's Load Center Rating. See Engineering Drawing below to see each Model's Load Center Rating.

Other Rug Rams & Carpet Poles

 Coil Rams/Lifters

Additional Models In This Family
view entire Image Gallery

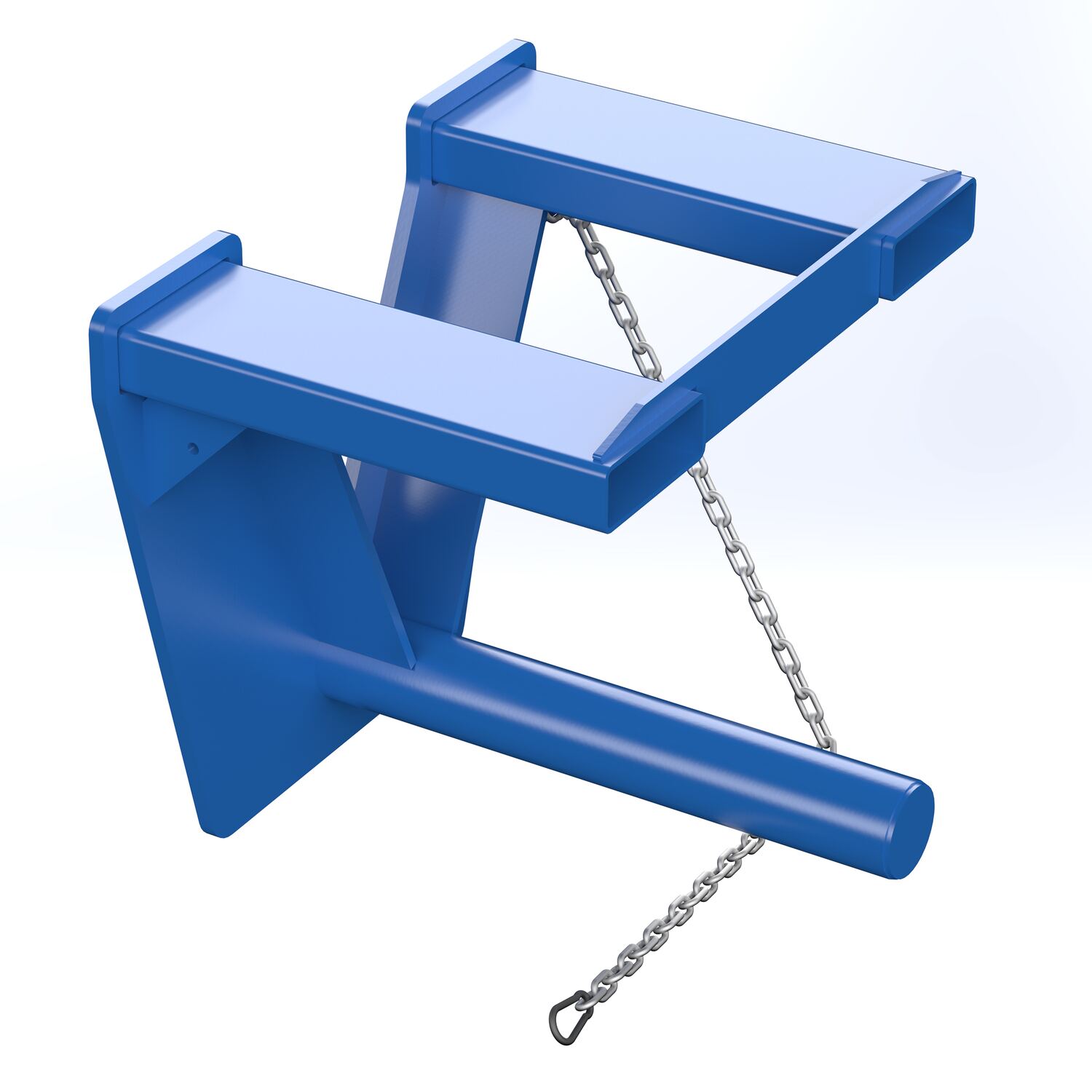

CCF-24-4

CCF-24-4

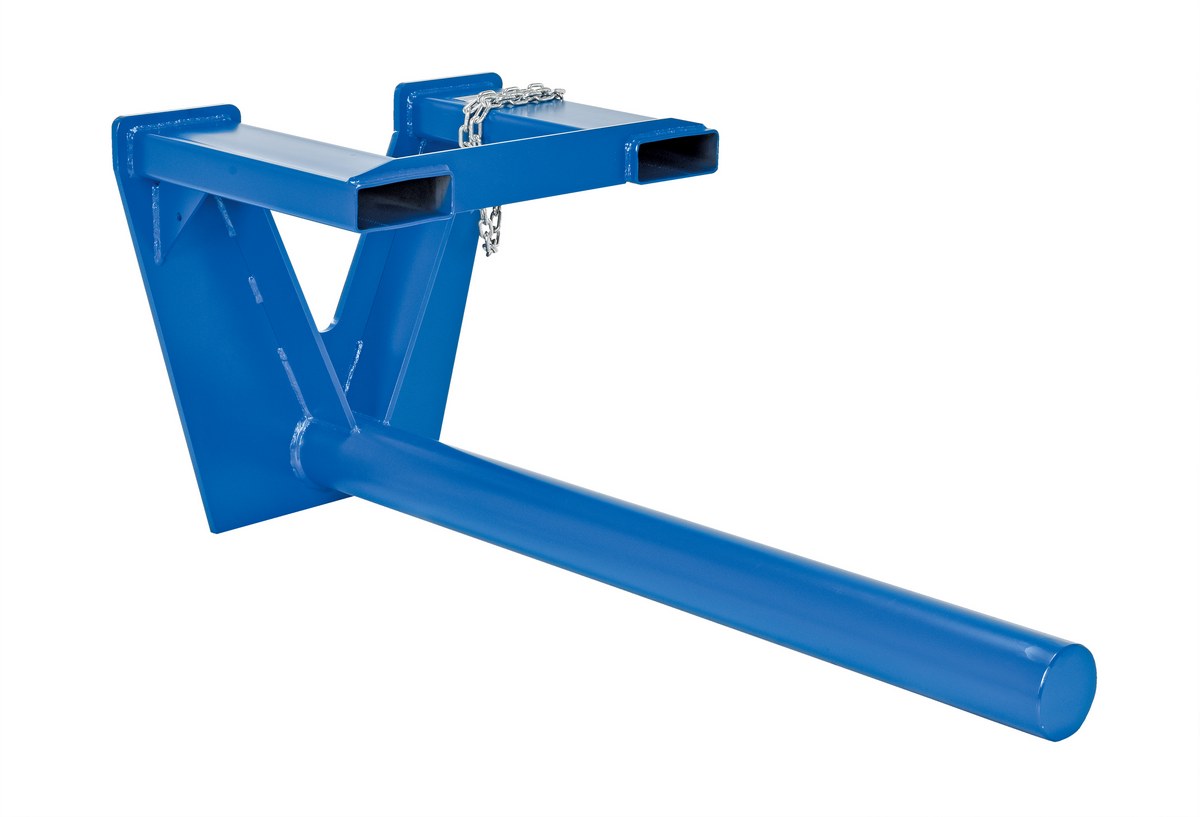

CCF-60-5

CCF-60-5

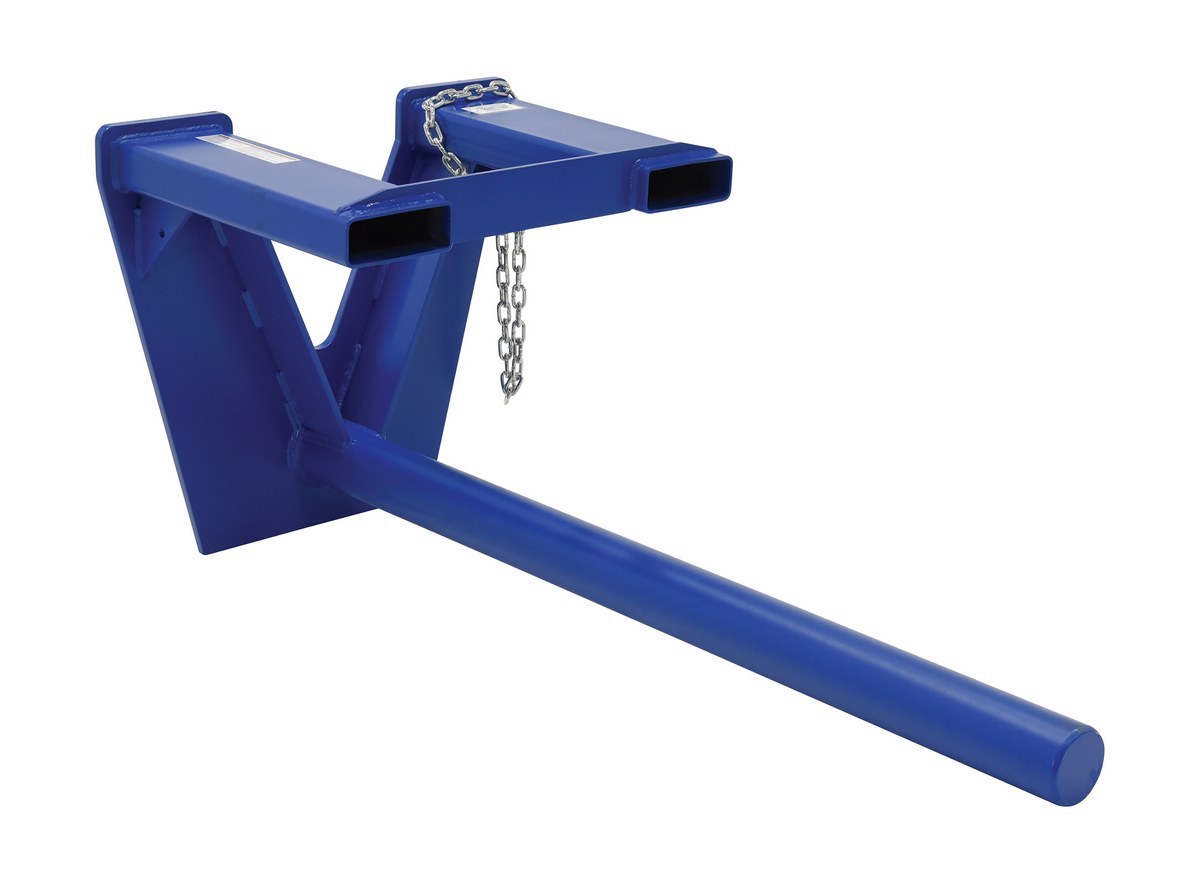

CCF-60-4

CCF-60-4

CCF-60-5

CCF-60-5

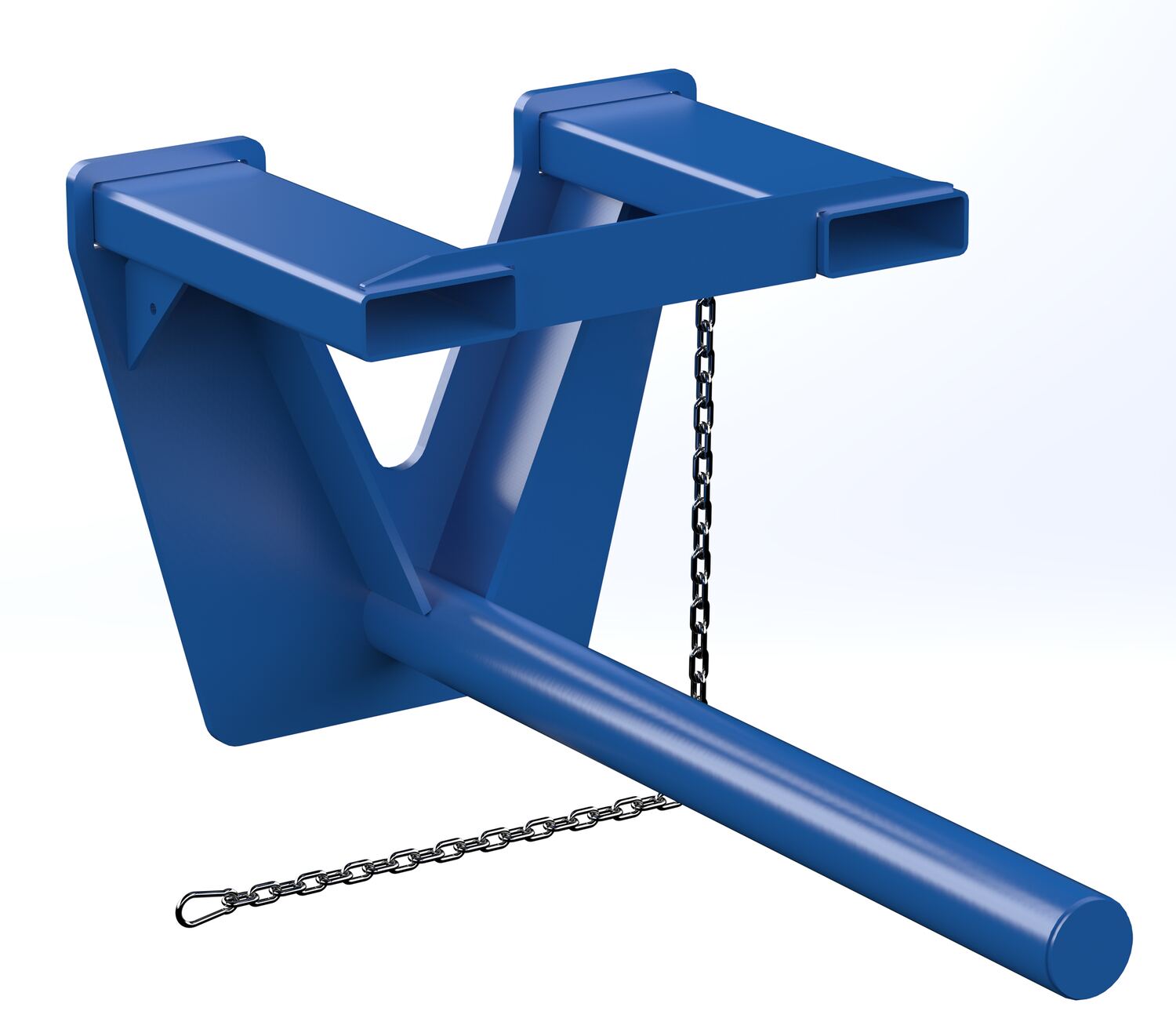

CCF-48-4

CCF-48-4

CCF-60-5

CCF-60-5

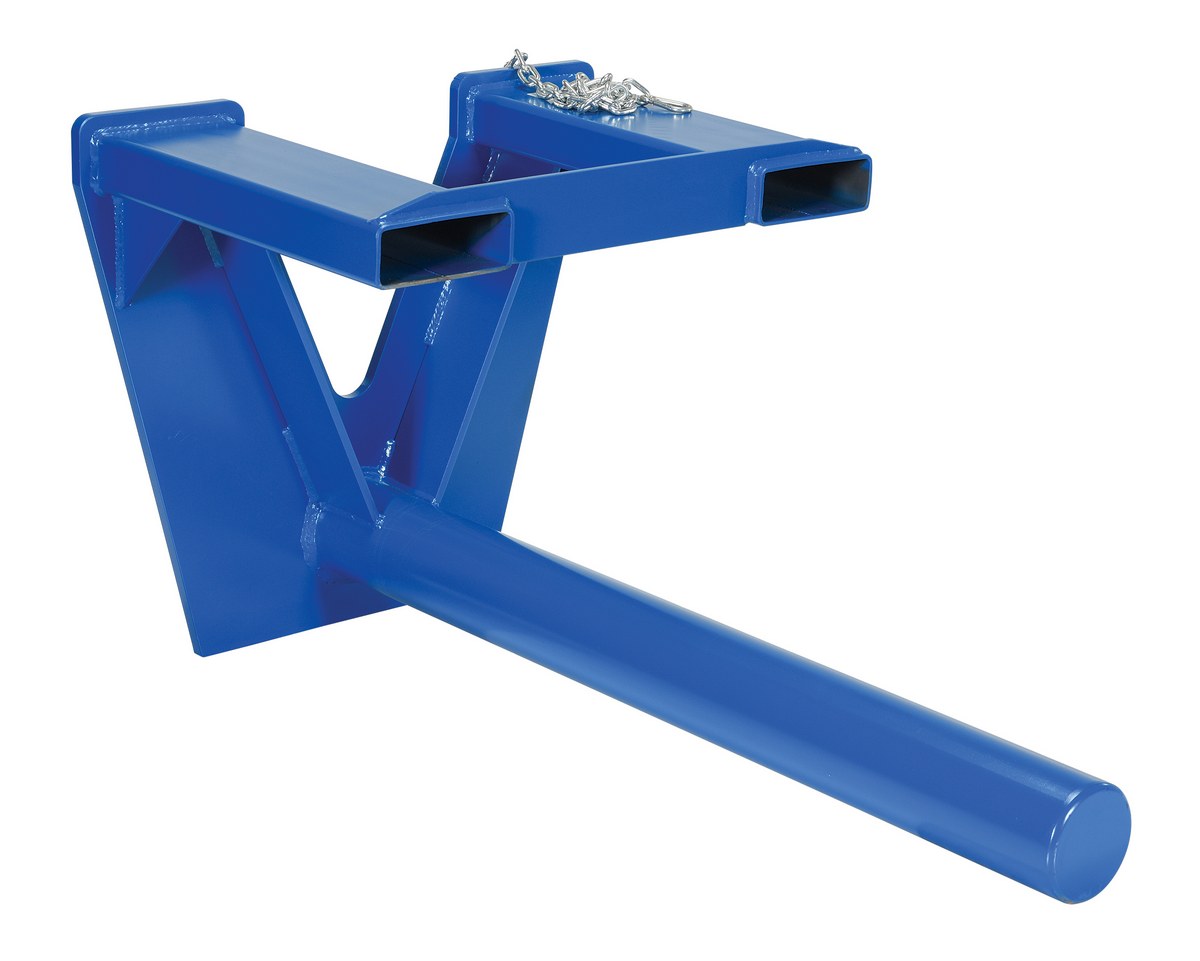

CCF-48-5

CCF-48-5

CCF-60-5

CCF-60-5

CCF-60-5

CCF-60-5

CCF-36-5

CCF-36-5

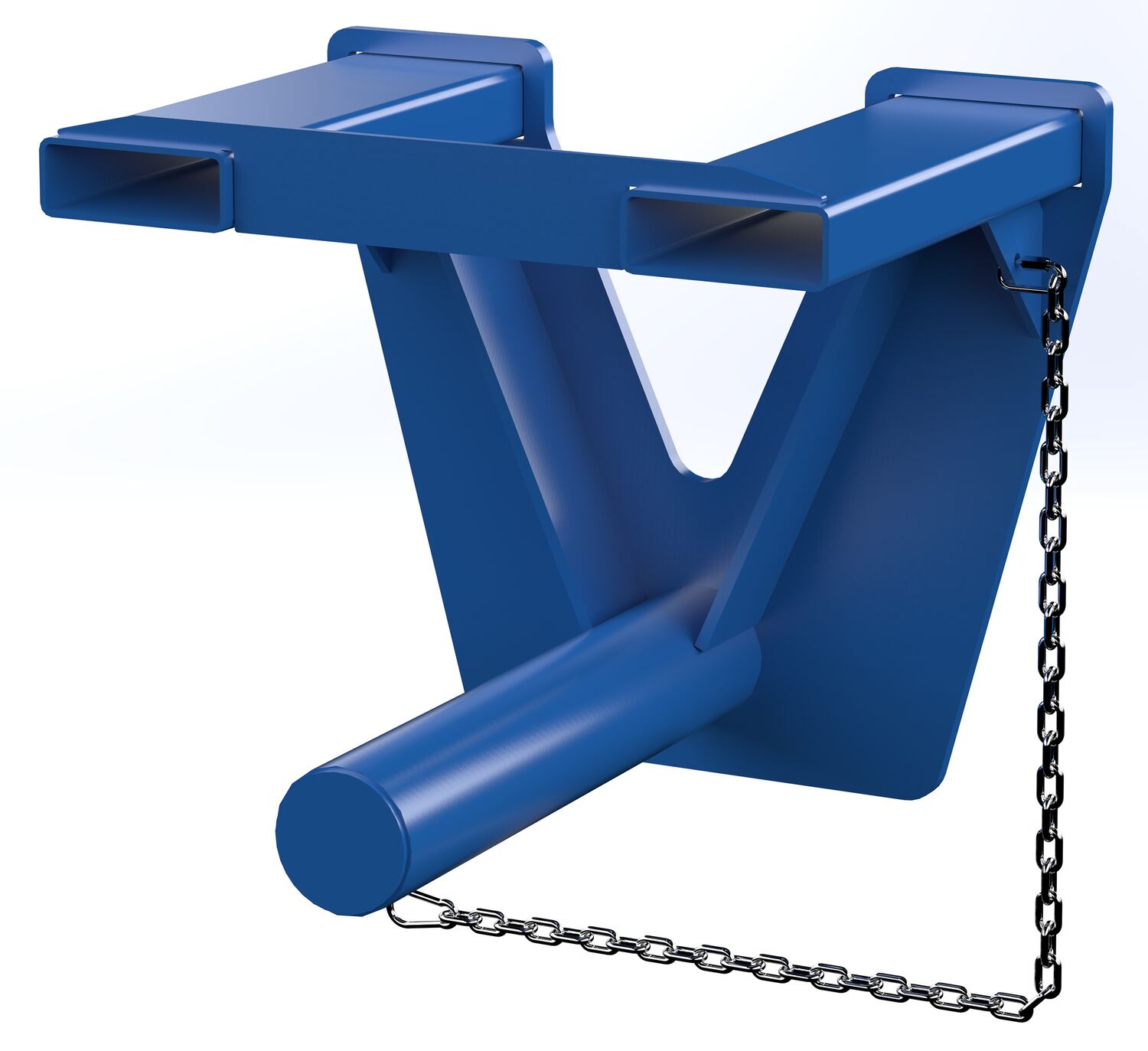

CCF-24-5

CCF-24-5

CCF-48-5

CCF-48-5

CCF-60-4

CCF-60-4

CCF-36-5

CCF-36-5

CCF-60-4

CCF-60-4

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
CCF-24-4 CCF-24-490 Days Limited WarrantySteel Coil Lifter Fork Mounted Inverted 24 In 3000 Lb Capacity BlueUniform Capacity (lb.): 3,000
Usable Ram Length (in.): 24		285
CCF-24-5 CCF-24-590 Days Limited WarrantySteel Coil Lifter Fork Mounted Inverted 24 In 5500 Lb Capacity BlueUniform Capacity (lb.): 5,500
Usable Ram Length (in.): 24		295
CCF-36-4 CCF-36-490 Days Limited WarrantySteel Coil Lifter Fork Mounted Inverted 36 In 3000 Lb Capacity BlueUniform Capacity (lb.): 3,000
Usable Ram Length (in.): 36		305
CCF-36-5 CCF-36-590 Days Limited WarrantySteel Coil Lifter Fork Mounted Inverted 36 In 5500 Lb Capacity BlueUniform Capacity (lb.): 5,500
Usable Ram Length (in.): 36		305
CCF-48-4 CCF-48-490 Days Limited WarrantySteel Coil Lifter Fork Mounted Inverted 48 In 3000 Lb Capacity BlueUniform Capacity (lb.): 3,000
Usable Ram Length (in.): 48		305
CCF-48-5 CCF-48-590 Days Limited WarrantySteel Coil Lifter Fork Mounted Inverted 48 In 5500 Lb Capacity BlueUniform Capacity (lb.): 5,500
Usable Ram Length (in.): 48		340
CCF-60-4 CCF-60-490 Days Limited WarrantySteel Coil Lifter Fork Mounted Inverted 60 In 3000 Lb Capacity BlueUniform Capacity (lb.): 3,000
Usable Ram Length (in.): 60		325
CCF-60-5 CCF-60-590 Days Limited WarrantySteel Coil Lifter Fork Mounted Inverted 60 In 5500 Lb Capacity BlueUniform Capacity (lb.): 5,500
Usable Ram Length (in.): 60		351

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

CCF-24-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3,000
Usable Ram Length (in.): 24
Uniform Capacity (lb.): 3,000
Usable Ram Length (in.): 24

CCF-24-5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5,500
Usable Ram Length (in.): 24
Uniform Capacity (lb.): 5,500
Usable Ram Length (in.): 24

CCF-36-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3,000
Usable Ram Length (in.): 36
Uniform Capacity (lb.): 3,000
Usable Ram Length (in.): 36

CCF-36-5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5,500
Usable Ram Length (in.): 36
Uniform Capacity (lb.): 5,500
Usable Ram Length (in.): 36

CCF-48-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3,000
Usable Ram Length (in.): 48
Uniform Capacity (lb.): 3,000
Usable Ram Length (in.): 48

CCF-48-5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5,500
Usable Ram Length (in.): 48
Uniform Capacity (lb.): 5,500
Usable Ram Length (in.): 48

CCF-60-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3,000
Usable Ram Length (in.): 60
Uniform Capacity (lb.): 3,000
Usable Ram Length (in.): 60

CCF-60-5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5,500
Usable Ram Length (in.): 60
Uniform Capacity (lb.): 5,500
Usable Ram Length (in.): 60
Coil Rams/Lifters PDF's will open in a new window when clicked.

Manuals


CCF
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


CCF-24-4

CCF-24-5

CCF-36-4

CCF-36-5

CCF-48-4

CCF-48-5

CCF-60-4

CCF-60-5

Testing Certificates


CCF-24-4

CCF-24-5

CCF-36-4

CCF-36-5

CCF-48-4

CCF-48-5

CCF-60-4

CCF-60-5

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Related or Similar Products:

Rug Rams/Carpet Poles
Product

Rug Rams/Carpet Poles

Lift Master Booms
Product

Lift Master Booms

Work Platforms
Product

Work Platforms

Forks & Extensions
Product

Forks & Extensions

Accessories For Fork Truck
Product

Accessories For Fork Truck

Brush & Magnetic Sweepers
Product

Brush & Magnetic Sweepers

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Coil Rams/Lifters




The Coil Lifter is used to easily maneuver many types of coiled material. The Coil Lifter is available in both carriage mount and fork mount. To accommodate multiple core sizes and capacities, units can be ordered with either a 4-1/2" or 5-5/8" diameter rams. Sturdy steel construction and painted blue. Fork mounted units feature 7-1/2" wide x 2-1/2" tall (usable) fork pockets on 24" centers while the carriage mounted units are secured to the fork truck carriage with a spring loaded lock pin.

  • Unique design easily maneuvers many types of coiled material
  • Painted blue coat provides a long lasting tough finish
  • Safety device secures unit to fork truck
  • Sturdy steel construction provides long lasting rugged use

Fork Mounted (CCF)
**NOTE**
Never exceed load center rating per fork truck manuafacturer's guidlines. Do not use this fork truck attachment if load will exceed fork truck manuafacturer's Load Center Rating. See Engineering Drawing below to see each Model's Load Center Rating.


Model # Description Attributes Net Wt.
(lbs)
CCF-24-4 CCF-24-4Steel Coil Lifter Fork Mounted Inverted 24 In 3000 Lb Capacity BlueUniform Capacity (lb.): 3,000
Usable Ram Length (in.): 24		285
CCF-24-5 CCF-24-5Steel Coil Lifter Fork Mounted Inverted 24 In 5500 Lb Capacity BlueUniform Capacity (lb.): 5,500
Usable Ram Length (in.): 24		295
CCF-36-4 CCF-36-4Steel Coil Lifter Fork Mounted Inverted 36 In 3000 Lb Capacity BlueUniform Capacity (lb.): 3,000
Usable Ram Length (in.): 36		305
CCF-36-5 CCF-36-5Steel Coil Lifter Fork Mounted Inverted 36 In 5500 Lb Capacity BlueUniform Capacity (lb.): 5,500
Usable Ram Length (in.): 36		305
CCF-48-4 CCF-48-4Steel Coil Lifter Fork Mounted Inverted 48 In 3000 Lb Capacity BlueUniform Capacity (lb.): 3,000
Usable Ram Length (in.): 48		305
CCF-48-5 CCF-48-5Steel Coil Lifter Fork Mounted Inverted 48 In 5500 Lb Capacity BlueUniform Capacity (lb.): 5,500
Usable Ram Length (in.): 48		340
CCF-60-4 CCF-60-4Steel Coil Lifter Fork Mounted Inverted 60 In 3000 Lb Capacity BlueUniform Capacity (lb.): 3,000
Usable Ram Length (in.): 60		325
CCF-60-5 CCF-60-5Steel Coil Lifter Fork Mounted Inverted 60 In 5500 Lb Capacity BlueUniform Capacity (lb.): 5,500
Usable Ram Length (in.): 60		351
