Product Family Overview

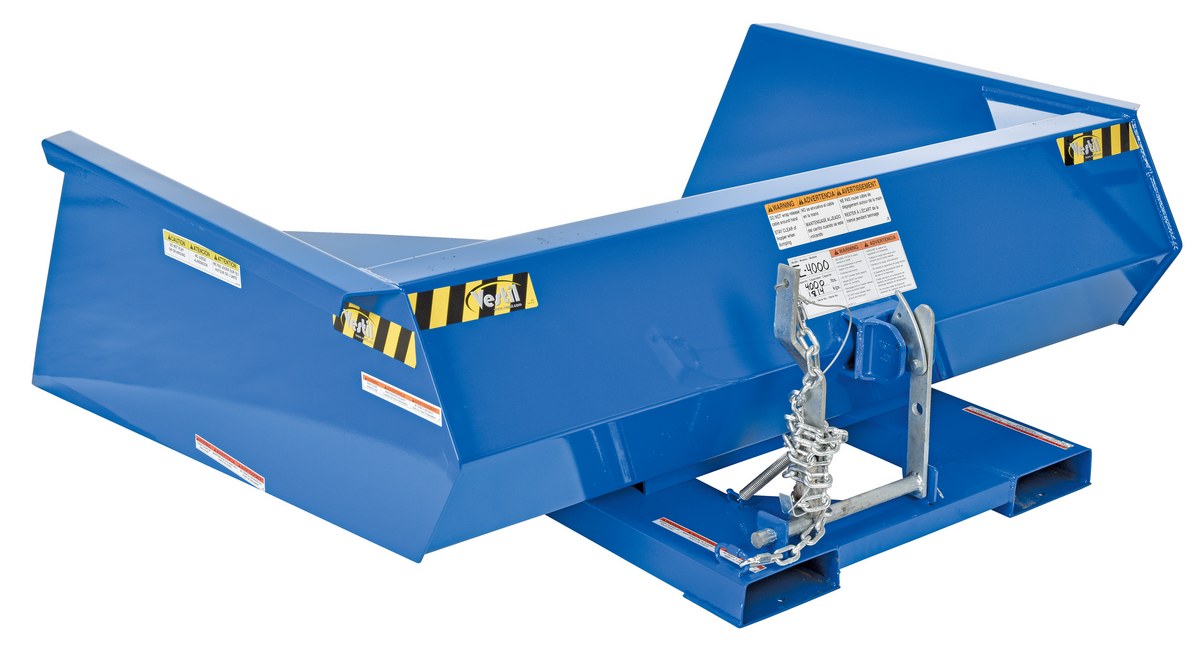

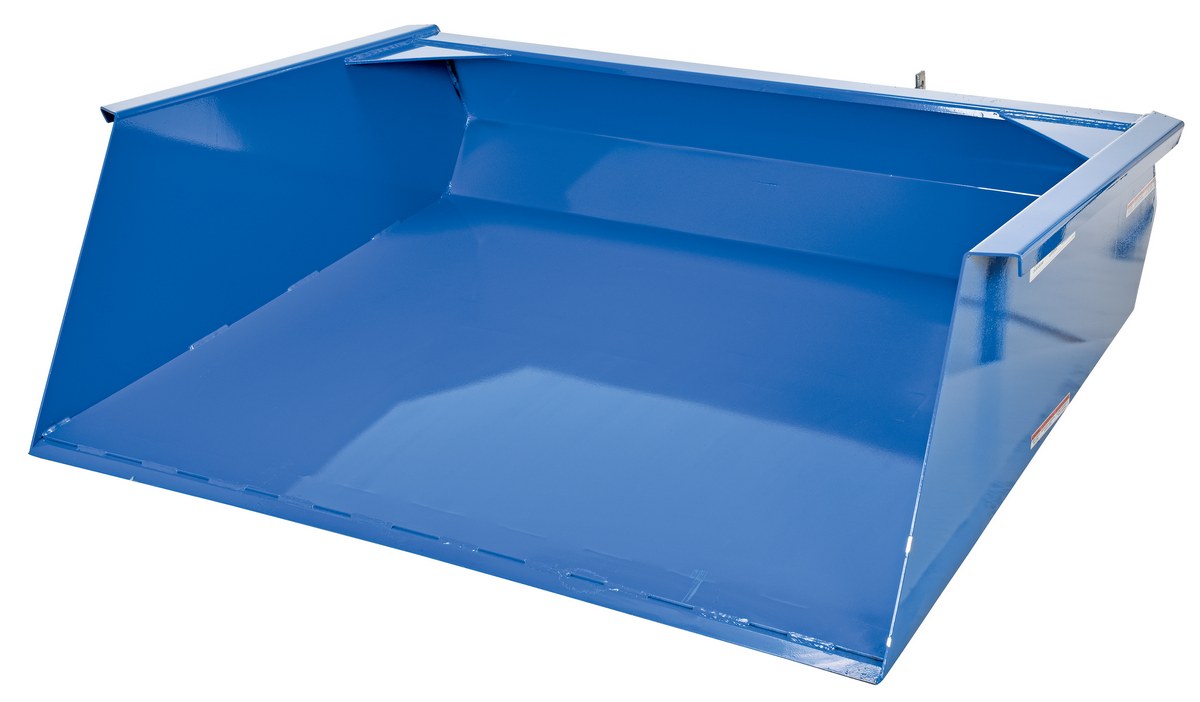

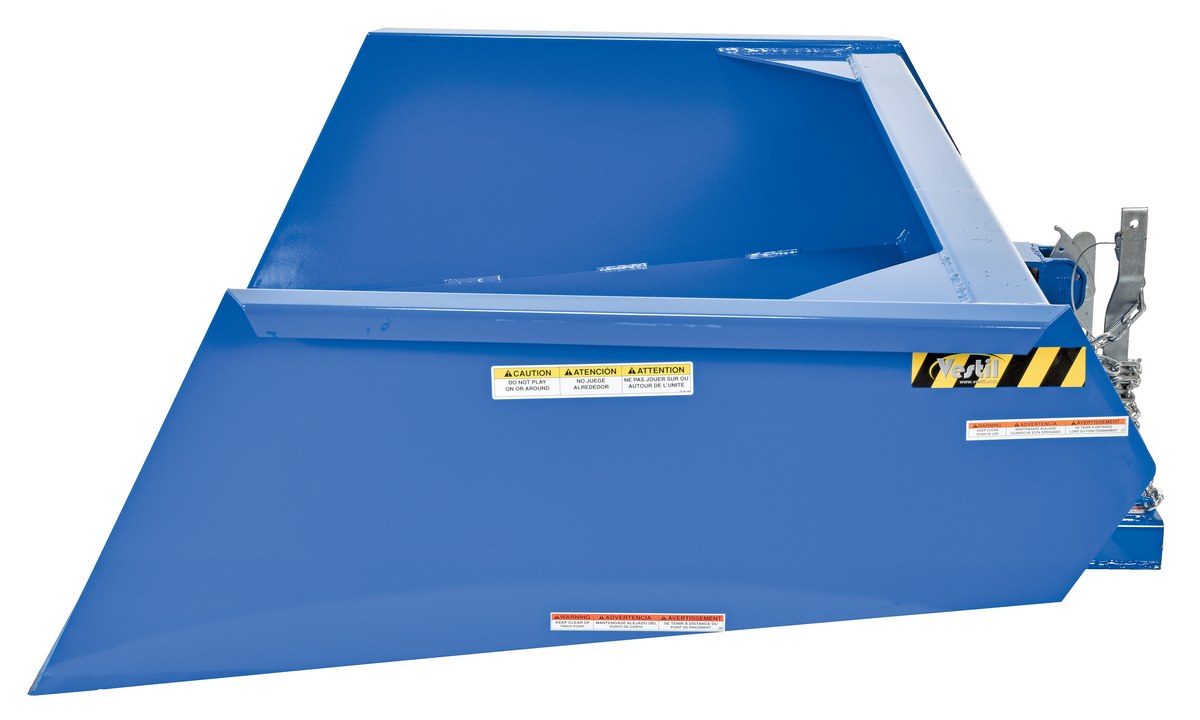

Fork Mounted Front Loaders
SERIES: FL

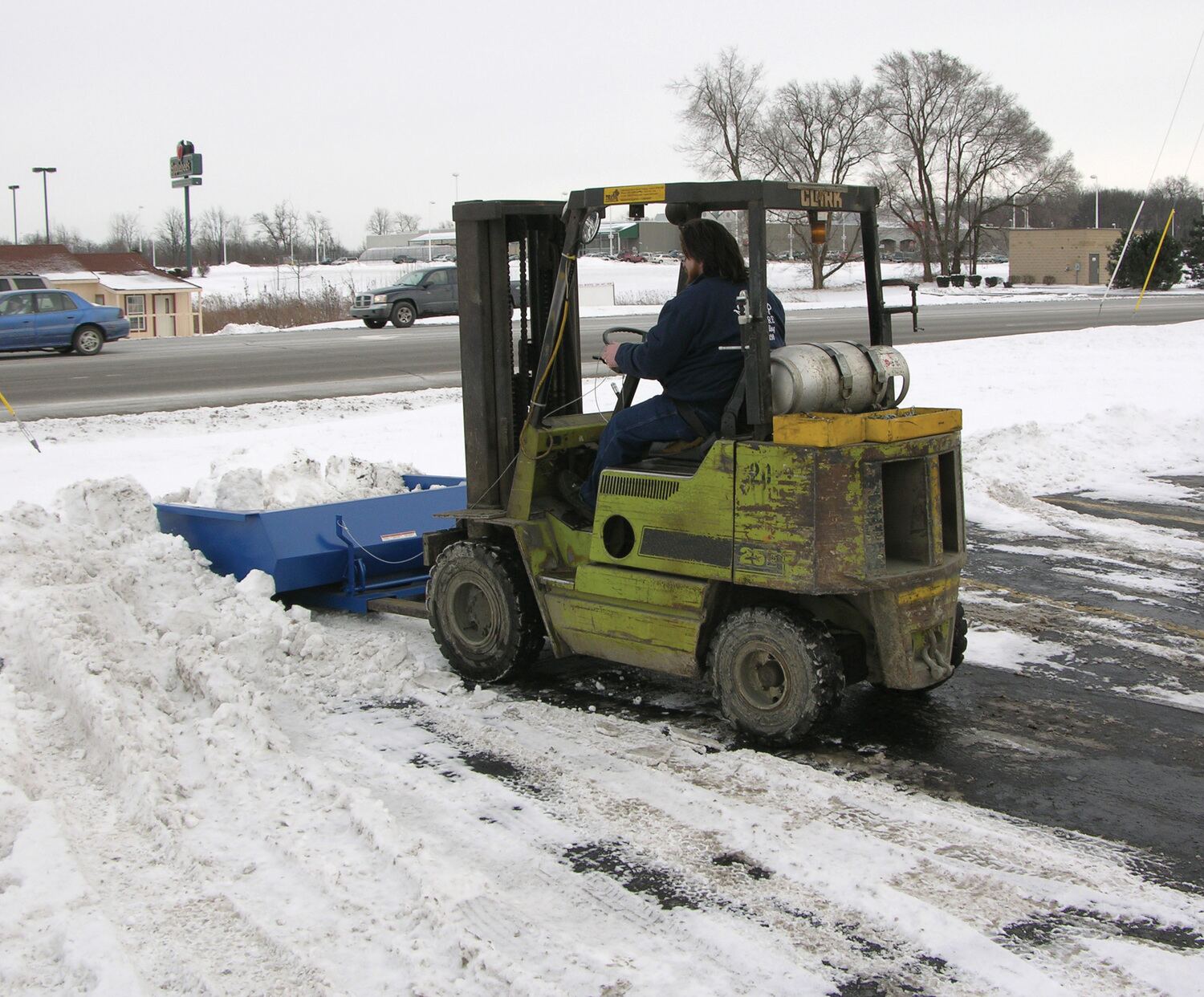

The Front Loader is engineered for use with your existing fork truck. "Dust Pan" design is ideal for transporting snow, gravel, sand or refuse. Pull release cable to dump contents of scoop.. Attaches quickly and easily to most fork trucks. Beveled front edge for better scooping ability. The fork pockets measure 7-1/2"W x 2-1/2"H on 24" centers. All welded steel construction with a baked-in blue powder coat finish for toughness.

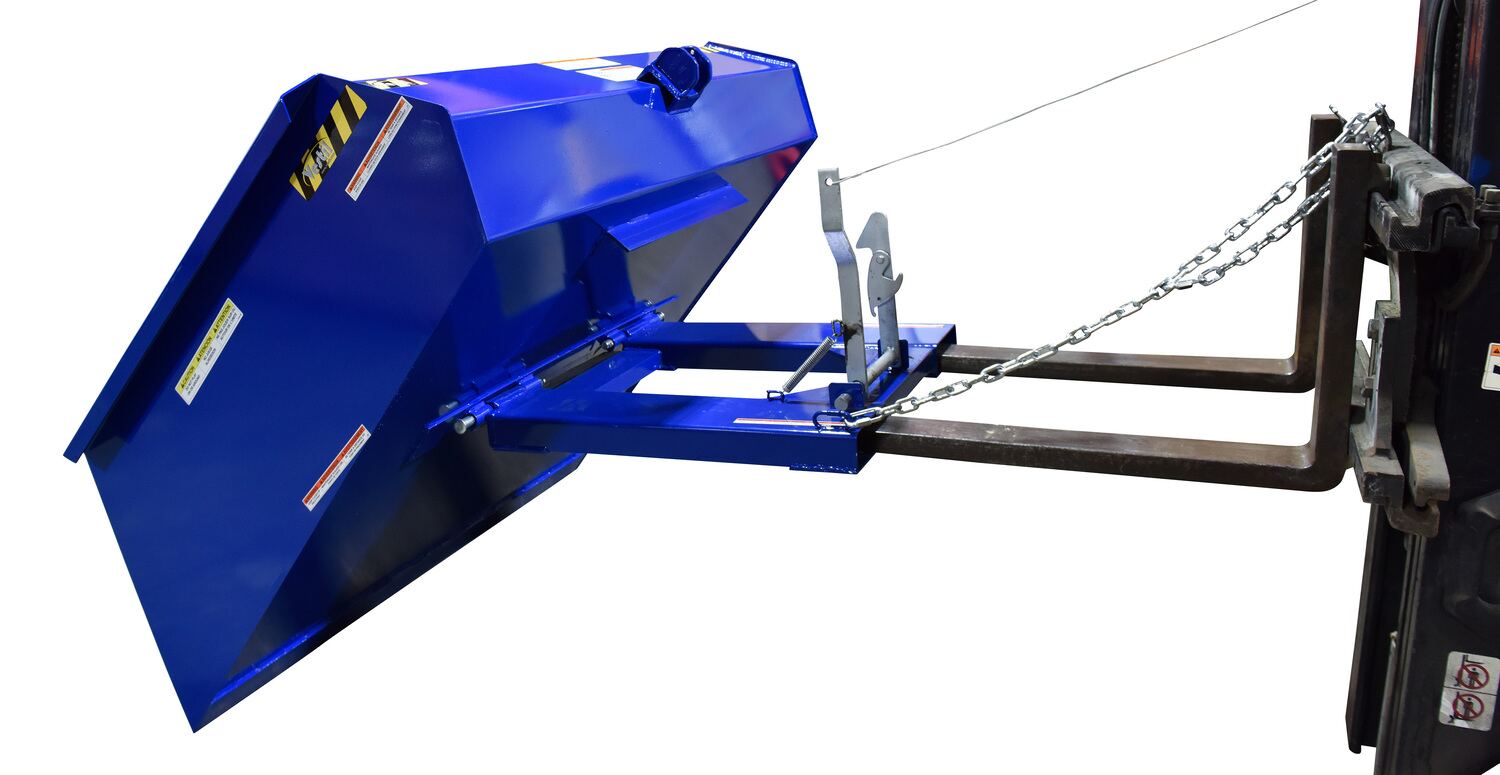

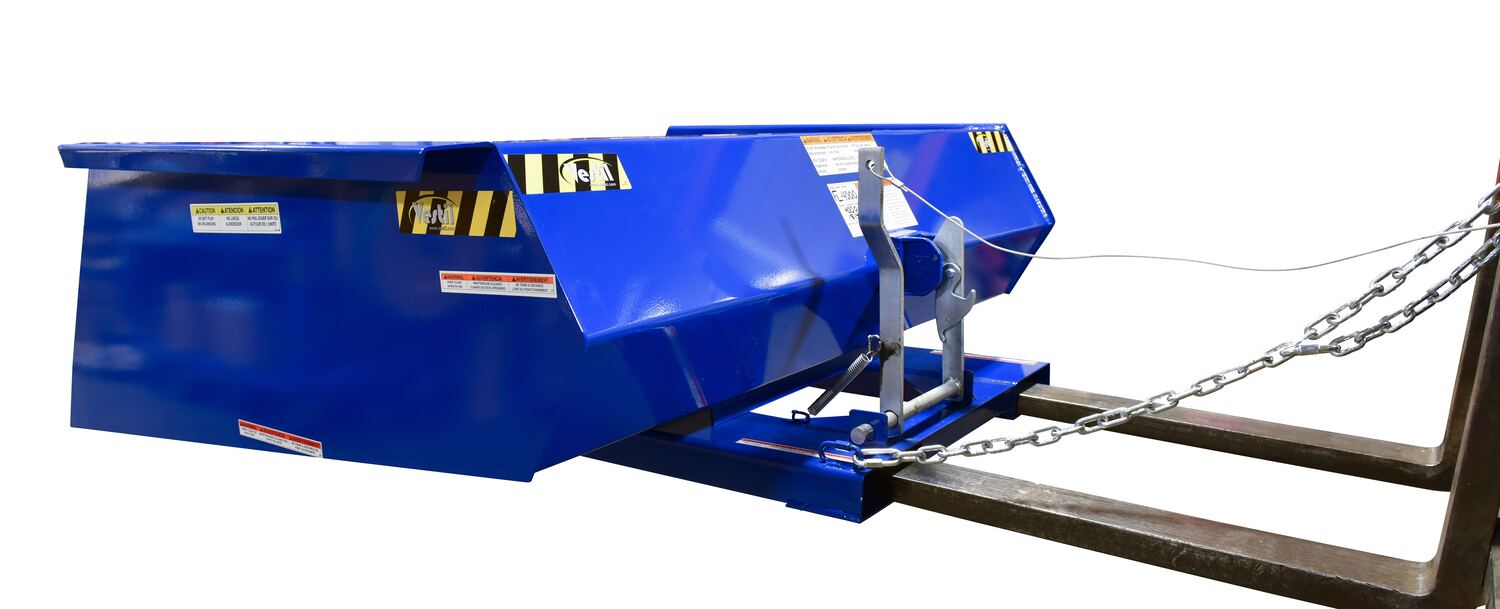

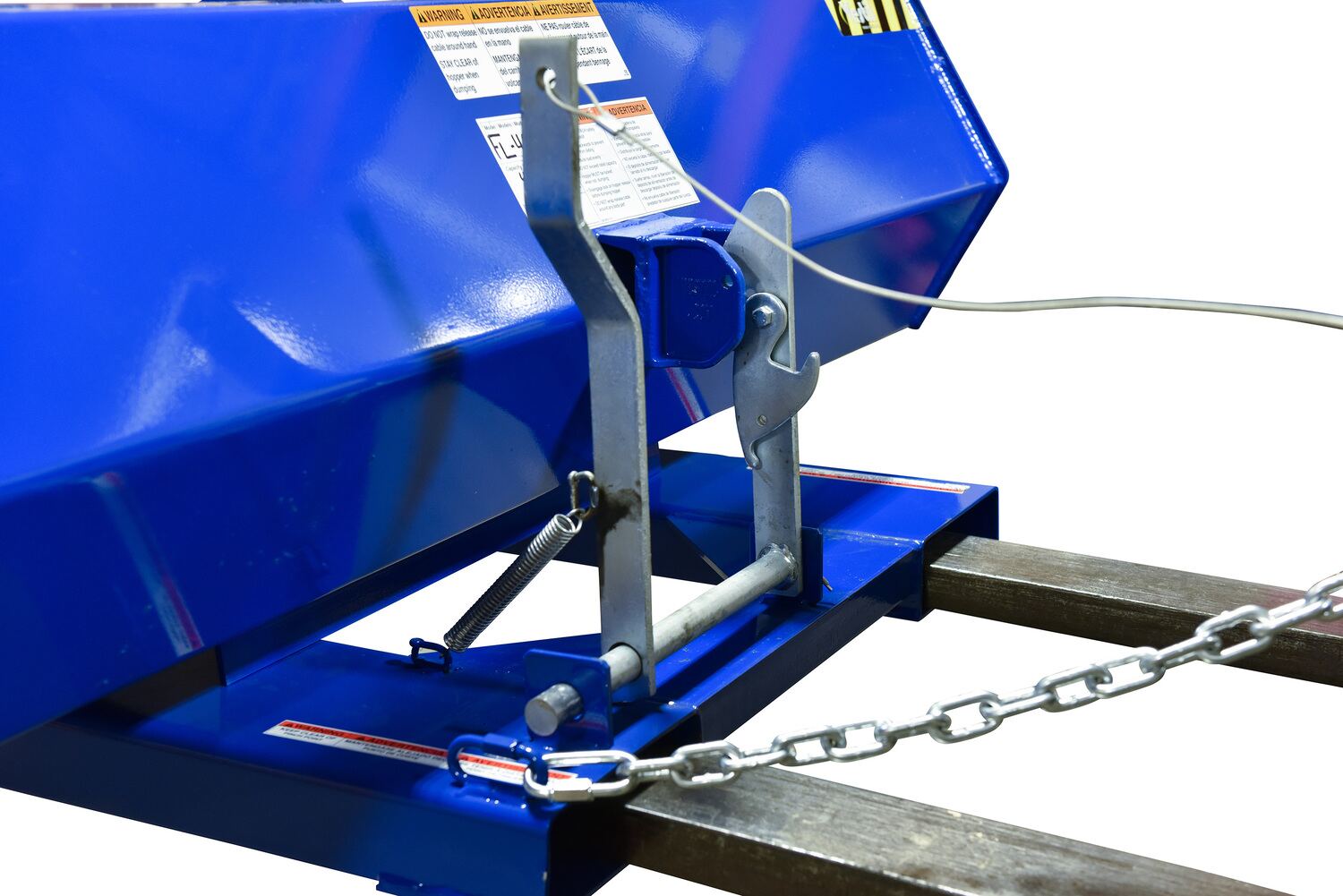

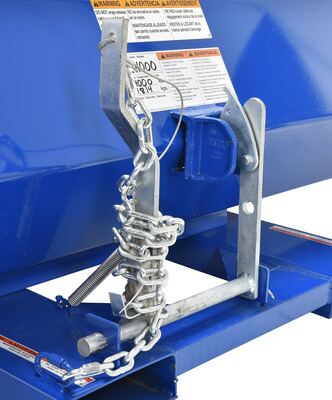

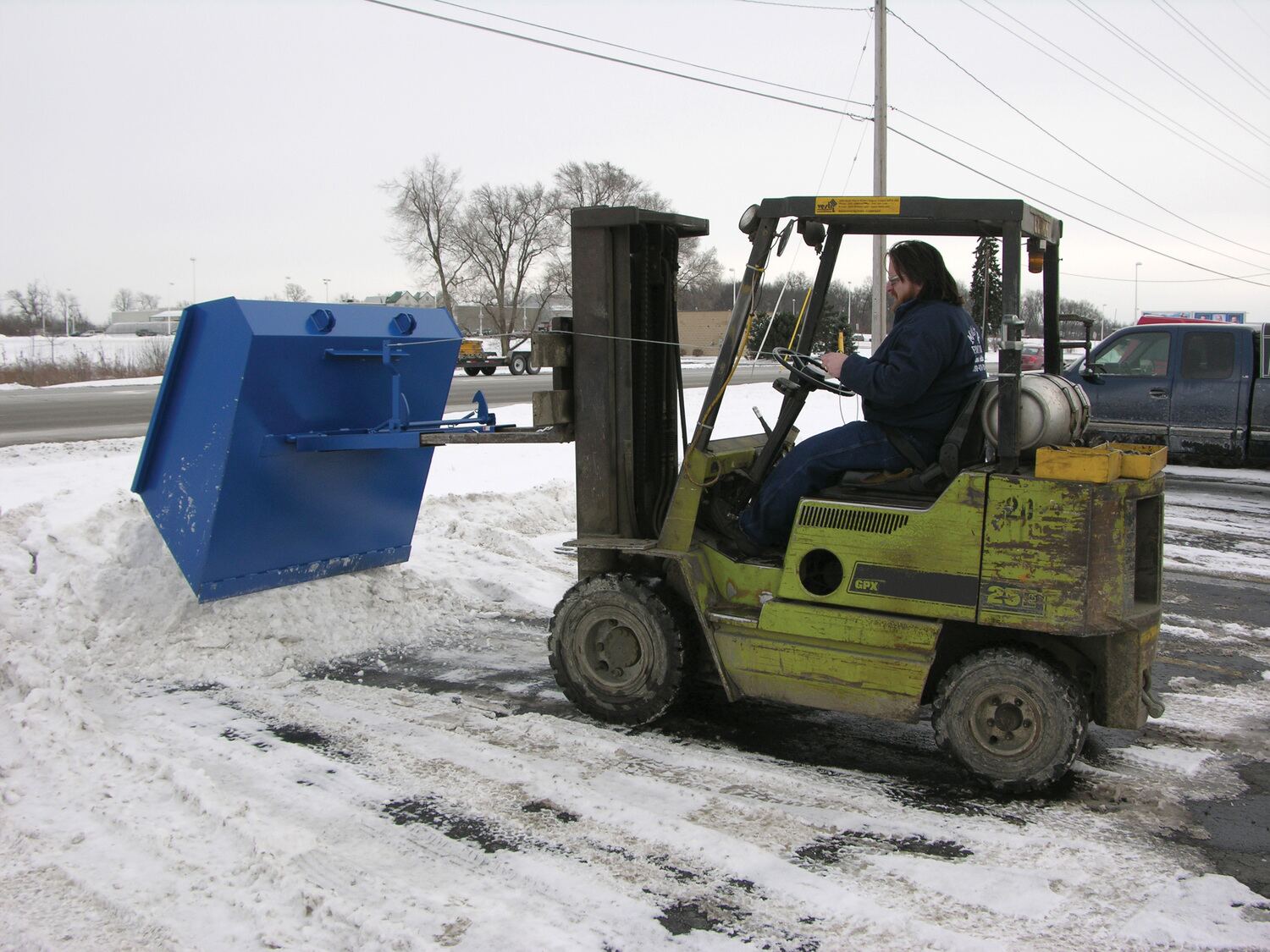

Operation: Drive into Front Loader; Secure unit to fork truck mast with safety chain; Run release cable to fork truck driver; Drive Loader into the material your transporting; Drive to destination; Raise forks and pull release to dump load; Unit returns to locked upright position when set down on ground.

  • Fork Truck attachable

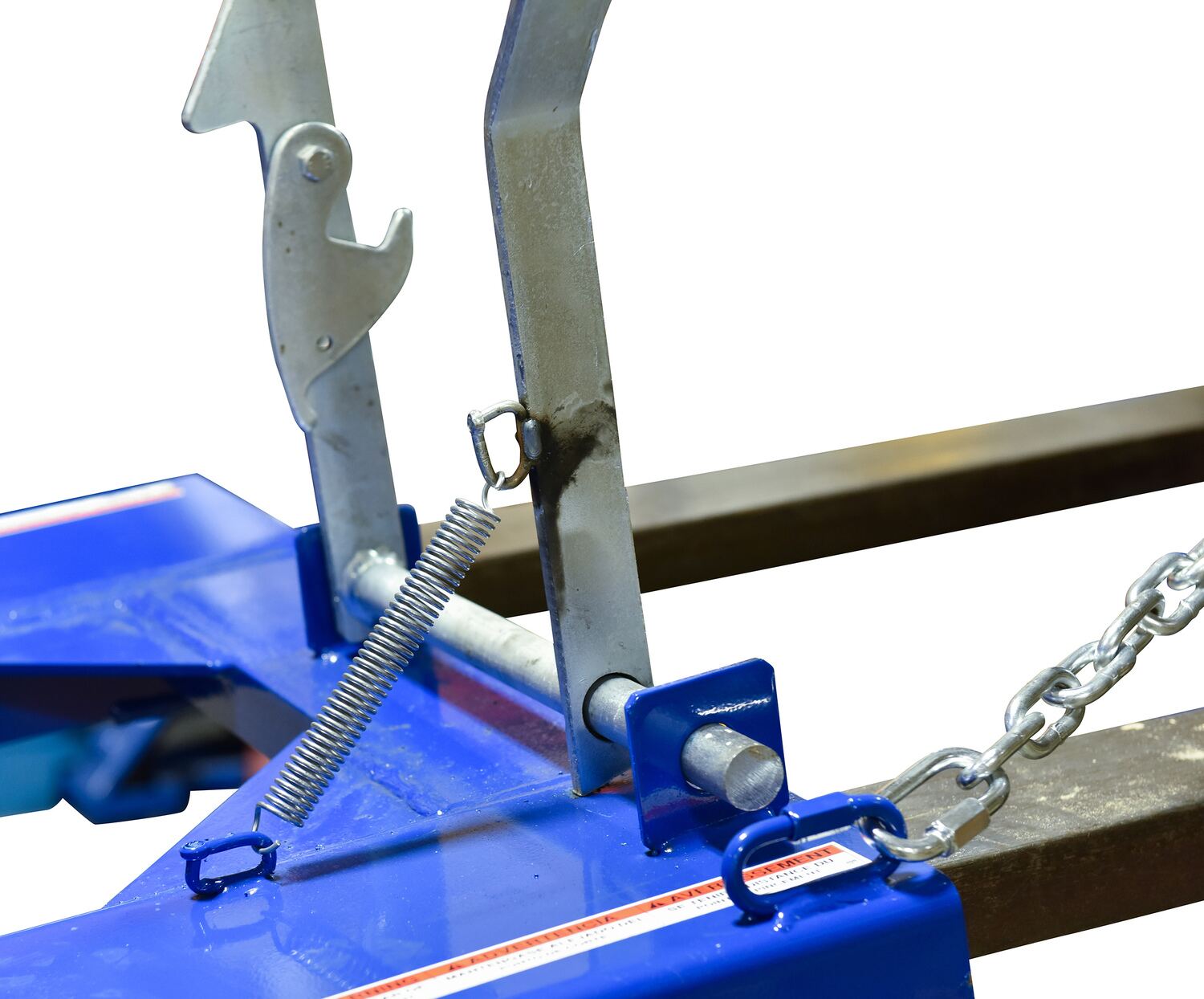

  • Trip Cord Release
  • 90 degrees Dump Angle
  • Capacity 4000 lbs.
  • Perfect for Snow, Gravel, Sand, or Refuse

The Front Loader is engineered for use with your existing fork truck. "Dust Pan" design is ideal for transporting snow, gravel, sand or refuse. Pull release cable to dump contents of scoop.. Attaches quickly and easily to most fork trucks. Beveled front edge for better scooping ability. The fork pockets measure 7-1/2"W x 2-1/2"H on 24" centers. All welded steel construction with a baked-in blue powder coat finish for toughness.

Operation: Drive into Front Loader; Secure unit to fork truck mast with safety chain; Run release cable to fork truck driver; Drive Loader into the material your transporting; Drive to destination; Raise forks and pull release to dump load; Unit returns to locked upright position when set down on ground.

  • Fork Truck attachable
  • Trip Cord Release
  • 90 degrees Dump Angle
  • Capacity 4000 lbs.
  • Perfect for Snow, Gravel, Sand, or Refuse

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
FL-4000 FL-400090 Days Limited WarrantySteel Fork Mounted Front Loader 69-3/4 In. Width 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Dump Angle (degrees): 90
530

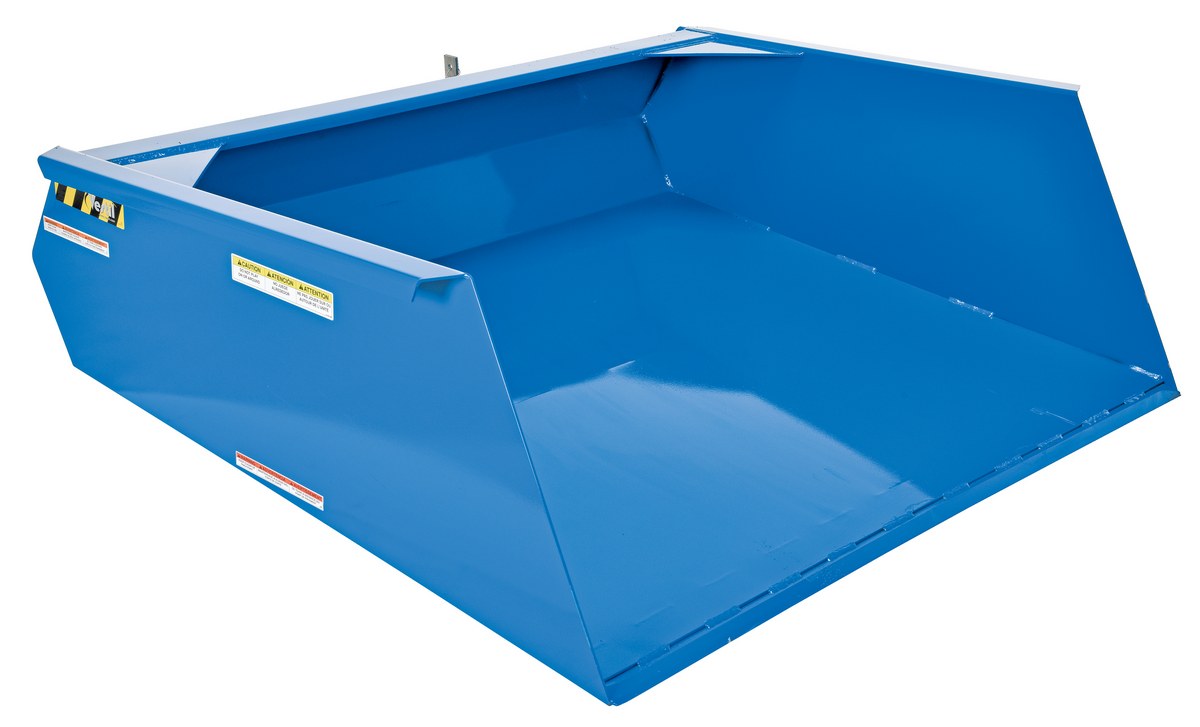

FL-4000-N FL-4000-N90 Days Limited WarrantySteel Fork Mounted Front Loader 48-1/2 In. Width 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Dump Angle (degrees): 90
427

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

FL-4000
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Dump Angle (degrees): 90
Uniform Capacity (lb.): 4,000
Dump Angle (degrees): 90

FL-4000-N
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Dump Angle (degrees): 90
Uniform Capacity (lb.): 4,000
Dump Angle (degrees): 90
For More Details of the Option Click the Red Model Button
FL-LEKP 30 Days Limited WarrantyFactory Installed Welded Leak Proof For Fork Mounted Front LoaderBrand / Model Compatibility: FL-4000-N, FL-4000

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

Fork Mounted Front Loaders PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


FL-4000

FL-4000-N

FL-LEKP

SDS Sheets

No SDS Sheets For This Product

Other PDF's


Directory Links Of Available PDF's For All Products

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Fork Mounted Front Loaders




The Front Loader is engineered for use with your existing fork truck. "Dust Pan" design is ideal for transporting snow, gravel, sand or refuse. Pull release cable to dump contents of scoop.. Attaches quickly and easily to most fork trucks. Beveled front edge for better scooping ability. The fork pockets measure 7-1/2"W x 2-1/2"H on 24" centers. All welded steel construction with a baked-in blue powder coat finish for toughness.

Operation: Drive into Front Loader; Secure unit to fork truck mast with safety chain; Run release cable to fork truck driver; Drive Loader into the material your transporting; Drive to destination; Raise forks and pull release to dump load; Unit returns to locked upright position when set down on ground.

  • Fork Truck attachable
  • Trip Cord Release
  • 90 degrees Dump Angle
  • Capacity 4000 lbs.
  • Perfect for Snow, Gravel, Sand, or Refuse


Model # Description Attributes Net Wt.
(lbs)
FL-4000 FL-4000Steel Fork Mounted Front Loader 69-3/4 In. Width 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Dump Angle (degrees): 90
530
FL-4000-N FL-4000-NSteel Fork Mounted Front Loader 48-1/2 In. Width 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Dump Angle (degrees): 90
427
