Product Family Overview


Serrated Steel Fold-Up Steps
SERIES: SFS

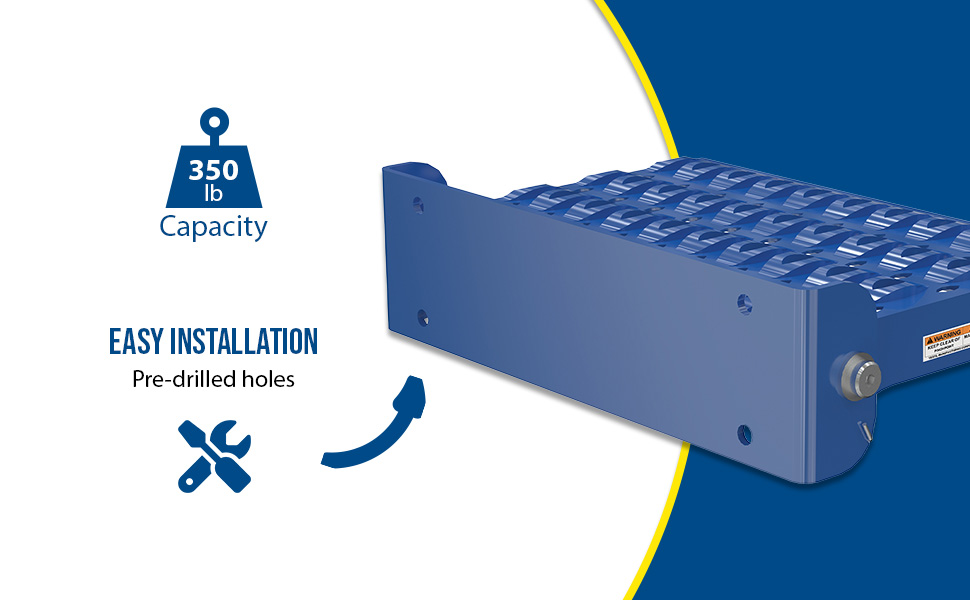

Easily rotate step to vertical position when not in use. Step is steel with powder coat blue finish and has a serrated surface for traction. Two 7/16" diameter mounting holes included. Fasteners are not included. Available in manual or spring loaded design. Baked-in powder coat blue finish for added toughness.

  • Step easily rotates to vertical position when not in use
  • Serrated steel surface provides extra traction to reduce potential slipping
  • Solid steel construction provides long lasting rugged use
  • Pre-drilled mounting holes make installation quick and easy

Easily rotate step to vertical position when not in use. Step is steel with powder coat blue finish and has a serrated surface for traction. Two 7/16" diameter mounting holes included. Fasteners are not included. Available in manual or spring loaded design. Baked-in powder coat blue finish for added toughness.

  • Step easily rotates to vertical position when not in use
  • Serrated steel surface provides extra traction to reduce potential slipping
  • Solid steel construction provides long lasting rugged use
  • Pre-drilled mounting holes make installation quick and easy

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

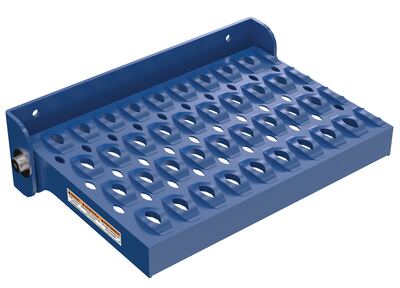

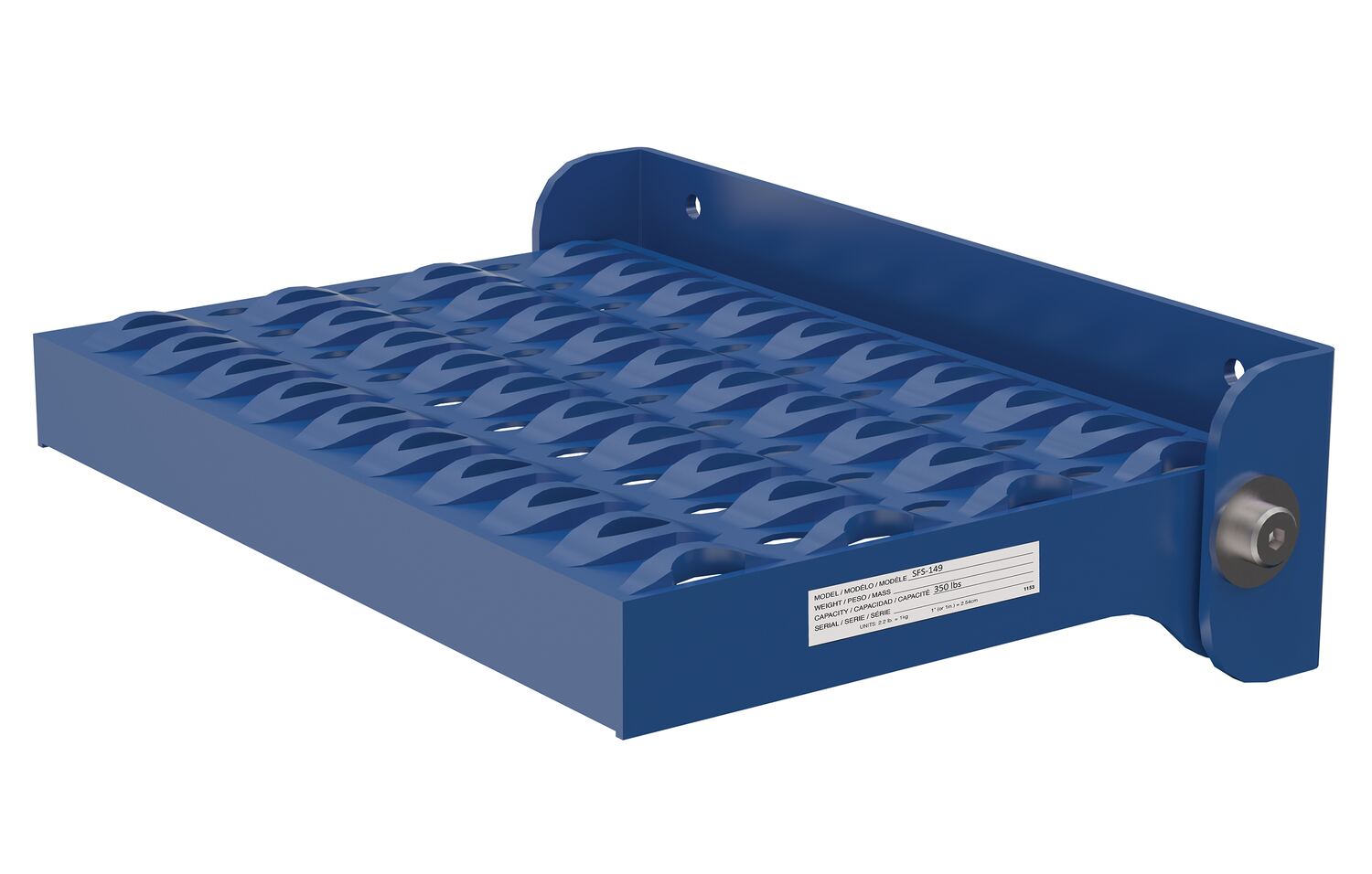

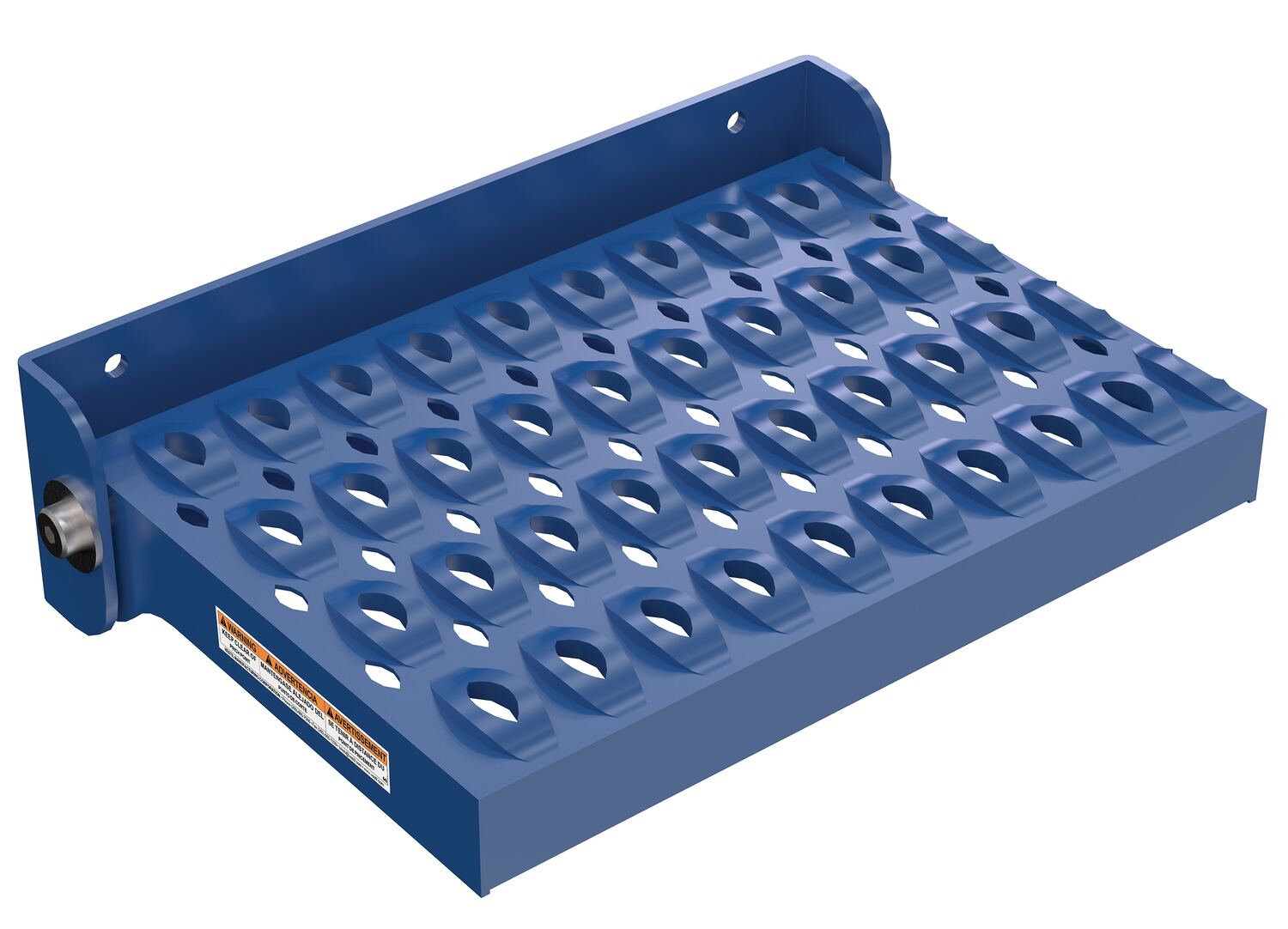

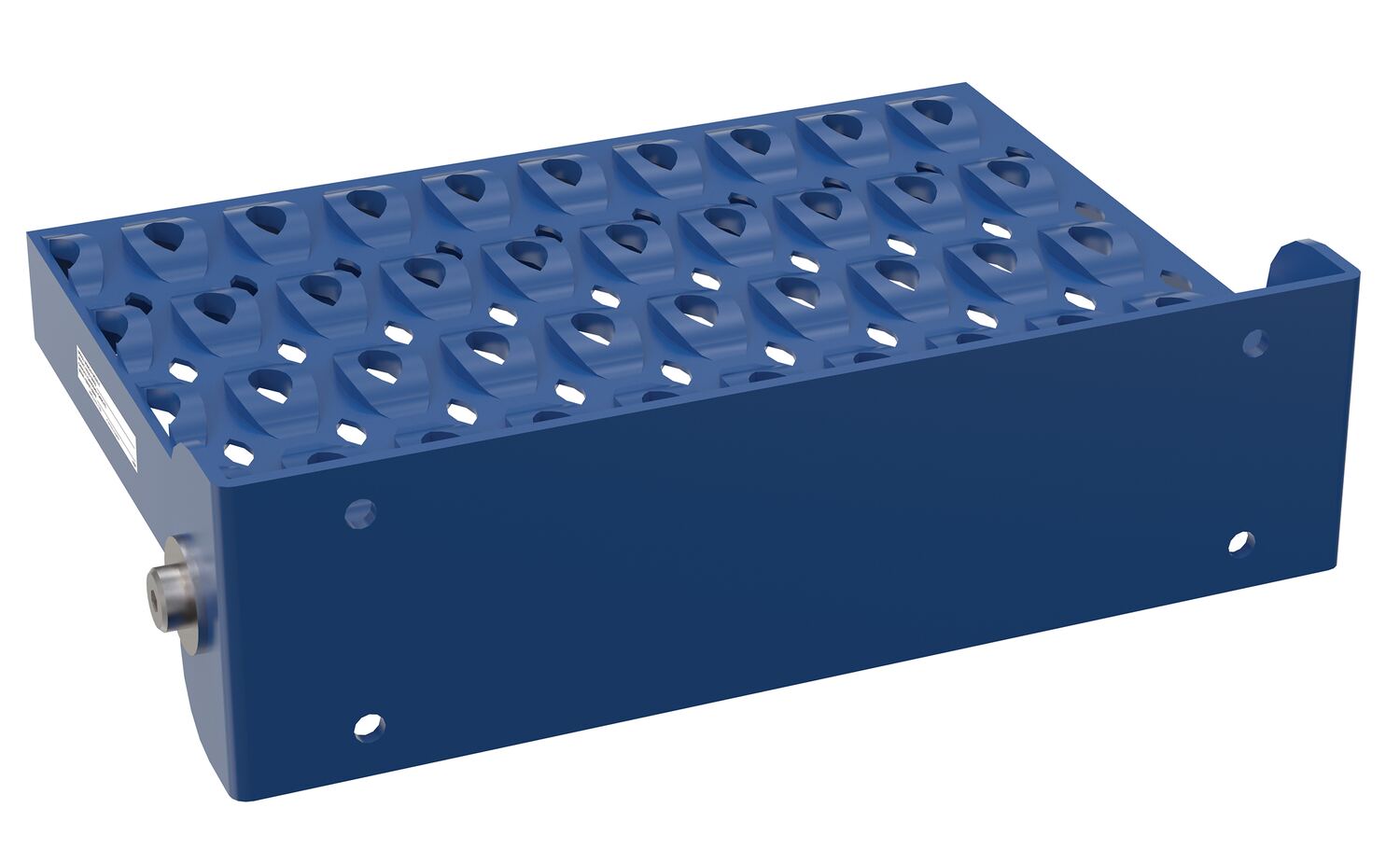

SFS-149 SFS-14930 Days Limited WarrantySteel Serrated Fold Up Step Manual 10-1/4 In. x 14-11/16 In. x 4 In. 350 Lb. Capacity BlueUniform Capacity (lb.): 350
Step Width (in.): 13-11/16
11

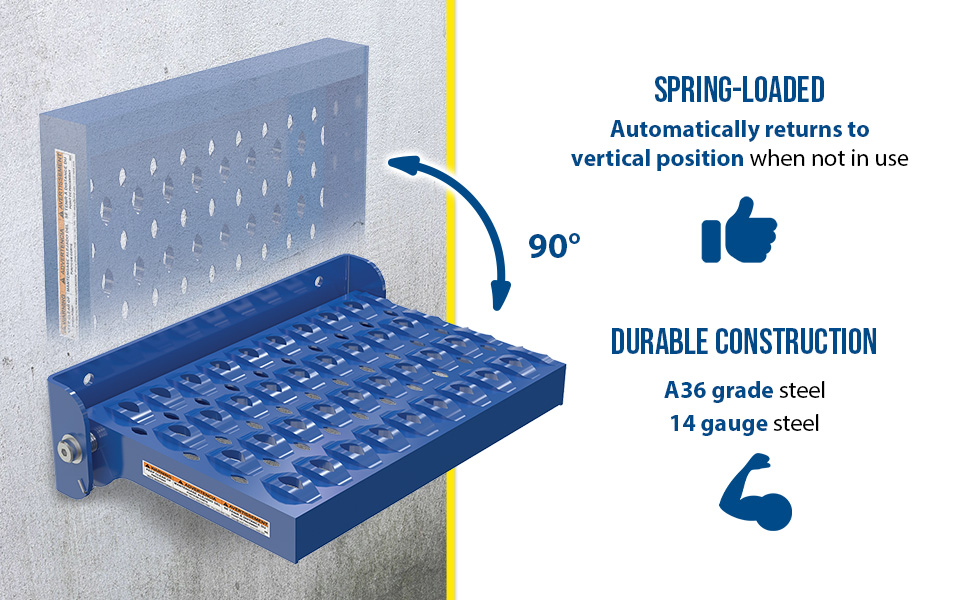

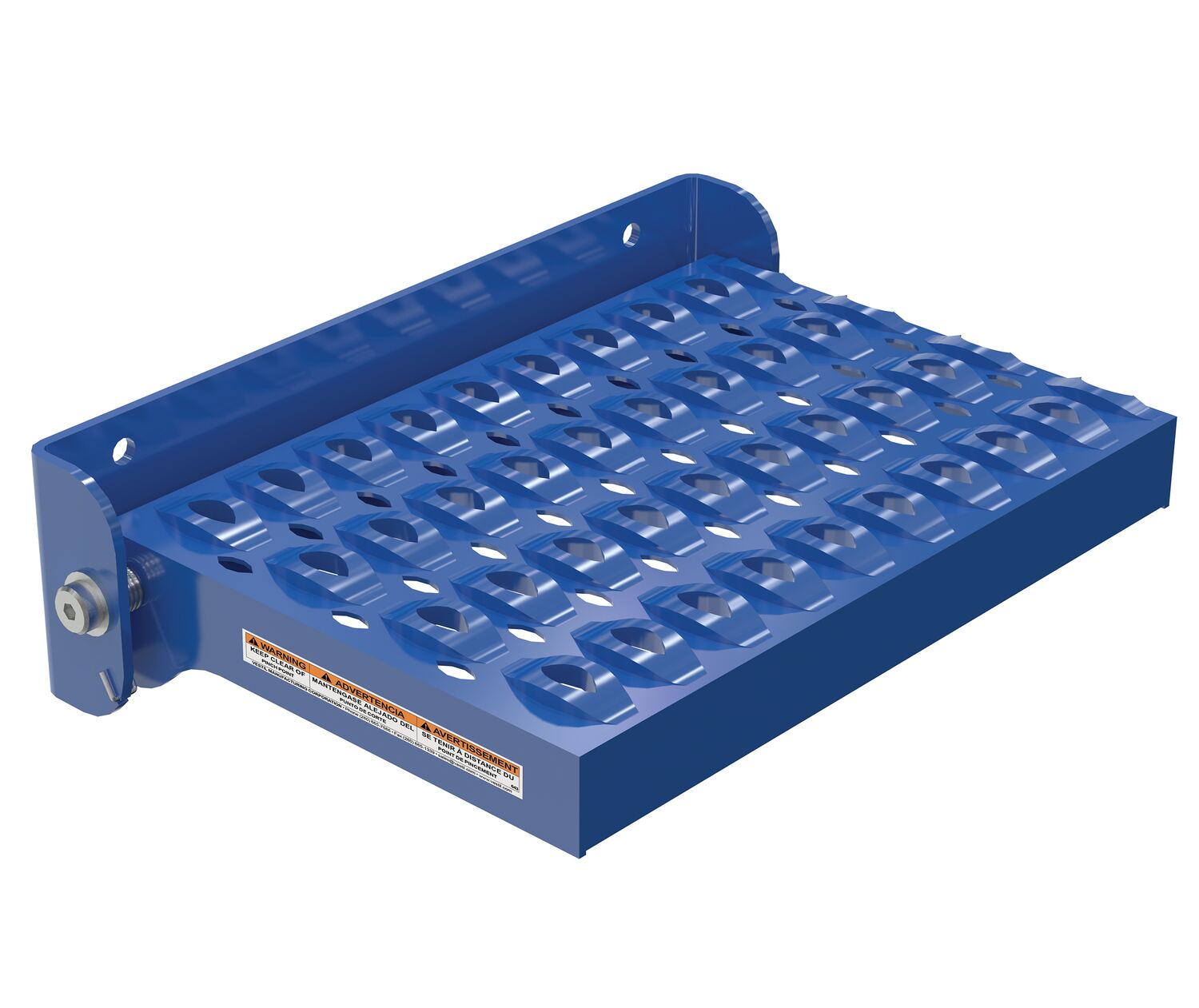

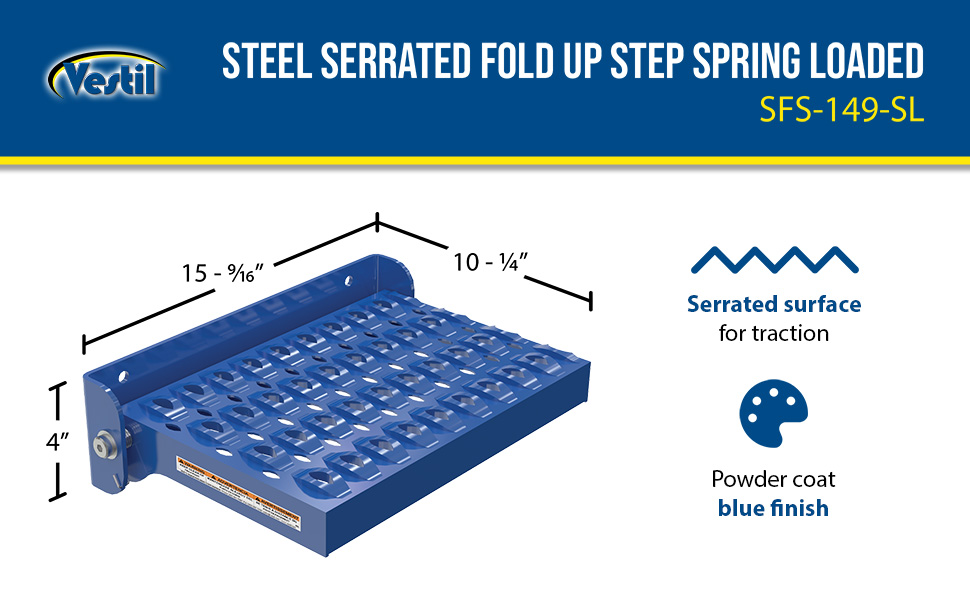

SFS-149-SL SFS-149-SL30 Days Limited WarrantySteel Serrated Fold Up Step Spring Loaded 10-1/4 In. x 15-3/4 In. x 4 In. 350 Lb. Capacity BlueUniform Capacity (lb.): 350
Step Width (in.): 13-11/16
11

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

SFS-149
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 350
Step Width (in.): 13-11/16
Uniform Capacity (lb.): 350
Step Width (in.): 13-11/16

SFS-149-SL
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 350
Step Width (in.): 13-11/16
Uniform Capacity (lb.): 350
Step Width (in.): 13-11/16

Serrated Steel Fold-Up Steps PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


SFS-149

SFS-149-SL

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products


Q: What is the grade of steel used in SFS-149-SL?

A: Steel A36
