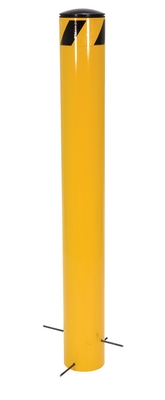

model: BOLPP-36-5.5

Featured Protective Barriers

PVC Edge Guards

Protective Dome Covers for Bollards

Stainless Steel Corner Guards

Manhole Guard Rail

Rounded Rack Guards

Bollard/Post Covers

Aluminum Safety Railings

Galvanized Door Scissor Gates

Steel Safety Railings

model chart

Product Family Overview

Print Friendly

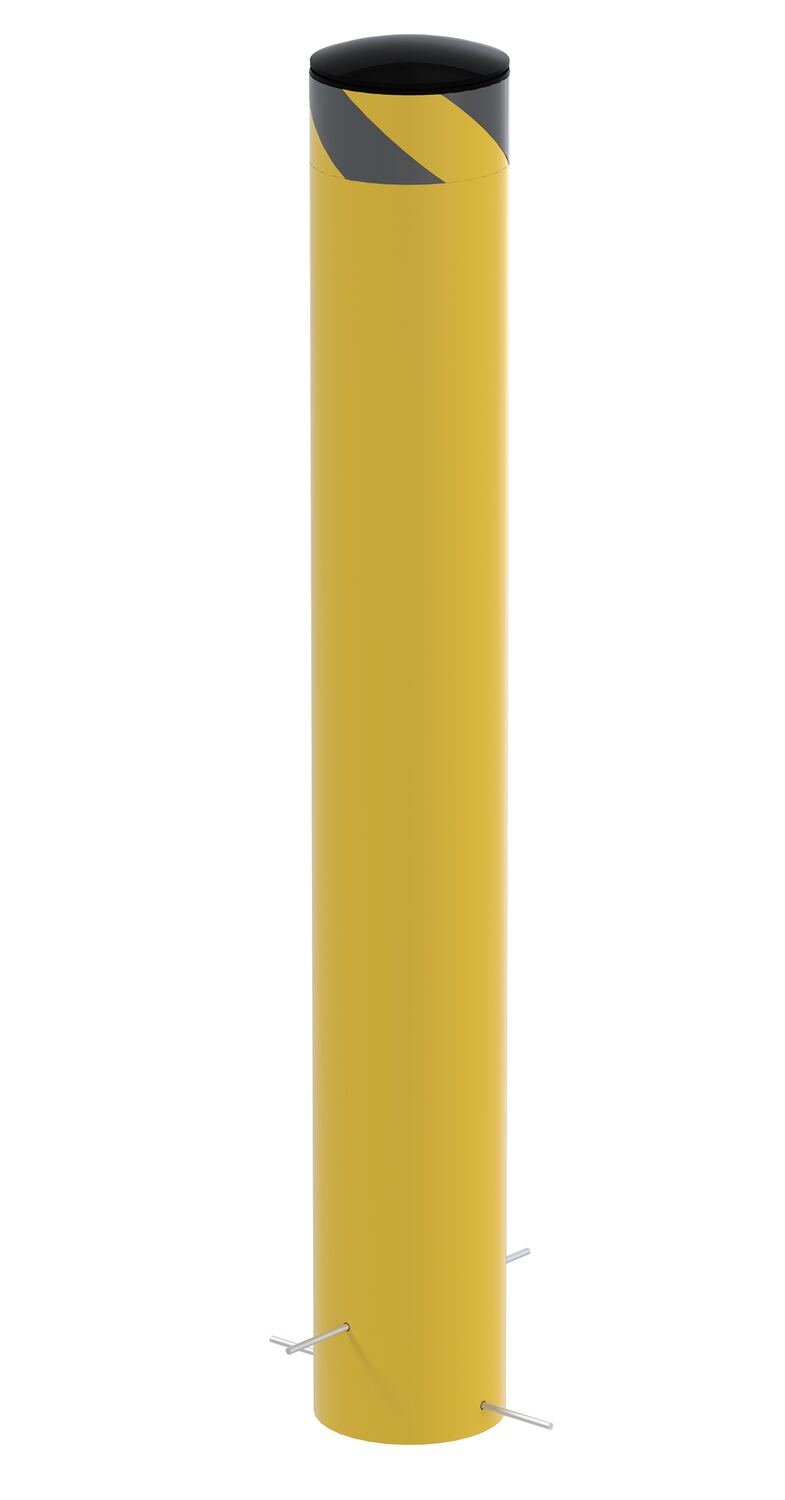

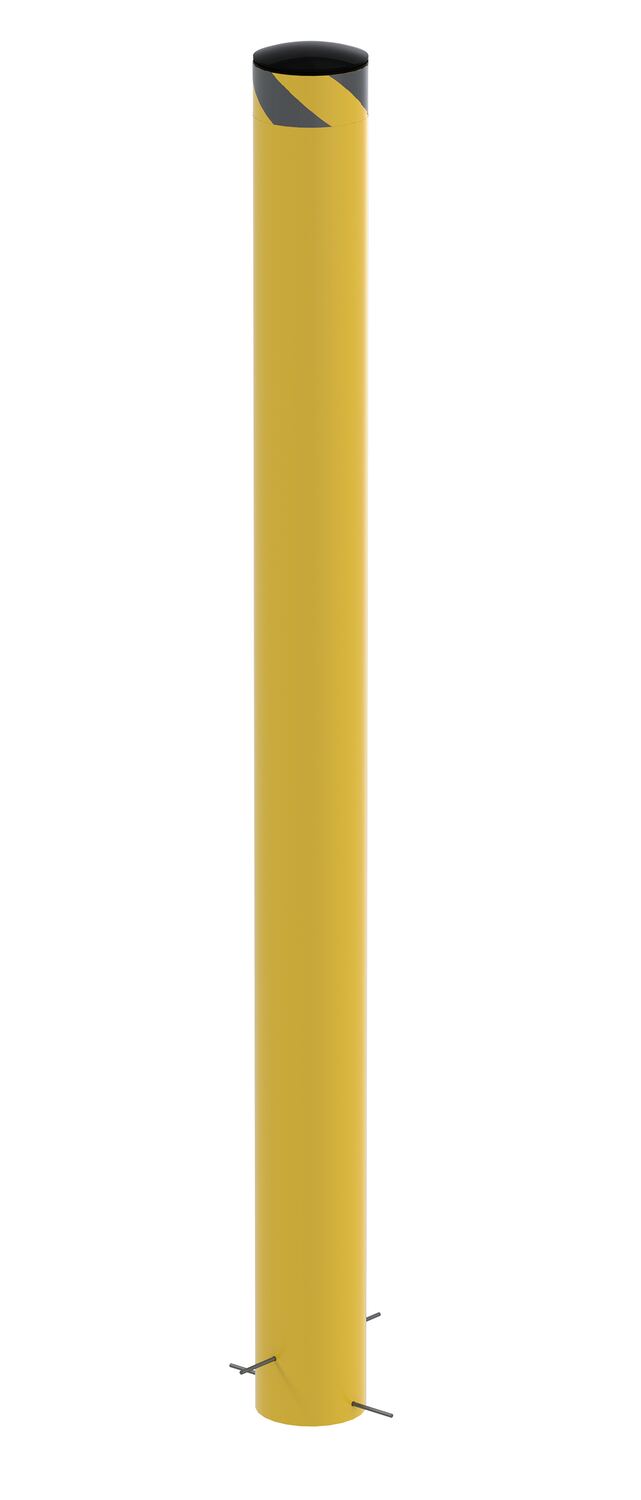

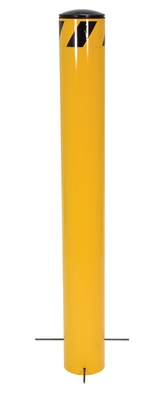

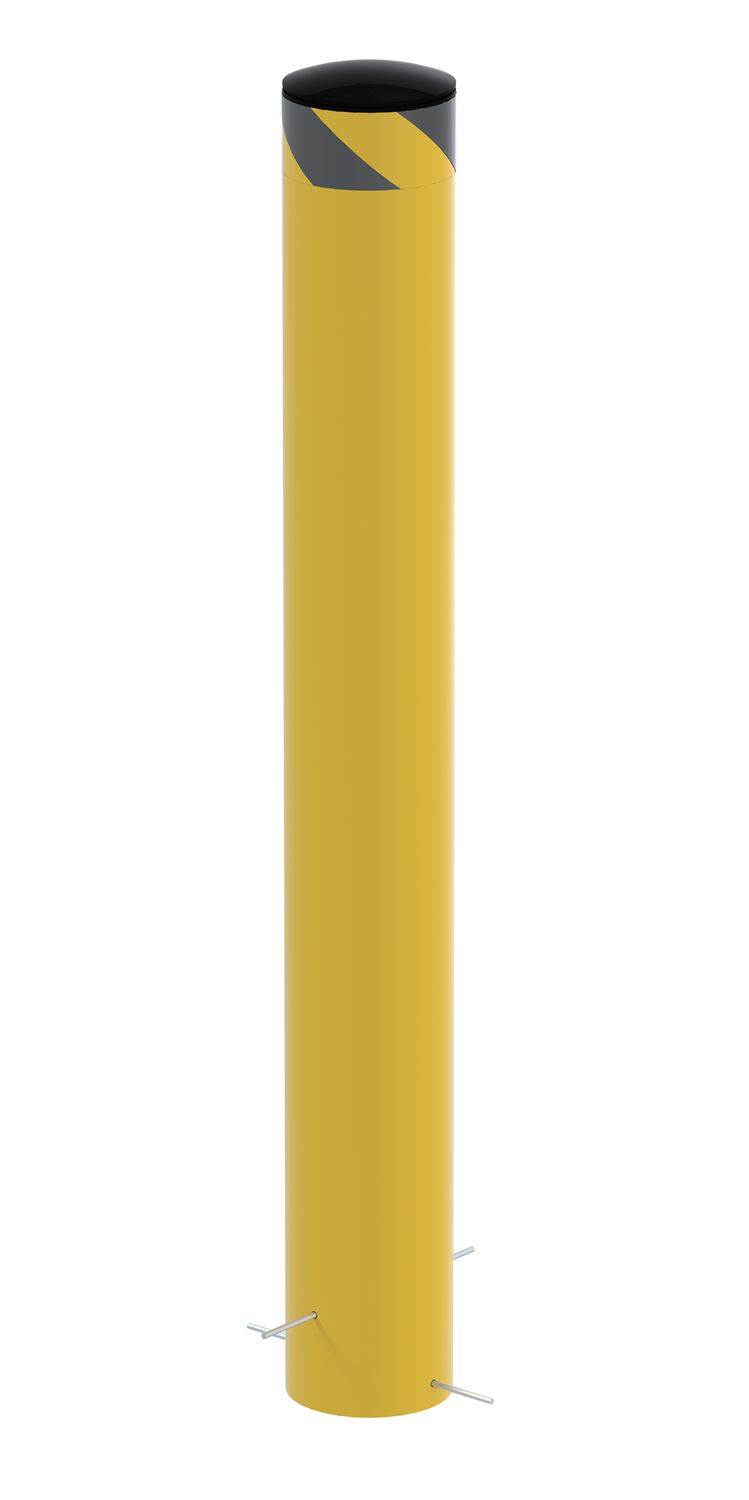

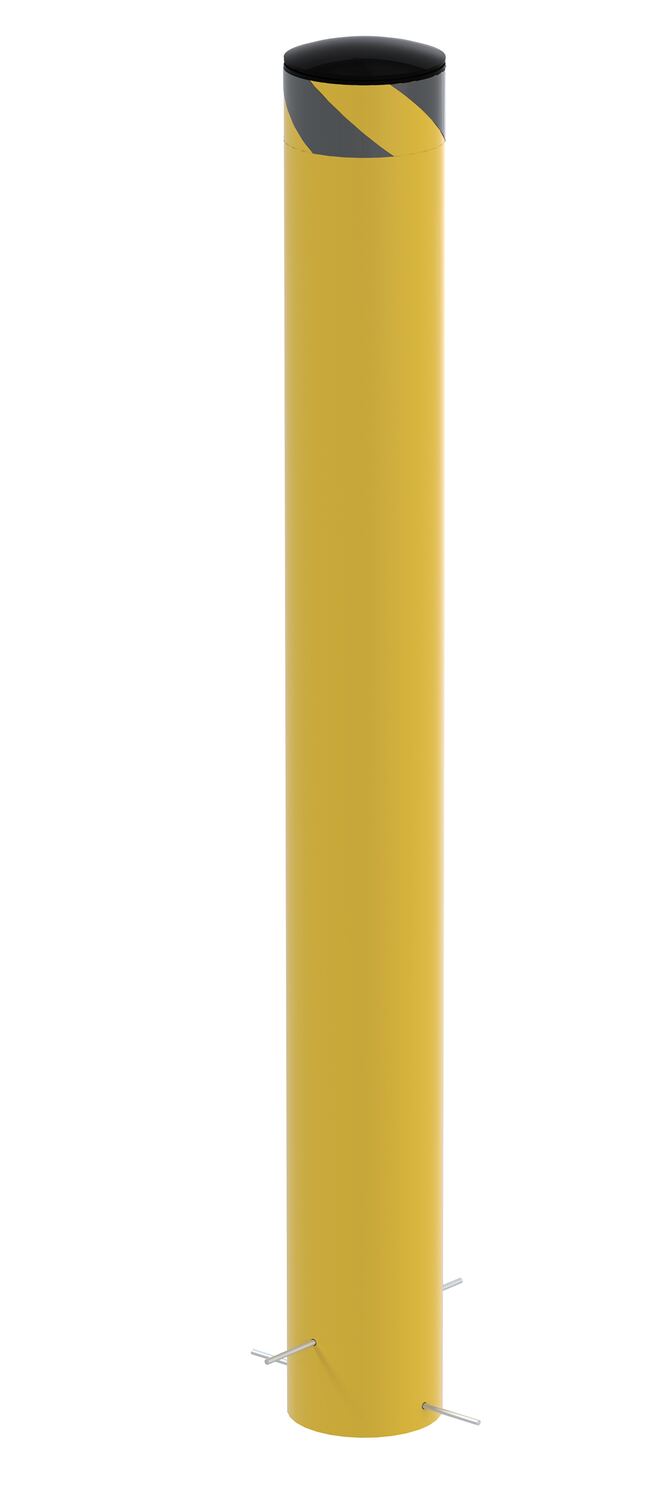

Pour In Place Bollards

SERIES: BOLPP

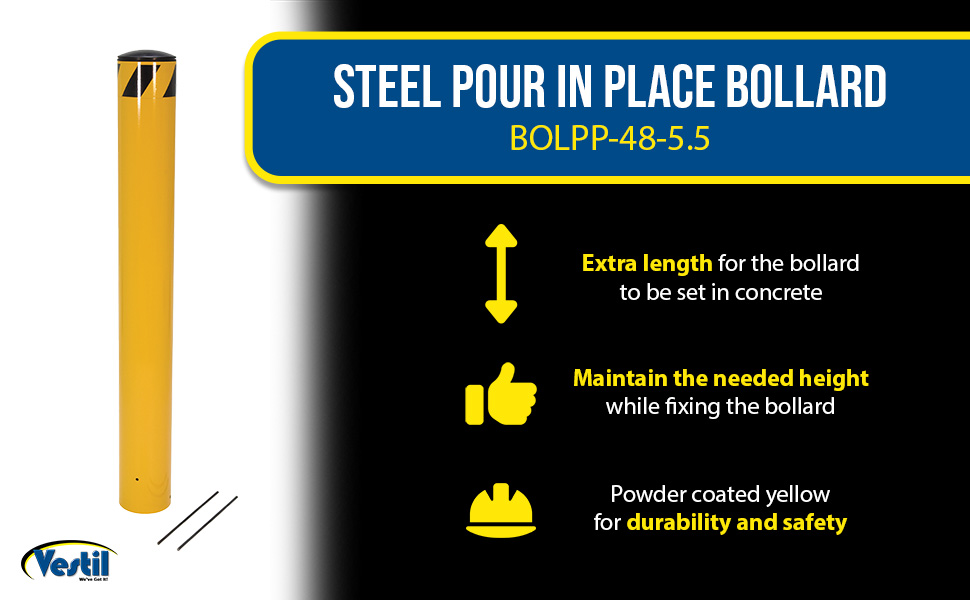

Make your bollards permanent by setting them in concrete. The extra length of the Pour in Place Bollard allows you to maintain the needed height while fixing the bollard in concrete. Bollard comes with slide through lag anchors and a removable cap (except models with outside diameter of 6-5/8" are open-topped, no cap) so the bollard can be filled with concrete to increase its strength and durability. Baked-in powder-coated or hot dipped galvanized finish for added toughness. Assembly required.

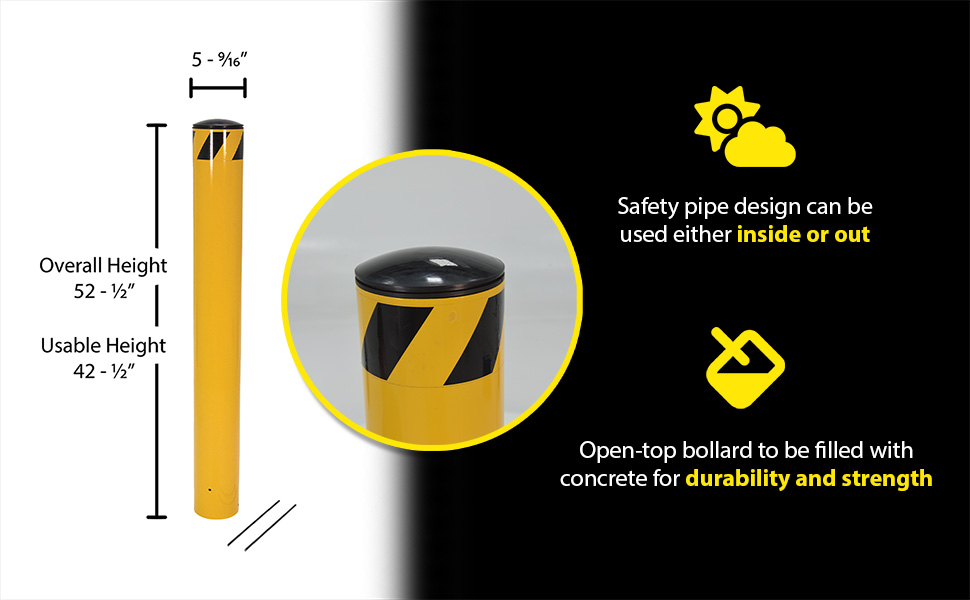

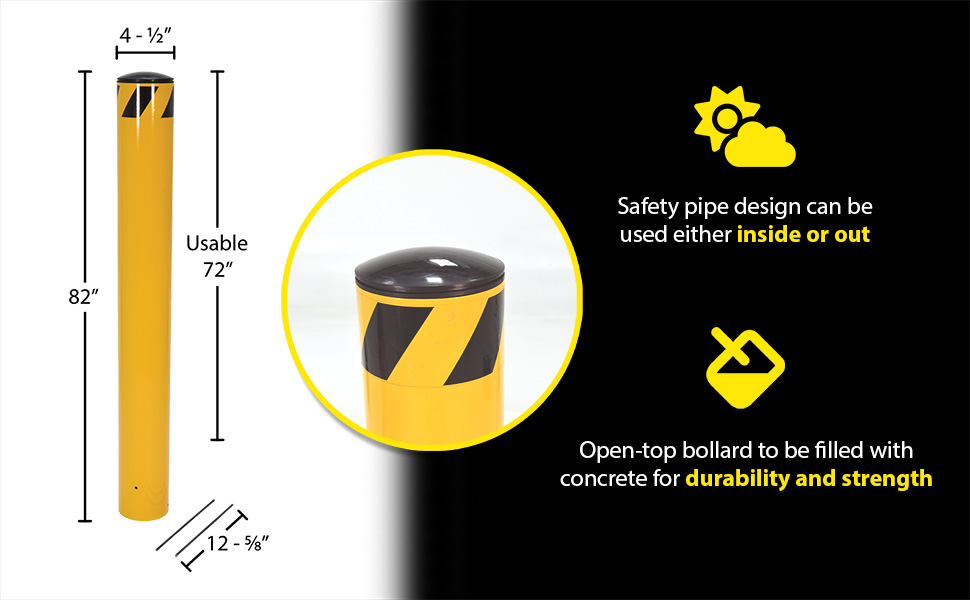

Safety pipe design can be used either inside or out
Powder coat safety yellow or Galvanized finish offers an attractive long lasting look
Heavy-duty steel construction provides long lasting protection

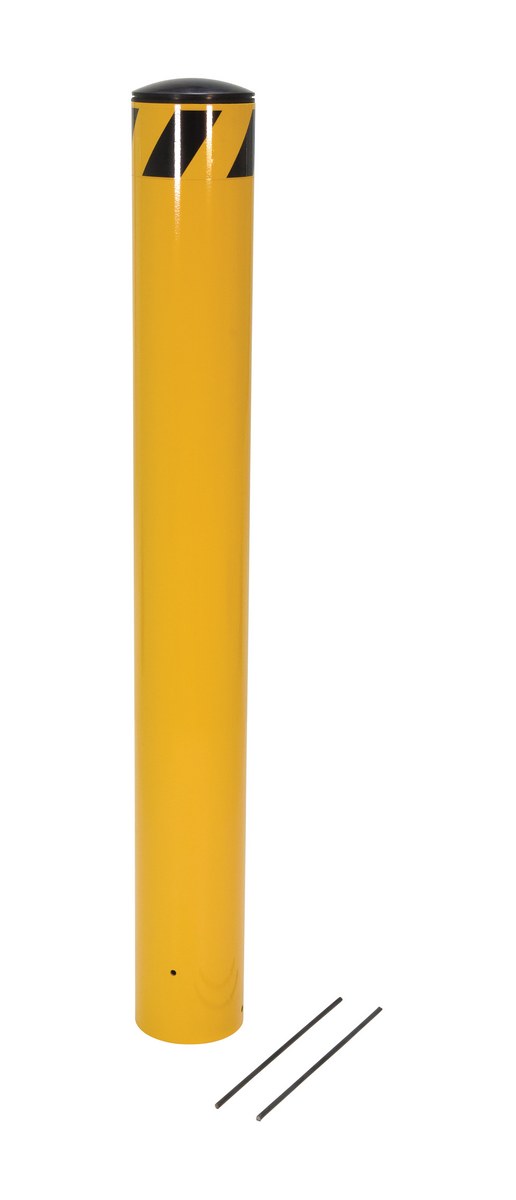

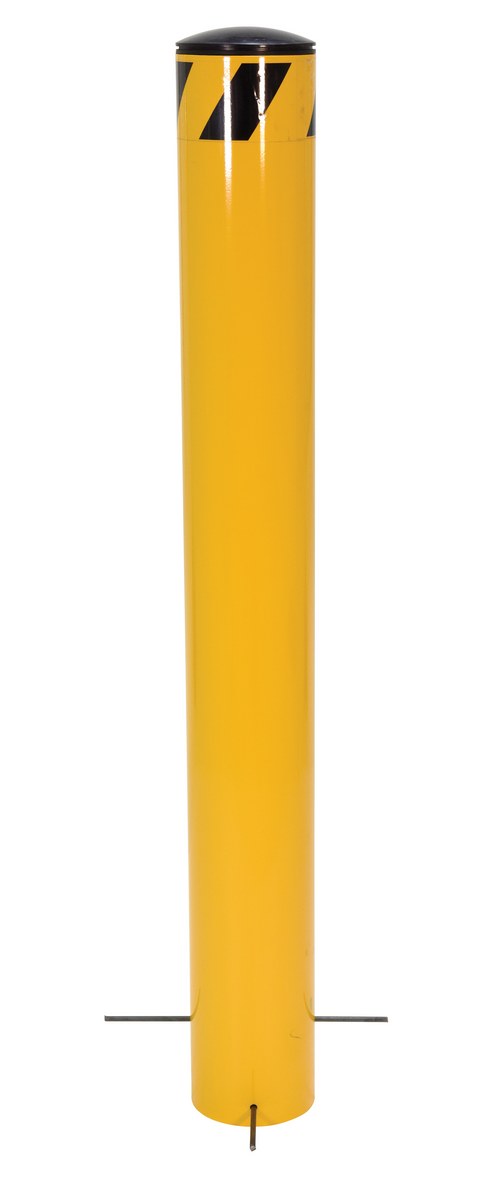

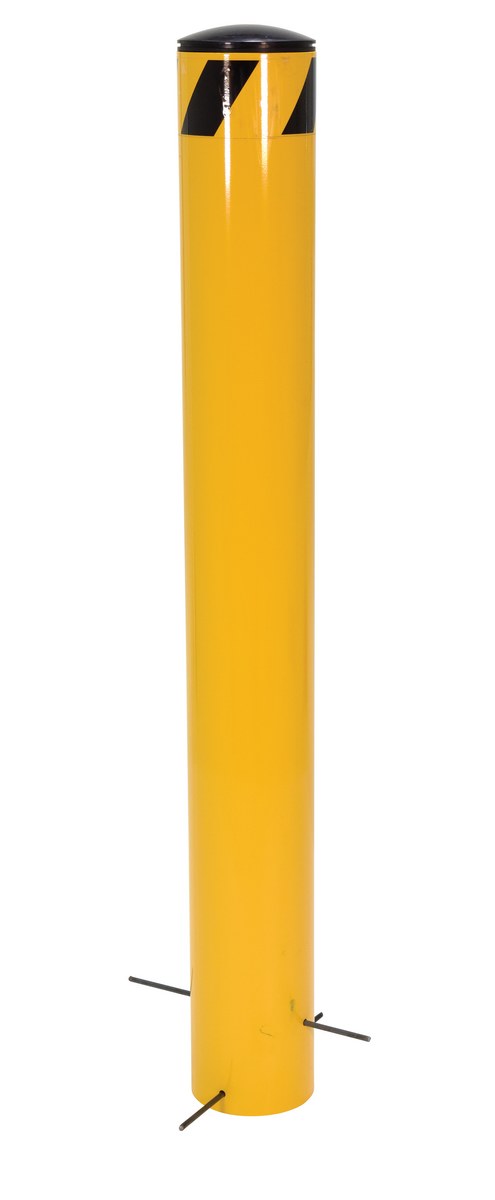

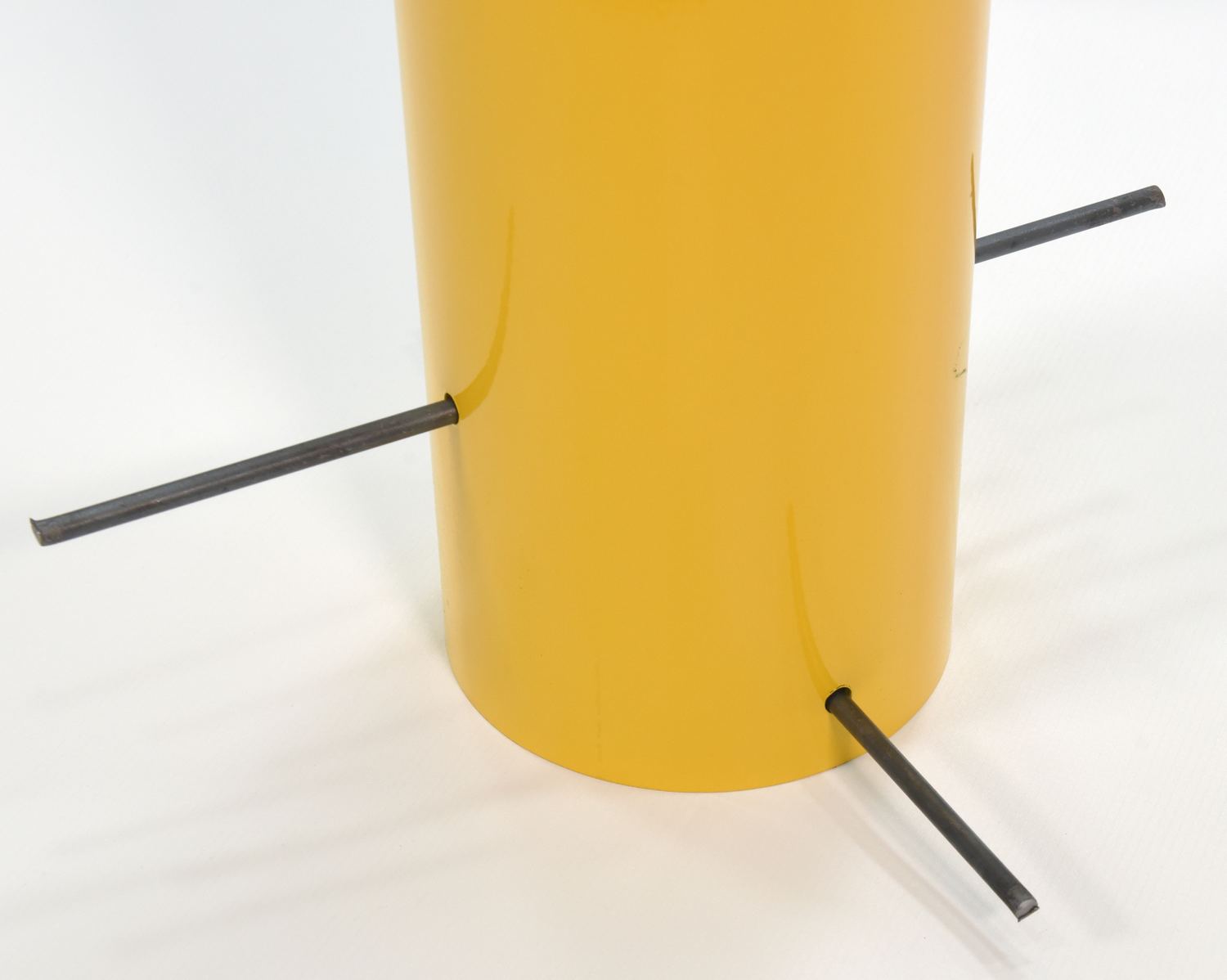

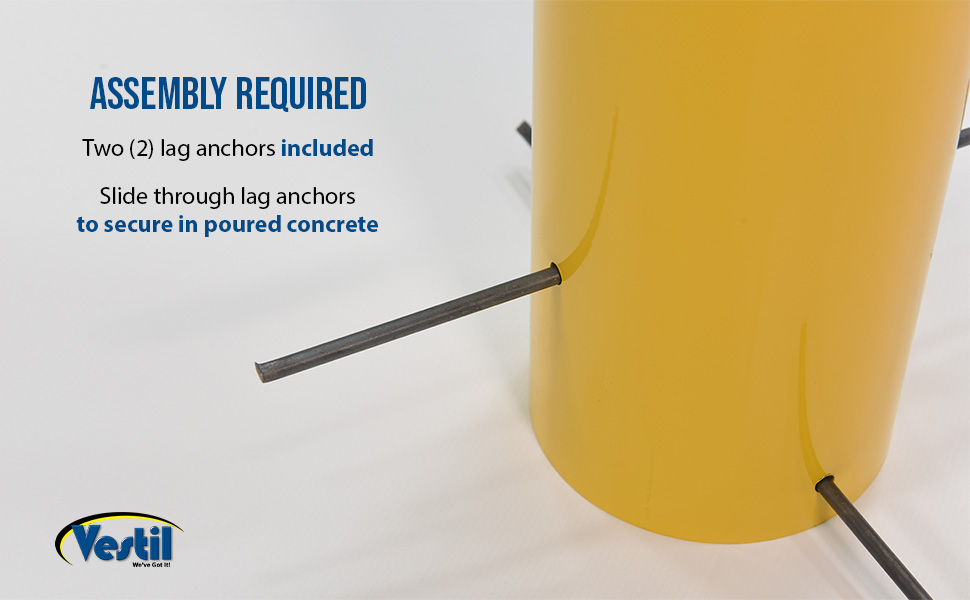

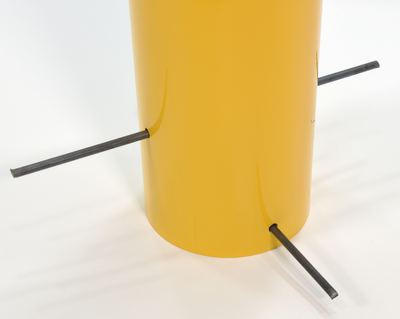

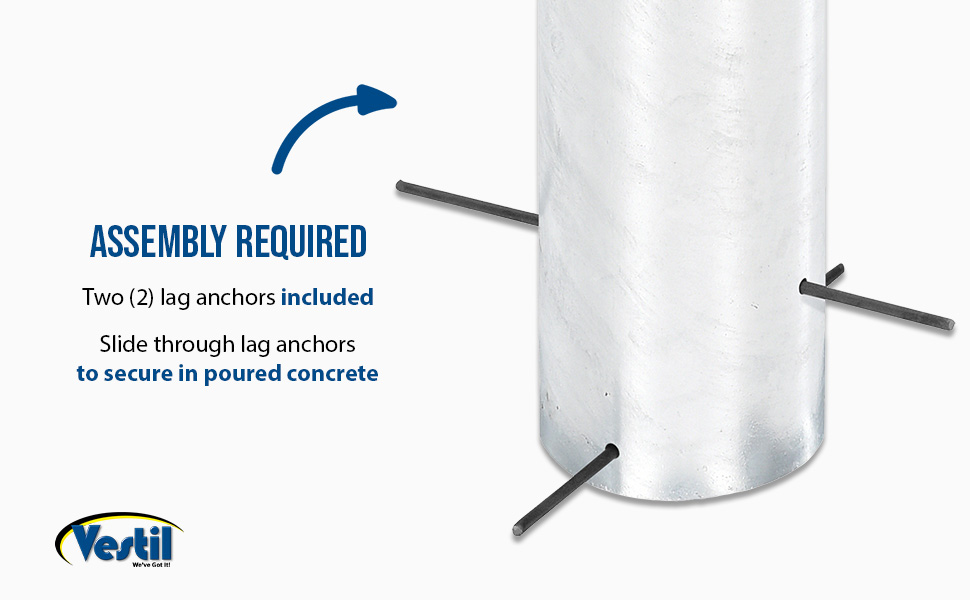

Slide through lag anchors secure bollard in poured concrete

Safety pipe design can be used either inside or out
Powder coat safety yellow or Galvanized finish offers an attractive long lasting look
Heavy-duty steel construction provides long lasting protection
Slide through lag anchors secure bollard in poured concrete

Other Bollards

Chain In A Variety Of Colors

Bollard Chain Caps

Chain & Attachments for Bollards

Energy Absorbing Mat (for Bollards)

Follow @vestilmfg

Additional Models In This Family
view entire Image Gallery

model BOLPP-48-5.5-HDG

model BOLPP-62-4.5-HDG

model chart

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.

Model #		Description	Attributes	Net Wt. (lbs)
BOLPP-24-4.5	90 Days Limited Warranty	Steel Pour In Place Bollard 24 In. x 4-1/2 In. Yellow	Usable Height (in.): 25 Outside Diameter (in.): 4-1/2	19

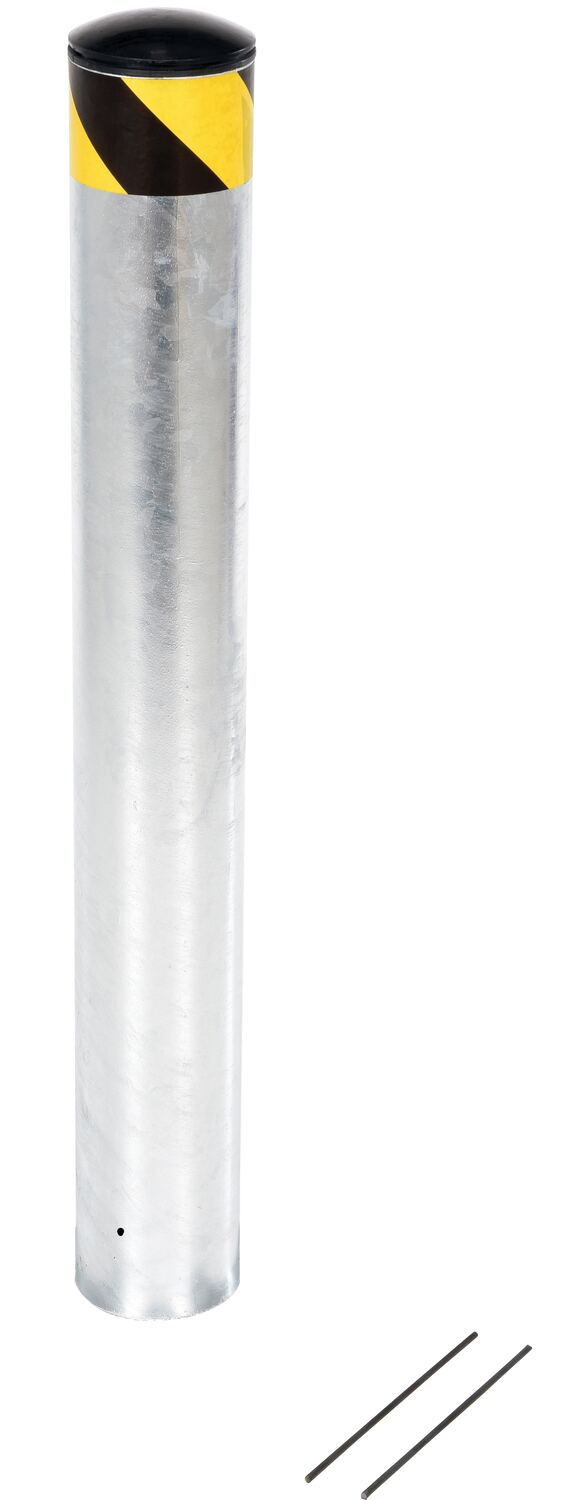

BOLPP-24-4.5-HDG	90 Days Limited Warranty	Galvanized Steel Pour In Place Bollard 24 In. x 4-1/2 In. Gray	Usable Height (in.): 25 Outside Diameter (in.): 4-1/2	22
BOLPP-24-5.5	90 Days Limited Warranty	Steel Pour In Place Bollard 24 In. x 5-1/2 In. Yellow	Usable Height (in.): 25 Outside Diameter (in.): 5-9/16	25
BOLPP-24-5.5-HDG	90 Days Limited Warranty	Galvanized Steel Pour In Place Bollard 24 In. x 5-1/2 In. Gray	Usable Height (in.): 25 Outside Diameter (in.): 5-9/16	28
BOLPP-24-6.5	90 Days Limited Warranty	Steel Pour In Place Bollard 24 In. x 6-1/2 In. Yellow	Usable Height (in.): 25 Outside Diameter (in.): 6-5/8	30
BOLPP-24-6.5-HDG	90 Days Limited Warranty	Galvanized Steel Pour In Place Bollard 24 In. x 6-1/2 In. Gray	Usable Height (in.): 25 Outside Diameter (in.): 6-5/8	33
BOLPP-36-4.5	90 Days Limited Warranty	Steel Pour In Place Bollard 36 In. x 4-1/2 In. Yellow	Usable Height (in.): 36-1/2 Outside Diameter (in.): 4-1/2	31
BOLPP-36-4.5-HDG	90 Days Limited Warranty	Galvanized Steel Pour In Place Bollard 36 In. x 4-1/2 In. Gray	Usable Height (in.): 36-1/2 Outside Diameter (in.): 4-1/2	27
BOLPP-36-5.5	90 Days Limited Warranty	Steel Pour In Place Bollard 36 In. x 5-1/2 In. Yellow	Usable Height (in.): 36-1/2 Outside Diameter (in.): 5-9/16	32
BOLPP-36-5.5-HDG	90 Days Limited Warranty	Galvanized Steel Pour In Place Bollard 36 In. x 5-1/2 In. Gray	Usable Height (in.): 36-1/2 Outside Diameter (in.): 5-9/16	35
BOLPP-36-6.5	90 Days Limited Warranty	Steel Pour In Place Bollard 36 In. x 6-1/2 In. Yellow	Usable Height (in.): 36-1/2 Outside Diameter (in.): 6-5/8	39
BOLPP-36-6.5-HDG	90 Days Limited Warranty	Galvanized Steel Pour In Place Bollard 36 In. x 6-1/2 In. Gray	Usable Height (in.): 36-1/2 Outside Diameter (in.): 6-5/8	42
BOLPP-42-4.5	90 Days Limited Warranty	Steel Pour In Place Bollard 42 In. x 4-1/2 In. Yellow	Usable Height (in.): 42-1/2 Outside Diameter (in.): 4-1/2	35
BOLPP-42-4.5-HDG	90 Days Limited Warranty	Galvanized Steel Pour In Place Bollard 42 In. x 4-1/2 In. Gray	Usable Height (in.): 42-1/2 Outside Diameter (in.): 4-1/2	30
BOLPP-42-5.5	90 Days Limited Warranty	Steel Pour In Place Bollard 42 In. x 5-1/2 In. Yellow	Usable Height (in.): 42-1/2 Outside Diameter (in.): 5-9/16	37
BOLPP-42-5.5-HDG	90 Days Limited Warranty	Galvanized Steel Pour In Place Bollard 42 In. x 5-1/2 In. Gray	Usable Height (in.): 42-1/2 Outside Diameter (in.): 5-9/16	39
BOLPP-42-6.5	90 Days Limited Warranty	Steel Pour In Place Bollard 42 In. x 6-1/2 In. Yellow	Usable Height (in.): 42-1/2 Outside Diameter (in.): 6-5/8	44
BOLPP-42-6.5-HDG	90 Days Limited Warranty	Galvanized Steel Pour In Place Bollard 42 In. x 6-1/2 In. Gray	Usable Height (in.): 42-1/2 Outside Diameter (in.): 6-5/8	46
BOLPP-48-4.5	90 Days Limited Warranty	Steel Pour In Place Bollard 48 In. x 4-1/2 In. Yellow	Usable Height (in.): 48-1/2 Outside Diameter (in.): 4-1/2	47
BOLPP-48-4.5-HDG	90 Days Limited Warranty	Galvanized Steel Pour In Place Bollard 48 In. x 4-1/2 In. Gray	Usable Height (in.): 48-1/2 Outside Diameter (in.): 4-1/2	33
BOLPP-48-5.5	90 Days Limited Warranty	Steel Pour In Place Bollard 48 In. x 5-1/2 In. Yellow	Usable Height (in.): 48-1/2 Outside Diameter (in.): 5-9/16	38
BOLPP-48-5.5-HDG	90 Days Limited Warranty	Galvanized Steel Pour In Place Bollard 48 In. x 5-1/2 In. Gray	Usable Height (in.): 48-1/2 Outside Diameter (in.): 5-9/16	43
BOLPP-48-6.5	90 Days Limited Warranty	Steel Pour In Place Bollard 48 In. x 6-1/2 In. Yellow	Usable Height (in.): 48-1/2 Outside Diameter (in.): 6-5/8	49
BOLPP-48-6.5-HDG	90 Days Limited Warranty	Galvanized Steel Pour In Place Bollard 48 In. x 6-1/2 In. Gray	Usable Height (in.): 48-1/2 Outside Diameter (in.): 6-5/8	53
BOLPP-62-4.5	90 Days Limited Warranty	Steel Pour In Place Bollard 62 In. x 4-1/2 In. Yellow	Usable Height (in.): 62 Outside Diameter (in.): 4-1/2	34
BOLPP-62-4.5-HDG	90 Days Limited Warranty	Galvanized Steel Pour In Place Bollard 62 In. x 4-1/2 In. Gray	Usable Height (in.): 62 Outside Diameter (in.): 4-1/2	49
BOLPP-62-5.5	90 Days Limited Warranty	Steel Pour In Place Bollard 62 In. x 5-1/2 In. Yellow	Usable Height (in.): 62 Outside Diameter (in.): 5-9/16	47
BOLPP-62-5.5-HDG	90 Days Limited Warranty	Galvanized Steel Pour In Place Bollard 62 In. x 5-1/2 In. Gray	Usable Height (in.): 62 Outside Diameter (in.): 5-9/16	51
BOLPP-62-6.5	90 Days Limited Warranty	Steel Pour In Place Bollard 62 In. x 6-1/2 In. Yellow	Usable Height (in.): 62 Outside Diameter (in.): 6-5/8	56
BOLPP-62-6.5-HDG	90 Days Limited Warranty	Galvanized Steel Pour In Place Bollard 62 In. x 6-1/2 In. Gray	Usable Height (in.): 62 Outside Diameter (in.): 6-5/8	61
BOLPP-72-4.5	90 Days Limited Warranty	Steel Pour In Place Bollard 72 In. x 4-1/2 In. Yellow	Usable Height (in.): 72 Outside Diameter (in.): 4-1/2	40
BOLPP-72-4.5-HDG	90 Days Limited Warranty	Galvanized Steel Pour In Place Bollard 72 In. x 4-1/2 In. Gray	Usable Height (in.): 72 Outside Diameter (in.): 4-1/2	40
BOLPP-72-5.5	90 Days Limited Warranty	Steel Pour In Place Bollard 72 In. x 5-1/2 In. Yellow	Usable Height (in.): 72 Outside Diameter (in.): 5-9/16	92
BOLPP-72-5.5-HDG	90 Days Limited Warranty	Galvanized Steel Pour In Place Bollard 72 In. x 5-1/2 In. Gray	Usable Height (in.): 72 Outside Diameter (in.): 5-9/16	59
BOLPP-72-6.5	90 Days Limited Warranty	Steel Pour In Place Bollard 72 In. x 6-1/2 In. Yellow	Usable Height (in.): 72 Outside Diameter (in.): 6-5/8	99

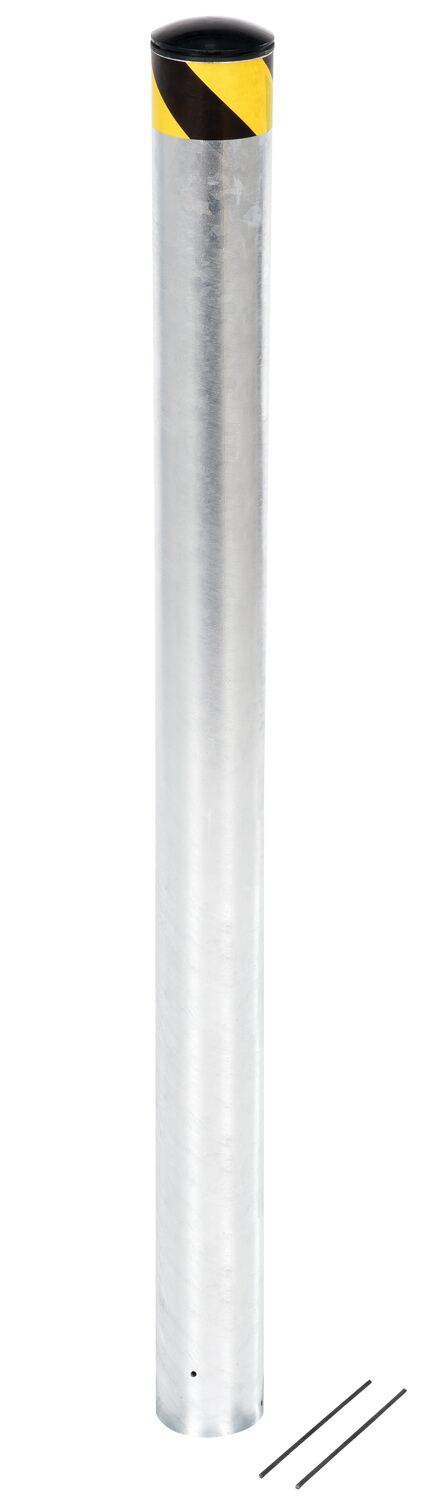

BOLPP-72-6.5-HDG	90 Days Limited Warranty	Galvanized Steel Pour In Place Bollard 72 In. x 6-1/2 In. Gray	Usable Height (in.): 72 Outside Diameter (in.): 6-5/8	69

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

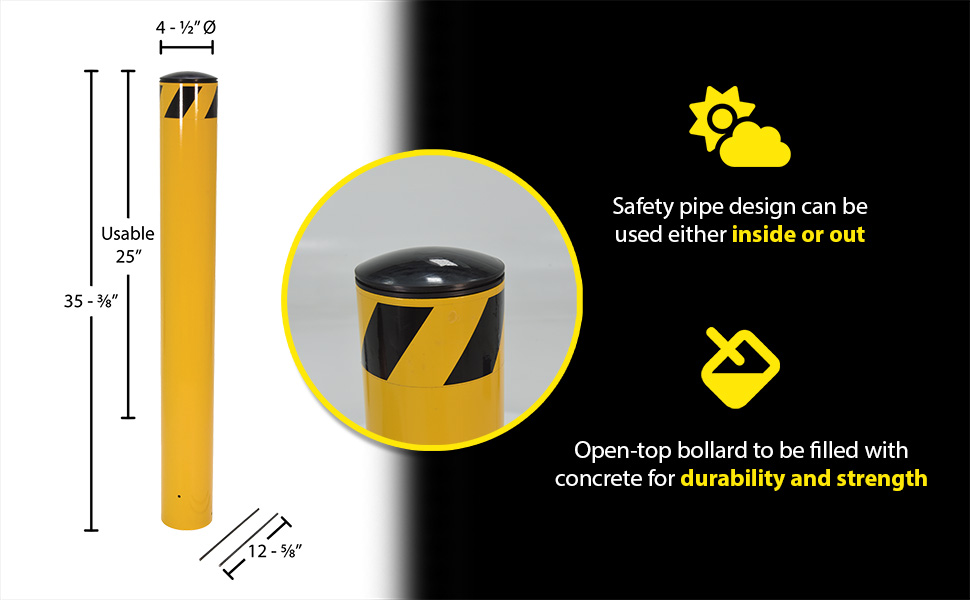

BOLPP-24-4.5

Unit:
Size: W x L x H
Weight:
Limited Warranty
Usable Height (in.): 25
Outside Diameter (in.): 4-1/2
Usable Height (in.): 25
Outside Diameter (in.): 4-1/2

BOLPP-24-4.5-HDG

Unit:
Size: W x L x H
Weight:
Limited Warranty
Usable Height (in.): 25
Outside Diameter (in.): 4-1/2
Usable Height (in.): 25
Outside Diameter (in.): 4-1/2

BOLPP-24-5.5

Unit:
Size: W x L x H
Weight:
Limited Warranty
Usable Height (in.): 25
Outside Diameter (in.): 5-9/16
Usable Height (in.): 25
Outside Diameter (in.): 5-9/16

BOLPP-24-5.5-HDG

Unit:
Size: W x L x H
Weight:
Limited Warranty
Usable Height (in.): 25
Outside Diameter (in.): 5-9/16
Usable Height (in.): 25
Outside Diameter (in.): 5-9/16

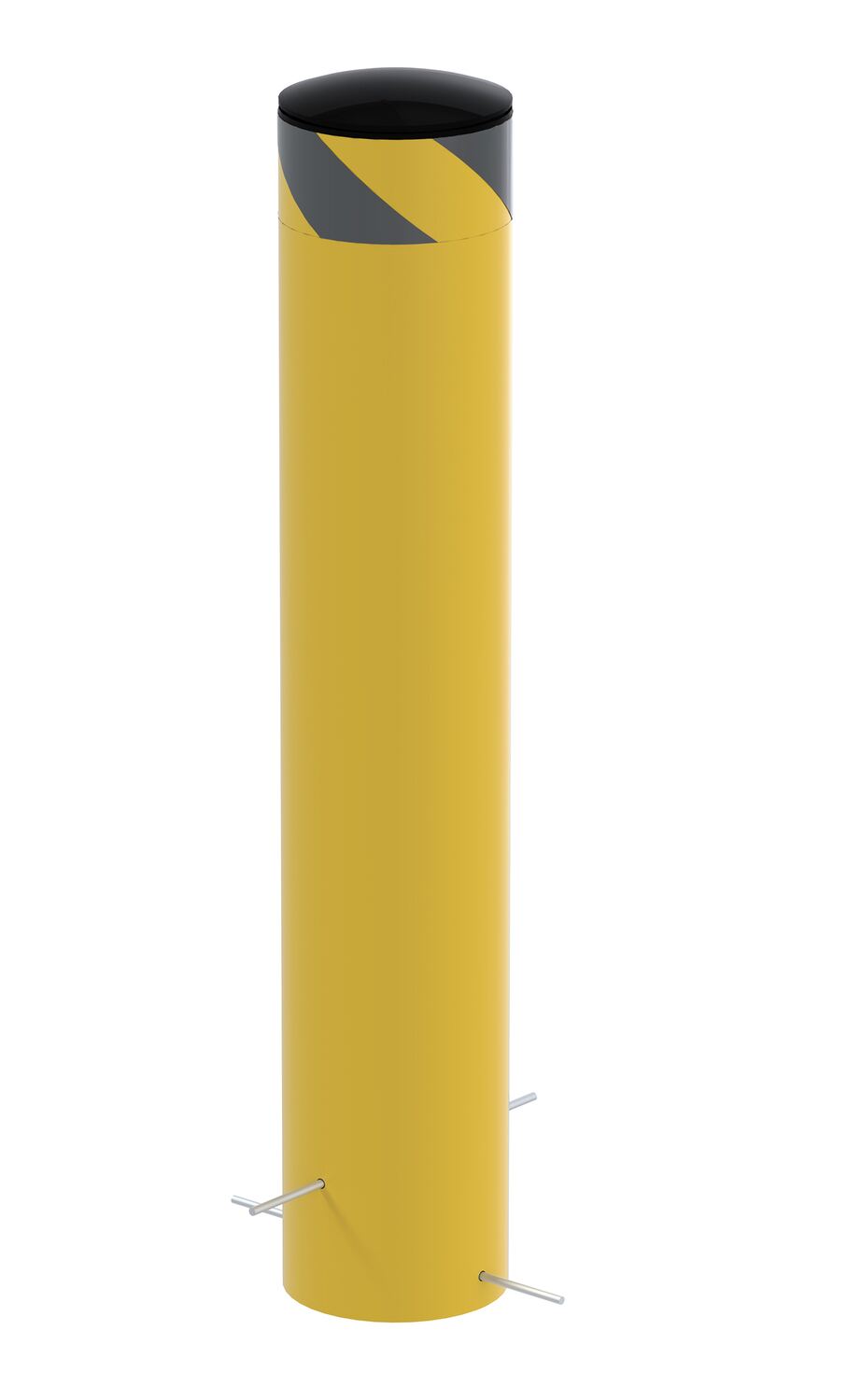

BOLPP-24-6.5

Unit:
Size: W x L x H
Weight:
Limited Warranty
Usable Height (in.): 25
Outside Diameter (in.): 6-5/8
Usable Height (in.): 25
Outside Diameter (in.): 6-5/8

BOLPP-24-6.5-HDG

Unit:
Size: W x L x H
Weight:
Limited Warranty
Usable Height (in.): 25
Outside Diameter (in.): 6-5/8
Usable Height (in.): 25
Outside Diameter (in.): 6-5/8

BOLPP-36-4.5

Unit:
Size: W x L x H
Weight:
Limited Warranty
Usable Height (in.): 36-1/2
Outside Diameter (in.): 4-1/2
Usable Height (in.): 36-1/2
Outside Diameter (in.): 4-1/2

BOLPP-36-4.5-HDG

Unit:
Size: W x L x H
Weight:
Limited Warranty
Usable Height (in.): 36-1/2
Outside Diameter (in.): 4-1/2
Usable Height (in.): 36-1/2
Outside Diameter (in.): 4-1/2

BOLPP-36-5.5

Unit:
Size: W x L x H
Weight:
Limited Warranty
Usable Height (in.): 36-1/2
Outside Diameter (in.): 5-9/16
Usable Height (in.): 36-1/2
Outside Diameter (in.): 5-9/16

BOLPP-36-5.5-HDG

Unit:
Size: W x L x H
Weight:
Limited Warranty
Usable Height (in.): 36-1/2
Outside Diameter (in.): 5-9/16
Usable Height (in.): 36-1/2
Outside Diameter (in.): 5-9/16

BOLPP-36-6.5

Unit:
Size: W x L x H
Weight:
Limited Warranty
Usable Height (in.): 36-1/2
Outside Diameter (in.): 6-5/8
Usable Height (in.): 36-1/2
Outside Diameter (in.): 6-5/8

BOLPP-36-6.5-HDG

Unit:
Size: W x L x H
Weight:
Limited Warranty
Usable Height (in.): 36-1/2
Outside Diameter (in.): 6-5/8
Usable Height (in.): 36-1/2
Outside Diameter (in.): 6-5/8

BOLPP-42-4.5

Unit:
Size: W x L x H
Weight:
Limited Warranty
Usable Height (in.): 42-1/2
Outside Diameter (in.): 4-1/2
Usable Height (in.): 42-1/2
Outside Diameter (in.): 4-1/2

BOLPP-42-4.5-HDG

Unit:
Size: W x L x H
Weight:
Limited Warranty
Usable Height (in.): 42-1/2
Outside Diameter (in.): 4-1/2
Usable Height (in.): 42-1/2
Outside Diameter (in.): 4-1/2

BOLPP-42-5.5

Unit:
Size: W x L x H
Weight:
Limited Warranty
Usable Height (in.): 42-1/2
Outside Diameter (in.): 5-9/16
Usable Height (in.): 42-1/2
Outside Diameter (in.): 5-9/16

BOLPP-42-5.5-HDG

Unit:
Size: W x L x H
Weight:
Limited Warranty
Usable Height (in.): 42-1/2
Outside Diameter (in.): 5-9/16
Usable Height (in.): 42-1/2
Outside Diameter (in.): 5-9/16

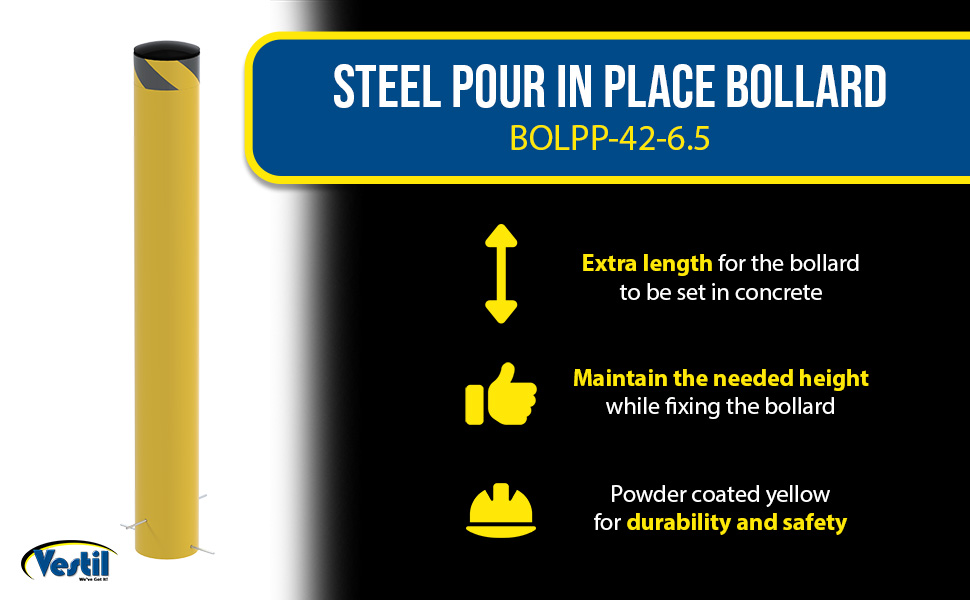

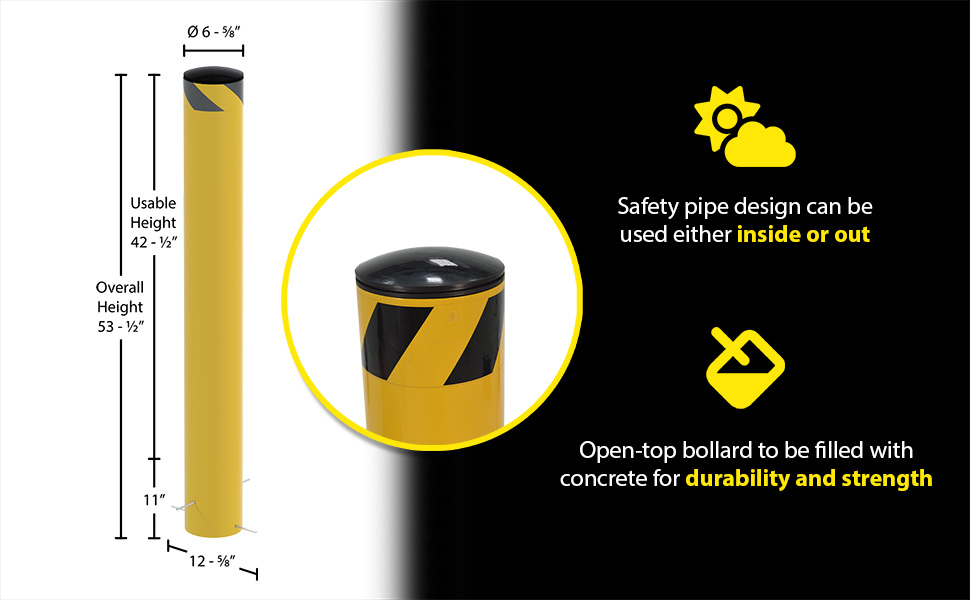

BOLPP-42-6.5

Unit:
Size: W x L x H
Weight:
Limited Warranty
Usable Height (in.): 42-1/2
Outside Diameter (in.): 6-5/8
Usable Height (in.): 42-1/2
Outside Diameter (in.): 6-5/8

BOLPP-42-6.5-HDG

Unit:
Size: W x L x H
Weight:
Limited Warranty
Usable Height (in.): 42-1/2
Outside Diameter (in.): 6-5/8
Usable Height (in.): 42-1/2
Outside Diameter (in.): 6-5/8

BOLPP-48-4.5

Unit:
Size: W x L x H
Weight:
Limited Warranty
Usable Height (in.): 48-1/2
Outside Diameter (in.): 4-1/2
Usable Height (in.): 48-1/2
Outside Diameter (in.): 4-1/2

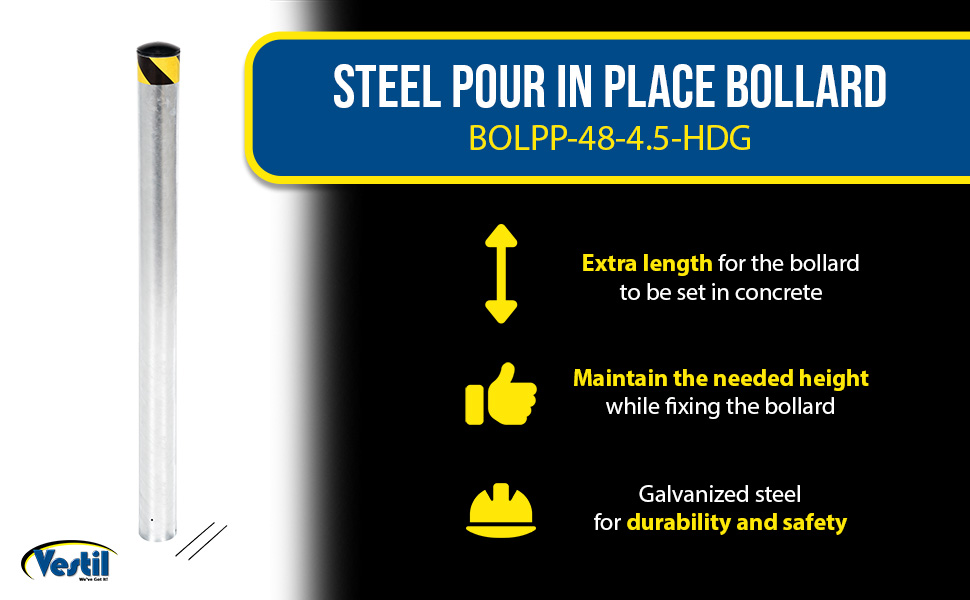

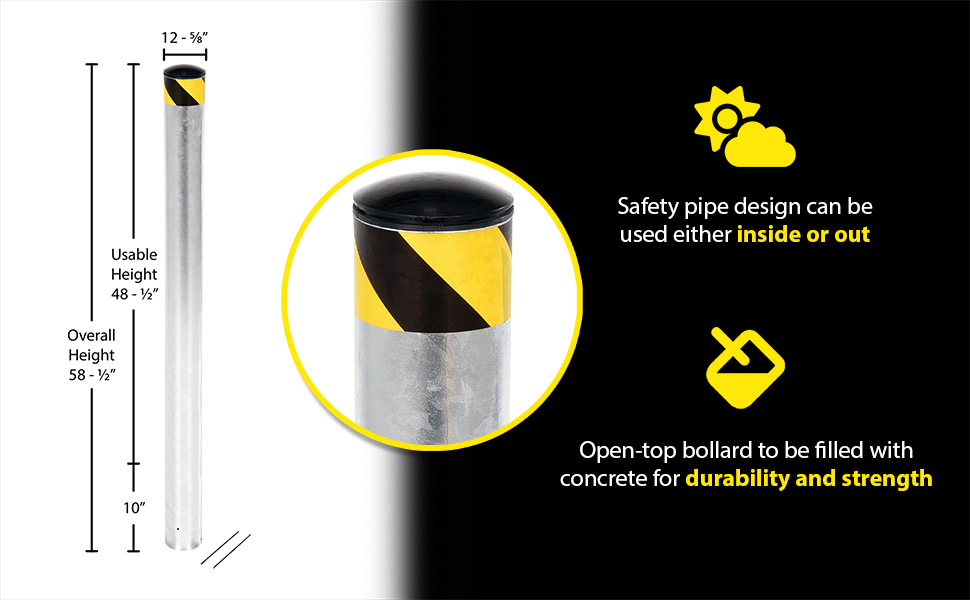

BOLPP-48-4.5-HDG

Unit:
Size: W x L x H
Weight:
Limited Warranty
Usable Height (in.): 48-1/2
Outside Diameter (in.): 4-1/2
Usable Height (in.): 48-1/2
Outside Diameter (in.): 4-1/2

BOLPP-48-5.5

Unit:
Size: W x L x H
Weight:
Limited Warranty
Usable Height (in.): 48-1/2
Outside Diameter (in.): 5-9/16
Usable Height (in.): 48-1/2
Outside Diameter (in.): 5-9/16

BOLPP-48-5.5-HDG

Unit:
Size: W x L x H
Weight:
Limited Warranty
Usable Height (in.): 48-1/2
Outside Diameter (in.): 5-9/16
Usable Height (in.): 48-1/2
Outside Diameter (in.): 5-9/16

BOLPP-48-6.5

Unit:
Size: W x L x H
Weight:
Limited Warranty
Usable Height (in.): 48-1/2
Outside Diameter (in.): 6-5/8
Usable Height (in.): 48-1/2
Outside Diameter (in.): 6-5/8

BOLPP-48-6.5-HDG

Unit:
Size: W x L x H
Weight:
Limited Warranty
Usable Height (in.): 48-1/2
Outside Diameter (in.): 6-5/8
Usable Height (in.): 48-1/2
Outside Diameter (in.): 6-5/8

BOLPP-62-4.5

Unit:
Size: W x L x H
Weight:
Limited Warranty
Usable Height (in.): 62
Outside Diameter (in.): 4-1/2
Usable Height (in.): 62
Outside Diameter (in.): 4-1/2

BOLPP-62-4.5-HDG

Unit:
Size: W x L x H
Weight:
Limited Warranty
Usable Height (in.): 62
Outside Diameter (in.): 4-1/2
Usable Height (in.): 62
Outside Diameter (in.): 4-1/2

BOLPP-62-5.5

Unit:
Size: W x L x H
Weight:
Limited Warranty
Usable Height (in.): 62
Outside Diameter (in.): 5-9/16
Usable Height (in.): 62
Outside Diameter (in.): 5-9/16

BOLPP-62-5.5-HDG

Unit:
Size: W x L x H
Weight:
Limited Warranty
Usable Height (in.): 62
Outside Diameter (in.): 5-9/16
Usable Height (in.): 62
Outside Diameter (in.): 5-9/16

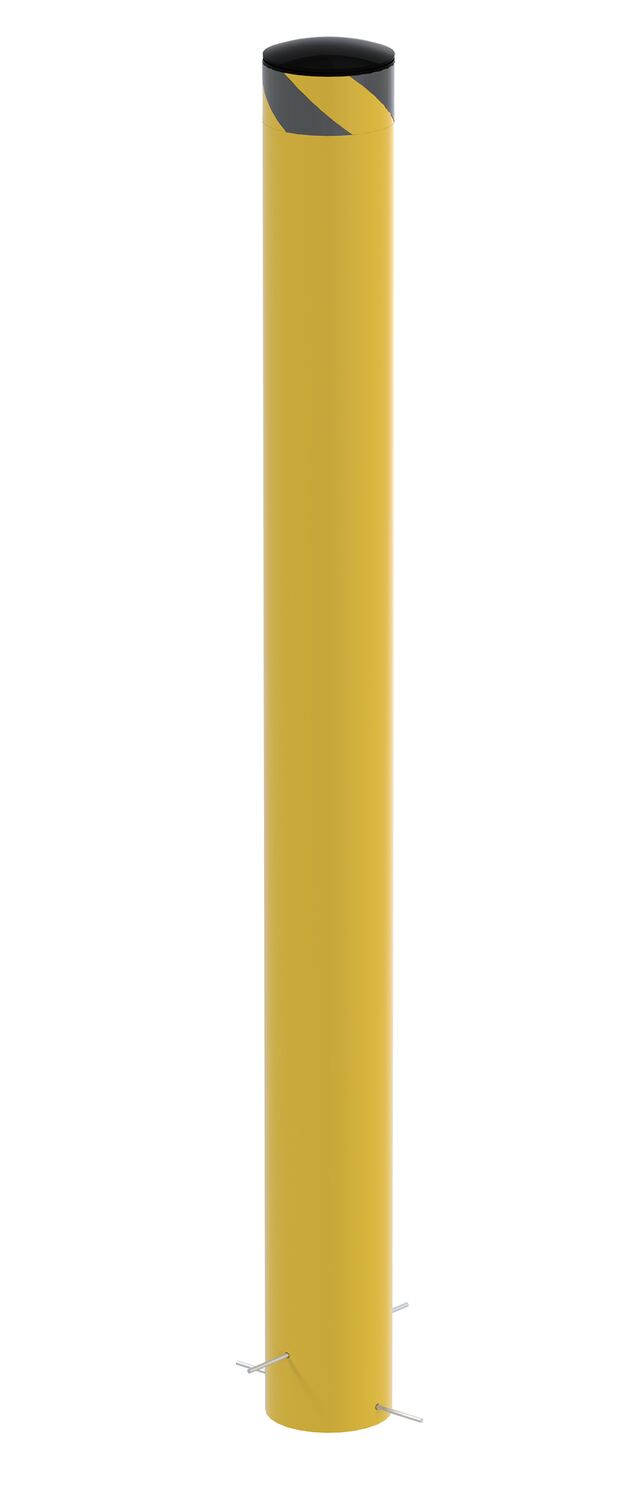

BOLPP-62-6.5

Unit:
Size: W x L x H
Weight:
Limited Warranty
Usable Height (in.): 62
Outside Diameter (in.): 6-5/8
Usable Height (in.): 62
Outside Diameter (in.): 6-5/8

BOLPP-62-6.5-HDG

Unit:
Size: W x L x H
Weight:
Limited Warranty
Usable Height (in.): 62
Outside Diameter (in.): 6-5/8
Usable Height (in.): 62
Outside Diameter (in.): 6-5/8

BOLPP-72-4.5

Unit:
Size: W x L x H
Weight:
Limited Warranty
Usable Height (in.): 72
Outside Diameter (in.): 4-1/2
Usable Height (in.): 72
Outside Diameter (in.): 4-1/2

BOLPP-72-4.5-HDG

Unit:
Size: W x L x H
Weight:
Limited Warranty
Usable Height (in.): 72
Outside Diameter (in.): 4-1/2
Usable Height (in.): 72
Outside Diameter (in.): 4-1/2

BOLPP-72-5.5

Unit:
Size: W x L x H
Weight:
Limited Warranty
Usable Height (in.): 72
Outside Diameter (in.): 5-9/16
Usable Height (in.): 72
Outside Diameter (in.): 5-9/16

BOLPP-72-5.5-HDG

Unit:
Size: W x L x H
Weight:
Limited Warranty
Usable Height (in.): 72
Outside Diameter (in.): 5-9/16
Usable Height (in.): 72
Outside Diameter (in.): 5-9/16

BOLPP-72-6.5

Unit:
Size: W x L x H
Weight:
Limited Warranty
Usable Height (in.): 72
Outside Diameter (in.): 6-5/8
Usable Height (in.): 72
Outside Diameter (in.): 6-5/8

BOLPP-72-6.5-HDG

Unit:
Size: W x L x H
Weight:
Limited Warranty
Usable Height (in.): 72
Outside Diameter (in.): 6-5/8
Usable Height (in.): 72
Outside Diameter (in.): 6-5/8

For More Details of the Option Click the Red Model Button

Model	Image	Description	WT.
BOL-CAP-1.75-P		Plastic Bollard Cap Replacement For Schedule 40 Steel 1-1/4 In. Pipe Black	2
BOL-CAP-4.5-P		Plastic Bollard Cap Replacement For Schedule 10 Steel 4 In. Pipe Black	2
BOL-CAP-5.5-P		Plastic Bollard Cap Replacement For Schedule 10 Steel 5 In. Pipe Black	2
BOL-CAP-6.5-P		Plastic Bollard Cap Replacement For Schedule 10 Steel 6.5 In. Pipe Black	2
AS-383		Concrete (1) 3/8"x 3" Anchor Bolts (1-3/4" units)	1
AS-383-4PK		Concrete (4) 3/8"x 3" Anchor Bolts (1-3/4" units)	4
AS-344		Concrete (1) 3/4"x 4" Anchor Bolts (Other Units)	1
AS-344-4PK		Concrete (4) 3/4"x 4" Anchor Bolts (Other Units)	4
DCBB-B-KIT		Steel Dock Chain Barrier Bollard Conversion Hardware Kit Yellow	2
BOL-CHAIN		Steel Barrier System Chain 3/16 In. Sold Per Foot Yellow	2

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

Pour In Place Bollards PDF's will open in a new window when clicked.

Manuals

BOLPP
Owners Manual

Survey Sheets

No Survey Sheets For This Product

Approval Drawings

BOLPP-24-4.5

BOLPP-24-5.5

BOLPP-24-6.5

BOLPP-36-4.5

BOLPP-36-5.5

BOLPP-36-6.5

BOLPP-42-4.5

BOLPP-42-5.5

BOLPP-42-6.5

BOLPP-48-4.5

BOLPP-48-5.5

BOLPP-48-6.5

BOLPP-62-4.5

BOLPP-62-5.5

BOLPP-62-6.5

BOLPP-72-4.5

BOLPP-72-5.5

BOLPP-72-6.5

Testing Certificates

BOLPP-24-4.5

BOLPP-24-4.5-HDG

BOLPP-24-5.5

BOLPP-24-5.5-HDG

BOLPP-24-6.5

BOLPP-24-6.5-HDG

BOLPP-36-4.5

BOLPP-36-4.5-HDG

BOLPP-36-5.5

BOLPP-36-5.5-HDG

BOLPP-36-6.5

BOLPP-36-6.5-HDG

BOLPP-42-4.5

BOLPP-42-4.5-HDG

BOLPP-42-5.5

BOLPP-42-5.5-HDG

BOLPP-42-6.5

BOLPP-42-6.5-HDG

BOLPP-48-4.5

BOLPP-48-4.5-HDG

BOLPP-48-5.5

BOLPP-48-5.5-HDG

BOLPP-48-6.5

BOLPP-48-6.5-HDG

BOLPP-62-4.5

BOLPP-62-4.5-HDG

BOLPP-62-5.5

BOLPP-62-5.5-HDG

BOLPP-62-6.5

BOLPP-62-6.5-HDG

BOLPP-72-4.5

BOLPP-72-4.5-HDG

BOLPP-72-5.5

BOLPP-72-5.5-HDG

BOLPP-72-6.5

BOLPP-72-6.5-HDG

SDS Sheets

No SDS Sheets For This Product

Other PDF's

Parking Lot Safety Mailing Brochure

Directory Links Of Available PDF's For All Products

Q: What is the thickness of the steel ?

A: The wall thickness of the bollard is 1/8".

Q: Can the DCBB-B-KIT work with the pour in place bollards (BOLPP series)?

A: Yes the chain kit for the bollards can be used with BOLPP products.

Q: What is the dimension of the inside diameter of this bollard?

A: The inside diameter of the BOLPP-48-5.5 is 5.295".

Q: What SCH pipe does the bollard use?

A: The BOLPP bollards use SCH-10 pipe.

Q: What is the actual length before being buried in concrete?

A: Above ground height (in) 48.5. Actual dims are 12.625 L x 12.625 W x 58.5 H.

Q: What is the actual length before being buried in concrete?

A: Above ground height (in) 48.5. Actual dims are 12.625 L x 12.625 W x 58.5 H.

Q: Can usable height be 38'' , with below ground 24''. I would think from your answer 10'' wouldn't be deep enough?.

A: Above ground height is 62" and overall height is 72".

Q: How much concrete is needed to fill?

A: To technically answer the question it will need 2,722 in cubed of concrete (or 0.06 yd cubed). Which really does not mean much to most people so, for the BOLPPs, I use the following website. This calculation page will break it down depending if they are using pre-mixed bags of concreate or ordering in a truck to do several bollards at the same time. https://www.omnicalculator.com/construction/concrete-cylinder

Print Friendly

Related or Similar Products:

Product

Removable Bollards

Product

Protective Dome Covers for Bollards

Product

Surface Mounted Removable Steel Pipe Safety Bollards

Product

Bollard Chain Caps

Product

Offset Steel Bollards

Product

Steel Pipe Bollard with Chain Slots

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date

Pour In Place Bollards

Safety pipe design can be used either inside or out
Powder coat safety yellow or Galvanized finish offers an attractive long lasting look
Heavy-duty steel construction provides long lasting protection
Slide through lag anchors secure bollard in poured concrete

Model #	Description	Attributes	Net Wt. (lbs)
BOLPP-24-4.5	Steel Pour In Place Bollard 24 In. x 4-1/2 In. Yellow	Usable Height (in.): 25 Outside Diameter (in.): 4-1/2	19
BOLPP-24-4.5-HDG	Galvanized Steel Pour In Place Bollard 24 In. x 4-1/2 In. Gray	Usable Height (in.): 25 Outside Diameter (in.): 4-1/2	22
BOLPP-24-5.5	Steel Pour In Place Bollard 24 In. x 5-1/2 In. Yellow	Usable Height (in.): 25 Outside Diameter (in.): 5-9/16	25
BOLPP-24-5.5-HDG	Galvanized Steel Pour In Place Bollard 24 In. x 5-1/2 In. Gray	Usable Height (in.): 25 Outside Diameter (in.): 5-9/16	28
BOLPP-24-6.5	Steel Pour In Place Bollard 24 In. x 6-1/2 In. Yellow	Usable Height (in.): 25 Outside Diameter (in.): 6-5/8	30
BOLPP-24-6.5-HDG	Galvanized Steel Pour In Place Bollard 24 In. x 6-1/2 In. Gray	Usable Height (in.): 25 Outside Diameter (in.): 6-5/8	33
BOLPP-36-4.5	Steel Pour In Place Bollard 36 In. x 4-1/2 In. Yellow	Usable Height (in.): 36-1/2 Outside Diameter (in.): 4-1/2	31
BOLPP-36-4.5-HDG	Galvanized Steel Pour In Place Bollard 36 In. x 4-1/2 In. Gray	Usable Height (in.): 36-1/2 Outside Diameter (in.): 4-1/2	27
BOLPP-36-5.5	Steel Pour In Place Bollard 36 In. x 5-1/2 In. Yellow	Usable Height (in.): 36-1/2 Outside Diameter (in.): 5-9/16	32
BOLPP-36-5.5-HDG	Galvanized Steel Pour In Place Bollard 36 In. x 5-1/2 In. Gray	Usable Height (in.): 36-1/2 Outside Diameter (in.): 5-9/16	35
BOLPP-36-6.5	Steel Pour In Place Bollard 36 In. x 6-1/2 In. Yellow	Usable Height (in.): 36-1/2 Outside Diameter (in.): 6-5/8	39
BOLPP-36-6.5-HDG	Galvanized Steel Pour In Place Bollard 36 In. x 6-1/2 In. Gray	Usable Height (in.): 36-1/2 Outside Diameter (in.): 6-5/8	42
BOLPP-42-4.5	Steel Pour In Place Bollard 42 In. x 4-1/2 In. Yellow	Usable Height (in.): 42-1/2 Outside Diameter (in.): 4-1/2	35
BOLPP-42-4.5-HDG	Galvanized Steel Pour In Place Bollard 42 In. x 4-1/2 In. Gray	Usable Height (in.): 42-1/2 Outside Diameter (in.): 4-1/2	30
BOLPP-42-5.5	Steel Pour In Place Bollard 42 In. x 5-1/2 In. Yellow	Usable Height (in.): 42-1/2 Outside Diameter (in.): 5-9/16	37
BOLPP-42-5.5-HDG	Galvanized Steel Pour In Place Bollard 42 In. x 5-1/2 In. Gray	Usable Height (in.): 42-1/2 Outside Diameter (in.): 5-9/16	39
BOLPP-42-6.5	Steel Pour In Place Bollard 42 In. x 6-1/2 In. Yellow	Usable Height (in.): 42-1/2 Outside Diameter (in.): 6-5/8	44
BOLPP-42-6.5-HDG	Galvanized Steel Pour In Place Bollard 42 In. x 6-1/2 In. Gray	Usable Height (in.): 42-1/2 Outside Diameter (in.): 6-5/8	46
BOLPP-48-4.5	Steel Pour In Place Bollard 48 In. x 4-1/2 In. Yellow	Usable Height (in.): 48-1/2 Outside Diameter (in.): 4-1/2	47
BOLPP-48-4.5-HDG	Galvanized Steel Pour In Place Bollard 48 In. x 4-1/2 In. Gray	Usable Height (in.): 48-1/2 Outside Diameter (in.): 4-1/2	33
BOLPP-48-5.5	Steel Pour In Place Bollard 48 In. x 5-1/2 In. Yellow	Usable Height (in.): 48-1/2 Outside Diameter (in.): 5-9/16	38
BOLPP-48-5.5-HDG	Galvanized Steel Pour In Place Bollard 48 In. x 5-1/2 In. Gray	Usable Height (in.): 48-1/2 Outside Diameter (in.): 5-9/16	43
BOLPP-48-6.5	Steel Pour In Place Bollard 48 In. x 6-1/2 In. Yellow	Usable Height (in.): 48-1/2 Outside Diameter (in.): 6-5/8	49
BOLPP-48-6.5-HDG	Galvanized Steel Pour In Place Bollard 48 In. x 6-1/2 In. Gray	Usable Height (in.): 48-1/2 Outside Diameter (in.): 6-5/8	53
BOLPP-62-4.5	Steel Pour In Place Bollard 62 In. x 4-1/2 In. Yellow	Usable Height (in.): 62 Outside Diameter (in.): 4-1/2	34
BOLPP-62-4.5-HDG	Galvanized Steel Pour In Place Bollard 62 In. x 4-1/2 In. Gray	Usable Height (in.): 62 Outside Diameter (in.): 4-1/2	49
BOLPP-62-5.5	Steel Pour In Place Bollard 62 In. x 5-1/2 In. Yellow	Usable Height (in.): 62 Outside Diameter (in.): 5-9/16	47
BOLPP-62-5.5-HDG	Galvanized Steel Pour In Place Bollard 62 In. x 5-1/2 In. Gray	Usable Height (in.): 62 Outside Diameter (in.): 5-9/16	51
BOLPP-62-6.5	Steel Pour In Place Bollard 62 In. x 6-1/2 In. Yellow	Usable Height (in.): 62 Outside Diameter (in.): 6-5/8	56
BOLPP-62-6.5-HDG	Galvanized Steel Pour In Place Bollard 62 In. x 6-1/2 In. Gray	Usable Height (in.): 62 Outside Diameter (in.): 6-5/8	61
BOLPP-72-4.5	Steel Pour In Place Bollard 72 In. x 4-1/2 In. Yellow	Usable Height (in.): 72 Outside Diameter (in.): 4-1/2	40
BOLPP-72-4.5-HDG	Galvanized Steel Pour In Place Bollard 72 In. x 4-1/2 In. Gray	Usable Height (in.): 72 Outside Diameter (in.): 4-1/2	40
BOLPP-72-5.5	Steel Pour In Place Bollard 72 In. x 5-1/2 In. Yellow	Usable Height (in.): 72 Outside Diameter (in.): 5-9/16	92
BOLPP-72-5.5-HDG	Galvanized Steel Pour In Place Bollard 72 In. x 5-1/2 In. Gray	Usable Height (in.): 72 Outside Diameter (in.): 5-9/16	59
BOLPP-72-6.5	Steel Pour In Place Bollard 72 In. x 6-1/2 In. Yellow	Usable Height (in.): 72 Outside Diameter (in.): 6-5/8	99
BOLPP-72-6.5-HDG	Galvanized Steel Pour In Place Bollard 72 In. x 6-1/2 In. Gray	Usable Height (in.): 72 Outside Diameter (in.): 6-5/8	69

Options

Model	Image	Description	WT.
BOL-CAP-1.75-P		Plastic Bollard Cap Replacement For Schedule 40 Steel 1-1/4 In. Pipe Black	2
BOL-CAP-4.5-P		Plastic Bollard Cap Replacement For Schedule 10 Steel 4 In. Pipe Black	2
BOL-CAP-5.5-P		Plastic Bollard Cap Replacement For Schedule 10 Steel 5 In. Pipe Black	2
BOL-CAP-6.5-P		Plastic Bollard Cap Replacement For Schedule 10 Steel 6.5 In. Pipe Black	2
AS-383		Concrete (1) 3/8"x 3" Anchor Bolts (1-3/4" units)	1
AS-383-4PK		Concrete (4) 3/8"x 3" Anchor Bolts (1-3/4" units)	4
AS-344		Concrete (1) 3/4"x 4" Anchor Bolts (Other Units)	1
AS-344-4PK		Concrete (4) 3/4"x 4" Anchor Bolts (Other Units)	4
DCBB-B-KIT		Steel Dock Chain Barrier Bollard Conversion Hardware Kit Yellow	2
BOL-CHAIN		Steel Barrier System Chain 3/16 In. Sold Per Foot Yellow	2

Welcome To Vestil Manufacturing Online!

SEARCH FOR A PRODUCT OR KEYWORD

CONTACT INFO

Pour In Place Bollards

Pour In Place Bollards

Featured Protective Barriers

Product Family Overview

Other Bollards

Additional Models In This Family view entire Image Gallery

Model Specific Details

For More Details of the Option Click the Red Model Button

Manuals

Survey Sheets

Approval Drawings

Testing Certificates

SDS Sheets

Other PDF's

Directory Links Of Available PDF's For All Products

Q: What is the thickness of the steel ?

Q: Can the DCBB-B-KIT work with the pour in place bollards (BOLPP series)?

Q: What is the dimension of the inside diameter of this bollard?

Q: What SCH pipe does the bollard use?

Q: What is the actual length before being buried in concrete?

Q: What is the actual length before being buried in concrete?

Q: Can usable height be 38'' , with below ground 24''. I would think from your answer 10'' wouldn't be deep enough?.

Q: How much concrete is needed to fill?

Freight Quote

Parts Request

Ask An Expert

Find A Distributor

PROP 65 Warning

Related or Similar Products:

Removable Bollards

Protective Dome Covers for Bollards

Surface Mounted Removable Steel Pipe Safety Bollards

Bollard Chain Caps

Offset Steel Bollards

Steel Pipe Bollard with Chain Slots

Pour In Place Bollards

Options

Our Customer Service Associates Are Here To Assist You!Call Vestil At 260-665-7586 Or info@vestil.com

Additional Models In This Family
view entire Image Gallery

Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
