Modular Guard Systems

- - - -

Description
Model Chart
Options
PDF's
Image Gallery
MG-CP-36-2_C.jpg MG-CP-36-2_D.jpg MG-CP-36-2_B.jpg MG-CP-36-2_A.jpg
Modular Guard Systems

model: MG-CP-36-2



Featured Protective Barriers


Protective Dome Covers for Bollards
Wall Mount Guard Rails
Building Protective Column Pads
Chrome-Plated Steel Bollard
Overhead Door Warning Barriers
Building Column Protectors
Removable Ornamental Steel Bollards
Stainless Steel Corner Guards
Floor Stop Bollards
model chart

Product Family Overview

Print Friendly
Modular Guard Systems
SERIES: MG

Modular Guard System can be ordered to fit almost any application. Designed for quick and easy assembly. Railing sections are installed and secured to each post with a single bolt. Select from different railing lengths to custom fit your application. Railing systems are made from heavy-duty 2-1/2" square steel tubing. Wall mounting posts may be used to secure guard assembly to a wall. Durable safety yellow powder coat finish. Steel construction. All components sold separately.

  • Meant to fit almost any application
  • Designed for quick and easy assembly
  • Installed and secured to each post with a single bolt
  • Made from heavy-duty square steel tubing for strength

Modular Guard System can be ordered to fit almost any application. Designed for quick and easy assembly. Railing sections are installed and secured to each post with a single bolt. Select from different railing lengths to custom fit your application. Railing systems are made from heavy-duty 2-1/2" square steel tubing. Wall mounting posts may be used to secure guard assembly to a wall. Durable safety yellow powder coat finish. Steel construction. All components sold separately.

  • Meant to fit almost any application
  • Designed for quick and easy assembly
  • Installed and secured to each post with a single bolt
  • Made from heavy-duty square steel tubing for strength

Other Machinery Guards

 Polyethylene Ultra I-Beam Protector Triple Elbow Guards with Center Support Floor Stop Bollards Surface Mounted Removable High Profile Machinery Guards & Low Profile Rack Guards

Additional Models In This Family
view entire Image Gallery

MG-CP-36-1

MG-CP-36-1

MG-SP-36-1

MG-SP-36-1

MG-CP-36-1

MG-CP-36-1

MG-CP-36-2

MG-CP-36-2

MG-WP-B

MG-WP-B

MG-R-6

MG-R-6

MG-SP-36-2

MG-SP-36-2

MG-R-6

MG-R-6

MG-R-4

MG-R-4

MG-WP-B

MG-WP-B

MG-SP-36-2

MG-SP-36-2

MG-SP-36-2

MG-SP-36-2

MG-CP-36-1

MG-CP-36-1

MG-SP-36-2

MG-SP-36-2

MG-R-12

MG-R-12

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

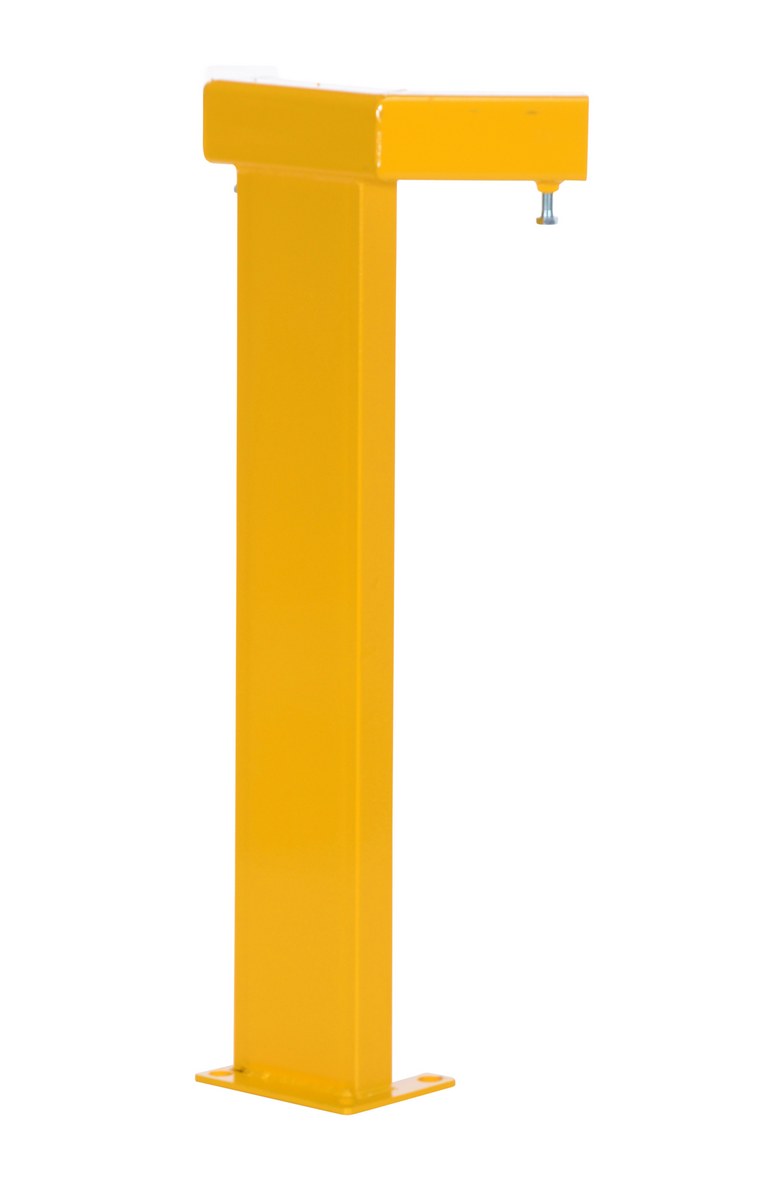

MG-CP-36-1 MG-CP-36-190 Days Limited WarrantySteel Modular Guard System Corner Post 1 Rail 7-5/8 In. x 6 In. x 36 In. YellowComponent: Mounting Corner Post
Rail Style: Single		37

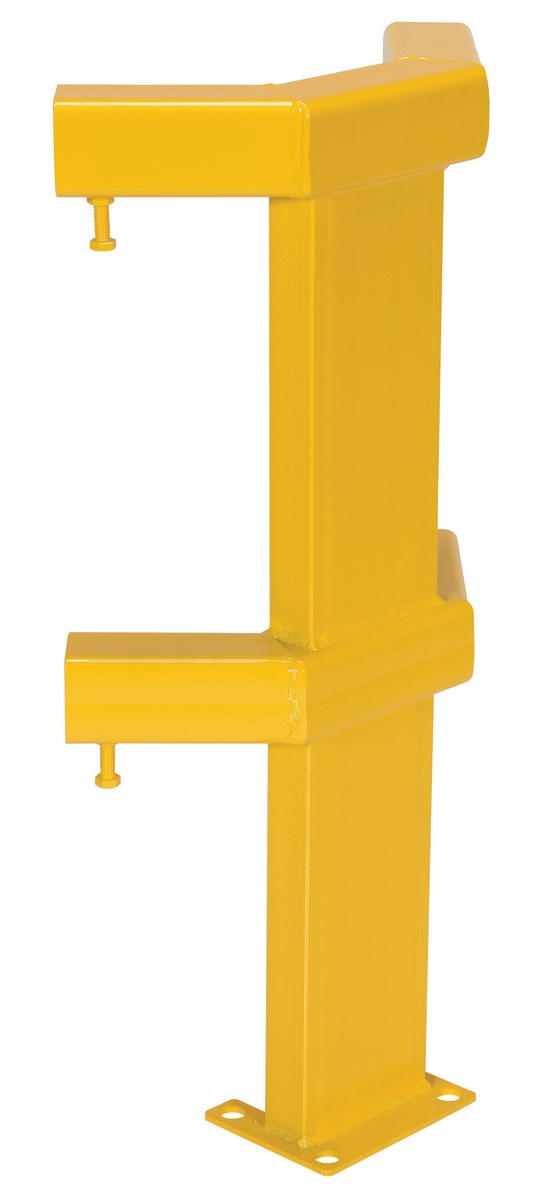

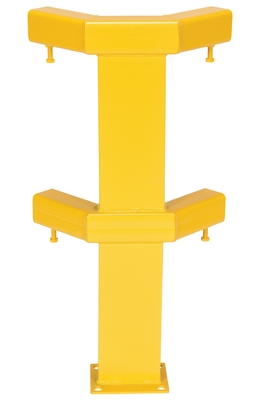

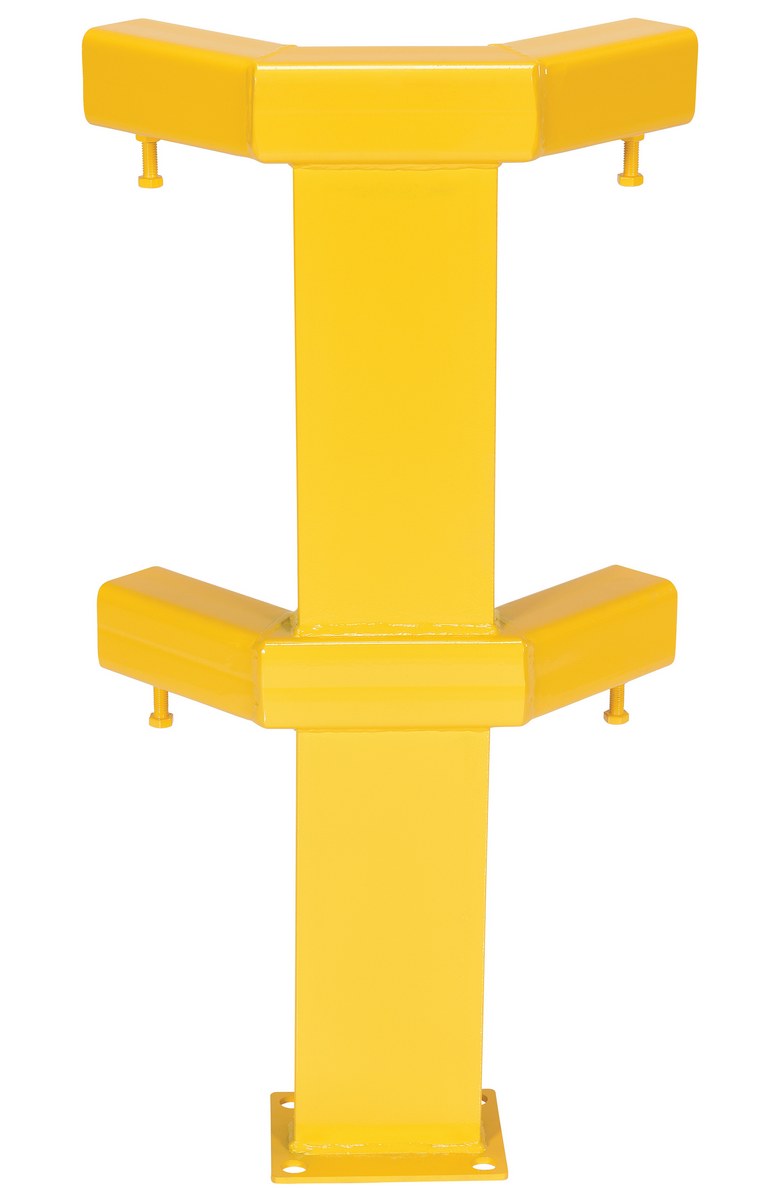

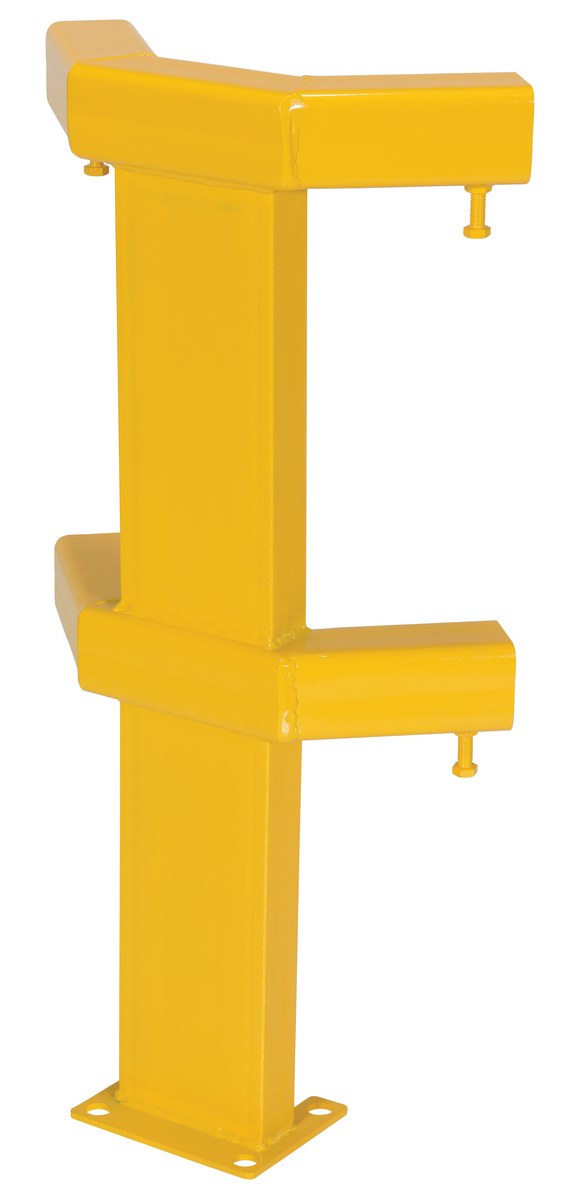

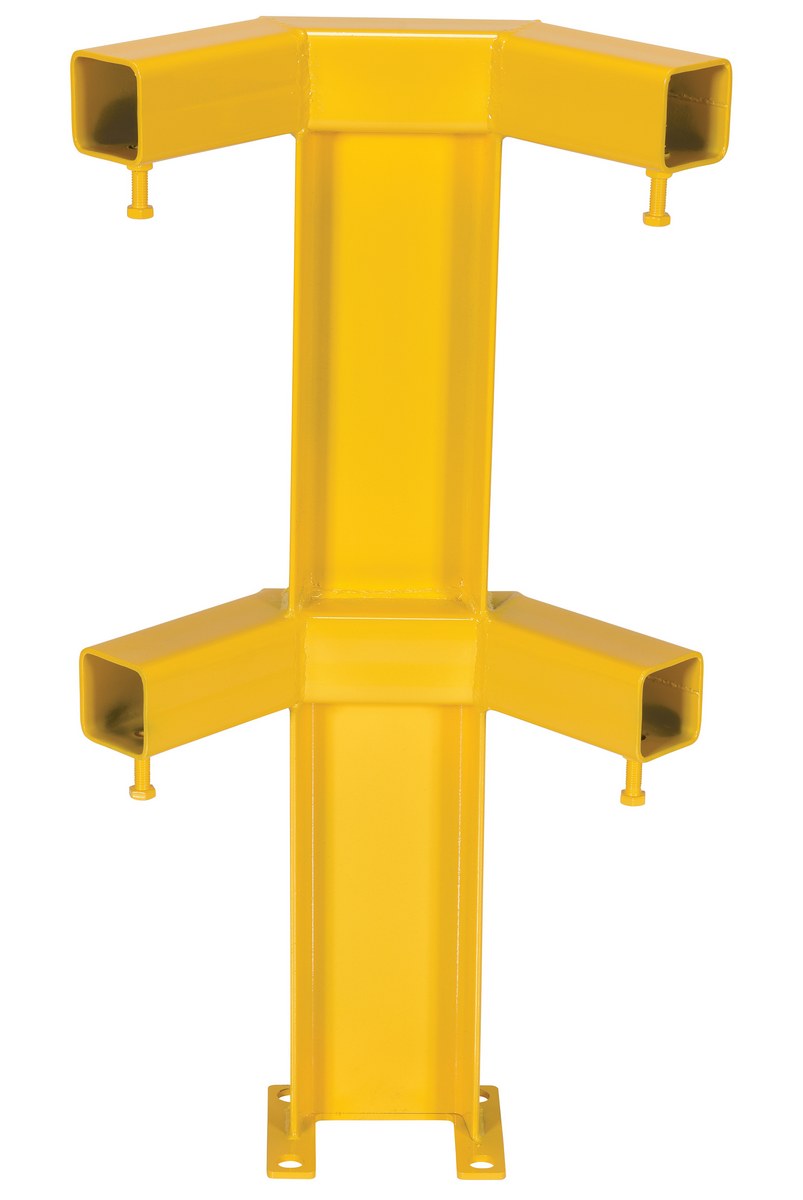

MG-CP-36-2 MG-CP-36-290 Days Limited WarrantySteel Modular Guard System Corner Post 2 Rail 7-5/8 In. x 6 In. x 36 In. YellowComponent: Mounting Corner Post
Rail Style: Double		54

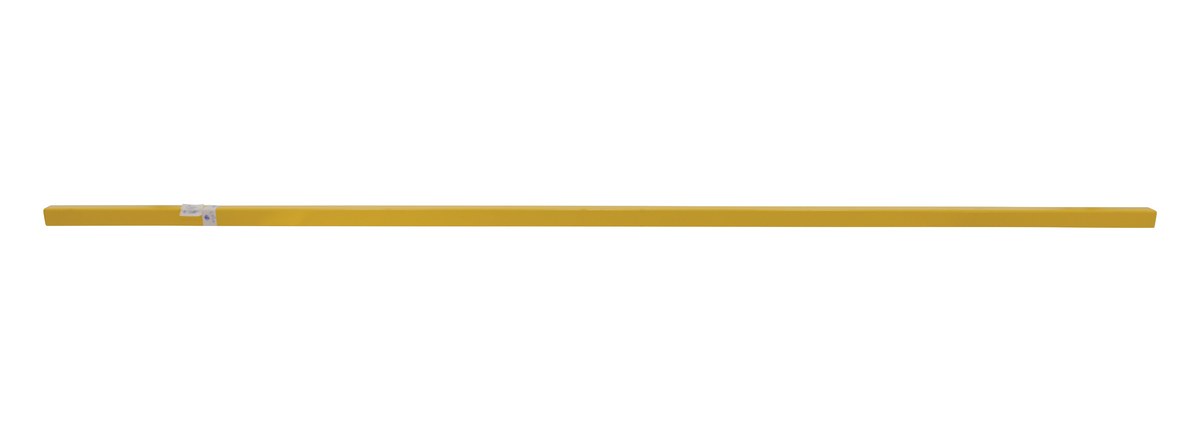

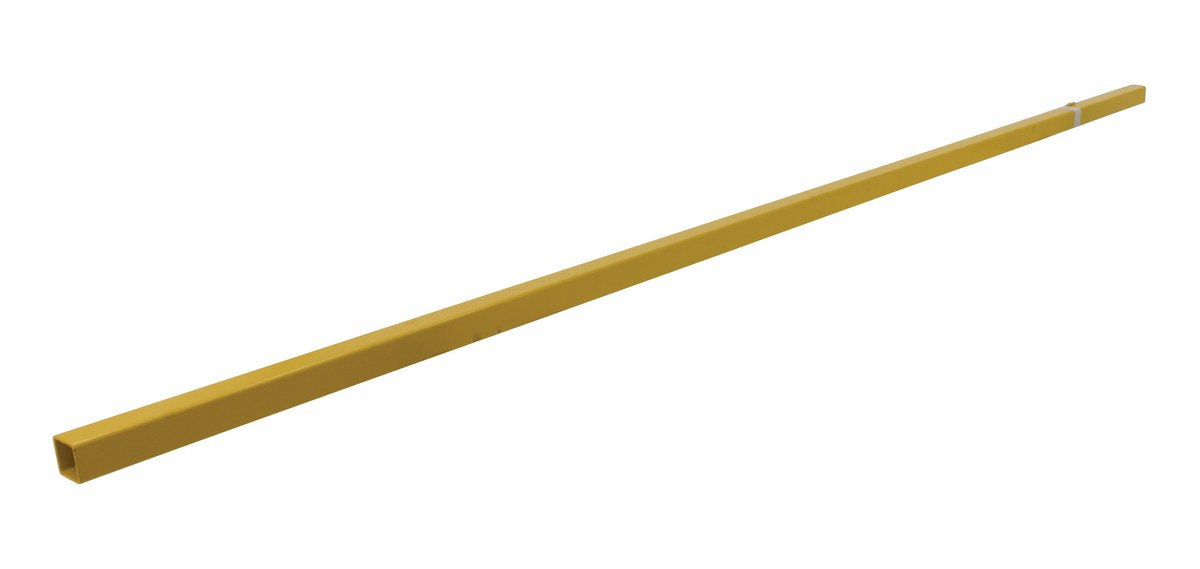

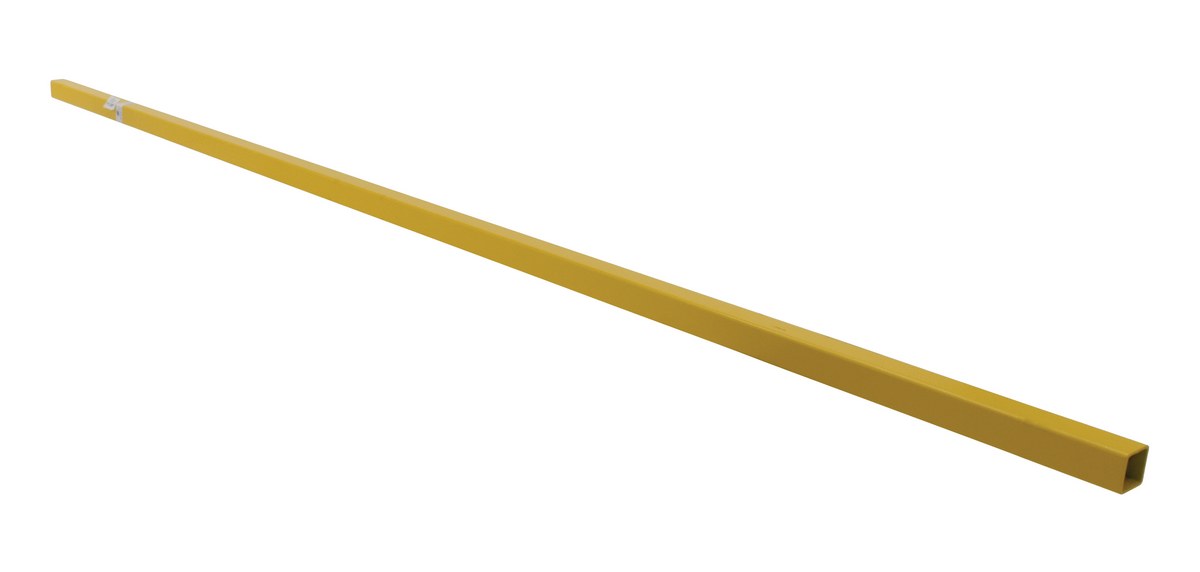

MG-R-10 MG-R-1090 Days Limited WarrantySteel Modular Guard Railing Section 128 In. x 2-1/2 In. x 2-1/2 In. YellowEffective Length (in.): 120
Component: Railing		60

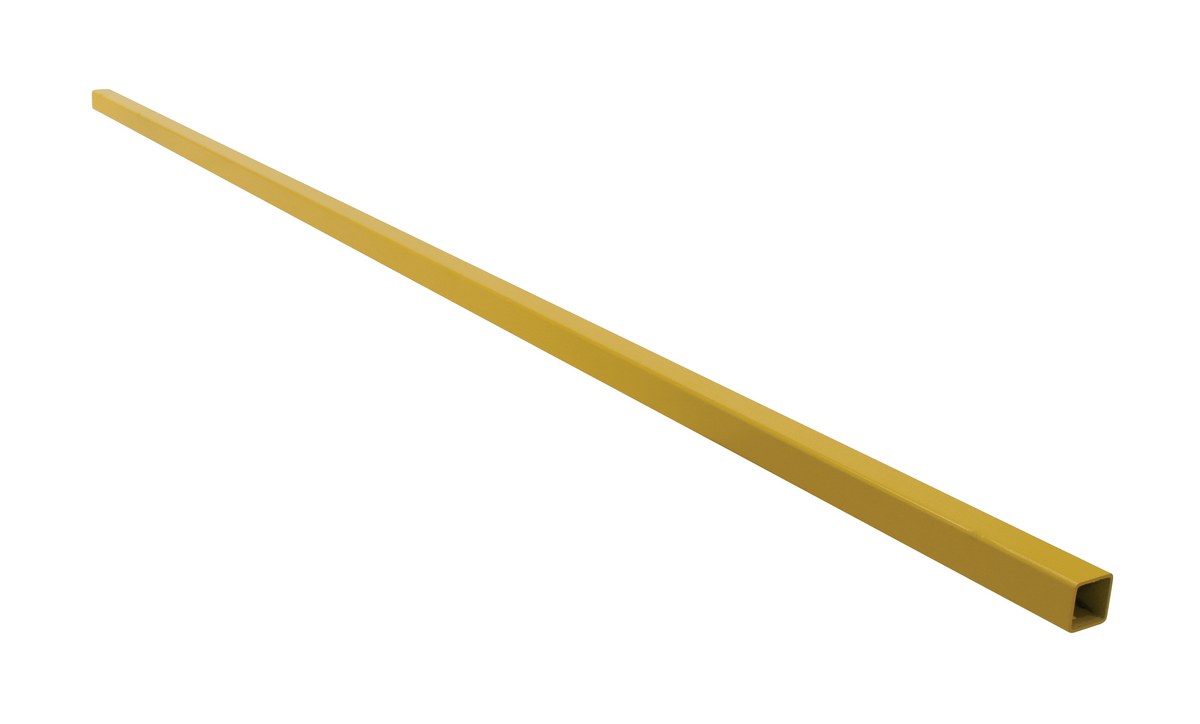

MG-R-12 MG-R-1290 Days Limited WarrantySteel Modular Guard Railing Section 152 In. x 2-1/2 In. x 2-1/2 In. YellowEffective Length (in.): 144
Component: Railing		71

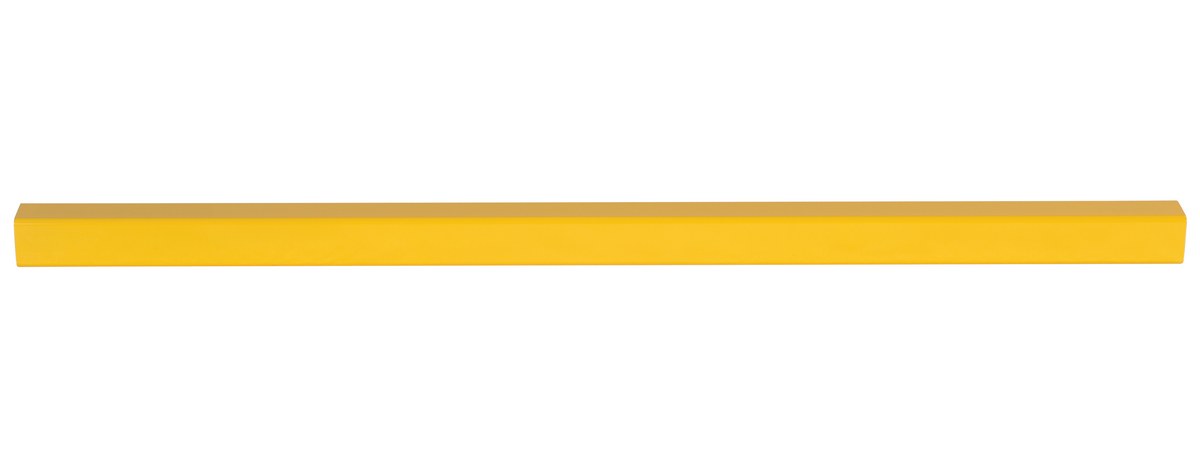

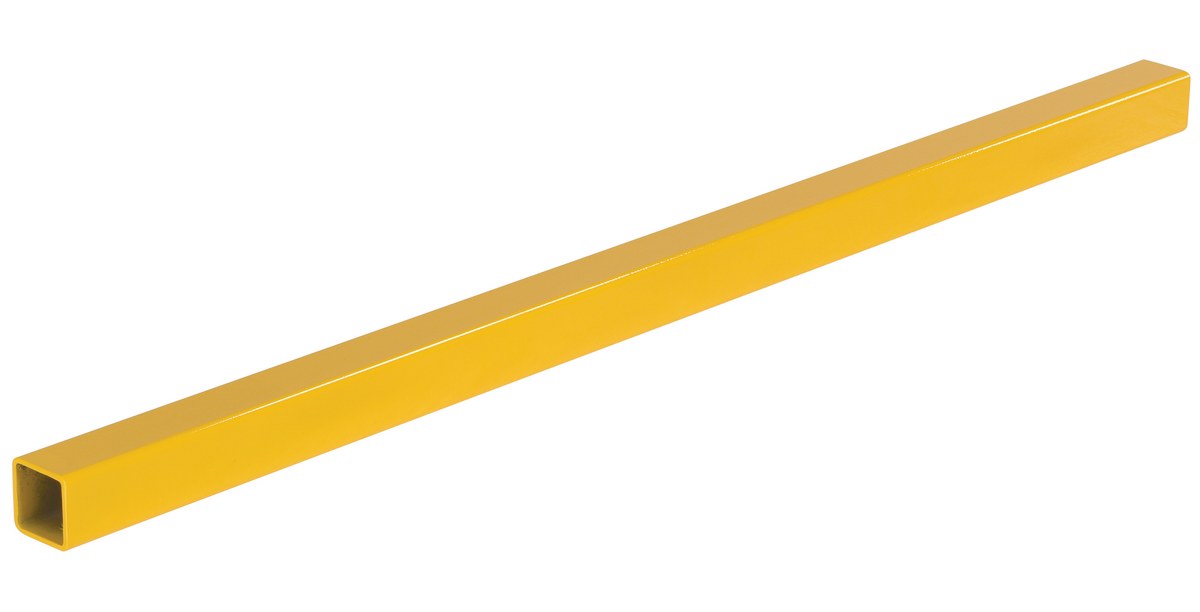

MG-R-4 MG-R-490 Days Limited WarrantySteel Modular Guard Railing Section 56 In. x 2-1/2 In. x 2-1/2 In. YellowEffective Length (in.): 48
Component: Railing		29

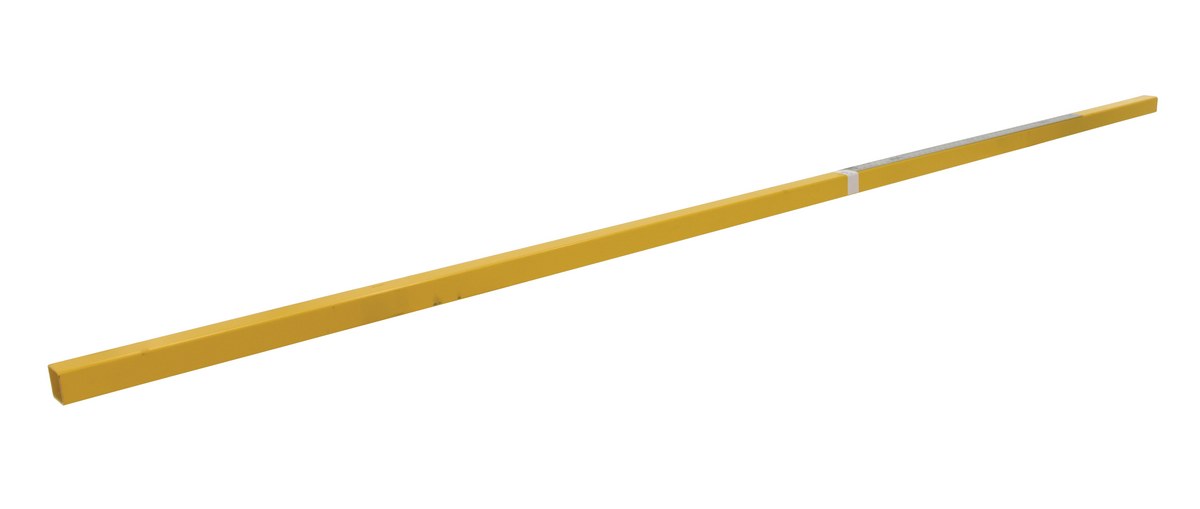

MG-R-6 MG-R-690 Days Limited WarrantySteel Modular Guard Railing Section 80 In. x 2-1/2 In. x 2-1/2 In. YellowEffective Length (in.): 72
Component: Railing		38

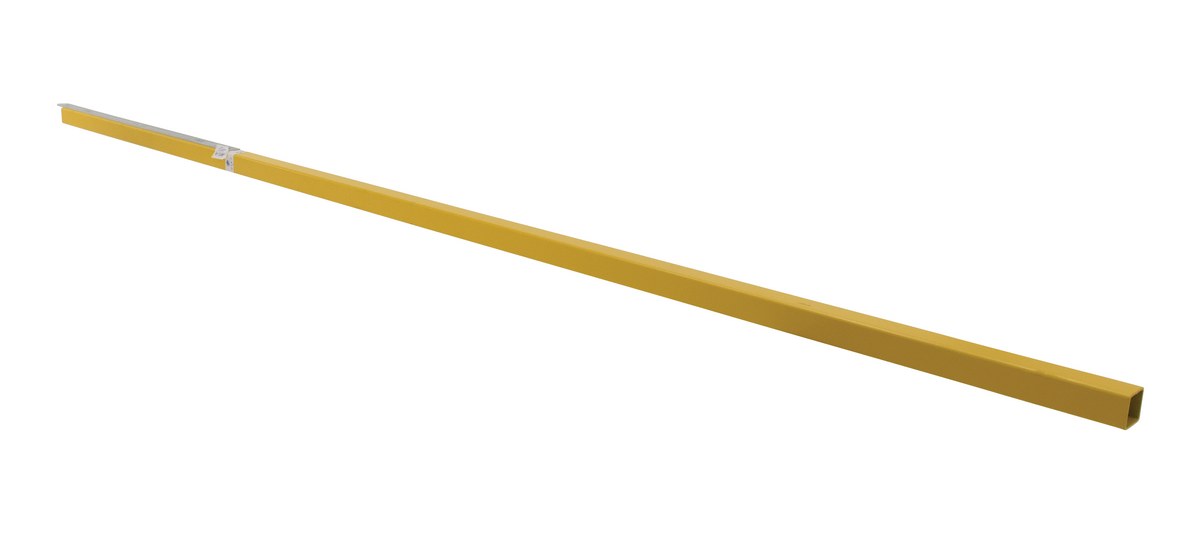

MG-R-8 MG-R-890 Days Limited WarrantySteel Modular Guard Railing Section 102 In. x 2-1/2 In. x 2-1/2 In. YellowEffective Length (in.): 96
Component: Railing		49

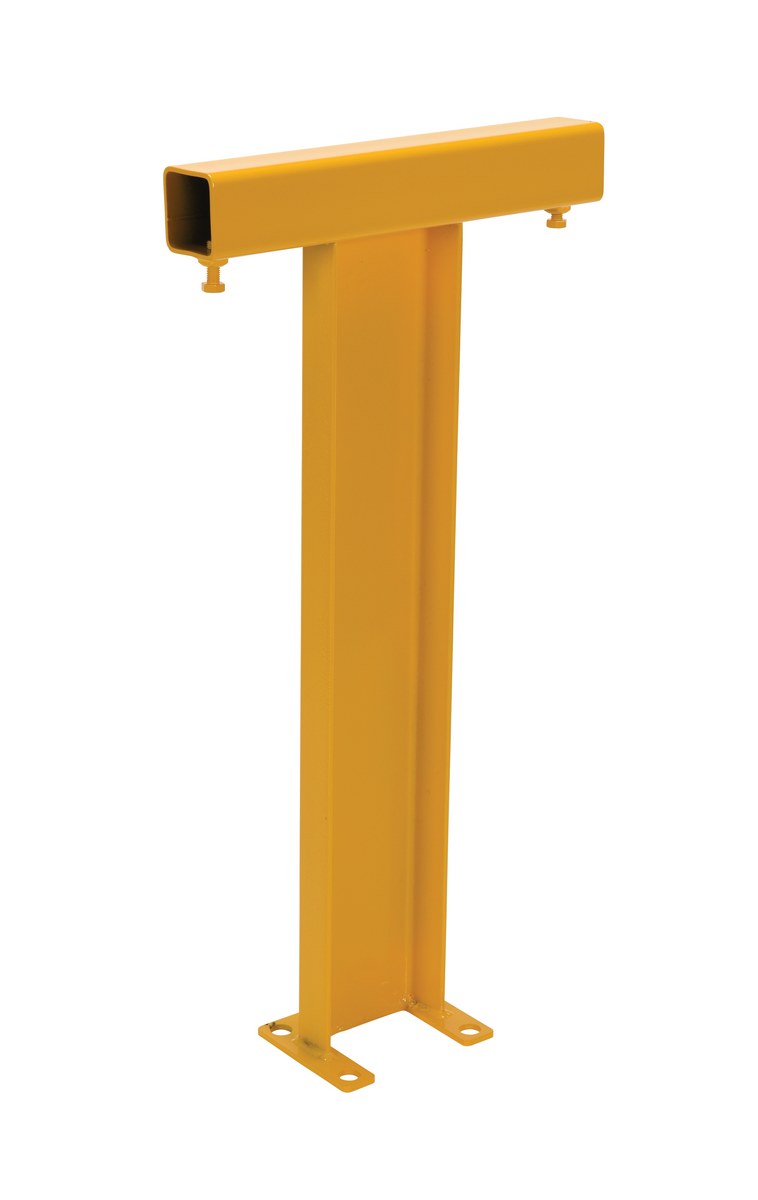

MG-SP-36-1 MG-SP-36-190 Days Limited WarrantySteel Modular Guard System Straight Post 1 Rail 7-5/8 In. x 18 In. x 36 In. YellowComponent: Mounting Straight Post
Rail Style: Single		37

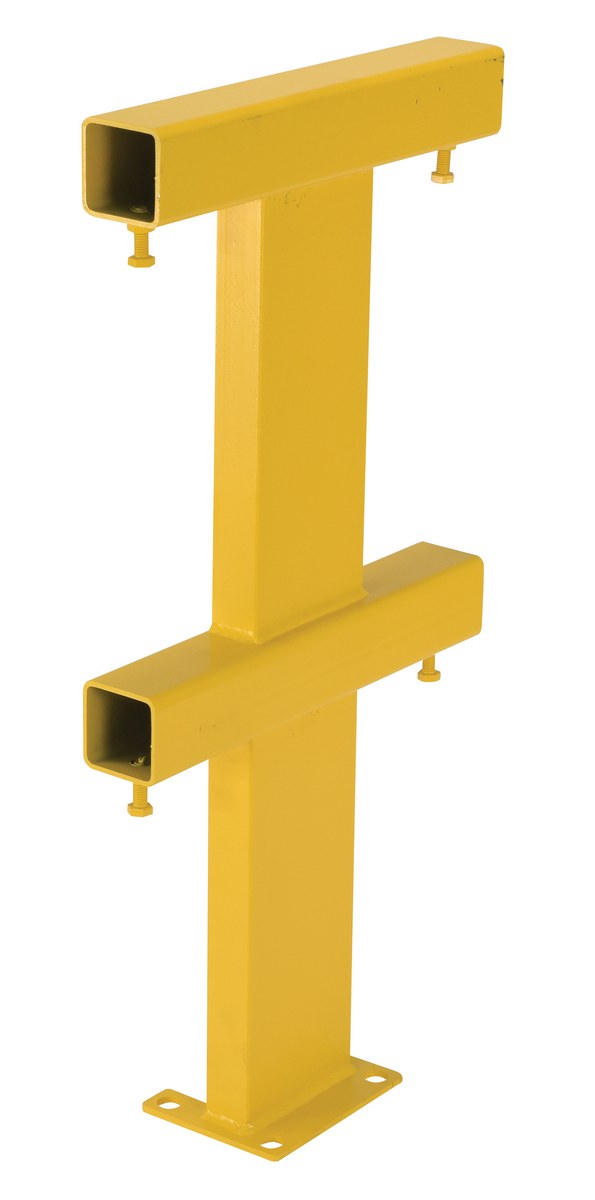

MG-SP-36-2 MG-SP-36-290 Days Limited WarrantySteel Modular Guard System Straight Post 2 Rail 7-5/8 In x 18 In. x 36 In YellowComponent: Mounting Straight Post
Rail Style: Double		68

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

MG-CP-36-1
Unit:
Size: W x L x H
Weight:
Limited Warranty
Component: Mounting Corner Post
Rail Style: Single
Component: Mounting Corner Post
Rail Style: Single

MG-CP-36-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Component: Mounting Corner Post
Rail Style: Double
Component: Mounting Corner Post
Rail Style: Double

MG-R-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Effective Length (in.): 120
Component: Railing
Effective Length (in.): 120
Component: Railing

MG-R-12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Effective Length (in.): 144
Component: Railing
Effective Length (in.): 144
Component: Railing

MG-R-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Effective Length (in.): 48
Component: Railing
Effective Length (in.): 48
Component: Railing

MG-R-6
Unit:
Size: W x L x H
Weight:
Limited Warranty
Effective Length (in.): 72
Component: Railing
Effective Length (in.): 72
Component: Railing

MG-R-8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Effective Length (in.): 96
Component: Railing
Effective Length (in.): 96
Component: Railing

MG-SP-36-1
Unit:
Size: W x L x H
Weight:
Limited Warranty
Component: Mounting Straight Post
Rail Style: Single
Component: Mounting Straight Post
Rail Style: Single

MG-SP-36-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Component: Mounting Straight Post
Rail Style: Double
Component: Mounting Straight Post
Rail Style: Double
For More Details of the Option Click the Red Model Button

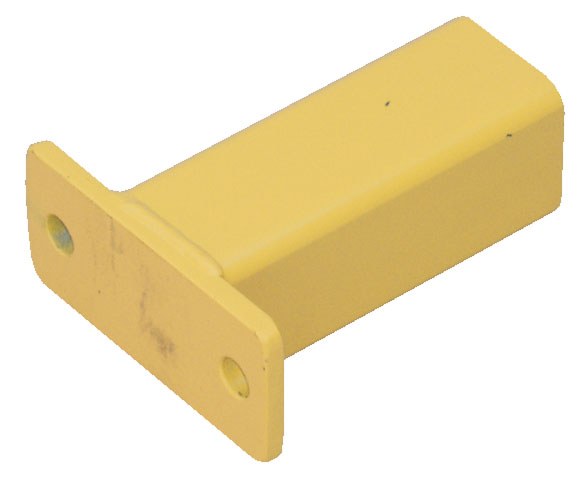

MG-WP-A MG-WP-A90 Days Limited WarrantySteel Modular Guard Wall Mount for Inner Post Tubing Option 6-7/8 In. x 3 In. x 6 In. YellowComponent: Wall Mounting
Mounting Style: Inner Fit Post Tubing		7

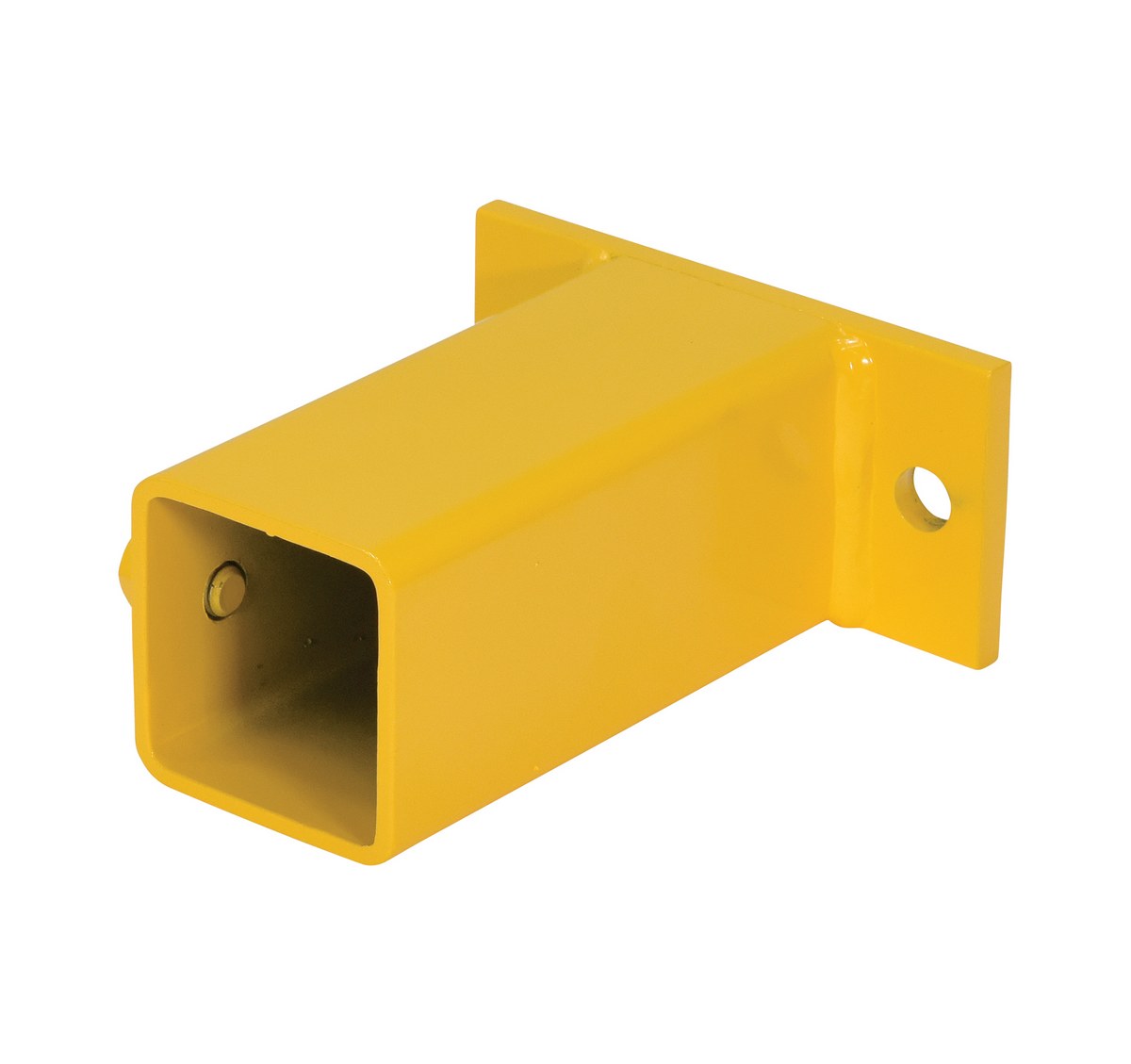

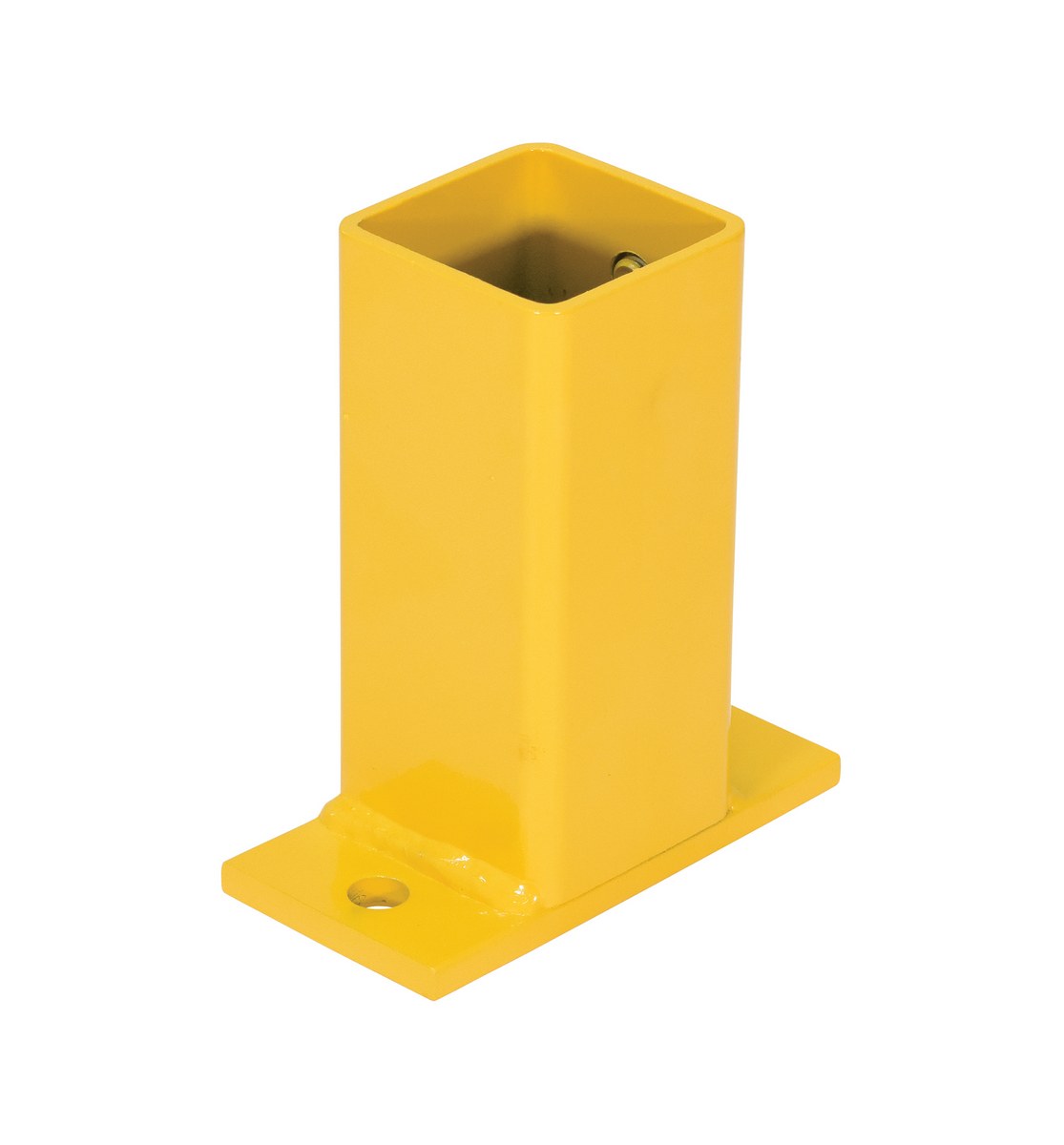

MG-WP-B MG-WP-B90 Days Limited WarrantySteel Modular Guard Wall Mount for Outer Post Tubing Option 6-7/8 In. x 3 In. x 6 In. YellowComponent: Wall Mounting
Mounting Style: Outer Fit Railing Section Tubing		8
Model Image Description Wt.
(lbs)
AS-344 Anchor Bolts For Concrete (1) 3/4"x4" 1
AS-344-4PK Anchor Bolts For Concrete (4) 3/4"x4" 4
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Modular Guard Systems PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings


MG-CP-36-1

MG-CP-36-2

MG-R-10

MG-R-12

MG-R-4

MG-R-6

MG-R-8

MG-SP-36-1

MG-SP-36-2

MG-WP-A

MG-WP-B

Testing Certificates


MG-CP-36-1

MG-CP-36-2

MG-R-10

MG-R-12

MG-R-4

MG-R-6

MG-R-8

MG-SP-36-1

MG-SP-36-2

MG-WP-A

MG-WP-B

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Related or Similar Products:

Gantry/Jib Guard
Product

Gantry/Jib Guard

Building Protective Column Pads
Product

Building Protective Column Pads

Building Column Protectors
Product

Building Column Protectors

Polyethylene Ultra I-Beam Protector
Product

Polyethylene Ultra I-Beam Protector

Heavy Duty Column Protectors
Product

Heavy Duty Column Protectors

Hexagonal Column Guards
Product

Hexagonal Column Guards

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Modular Guard Systems




Modular Guard System can be ordered to fit almost any application. Designed for quick and easy assembly. Railing sections are installed and secured to each post with a single bolt. Select from different railing lengths to custom fit your application. Railing systems are made from heavy-duty 2-1/2" square steel tubing. Wall mounting posts may be used to secure guard assembly to a wall. Durable safety yellow powder coat finish. Steel construction. All components sold separately.

  • Meant to fit almost any application
  • Designed for quick and easy assembly
  • Installed and secured to each post with a single bolt
  • Made from heavy-duty square steel tubing for strength

Model # Description Attributes Net Wt.
(lbs)
MG-CP-36-1 MG-CP-36-1Steel Modular Guard System Corner Post 1 Rail 7-5/8 In. x 6 In. x 36 In. YellowComponent: Mounting Corner Post
Rail Style: Single		37
MG-CP-36-2 MG-CP-36-2Steel Modular Guard System Corner Post 2 Rail 7-5/8 In. x 6 In. x 36 In. YellowComponent: Mounting Corner Post
Rail Style: Double		54
MG-R-10 MG-R-10Steel Modular Guard Railing Section 128 In. x 2-1/2 In. x 2-1/2 In. YellowEffective Length (in.): 120
Component: Railing		60
MG-R-12 MG-R-12Steel Modular Guard Railing Section 152 In. x 2-1/2 In. x 2-1/2 In. YellowEffective Length (in.): 144
Component: Railing		71
MG-R-4 MG-R-4Steel Modular Guard Railing Section 56 In. x 2-1/2 In. x 2-1/2 In. YellowEffective Length (in.): 48
Component: Railing		29
MG-R-6 MG-R-6Steel Modular Guard Railing Section 80 In. x 2-1/2 In. x 2-1/2 In. YellowEffective Length (in.): 72
Component: Railing		38
MG-R-8 MG-R-8Steel Modular Guard Railing Section 102 In. x 2-1/2 In. x 2-1/2 In. YellowEffective Length (in.): 96
Component: Railing		49
MG-SP-36-1 MG-SP-36-1Steel Modular Guard System Straight Post 1 Rail 7-5/8 In. x 18 In. x 36 In. YellowComponent: Mounting Straight Post
Rail Style: Single		37
MG-SP-36-2 MG-SP-36-2Steel Modular Guard System Straight Post 2 Rail 7-5/8 In x 18 In. x 36 In YellowComponent: Mounting Straight Post
Rail Style: Double		68

Options


Model Image Description Wt.
(lbs)
AS-344 Anchor Bolts For Concrete (1) 3/4"x4" 1
AS-344-4PK Anchor Bolts For Concrete (4) 3/4"x4" 4
