Portable Drum Jacks| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|
| DRUM-55-36 |  | 90 Days Limited Warranty | Steel Portable Drum Jack Accepts 55 Gallon Steel and Fiber Drums 500 Lb. Capacity Yellow | Uniform Capacity (lb.): 500 Lift Height (in.): 15 | 161 | ||
| DRUM-55-FSP |  | 90 Days Limited Warranty | Steel Portable Drum Jack Accepts 30 and 55 Gallon Steel, Fiber, and Plastic Drums 800 Lb. Capacity Yellow | Uniform Capacity (lb.): 800 Lift Height (in.): 20 | 400 | ||
| DRUM-55-SCL-E |  | 90 Days Limited Warranty | Steel Portable Ergonomic Drum Truck with Scale 38-5/8 In. x 35 In. x 64 In. 900 Lb. Capacity Yellow | Uniform Capacity (lb.): 900 Lift Height (in.): 23-5/8 | 420 | ||
| DRUM-55S | POPULAR |  | 90 Days Limited Warranty | Steel Portable Drum Jack Accepts 55 Gallon Steel Drums 660 Lb. Capacity Blue | Uniform Capacity (lb.): 660 Lift Height (in.): 5-1/4 | 152 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
A: Yes, the scale is suitable for a wash-down environment and it can measure as little as 1/2 lb.
A: Holds 55 gallon steel and fiber drums with a top lip only. No, this unit will only work with steel & fiber drums with a sufficient (strong enough) top lip.
|
|||||||||||||||||||||||||||
Portable Drum Jacks |
|||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||

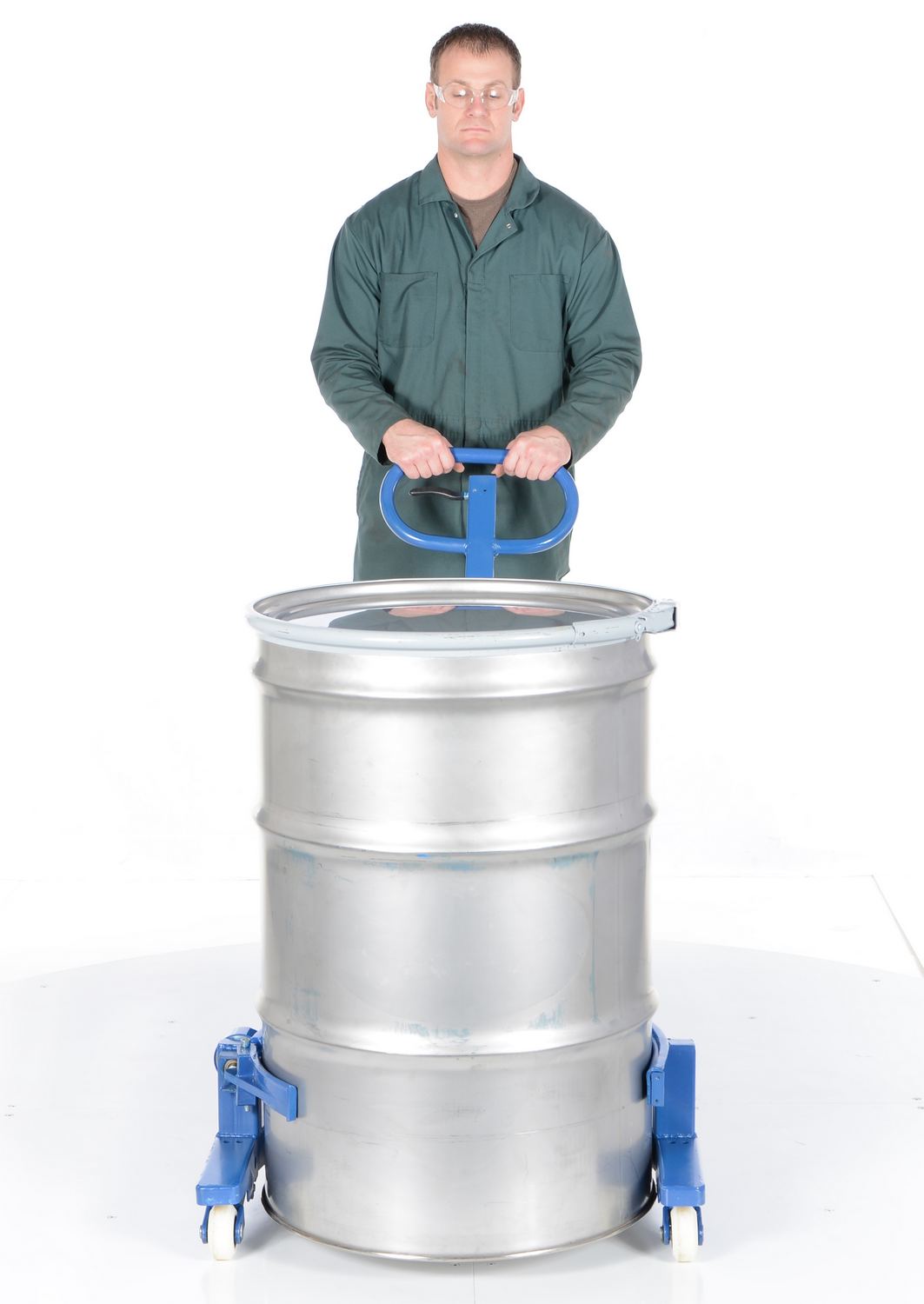

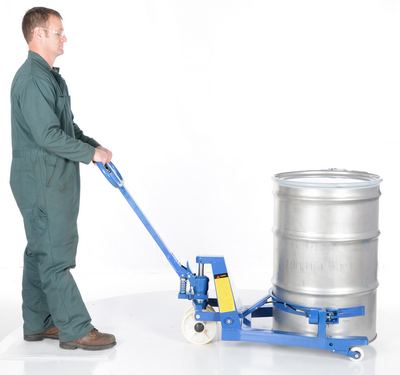

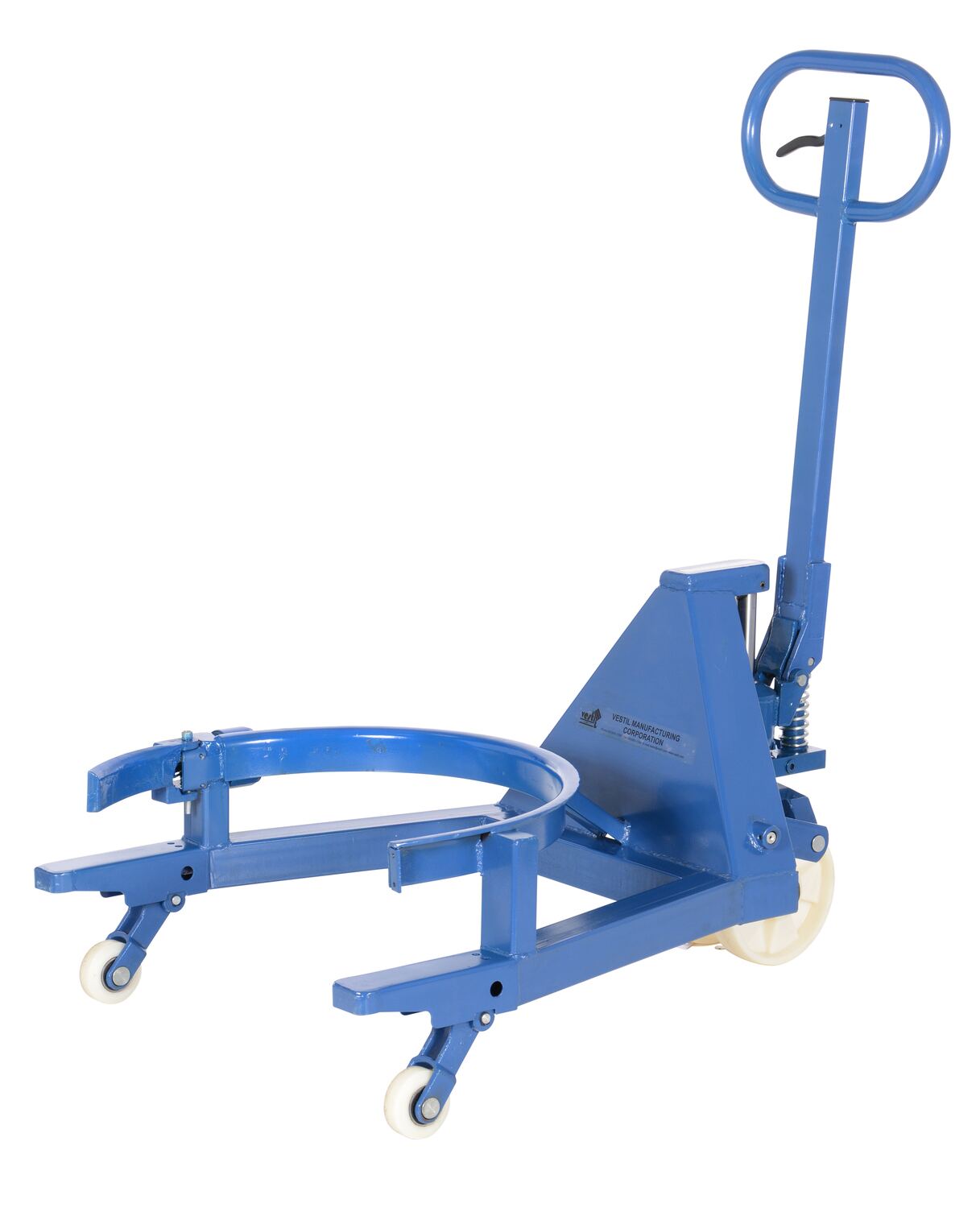

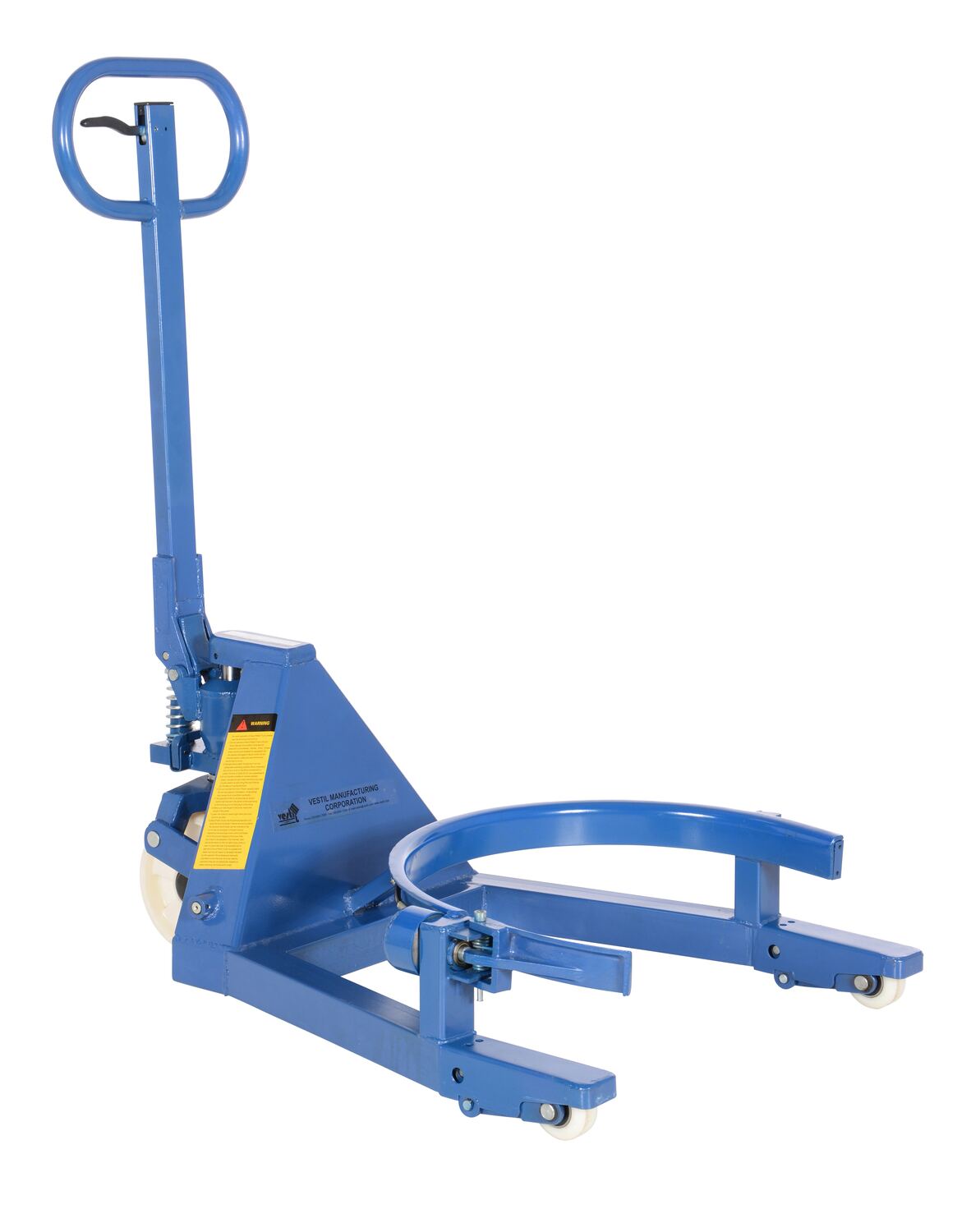

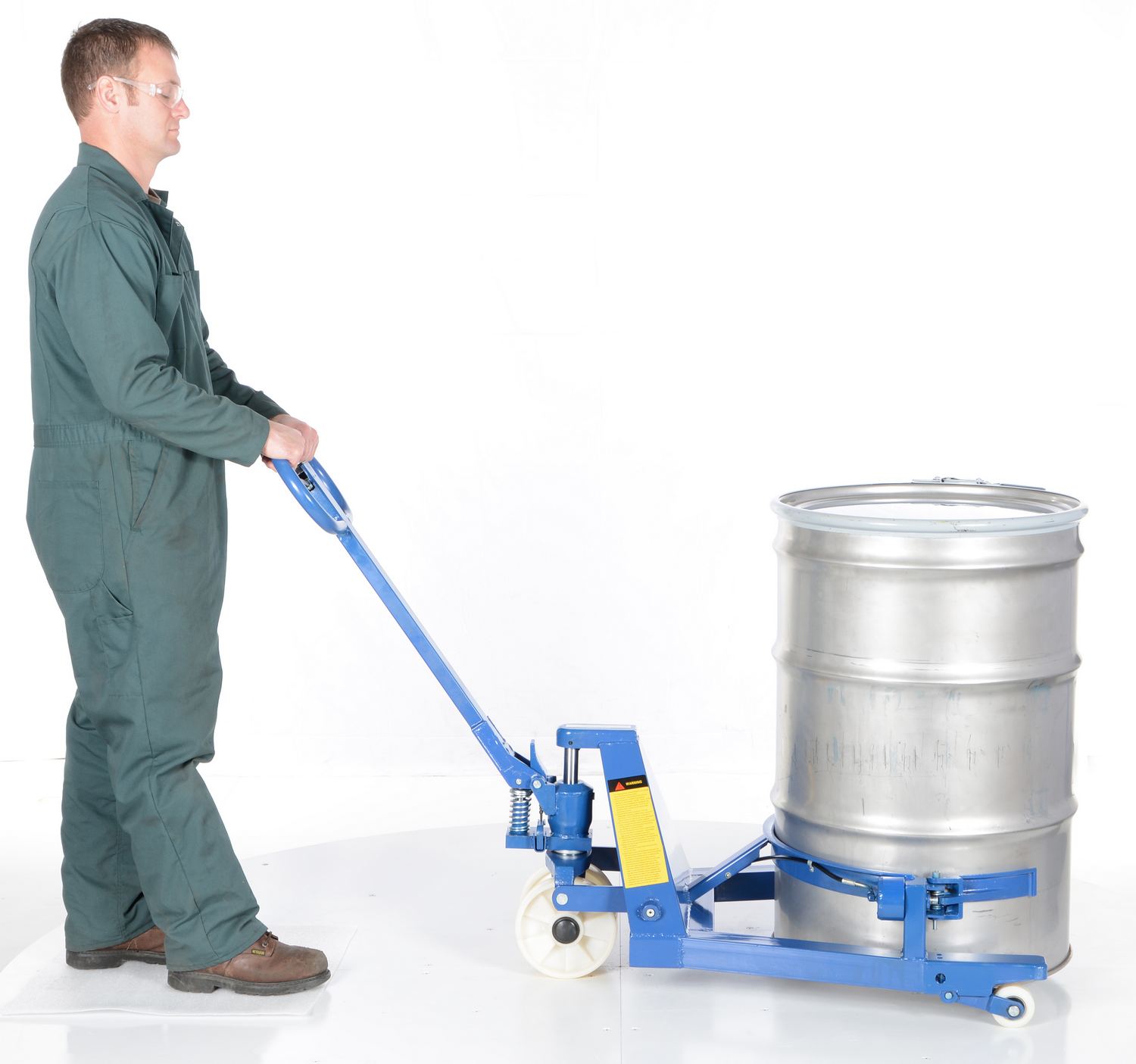

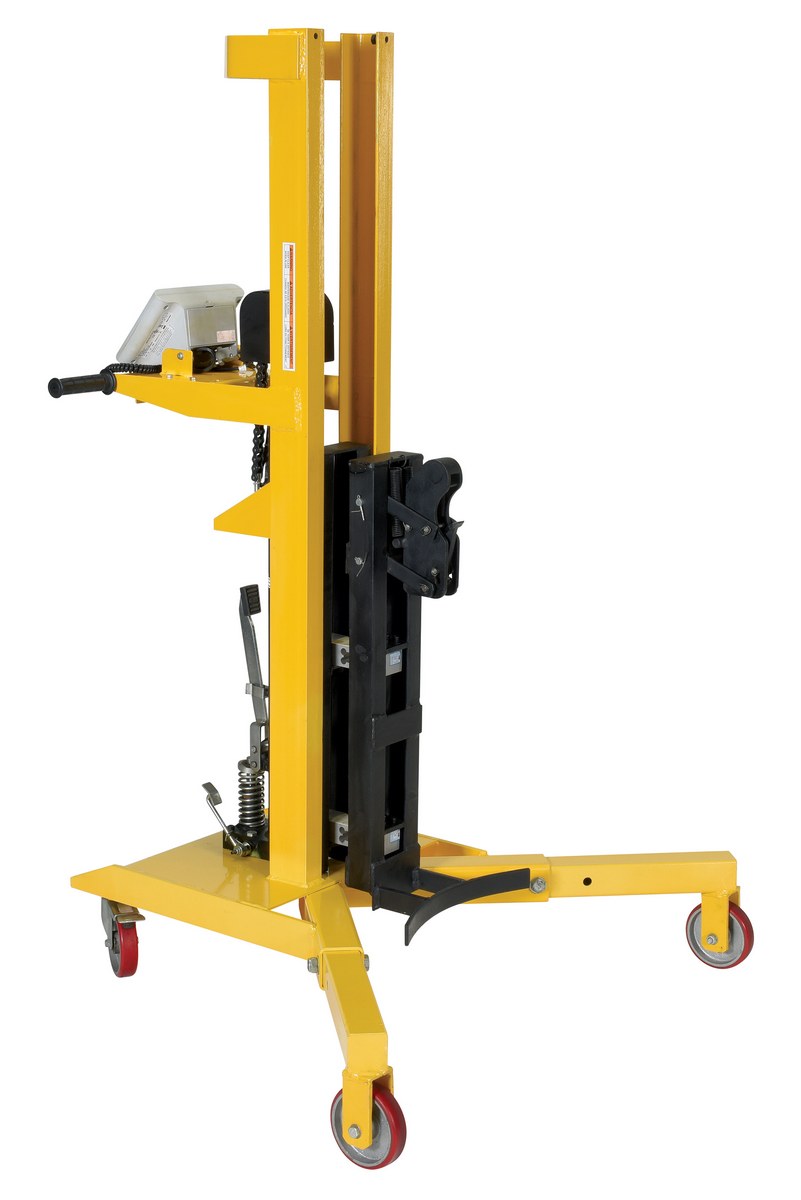

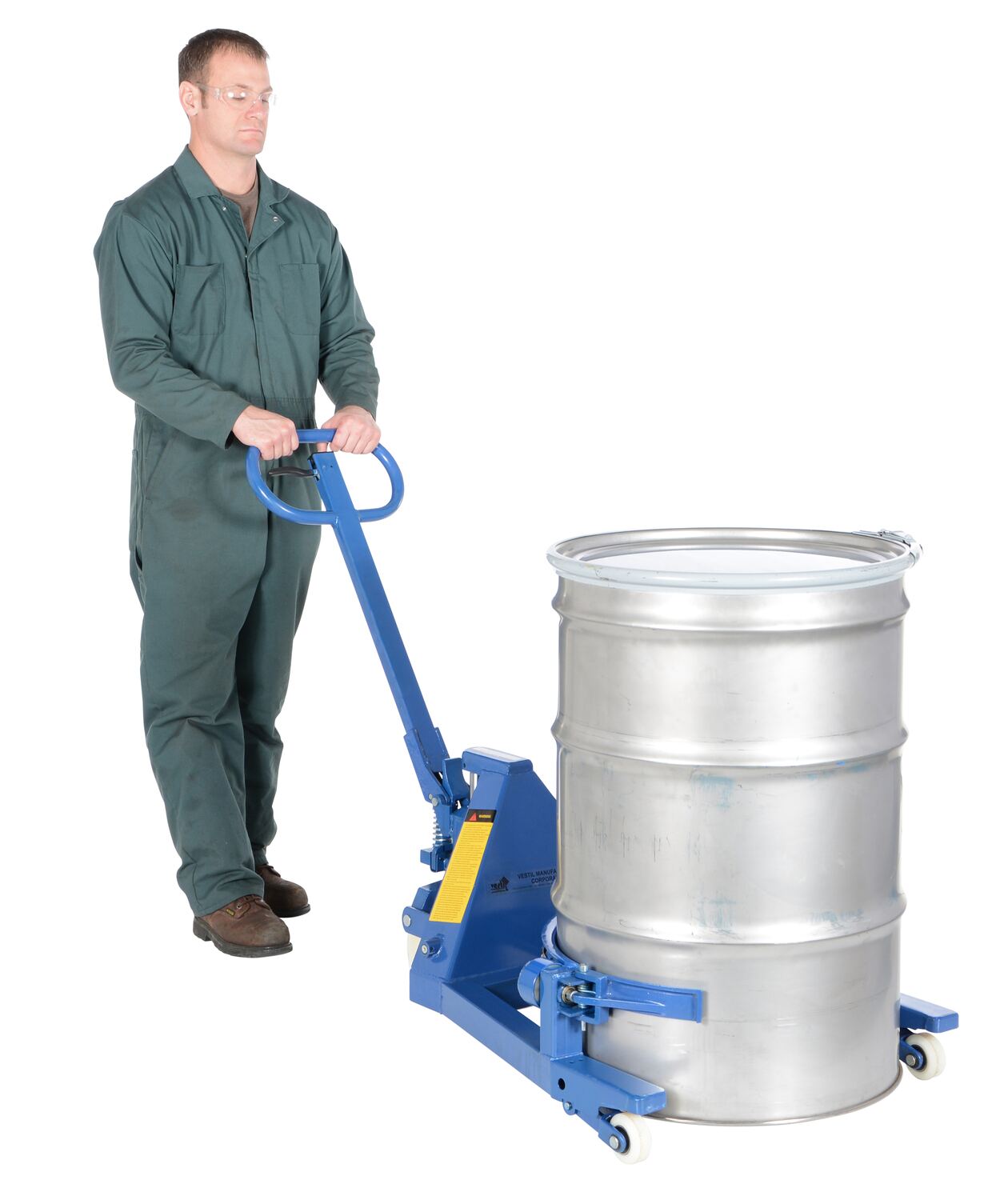

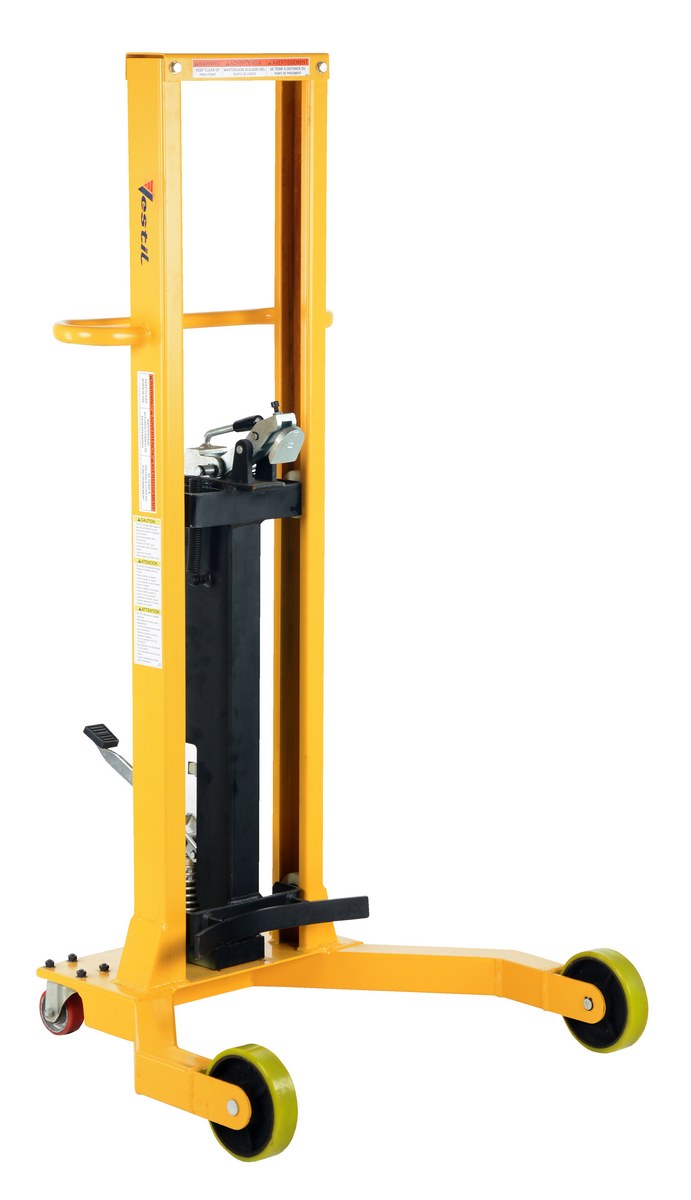

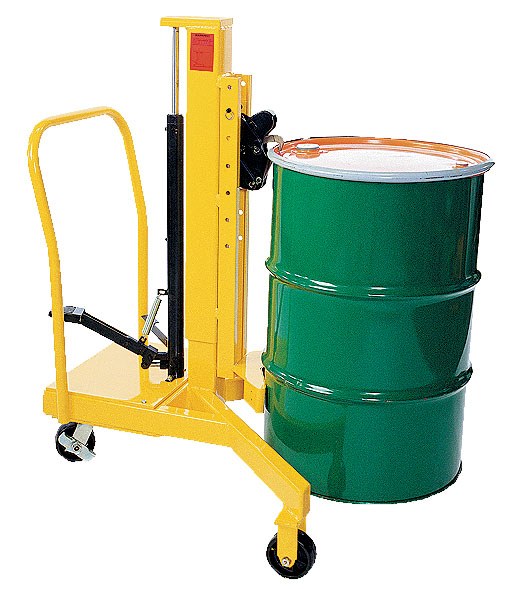

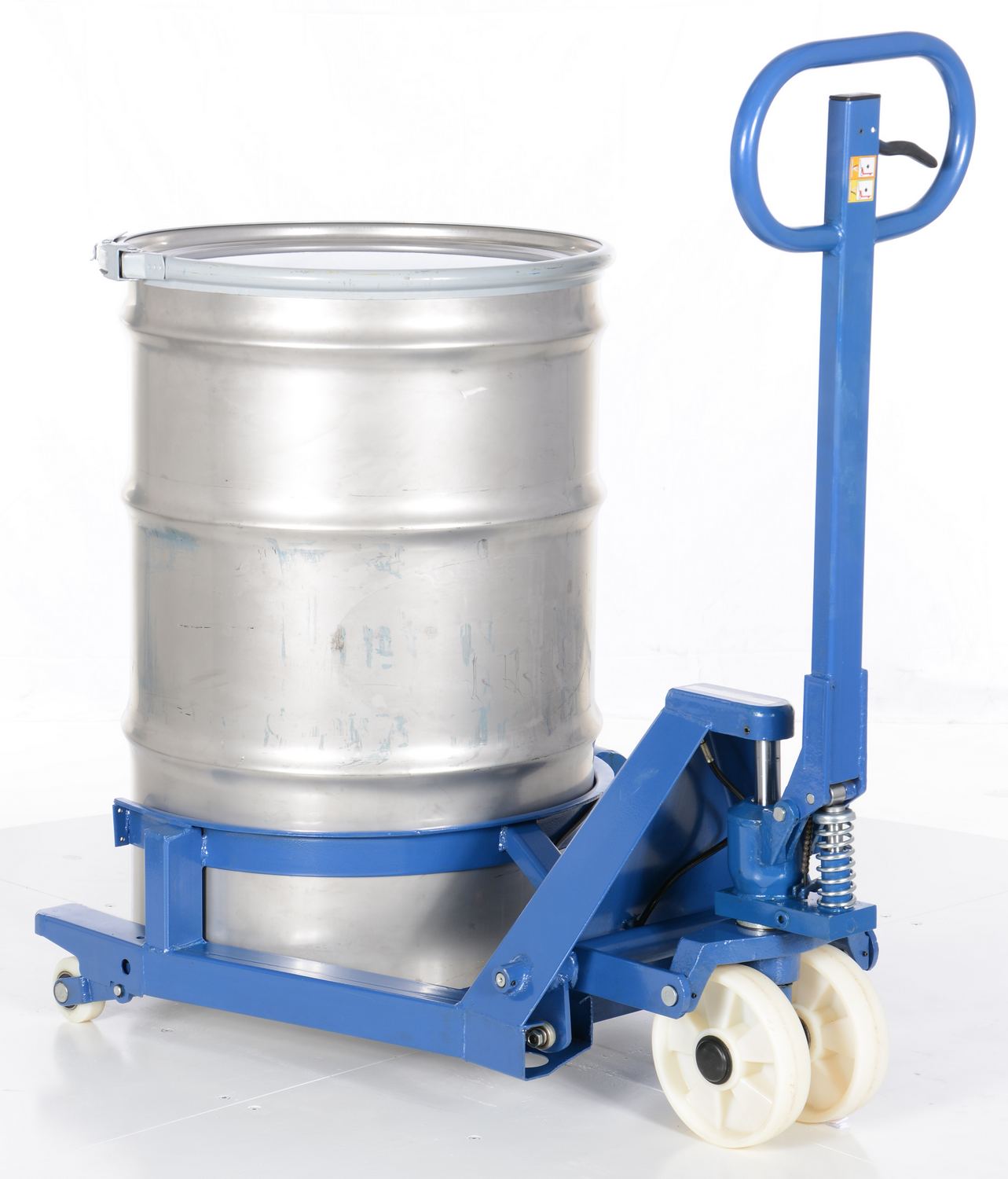

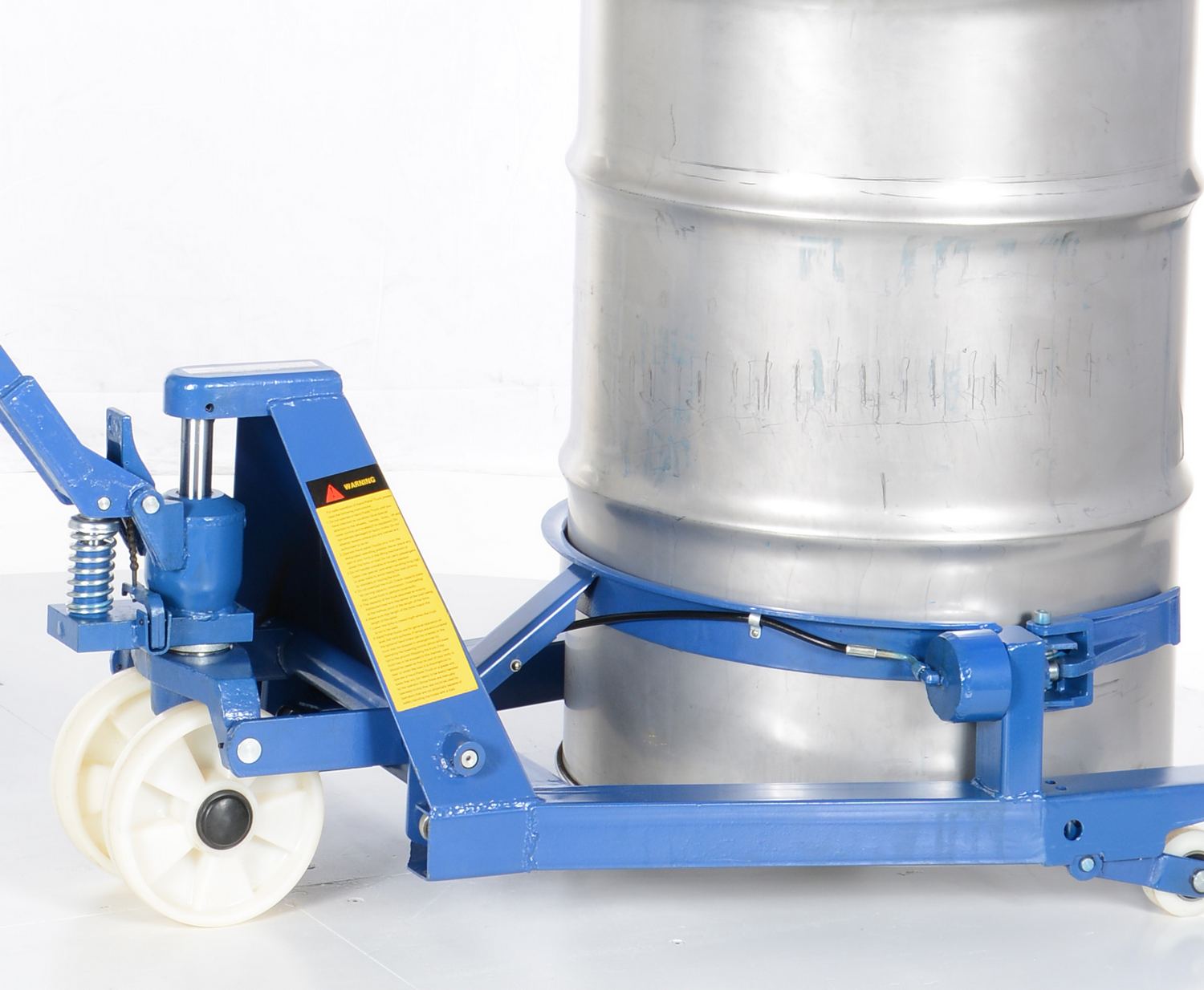

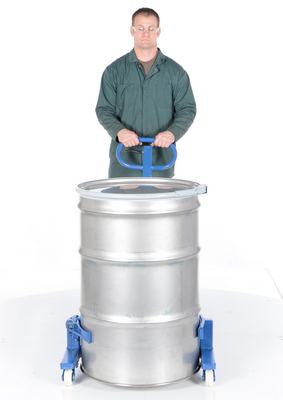

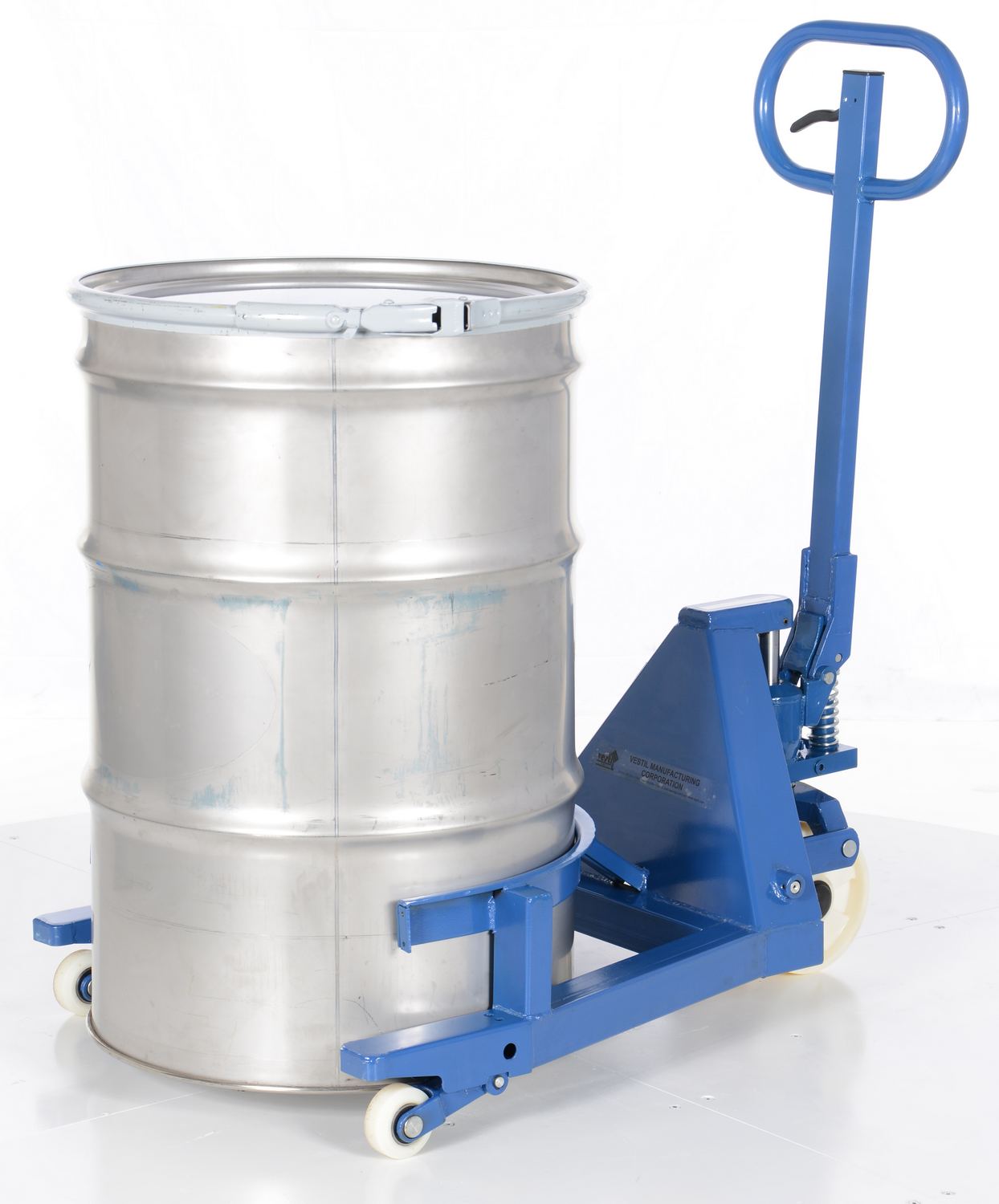

Model DRUM-55-36 accepts 55 gallon steel and fiber drums with a top lip. The front rigid wheels are 6" x 1-1/2", while the rear swivel casters are 3" x 1-1/2". Model DRUM-55S has a unique grapple to hold 55 gallon steel drums securely into the steel saddle prior to lifting it vertically. The drum is held in this position during transit, enabling open drums to be handled without spillage. Model DRUM-55-FSP has a single clamping mechanism, which automatically latches on the drum chime when being elevated or transported. The clamping mechanism is fully adjustable for shorter height drums. Model DRUM-55-SCL-E can lift, transport, and weigh 30, 55, and 85 gallon steel, fiber, and plastic drums. Scale head features automatic turn-off and +/-0.5 lbs. accuracy. Scale is powered with AA batteries. AC adapter included. |
|||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||
Our Customer Service Associates Are Here To Assist You! |
|||||||||||||||||||||||||||
These Drum Jacks are the perfect solution to any of your drum transporting needs. Compact design allows for maximum maneuverability in restrictive areas. Steel construction.
