Ultra-Spill Pallets & Decks

- - - -

Description
Model Chart
Options
PDF's
Image Gallery
Click Image to Enlarge

model: DR-1-UT



Featured Drum Handling Equipment


Drum Transporter & De-Palletizer
Economy Drum Positioner
Manual Drum Upenders
Piston Pail Pumps
Drum & Pail Dollies
Horizontal Drum Tap
Fuel Tank Containment with Drain
Vertical Steel Retention Basins with Separation Walls
Tilting Drum Rings
model chart

Product Family Overview

Print Friendly
Ultra-Spill Pallets & Decks
SERIES: DR

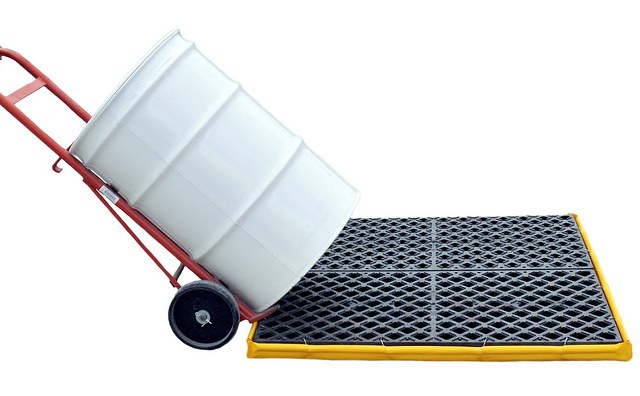

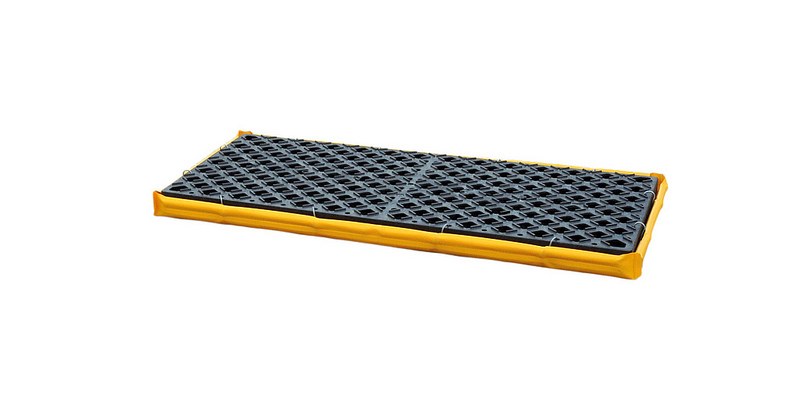

Low Profile Spill Decks are designed to catch spills. Model VLPUT-2448, has a volume capacity of 11 gallons, while model VLPUT-4848 has an 22 gallon volume capacity. Grating is manufactured from chemical resistant polyethylene. Outer yellow sump is constructed of heavy-duty, 18.5 oz. PVC material-folds/rolls down easily for convenient storage. Removable decking standard. Quick and easy to assemble.

Drum Spill Pallets, series DR, industrial strength molded polyethylene pallets with unique patented grid pattern drainage deck captures container spills and leaks of expensive materials for reuse. Unique design minimizes sloshing when transporting. Excellent for collecting most hazardous products. Dozens of applications when coordinated with many other containment products.

Low Profile Spill Decks are designed to catch spills. Model VLPUT-2448, has a volume capacity of 11 gallons, while model VLPUT-4848 has an 22 gallon volume capacity. Grating is manufactured from chemical resistant polyethylene. Outer yellow sump is constructed of heavy-duty, 18.5 oz. PVC material-folds/rolls down easily for convenient storage. Removable decking standard. Quick and easy to assemble.

Drum Spill Pallets, series DR, industrial strength molded polyethylene pallets with unique patented grid pattern drainage deck captures container spills and leaks of expensive materials for reuse. Unique design minimizes sloshing when transporting. Excellent for collecting most hazardous products. Dozens of applications when coordinated with many other containment products.

Other Retention Basins & Containers

 Ultra-Spill Pallets & Decks Vertical Steel Retention Basins with Separation Walls Intermediate Bulk Container Heaters Intermediate Bulk Containers

Additional Models In This Family
view entire Image Gallery

DR-3-UT

DR-3-UT

DR-1-UT

DR-1-UT

VLPUT-BF

VLPUT-BF

DR-2-UT

DR-2-UT

DR-4-UT

DR-4-UT

VLPUT-2448

VLPUT-2448

VLPUT-4848

VLPUT-4848

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
DR-1-UT DR-1-UT1 Year Limited WarrantyPolyethylene Ultra Spill Pallet 1 Drum Capacity 800 Lbs. YellowUniform Capacity (lb.): 800
Sump Capacity (gal.): 62		51
DR-2-UT DR-2-UT1 Year Limited WarrantyPolyethylene Ultra Spill Pallet 2 Drum Capacity 3000 Lbs. YellowUniform Capacity (lb.): 3,000
Sump Capacity (gal.): 66		63
DR-3-UT DR-3-UT1 Year Limited WarrantyPolyethylene Ultra Spill Pallet 3 Drum Capacity 4500 Lbs. YellowUniform Capacity (lb.): 4,500
Sump Capacity (gal.): 99		117
DR-4-UT DR-4-UT1 Year Limited WarrantyPolyethylene Ultra Spill Pallet 4 Drum Capacity 6000 Lbs. YellowUniform Capacity (lb.): 6,000
Sump Capacity (gal.): 66		90
VLPUT-2448 VLPUT-24481 Year Limited WarrantyPolyethylene Ultra Spill Containment Deck 24 In. x 48 In. 3,000 Lb./2 Drum Capacity BlackUniform Capacity (lb.): 3,000
Sump Capacity (gal.): 11		22
VLPUT-4848 VLPUT-48481 Year Limited WarrantyPolyethylene Ultra Spill Containment Deck 48 In. x 48 In. 6,000 Lb./4 Drum Capacity BlackUniform Capacity (lb.): 6,000
Sump Capacity (gal.): 22		44

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

DR-1-UT
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Sump Capacity (gal.): 62
Uniform Capacity (lb.): 800
Sump Capacity (gal.): 62

DR-2-UT
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3,000
Sump Capacity (gal.): 66
Uniform Capacity (lb.): 3,000
Sump Capacity (gal.): 66

DR-3-UT
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,500
Sump Capacity (gal.): 99
Uniform Capacity (lb.): 4,500
Sump Capacity (gal.): 99

DR-4-UT
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Sump Capacity (gal.): 66
Uniform Capacity (lb.): 6,000
Sump Capacity (gal.): 66

VLPUT-2448
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3,000
Sump Capacity (gal.): 11
Uniform Capacity (lb.): 3,000
Sump Capacity (gal.): 11

VLPUT-4848
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Sump Capacity (gal.): 22
Uniform Capacity (lb.): 6,000
Sump Capacity (gal.): 22
For More Details of the Option Click the Red Model Button

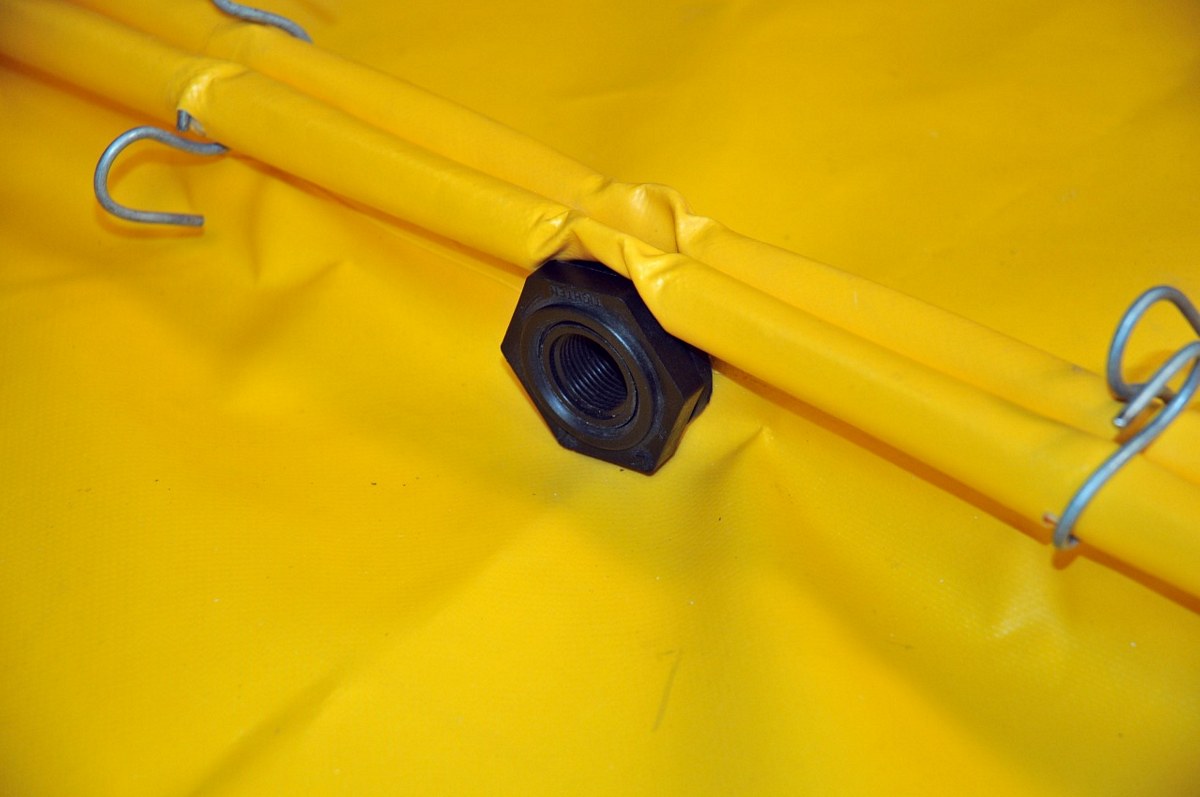

VLPUT-BF VLPUT-BF90 Days Limited WarrantyPolyethylene Bulkhead Fitting Flexible Spill Deck BlackCSA B125 Compliant: Exempt From Standard
FM Approved: Exempt		1

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Ultra-Spill Pallets & Decks PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings


DR-4-UT

Testing Certificates


DR-4-UT

VLPUT-BF

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets

Q: Do these pallets have a drain plug?

A: Yes, the ultra spill pallets have a drain plug.

Q: What is the life expectancy of this spill pallet?

A: ) Expected lifespan is at least ten (10) years. You can expect longer, but the actual life is dependent on several factors. These pallets use the highest rated UV package in the resin formulation it uses to create the longest outdoor life available for a PE product. These pallets are designed for secondary spill containment for four 55-gal drums or smaller containers. They hold a total of 66-gal should one of the containers on the pallet were to fail and have either a leak or spill. Deterioration will depend on the application and what chemicals may come into contact with the LLDPE that is used to mold this pallet.




Related or Similar Products:

Intermediate Bulk Containers
Product

Intermediate Bulk Containers

Intermediate Bulk Container Tilting Cart
Product

Intermediate Bulk Container Tilting Cart

Intermediate Bulk Container Heaters
Product

Intermediate Bulk Container Heaters

Overpack Containers
Product

Overpack Containers

Fuel Tank Containment with Drain
Product

Fuel Tank Containment with Drain

Drum Grab
Product

Drum Grab

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Ultra-Spill Pallets & Decks




Low Profile Spill Decks are designed to catch spills. Model VLPUT-2448, has a volume capacity of 11 gallons, while model VLPUT-4848 has an 22 gallon volume capacity. Grating is manufactured from chemical resistant polyethylene. Outer yellow sump is constructed of heavy-duty, 18.5 oz. PVC material-folds/rolls down easily for convenient storage. Removable decking standard. Quick and easy to assemble.

Drum Spill Pallets, series DR, industrial strength molded polyethylene pallets with unique patented grid pattern drainage deck captures container spills and leaks of expensive materials for reuse. Unique design minimizes sloshing when transporting. Excellent for collecting most hazardous products. Dozens of applications when coordinated with many other containment products.


Model # Description Attributes Net Wt.
(lbs)
DR-1-UT DR-1-UTPolyethylene Ultra Spill Pallet 1 Drum Capacity 800 Lbs. YellowUniform Capacity (lb.): 800
Sump Capacity (gal.): 62		51
DR-2-UT DR-2-UTPolyethylene Ultra Spill Pallet 2 Drum Capacity 3000 Lbs. YellowUniform Capacity (lb.): 3,000
Sump Capacity (gal.): 66		63
DR-3-UT DR-3-UTPolyethylene Ultra Spill Pallet 3 Drum Capacity 4500 Lbs. YellowUniform Capacity (lb.): 4,500
Sump Capacity (gal.): 99		117
DR-4-UT DR-4-UTPolyethylene Ultra Spill Pallet 4 Drum Capacity 6000 Lbs. YellowUniform Capacity (lb.): 6,000
Sump Capacity (gal.): 66		90
VLPUT-2448 VLPUT-2448Polyethylene Ultra Spill Containment Deck 24 In. x 48 In. 3,000 Lb./2 Drum Capacity BlackUniform Capacity (lb.): 3,000
Sump Capacity (gal.): 11		22
VLPUT-4848 VLPUT-4848Polyethylene Ultra Spill Containment Deck 48 In. x 48 In. 6,000 Lb./4 Drum Capacity BlackUniform Capacity (lb.): 6,000
Sump Capacity (gal.): 22		44
