Product Family Overview

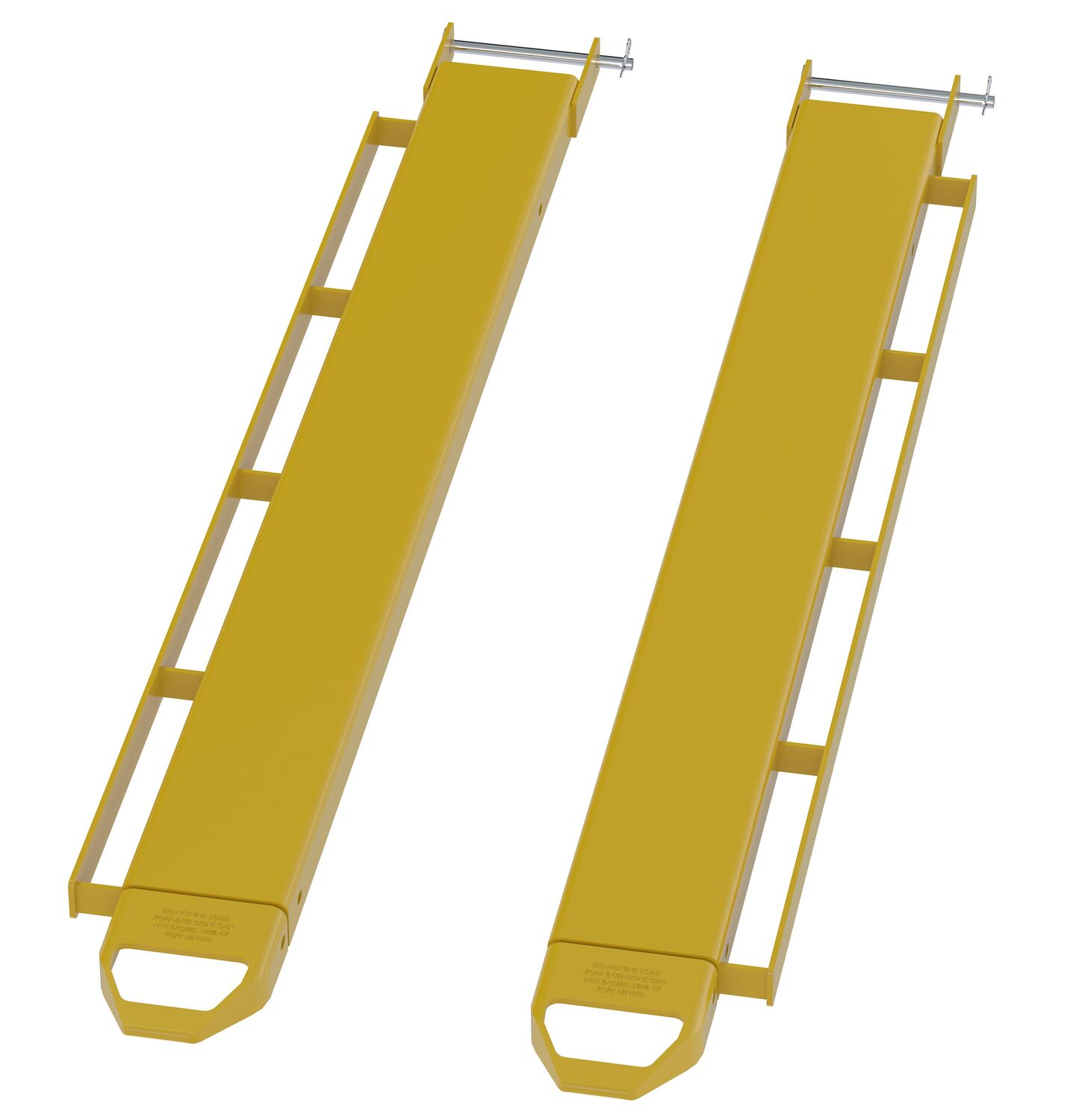

Fork Extensions with Side Brackets For Load Straps
SERIES: FE-P-LR

Lifting long, large items with standard forks can be difficult and dangerous. To ease those burdens looks for a pair of Vestil fork extensions, with tie down load rails. Let us explain the benefit of this unique style.

From time to time securing items with tie downs is next to impossible. Fork extensions routinely have a smooth exterior with no built-in point to connect straps or other safety equipment. With Vestil's alternative design you will find tie down rails evenly spaced throughout the extension, giving the user the ability to pick and choose the best place to secure the load. Not only that, but the multiple rail feature eliminates the changes of the tie down slipping or sliding beyond each segment

OSHA regulations require that extensions are no more than one hundred and fifty (150) percent of the existing fork length.

  • Cast steel tips
  • 5/16" Welded steel
  • 4-1/2" usable fork width

HOW TO USE / INSTALLATION

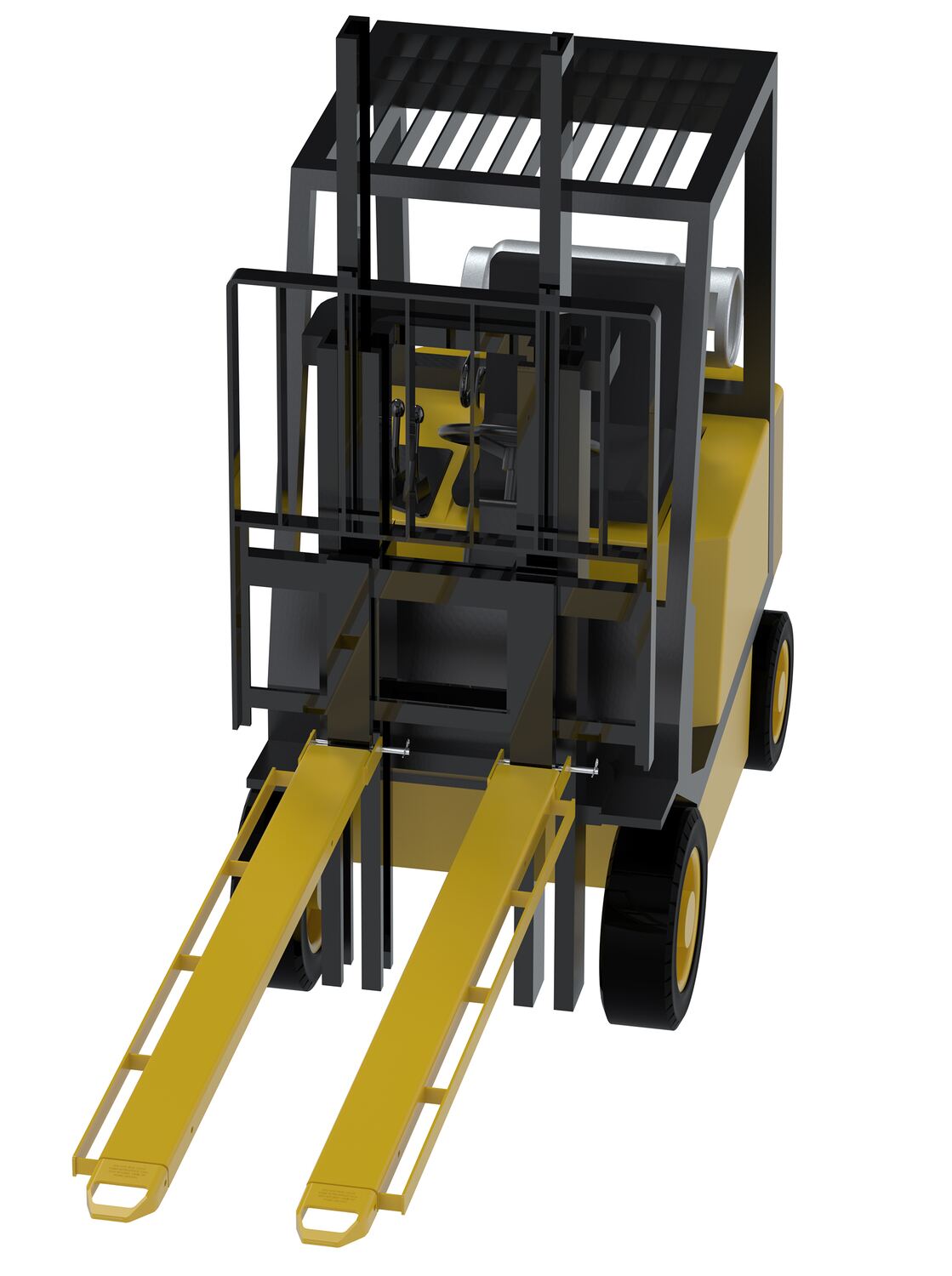

Remove pin and lay extension over fork or drive fork truck into the extension. Re-insert the pin behind the heel of the fork to secure extension. Currently this design is only available in 'pin style'.

To be used with class 2 and class 3 forks only

Check Out Vestil's Other Fork Extension Styles:


Loop-Style Fork Extensions

High Strength Fork Extensions

Round or Triangular Fork Extensions

Fork Extensions with Rear Spacers
.
Pin-Style Fork Extensions

Lifting long, large items with standard forks can be difficult and dangerous. To ease those burdens looks for a pair of Vestil fork extensions, with tie down load rails. Let us explain the benefit of this unique style.

From time to time securing items with tie downs is next to impossible. Fork extensions routinely have a smooth exterior with no built-in point to connect straps or other safety equipment. With Vestil's alternative design you will find tie down rails evenly spaced throughout the extension, giving the user the ability to pick and choose the best place to secure the load. Not only that, but the multiple rail feature eliminates the changes of the tie down slipping or sliding beyond each segment

OSHA regulations require that extensions are no more than one hundred and fifty (150) percent of the existing fork length.

  • Cast steel tips
  • 5/16" Welded steel
  • 4-1/2" usable fork width

HOW TO USE / INSTALLATION

Remove pin and lay extension over fork or drive fork truck into the extension. Re-insert the pin behind the heel of the fork to secure extension. Currently this design is only available in 'pin style'.

To be used with class 2 and class 3 forks only

Check Out Vestil's Other Fork Extension Styles:


Loop-Style Fork Extensions

High Strength Fork Extensions

Round or Triangular Fork Extensions

Fork Extensions with Rear Spacers
.
Pin-Style Fork Extensions

Additional Models In This Family

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

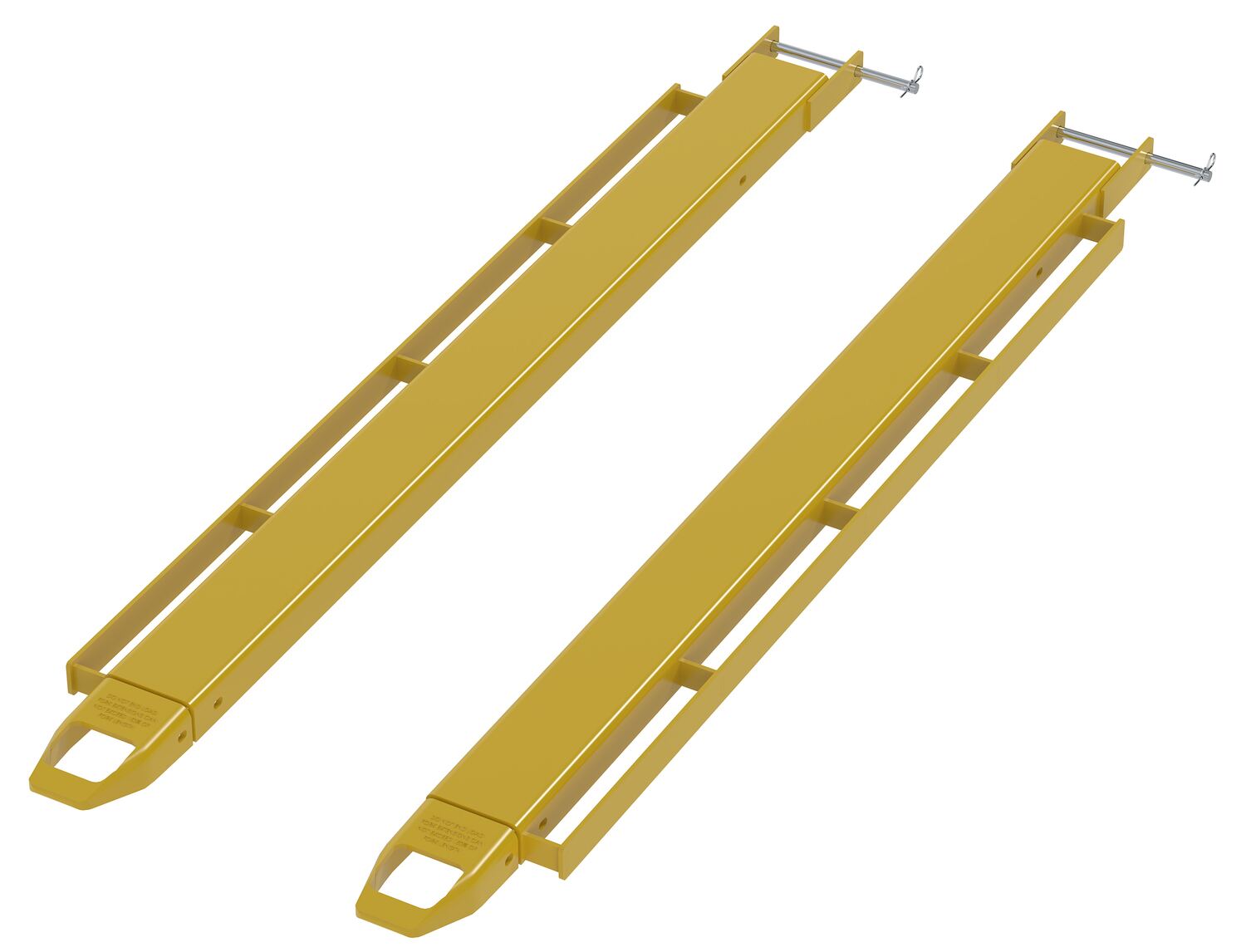

FE-4-72-P-LR NEW FE-4-72-P-LR90 Days Limited WarrantySteel Pin Style Fork Extensions with Load Rails 4" X 72" 4,000 Lb. Capacity YellowCapacity Per Pair Evenly Distributed (lb.): 4000
Width (in.): 5-1/8
138

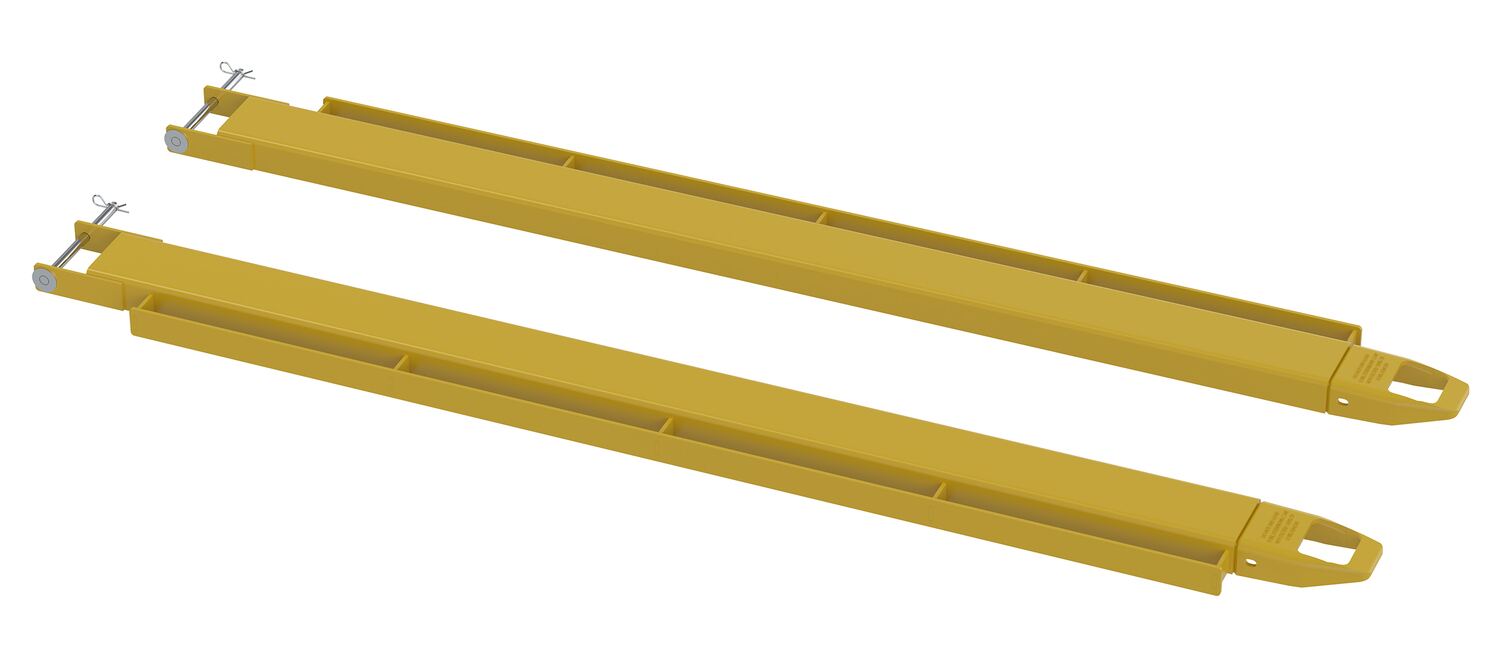

FE-4-84-P-LR NEW FE-4-84-P-LR90 Days Limited WarrantySteel Pin Style Fork Extensions with Load Rails 4" X 84" 4,000 Lb. Capacity YellowCapacity Per Pair Evenly Distributed (lb.): 4000
Overall Width (in.): 5-1/8
160

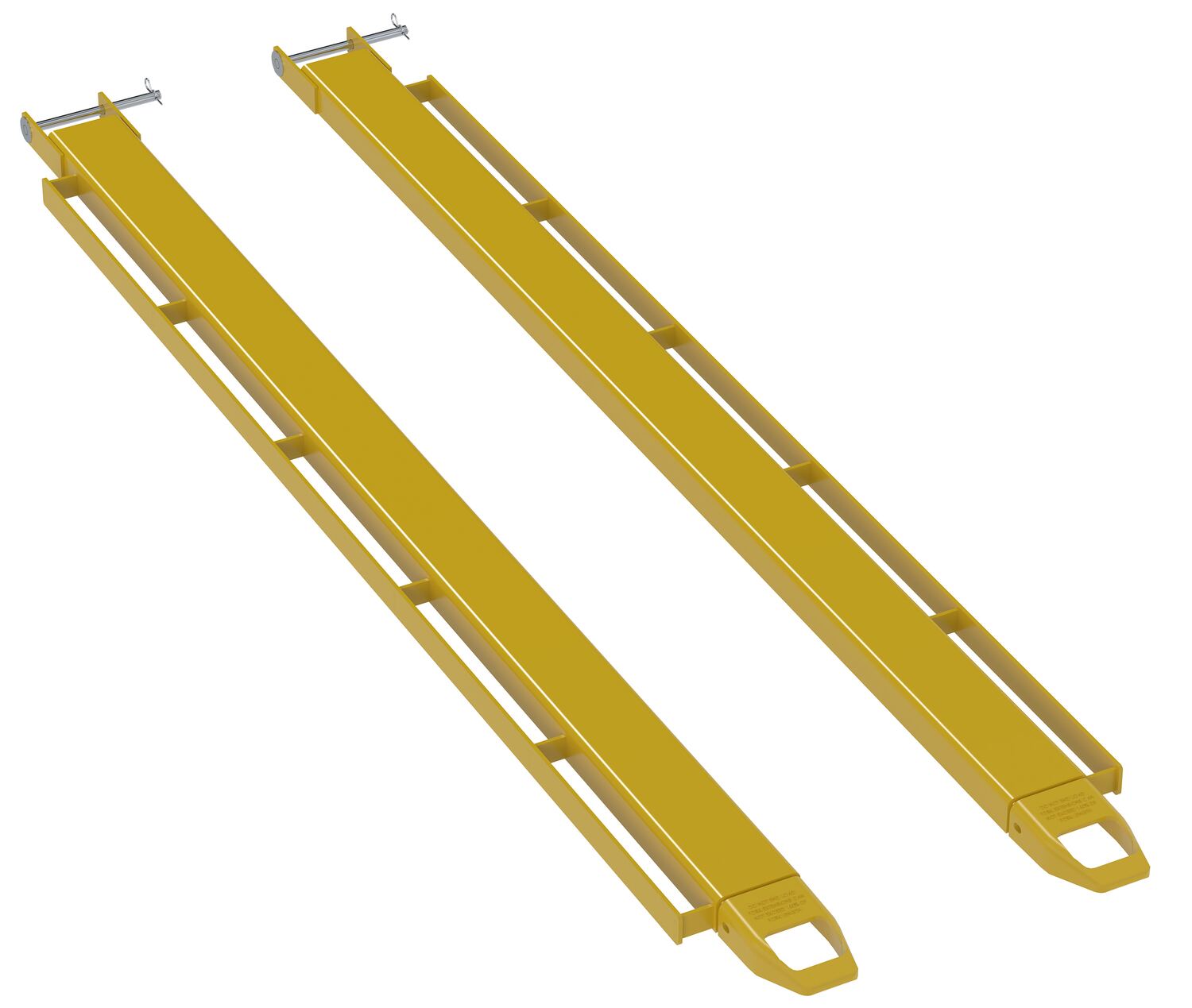

FE-4-96-P-LR NEW FE-4-96-P-LR90 Days Limited WarrantySteel Pin Style Fork Extensions with Load Rails 4" X 96" 4,000 Lb. Capacity YellowCapacity Per Pair Evenly Distributed (lb.): 4000
Overall Width (in.): 5-1/8
180
FE-5-72-P-LR NEW FE-5-72-P-LR90 Days Limited WarrantySteel Pin Style Fork Extensions with Load Rails 5" X 72" 4,000 Lb. Capacity YellowCapacity Per Pair Evenly Distributed (lb.): 4000
Width (in.): 72
150

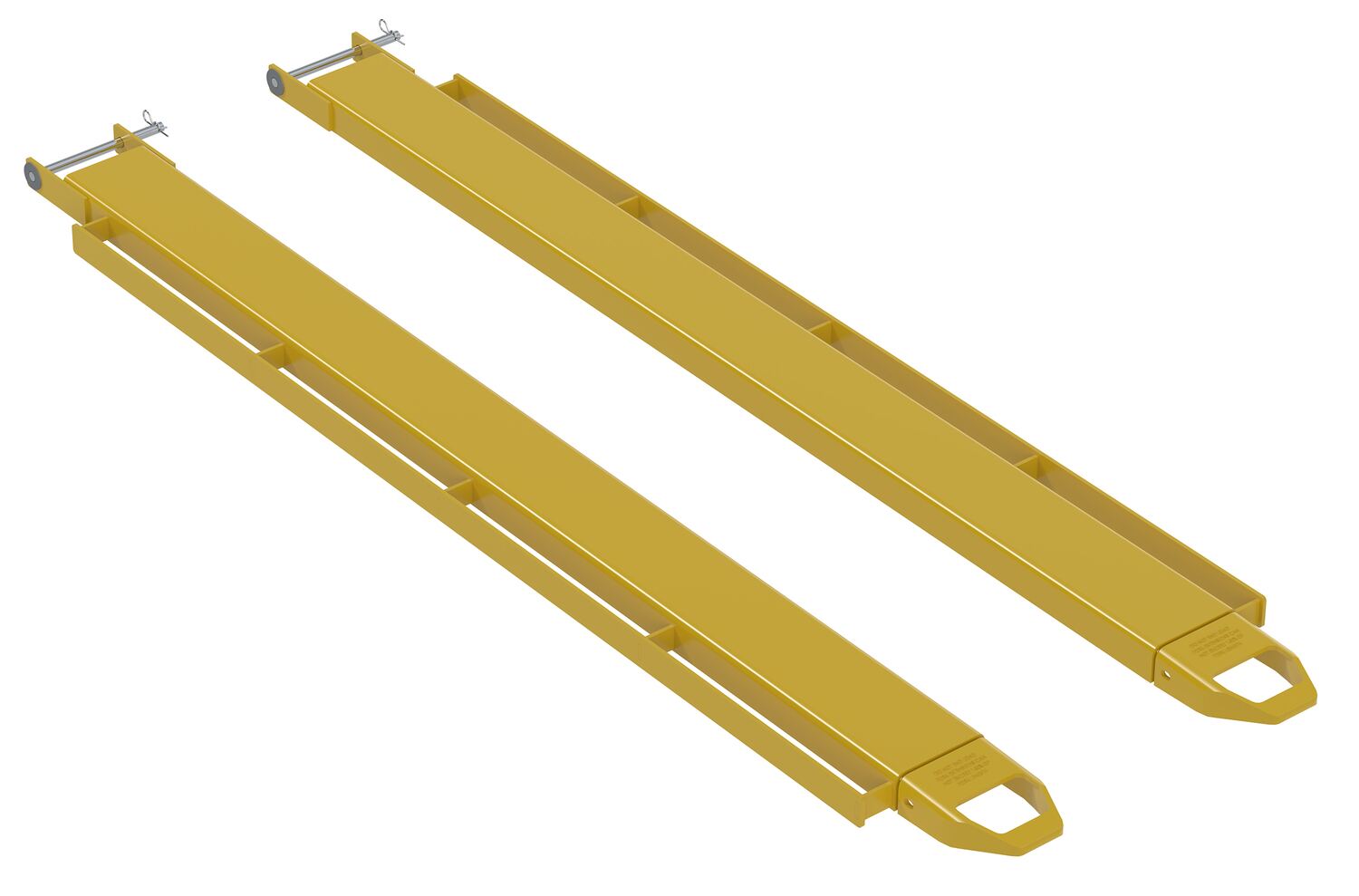

FE-5-84-P-LR NEW FE-5-84-P-LR90 Days Limited WarrantySteel Pin Style Fork Extensions with Load Rails 5" X 84" 4,000 Lb. Capacity YellowCapacity Per Pair Evenly Distributed (lb.): 4000
Individual Width (in.): 6-1/8
174

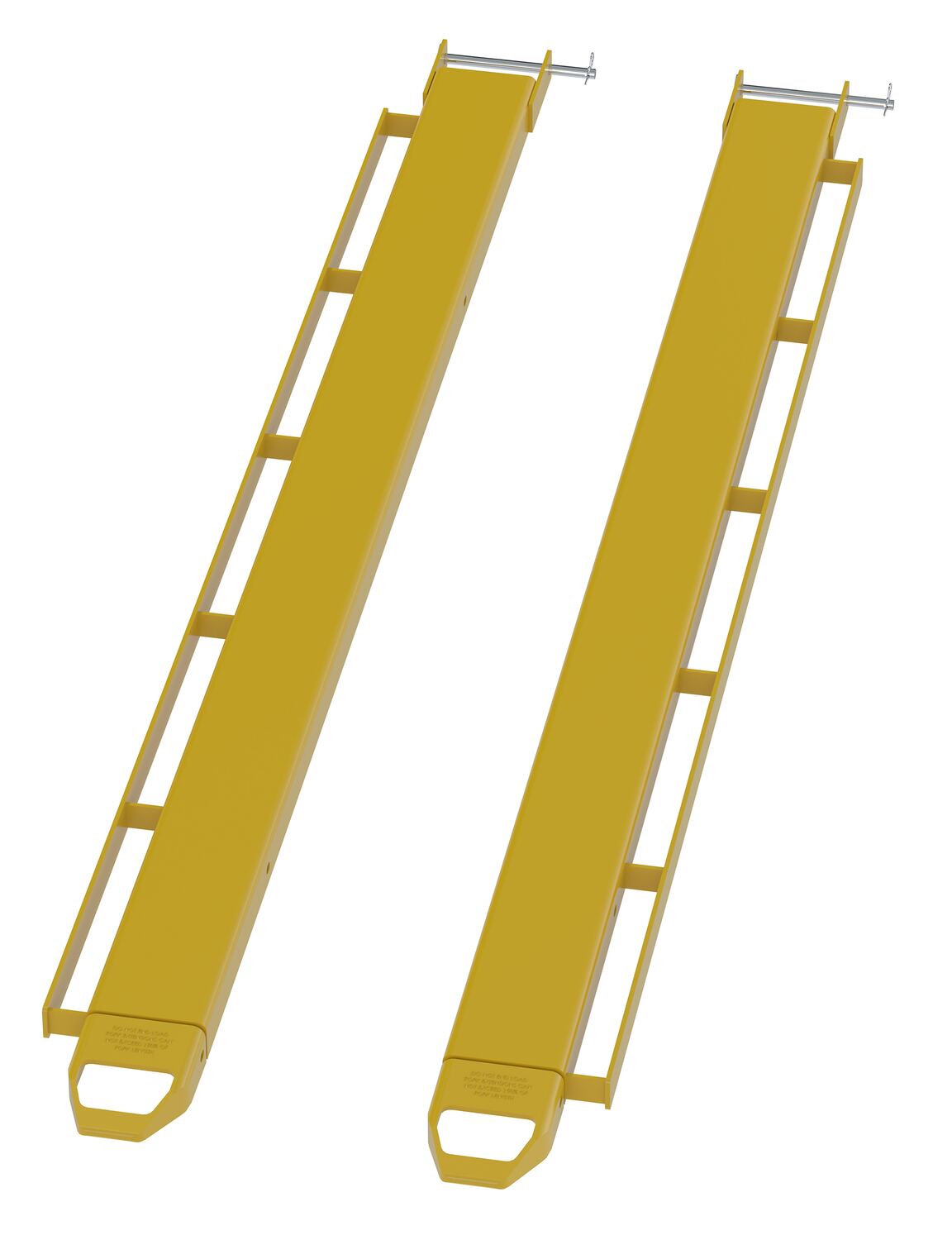

FE-5-96-P-LR NEW FE-5-96-P-LR90 Days Limited WarrantySteel Pin Style Fork Extensions with Load Rails 5" X 96" 4,000 Lb. Capacity YellowCapacity Per Pair Evenly Distributed (lb.): 4000
Width (in.): 6-1/8
197
FE-6-72-P-LR NEW FE-6-72-P-LR90 Days Limited WarrantySteel Pin Style Fork Extensions with Load Rails 6" X 72" 4,000 Lb. Capacity YellowCapacity Per Pair Evenly Distributed (lb.): 4000
Width (in.): 7-1/8
162

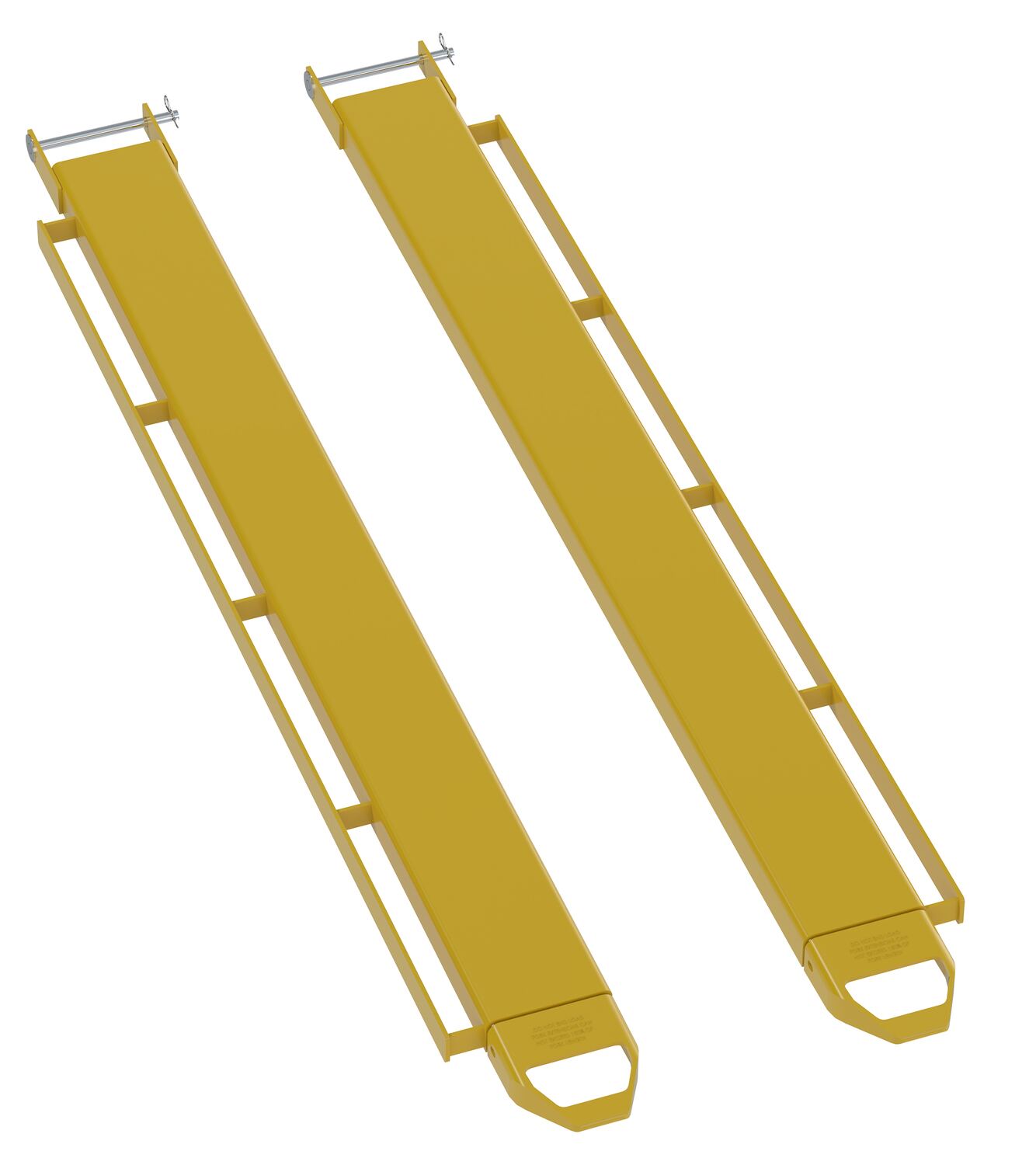

FE-6-84-P-LR NEW FE-6-84-P-LR90 Days Limited WarrantySteel Pin Style Fork Extensions with Load Rails 6" X 84" 4,000 Lb. Capacity YellowCapacity Per Pair Evenly Distributed (lb.): 4000
Width (in.): 7-1/8
174

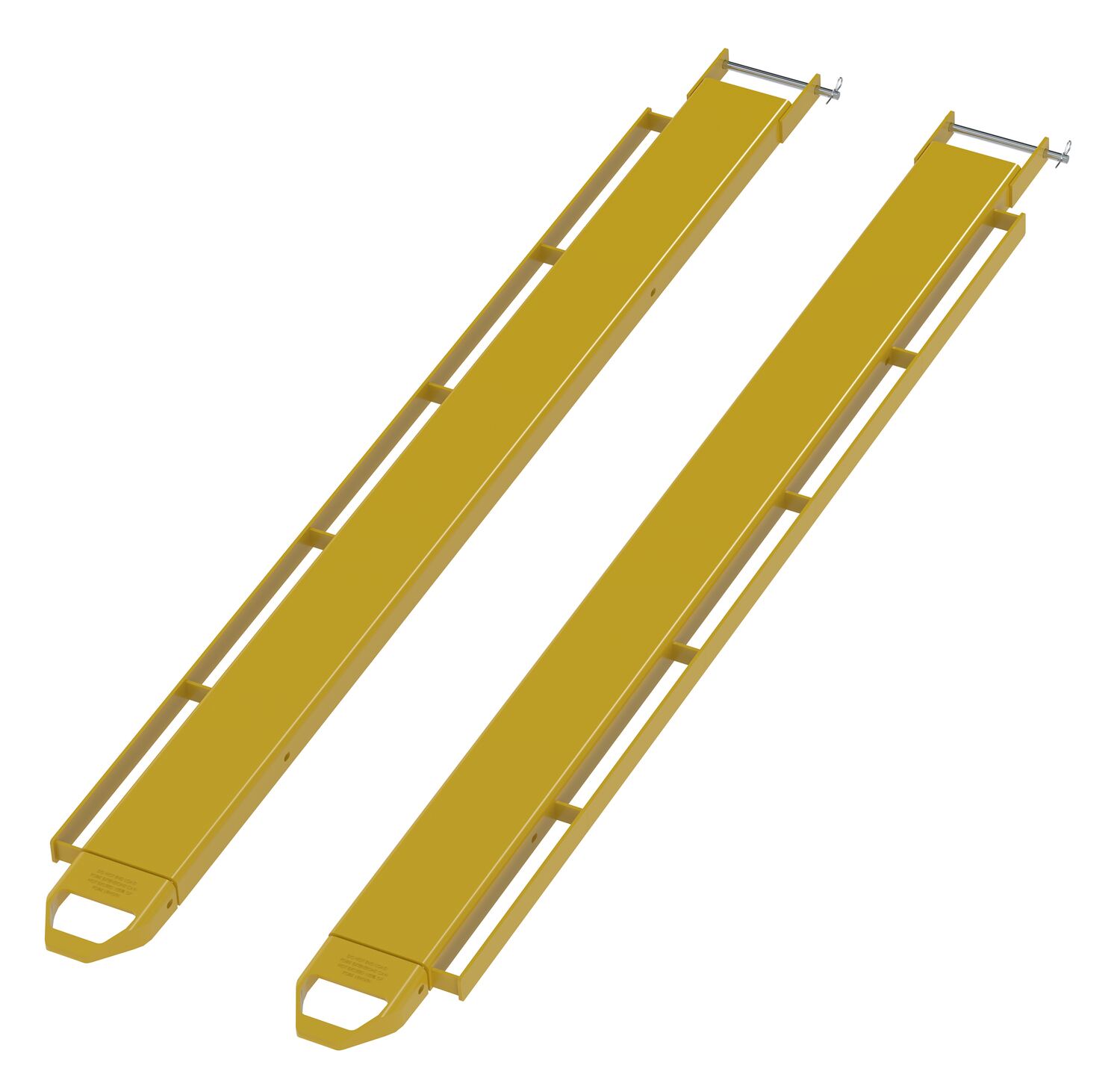

FE-6-96-P-LR NEW FE-6-96-P-LR90 Days Limited WarrantySteel Pin Style Fork Extensions with Load Rails 6" X 96" 4,000 Lb. Capacity YellowCapacity Per Pair Evenly Distributed (lb.): 4000
Width (in.): 7-1/8
204
