Variable Height Pail Dispensers

- - - -

Description
Model Chart
PDF's
Image Gallery

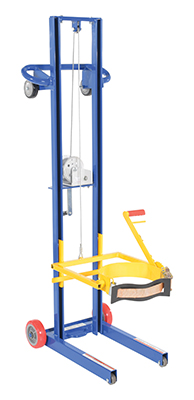

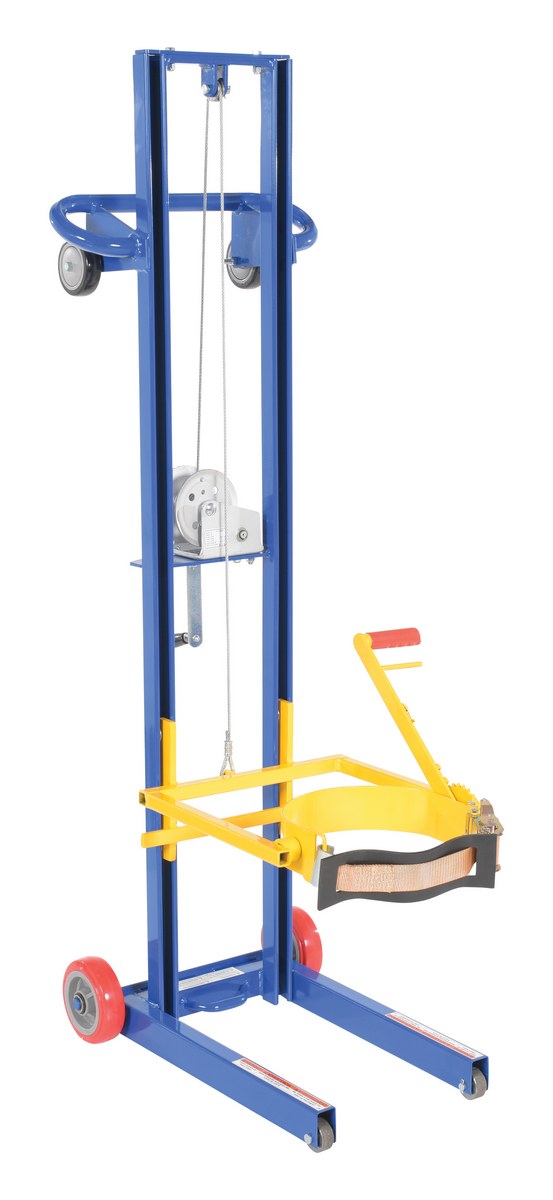

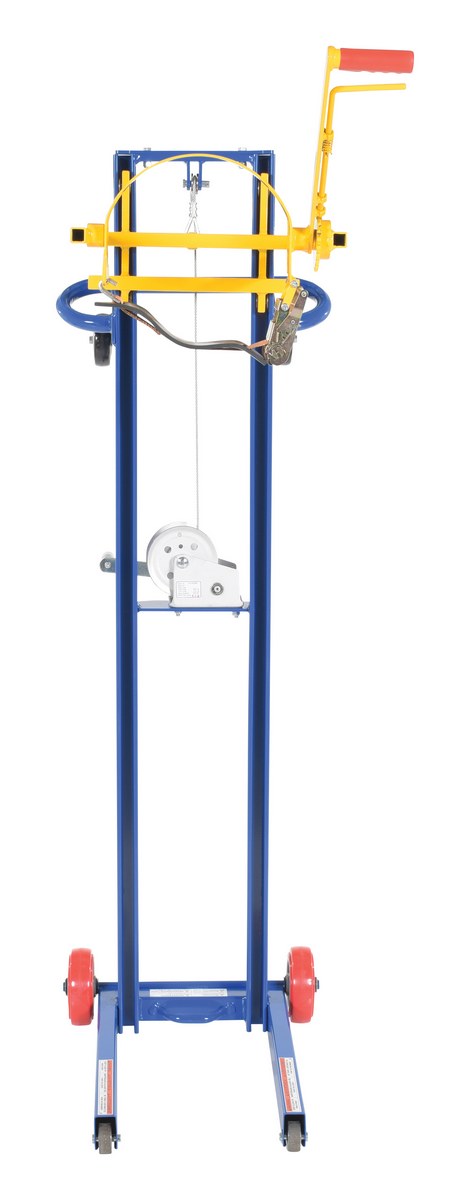

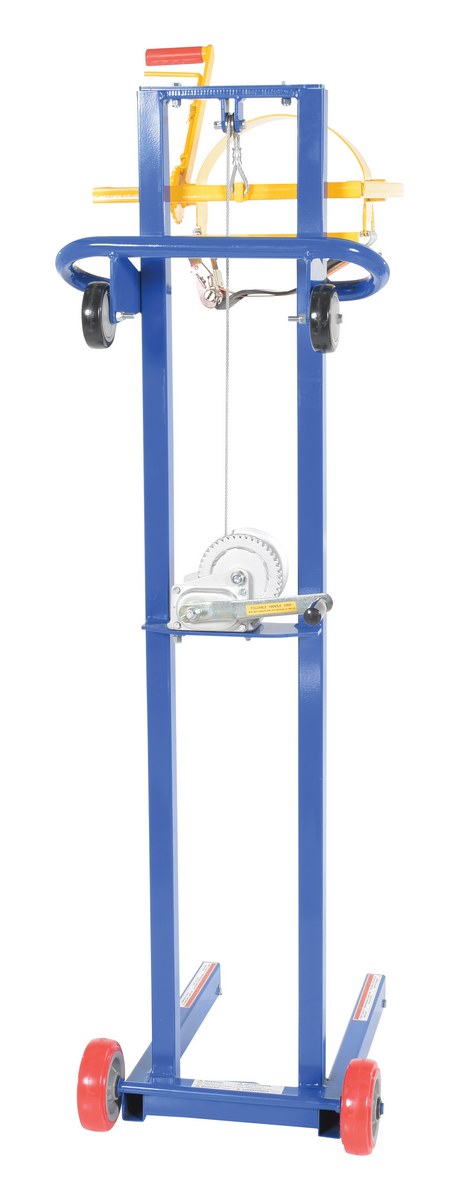

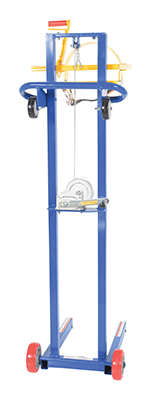

LLW-PAILD-200_A.jpg LLW-PAILD-200_B.jpg LLW-PAILD-200_C.jpg LLW-PAILD-200_D.jpg

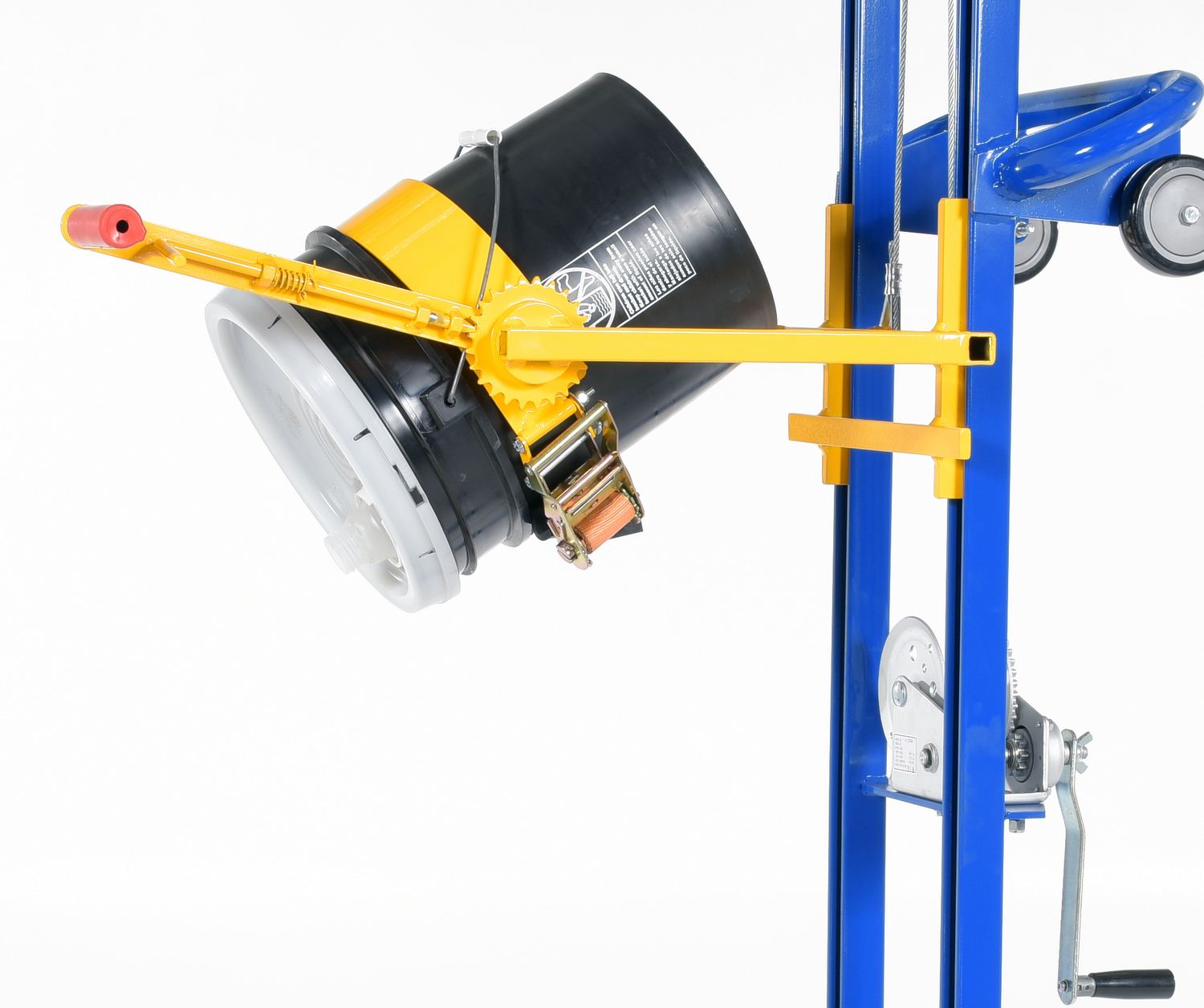

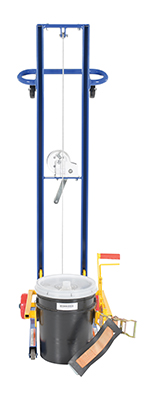

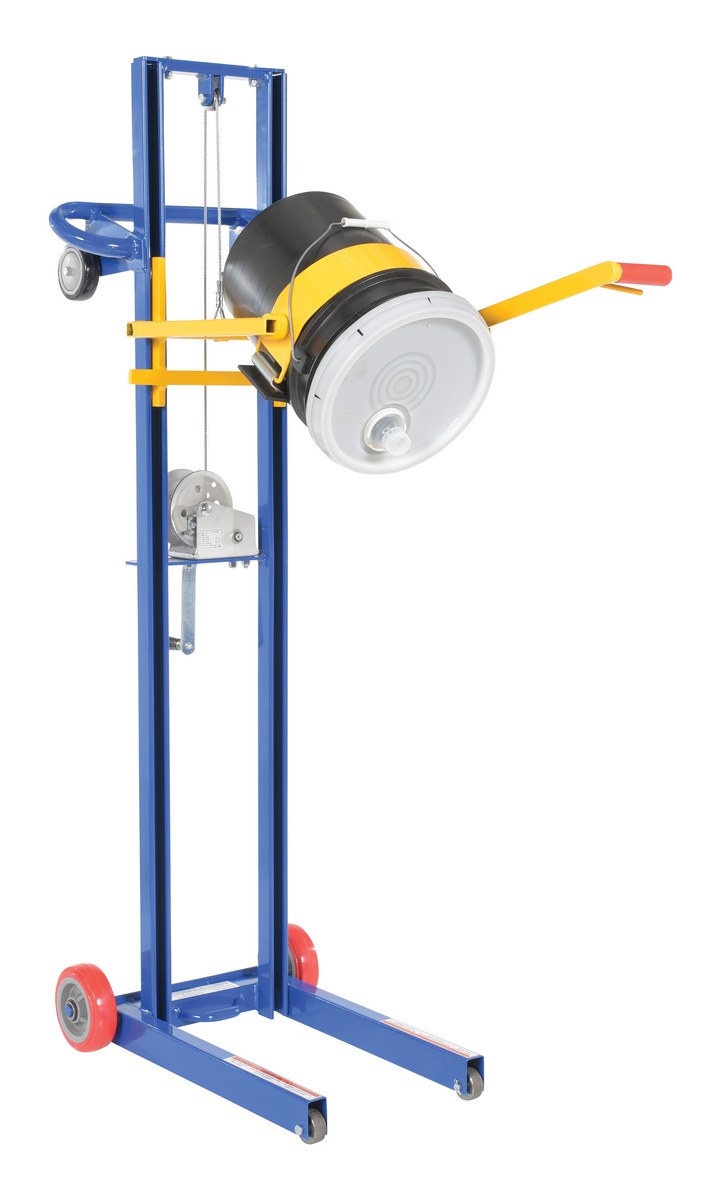

LLW-PAILD-200_E.jpg LLW-PAILD-200_F.jpg LLW-PAILD-200_G.jpg LLW-PAILD-200_1.jpg

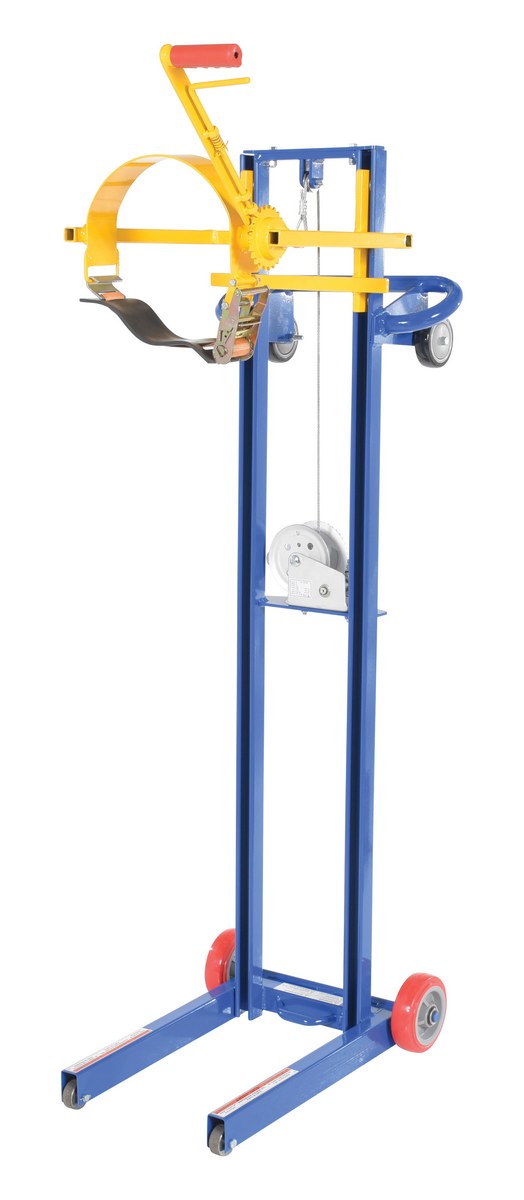

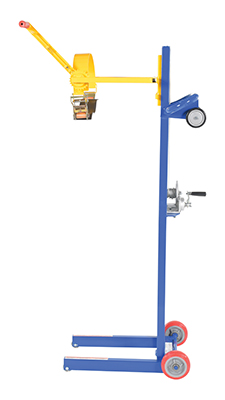

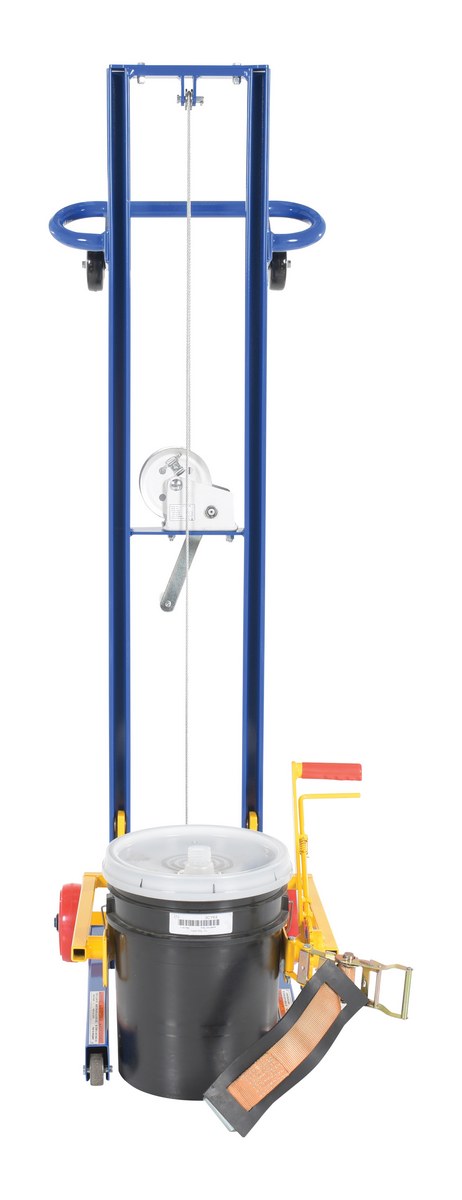

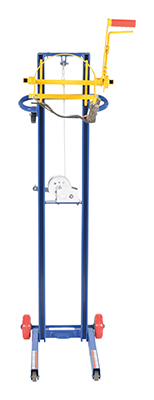

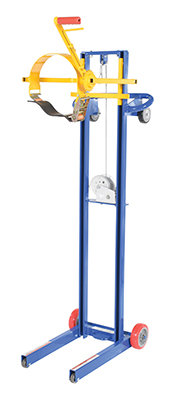

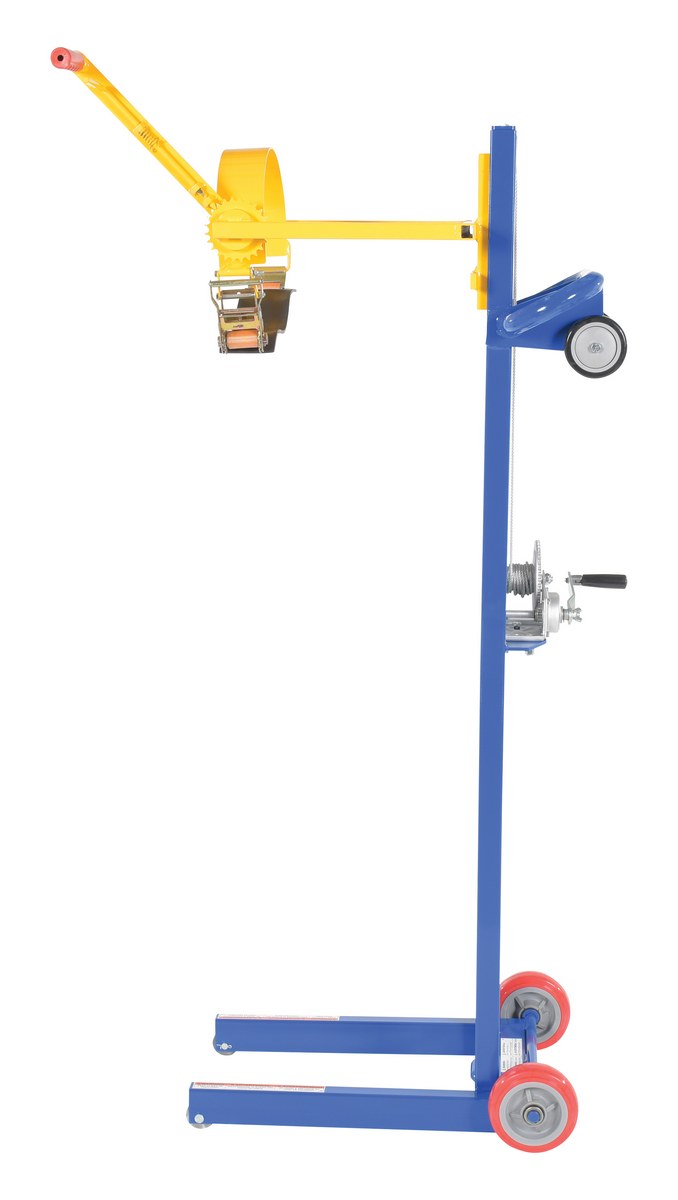

Variable Height Pail Dispensers

model: LLW-PAILD-200



Featured Drum Handling Equipment


Drum Bung Sockets
Drum Storage Hard Top Containers
Spring Grip Fork Mounted Drum Gripper
Carriage-Mounted Drum Lifter
Cylinder Caddies
Drum Wrenches, Sockets & Tools
Vertical Drum Clamp
Electric Drum Pumps
Cylinder Equipment
model chart

Product Family Overview

Print Friendly
Variable Height Pail Dispensers
SERIES: LLW

Variable Height Pail Dumper provides 24 angle settings for dispensing 5 gallon 11" diameter plastic or steel pails. Dispense at any height between 1" and 52" by turning the hand cable winch. Steel construction with baked in powder coat finish for added toughness.

Model LLW-PAILD-200, 6" rigid poly-on-poly wheels with tilt back "hand truck" design can go virtually anywhere. Includes 2" diameter front steel wheels and 4" rigid poly-on-poly top wheels for easily loading unit into a van or truck.

Variable Height Pail Dumper provides 24 angle settings for dispensing 5 gallon 11" diameter plastic or steel pails. Dispense at any height between 1" and 52" by turning the hand cable winch. Steel construction with baked in powder coat finish for added toughness.

Model LLW-PAILD-200, 6" rigid poly-on-poly wheels with tilt back "hand truck" design can go virtually anywhere. Includes 2" diameter front steel wheels and 4" rigid poly-on-poly top wheels for easily loading unit into a van or truck.

Other Pails & Pail Equipment

 Ergonomic Elevated Bucket & Pail Dolly Hydraulic Pail Crusher Steel Pail Lid Closing Tool Pail Hand Truck

Additional Models In This Family
view entire Image Gallery

LLW-PAILD-100

LLW-PAILD-100

LLW-PAILD-100

LLW-PAILD-100

LLW-PAILD-200

LLW-PAILD-200

LLW-PAILD-200

LLW-PAILD-200

LLW-PAILD-200

LLW-PAILD-200

LLW-PAILD-100

LLW-PAILD-100

LLW-PAILD-100-PSS

LLW-PAILD-100-PSS

LLW-PAILD-100-PSS

LLW-PAILD-100-PSS

LLW-PAILD-200

LLW-PAILD-200

LLW-PAILD-200

LLW-PAILD-200

LLW-PAILD-100-PSS

LLW-PAILD-100-PSS

LLW-PAILD-100

LLW-PAILD-100

LLW-PAILD-100

LLW-PAILD-100

LLW-PAILD-100-PSS

LLW-PAILD-100-PSS

LLW-PAILD-200

LLW-PAILD-200

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

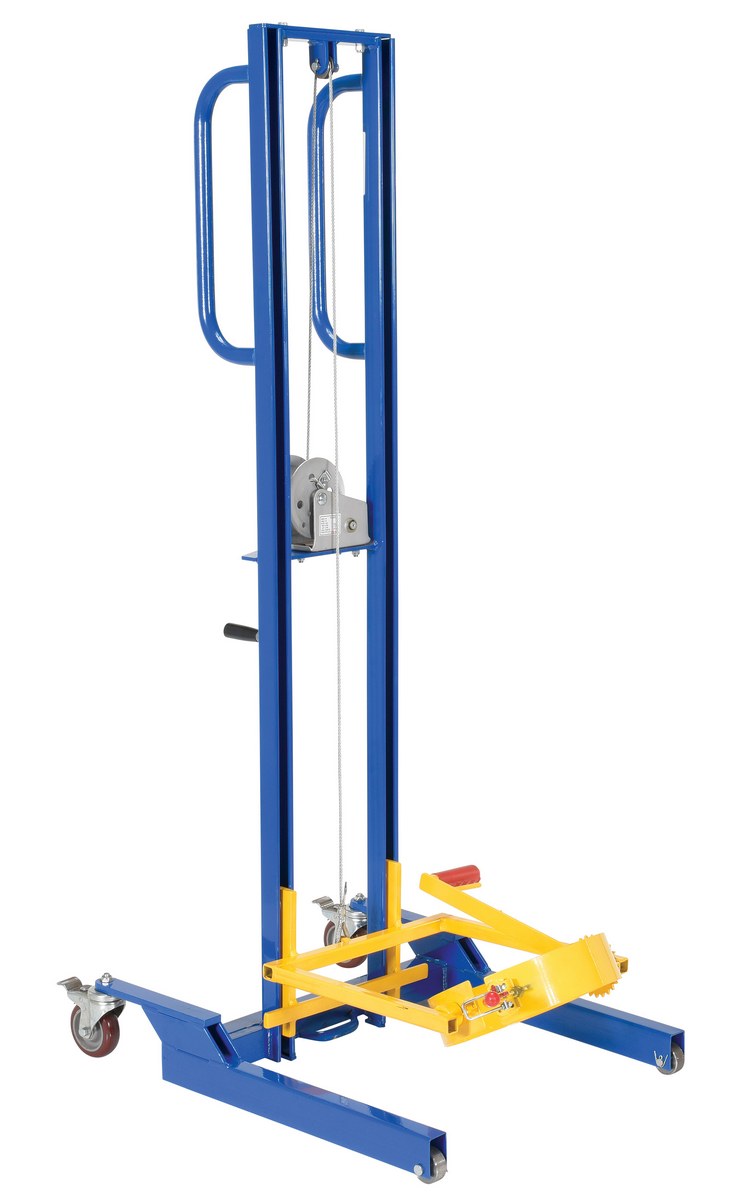

LLW-PAILD-100 LLW-PAILD-10090 Days Limited WarrantySteel Variable Height Pail Dispenser 125 Lb. Capacity Blue and YellowUniform Capacity (lb.): 125
Accepts Pail Diameter (in.): 11		139
LLW-PAILD-100-PSS
LLW-PAILD-100-PSS90 Days Limited WarrantyPartially Stainless Steel Variable Height Pail Dispenser 125 Lb. Capacity Blue and YellowUniform Capacity (lb.): 125
Accepts Pail Diameter (in.): 11		158
LLW-PAILD-200 LLW-PAILD-20090 Days Limited WarrantySteel Variable Height Pail Dispenser 200 Lb. Capacity Blue and YellowUniform Capacity (lb.): 200
Accepts Pail Diameter (in.): 11		131

* Model LLW-PAILD-100-PSS: 304 Stainless steel (Bushings, poly casters, riggings and some hardware may not be stainless). Stainless steel winch and 18-8 stainless steel cable.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

LLW-PAILD-100
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 125
Accepts Pail Diameter (in.): 11
Uniform Capacity (lb.): 125
Accepts Pail Diameter (in.): 11

LLW-PAILD-100-PSS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 125
Accepts Pail Diameter (in.): 11
Uniform Capacity (lb.): 125
Accepts Pail Diameter (in.): 11

LLW-PAILD-200
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 200
Accepts Pail Diameter (in.): 11
Uniform Capacity (lb.): 200
Accepts Pail Diameter (in.): 11
Variable Height Pail Dispensers PDF's will open in a new window when clicked.

Manuals


LLW-PAILD
Owners Manual

LLW-PAILD-200
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


LLW-PAILD-100

LLW-PAILD-100-PSS

LLW-PAILD-200

Testing Certificates


LLW-PAILD-100

LLW-PAILD-100-PSS

LLW-PAILD-200

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: How high does the unit raise per crank?

A: Approximately 1-1/8" per rotation




Related or Similar Products:

Manual Pail Tippers
Product

Manual Pail Tippers

Hoist Mounted Pail Carrier / Rotator
Product

Hoist Mounted Pail Carrier / Rotator

Pail Dolly
Product

Pail Dolly

Ergonomic Elevated Bucket & Pail Dolly
Product

Ergonomic Elevated Bucket & Pail Dolly

Multi-Pail Dolly
Product

Multi-Pail Dolly

Pail Hand Truck
Product

Pail Hand Truck

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Variable Height Pail Dispensers




Variable Height Pail Dumper provides 24 angle settings for dispensing 5 gallon 11" diameter plastic or steel pails. Dispense at any height between 1" and 52" by turning the hand cable winch. Steel construction with baked in powder coat finish for added toughness.

Model LLW-PAILD-200, 6" rigid poly-on-poly wheels with tilt back "hand truck" design can go virtually anywhere. Includes 2" diameter front steel wheels and 4" rigid poly-on-poly top wheels for easily loading unit into a van or truck.


Model # Description Attributes Net Wt.
(lbs)
LLW-PAILD-100 LLW-PAILD-100Steel Variable Height Pail Dispenser 125 Lb. Capacity Blue and YellowUniform Capacity (lb.): 125
Accepts Pail Diameter (in.): 11		139
LLW-PAILD-100-PSS LLW-PAILD-100-PSSPartially Stainless Steel Variable Height Pail Dispenser 125 Lb. Capacity Blue and YellowUniform Capacity (lb.): 125
Accepts Pail Diameter (in.): 11		158
LLW-PAILD-200 LLW-PAILD-200Steel Variable Height Pail Dispenser 200 Lb. Capacity Blue and YellowUniform Capacity (lb.): 200
Accepts Pail Diameter (in.): 11		131
