Specialty Molded Dock Bumpers

- - - -

Description
Model Chart
Options
PDF's
Image Gallery

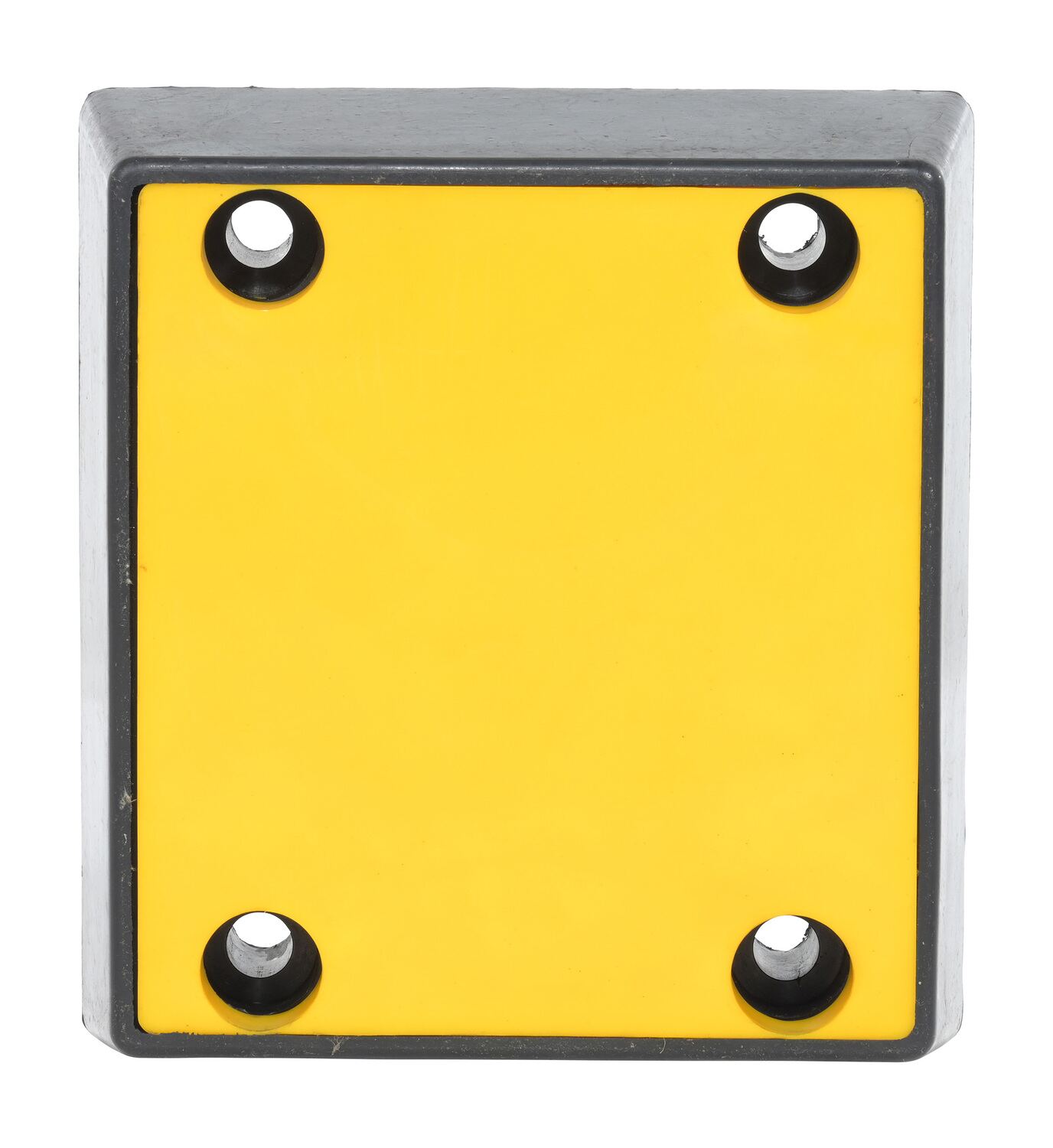

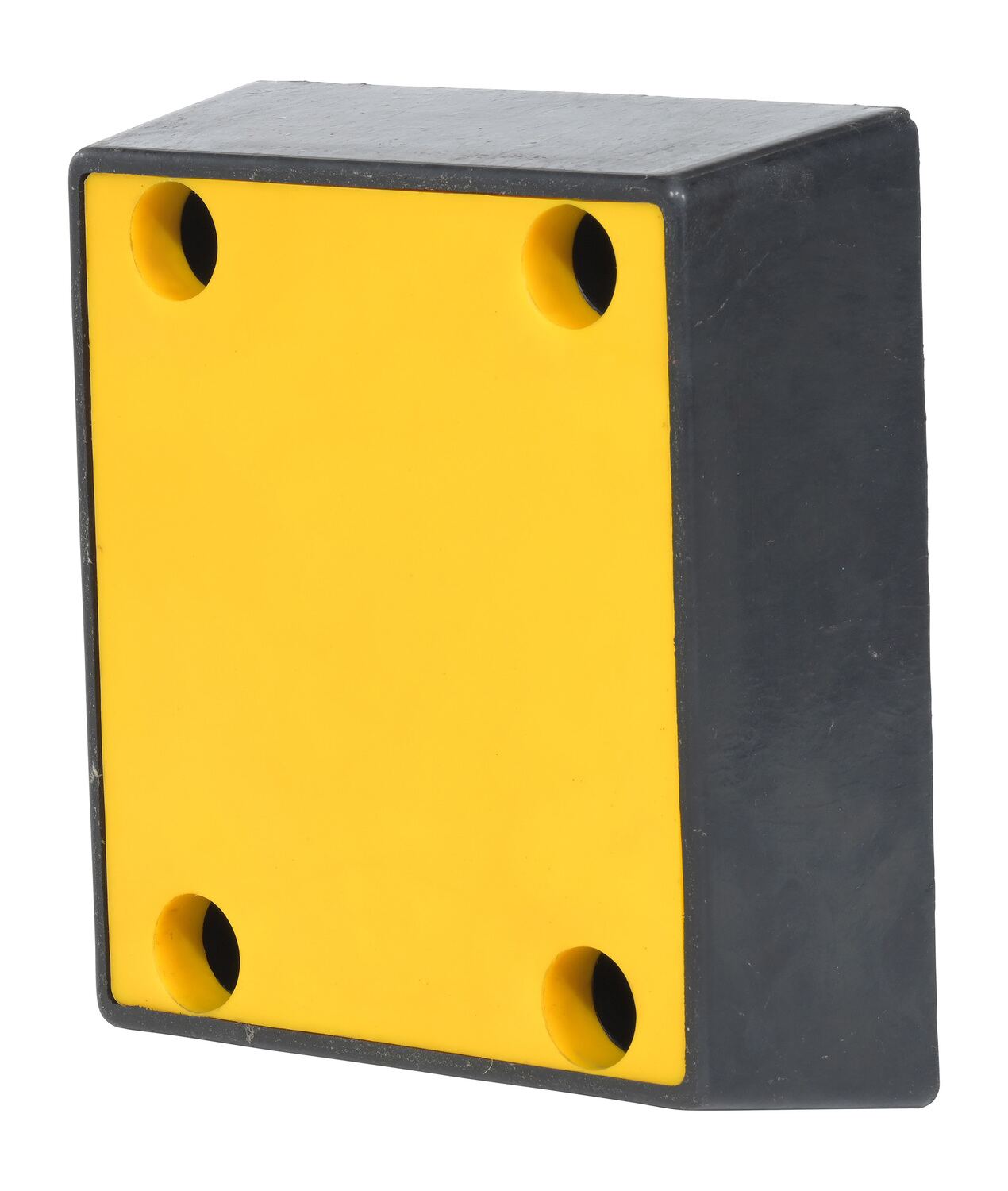

B-1213-4PF_A.jpg B-1213-4PF_B.jpg B-1213-4PF_C.jpg B-1213-4PF_D.jpg
Specialty Molded Dock Bumpers

model: B-1213-4PF



Featured Loading Dock Equipment


Economical Overhead Door Warning Barriers
Fiberglass Autoloader Ramps
Dockplates & Dockboards
Mini Yard Ramps
Universal Steel Rail Chocks
Aluminum Wheel Risers
Steel Yard Ramps
Aluminum Vehicle Twin Ramps
Cargo Restraints
model chart

Product Family Overview

Print Friendly
Specialty Molded Dock Bumpers
SERIES: B,T,L

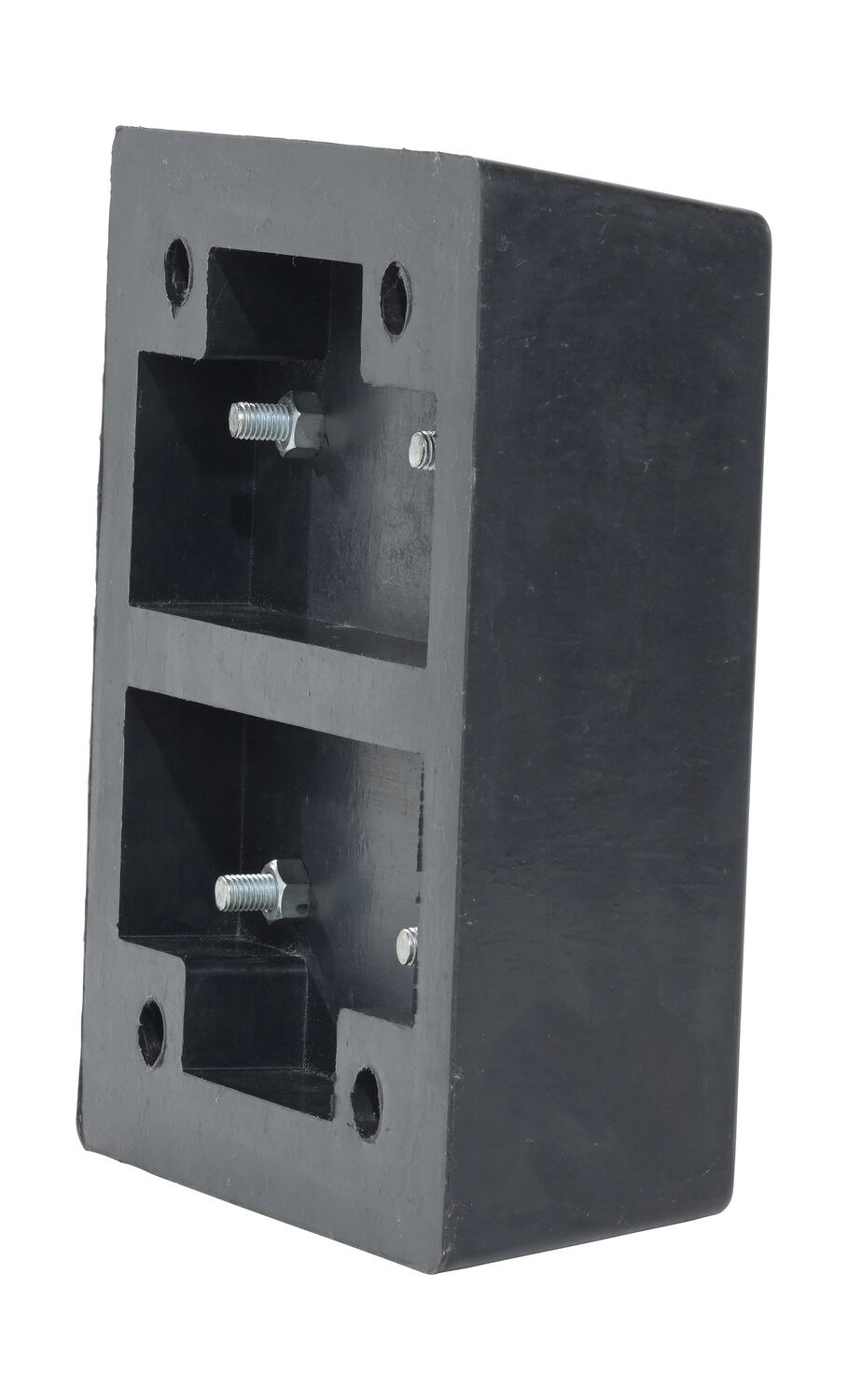

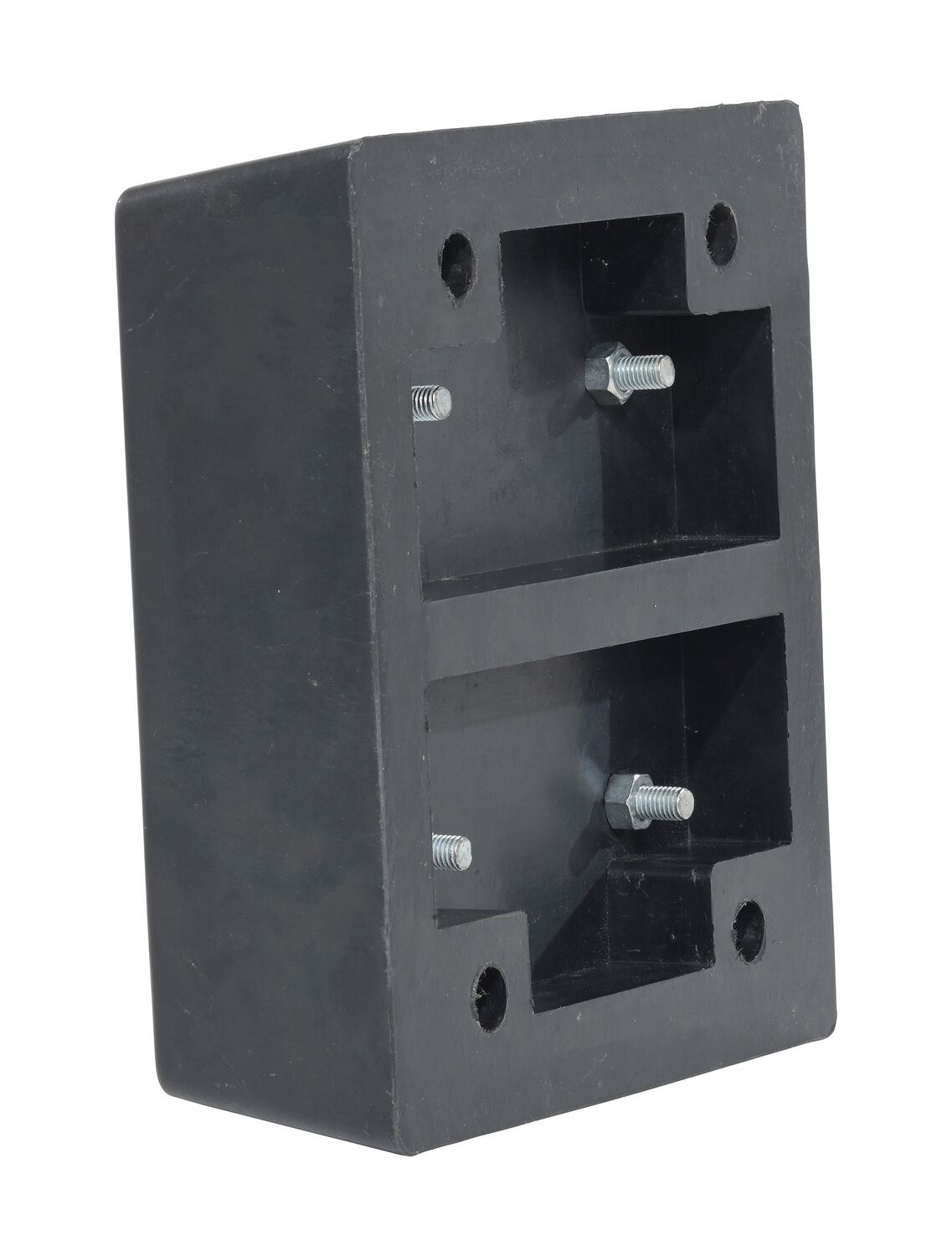

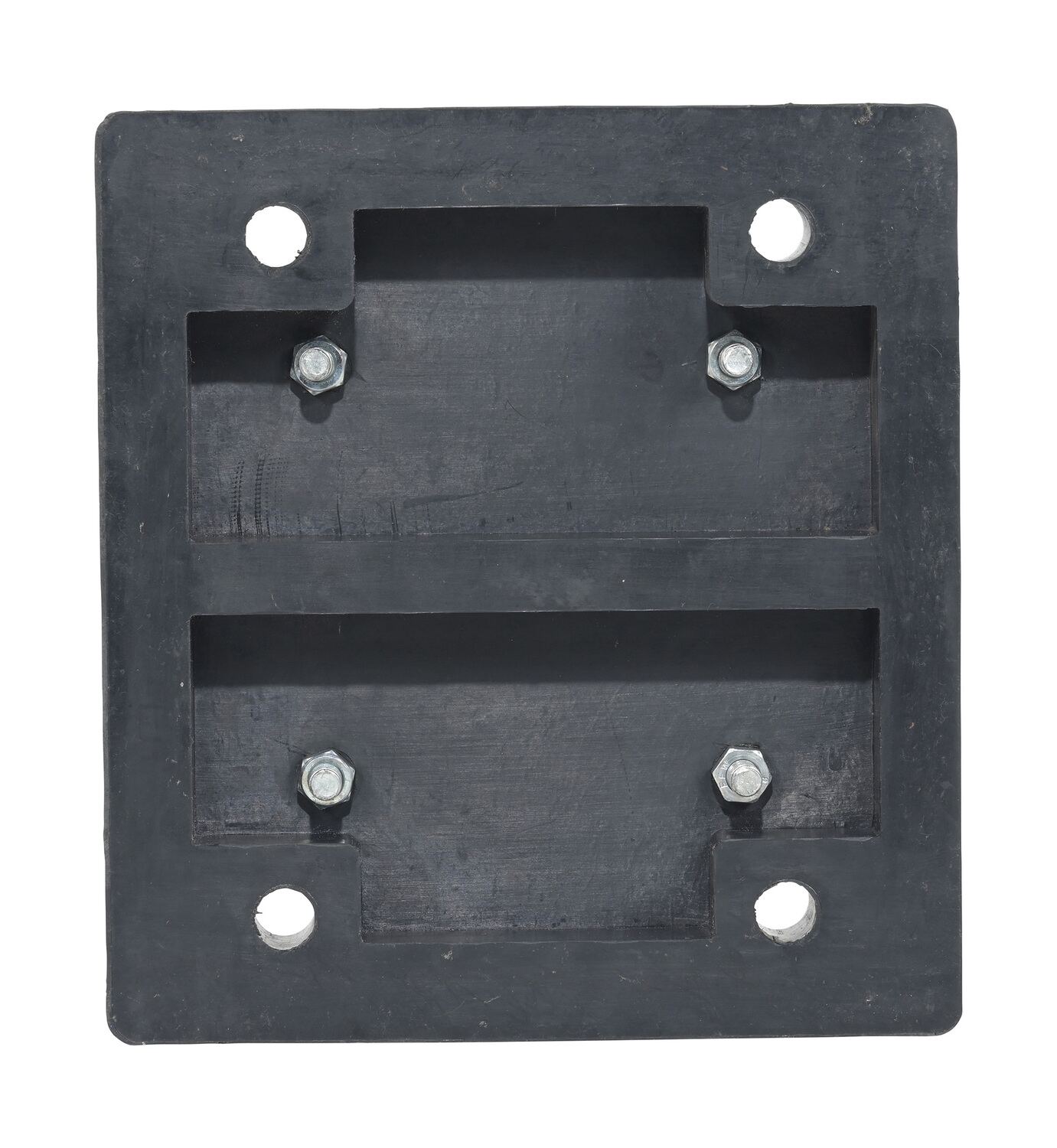

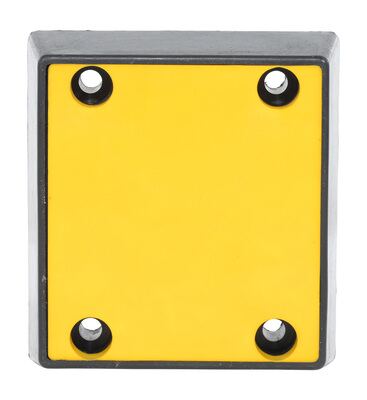

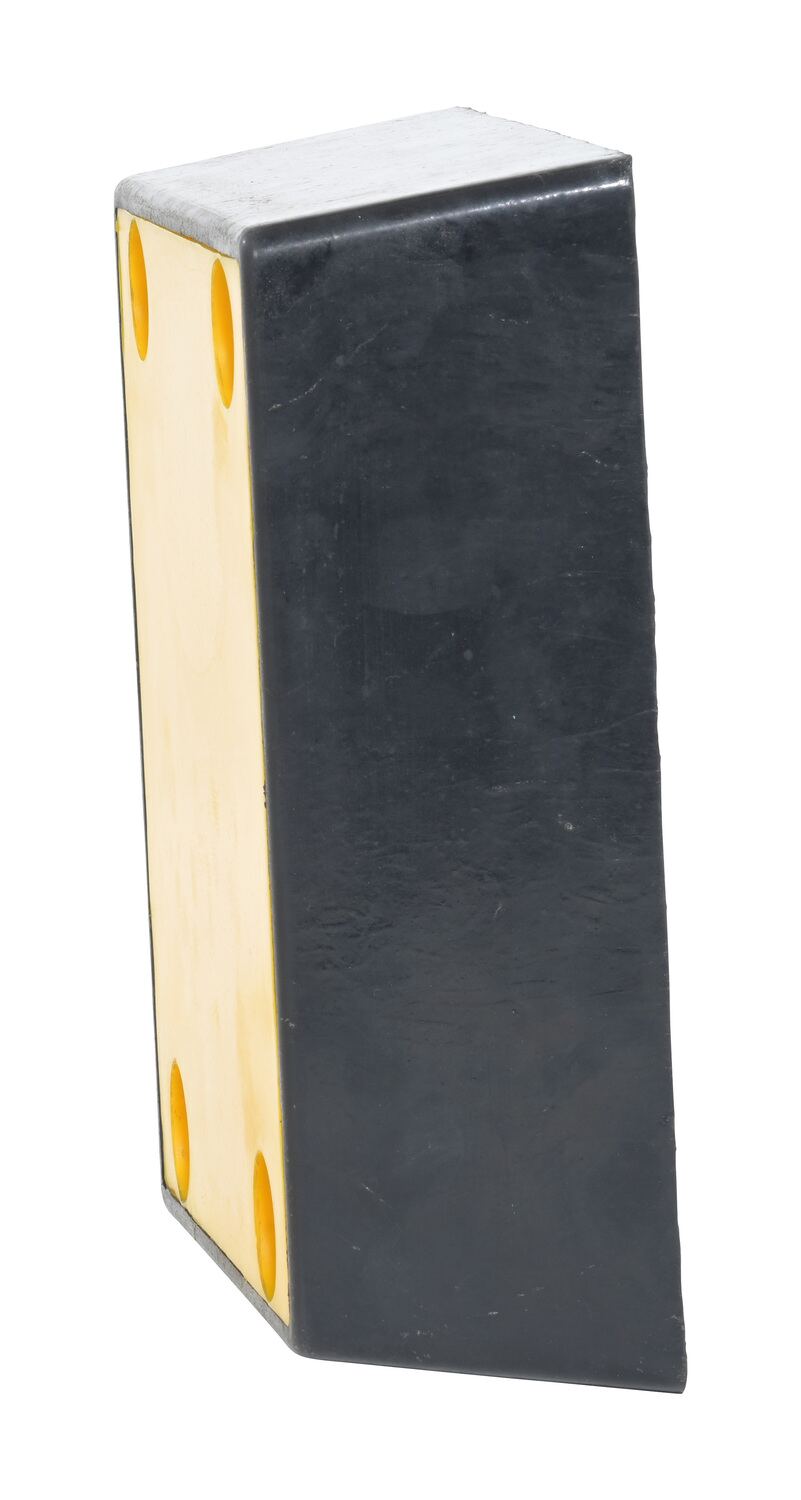

Manufactured from fiber reinforced prime rubber containing nylon and polyester. These molded bumpers are built to endure years of abusive pounding. All units have pre-drilled countersunk mounting holes for easy installation. Plastic face bumper, model B-1213-4PF, features two piece construction fully assembled and ready for installation. Installation hardware sold separately.

  • Simple installation for immediate use
  • Use on loading dock to protect trailer & dock
  • Molded bumper construction is built to endure years of abusive pounding

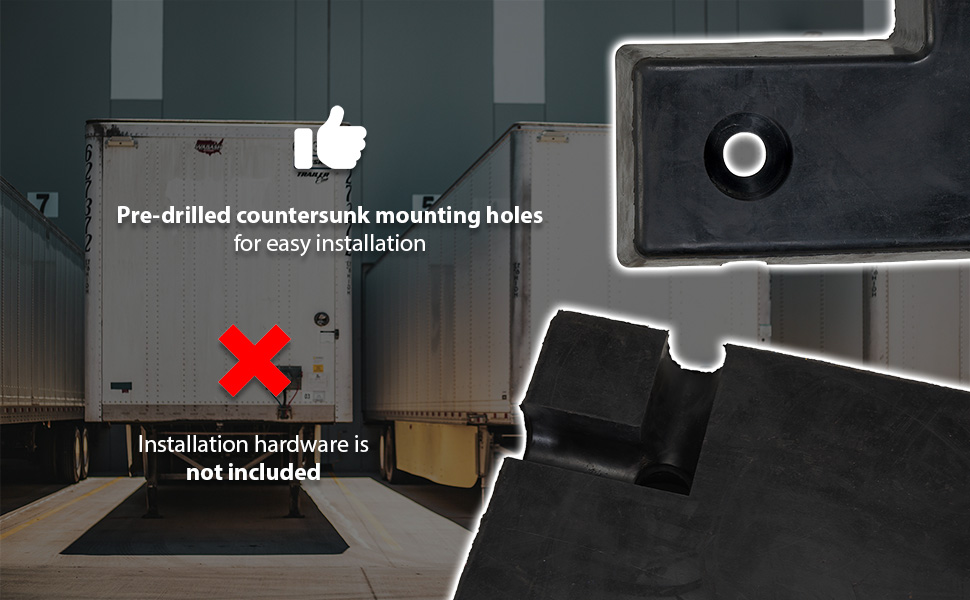

  • Pre-drilled countersunk mounting holes make installation easy

Manufactured from fiber reinforced prime rubber containing nylon and polyester. These molded bumpers are built to endure years of abusive pounding. All units have pre-drilled countersunk mounting holes for easy installation. Plastic face bumper, model B-1213-4PF, features two piece construction fully assembled and ready for installation. Installation hardware sold separately.

  • Simple installation for immediate use
  • Use on loading dock to protect trailer & dock
  • Molded bumper construction is built to endure years of abusive pounding
  • Pre-drilled countersunk mounting holes make installation easy

Other Dock Bumpers

 Rounded Dome Bumpers Trailer Crane Bumpers Hardened Molded Bumpers Laminated Dock Bumpers

Additional Models In This Family
view entire Image Gallery

B-516

B-516

B-1213-4PF

B-1213-4PF

B-1213-4PF

B-1213-4PF

L-1818-4

L-1818-4

T-22

T-22

B-1224-6

B-1224-6

B-516

B-516

B-818-SF

B-818-SF

B-516

B-516

B-1213-4PF

B-1213-4PF

B-516-SF

B-516-SF

L-1818-4

L-1818-4

B-818-SF

B-818-SF

B-818

B-818

B-516-SF

B-516-SF

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

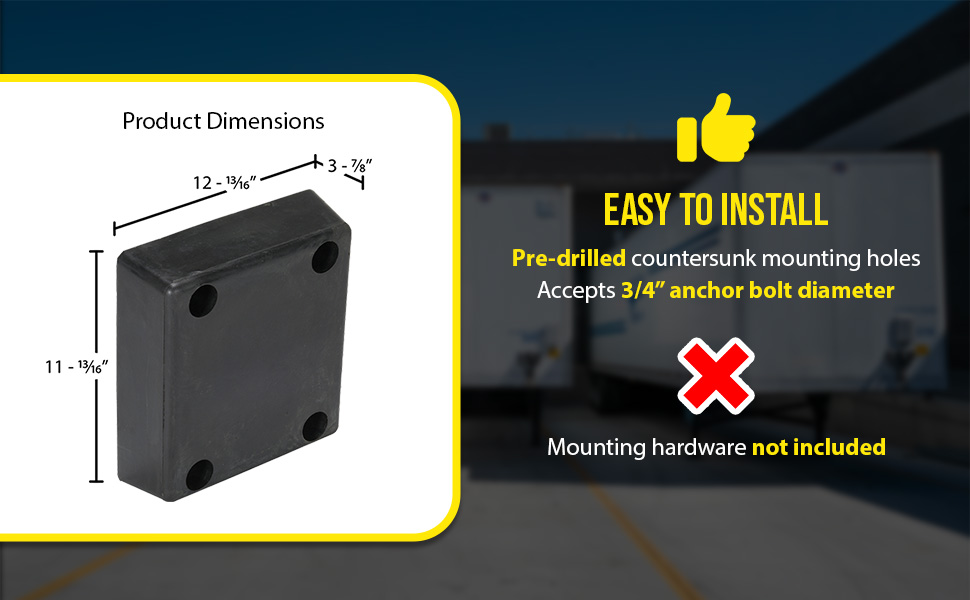

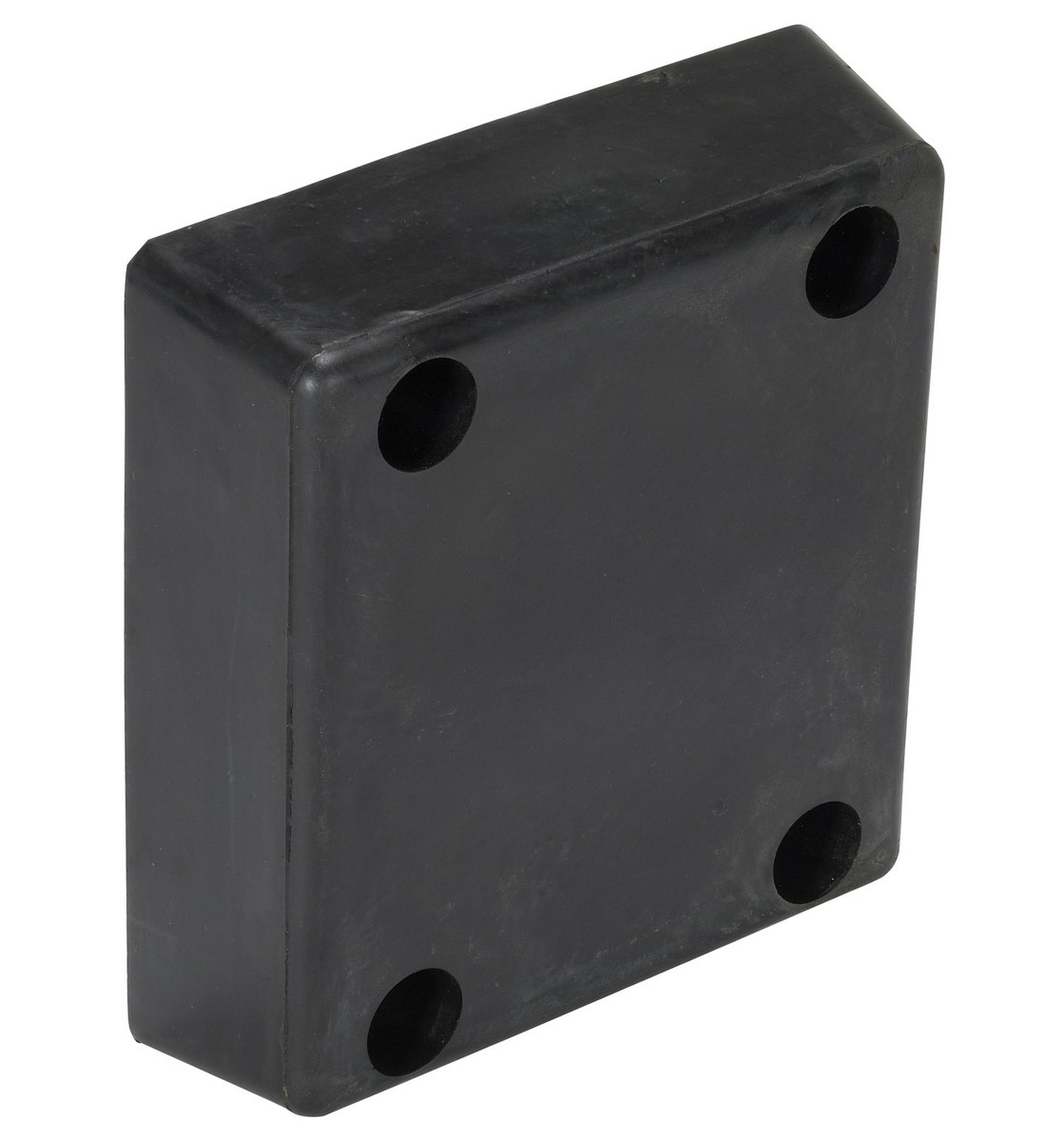

B-1213-4 B-1213-430 Days Limited WarrantyRubber Molded Bumper 12-13/16 In. x 11-13/16 In. x 3-7/8 In. BlackProjection (in.): 4
Accepts Anchor Bolt Diameter (in.): 3/4		24

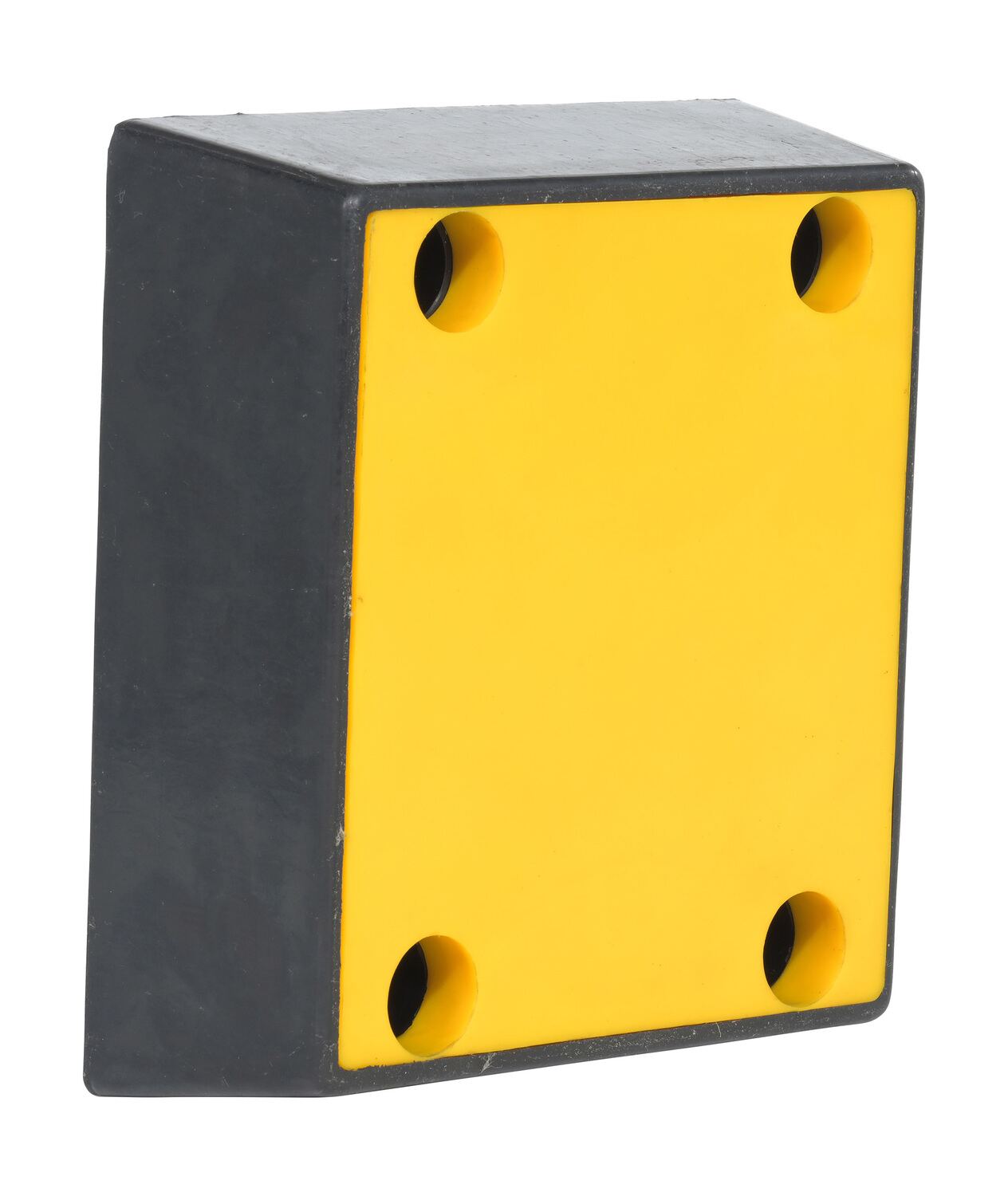

B-1213-4PF B-1213-4PF30 Days Limited WarrantyPlastic Face Molded Rubber Bumper 11-13/16 In. x 12-13/16 In. x 3-7/8 In. BlackProjection (in.): 4
Accepts Anchor Bolt Diameter (in.): 3/4		29

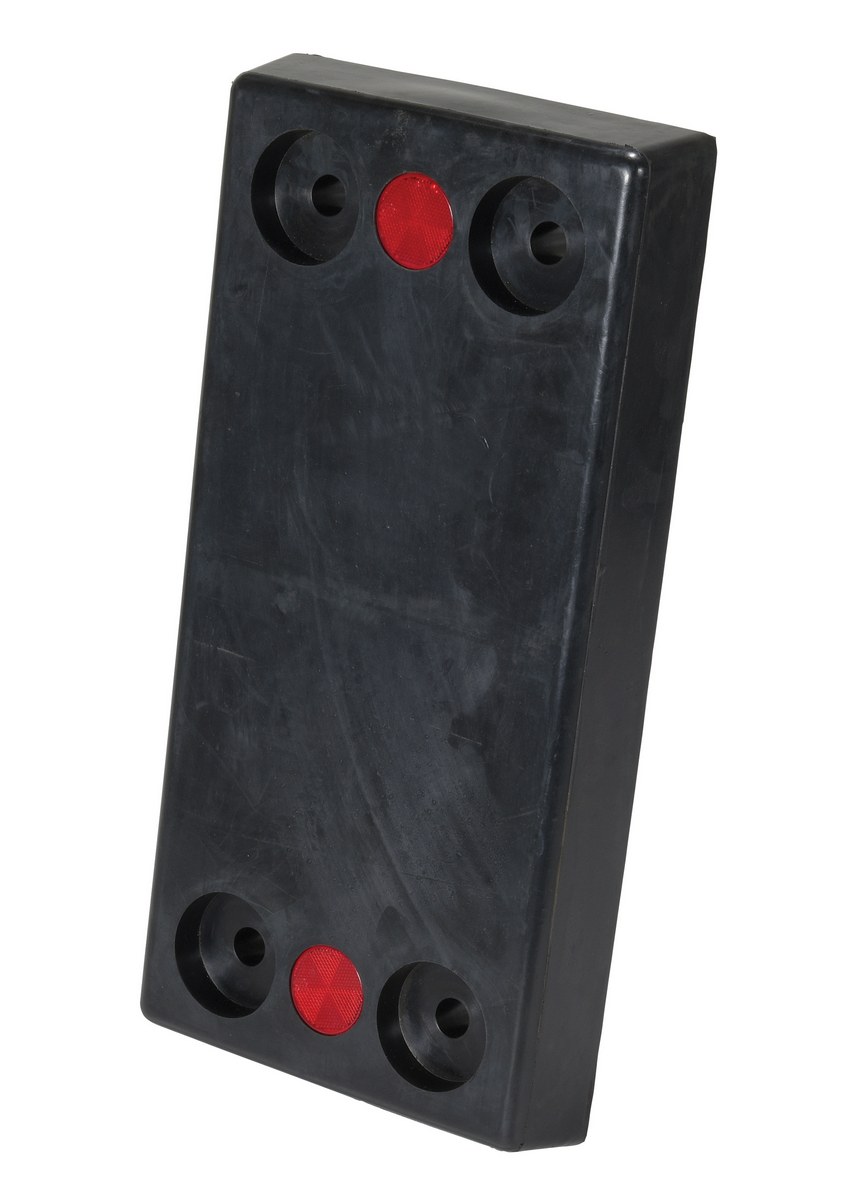

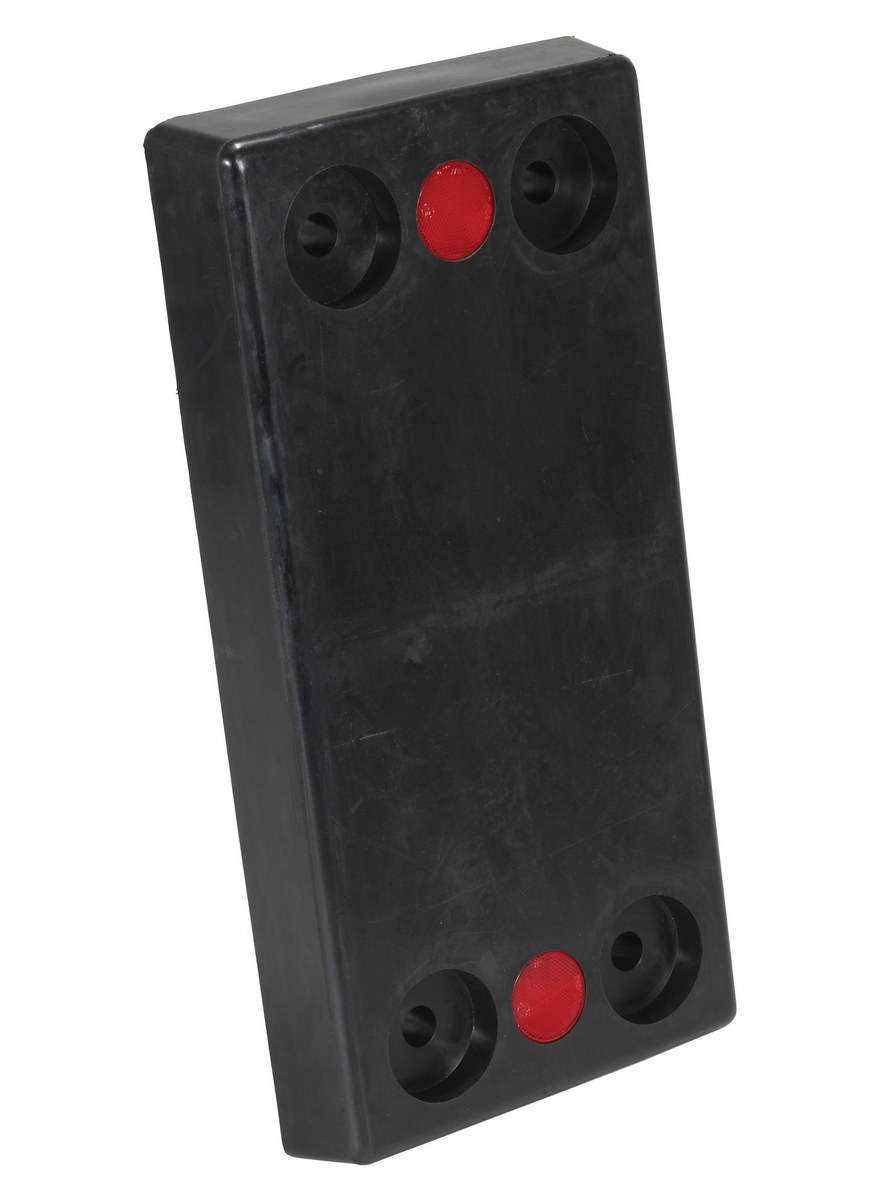

B-1224-3 B-1224-330 Days Limited WarrantyRubber Rectangle Molded Bumper 24 In. x 12 In. x 3 In. BlackProjection (in.): 3
Accepts Anchor Bolt Diameter (in.): 3/4		34

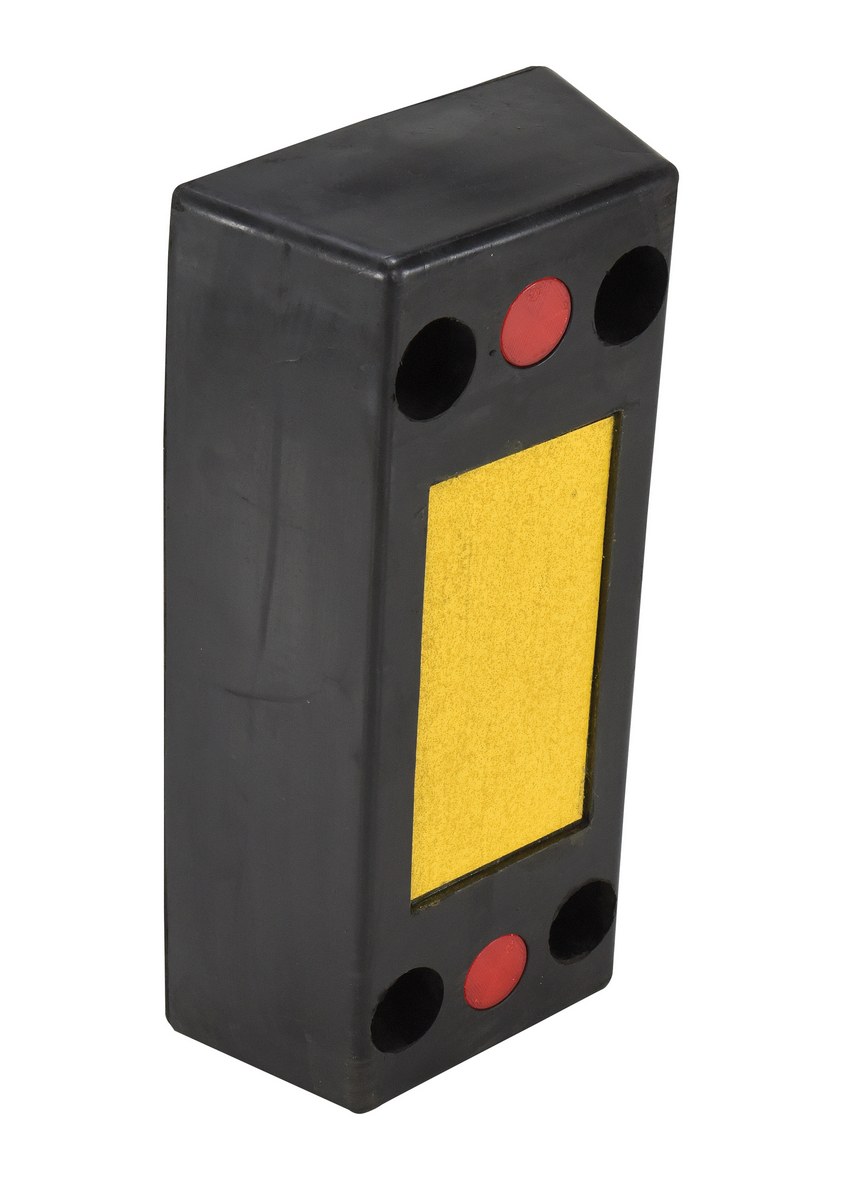

B-1224-6 B-1224-630 Days Limited WarrantyRubber Rectangle Molded Bumper 24 In. x 12 In. x 6 In. BlackProjection (in.): 6
Accepts Anchor Bolt Diameter (in.): 3/4		57

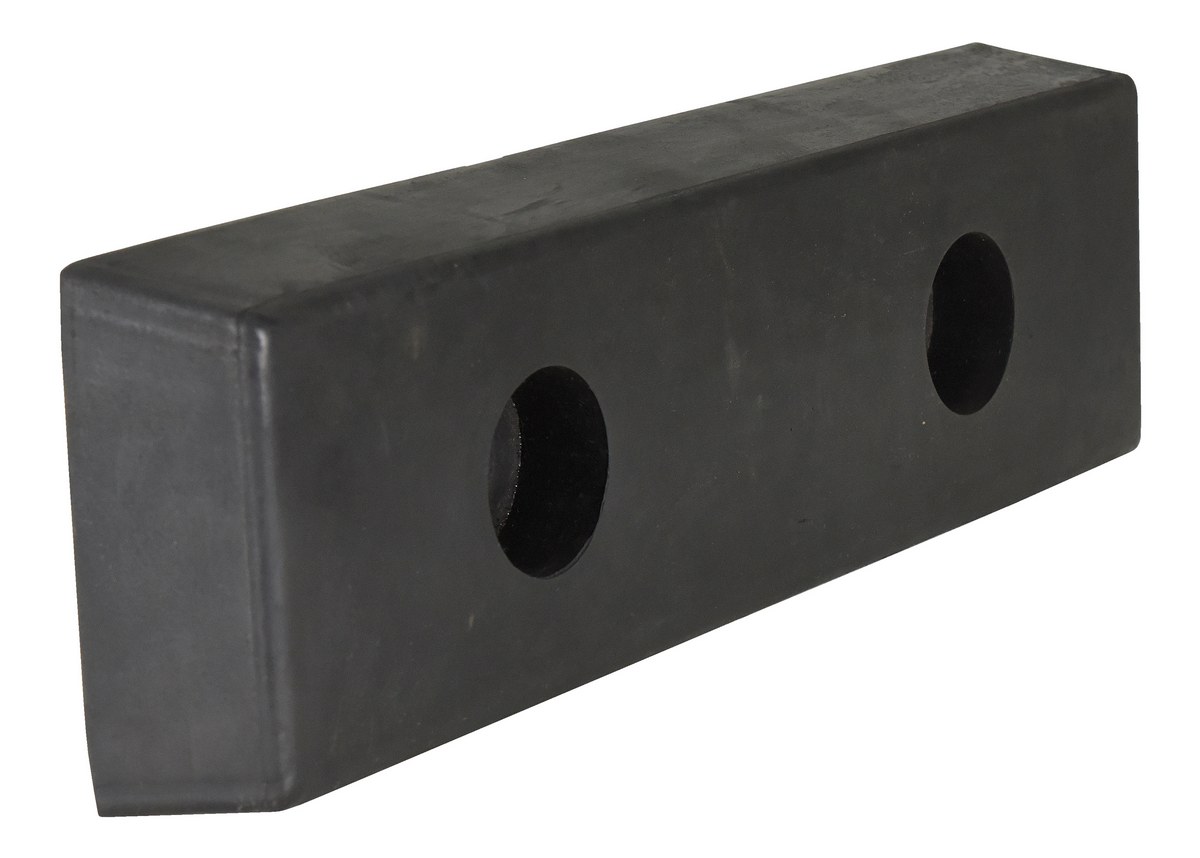

B-516 B-51630 Days Limited WarrantyRubber Rectangle Molded Bumper 16-1/8 In. x 4-29/32 In. x 2-1/8 In. BlackProjection (in.): 2
Anchor Bolt Diameter (in.): 5/8		8

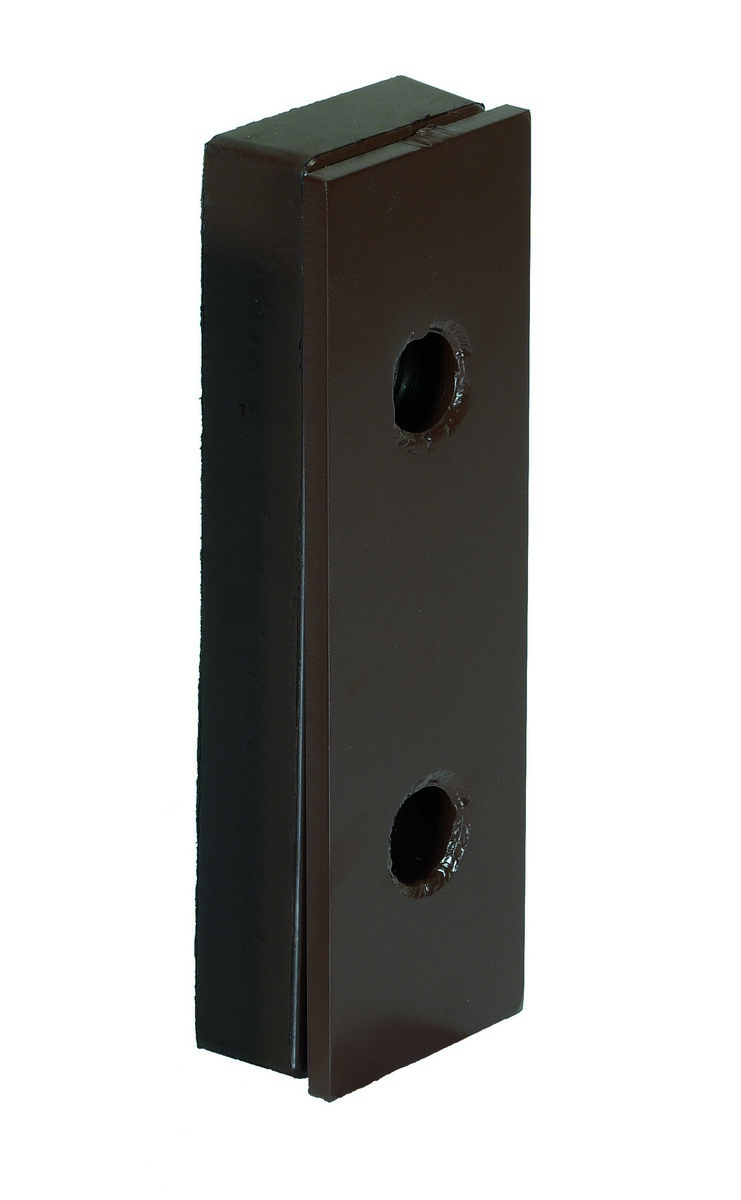

B-516-SF B-516-SF30 Days Limited WarrantySteel Face Molded Rubber Bumper 2-5/8 In. x 5 In. x 16-1/8 In. BlackProjection (in.): 2-1/2
Anchor Bolt Diameter (in.): 3/4		21

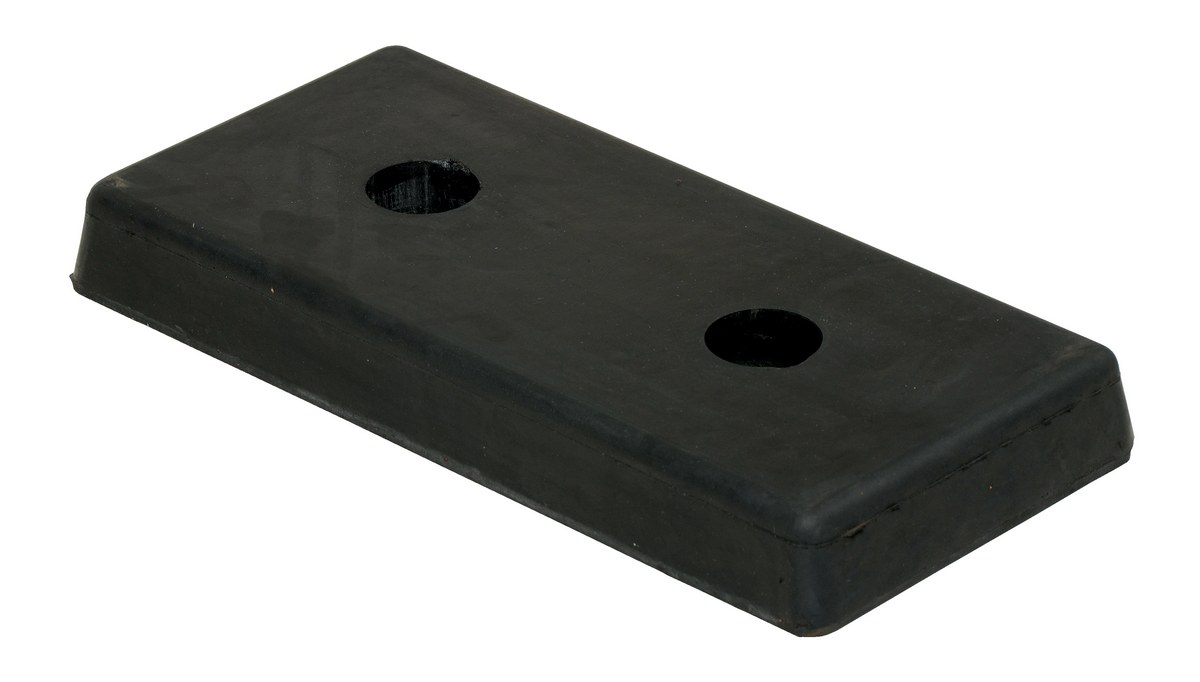

B-818 B-81830 Days Limited WarrantyRubber Rectangle Molded Bumper 17-1/2 In. x 8 In. x 2 In. BlackProjection (in.): 2
Anchor Bolt Diameter (in.): 5/8		16

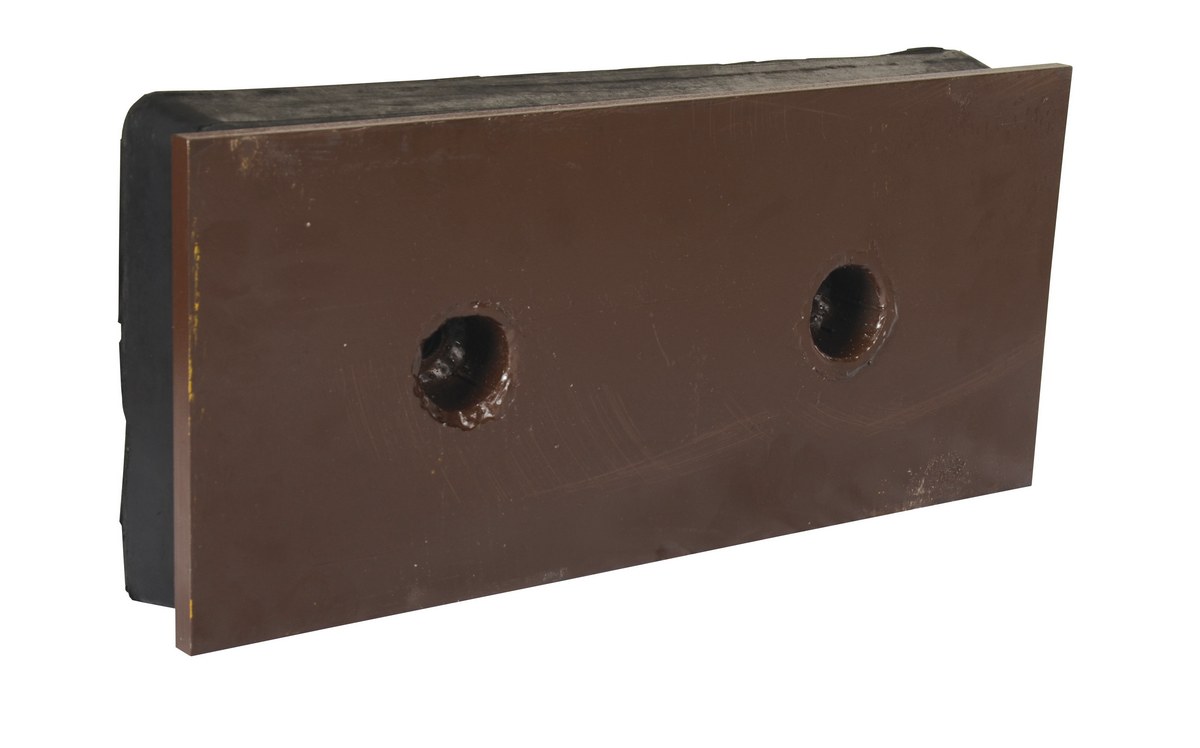

B-818-SF B-818-SF30 Days Limited WarrantySteel Face Molded Rubber Bumper 18 In. x 8 In. x 2-1/2 In. BlackProjection (in.): 2-1/2
Anchor Bolt Diameter (in.): 3/4		35

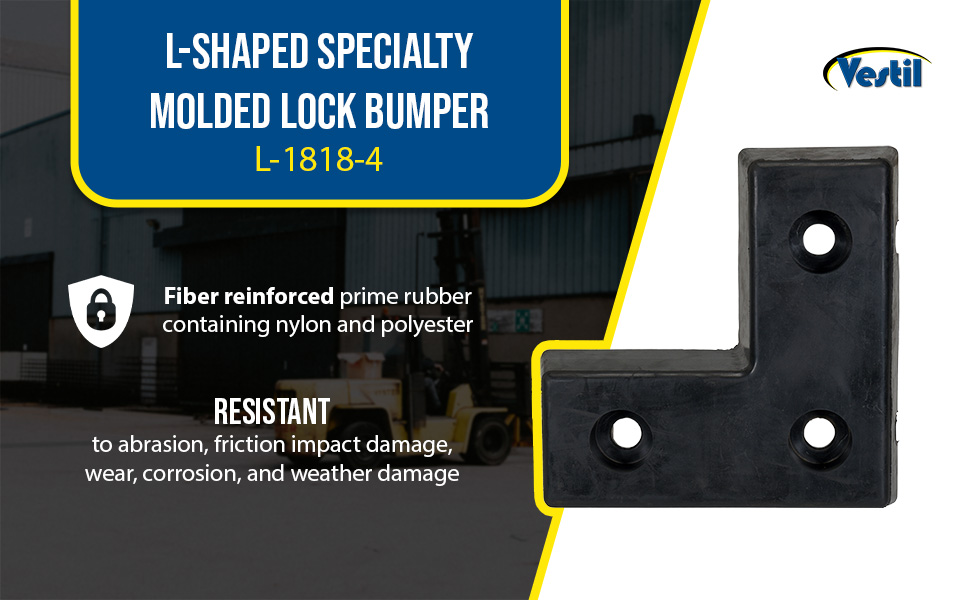

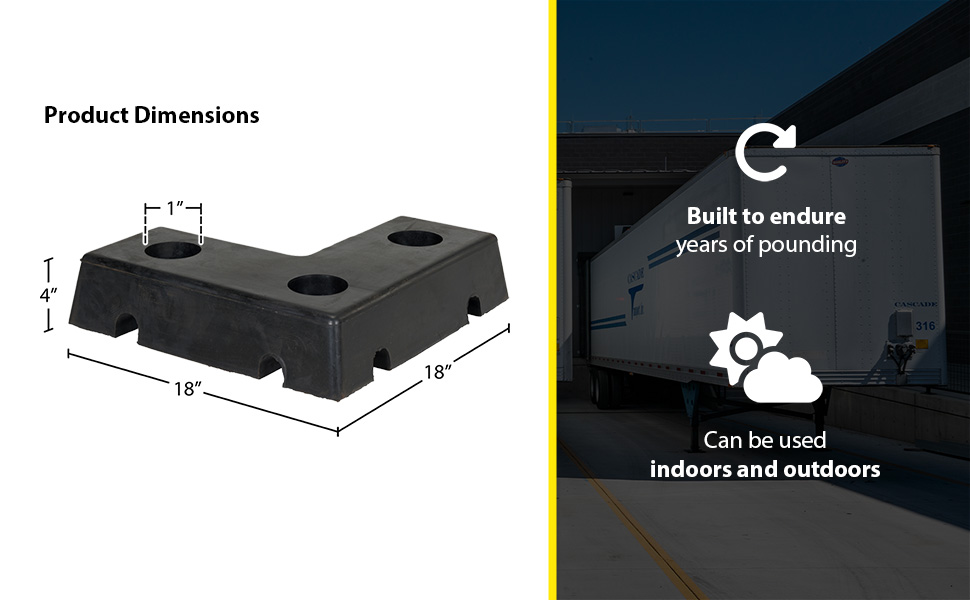

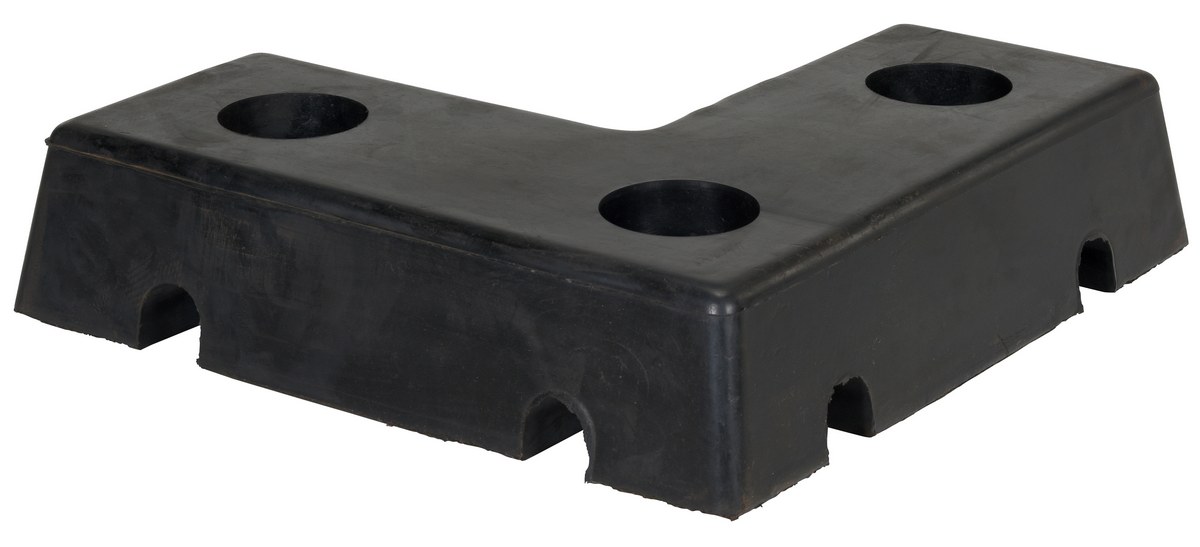

L-1818-4 L-1818-430 Days Limited WarrantyL Shaped Molded Rubber Bumper 4 In. x 18 In. x 18 In. BlackProjection (in.): 4
Accepts Anchor Bolt Diameter (in.): 1		36

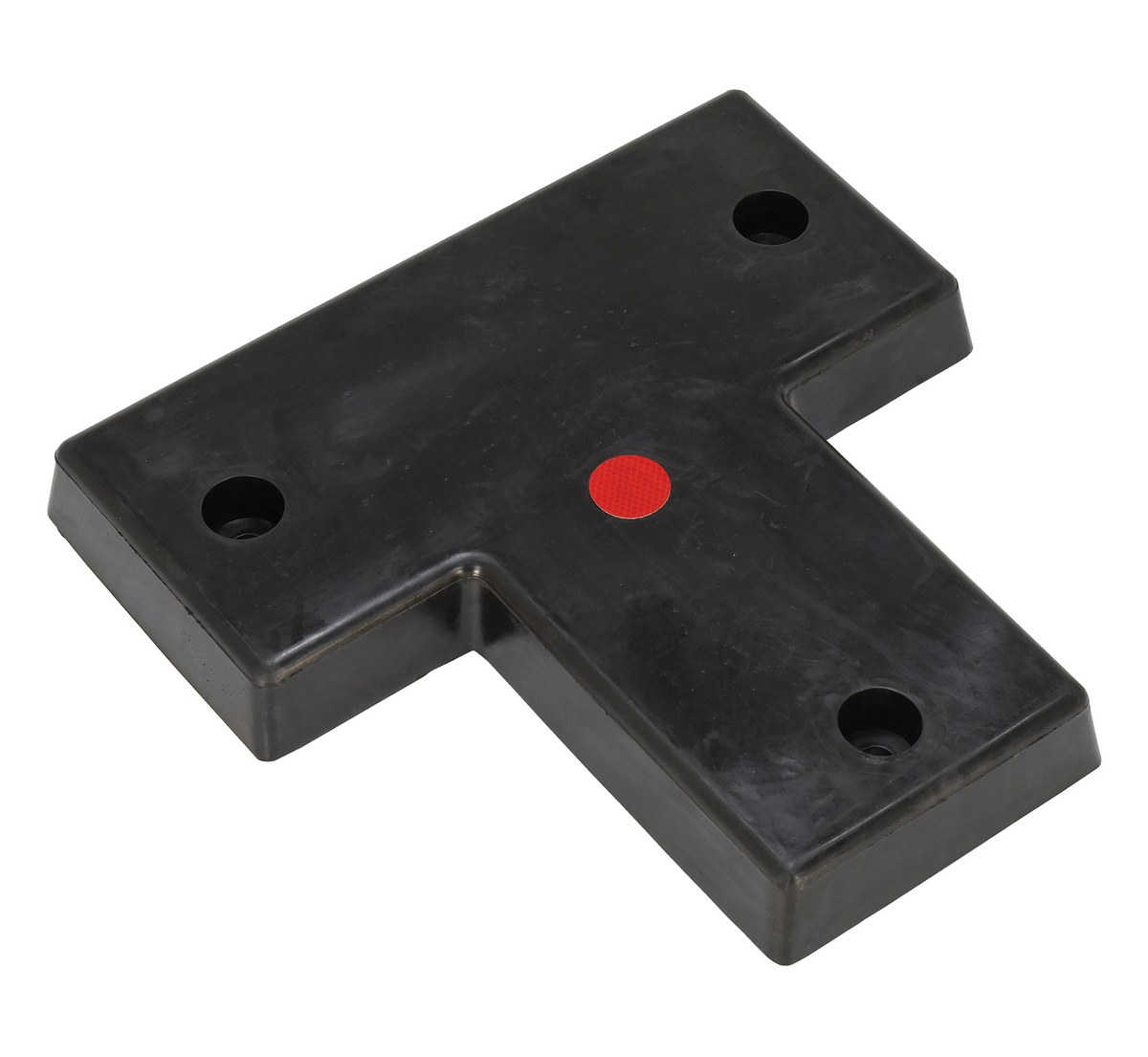

T-22 T-2230 Days Limited WarrantyRubber Specialty T-Shaped Molded Bumper 3 In. x 22 In. x 22 In. BlackProjection (in.): 3
Anchor Bolt Diameter (in.): 3/4		44

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

B-1213-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Projection (in.): 4
Accepts Anchor Bolt Diameter (in.): 3/4
Projection (in.): 4
Accepts Anchor Bolt Diameter (in.): 3/4

B-1213-4PF
Unit:
Size: W x L x H
Weight:
Limited Warranty
Projection (in.): 4
Accepts Anchor Bolt Diameter (in.): 3/4
Projection (in.): 4
Accepts Anchor Bolt Diameter (in.): 3/4

B-1224-3
Unit:
Size: W x L x H
Weight:
Limited Warranty
Projection (in.): 3
Accepts Anchor Bolt Diameter (in.): 3/4
Projection (in.): 3
Accepts Anchor Bolt Diameter (in.): 3/4

B-1224-6
Unit:
Size: W x L x H
Weight:
Limited Warranty
Projection (in.): 6
Accepts Anchor Bolt Diameter (in.): 3/4
Projection (in.): 6
Accepts Anchor Bolt Diameter (in.): 3/4

B-516
Unit:
Size: W x L x H
Weight:
Limited Warranty
Projection (in.): 2
Anchor Bolt Diameter (in.): 5/8
Projection (in.): 2
Anchor Bolt Diameter (in.): 5/8

B-516-SF
Unit:
Size: W x L x H
Weight:
Limited Warranty
Projection (in.): 2-1/2
Anchor Bolt Diameter (in.): 3/4
Projection (in.): 2-1/2
Anchor Bolt Diameter (in.): 3/4

B-818
Unit:
Size: W x L x H
Weight:
Limited Warranty
Projection (in.): 2
Anchor Bolt Diameter (in.): 5/8
Projection (in.): 2
Anchor Bolt Diameter (in.): 5/8

B-818-SF
Unit:
Size: W x L x H
Weight:
Limited Warranty
Projection (in.): 2-1/2
Anchor Bolt Diameter (in.): 3/4
Projection (in.): 2-1/2
Anchor Bolt Diameter (in.): 3/4

L-1818-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Projection (in.): 4
Accepts Anchor Bolt Diameter (in.): 1
Projection (in.): 4
Accepts Anchor Bolt Diameter (in.): 1

T-22
Unit:
Size: W x L x H
Weight:
Limited Warranty
Projection (in.): 3
Anchor Bolt Diameter (in.): 3/4
Projection (in.): 3
Anchor Bolt Diameter (in.): 3/4
For More Details of the Option Click the Red Model Button
Anchor Bolts Hardware for Concrete Installation
Model Image Quantity & Size Wt.
(lbs)
AS-346 (1) 3/4" x 6" 1
AS-346-4PK (4) 3/4"x 6" 4
AS-584 (1) 5/8" x 4" 1
AS-584-4PK (4) 5/8" x 4" 4
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Specialty Molded Dock Bumpers PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings


B-1213-4

B-1213-4PF

B-1224-3

B-1224-6

B-516

B-516-SF

B-818

B-818-SF

L-1818-4

T-22

Testing Certificates


B-1213-4

B-1213-4PF

B-1224-3

B-1224-6

B-516

B-516-SF

B-818

B-818-SF

L-1818-4

T-22

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: What is the distance between the mounting holes for B-818-SF?

A: 8"
