Adjustable Panel Dollies

- - - -

Description
Model Chart
PDF's
Image Gallery
PLDL-ADJ-8GFN_A.jpg PLDL-ADJ-8GFN_B.jpg PLDL-ADJ-8GFN_C.jpg
Adjustable Panel Dollies

model: PLDL-ADJ-8GFN



Featured Industrial Carts & Dollies


Appliance Carts
Steel Folding Handle Platform Truck
Vertical Panel Cart
V-Groove Pipe Movers
Stainless Steel Platform Trucks
Corner Mover Dollies
Hardwood Platform Trucks
Heavy-Duty Panel Cart
Fiberwood Dollies
model chart

Product Family Overview

Print Friendly
Adjustable Panel Dollies
SERIES: PLDL

The Adjustable Panel Dollies are adjustable from 0 to 9" with positive locking clutch plates that allow for easier release and adjustment. Steel construction with yellow, baked-in powder-coated finish for added toughness.

  • Adjustable with positive locking clutch plates
  • Clutch plates allow for easier release and adjustment
  • Includes 8" mold-on-rubber wheels
  • Steel construction with powder coat yellow finish

The Adjustable Panel Dollies are adjustable from 0 to 9" with positive locking clutch plates that allow for easier release and adjustment. Steel construction with yellow, baked-in powder-coated finish for added toughness.

  • Adjustable with positive locking clutch plates
  • Clutch plates allow for easier release and adjustment
  • Includes 8" mold-on-rubber wheels
  • Steel construction with powder coat yellow finish

Other Panel Dollies

 Adjustable Panel Dollies Lightweight Door & Panel Dolly

Additional Models In This Family
view entire Image Gallery

PLDL-ADJ-8MR

model PLDL-ADJ-8MR

PLDL-ADJ-8PS

model PLDL-ADJ-8PS

PLDL-ADJ-10FF

model PLDL-ADJ-10FF

PLDL-ADJ-10PN

model PLDL-ADJ-10PN

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

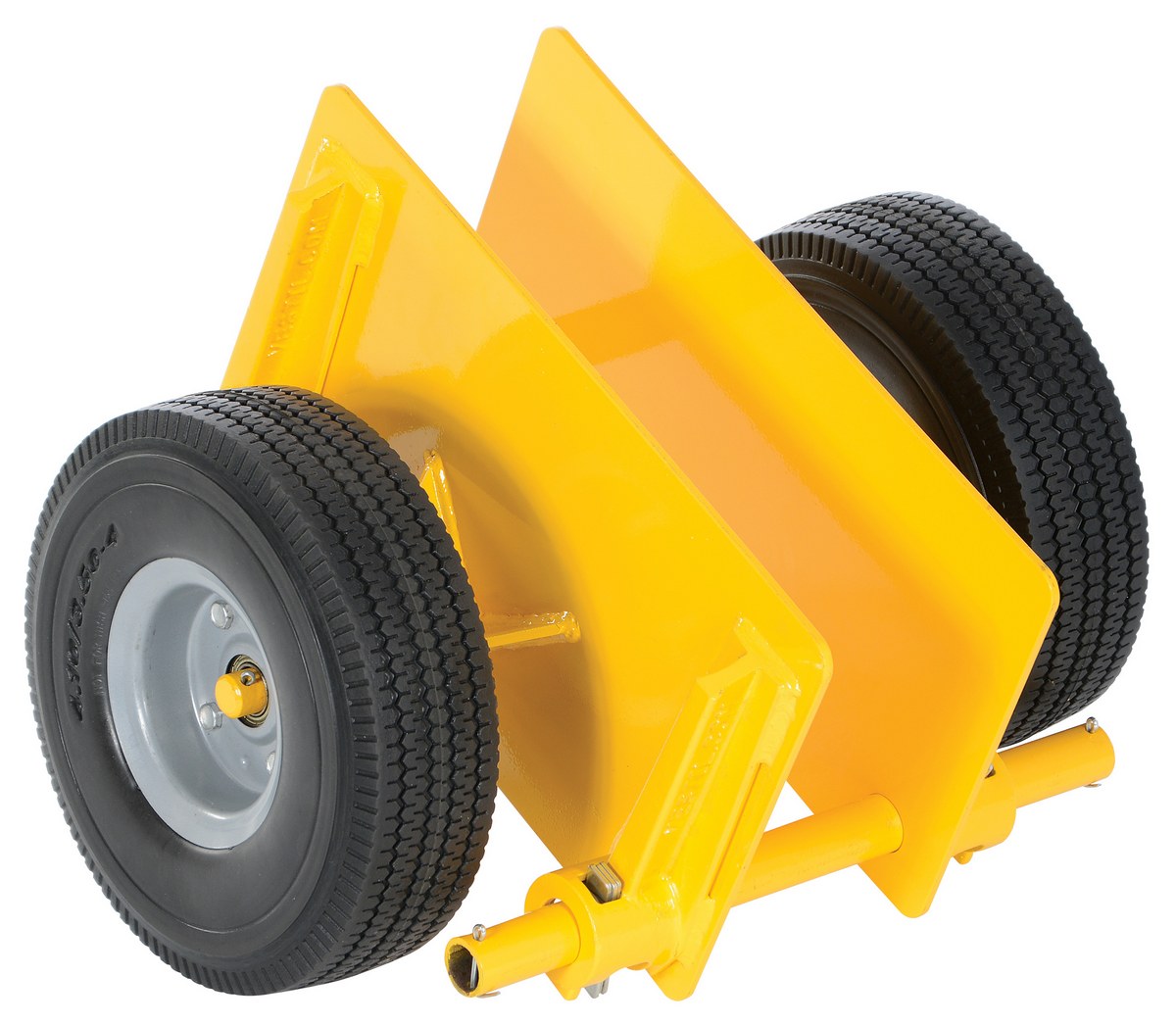

PLDL-ADJ-10FF PLDL-ADJ-10FF30 Days Limited WarrantySteel Adjustable Panel Dolly With Foam Filled Wheels 20-7/8 In. x 15 In. x 11-1/2 In. 500 Lb. Capacity YellowUniform Capacity (lb.): 500
Caster Quantity/Diameter/Width (in.): (2) 10 x 3-1/8		37

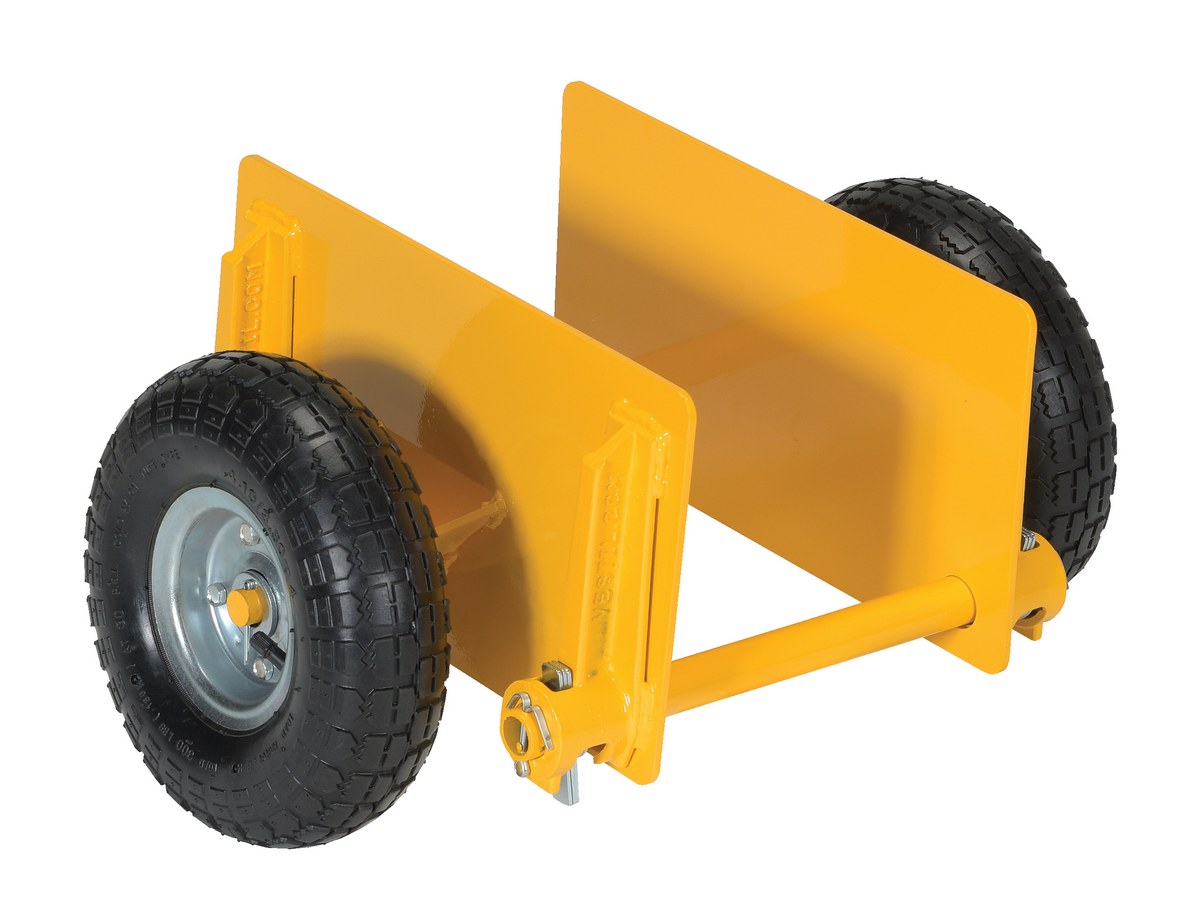

PLDL-ADJ-10PN PLDL-ADJ-10PN30 Days Limited WarrantySteel Adjustable Panel Dolly With Pneumatic Wheels 20-7/8 In. x 15 In. x 11-1/2 In. 600 Lb. Capacity YellowUniform Capacity (lb.): 600
Caster Quantity/Diameter/Width (in.): (2) 10 x 3-1/4		37

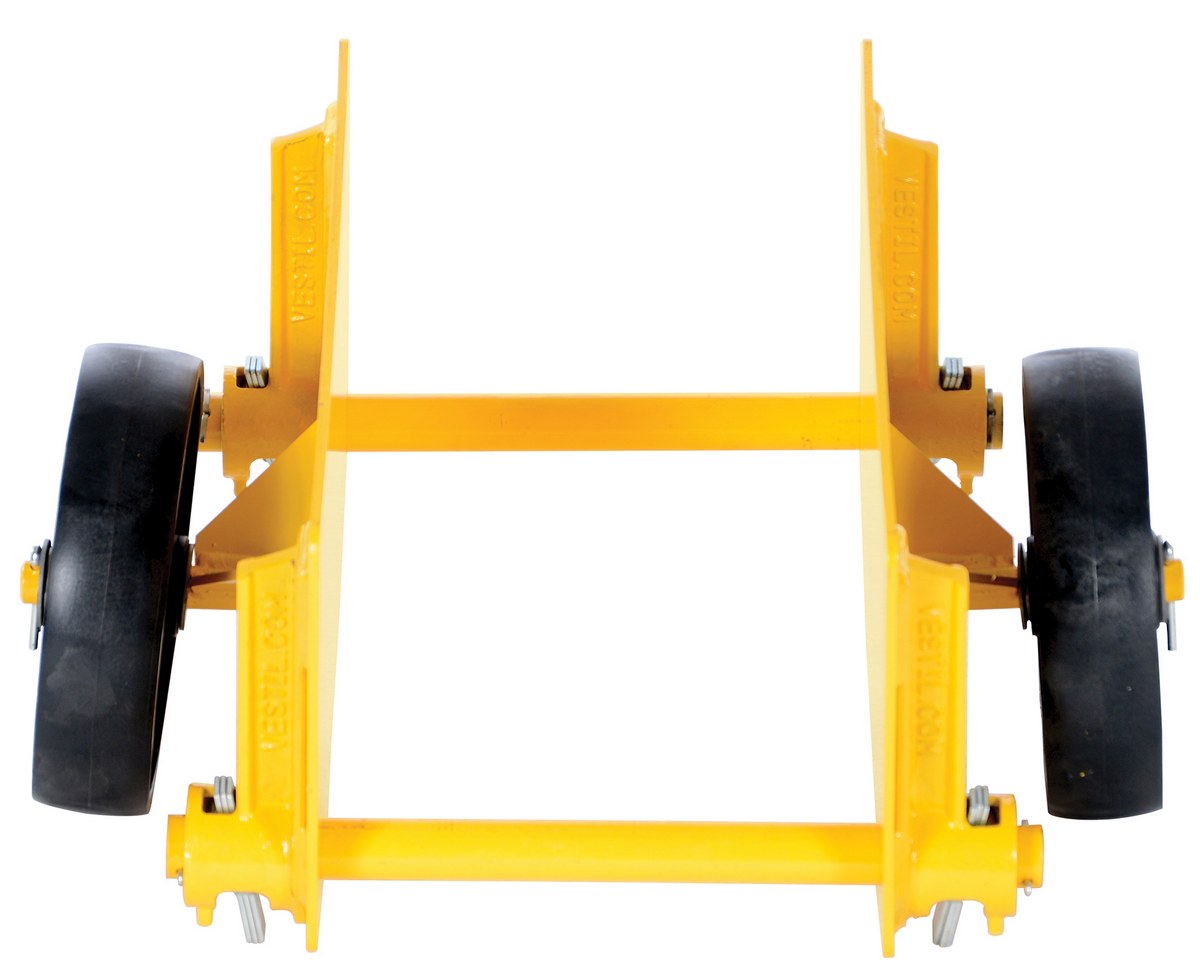

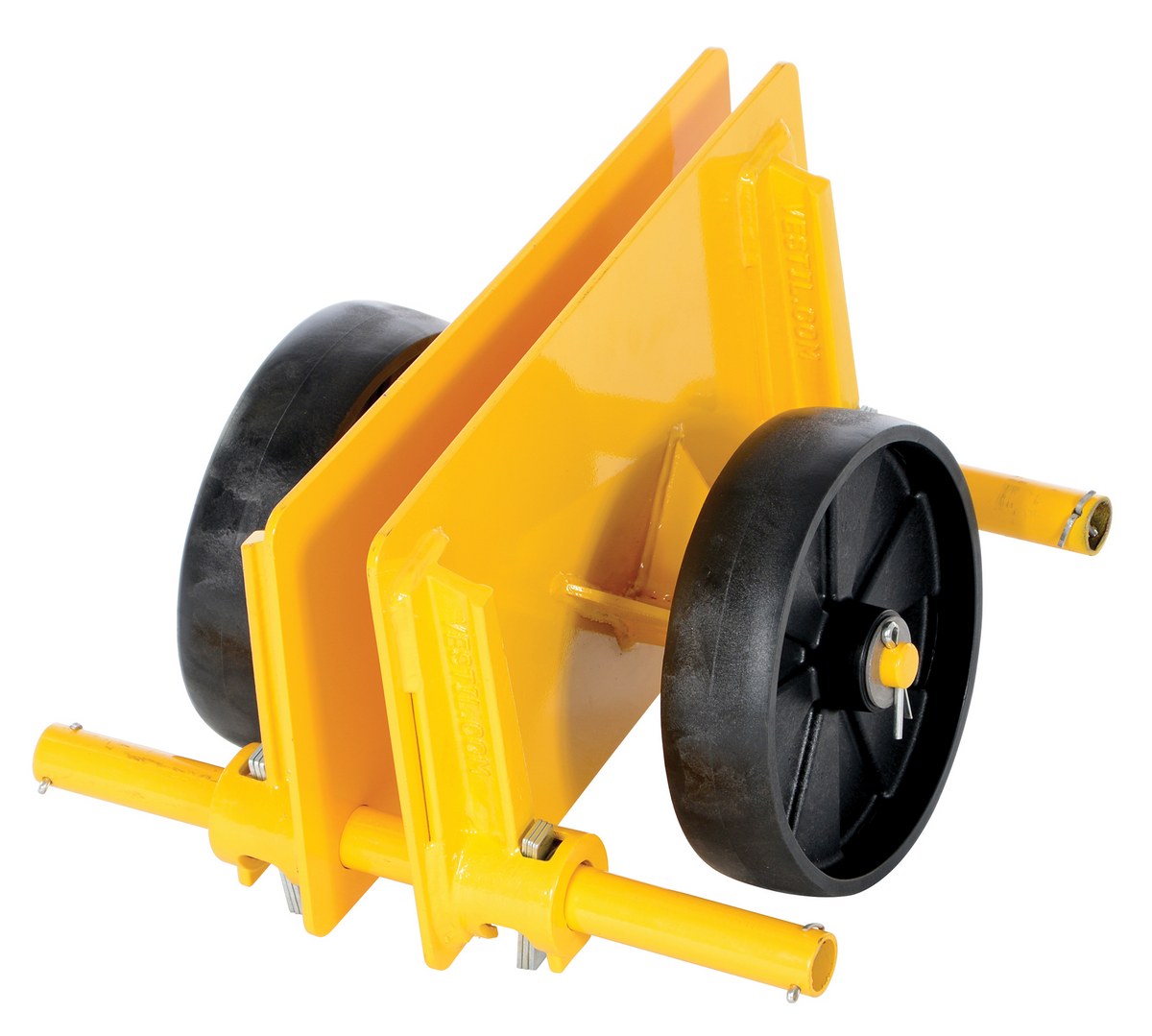

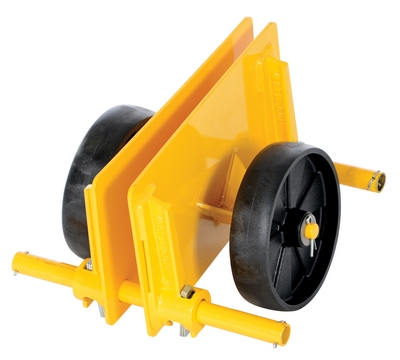

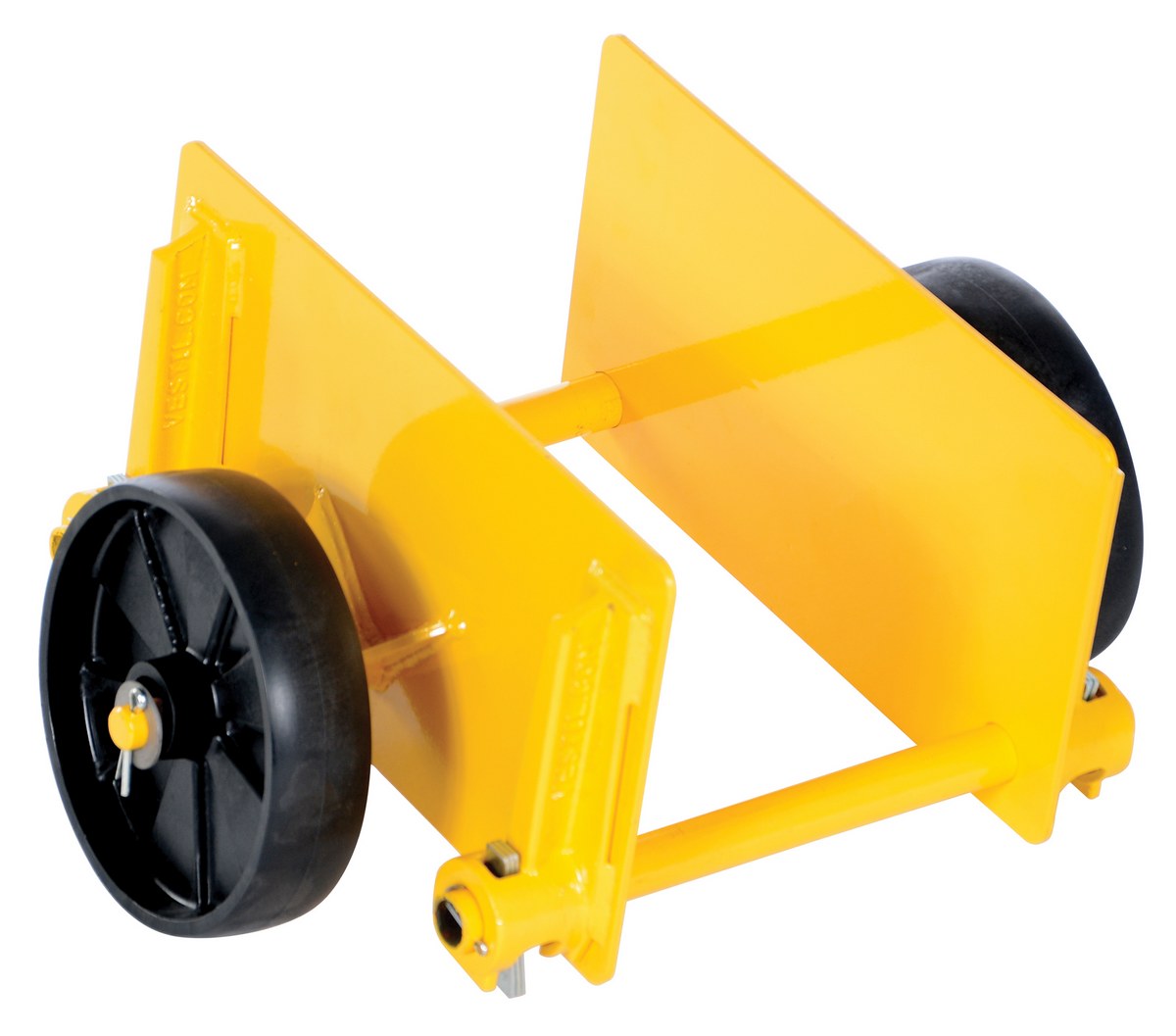

PLDL-ADJ-8GFN PLDL-ADJ-8GFN30 Days Limited WarrantySteel Adjustable Panel Dolly With Glass Filled Nylon Casters 19-1/4 In. x 15 In. x 10-1/2 In. 1000 Lb. Capacity YellowUniform Capacity (lb.): 1000
Caster Quantity/Diameter/Width (in.): (2) 8 x 2		31

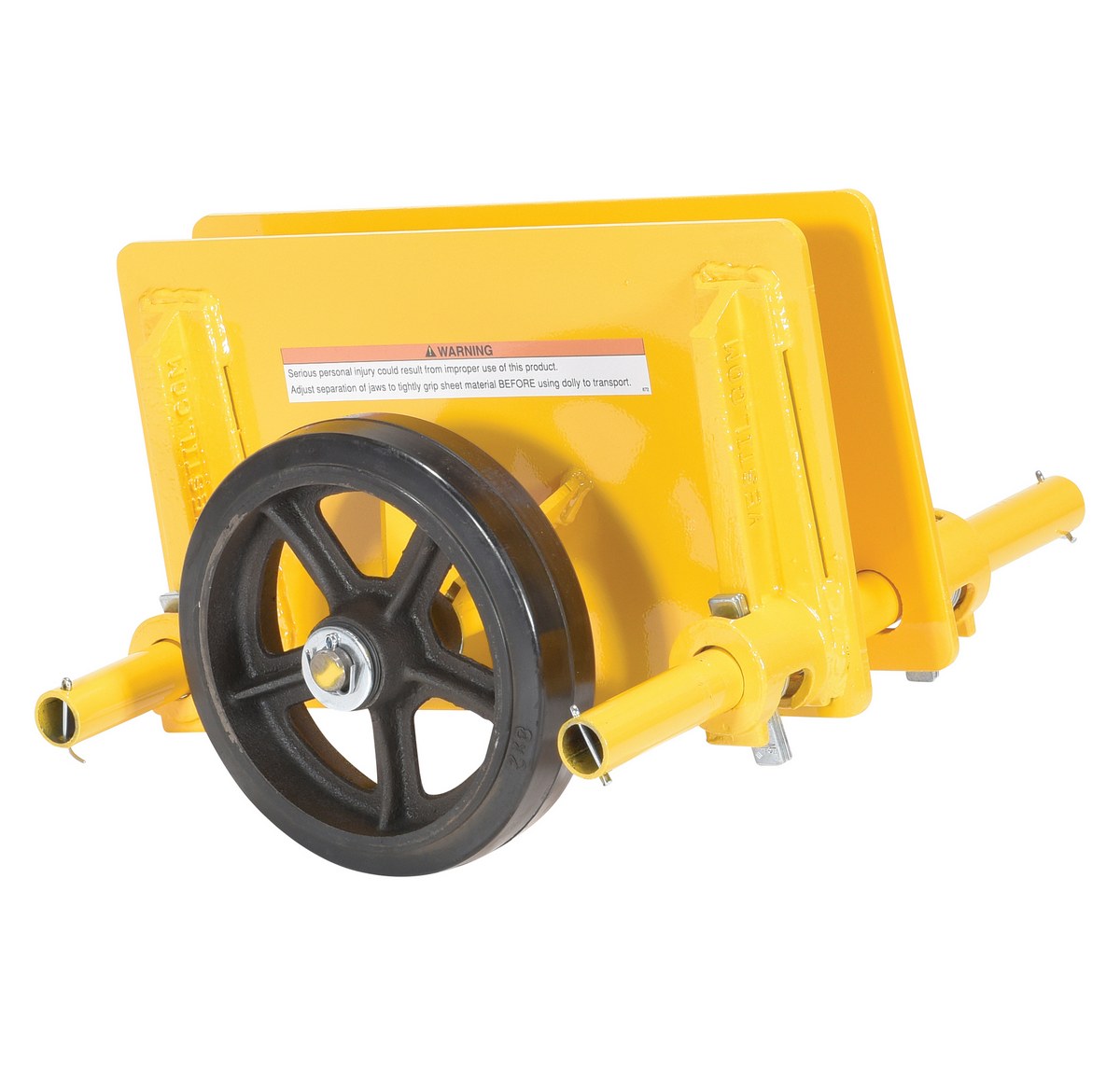

PLDL-ADJ-8MR PLDL-ADJ-8MR30 Days Limited WarrantySteel Adjustable Panel Dolly With Mold On Rubber Casters 19-1/4 In. x 15 In. x 10-1/2 In. 1000 Lb. Capacity YellowUniform Capacity (lb.): 1000
Caster Quantity/Diameter/Width (in.): (2) 8 x 2		39

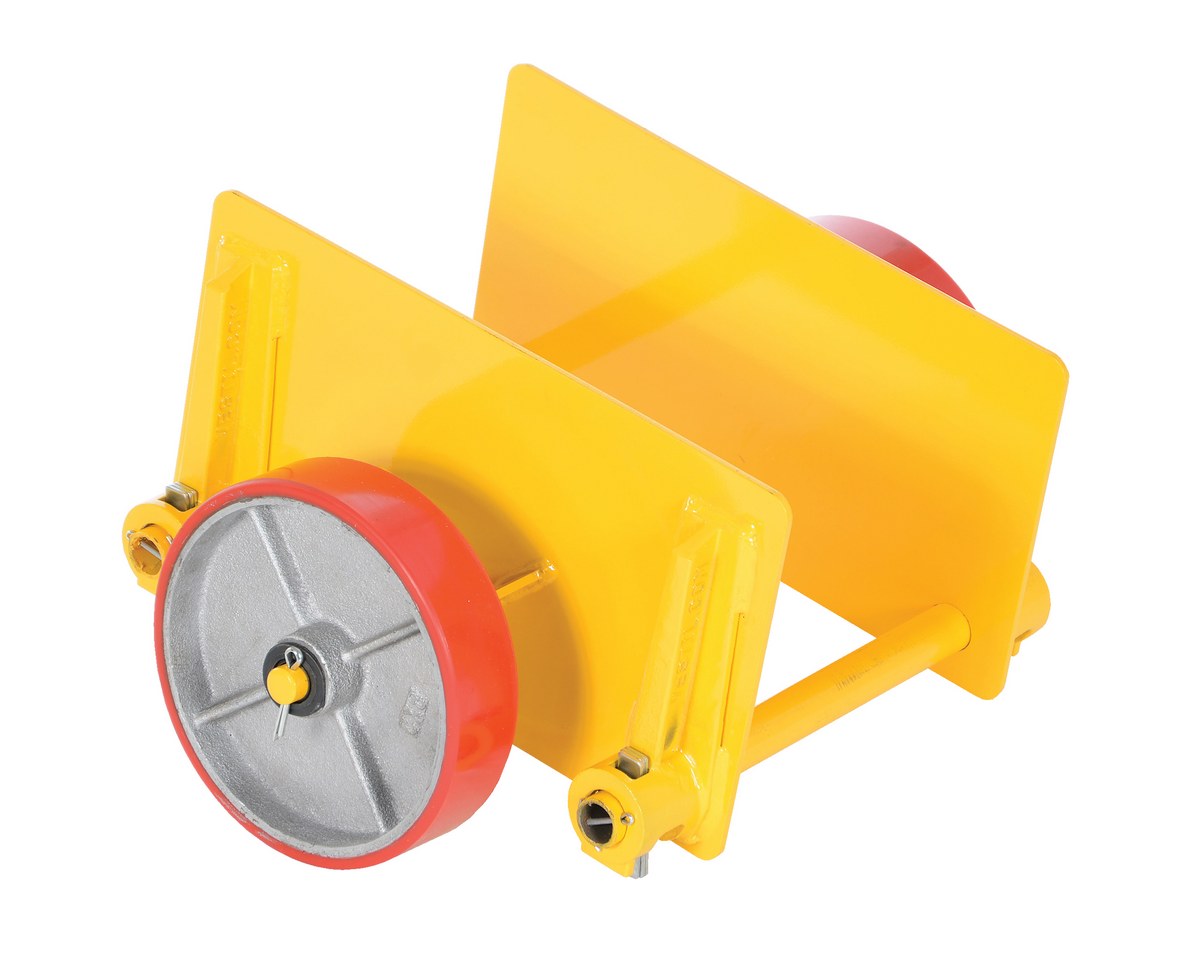

PLDL-ADJ-8PS PLDL-ADJ-8PS30 Days Limited WarrantySteel Adjustable Panel Dolly With Poly-On-Steel Casters 19-1/4 In. x 15 In. x 10-1/2 In. 1000 Lb. Capacity YellowUniform Capacity (lb.): 1000
Caster Quantity/Diameter/Width (in.): (2) 8 x 2		40

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

PLDL-ADJ-10FF
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Caster Quantity/Diameter/Width (in.): (2) 10 x 3-1/8
Uniform Capacity (lb.): 500
Caster Quantity/Diameter/Width (in.): (2) 10 x 3-1/8

PLDL-ADJ-10PN
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 600
Caster Quantity/Diameter/Width (in.): (2) 10 x 3-1/4
Uniform Capacity (lb.): 600
Caster Quantity/Diameter/Width (in.): (2) 10 x 3-1/4

PLDL-ADJ-8GFN
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Caster Quantity/Diameter/Width (in.): (2) 8 x 2
Uniform Capacity (lb.): 1000
Caster Quantity/Diameter/Width (in.): (2) 8 x 2

PLDL-ADJ-8MR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Caster Quantity/Diameter/Width (in.): (2) 8 x 2
Uniform Capacity (lb.): 1000
Caster Quantity/Diameter/Width (in.): (2) 8 x 2

PLDL-ADJ-8PS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Caster Quantity/Diameter/Width (in.): (2) 8 x 2
Uniform Capacity (lb.): 1000
Caster Quantity/Diameter/Width (in.): (2) 8 x 2
Adjustable Panel Dollies PDF's will open in a new window when clicked.

Manuals


PLDL
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


PLDL-ADJ-10FF

PLDL-ADJ-10PN

PLDL-ADJ-8GFN

PLDL-ADJ-8MR

PLDL-ADJ-8PS

Testing Certificates


PLDL-ADJ-10FF

PLDL-ADJ-10PN

PLDL-ADJ-8GFN

PLDL-ADJ-8MR

PLDL-ADJ-8PS

SDS Sheets

No SDS Sheets For This Product

Other PDF's


Adjustable Panel Dolly Mailing Brochure

Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Related or Similar Products:

Drywall & Panel Carts
Product

Drywall & Panel Carts

Low Platform Panel Carts
Product

Low Platform Panel Carts

Vertical Panel Cart
Product

Vertical Panel Cart

Horizontal Panel Cart
Product

Horizontal Panel Cart

Lightweight Door & Panel Dolly
Product

Lightweight Door & Panel Dolly

Heavy-Duty Plate/Slab Dollies
Product

Heavy-Duty Plate/Slab Dollies

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Adjustable Panel Dollies




The Adjustable Panel Dollies are adjustable from 0 to 9" with positive locking clutch plates that allow for easier release and adjustment. Steel construction with yellow, baked-in powder-coated finish for added toughness.

  • Adjustable with positive locking clutch plates
  • Clutch plates allow for easier release and adjustment
  • Includes 8" mold-on-rubber wheels
  • Steel construction with powder coat yellow finish

Model # Description Attributes Net Wt.
(lbs)
PLDL-ADJ-10FF PLDL-ADJ-10FFSteel Adjustable Panel Dolly With Foam Filled Wheels 20-7/8 In. x 15 In. x 11-1/2 In. 500 Lb. Capacity YellowUniform Capacity (lb.): 500
Caster Quantity/Diameter/Width (in.): (2) 10 x 3-1/8		37
PLDL-ADJ-10PN PLDL-ADJ-10PNSteel Adjustable Panel Dolly With Pneumatic Wheels 20-7/8 In. x 15 In. x 11-1/2 In. 600 Lb. Capacity YellowUniform Capacity (lb.): 600
Caster Quantity/Diameter/Width (in.): (2) 10 x 3-1/4		37
PLDL-ADJ-8GFN PLDL-ADJ-8GFNSteel Adjustable Panel Dolly With Glass Filled Nylon Casters 19-1/4 In. x 15 In. x 10-1/2 In. 1000 Lb. Capacity YellowUniform Capacity (lb.): 1000
Caster Quantity/Diameter/Width (in.): (2) 8 x 2		31
PLDL-ADJ-8MR PLDL-ADJ-8MRSteel Adjustable Panel Dolly With Mold On Rubber Casters 19-1/4 In. x 15 In. x 10-1/2 In. 1000 Lb. Capacity YellowUniform Capacity (lb.): 1000
Caster Quantity/Diameter/Width (in.): (2) 8 x 2		39
PLDL-ADJ-8PS PLDL-ADJ-8PSSteel Adjustable Panel Dolly With Poly-On-Steel Casters 19-1/4 In. x 15 In. x 10-1/2 In. 1000 Lb. Capacity YellowUniform Capacity (lb.): 1000
Caster Quantity/Diameter/Width (in.): (2) 8 x 2		40
