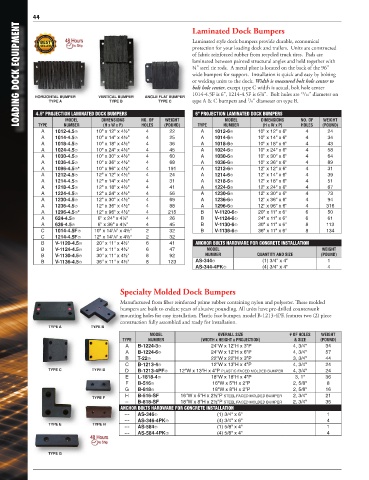

Page 38 - Vestil Catalog 112

44 Laminated Dock Bumpers
LOADING DOCK EQUIPMENT HORIZONTAL BUMPER VERTICAL BUMPER ANGLE FLAT BUMPER protection for your loading dock and trailers. Units are constructed

Laminated style dock bumpers provide durable, economical
of fabric reinforced rubber from recycled truck tires. Pads are
laminated between painted structural angles and held together with
¾" steel tie rods. A metal plate is located on the back of the 96"
wide bumpers for support. Installation is quick and easy by bolting
or welding units to the dock. Width is measured bolt hole center to
bolt hole center, except type C width is actual, bolt hole center
1014-4.5F is 6", 1214-4.5F is 6⅞". Bolt holes are /16" diameter on
13
type A & C bumpers and /8" diameter on type B.
7
TYPE B
TYPE A
TYPE C
4.5" PROJECTION LAMINATED DOCK BUMPERS
WEIGHT
WEIGHT
MODEL
DIMENSIONS
DIMENSIONS
MODEL
TYPE
HOLES
NUMBER
NUMBER
(H x W x P)
(H x W x P)
HOLES
TYPE
1012-6�
22
A
A 1012-4.5� 10" x 12" x 4½" NO. OF (POUND) 6" PROJECTION LAMINATED DOCK BUMPERS NO. OF (POUND)
4
4
24
10" x 12" x 6"
A 1014-4.5� 10" x 14" x 4½" 4 25 A 1014-6� 10" x 14" x 6" 4 34
A 1018-4.5� 10" x 18" x 4½" 4 36 A 1018-6� 10" x 18" x 6" 4 43
A 1024-4.5� 10" x 24" x 4½" 4 45 A 1024-6� 10" x 24" x 6" 4 58
A 1030-4.5� 10" x 30" x 4½" 4 60 A 1030-6� 10" x 30" x 6" 4 64
A 1036-4.5� 10" x 36" x 4½" 4 68 A 1036-6� 10" x 36" x 6" 4 89
A 1096-4.5�* 10" x 96" x 4½" 4 191 A 1212-6� 12" x 12" x 6" 4 31
A 1212-4.5� 12" x 12" x 4½" 4 24 A 1214-6� 12" x 14" x 6" 4 39
A 1214-4.5� 12" x 14" x 4½" 4 31 A 1218-6� 12" x 18" x 6" 4 51
A 1218-4.5� 12" x 18" x 4½" 4 41 A 1224-6� 12" x 24" x 6" 4 67
A 1224-4.5� 12" x 24" x 4½" 4 56 A 1230-6� 12" x 30" x 6" 4 73
A 1230-4.5� 12" x 30" x 4½" 4 69 A 1236-6� 12" x 36" x 6" 4 94
A 1236-4.5� 12" x 36" x 4½" 4 88 A 1296-6� 12" x 96" x 6" 4 316
A 1296-4.5�* 12" x 96" x 4½" 4 215 B V-1120-6� 20" x 11" x 6" 6 50
A 624-4.5� 6" x 24" x 4½" 4 26 B V-1124-6� 24" x 11" x 6" 6 61
A 636-4.5� 6" x 36" x 4½" 4 45 B V-1130-6� 30" x 11" x 6" 8 113
C 1014-4.5F� 10" x 14 /8" x 4½" 2 32 B V-1136-6� 36" x 11" x 6" 8 134
1
1
C 1214-4.5F� 12" x 14 /8" x 4½" 2 32
B V-1120-4.5� 20" x 11" x 4½" 6 41 ANCHOR BOLTS HARDWARE FOR CONCRETE INSTALLATION
B V-1124-4.5� 24" x 11" x 4½" 6 47 MODEL WEIGHT
NUMBER QUANTITY AND SIZE (POUND)
B V-1130-4.5� 30" x 11" x 4½" 8 92
B V-1136-4.5� 36" x 11" x 4½" 8 123 AS-344� (1) 3/4" x 4" 1
AS-344-4PK� (4) 3/4" x 4" 4
Specialty Molded Dock Bumpers
Manufactured from fiber reinforced prime rubber containing nylon and polyester. These molded
bumpers are built to endure years of abusive pounding. All units have pre-drilled countersunk
mounting holes for easy installation. Plastic face bumper, model B-1213-4PF, features two (2) piece
construction fully assembled and ready for installation.
TYPE A TYPE B
MODEL OVERALL SIZE # OF HOLES WEIGHT
TYPE NUMBER (WIDTH x HEIGHT x PROJECTION) & SIZE (POUND)
A B-1224-3� 24"W x 12"H x 3"P 4, 3/4" 34
A B-1224-6� 24"W x 12"H x 6"P 4, 3/4" 57
B T-22� 22"W x 22"H x 3"P 3, 3/4" 44
C B-1213-4� 12"W x 13"H x 4"P 4, 3/4" 24
TYPE C TYPE D D B-1213-4PF� 12"W x 13"H x 4"P PLASTIC FACED MOLDED BUMPER 4, 3/4" 24
E L-1818-4� 18"W x 18"H x 4"P 3, 1" 36
F B-516� 16"W x 5"H x 2"P 2, 5/8" 8
G B-818� 18"W x 8"H x 2"P 2, 5/8" 16
TYPE F H B-516-SF 16"W x 5"H x 2½"P STEEL FACED MOLDED BUMPER 2, 3/4" 21
-- B-818-SF 18"W x 8"H x 2½"P STEEL FACED MOLDED BUMPER 2, 3/4" 35
ANCHOR BOLTS HARDWARE FOR CONCRETE INSTALLATION
--- AS-346� (1) 3/4" x 6" 1
--- AS-346-4PK� (4) 3/4" x 6" 4
TYPE E TYPE H
--- AS-584� (1) 5/8" x 4" 1
--- AS-584-4PK� (4) 5/8" x 4" 4
TYPE G
