Model Details

A-3030

Printer Friendly
A-3030

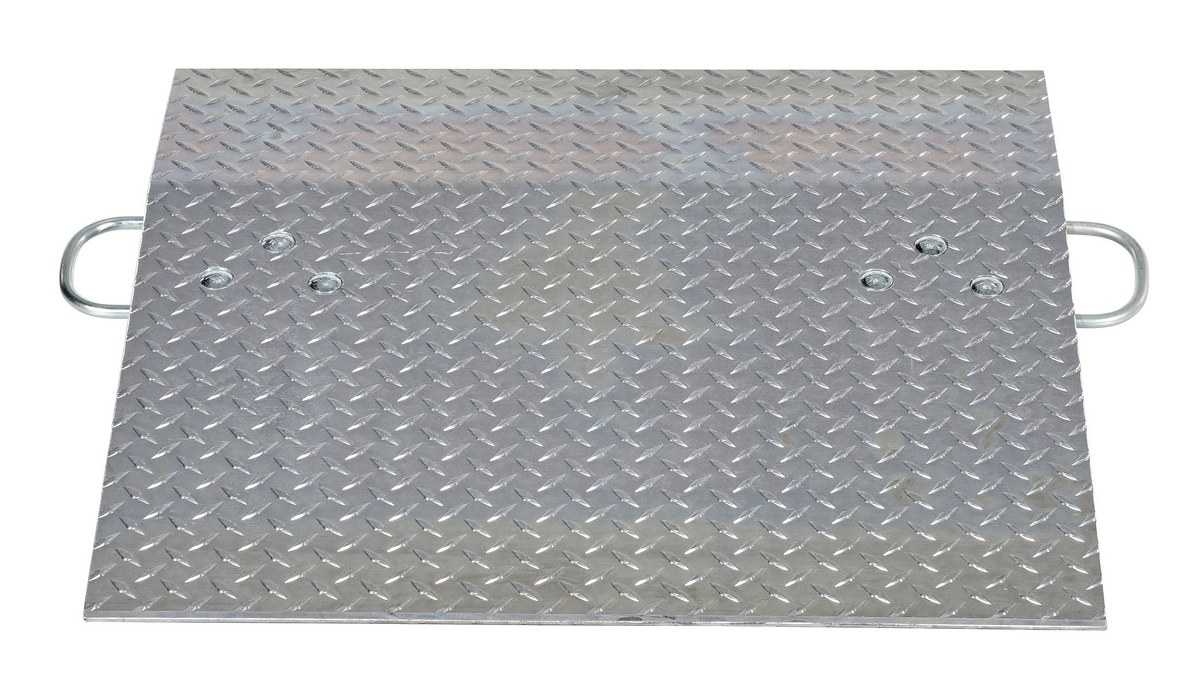

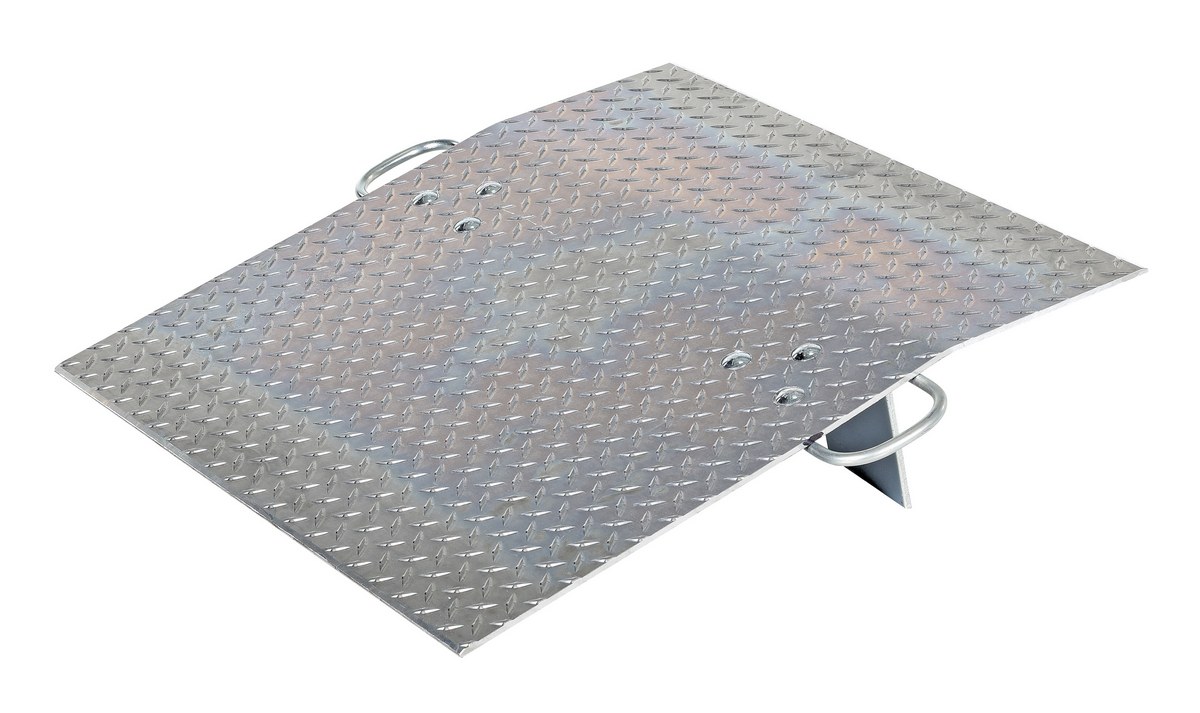

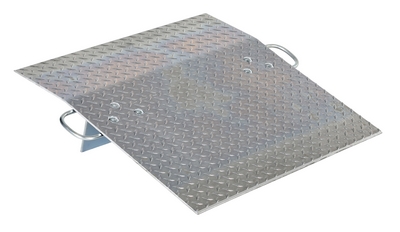

Aluminum Hand Truck Dock Plate 30 In. x 30 In. 500 Lb. Capacity Silver

This Aluminum Hand Truck dock plate is designed for use with two (2) wheel hand trucks. It is a convenient, safe, and easy way to access loading docks from trucks. This dock plate is lightweight and easily transported by just one person. The locking legs secure the plate for safe loading and unloading. Complete with bolt-on zinc plated carrying handles and locking legs.

  • Lightweight design is ideal for foot or hand truck traffic
  • Beveled entrance and exit edges provide smooth transition
  • Tread plate surface ensures skid-resistant safe traction
  • Zinc-plated locking legs and lifting handles for OSHA compliance
Total Ship Wt.(lbs.): 44 (Multiple Packages: P1: 33 lbs + P2: 11 lbs) Size: 36"W x 29.84375"L x 6.25"H Color: Silver

Uniform Capacity (lb.): 500 Bend or Crown (degrees): 11 Distance Between Bend or Crown From Dockplate Edge (in.): 9
Usable Width (in.): 30 Usable Length (in.): 30 Plate Thickness (in.): 1/4
Height Difference Between Truck and Door (in.): 4

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: A-3030
A-3030

Aluminum Hand Truck Dock Plate 30 In. x 30 In. 500 Lb. Capacity Silver

This Aluminum Hand Truck dock plate is designed for use with two (2) wheel hand trucks. It is a convenient, safe, and easy way to access loading docks from trucks. This dock plate is lightweight and easily transported by just one person. The locking legs secure the plate for safe loading and unloading. Complete with bolt-on zinc plated carrying handles and locking legs.

  • Lightweight design is ideal for foot or hand truck traffic
  • Beveled entrance and exit edges provide smooth transition
  • Tread plate surface ensures skid-resistant safe traction
  • Zinc-plated locking legs and lifting handles for OSHA compliance
Dimensions: 36"W x 29.84375"L x 6.25"H Sell UOM: EA-Each Color: Silver
Material: Aluminum UPC: 691215000543 GTIN: 00691215000543
Warranty: -- Shipping Weight: 33 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 500 Bend or Crown (degrees): 11 Distance Between Bend or Crown From Dockplate Edge (in.): 9
Usable Width (in.): 30 Usable Length (in.): 30 Plate Thickness (in.): 1/4
Height Difference Between Truck and Door (in.): 4
