Model Details

ACURT-108

Printer Friendly

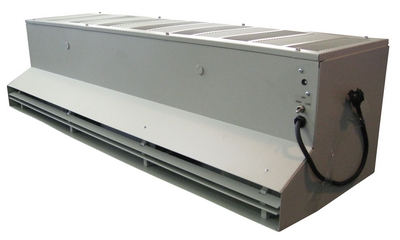

ACURT-108

Steel Heavy Duty Variable Speed Air Curtain 108 In. x 12 In. 3/4 Horsepower Beige

The variable speed air curtain can be used above entry doors and industrial warehouse doors to prevent loss of cool air and maintain a clean environment. The curtain contains a heavy duty rigid steel cabinet, with baked on epoxy powder coat paint for durability. Motor is a heavy duty, PSC, direct drive high efficiency and signed for use with SCR controllers. SCR speed controller supplied compatible with the motor with low end adjustment for air volume control and savings in power consumption.

  • Heavy duty motor provides use in rugged conditions
  • Curtain design prevents loss of cool air and maintains a clean environment
  • Thermal over load design protects motor
  • Permanently lubricated motors provide long life
Total Ship Wt.(lbs.): 276 (Multiple Packages: P1: 122 lbs + P2: 77 lbs) +(P3: 77 lbs) Size: 108"W x 13"L x 16"H Color: Beige Non-Returnable

Steel Gauge: 20 Motor Horsepower: 3/4 Voltage: 120
CFM High: 8016 CFM Low: 2457 Fits Doorway Width (in.): 108
Fits Doorway Height (ft.): 12 Units need to fit doorway: (3) ACURT 36

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: ACURT-108
ACURT-108

Steel Heavy Duty Variable Speed Air Curtain 108 In. x 12 In. 3/4 Horsepower Beige

The variable speed air curtain can be used above entry doors and industrial warehouse doors to prevent loss of cool air and maintain a clean environment. The curtain contains a heavy duty rigid steel cabinet, with baked on epoxy powder coat paint for durability. Motor is a heavy duty, PSC, direct drive high efficiency and signed for use with SCR controllers. SCR speed controller supplied compatible with the motor with low end adjustment for air volume control and savings in power consumption.

  • Heavy duty motor provides use in rugged conditions
  • Curtain design prevents loss of cool air and maintains a clean environment
  • Thermal over load design protects motor
  • Permanently lubricated motors provide long life
Dimensions: 108"W x 13"L x 16"H Sell UOM: EA-Each Color: Beige
Material: Steel UPC: 691215099820 GTIN: 00691215099820
Warranty: -- Shipping Weight: 122 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Steel Gauge: 20 Motor Horsepower: 3/4 Voltage: 120
CFM High: 8016 CFM Low: 2457 Fits Doorway Width (in.): 108
Fits Doorway Height (ft.): 12 Units need to fit doorway: (3) ACURT 36
