AH-3624

Aluminum Hand Truck Dock Plate 36 In. x 24 In. 700 Lb. Capacity Silver

This Aluminum Hand Truck dock plate is designed for use with two (2) wheel hand trucks. It is a convenient, safe, and easy way to access loading docks from trucks. This dock plate is lightweight and easily transported by just one person. The tread plate surface ensures skid-resistant safe traction and the locking legs secure the plate for safe loading and unloading. Complete with bolt-on zinc plated carrying handles and locking legs.

  • Lightweight design is ideal for foot or hand truck traffic
  • Beveled entrance and exit edges provide smooth transition
  • Tread plate surface ensures skid-resistant safe traction
  • Zinc-plated locking legs and lifting handles for OSHA compliance

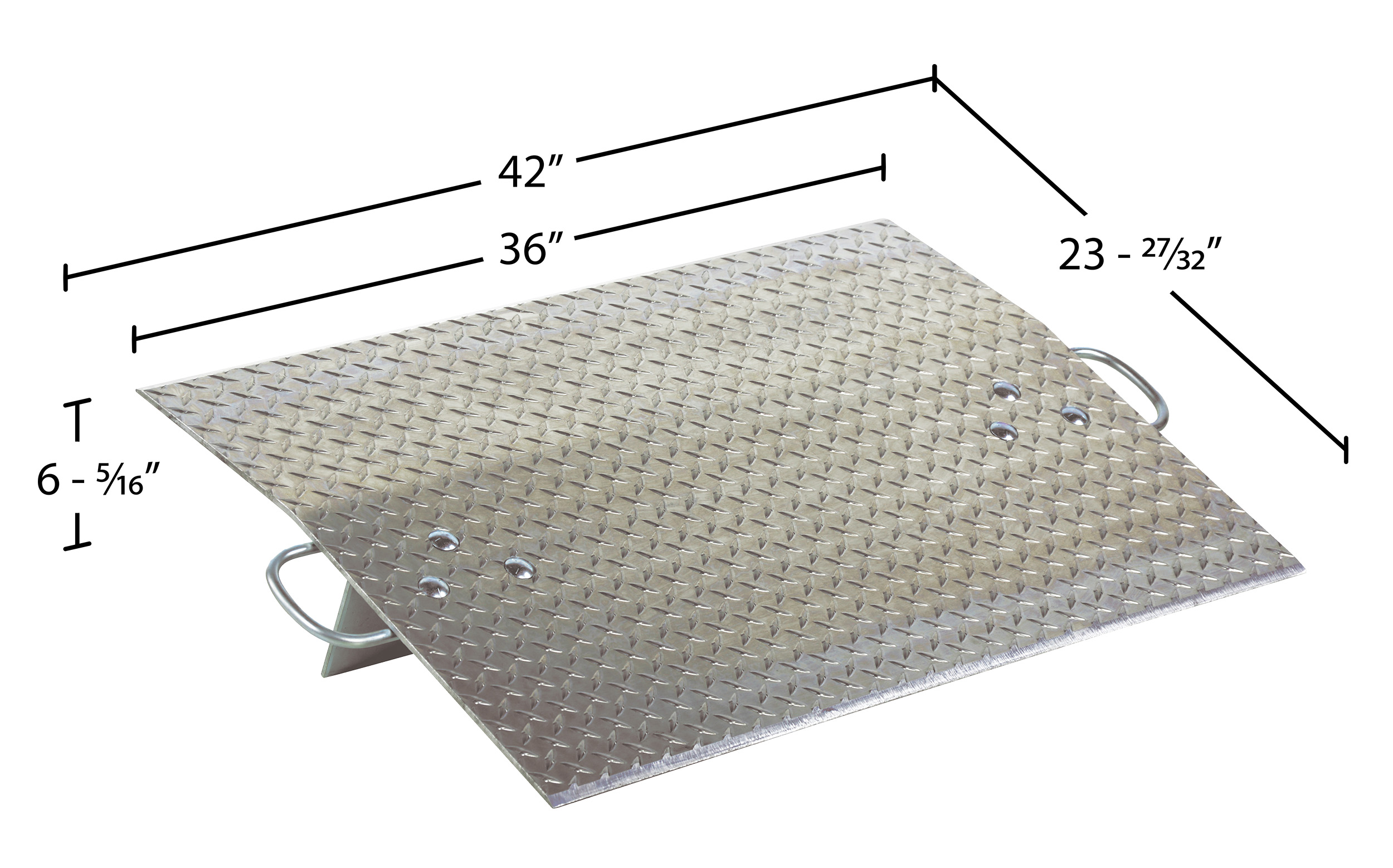

Total Ship Wt.(lbs.): 37 (Multiple Packages: P1: 25 lbs + P2: 12 lbs) Size: 42"W x 24"L x 6.3125"H Color: Silver

Uniform Capacity (lb.): 700 Bend or Crown (degrees): 11 Distance Between Bend or Crown From Dockplate Edge (in.): 9
Usable Width (in.): 36 Usable Length (in.): 24 Plate Thickness (in.): 5/16
Height Difference Between Truck and Door (in.): 3

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: AH-3624
AH-3624

Aluminum Hand Truck Dock Plate 36 In. x 24 In. 700 Lb. Capacity Silver

This Aluminum Hand Truck dock plate is designed for use with two (2) wheel hand trucks. It is a convenient, safe, and easy way to access loading docks from trucks. This dock plate is lightweight and easily transported by just one person. The tread plate surface ensures skid-resistant safe traction and the locking legs secure the plate for safe loading and unloading. Complete with bolt-on zinc plated carrying handles and locking legs.

  • Lightweight design is ideal for foot or hand truck traffic
  • Beveled entrance and exit edges provide smooth transition
  • Tread plate surface ensures skid-resistant safe traction
  • Zinc-plated locking legs and lifting handles for OSHA compliance
Dimensions: 42"W x 24"L x 6.3125"H Sell UOM: EA-Each Color: Silver
Material: Aluminum UPC: 691215001083 GTIN: 00691215001083
Warranty: -- Shipping Weight: 25 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 700 Bend or Crown (degrees): 11 Distance Between Bend or Crown From Dockplate Edge (in.): 9
Usable Width (in.): 36 Usable Length (in.): 24 Plate Thickness (in.): 5/16
Height Difference Between Truck and Door (in.): 3
