AHS-4-15-14-PNU

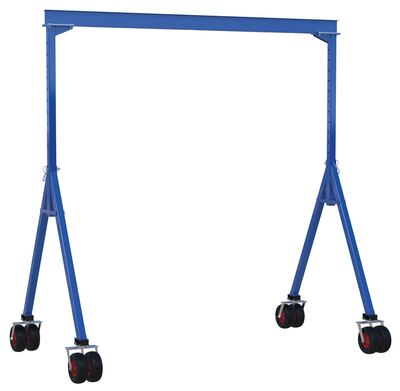

Steel Adjustable Height Gantry Crane with Pneumatic Rubber Casters 15 Ft.Wide x 14 Ft. Max Usable Height 4,000 Lb. Capacity Blue

The adjustable height steel gantry crane is designed for transporting and positioning materials along the beams length. The cranes beam height can be adjusted to better conform to the working conditions making it both ergonomically friendly and cost effective. Do not move units while loaded. A painted blue finish protects the unit from rust. Designed for semi-permanent or permanent applications.

  • Incremental height adjustment
  • Pinned connections for quick set up and take down
  • Easily adjustable height with fork truck or other overhead lifting device
  • Smooth rolling with four swivel pneumatic casters
Total Ship Wt.(lbs.): 1268 (Multiple Packages: P1: 1010 lbs + P2: 258 lbs) Size: 108.625"W x 190.75"L x 188.125"H Color: Blue

Uniform Capacity (lbs): 4000 Overall I-Beam Length (ft.): 15 I-Beam Height (In.): 8.125
I-Beam Flange Width (in.): 4 Under I-Beam Range (in.): 114 to 180 Base Width (in.): 108-5/8
Caster Quantity/Diameter/Width (in.): (4) 16 x 16 Caster Type: (4) Swivel Caster Material: RUBBER
Caster Top Plate (in.): 4x4.5 w/ adaptor plate Usable Trolley Travel Distance (in.): 149.75 Increment Height Adjustment (in.): 6

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: AHS-4-15-14-PNU
AHS-4-15-14-PNU

Steel Adjustable Height Gantry Crane with Pneumatic Rubber Casters 15 Ft.Wide x 14 Ft. Max Usable Height 4,000 Lb. Capacity Blue

The adjustable height steel gantry crane is designed for transporting and positioning materials along the beams length. The cranes beam height can be adjusted to better conform to the working conditions making it both ergonomically friendly and cost effective. Do not move units while loaded. A painted blue finish protects the unit from rust. Designed for semi-permanent or permanent applications.

  • Incremental height adjustment
  • Pinned connections for quick set up and take down
  • Easily adjustable height with fork truck or other overhead lifting device
  • Smooth rolling with four swivel pneumatic casters
Dimensions: 108.625"W x 190.75"L x 188.125"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215369626 GTIN: 00691215369626
Warranty: -- Shipping Weight: 1010 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lbs): 4000 Overall I-Beam Length (ft.): 15 I-Beam Height (In.): 8.125
I-Beam Flange Width (in.): 4 Under I-Beam Range (in.): 114 to 180 Base Width (in.): 108-5/8
Caster Quantity/Diameter/Width (in.): (4) 16 x 16 Caster Type: (4) Swivel Caster Material: RUBBER
Caster Top Plate (in.): 4x4.5 w/ adaptor plate Usable Trolley Travel Distance (in.): 149.75 Increment Height Adjustment (in.): 6
