AIR-1500-D

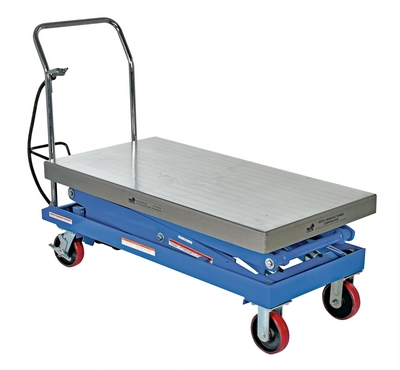

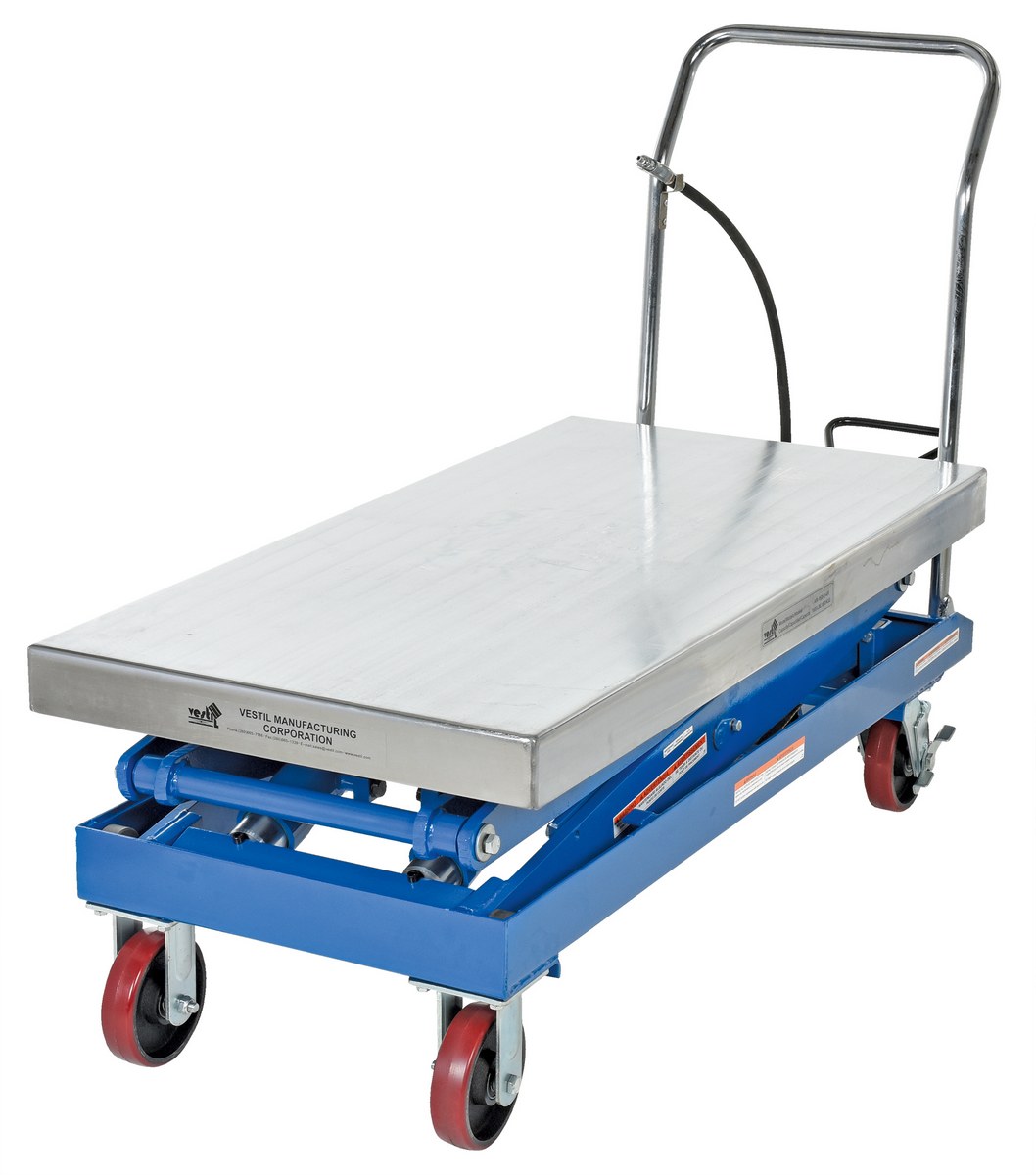

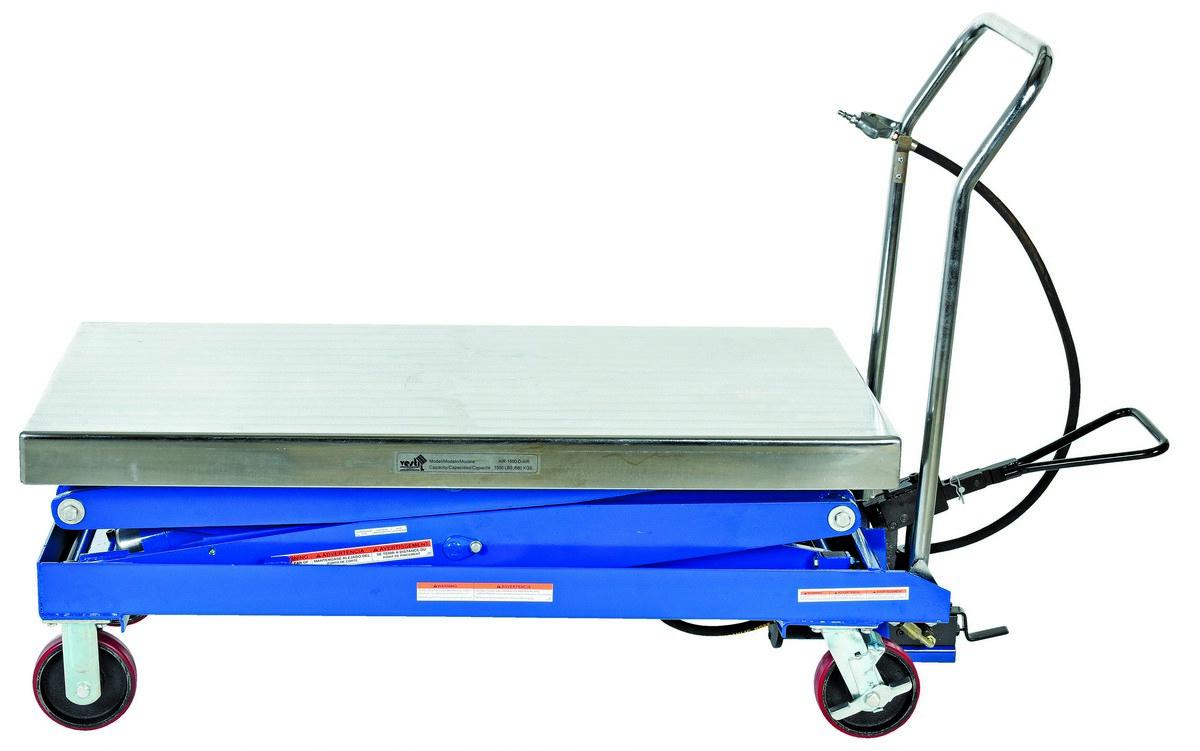

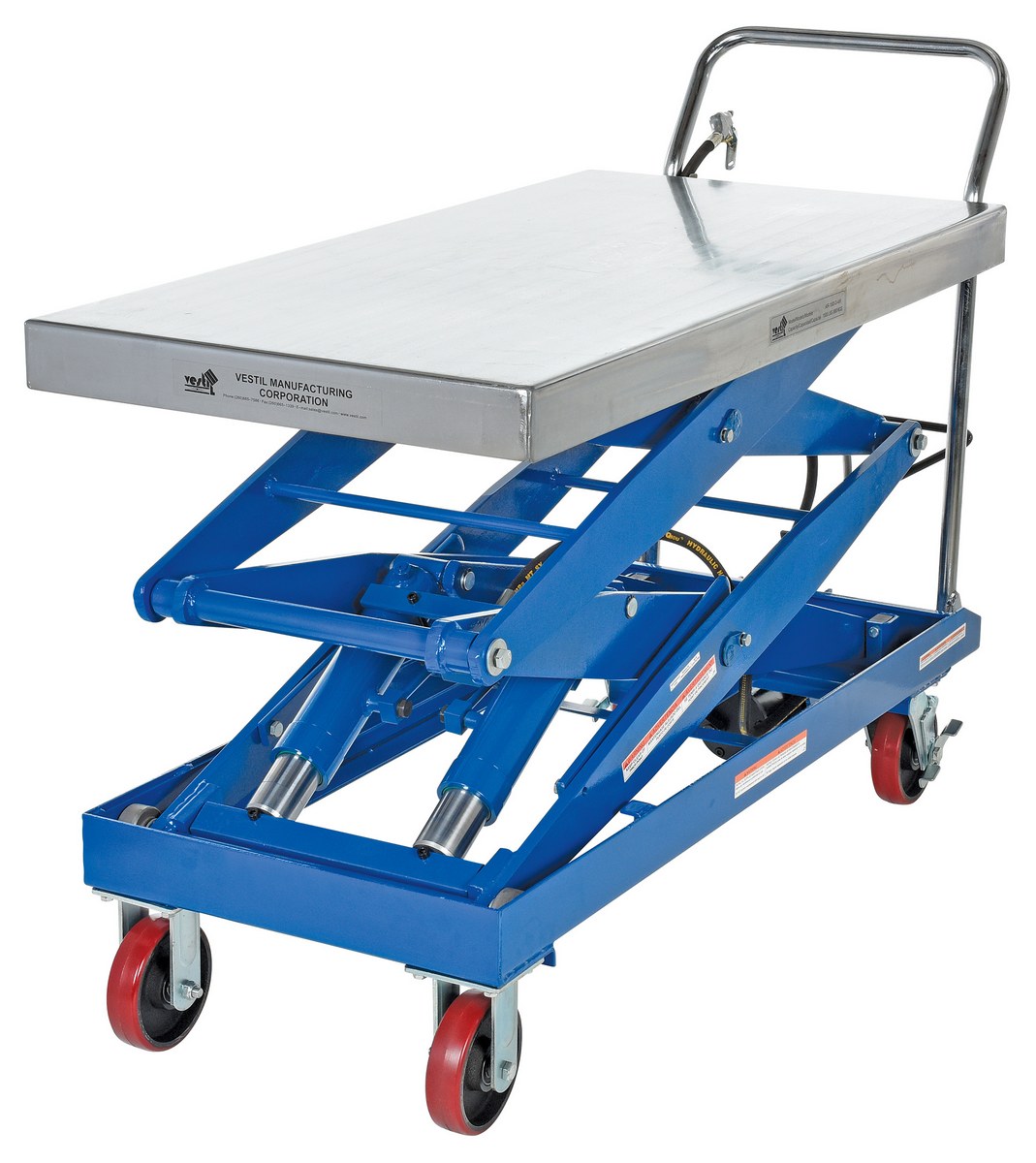

Carbon Steel Air/Hydraulic Scissor Lift Cart 47-1/2 In. x 24 In. Platform With Poly-On-Poly Casters 1,500 Lb. Capacity Blue/Silver

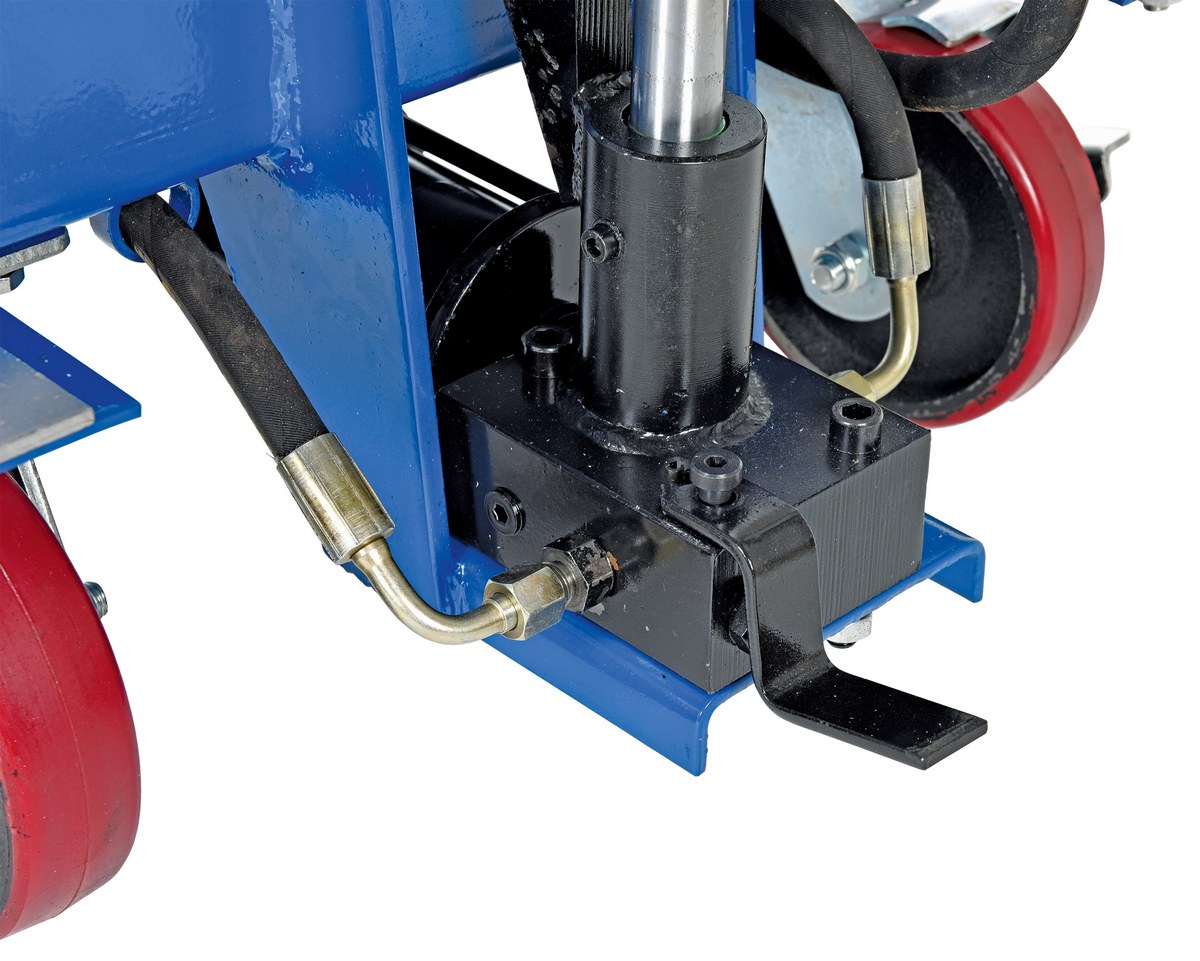

The air Hydraulic cart features a two speed foot pump and hand held reciprocating air/oil power to raise the platform. It utilizes the two speed foot pump for minor height adjustments and the factory air/oil power for effortless lifting.

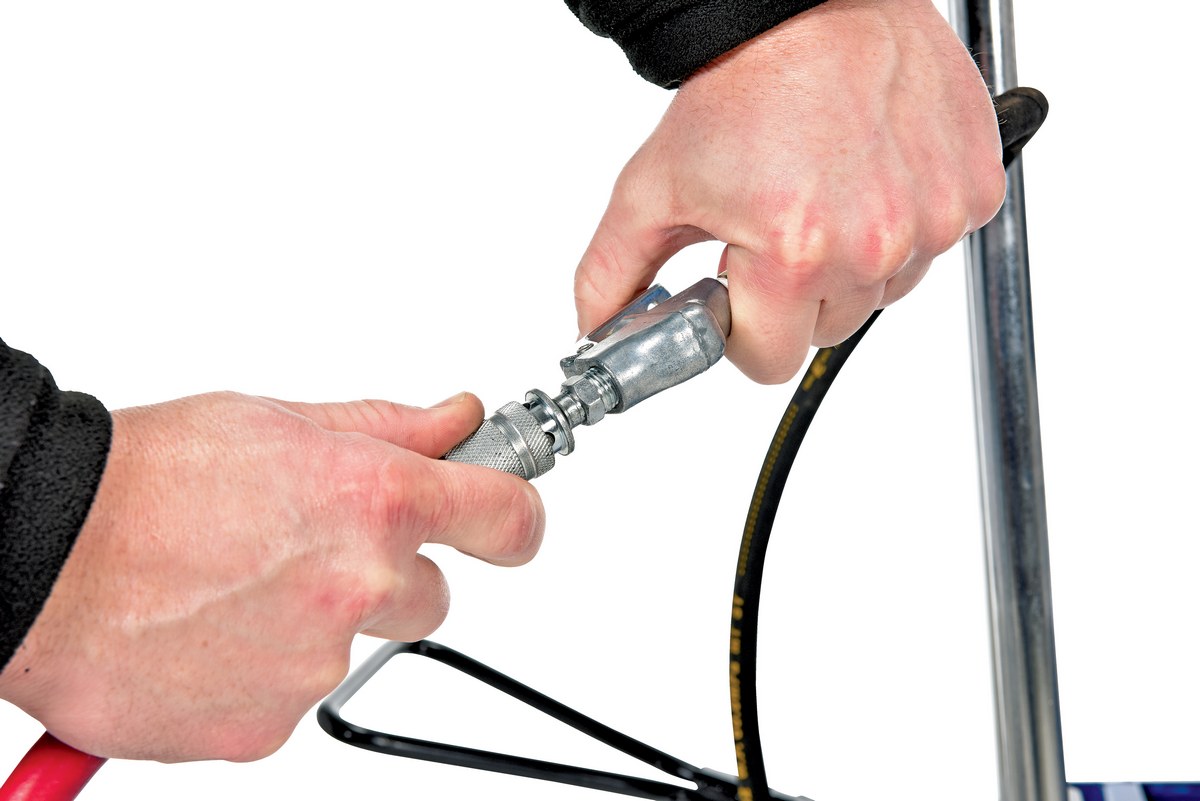

  • Reciprocating air/oil conveniently raises platform with ease

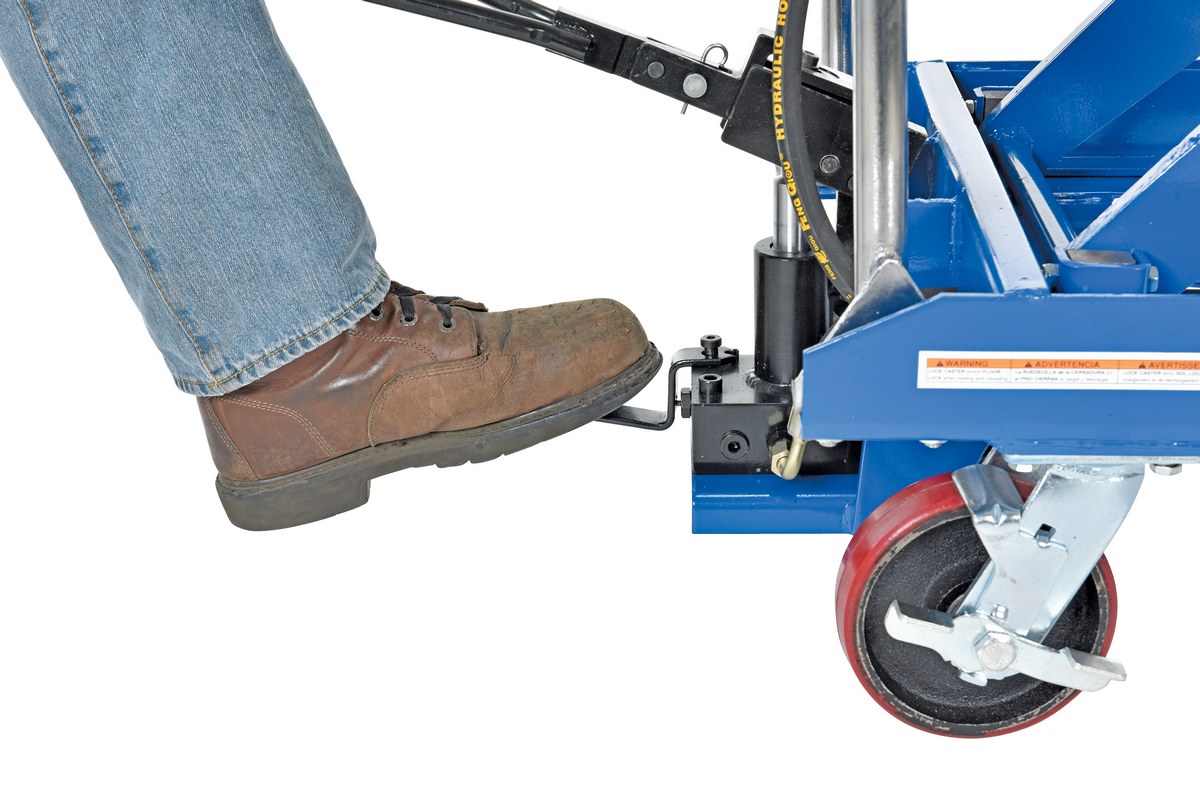

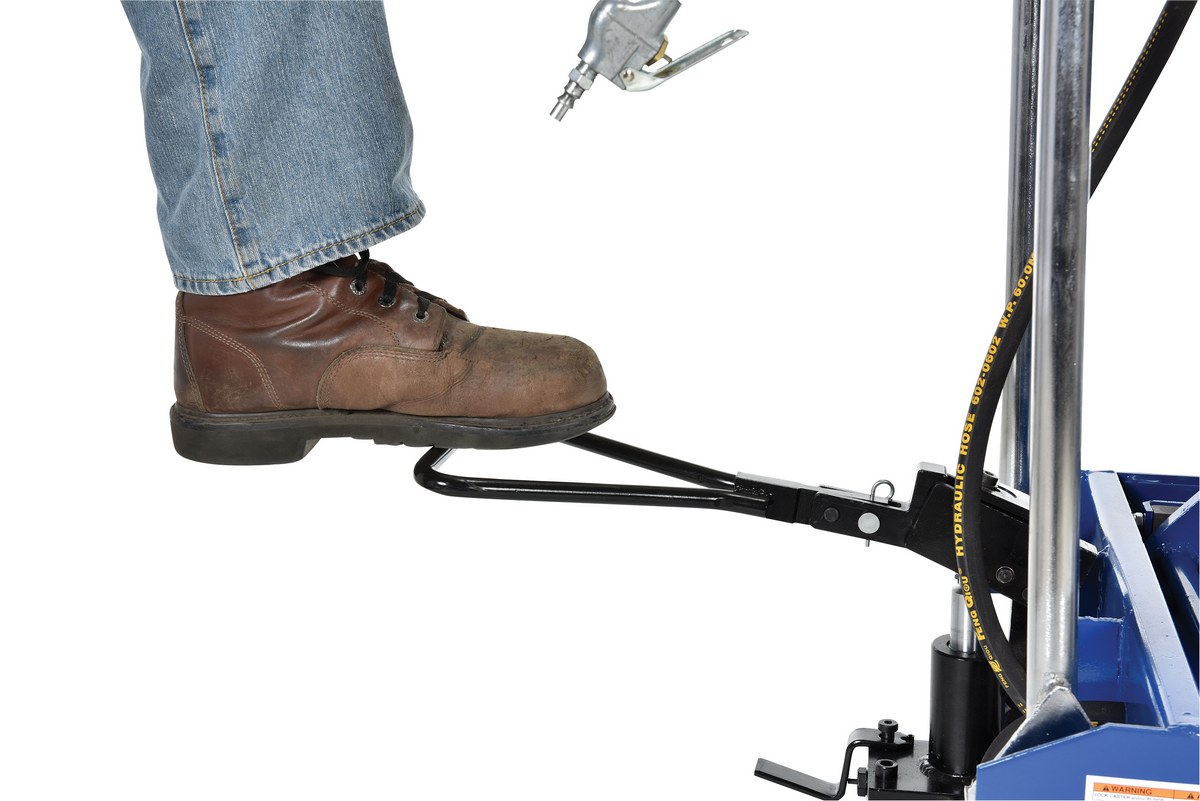

  • Two speed foot pump raises platform when air is not available
  • Poly-on-poly wheels roll smoothly when loaded down
  • Steel construction provides solid long lasting use
Total Ship Wt.(lbs.): 601 (only 1 package) Size: 24"W x 63.5"L x 39.25"H Color: Blue

Uniform Capacity (lb.): 1,500 Platform Width (in.): 24 Platform Length (in.): 47-1/2
Lowered Height (in.): 19-1/2 Raised Height (in.): 67 Caster Diameter (in.): 6
Caster Width (in.): 1-1/2 Air inlet Size (in.): 3/8 PSI recommended: 80-100
Operation Method: Pneumatic Tabletop Thickness (in.): 1/8 Handle Height (in.): 39-1/4

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: AIR-1500-D
AIR-1500-D

Carbon Steel Air/Hydraulic Scissor Lift Cart 47-1/2 In. x 24 In. Platform With Poly-On-Poly Casters 1,500 Lb. Capacity Blue/Silver

The air Hydraulic cart features a two speed foot pump and hand held reciprocating air/oil power to raise the platform. It utilizes the two speed foot pump for minor height adjustments and the factory air/oil power for effortless lifting.

  • Reciprocating air/oil conveniently raises platform with ease
  • Two speed foot pump raises platform when air is not available
  • Poly-on-poly wheels roll smoothly when loaded down
  • Steel construction provides solid long lasting use
Dimensions: 24"W x 63.5"L x 39.25"H Sell UOM: EA-Each Color: Blue
Material: Carbon steel UPC: 691215058445 GTIN: 00691215058445
Warranty: -- Shipping Weight: 601 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 1,500 Platform Width (in.): 24 Platform Length (in.): 47-1/2
Lowered Height (in.): 19-1/2 Raised Height (in.): 67 Caster Diameter (in.): 6
Caster Width (in.): 1-1/2 Air inlet Size (in.): 3/8 PSI recommended: 80-100
Operation Method: Pneumatic Tabletop Thickness (in.): 1/8 Handle Height (in.): 39-1/4
