AIR-800-D-PSS

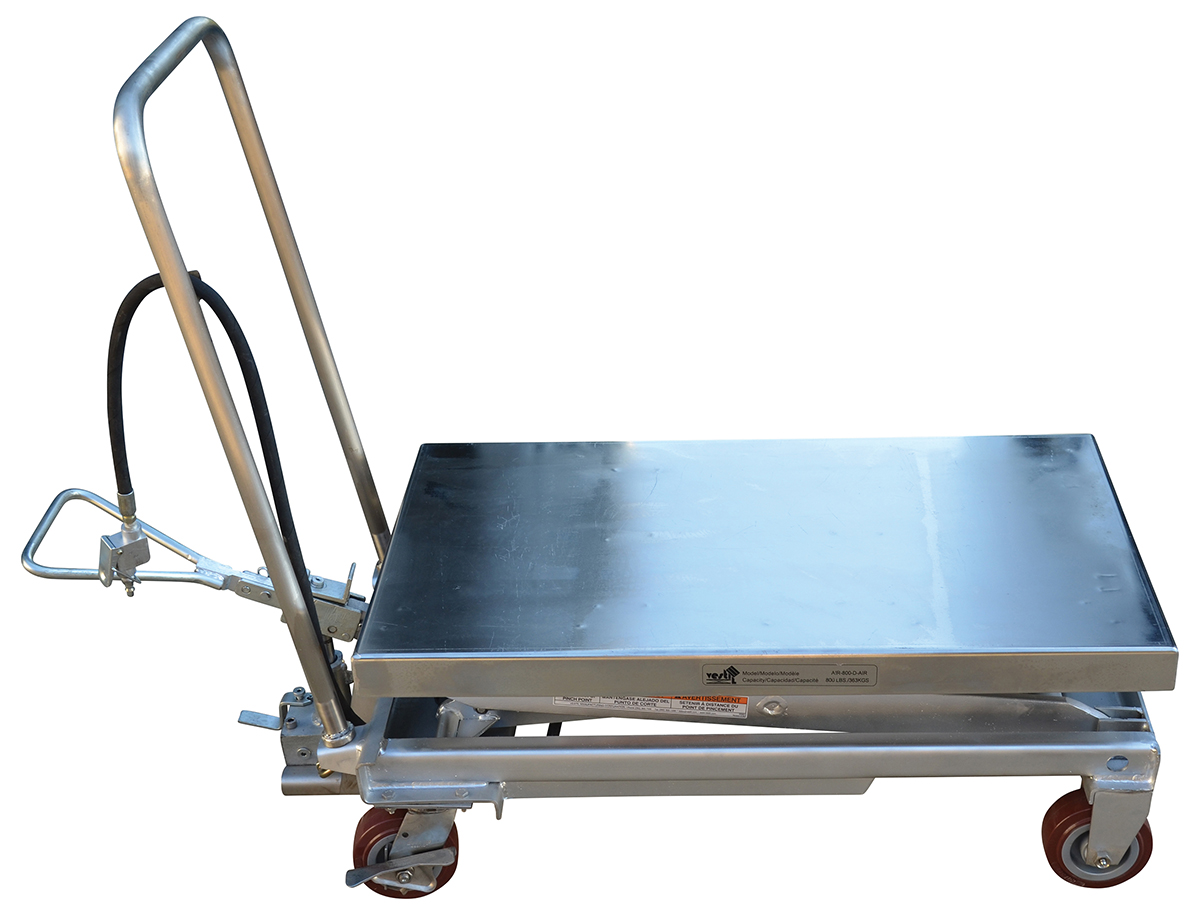

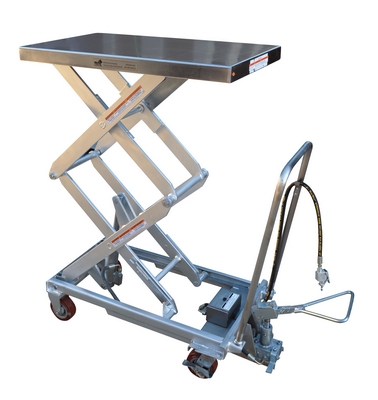

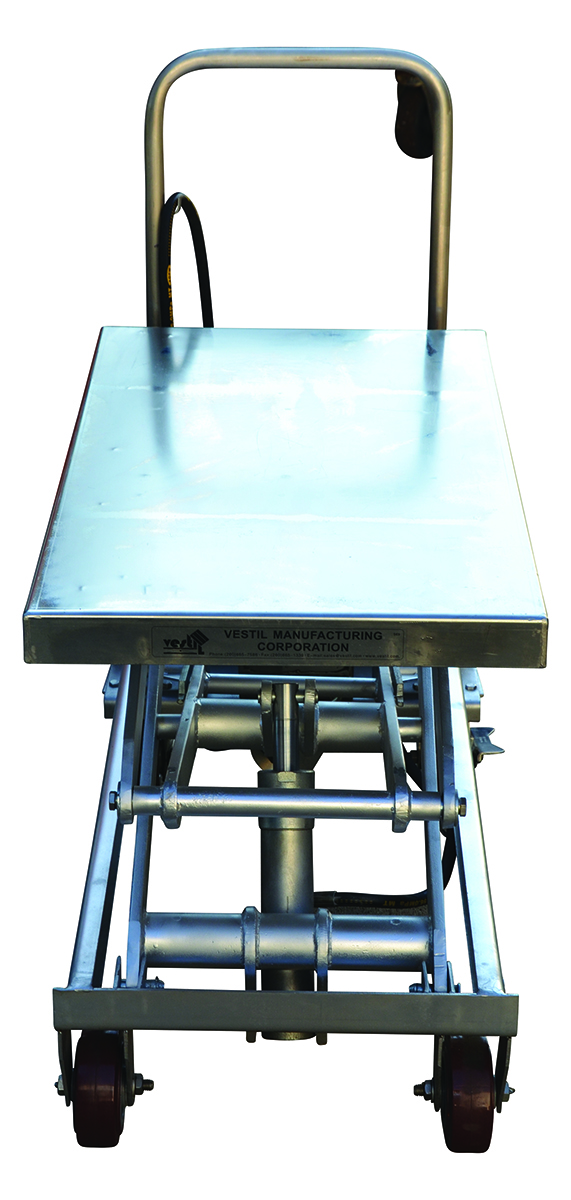

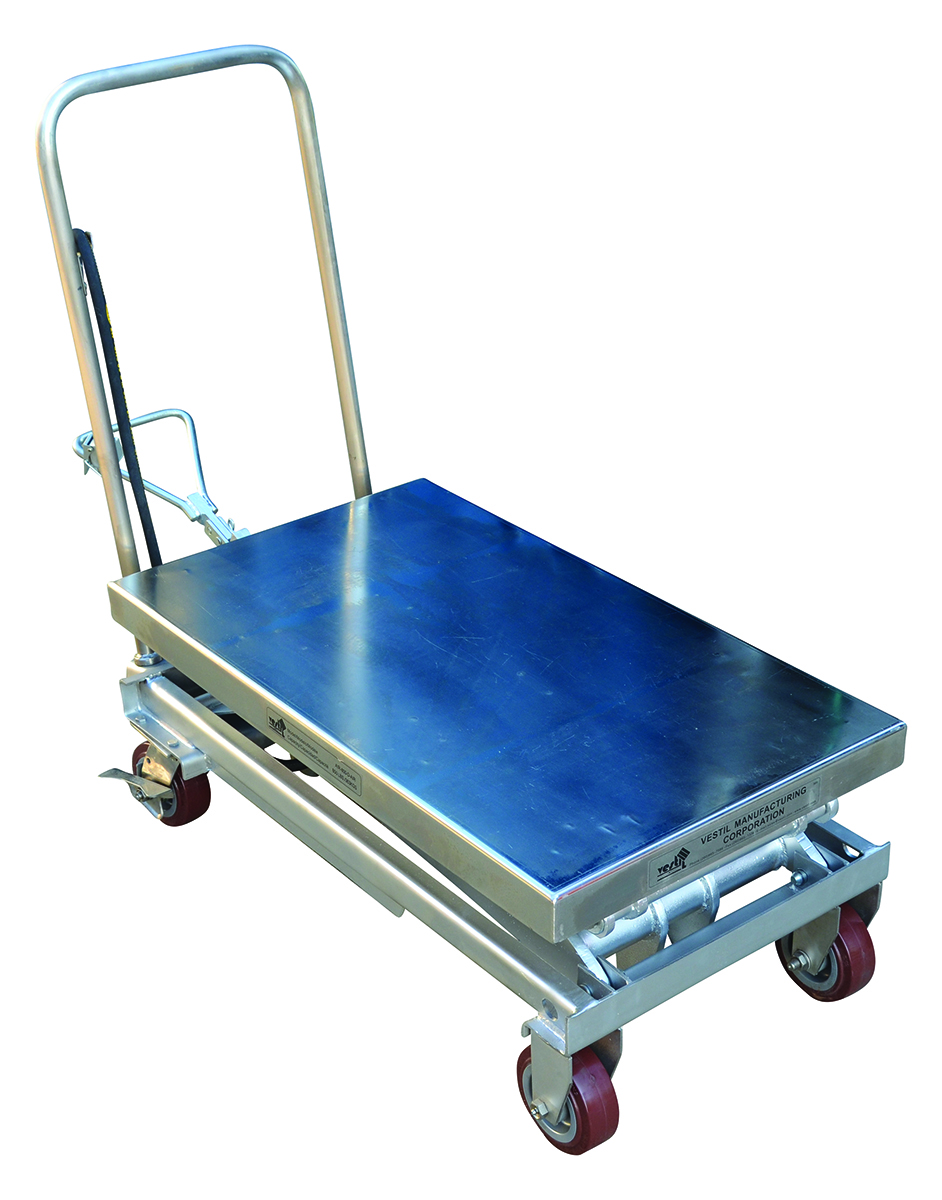

Partially Stainless Steel Air/Hydraulic Scissor Lift Cart 35-1/2 In. x 20 In. Platform With Poly-On-Poly Casters 800 Lb. Capacity Silver

The air Hydraulic cart features a two speed foot pump and hand held reciprocating air/oil power to raise the platform. It utilizes the two speed foot pump for minor height adjustments and the factory air/oil power for effortless lifting. The platform, frame, handle, caster rigs, and hardware are all stainless steel. Pump assembly, hydraulic cylinder, and scissor legs are zinc plated.

  • Reciprocating air/oil conveniently raises platform with ease
  • Two speed foot pump raises platform when air is not available
  • Poly-on-poly wheels roll smoothly when loaded down
  • Steel construction provides solid long lasting use
Total Ship Wt.(lbs.): 317 (only 1 package) Size: 20.5"W x 45"L x 37.5"H Color: Silver Non-Returnable

Uniform Capacity (lb.): 800 Platform Width (in.): 20 Platform Length (in.): 35-1/2
Lowered Height (in.): 13-3/4 Raised Height (in.): 51 Caster Diameter (in.): 5
Caster Width (in.): 1-1/2 Air inlet Size (in.): 3/8 PSI recommended: 80-100
Operation Method: Pneumatic

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: AIR-800-D-PSS
AIR-800-D-PSS

Partially Stainless Steel Air/Hydraulic Scissor Lift Cart 35-1/2 In. x 20 In. Platform With Poly-On-Poly Casters 800 Lb. Capacity Silver

The air Hydraulic cart features a two speed foot pump and hand held reciprocating air/oil power to raise the platform. It utilizes the two speed foot pump for minor height adjustments and the factory air/oil power for effortless lifting. The platform, frame, handle, caster rigs, and hardware are all stainless steel. Pump assembly, hydraulic cylinder, and scissor legs are zinc plated.

  • Reciprocating air/oil conveniently raises platform with ease
  • Two speed foot pump raises platform when air is not available
  • Poly-on-poly wheels roll smoothly when loaded down
  • Steel construction provides solid long lasting use
Dimensions: 20.5"W x 45"L x 37.5"H Sell UOM: EA-Each Color: Silver
Material: Stainless Steel UPC: 691215075626 GTIN: 00691215075626
Warranty: -- Shipping Weight: 317 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 800 Platform Width (in.): 20 Platform Length (in.): 35-1/2
Lowered Height (in.): 13-3/4 Raised Height (in.): 51 Caster Diameter (in.): 5
Caster Width (in.): 1-1/2 Air inlet Size (in.): 3/8 PSI recommended: 80-100
Operation Method: Pneumatic
