Model Details

AIR-THL-SS

AIR-THL-SS

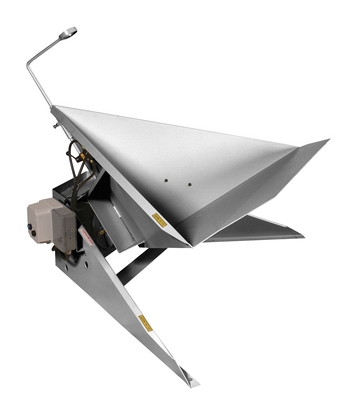

Stainless Steel Hand Lever Operated Air Corner Tilter 50-7/8 In. x 78-1/2 In. x 35-1/4 In. 1,500 Lb. Capacity Silver

The air corner tilter is a floor level multi-ply airbag powered tilter that provides ergonomic loading and unloading of bulk containers, gaylords, or crates. It is accessible by either pallet or fork truck and is activated by a hand operated control lever. The air bag inflates tilting and the material shifts to the corner of the container where it can be easily removed by manual or mechanical means. The regulator is factory present to begin rotating the container when the weight reaches approximately 900 pounds. Includes adjustable vacuum pick-up wand holder (3-1/2" inside Diameter) and provides 12" of adjustment to accommodate various container heights.

  • Provides ergonomic loading and unloading of bulk containers
  • Accessible by pallet or fork truck and is activated by a hand lever
  • Adjustable air regulator to a predetermined pressure
  • The pressure adjusts to the weight of your application
Total Ship Wt.(lbs.): 550 (only 1 package) Size: 78.5"W x 50.875"L x 35.25"H Color: Silver Non-Returnable

Uniform Capacity (lb.): 1,500 Maximum Tilt (degree): 45 Operation: Hand Lever
Platform Length (in.): 44 Platform Width (in.): 44 PSI Recommended: 40 - 100
Air Inlet (in.): 1/4 NPT

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: AIR-THL-SS


AIR-THL-SS

Stainless Steel Hand Lever Operated Air Corner Tilter 50-7/8 In. x 78-1/2 In. x 35-1/4 In. 1,500 Lb. Capacity Silver

The air corner tilter is a floor level multi-ply airbag powered tilter that provides ergonomic loading and unloading of bulk containers, gaylords, or crates. It is accessible by either pallet or fork truck and is activated by a hand operated control lever. The air bag inflates tilting and the material shifts to the corner of the container where it can be easily removed by manual or mechanical means. The regulator is factory present to begin rotating the container when the weight reaches approximately 900 pounds. Includes adjustable vacuum pick-up wand holder (3-1/2" inside Diameter) and provides 12" of adjustment to accommodate various container heights.

  • Provides ergonomic loading and unloading of bulk containers
  • Accessible by pallet or fork truck and is activated by a hand lever
  • Adjustable air regulator to a predetermined pressure
  • The pressure adjusts to the weight of your application
Dimensions: 78.5"W x 50.875"L x 35.25"H Sell UOM: EA-Each Color: Silver
Material: Stainless Steel UPC: 691215121194 GTIN: 00691215121194
Warranty: -- Shipping Weight: 550 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 1,500 Maximum Tilt (degree): 45 Operation: Hand Lever
Platform Length (in.): 44 Platform Width (in.): 44 PSI Recommended: 40 - 100
Air Inlet (in.): 1/4 NPT
