Model Details

ALL-T-1-GPT-ST-L

ALL-T-1-GPT-ST-L

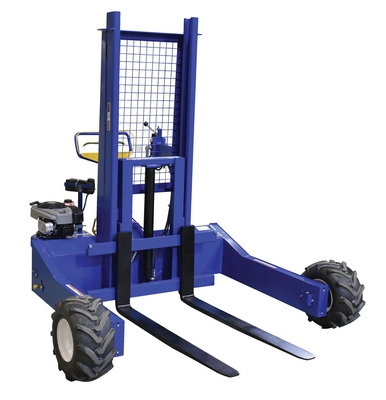

Steel 190CC Gas Powered Drive and Lift All-Terrain Pallet Truck With 48 In. Long Adjustable Width Forks 1,000 Lb. Capacity Blue

All terrain pallet truck with gas-powered traction drive system. Great for moving heavy loads over rough terrain. Powered by a Briggs & Stratton 6HP gas-powered engine for both the power traction drive and fork lift/lower. Handle with forward reverse speed control and dead man safety switch. Approximate walking speed is 3 mph. Hydrostatic transmission with hand-operated forward and reverse selection. Powered fork raise and lower control lever. Usable width between outriggers is 52". Forks adjust 8" to 36". Pneumatic steer wheels are 13" diameter x 4" wide each. The drive wheels are 18" diameter x 8." wide each foam filled. Wheels include sealed bearings for outdoor use. Steering arc is 150°. Comply with ASME B56.1-2004. Optional 10.5 HP engine with electric start and heavy duty trans axle available.

  • Three position handle makes operation easy
  • Unique design easily rolls on pneumatic tires
  • Welded steel tubular frame construction provides maximum strength
  • Sealed bearing wheels provide dust protection and long life
Total Ship Wt.(lbs.): 1346 (only 1 package) Size: 79"W x 86.6875"L x 79.3125"H Color: Blue Non-Returnable

Uniform Capacity (lb.) at 24 (in.) Horizontal Load Center: 1,000 Fork Width (in.): 4 Fork Length (in.): 48
Lowered Height (in.): 3 Raised Height (in.): 48

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: ALL-T-1-GPT-ST-L


ALL-T-1-GPT-ST-L

Steel 190CC Gas Powered Drive and Lift All-Terrain Pallet Truck With 48 In. Long Adjustable Width Forks 1,000 Lb. Capacity Blue

All terrain pallet truck with gas-powered traction drive system. Great for moving heavy loads over rough terrain. Powered by a Briggs & Stratton 6HP gas-powered engine for both the power traction drive and fork lift/lower. Handle with forward reverse speed control and dead man safety switch. Approximate walking speed is 3 mph. Hydrostatic transmission with hand-operated forward and reverse selection. Powered fork raise and lower control lever. Usable width between outriggers is 52". Forks adjust 8" to 36". Pneumatic steer wheels are 13" diameter x 4" wide each. The drive wheels are 18" diameter x 8." wide each foam filled. Wheels include sealed bearings for outdoor use. Steering arc is 150°. Comply with ASME B56.1-2004. Optional 10.5 HP engine with electric start and heavy duty trans axle available.

  • Three position handle makes operation easy
  • Unique design easily rolls on pneumatic tires
  • Welded steel tubular frame construction provides maximum strength
  • Sealed bearing wheels provide dust protection and long life
Dimensions: 79"W x 86.6875"L x 79.3125"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215223607 GTIN: 00691215223607
Warranty: -- Shipping Weight: 1346 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (lb.) at 24 (in.) Horizontal Load Center: 1,000 Fork Width (in.): 4 Fork Length (in.): 48
Lowered Height (in.): 3 Raised Height (in.): 48
