Model Details

ALL-T-35-GPT-ST-L

Not Yet Available, Coming Soon, Contact Vestil for Specifics

Printer Friendly
ALL-T-35-GPT-ST-L

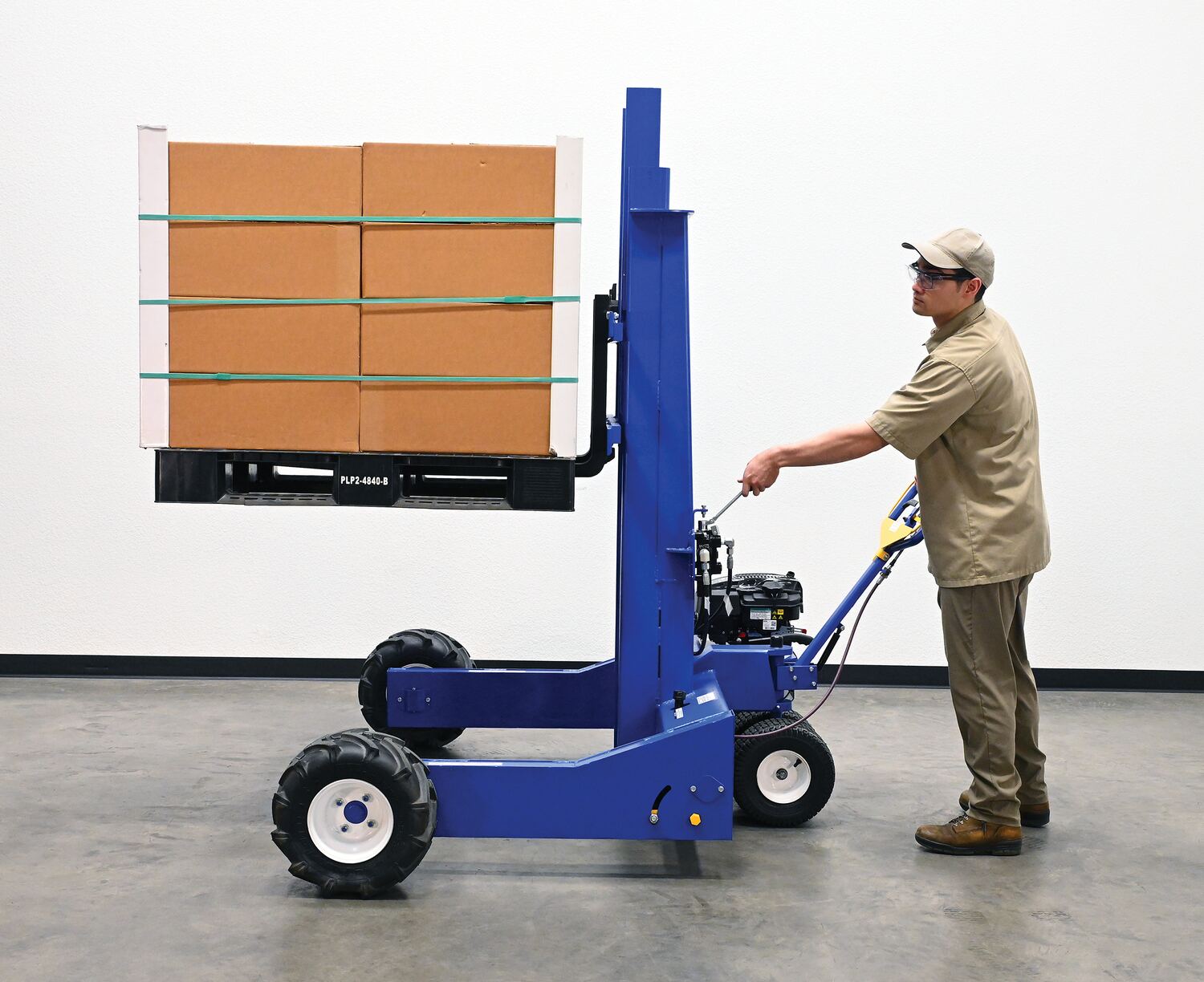

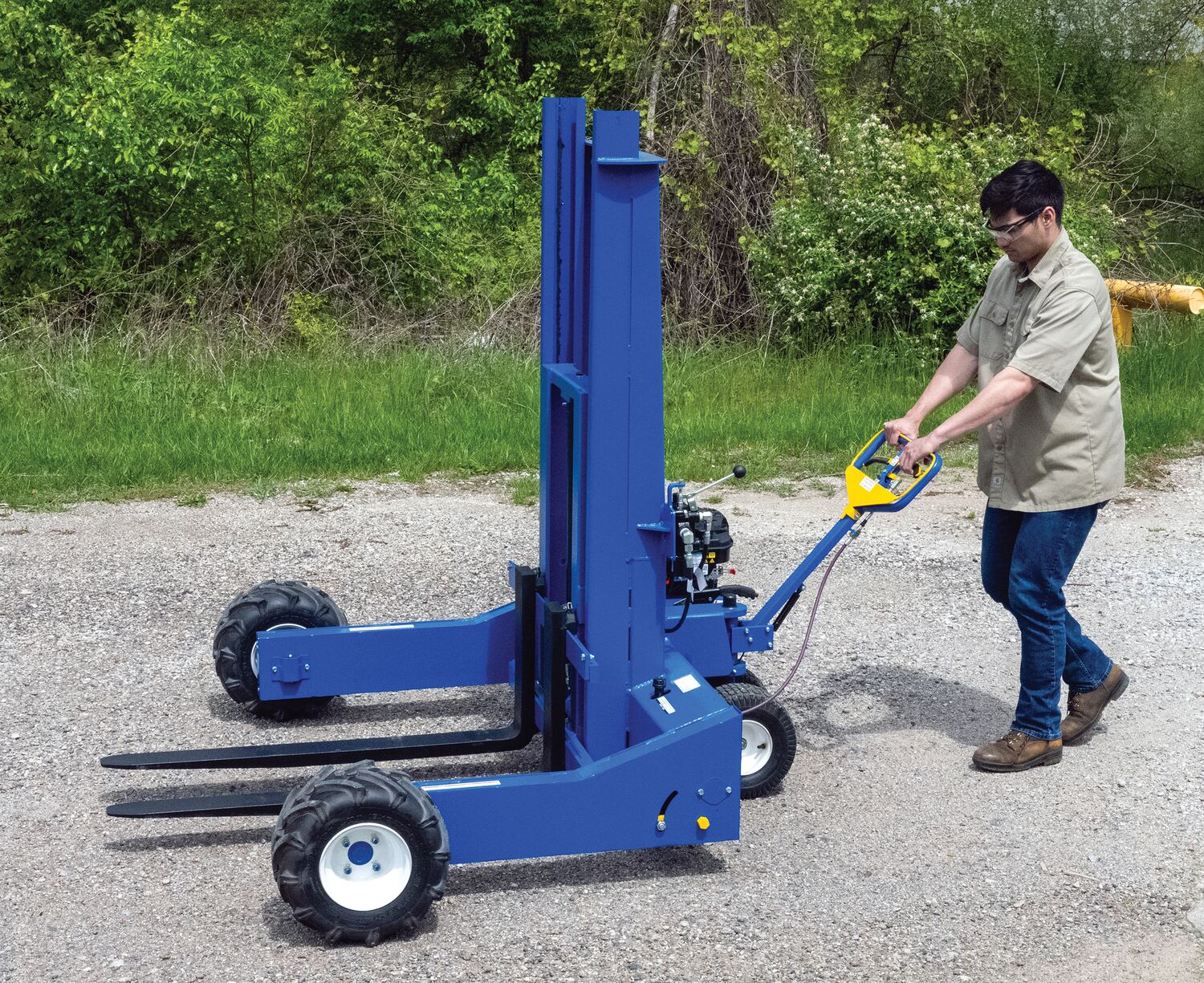

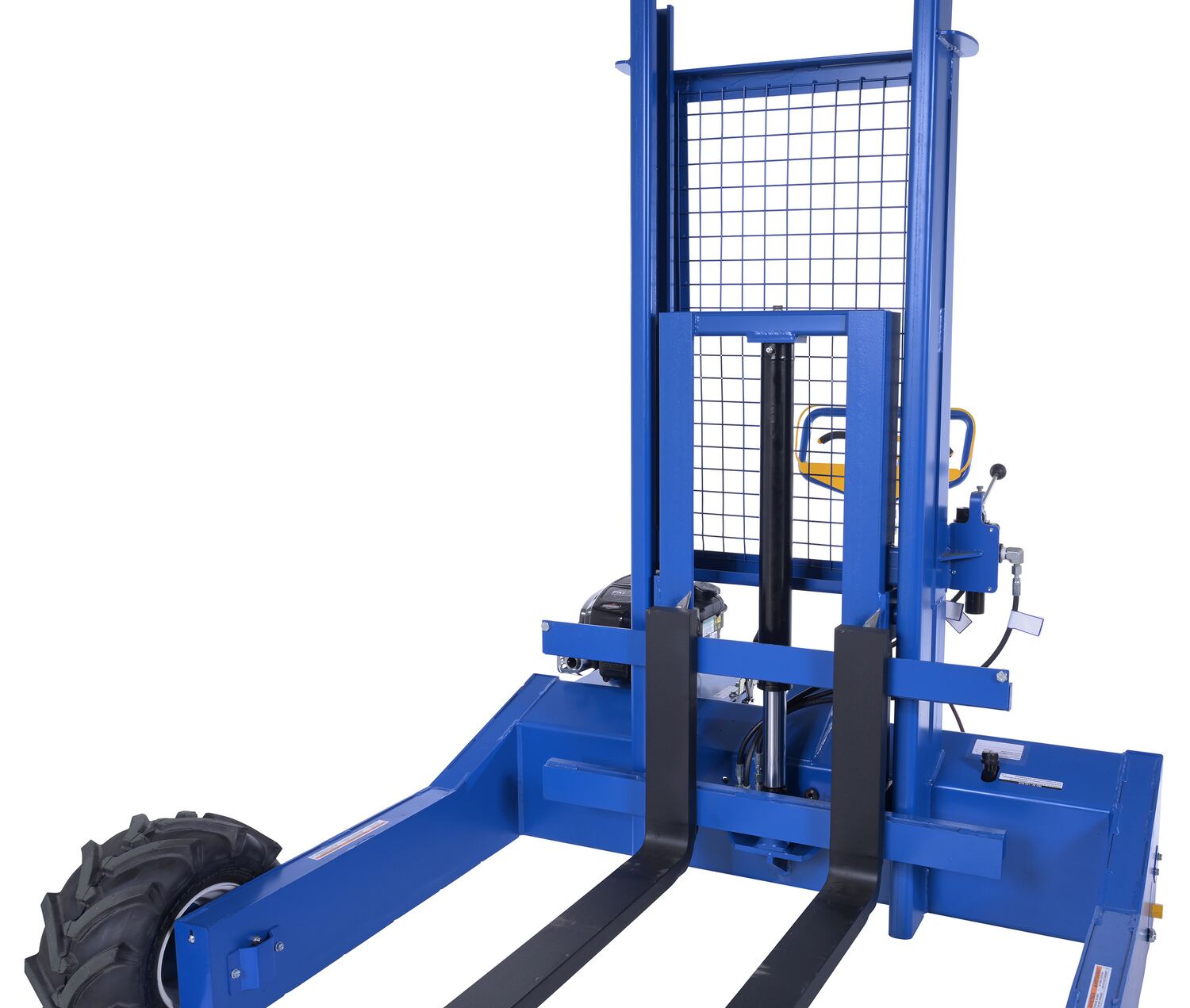

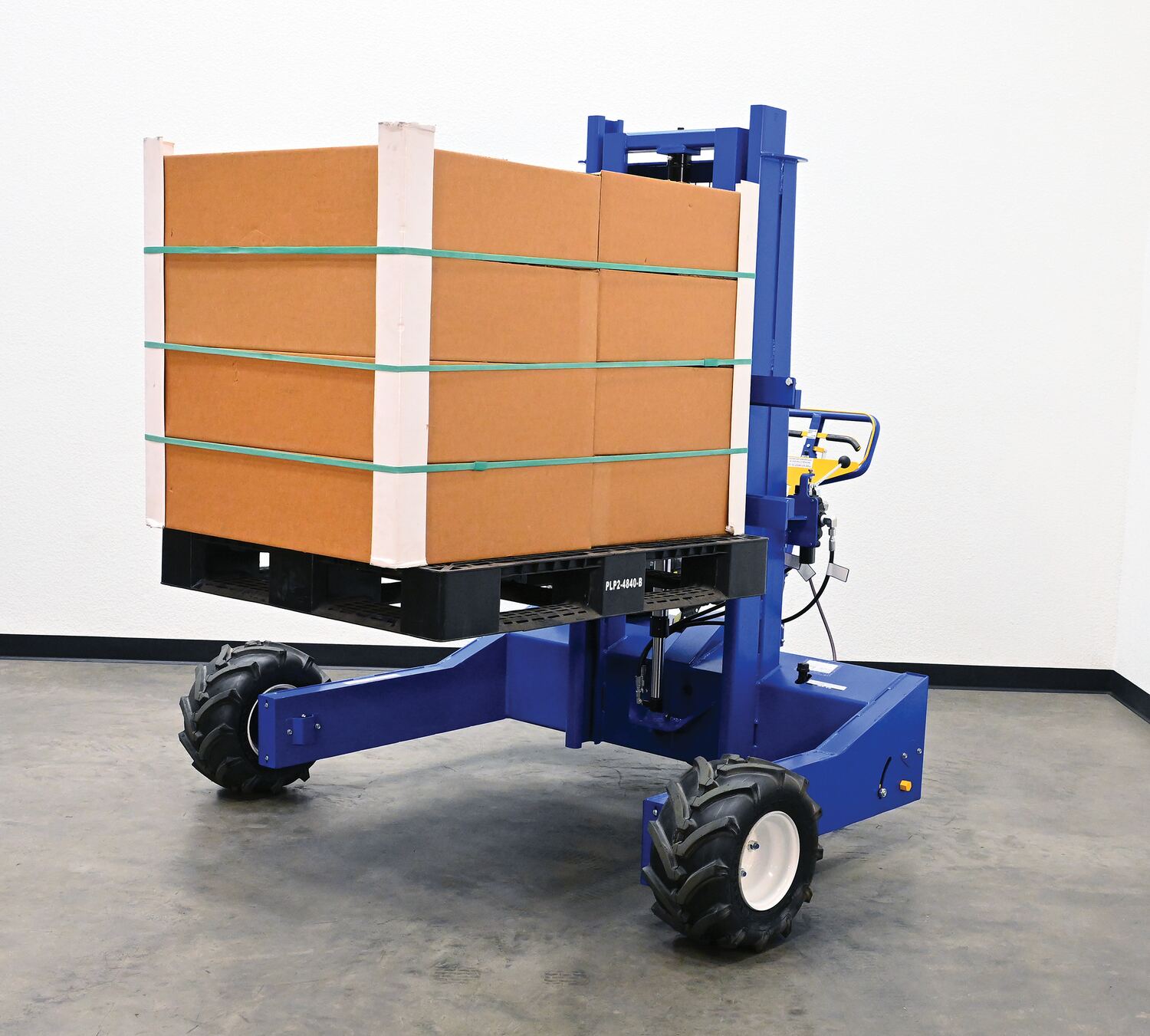

Steel 190CC Gas Powered Drive and Lift All-Terrain Pallet Truck 48 In. Long Adjustable Width Forks 3,500 Lb. Capacity Blue

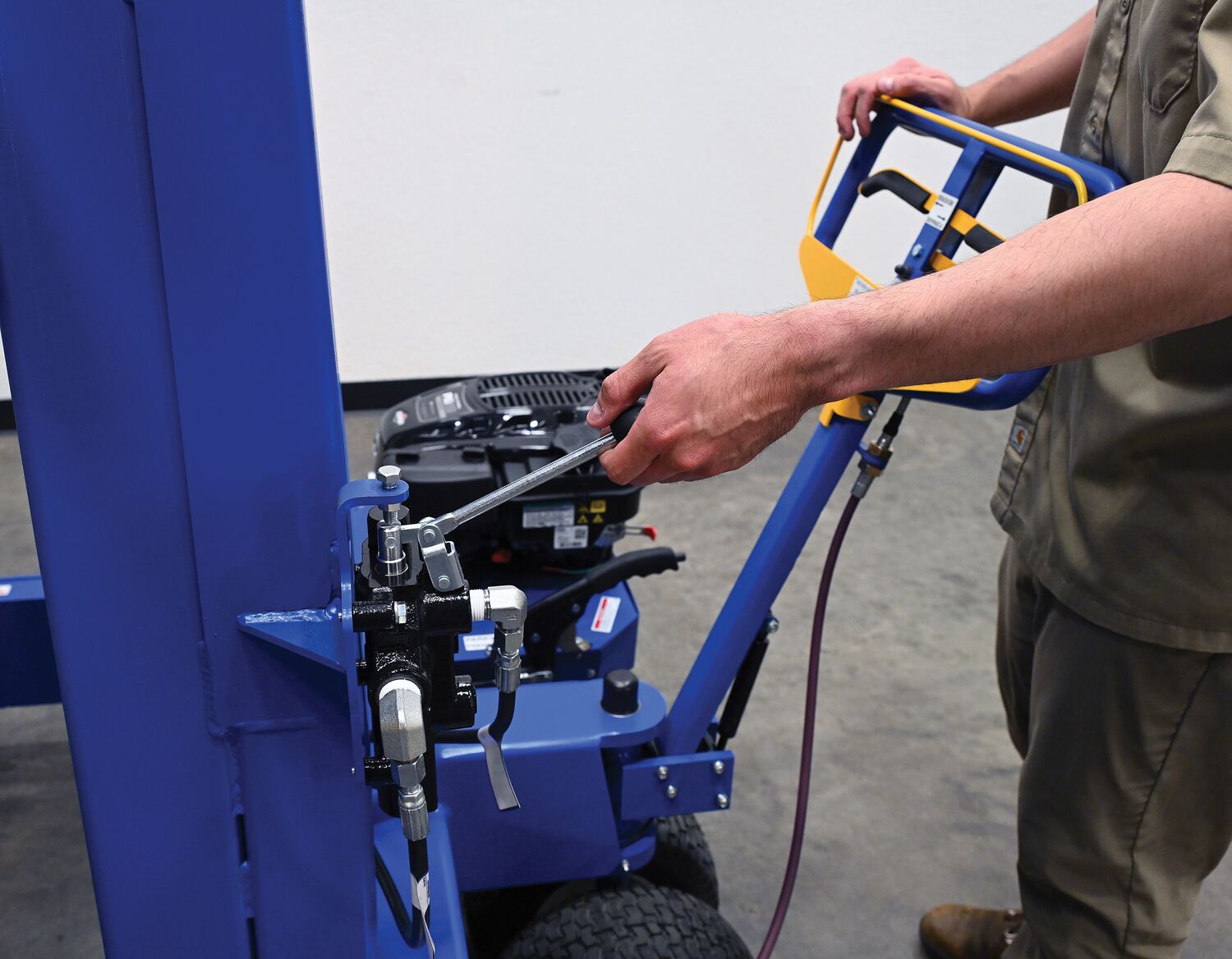

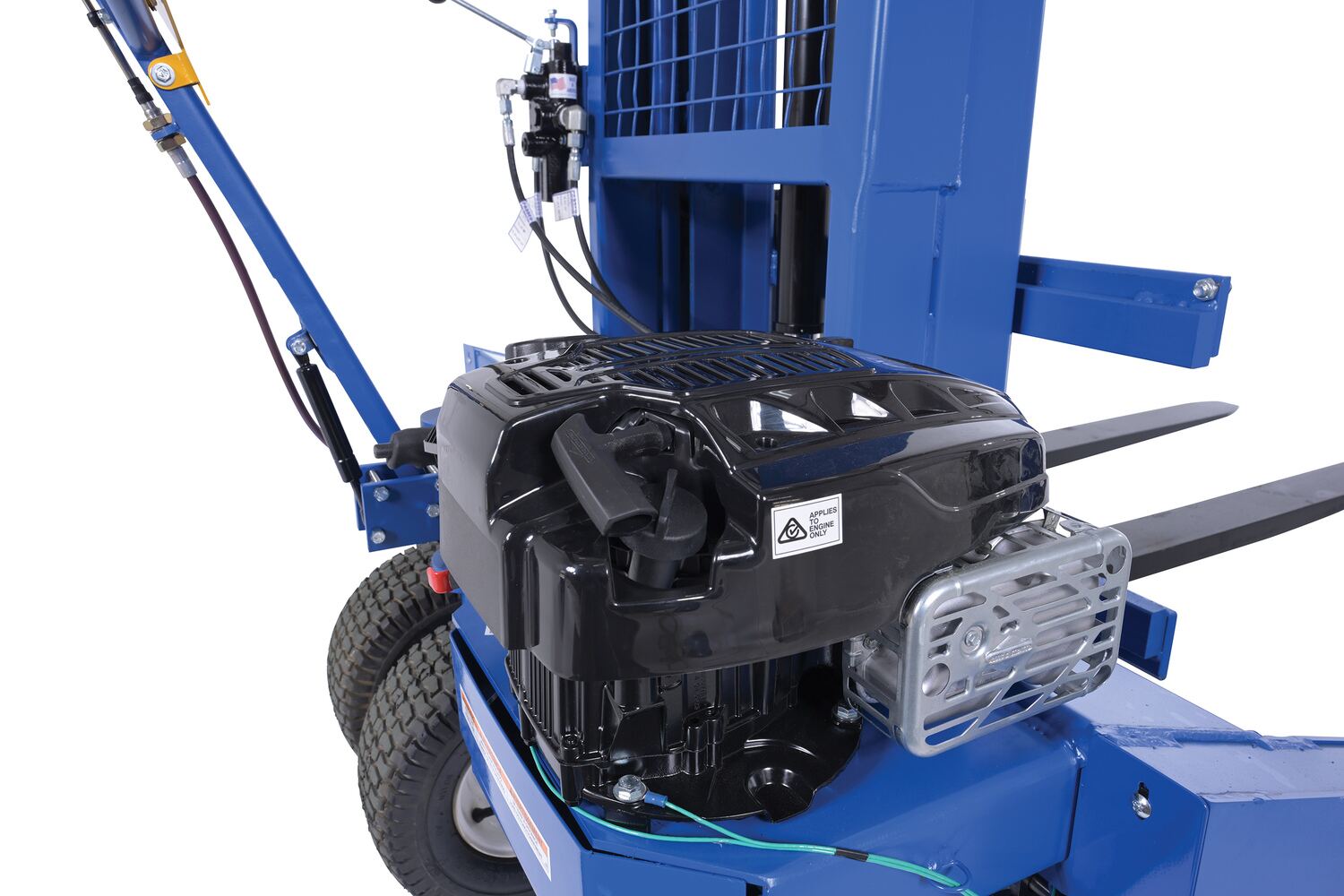

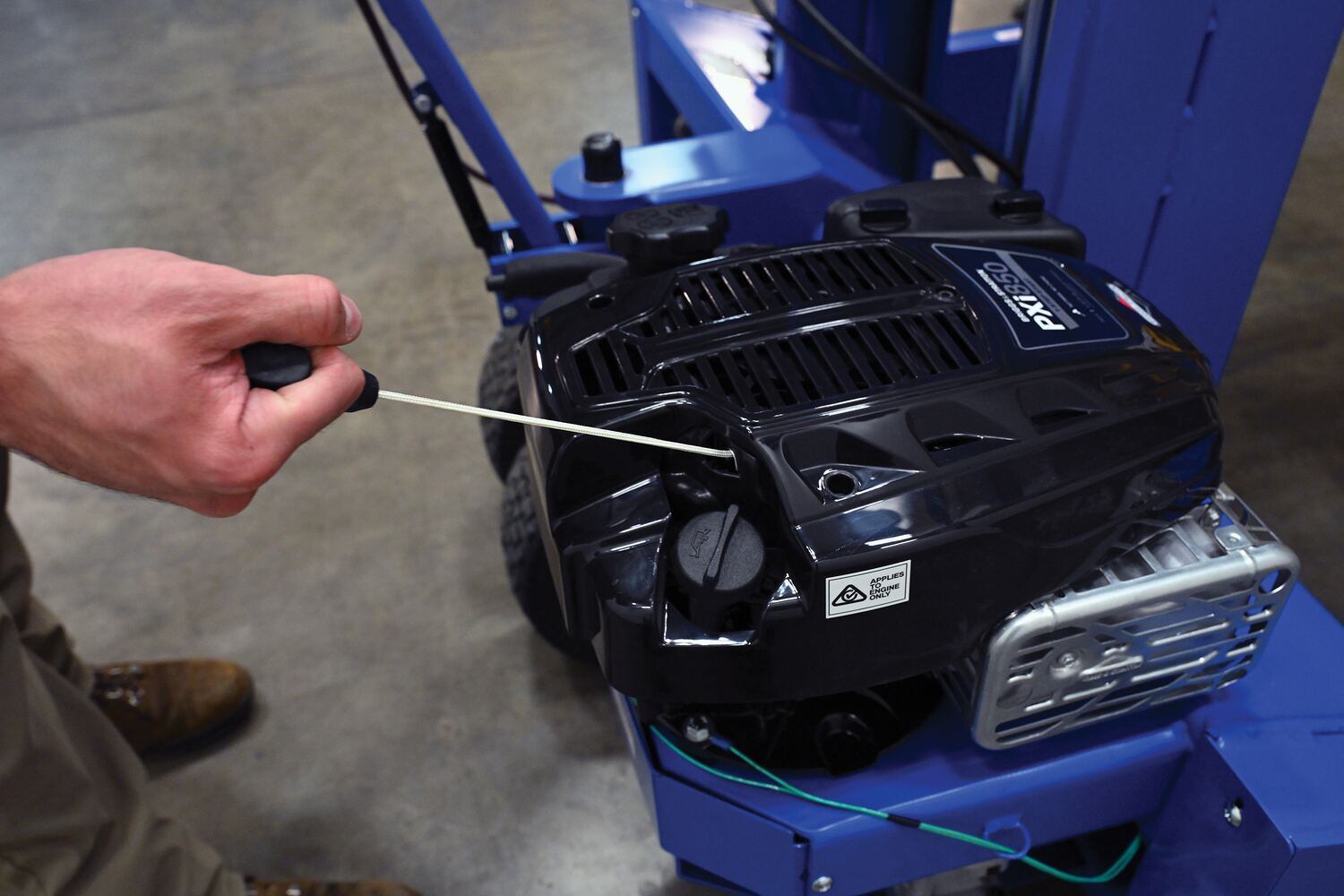

All terrain pallet truck with gas-powered traction drive system. Great for moving heavy loads over rough terrain. Powered by a Briggs & Stratton 6HP gas-powered engine for both the power traction drive and fork lift/lower. Handle with forward reverse speed control and dead man safety switch. Approximate walking speed is 3 mph. Hydrostatic transmission with hand-operated forward and reverse selection. Powered fork raise and lower control lever. Usable width between outriggers is 52". Pneumatic steer wheels are 13" diameter x 4" wide each. Wheels include sealed bearings for outdoor use. Comply with ASME B56.1-2004.

  • Unique three position handle
  • 150 degree steering arc
  • Foam filled 18" diameter x 8" drive wheels
  • 8" to 36" adjustable fork range
Total Ship Wt.(lbs.): 1346 (only 1 package) Size: 79"W x 86.6875"L x 79.3125"H Color: Blue Non-Returnable

Uniform Capacity (Lbs.): 3500 Engine Size (cc.): 1900 Fork Width (in.): 4
Fork length (in.): 48 Lowered Height (in.): 3 Raised Height (in.): 48
Fork Center Adjustable (in.): 8 min - 36 max Handle Type: Drive Handle Height (in.): 43-3/8
Handle Diameter (in.): 1/2 Drive Caster Quantity: 2 Drive Caster Diameter (in.): 18
Drive Caster Width (in.): 8 Drive Wheel Material: Foam Filled Rubber Steer Wheel Quantity: 2
Steer Wheel Diameter (in.): 13-1/4 Steer Wheel Width (in.): 6-1/4 Steer Wheel Material: Solid Rubber
Brakes: Emergency Brakes Wheel Color: Black Controls: Hand

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: ALL-T-35-GPT-ST-L
ALL-T-35-GPT-ST-L

Steel 190CC Gas Powered Drive and Lift All-Terrain Pallet Truck 48 In. Long Adjustable Width Forks 3,500 Lb. Capacity Blue

All terrain pallet truck with gas-powered traction drive system. Great for moving heavy loads over rough terrain. Powered by a Briggs & Stratton 6HP gas-powered engine for both the power traction drive and fork lift/lower. Handle with forward reverse speed control and dead man safety switch. Approximate walking speed is 3 mph. Hydrostatic transmission with hand-operated forward and reverse selection. Powered fork raise and lower control lever. Usable width between outriggers is 52". Pneumatic steer wheels are 13" diameter x 4" wide each. Wheels include sealed bearings for outdoor use. Comply with ASME B56.1-2004.

  • Unique three position handle
  • 150 degree steering arc
  • Foam filled 18" diameter x 8" drive wheels
  • 8" to 36" adjustable fork range
Dimensions: 79"W x 86.6875"L x 79.3125"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215376808 GTIN: 00691215376808
Warranty: -- Shipping Weight: 1346 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: US
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (Lbs.): 3500 Engine Size (cc.): 1900 Fork Width (in.): 4
Fork length (in.): 48 Lowered Height (in.): 3 Raised Height (in.): 48
Fork Center Adjustable (in.): 8 min - 36 max Handle Type: Drive Handle Height (in.): 43-3/8
Handle Diameter (in.): 1/2 Drive Caster Quantity: 2 Drive Caster Diameter (in.): 18
Drive Caster Width (in.): 8 Drive Wheel Material: Foam Filled Rubber Steer Wheel Quantity: 2
Steer Wheel Diameter (in.): 13-1/4 Steer Wheel Width (in.): 6-1/4 Steer Wheel Material: Solid Rubber
Brakes: Emergency Brakes Wheel Color: Black Controls: Hand
