Model Details

ALL-T-4-GPT-L

Printer Friendly
ALL-T-4-GPT-L

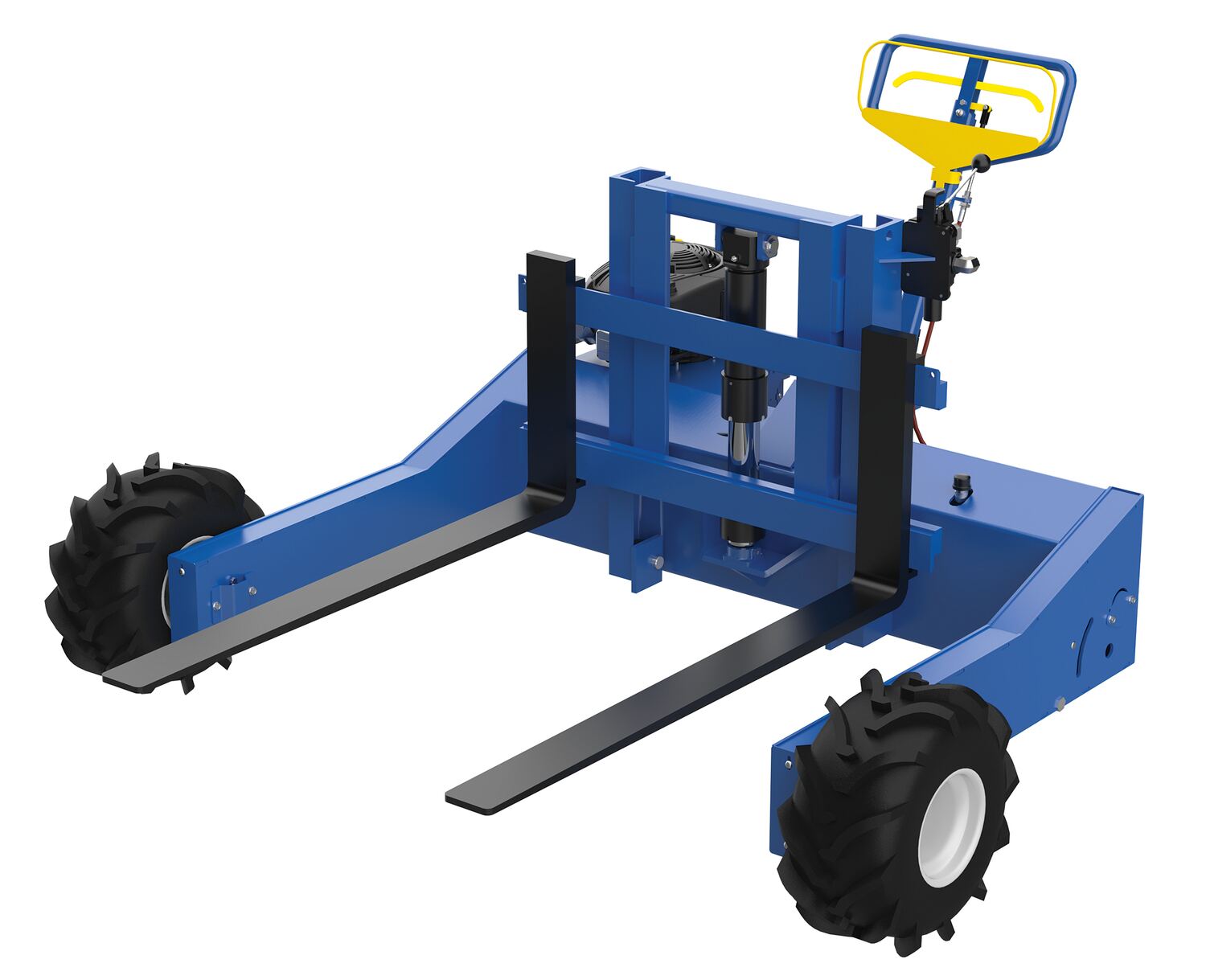

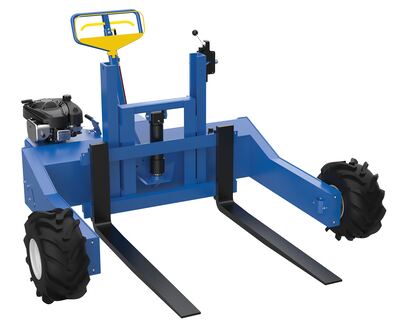

Steel 190CC Gas Powered Drive and Lift All-Terrain Pallet Truck 48 In. Long Adjustable Width Forks 4,000 Lb. Capacity Blue

The gas powered all terrain pallet truck is great for moving heavy loads over rough terrain. Powered by a Briggs & Stratton gas powered engine for both the power traction drive and fork lift/lower. The handle has forward reverse speed control and dead man safety switch. The hydrostatic transmission has a hand-operated forward and reverse selection. The fork raise and lower is powered by a control lever. The steer wheels are pneumatic and the wheels include sealed bearings for outdoor use.

  • Three position handle makes operation easy
  • Unique design easily rolls on pneumatic tires
  • Welded steel tubular frame construction provides maximum strength
  • Sealed bearing wheels provide dust protection and long life
Total Ship Wt.(lbs.): 1418 (only 1 package) Size: 79"W x 87.0625"L x 45.375"H Color: Blue Non-Returnable

Uniform Capacity (lb.) at 24 (in.) Load Center: 4,000 Fork Width (in.): 4 Fork Length (in.): 48
Load Center (in.): 24 Fork Adjust Min (in.): 8 Fork Adjust Max (in.): 36
Lowered Height (in.): 3 Raised Height (in.): 12 Gasoline Engine Size: 190cc
Straddle Width (in.): 52 Steering Arc Degree: 150 Steer Wheel Diameter (in.): 13
Steer Wheel Width (in.): 4 Steer Wheel Material: Foam Filled Pneumatic Drive Wheel Diameter (in.): 18
Drive Wheel Width (in.): 8-1/2 Drive Wheel Material: Foam Filled Pneumatic Handle Length (in.): 30
Handle Material: Steel Handle Type: Pump Handle Clearance Height Frame to Floor (in.): 5

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: ALL-T-4-GPT-L
ALL-T-4-GPT-L

Steel 190CC Gas Powered Drive and Lift All-Terrain Pallet Truck 48 In. Long Adjustable Width Forks 4,000 Lb. Capacity Blue

The gas powered all terrain pallet truck is great for moving heavy loads over rough terrain. Powered by a Briggs & Stratton gas powered engine for both the power traction drive and fork lift/lower. The handle has forward reverse speed control and dead man safety switch. The hydrostatic transmission has a hand-operated forward and reverse selection. The fork raise and lower is powered by a control lever. The steer wheels are pneumatic and the wheels include sealed bearings for outdoor use.

  • Three position handle makes operation easy
  • Unique design easily rolls on pneumatic tires
  • Welded steel tubular frame construction provides maximum strength
  • Sealed bearing wheels provide dust protection and long life
Dimensions: 79"W x 87.0625"L x 45.375"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215083140 GTIN: 00691215083140
Warranty: -- Shipping Weight: 1418 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (lb.) at 24 (in.) Load Center: 4,000 Fork Width (in.): 4 Fork Length (in.): 48
Load Center (in.): 24 Fork Adjust Min (in.): 8 Fork Adjust Max (in.): 36
Lowered Height (in.): 3 Raised Height (in.): 12 Gasoline Engine Size: 190cc
Straddle Width (in.): 52 Steering Arc Degree: 150 Steer Wheel Diameter (in.): 13
Steer Wheel Width (in.): 4 Steer Wheel Material: Foam Filled Pneumatic Drive Wheel Diameter (in.): 18
Drive Wheel Width (in.): 8-1/2 Drive Wheel Material: Foam Filled Pneumatic Handle Length (in.): 30
Handle Material: Steel Handle Type: Pump Handle Clearance Height Frame to Floor (in.): 5
