Model Details

ALLPH-500-FWFL

- Temporarily Unavailable - Please Contact Sales

Printer Friendly
ALLPH-500-FWFL

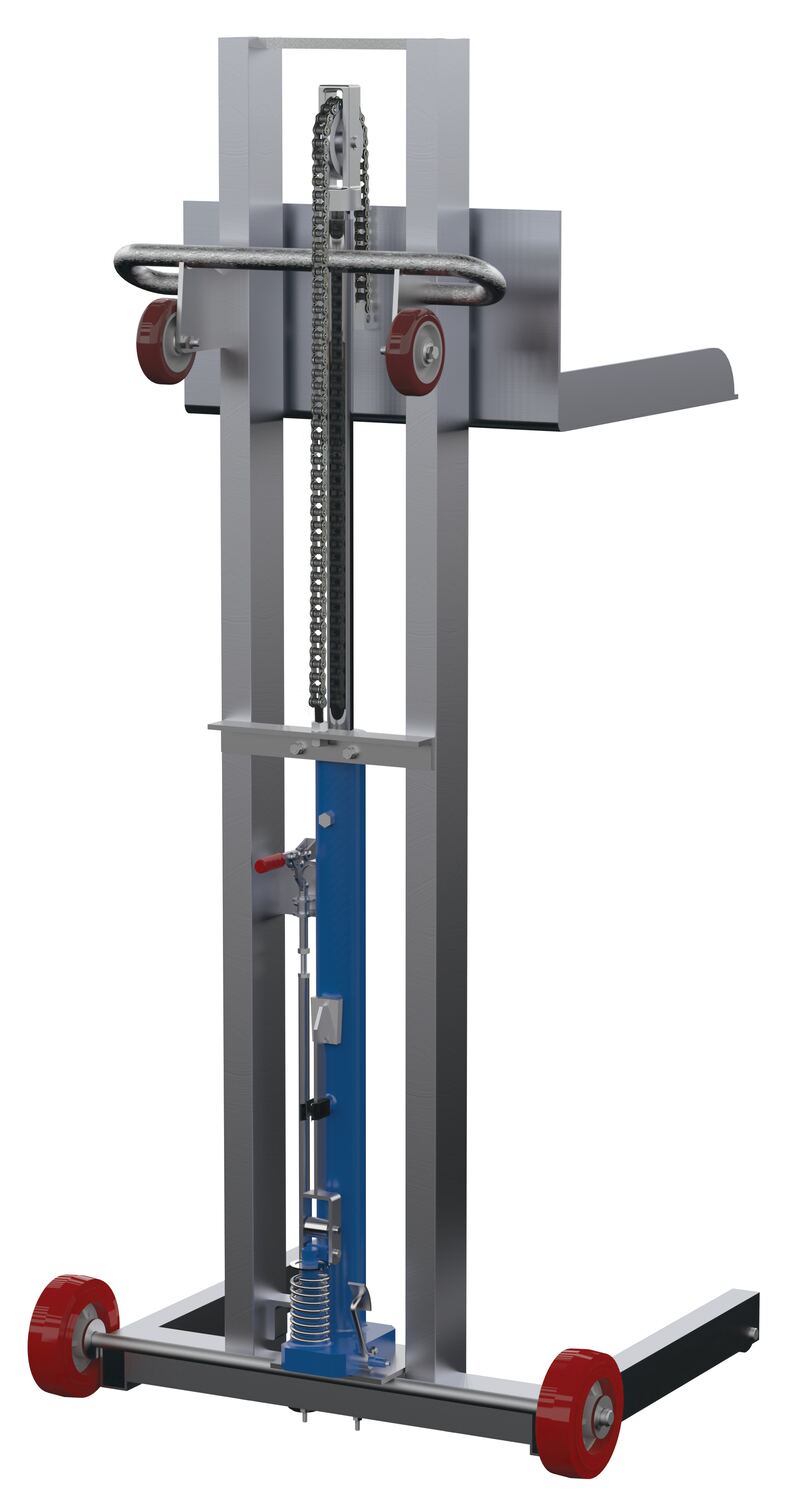

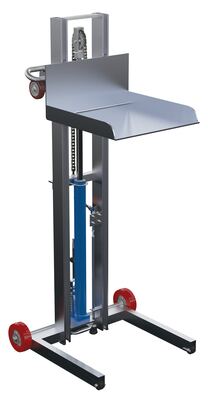

Aluminum Low Profile Lite Load Lift With Foot Pump Fixed Wheels and Manual Floor Lock 20 In. x 20 In. Platform 400 Lb. Capacity Silver

The Lite load lift is ideal for lifting and transporting loads from delivery trucks to docks, or use to inventory storage systems. The unit is easy to operate with a foot pump and aluminum construction. The unit rolls smoothly on poly-on-poly rear wheels and semi-steel front wheels. Located on the handle are two rollers to ease loading into delivery trucks. Unit also includes a floor lock for stability when not in use. The floor lock is engaged with a simple press of the foot.

  • Aluminum construction provides long lasting rugged use
  • Easy to operate lift system makes lifting products to ergonomic heights simple
  • Two front and two rear wheel design conveniently rolls when loaded
  • Two rollers on handle provide easy unit loading into delivery trucks
Total Ship Wt.(lbs.): 141 (only 1 package) Size: 30.75"W x 29.625"L x 66"H Color: Silver

Uniform Capacity (lb.): 400 Platform Width (in.): 19-1/2 Platform Length (in.): 20
Lowered Height (in.): 1/4 Raised Height (in.): 48-1/4 Per Winch Rotation or Foot Pump Lift (in.): 1
Horizontal Load Center (in.): 10 Side Lip Height (in.): 2 Profile: Low
Operation: Foot Pump Rear Wheel Quantity/Diameter/Width (in.): (2) 6 x 2 Rear Wheel Material: Poly on Poly
Rear Wheel Type: Rigid Front Caster Quantity/Diameter (in.): (2) 2 Front Caster Material: Semi Steel
Front Caster Type: Rigid Handle Caster Quantity/Diameter/Width (in.): (2) 4 x 1-1/4

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: ALLPH-500-FWFL
ALLPH-500-FWFL

Aluminum Low Profile Lite Load Lift With Foot Pump Fixed Wheels and Manual Floor Lock 20 In. x 20 In. Platform 400 Lb. Capacity Silver

The Lite load lift is ideal for lifting and transporting loads from delivery trucks to docks, or use to inventory storage systems. The unit is easy to operate with a foot pump and aluminum construction. The unit rolls smoothly on poly-on-poly rear wheels and semi-steel front wheels. Located on the handle are two rollers to ease loading into delivery trucks. Unit also includes a floor lock for stability when not in use. The floor lock is engaged with a simple press of the foot.

  • Aluminum construction provides long lasting rugged use
  • Easy to operate lift system makes lifting products to ergonomic heights simple
  • Two front and two rear wheel design conveniently rolls when loaded
  • Two rollers on handle provide easy unit loading into delivery trucks
Dimensions: 30.75"W x 29.625"L x 66"H Sell UOM: EA-Each Color: Silver
Material: Aluminum/Steel UPC: 691215336178 GTIN: 00691215336178
Warranty: -- Shipping Weight: 141 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 400 Platform Width (in.): 19-1/2 Platform Length (in.): 20
Lowered Height (in.): 1/4 Raised Height (in.): 48-1/4 Per Winch Rotation or Foot Pump Lift (in.): 1
Horizontal Load Center (in.): 10 Side Lip Height (in.): 2 Profile: Low
Operation: Foot Pump Rear Wheel Quantity/Diameter/Width (in.): (2) 6 x 2 Rear Wheel Material: Poly on Poly
Rear Wheel Type: Rigid Front Caster Quantity/Diameter (in.): (2) 2 Front Caster Material: Semi Steel
Front Caster Type: Rigid Handle Caster Quantity/Diameter/Width (in.): (2) 4 x 1-1/4
