Model Details

ALLW-2020-FWFL

- Temporarily Unavailable - Please Contact Sales

Printer Friendly
ALLW-2020-FWFL

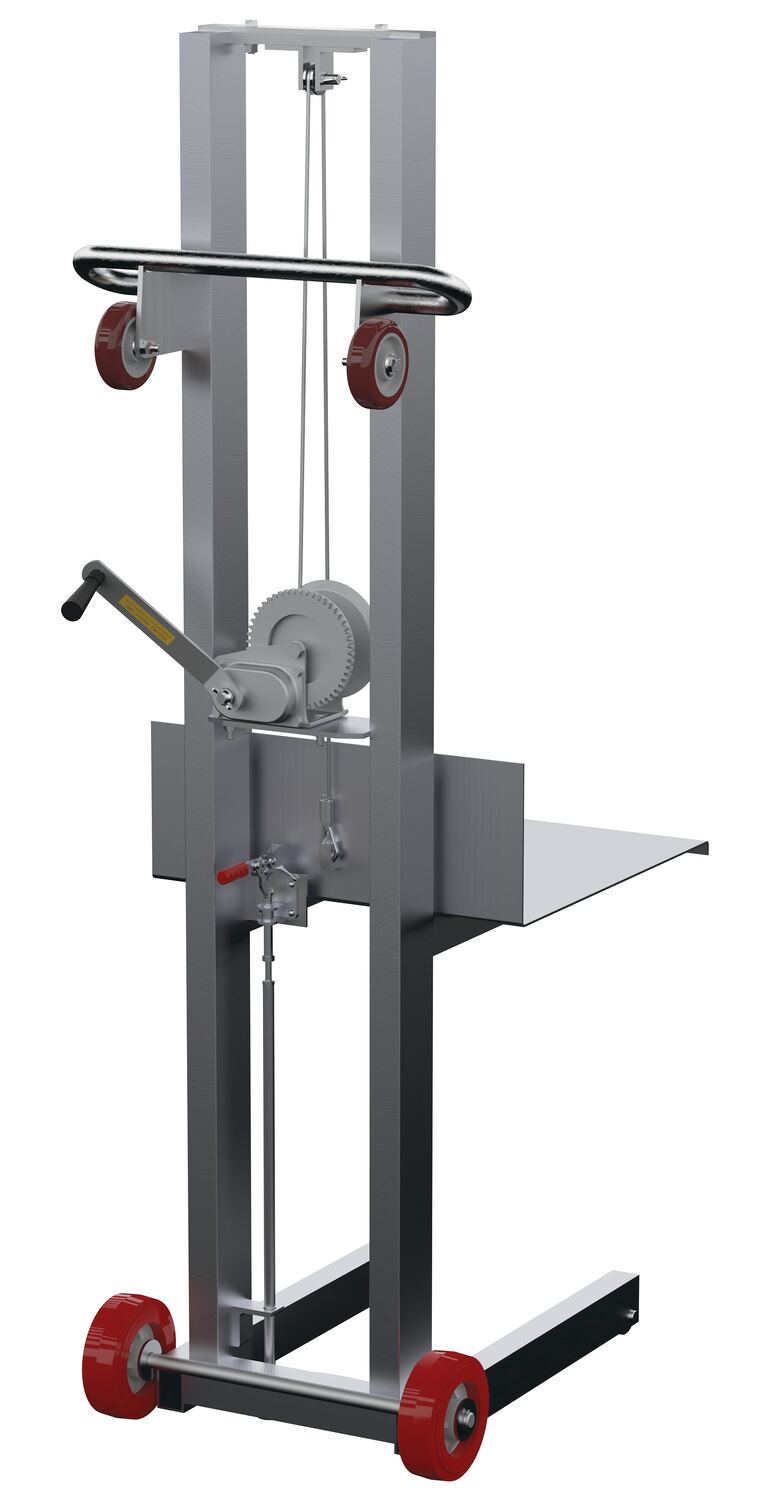

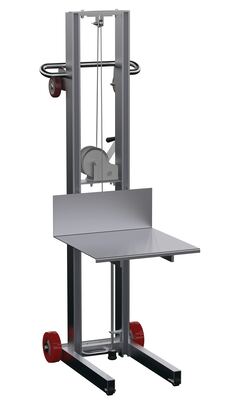

Aluminum Lite Load Lift With Winch, Fixed Wheels and Manual Floor Lock 20 In. x 20 In. Platform 400 Lb. Capacity Silver

The Lite load lift is ideal for lifting and transporting loads from delivery trucks to docks, or use to inventory storage systems. This low profile unit is easy to operate with a hand winch operation and aluminum construction. The unit rolls smoothly on poly-on-poly rear wheels and semi-steel front wheels. Located on the handle are two rollers to ease loading into delivery trucks. Unit also includes a floor lock for stability when not in use. The floor lock is engaged with a simple press of the foot.

  • Aluminum construction provides long lasting rugged use
  • Two front and two rear wheel design conveniently rolls when loaded
  • Hand winch operation
  • Lite load lift is ideal for lifting and transporting loads
Total Ship Wt.(lbs.): 67 (only 1 package) Size: 20.0625"W x 33.125"L x 66.5"H Color: Silver

Uniform Capacity (lb.): 400 Platform Width (in.): 20 Platform Length (in.): 20
Lowered Height (in.): 3-1/8 Raised Height (in.): 58 Per Winch Rotation (in.): 1
Horizontal Load Center (in.): 10 Operation: Hand Winch Rear Wheel (qty.): 2
Rear Wheel Diameter/Width (in.): 6 x 2 Rear Wheel Material: Poly on Poly Rear Wheel Type: Rigid
Front Caster Quantity: 2 Front Caster Diameter/Width (in.): 2 x 1 Front Caster Material: Semi Steel
Front Caster Type: Rigid Handle Caster Quantity: 2

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: ALLW-2020-FWFL
ALLW-2020-FWFL

Aluminum Lite Load Lift With Winch, Fixed Wheels and Manual Floor Lock 20 In. x 20 In. Platform 400 Lb. Capacity Silver

The Lite load lift is ideal for lifting and transporting loads from delivery trucks to docks, or use to inventory storage systems. This low profile unit is easy to operate with a hand winch operation and aluminum construction. The unit rolls smoothly on poly-on-poly rear wheels and semi-steel front wheels. Located on the handle are two rollers to ease loading into delivery trucks. Unit also includes a floor lock for stability when not in use. The floor lock is engaged with a simple press of the foot.

  • Aluminum construction provides long lasting rugged use
  • Two front and two rear wheel design conveniently rolls when loaded
  • Hand winch operation
  • Lite load lift is ideal for lifting and transporting loads
Dimensions: 20.0625"W x 33.125"L x 66.5"H Sell UOM: EA-Each Color: Silver
Material: Aluminum/Steel UPC: 691215336123 GTIN: 00691215336123
Warranty: -- Shipping Weight: 67 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 400 Platform Width (in.): 20 Platform Length (in.): 20
Lowered Height (in.): 3-1/8 Raised Height (in.): 58 Per Winch Rotation (in.): 1
Horizontal Load Center (in.): 10 Operation: Hand Winch Rear Wheel (qty.): 2
Rear Wheel Diameter/Width (in.): 6 x 2 Rear Wheel Material: Poly on Poly Rear Wheel Type: Rigid
Front Caster Quantity: 2 Front Caster Diameter/Width (in.): 2 x 1 Front Caster Material: Semi Steel
Front Caster Type: Rigid Handle Caster Quantity: 2
