ASP-48-HR

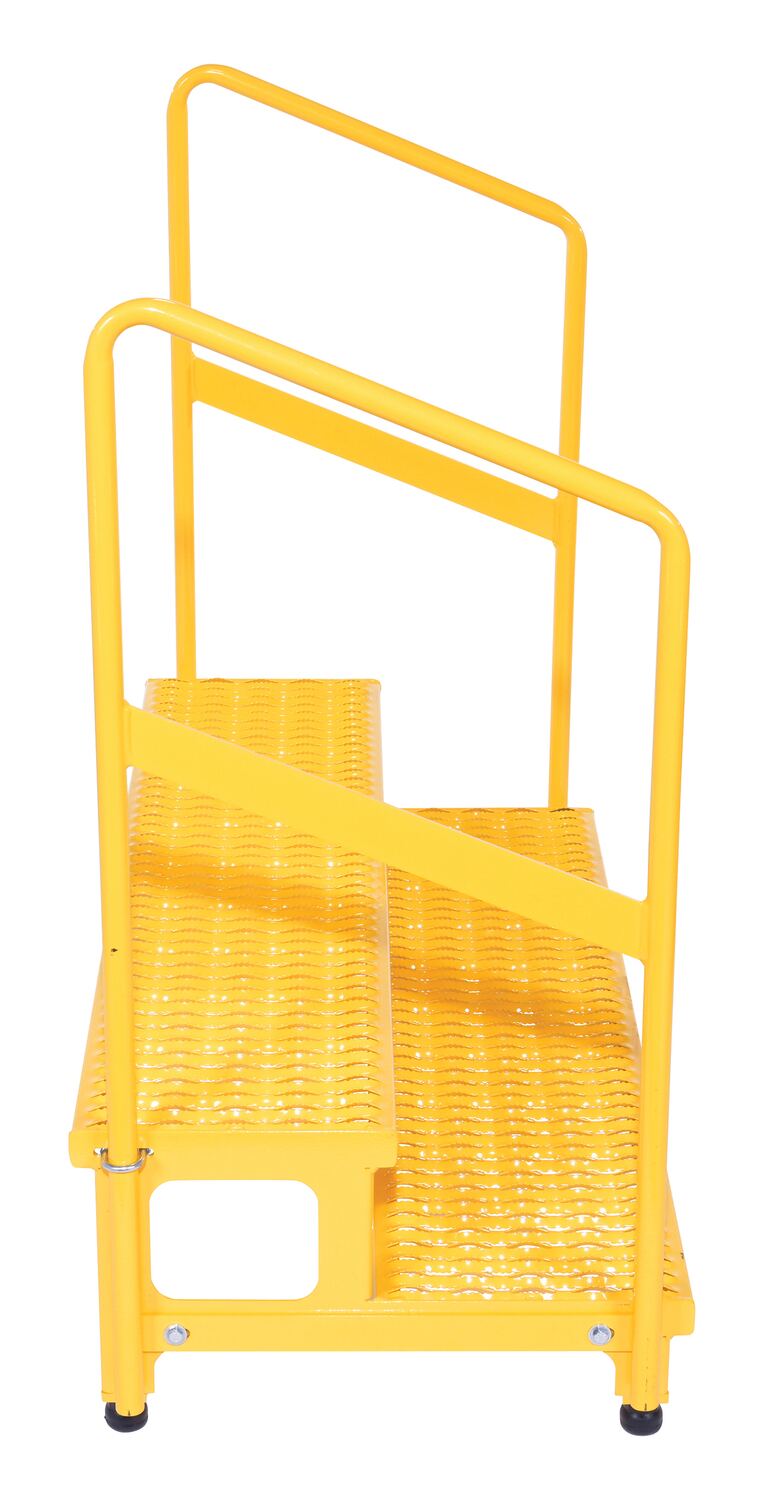

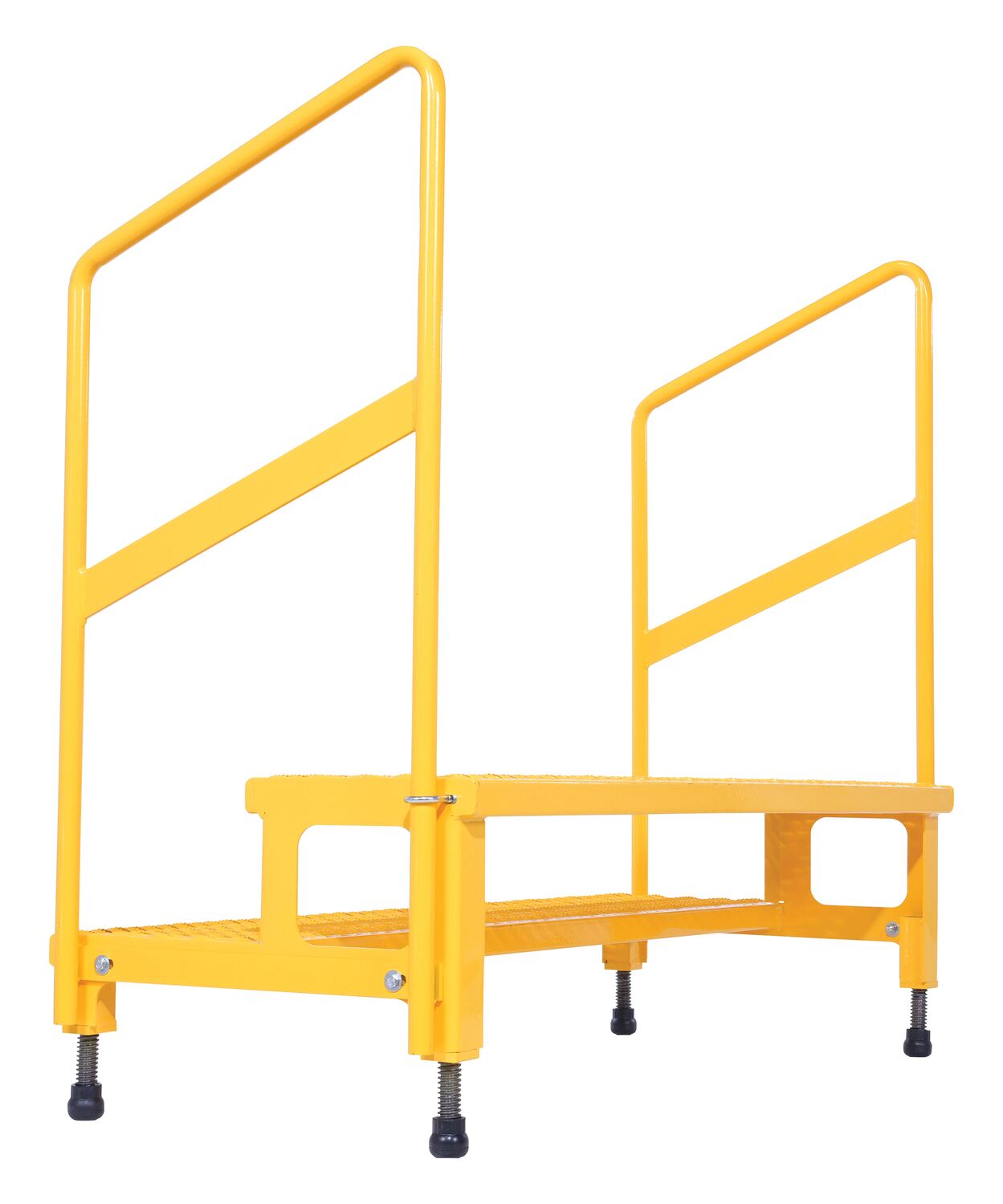

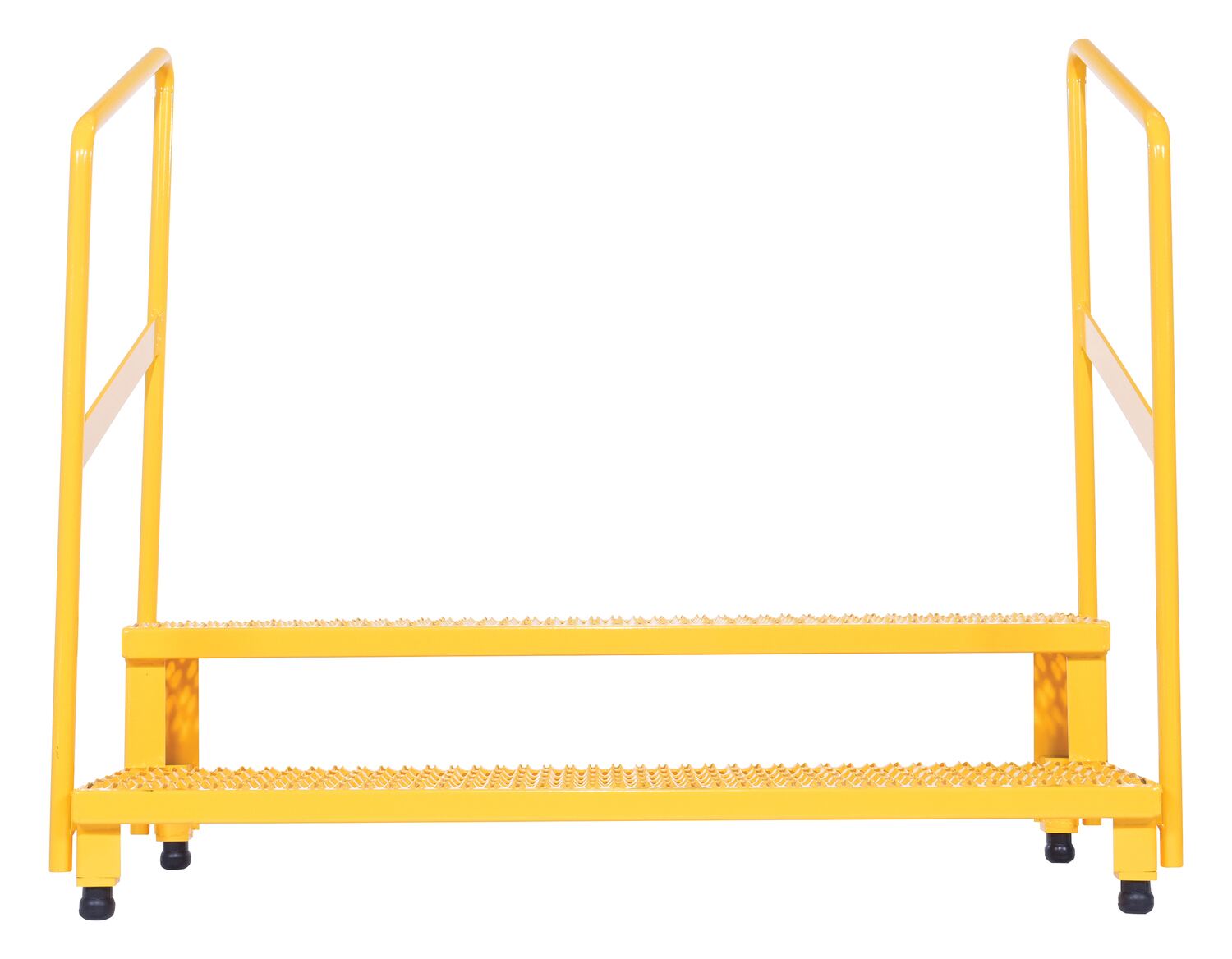

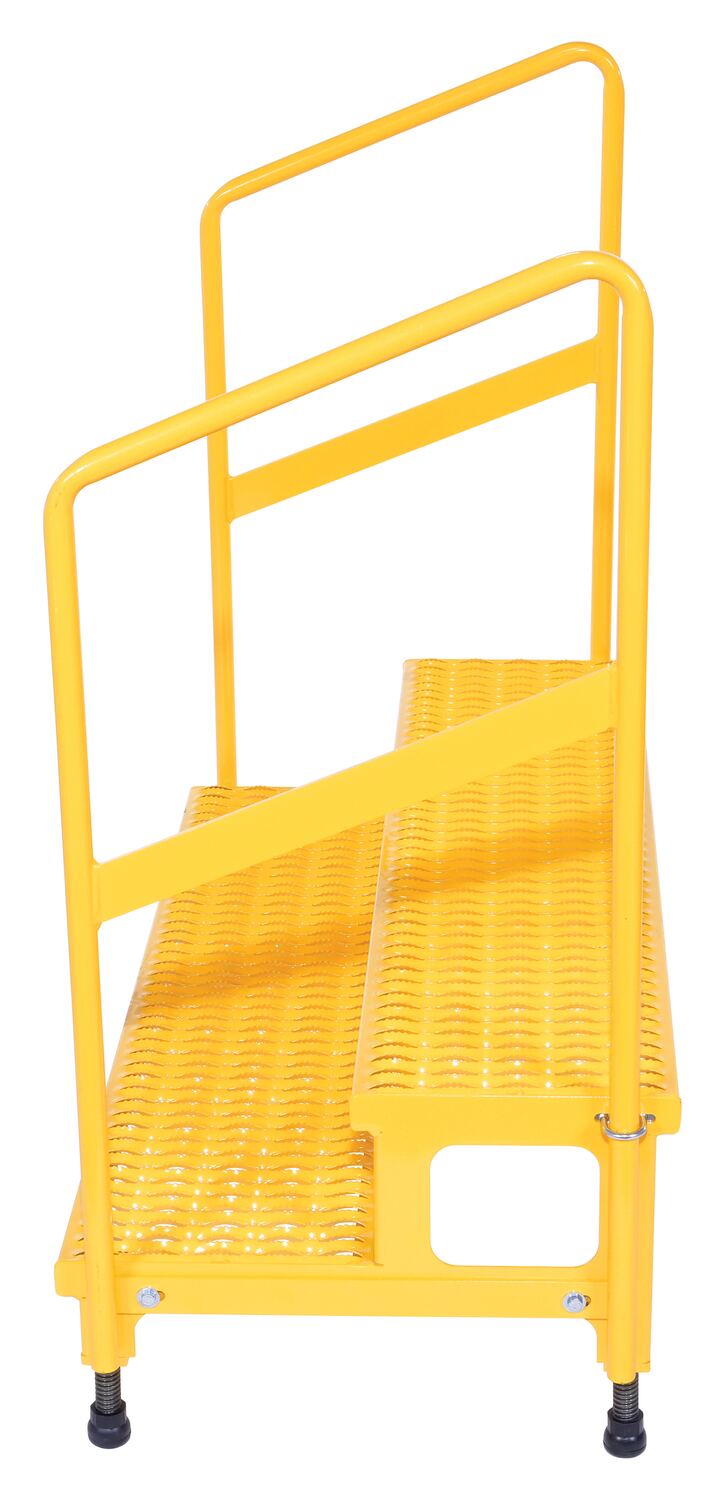

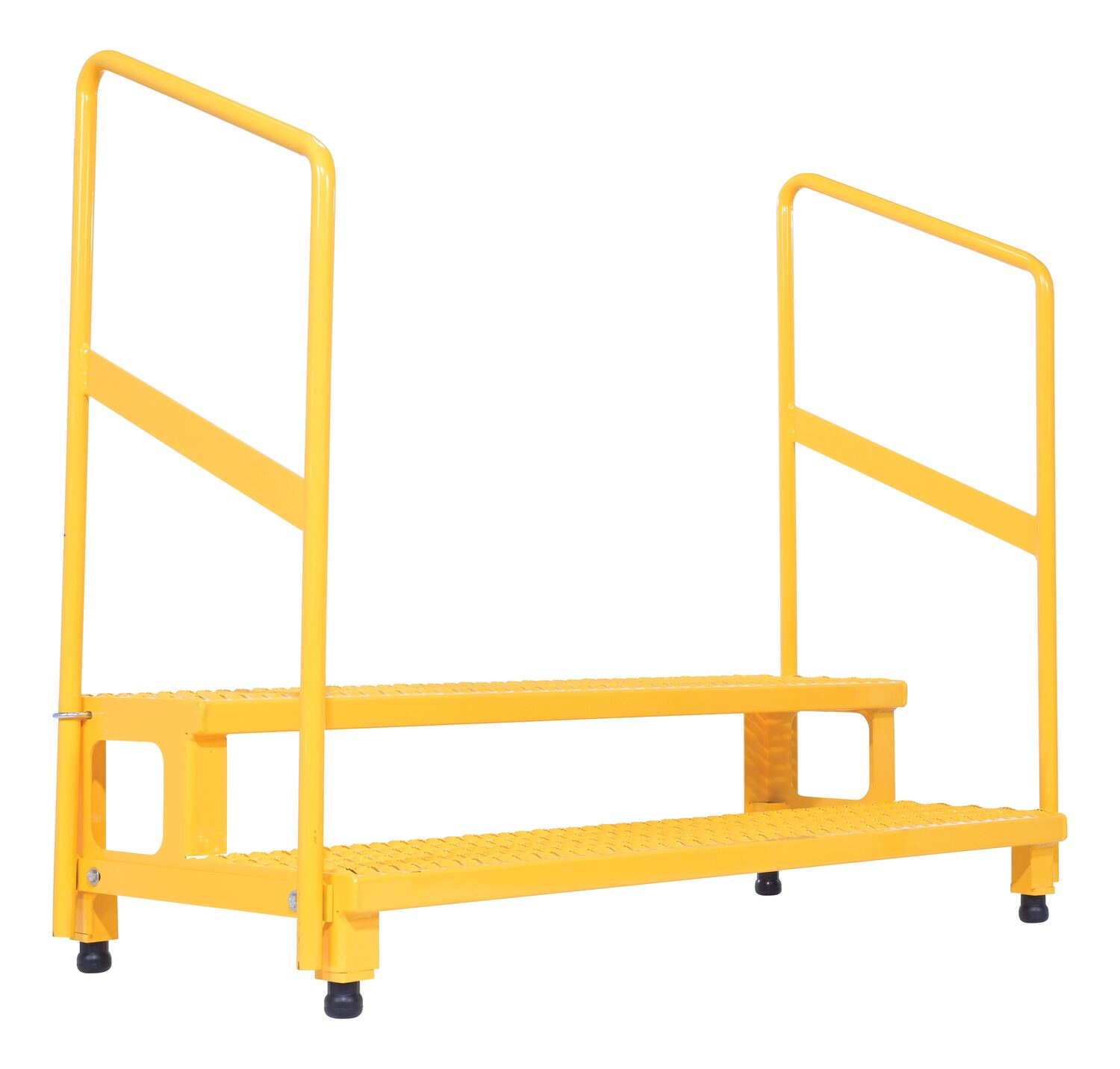

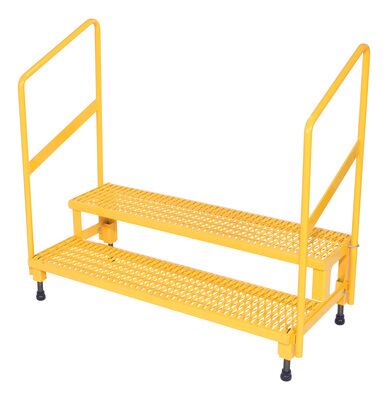

Steel Adjustable Step Mate Stand 2 Step with Handrails 22-7/8 In. x 50-1/2 In. x 43-1/8 In. 500 Lb. Capacity Yellow

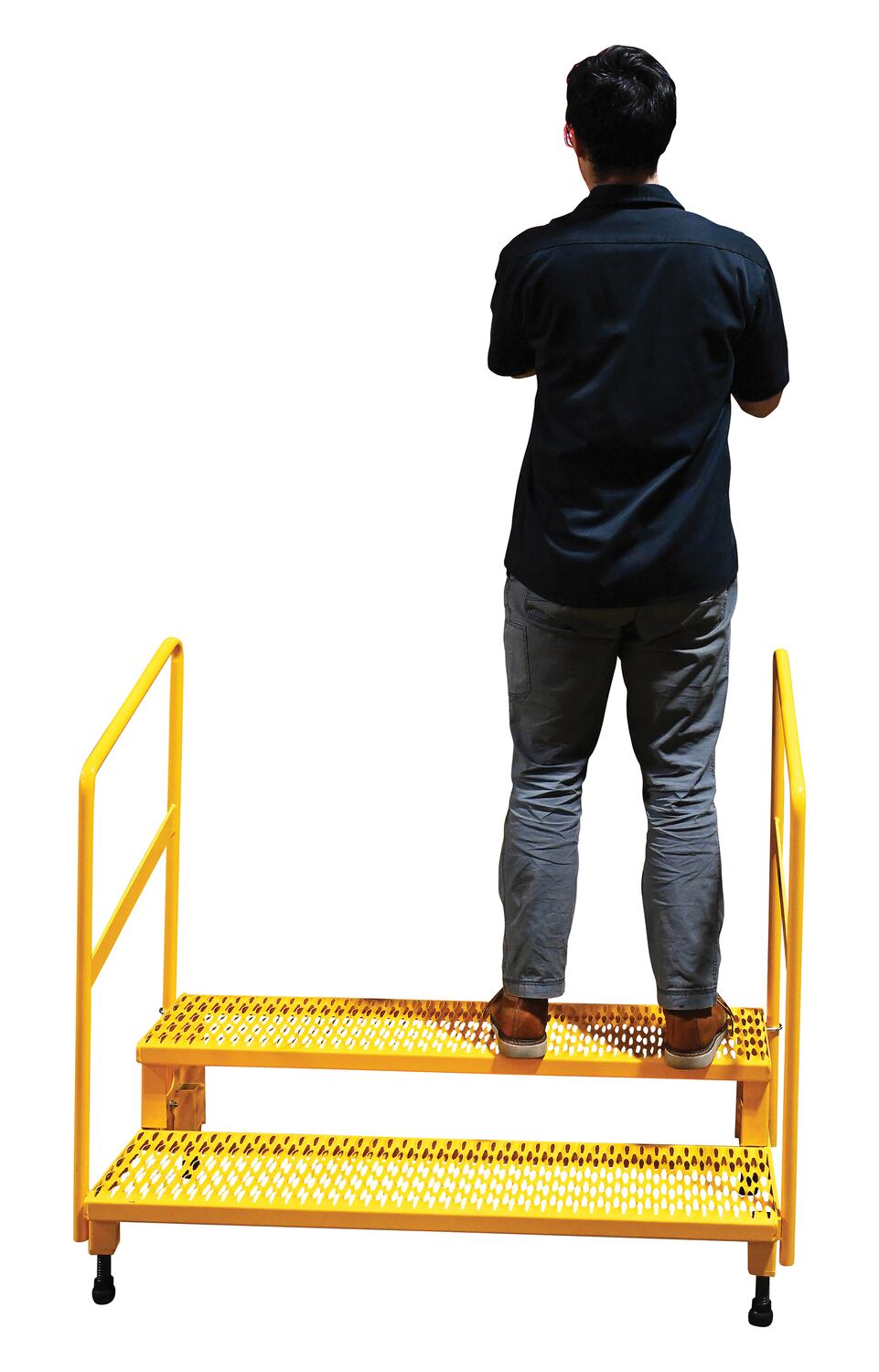

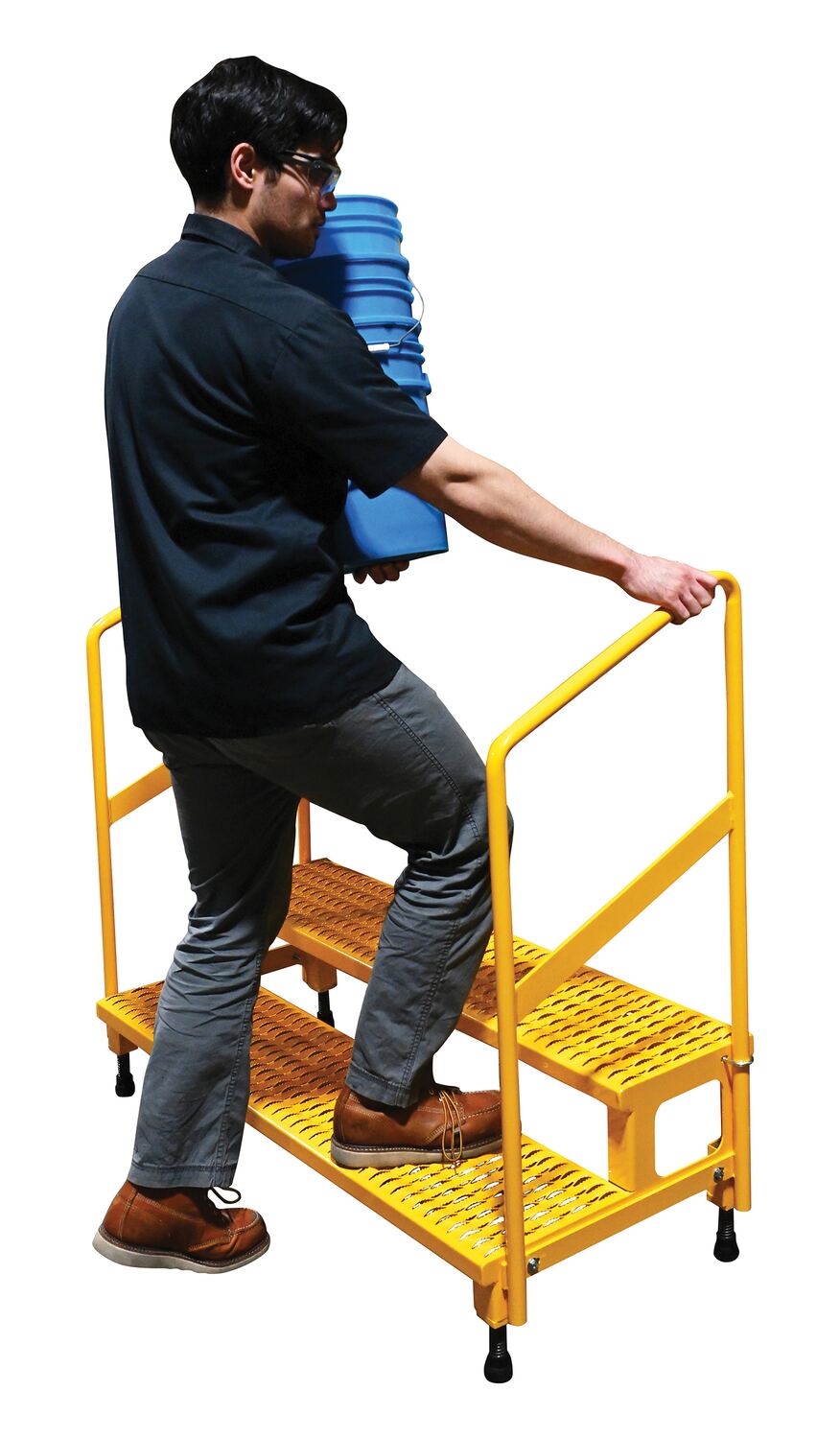

The adjustable step-mate stand can be used as either a comfortable worker platform or a semi-permanent step. The serrated surface ensures safe footing. The legs adjust individually by screwing them into or out of the leg base.

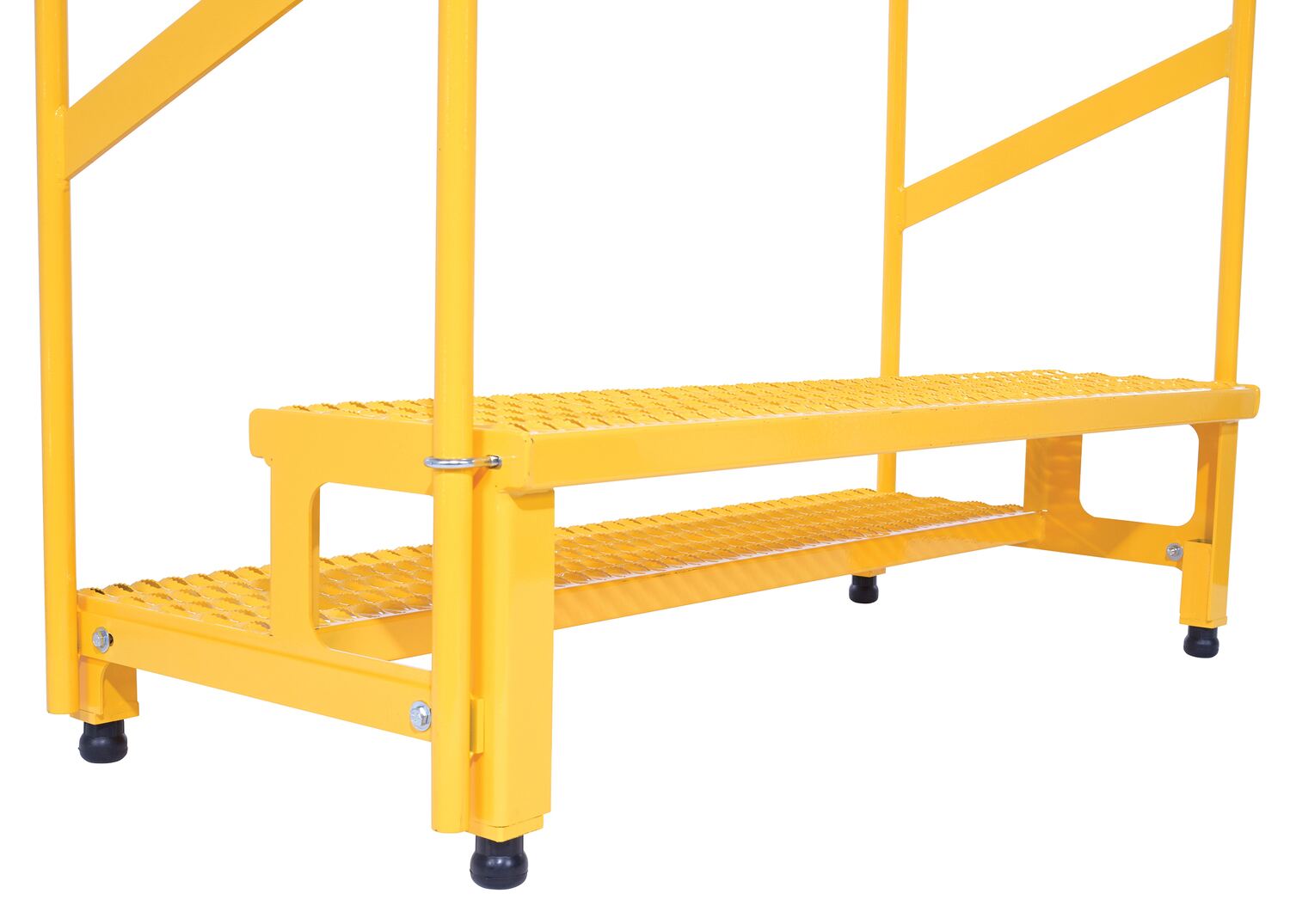

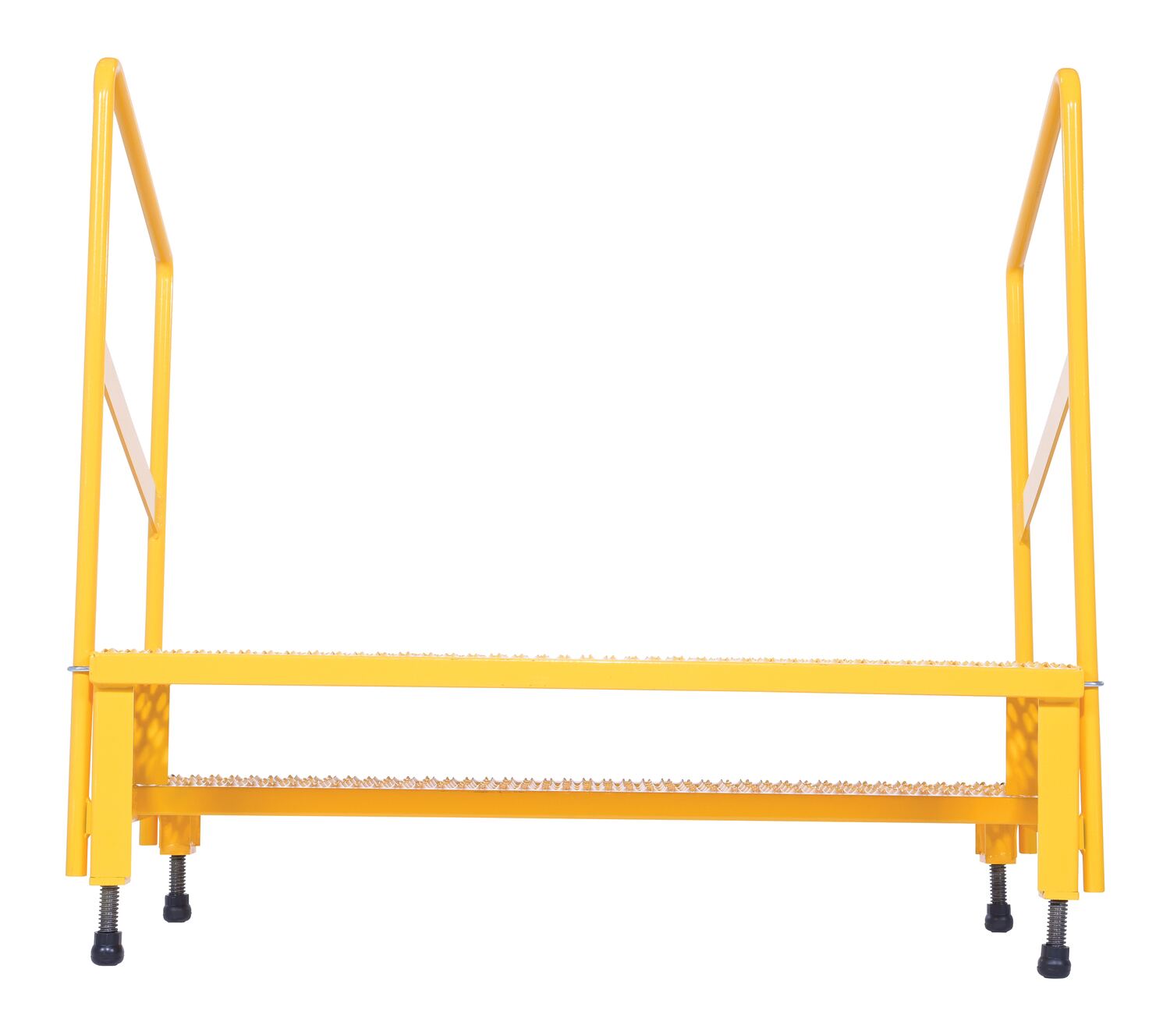

  • Independently adjustable height legs may be set to level unit on uneven floors

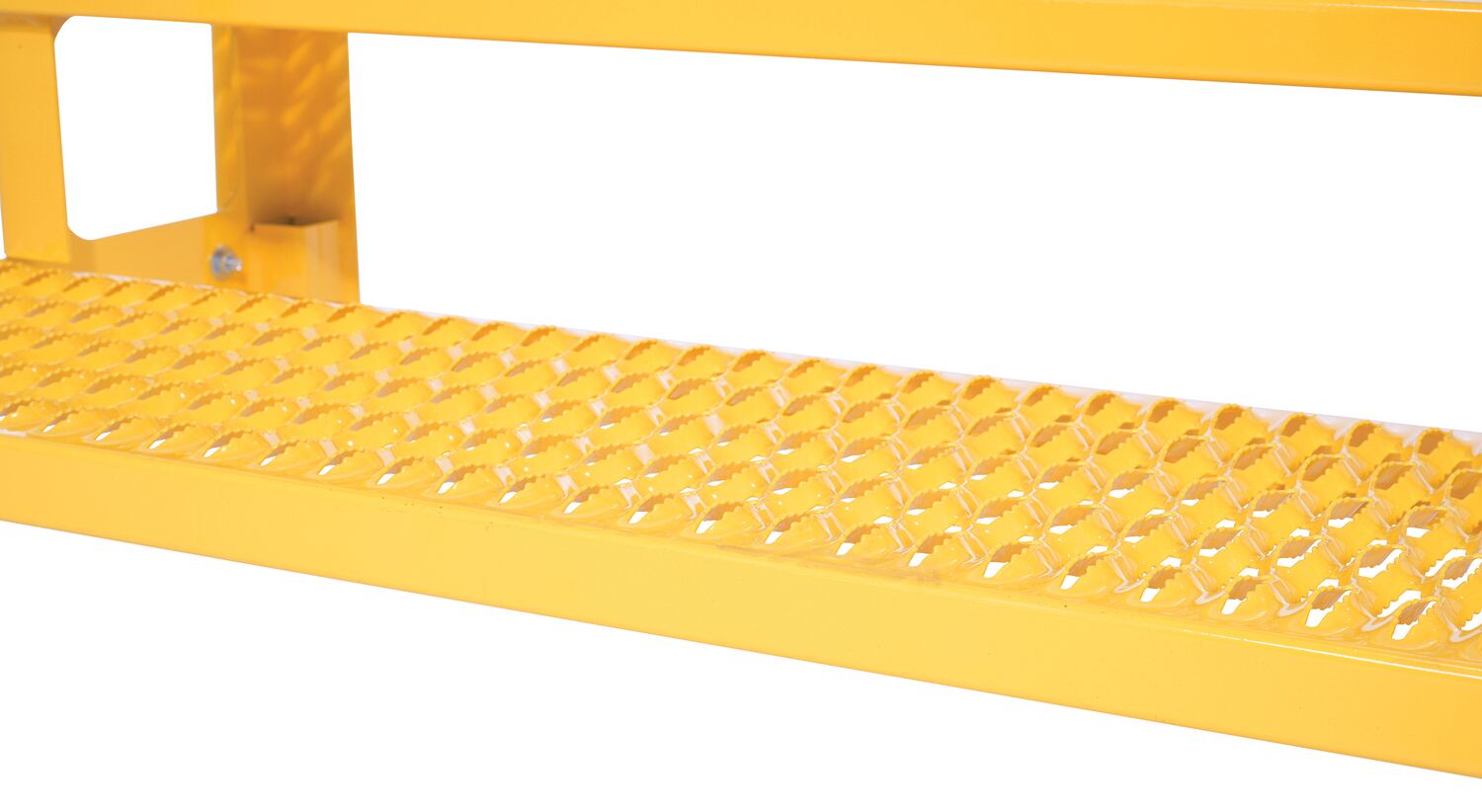

  • Serrated step surface provides excellent traction even in wet environments

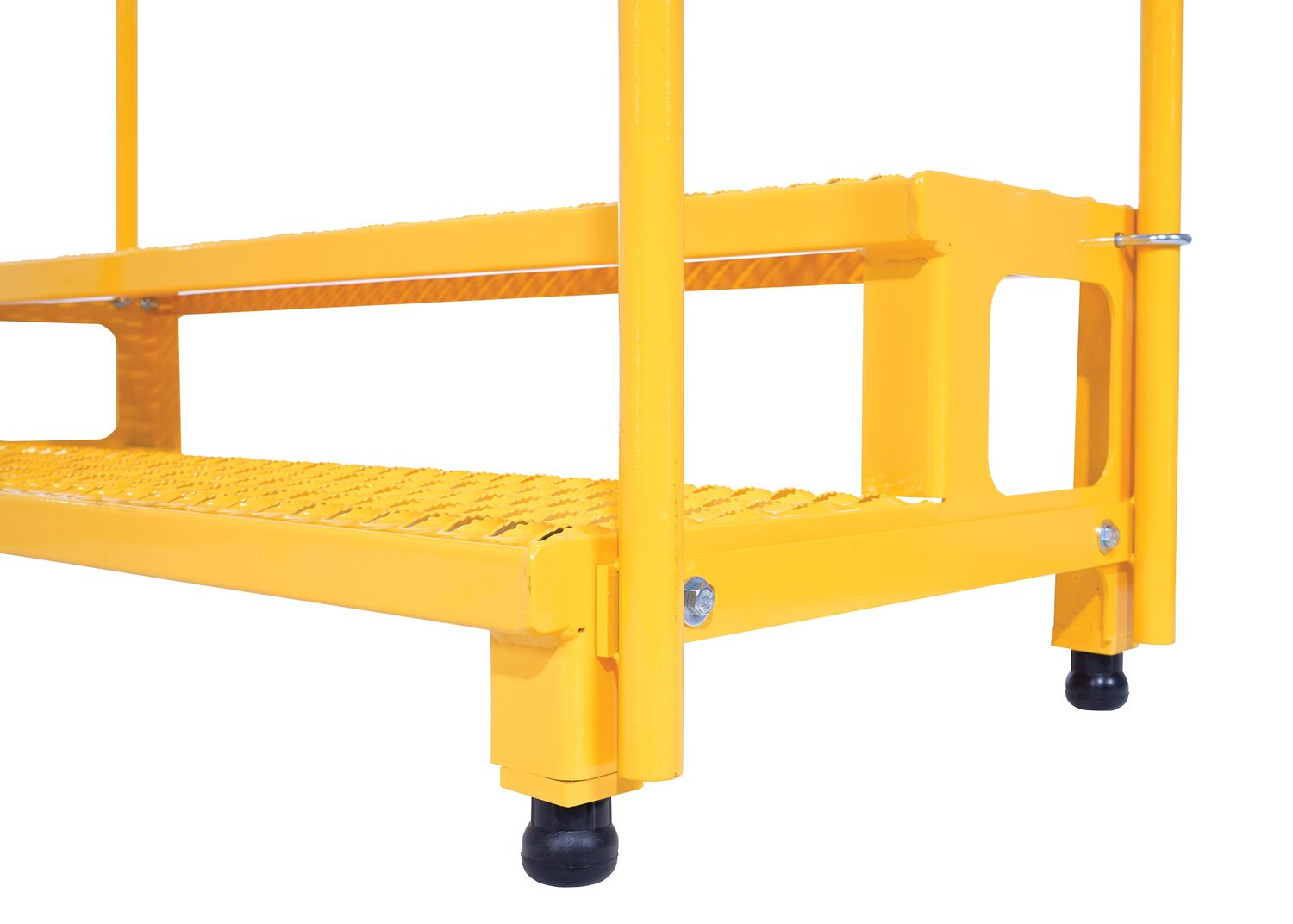

  • Each leg fitted with rubber tip for better grip & traction

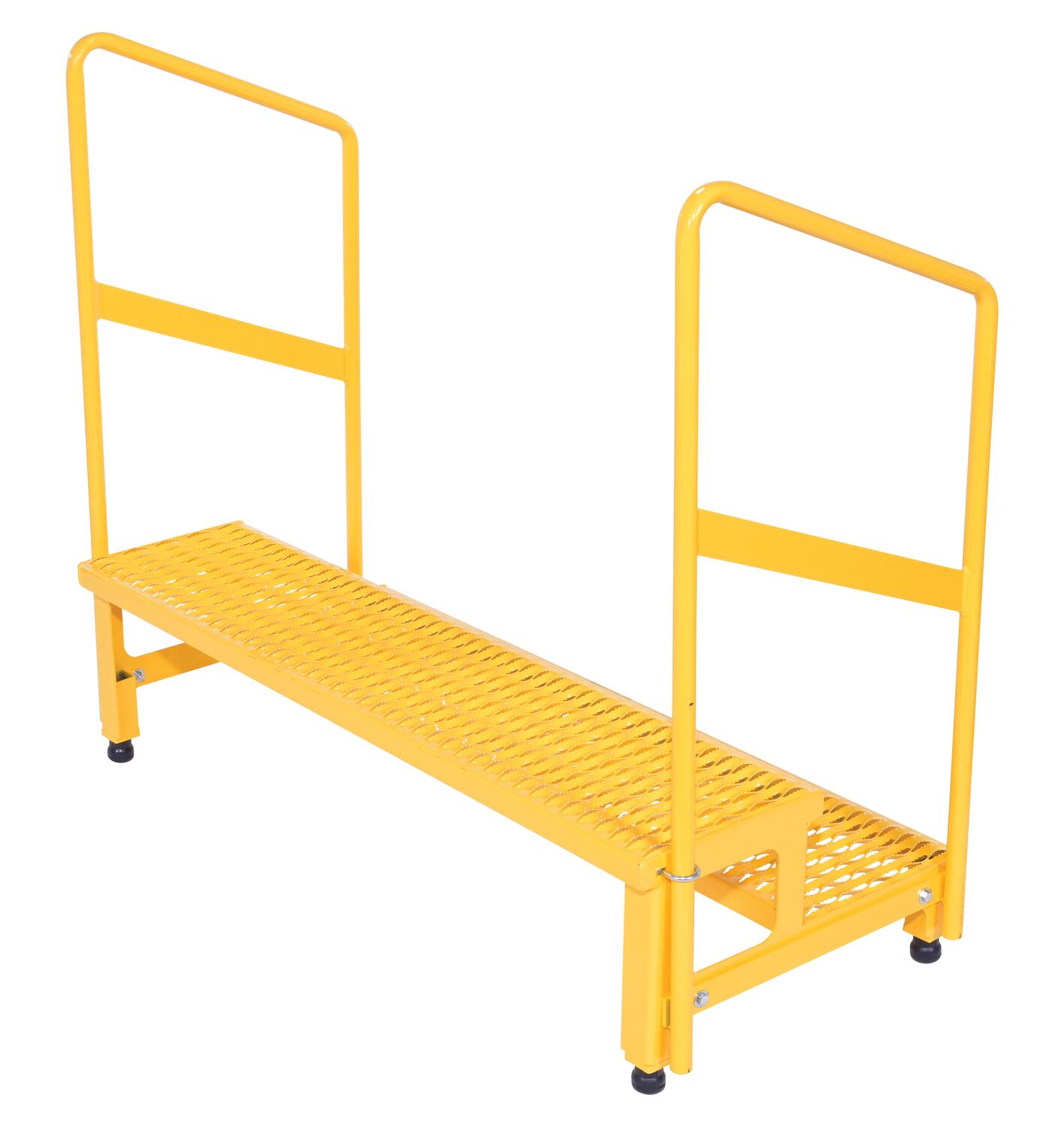

  • Models feature handrails for added stability during use
Total Ship Wt.(lbs.): 122 (only 1 package) Size: 50.5"W x 22.875"L x 43.125"H Color: Yellow

Uniform Capacity (lb.): 500 Individual Step Depth (in.): 11-3/4 First Step Adjustment Minimum (in.): 6
First Step Adjustment Maximum (in.): 8-1/4 Second Step Adjustment Minimum (in.): 13 Second Step Adjustment Maximum (in.): 15-1/4
Handrail Height - from Bottom Step (in.): 34-7/8 Handrail Height - from Upper Step (in.): 27-7/8 Handrail Diameter (in.): 1

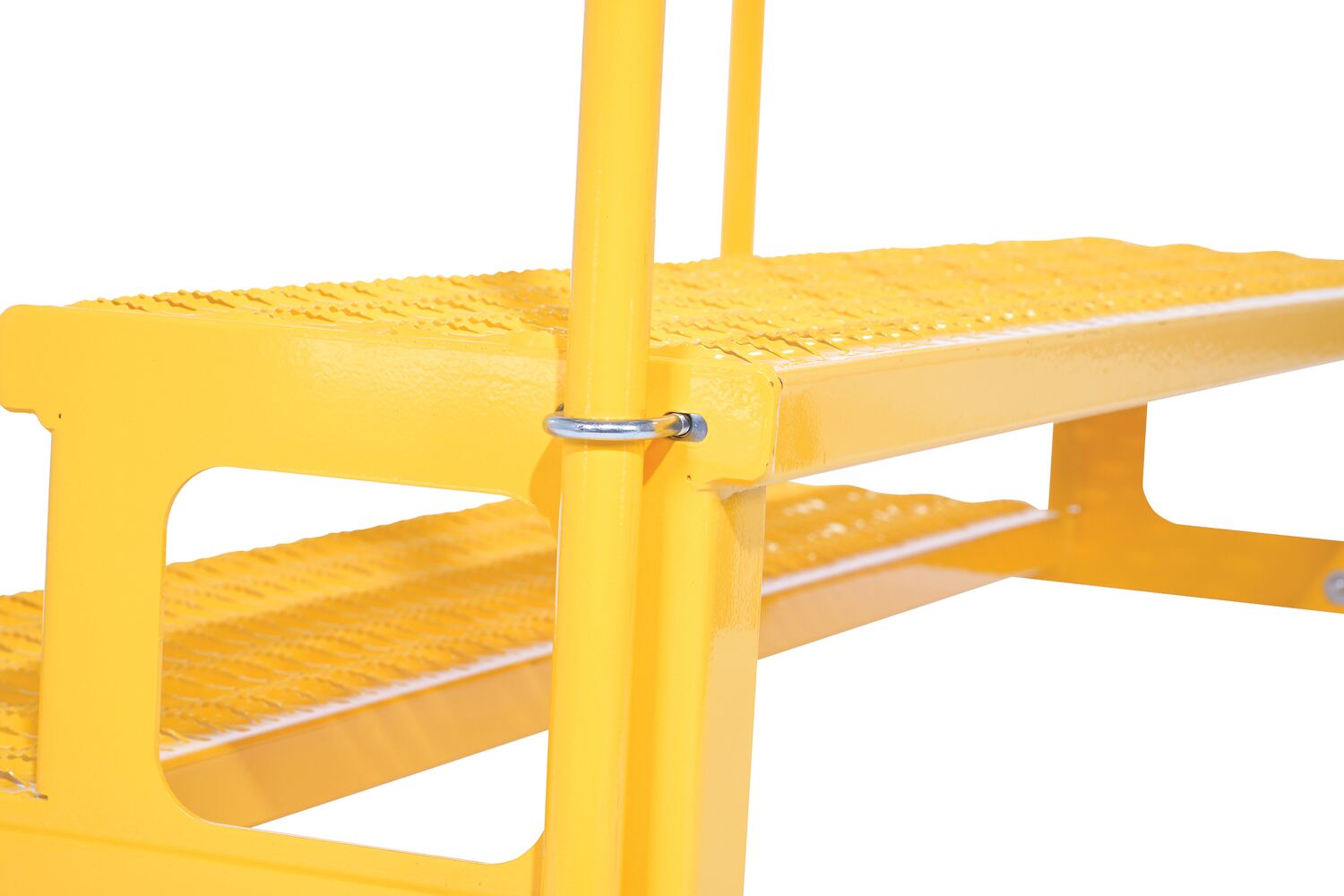

Handrail Construction: Steel Tubing Includes: 2 Bolt-On Handrails Step Angle (degrees): 33
Handrail Installed Depth/Height (in.): 20-1/4 x 40-7/8

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: ASP-48-HR
ASP-48-HR

Steel Adjustable Step Mate Stand 2 Step with Handrails 22-7/8 In. x 50-1/2 In. x 43-1/8 In. 500 Lb. Capacity Yellow

The adjustable step-mate stand can be used as either a comfortable worker platform or a semi-permanent step. The serrated surface ensures safe footing. The legs adjust individually by screwing them into or out of the leg base.

  • Independently adjustable height legs may be set to level unit on uneven floors
  • Serrated step surface provides excellent traction even in wet environments
  • Each leg fitted with rubber tip for better grip & traction
  • Models feature handrails for added stability during use
Dimensions: 50.5"W x 22.875"L x 43.125"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215106689 GTIN: 00691215106689
Warranty: -- Shipping Weight: 122 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 500 Individual Step Depth (in.): 11-3/4 First Step Adjustment Minimum (in.): 6
First Step Adjustment Maximum (in.): 8-1/4 Second Step Adjustment Minimum (in.): 13 Second Step Adjustment Maximum (in.): 15-1/4
Handrail Height - from Bottom Step (in.): 34-7/8 Handrail Height - from Upper Step (in.): 27-7/8 Handrail Diameter (in.): 1
Handrail Construction: Steel Tubing Includes: 2 Bolt-On Handrails Step Angle (degrees): 33
Handrail Installed Depth/Height (in.): 20-1/4 x 40-7/8
