Model Details

AT-20

Printer Friendly
AT-20

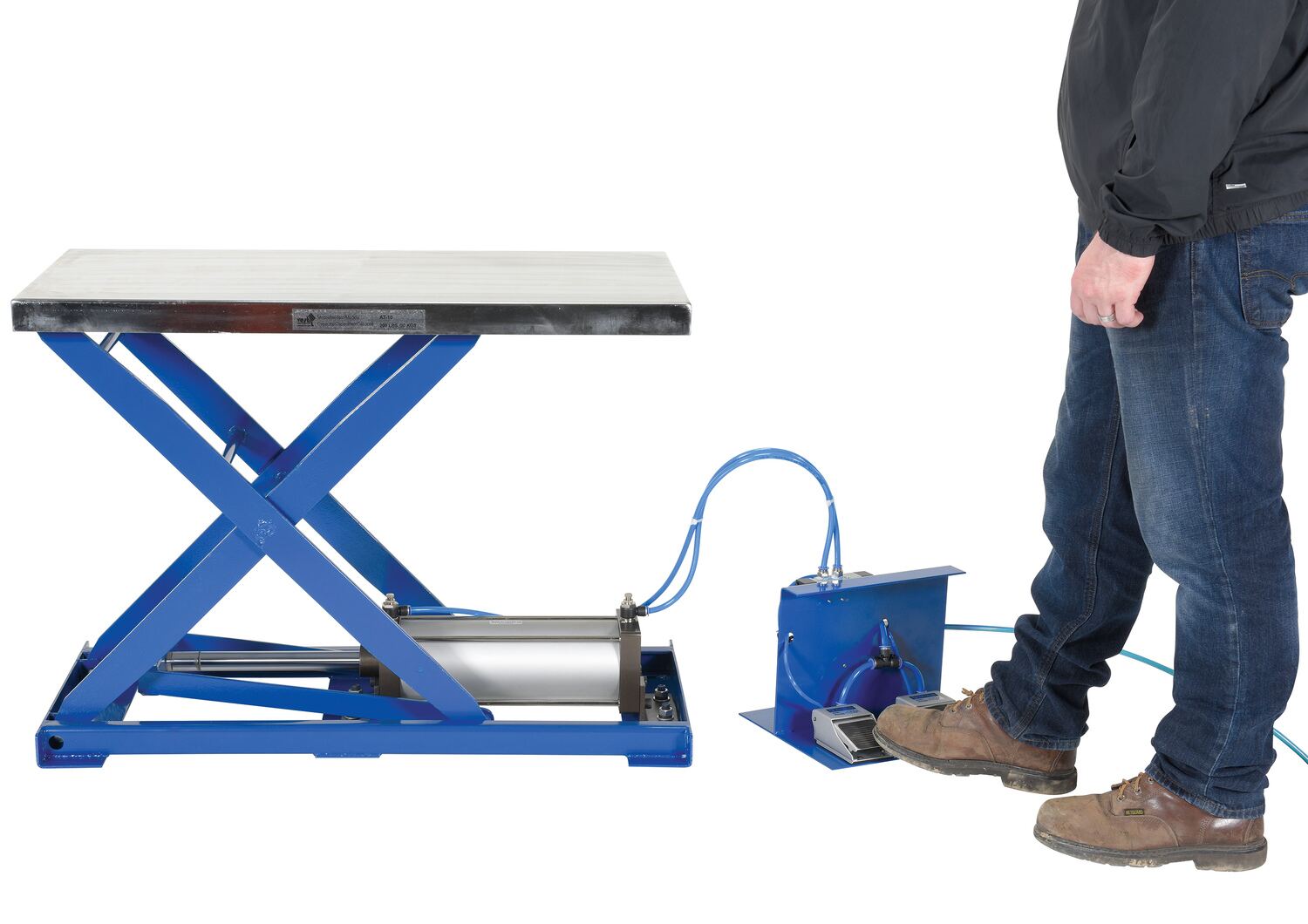

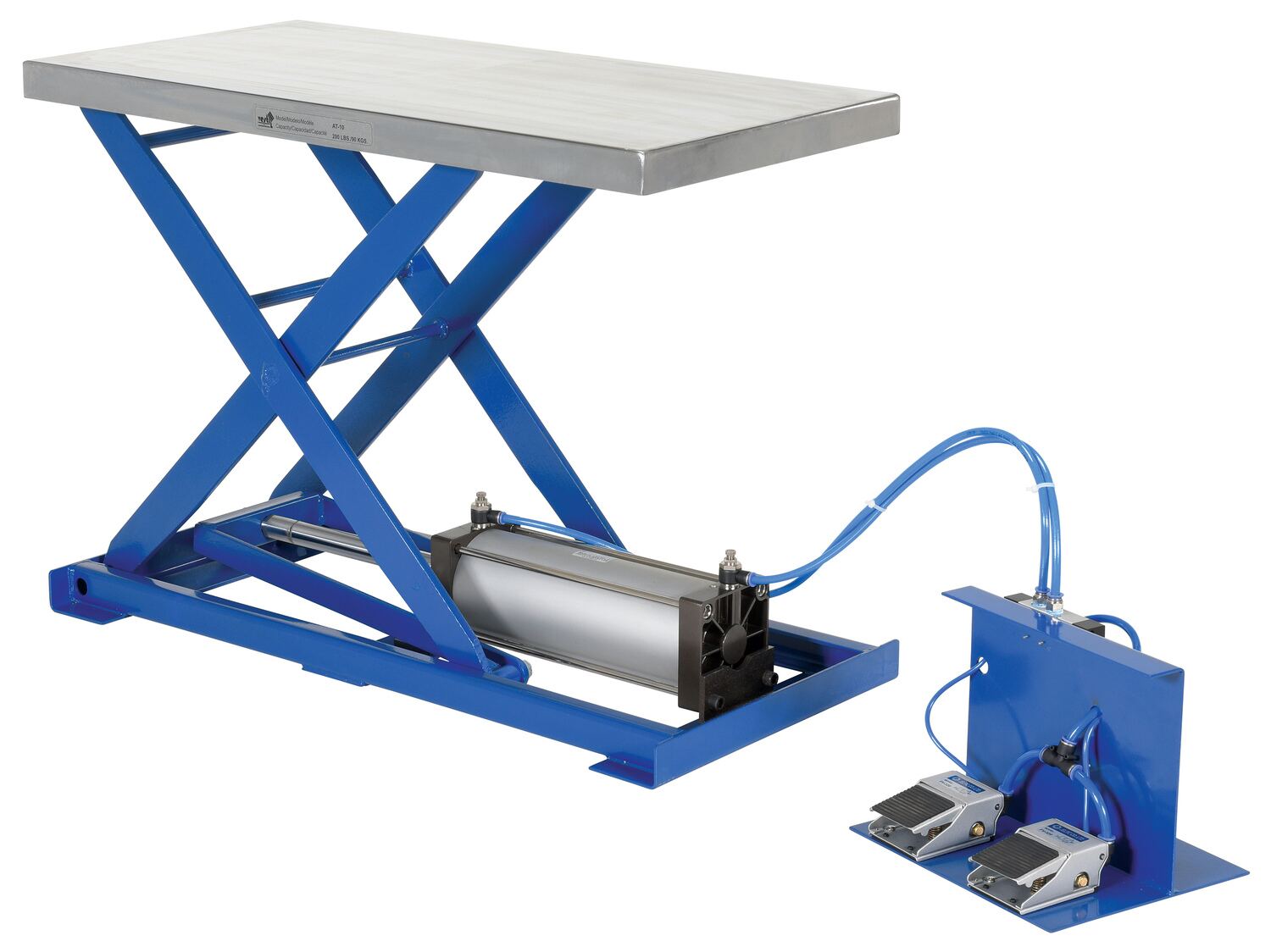

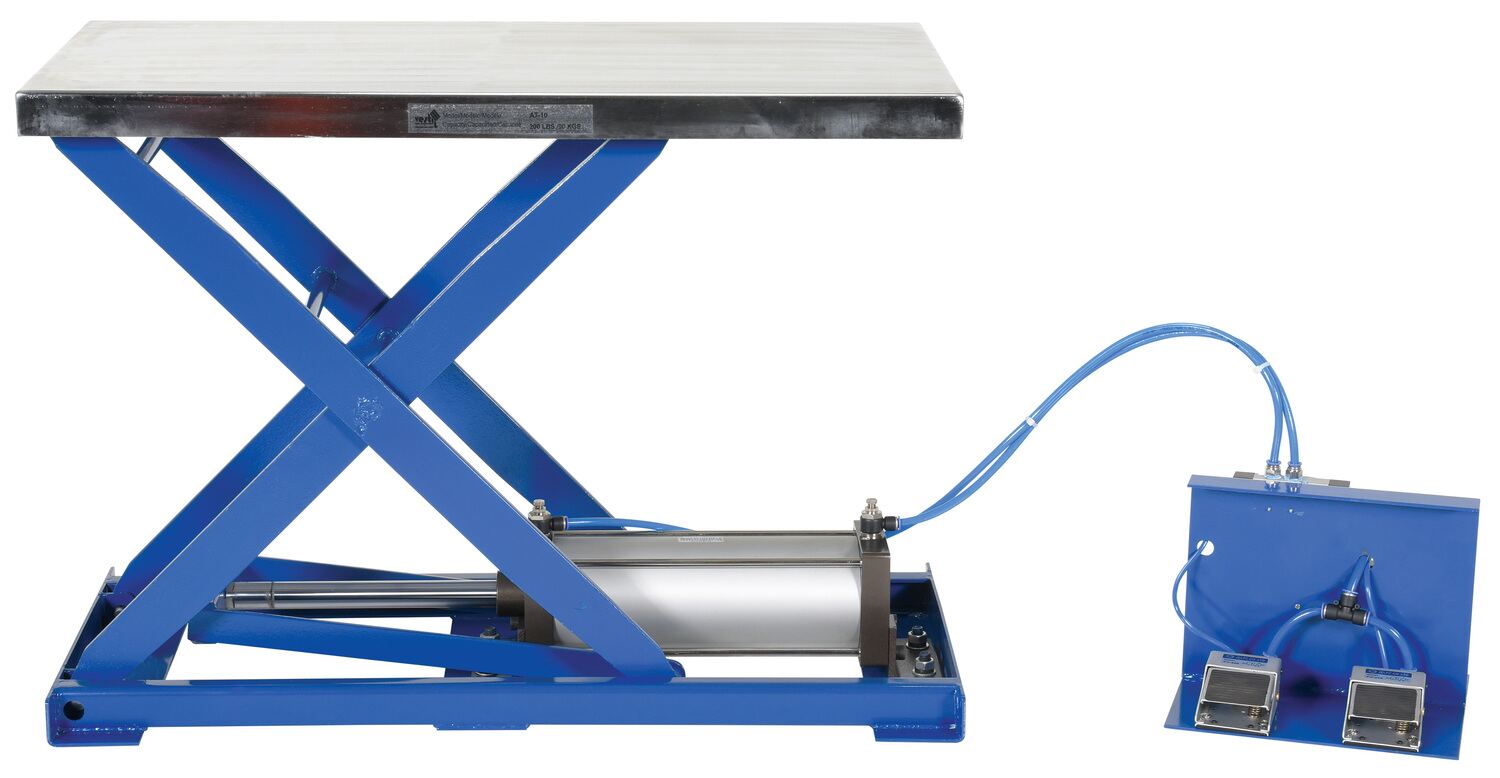

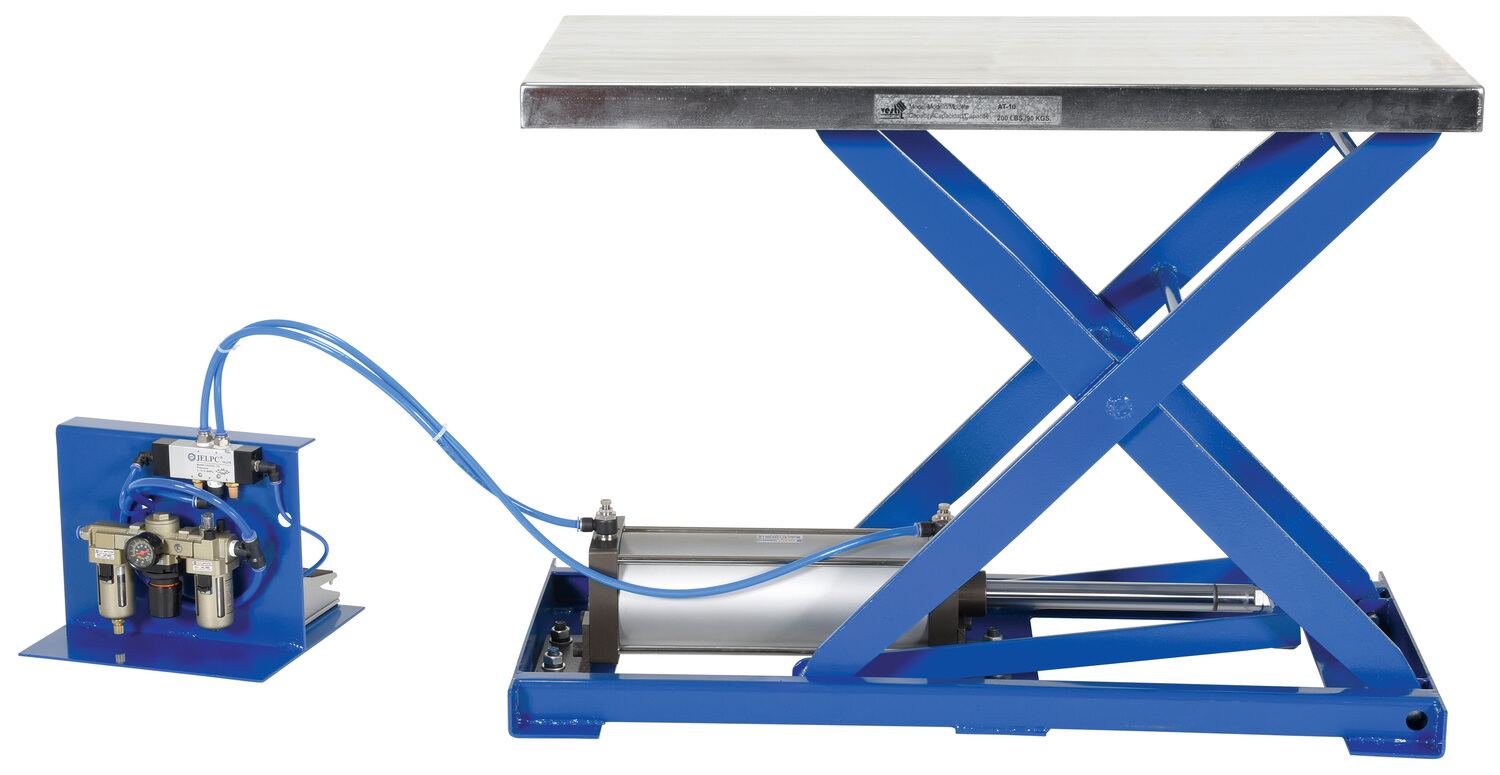

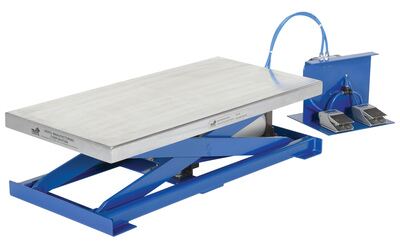

Steel Pneumatic Scissor Lift Table 39-1/2 In. x 19-3/4 In. x 29-1/2 In. 400 Lb. Capacity Blue

The Pneumatic scissor lift table works great in many environmentally sensitive applications. The table can be used anywhere utilizing only shop air. Air actuator valve is included and no electrical power or hydraulic oil required.

  • Lift table for ergonomic work in many environmentally sensitive applications
  • The table utilizes shop air so that it can be used anywhere
  • Air actuator valve uses no electrical power or hydraulic oil which is useful in a clean environment
  • Foot control pedal included for maximum control in environmentally sensitive applications

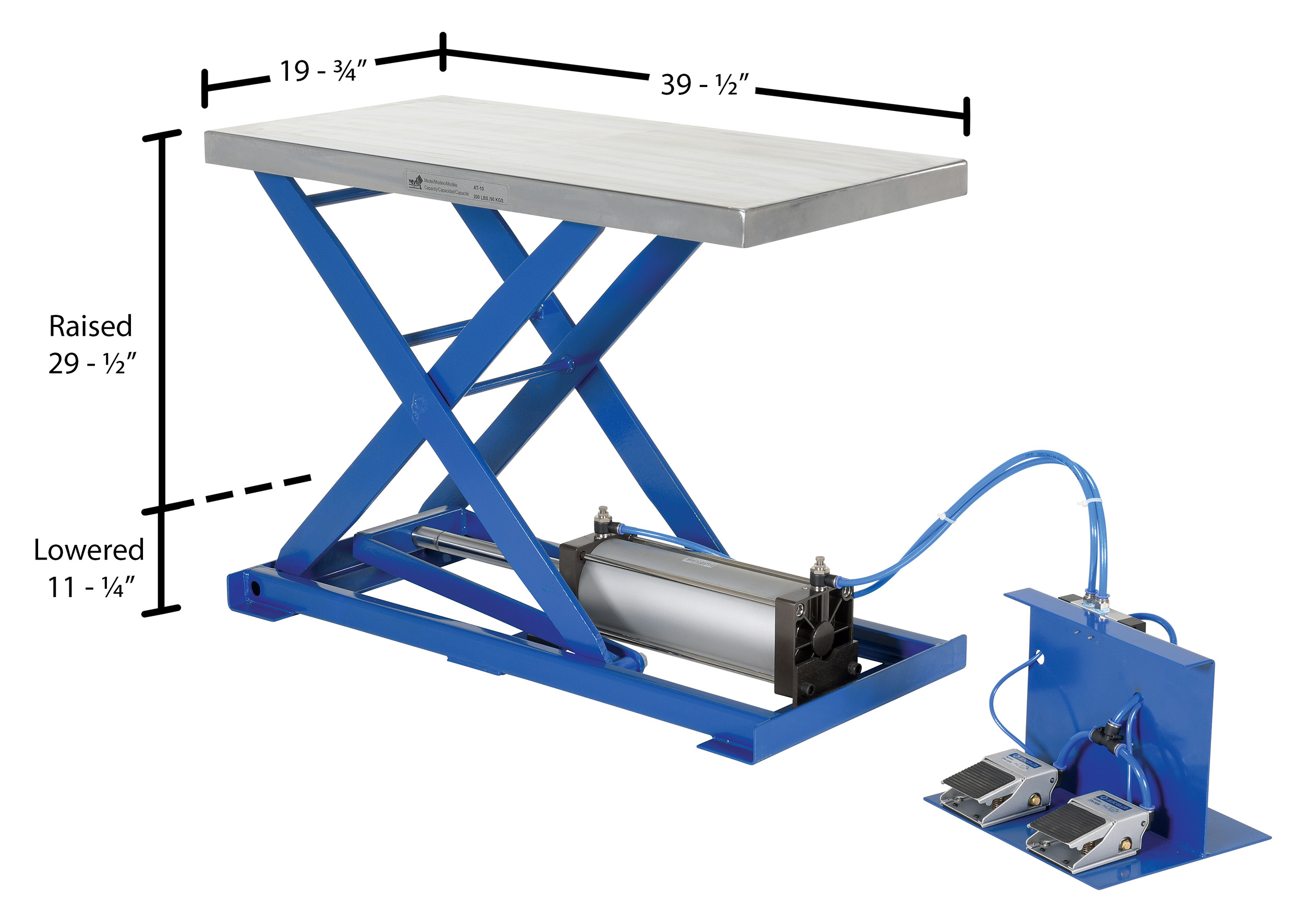

Total Ship Wt.(lbs.): 234 (only 1 package) Size: 19.75"W x 39.5"L x 29.5"H Color: Blue

Uniform Capacity (lb.): 400 Platform Width (in.): 19-1/2 Platform Length (in.): 39-1/2
Platform Material: Chrome Plated Lowered Height (in.): 11-1/4 Raised Height (in.): 29-1/2
Foot Control Height (in.): 10 Lift Loaded/Unloaded (sec.): 13.31/8.31 Lower Loaded/Unloaded (sec.): 6.41/9.00
Cylinder Bore Diameter (mm): 32 PSI Required for Operation: 70-90

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: AT-20
AT-20

Steel Pneumatic Scissor Lift Table 39-1/2 In. x 19-3/4 In. x 29-1/2 In. 400 Lb. Capacity Blue

The Pneumatic scissor lift table works great in many environmentally sensitive applications. The table can be used anywhere utilizing only shop air. Air actuator valve is included and no electrical power or hydraulic oil required.

  • Lift table for ergonomic work in many environmentally sensitive applications
  • The table utilizes shop air so that it can be used anywhere
  • Air actuator valve uses no electrical power or hydraulic oil which is useful in a clean environment
  • Foot control pedal included for maximum control in environmentally sensitive applications
Dimensions: 19.75"W x 39.5"L x 29.5"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215319829 GTIN: 00691215319829
Warranty: -- Shipping Weight: 234 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 400 Platform Width (in.): 19-1/2 Platform Length (in.): 39-1/2
Platform Material: Chrome Plated Lowered Height (in.): 11-1/4 Raised Height (in.): 29-1/2
Foot Control Height (in.): 10 Lift Loaded/Unloaded (sec.): 13.31/8.31 Lower Loaded/Unloaded (sec.): 6.41/9.00
Cylinder Bore Diameter (mm): 32 PSI Required for Operation: 70-90
