ATS-13-68-HDG

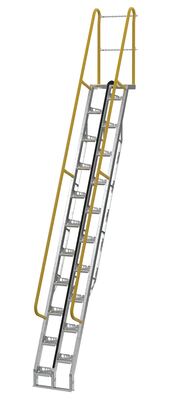

Galvanized Alternate Tread Stair 68 Degrees 73-1/2 In. x 23-1/2 In. x 198 In. 350 Lb. Capacity Silver

Alternating-tread stair design is a great addition to a variety of warehouses and workshops. The unique design offers a shorter span than traditional steps. With a handrail on each side of unit and a dual safety chain at the top of the stair, security is the top priority of this ladder style.

  • Two-sided hand railing provides added user safety
  • Raised steel surface provides better traction
  • Hot dip galvanized steel handrails with yellow powder coated finish
  • Steps and platform built of durable galvanized steel
Total Ship Wt.(lbs.): 600 (only 1 package) Size: 23.5"W x 73.5"L x 198"H Color: Silver Non-Returnable

Uniform Capacity (lb.): 350 Number of Steps: 21 Top Step Height (in.): 156-1/8
Step Angle (degrees): 68 Safety Chain (in.): 3/16 Top Step Depth (in.): 9-3/4
Top Step Width (in.): 23-5/8 Step (excluding top step) Depth (in.): 10-1/2 Step (excluding top step) Width (in.): 9-1/8
Step Height Spacing (in.): 7-7/16 Handrail Height (in.): 12-1/4 OSHA: 29 CFR 1910.25(e`)

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: ATS-13-68-HDG
ATS-13-68-HDG

Galvanized Alternate Tread Stair 68 Degrees 73-1/2 In. x 23-1/2 In. x 198 In. 350 Lb. Capacity Silver

Alternating-tread stair design is a great addition to a variety of warehouses and workshops. The unique design offers a shorter span than traditional steps. With a handrail on each side of unit and a dual safety chain at the top of the stair, security is the top priority of this ladder style.

  • Two-sided hand railing provides added user safety
  • Raised steel surface provides better traction
  • Hot dip galvanized steel handrails with yellow powder coated finish
  • Steps and platform built of durable galvanized steel
Dimensions: 23.5"W x 73.5"L x 198"H Sell UOM: EA-Each Color: Silver
Material: Steel UPC: 691215325196 GTIN: 00691215325196
Warranty: -- Shipping Weight: 600 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 350 Number of Steps: 21 Top Step Height (in.): 156-1/8
Step Angle (degrees): 68 Safety Chain (in.): 3/16 Top Step Depth (in.): 9-3/4
Top Step Width (in.): 23-5/8 Step (excluding top step) Depth (in.): 10-1/2 Step (excluding top step) Width (in.): 9-1/8
Step Height Spacing (in.): 7-7/16 Handrail Height (in.): 12-1/4 OSHA: 29 CFR 1910.25(e`)
