AWR-28-7B-HR

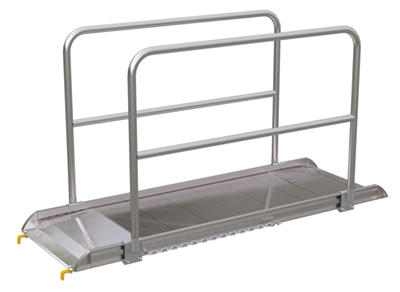

Aluminum Wheel Walk Ramp Steel Hook Style with Handrails 87-5/16 In. x 28 In. 3000 Lb. Capacity Silver

The Aluminum Walk Ramp with hand rails enables delivery men/women, shippers, and receivers to load and unload trucks when docks are unavailable. Heavy-duty steel chains with steel grab hooks are attaches to each side of ramp for safely securing ramp to truck. Constructed of strong aluminum alloy with non-skid tread surface. The ramp is lightweight and easy to handle. This steel hook style mounts onto the truck extensions.

  • 100% Welded aluminum construction is light-weight and will not rust
  • Steel hook style provides a sturdy surface for loading
  • Safety chains securely connect ramp to trailer for safety
  • Serrated ramp surface provides a non-slip grip
Total Ship Wt.(lbs.): 114 (only 1 package) Size: 28"W x 87.3125"L x 45.3125"H Color: Silver

Uniform Capacity with 4-wheel cart (lb.): 2,800 Uniform Capacity with 2-wheel cart (lb.): 1800 Usable Width (in.): 26
Height Range (in.): 6 to 27 Safety Curbs (in.): 1-1/2 Usable Length (in.): 85-13/16
Usable Rail Length (in.): 60 Midrail (in.): 18-7/16 Railing Height (in.): 40-1/4
Installation: Bolt-on Handrail Quantity: 2

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: AWR-28-7B-HR
AWR-28-7B-HR

Aluminum Wheel Walk Ramp Steel Hook Style with Handrails 87-5/16 In. x 28 In. 3000 Lb. Capacity Silver

The Aluminum Walk Ramp with hand rails enables delivery men/women, shippers, and receivers to load and unload trucks when docks are unavailable. Heavy-duty steel chains with steel grab hooks are attaches to each side of ramp for safely securing ramp to truck. Constructed of strong aluminum alloy with non-skid tread surface. The ramp is lightweight and easy to handle. This steel hook style mounts onto the truck extensions.

  • 100% Welded aluminum construction is light-weight and will not rust
  • Steel hook style provides a sturdy surface for loading
  • Safety chains securely connect ramp to trailer for safety
  • Serrated ramp surface provides a non-slip grip
Dimensions: 28"W x 87.3125"L x 45.3125"H Sell UOM: EA-Each Color: Silver
Material: Aluminum UPC: 691215132053 GTIN: 00691215132053
Warranty: -- Shipping Weight: 114 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity with 4-wheel cart (lb.): 2,800 Uniform Capacity with 2-wheel cart (lb.): 1800 Usable Width (in.): 26
Height Range (in.): 6 to 27 Safety Curbs (in.): 1-1/2 Usable Length (in.): 85-13/16
Usable Rail Length (in.): 60 Midrail (in.): 18-7/16 Railing Height (in.): 40-1/4
Installation: Bolt-on Handrail Quantity: 2
