Model Details

BAR-A-84-D

Printer Friendly
BAR-A-84-D

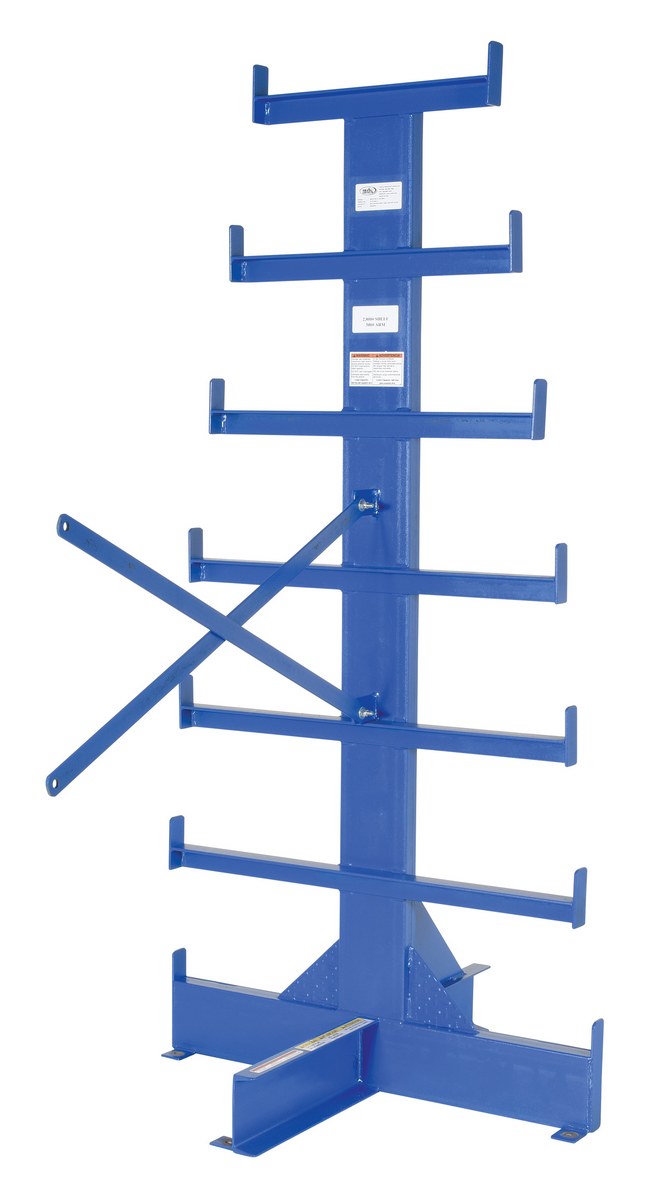

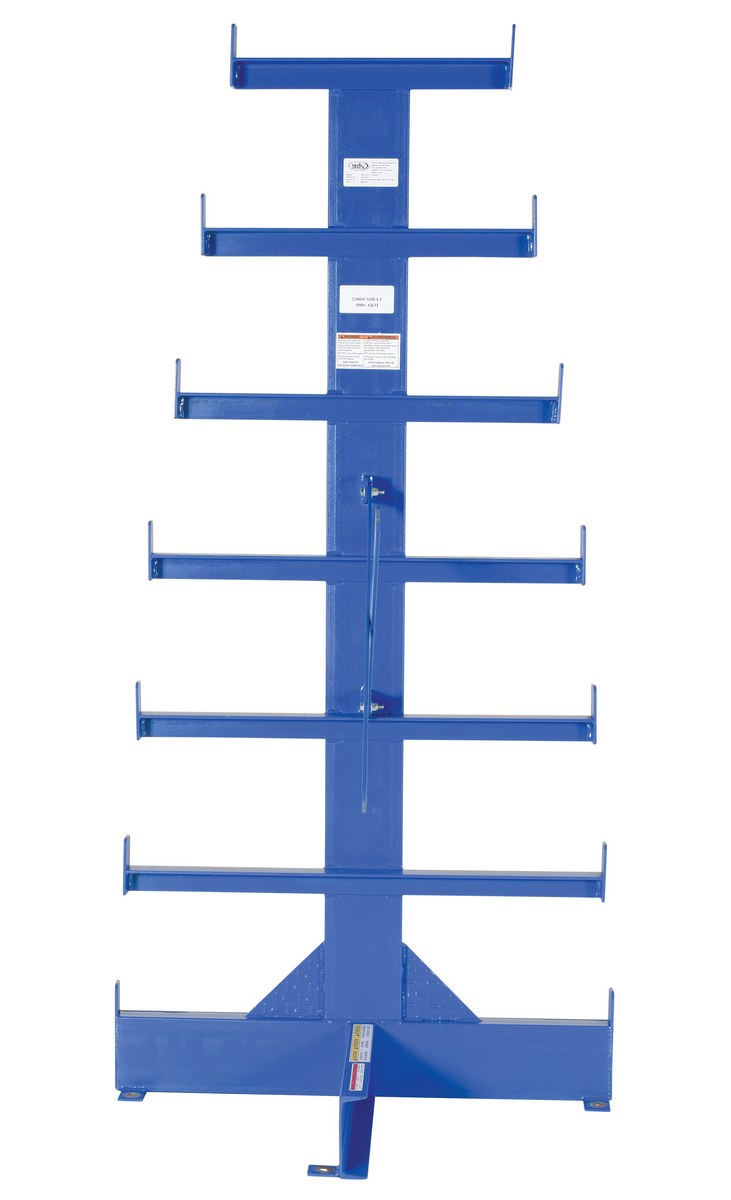

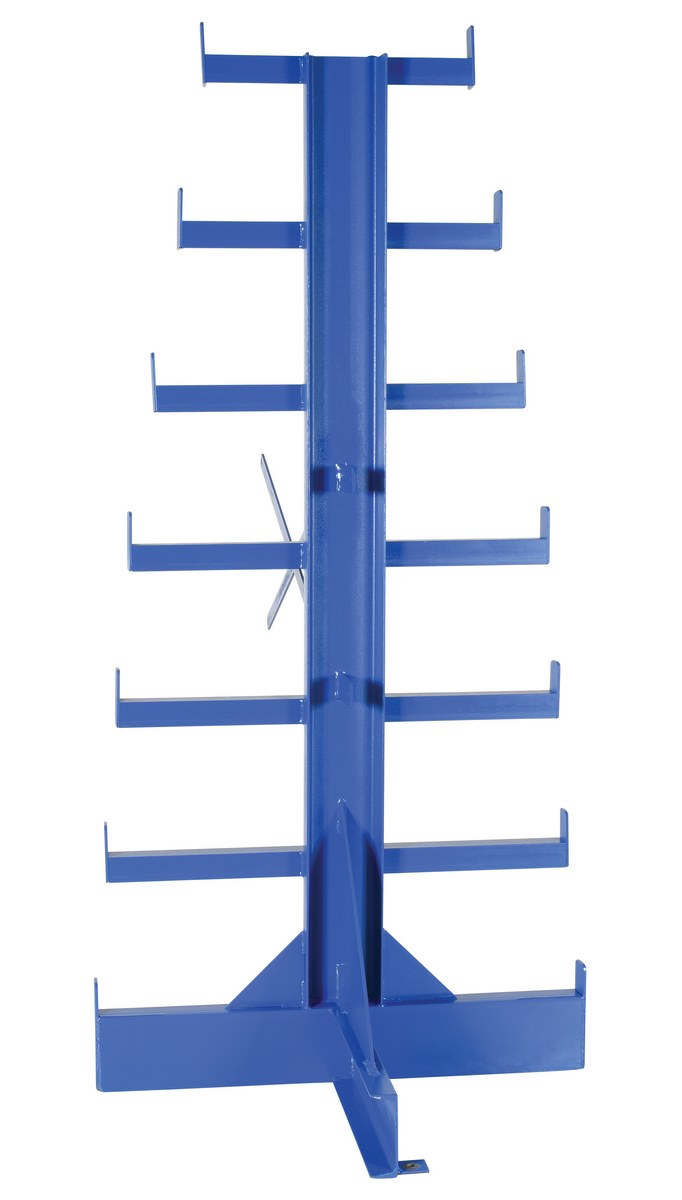

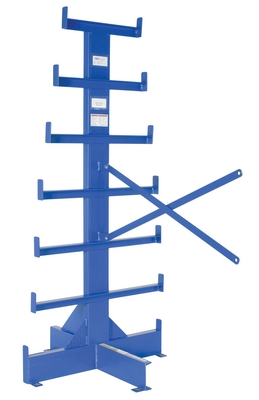

Steel Bar Stock Tree Add On Double Sided 38-1/2 In. x 62 In. x 80-1/2 In. 500 Lb. Capacity Blue

The dual sided bar stock tree add-on unit consists of one (1) upright and one(1) set of cross braces for joining to the starter set. This unit increases storage room when it is put in place. Arms vary in length.

  • Dual sided starter unit for stock storage space
  • 7 storage levels
  • 500 lb. capacity per arm
  • Add-on unit option is ideal for more storage room
Total Ship Wt.(lbs.): 235 (only 1 package) Size: 62"W x 38.5"L x 80.5"H Color: Blue

Uniform Capacity per Arm (lb.): 500 Storage Level (qty.): 7 Distance between Levels (in.): 10
Style: Double-Sided Mounting Hole per Upright (qty.): 4 Mounting Hole Diameter (in.): 9/16
Usable Lengths-Top to Bottom (in.): 7, 9, 11, 13, 14, 15, 10

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: BAR-A-84-D
BAR-A-84-D

Steel Bar Stock Tree Add On Double Sided 38-1/2 In. x 62 In. x 80-1/2 In. 500 Lb. Capacity Blue

The dual sided bar stock tree add-on unit consists of one (1) upright and one(1) set of cross braces for joining to the starter set. This unit increases storage room when it is put in place. Arms vary in length.

  • Dual sided starter unit for stock storage space
  • 7 storage levels
  • 500 lb. capacity per arm
  • Add-on unit option is ideal for more storage room
Dimensions: 62"W x 38.5"L x 80.5"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215055598 GTIN: 00691215055598
Warranty: -- Shipping Weight: 235 Quickship Item? --
Can It Ship UPS? -- Option? Y Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity per Arm (lb.): 500 Storage Level (qty.): 7 Distance between Levels (in.): 10
Style: Double-Sided Mounting Hole per Upright (qty.): 4 Mounting Hole Diameter (in.): 9/16
Usable Lengths-Top to Bottom (in.): 7, 9, 11, 13, 14, 15, 10
