Model Details

BAR-R-84-S

Printer Friendly
BAR-R-84-S

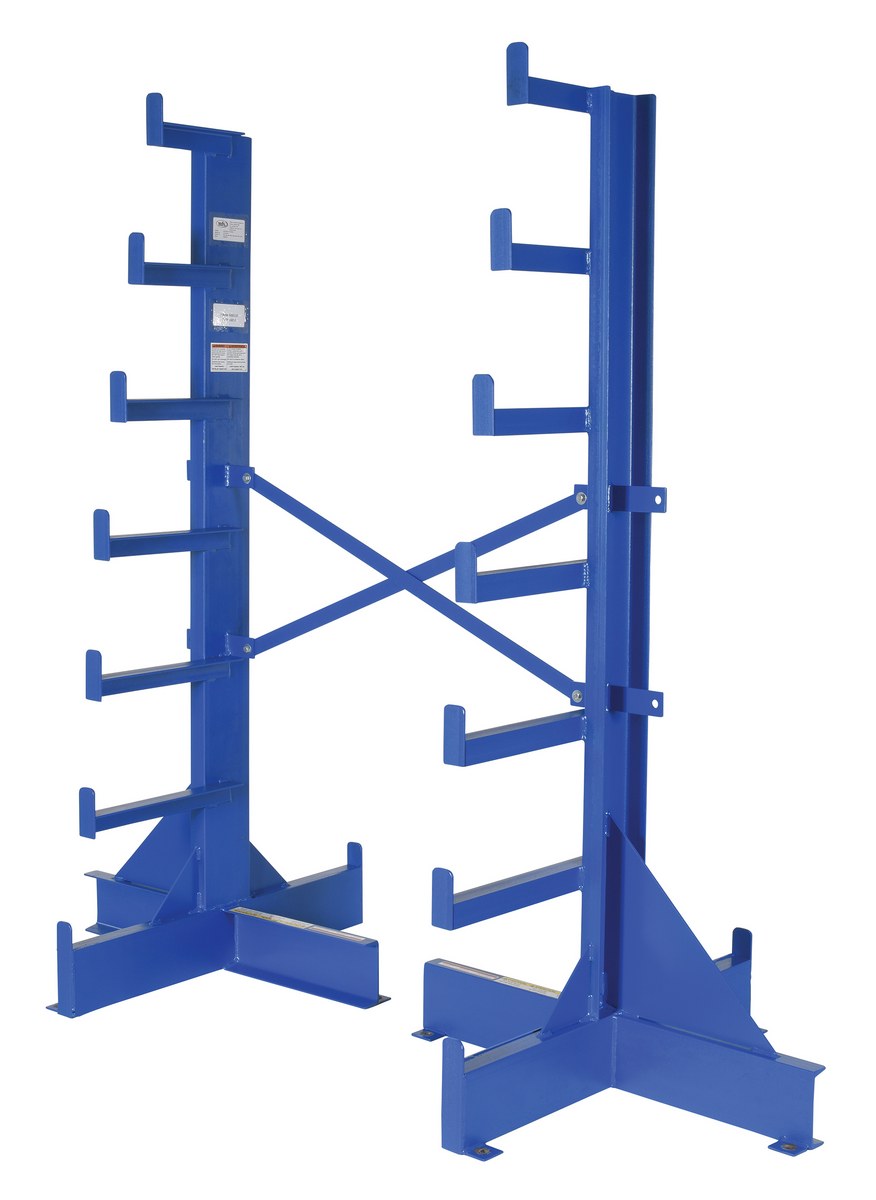

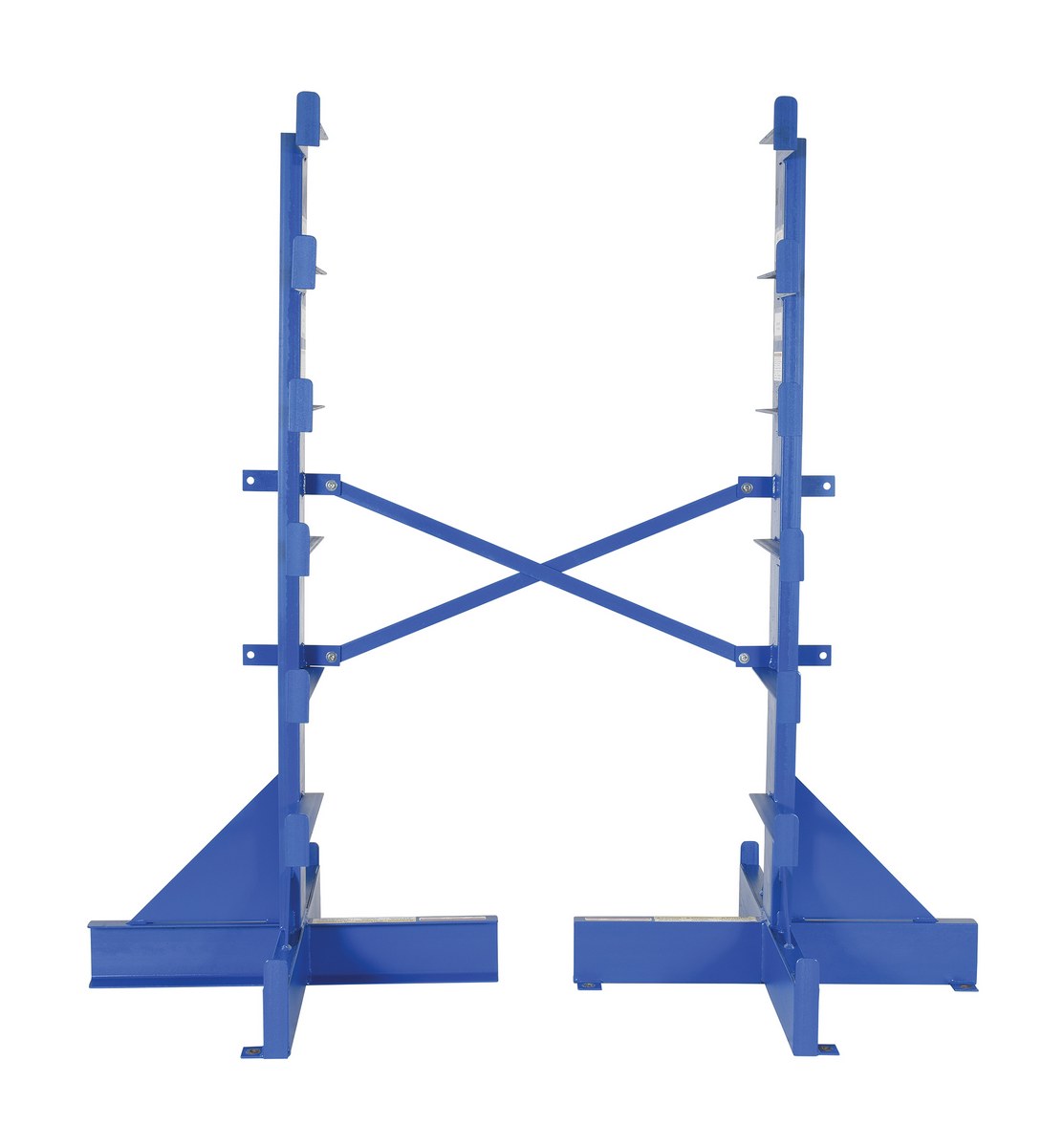

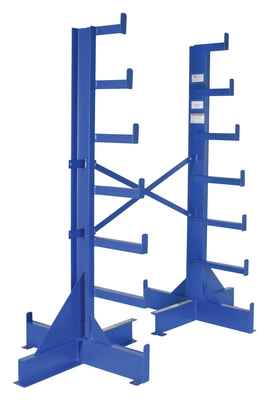

Steel Single Sided Bar Stock Tree Starter Unit 7 Levels 500 Lb. Capacity Per Arm Blue

The single sided bar stock tree starter unit includes two (2) uprights and one (1) set of cross braces. Storage room is increased when the add-on unit is ordered. This unit increases storage room when it is put in place. Arms vary in length.

  • Single sided starter unit for stock storage space
  • 7 storage levels
  • 500 lb. capacity per arm
  • Add-on unit option is ideal for more storage room
Total Ship Wt.(lbs.): 420 (Multiple Packages: P1: 210 lbs + P2: 210 lbs) Size: 84.0625"W x 38.5"L x 80.5"H Color: Blue

Uniform Capacity per Arm (lb.): 500 Storage Level (qty.): 7 Distance between Levels (in.): 10
Style: Single-Sided Mounting Hole per Upright (qty.): 4 Mounting Hole Diameter (in.): 9/16
Usable Lengths-Top to Bottom (in.): 7, 9, 11, 13, 14, 15, 10

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: BAR-R-84-S
BAR-R-84-S

Steel Single Sided Bar Stock Tree Starter Unit 7 Levels 500 Lb. Capacity Per Arm Blue

The single sided bar stock tree starter unit includes two (2) uprights and one (1) set of cross braces. Storage room is increased when the add-on unit is ordered. This unit increases storage room when it is put in place. Arms vary in length.

  • Single sided starter unit for stock storage space
  • 7 storage levels
  • 500 lb. capacity per arm
  • Add-on unit option is ideal for more storage room
Dimensions: 84.0625"W x 38.5"L x 80.5"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215055628 GTIN: 00691215055628
Warranty: -- Shipping Weight: 210 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity per Arm (lb.): 500 Storage Level (qty.): 7 Distance between Levels (in.): 10
Style: Single-Sided Mounting Hole per Upright (qty.): 4 Mounting Hole Diameter (in.): 9/16
Usable Lengths-Top to Bottom (in.): 7, 9, 11, 13, 14, 15, 10
