Model Details

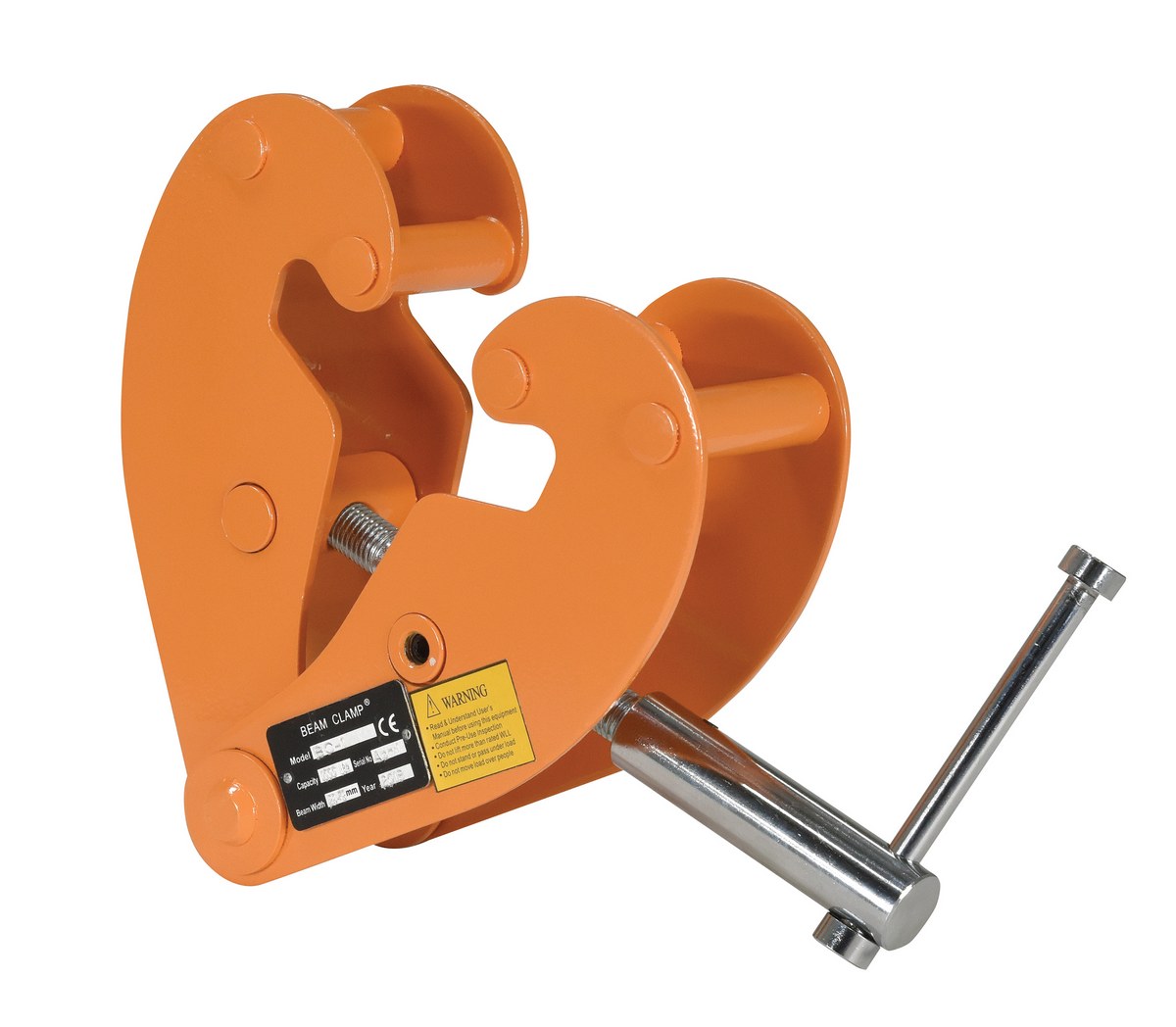

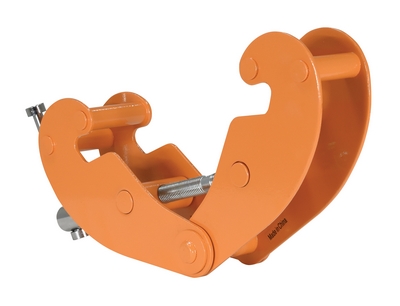

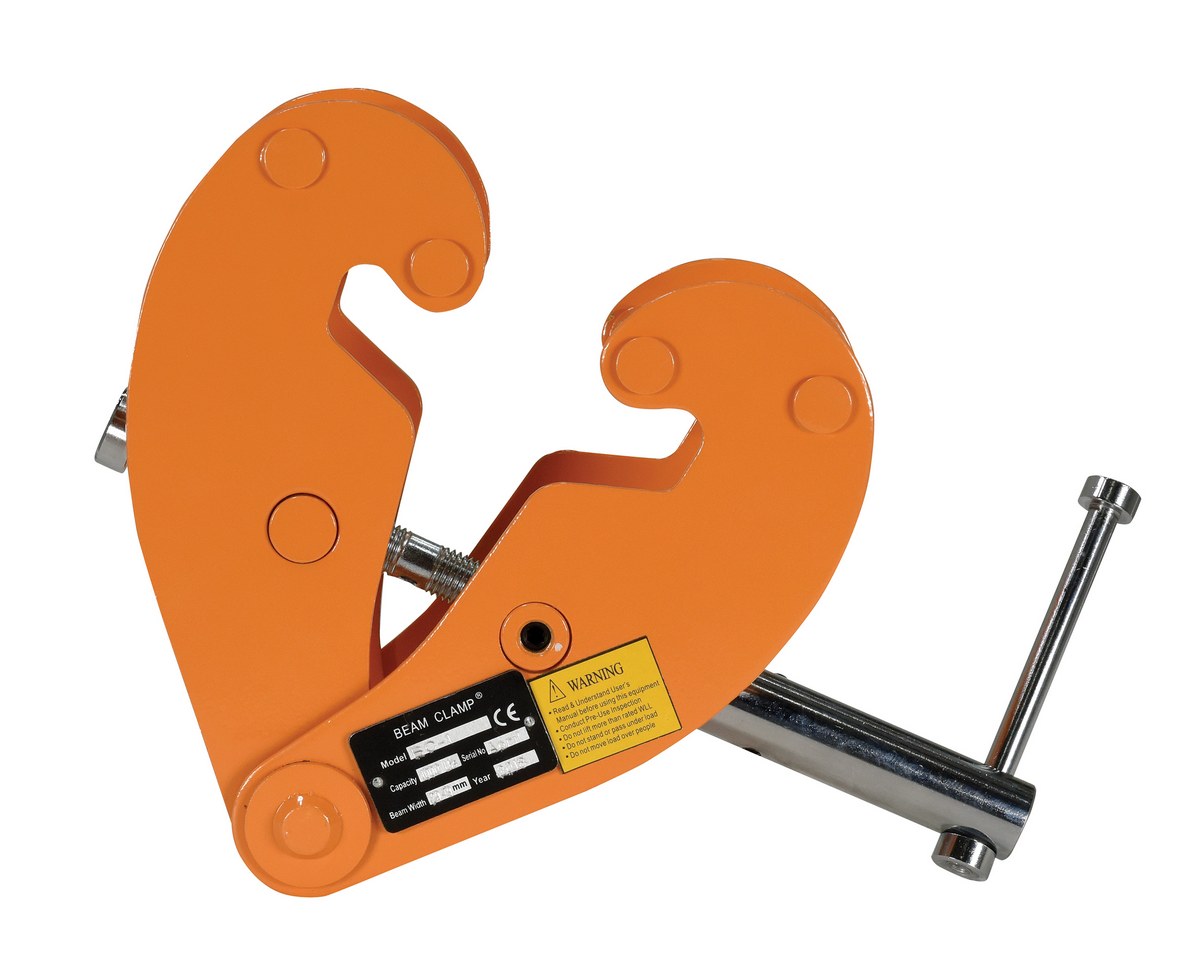

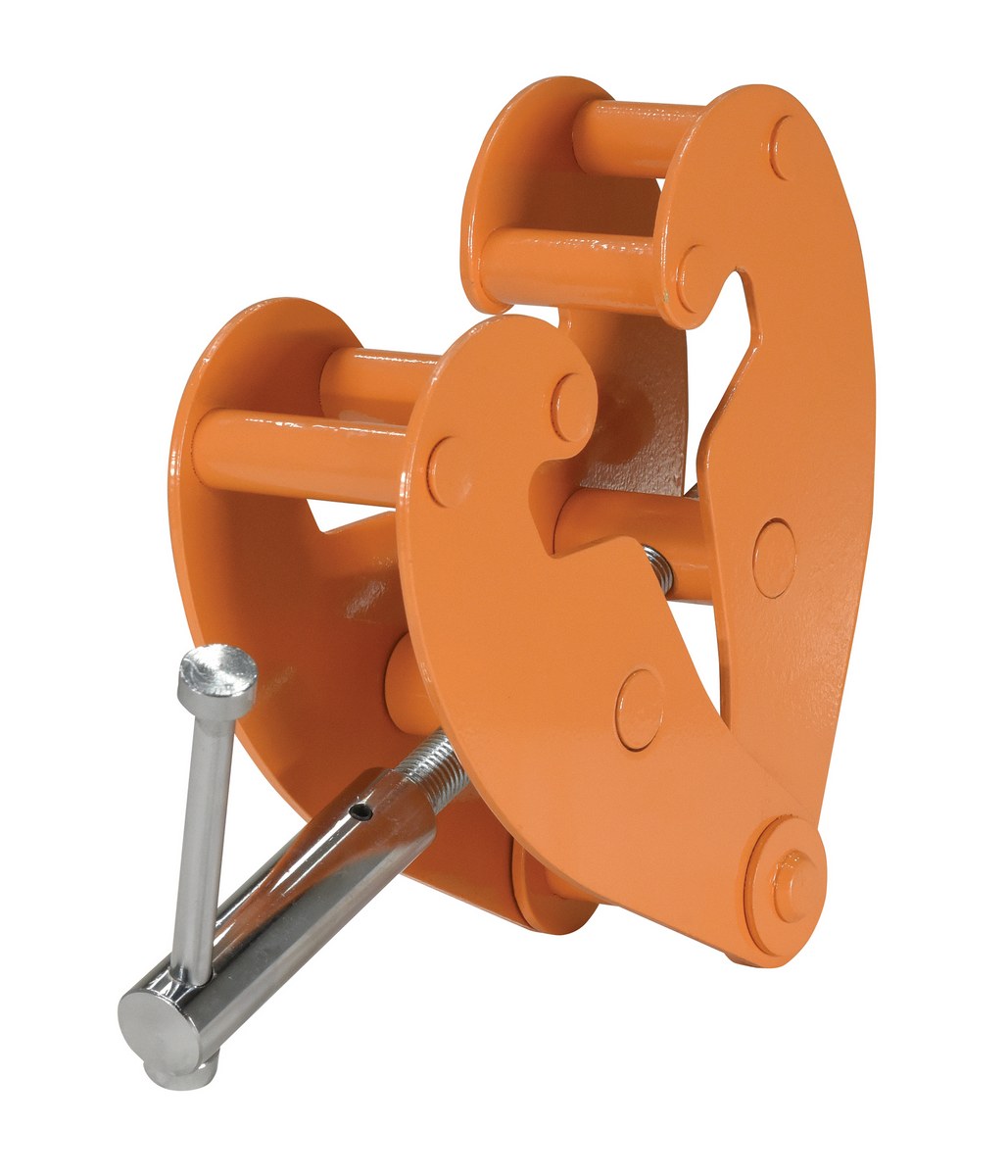

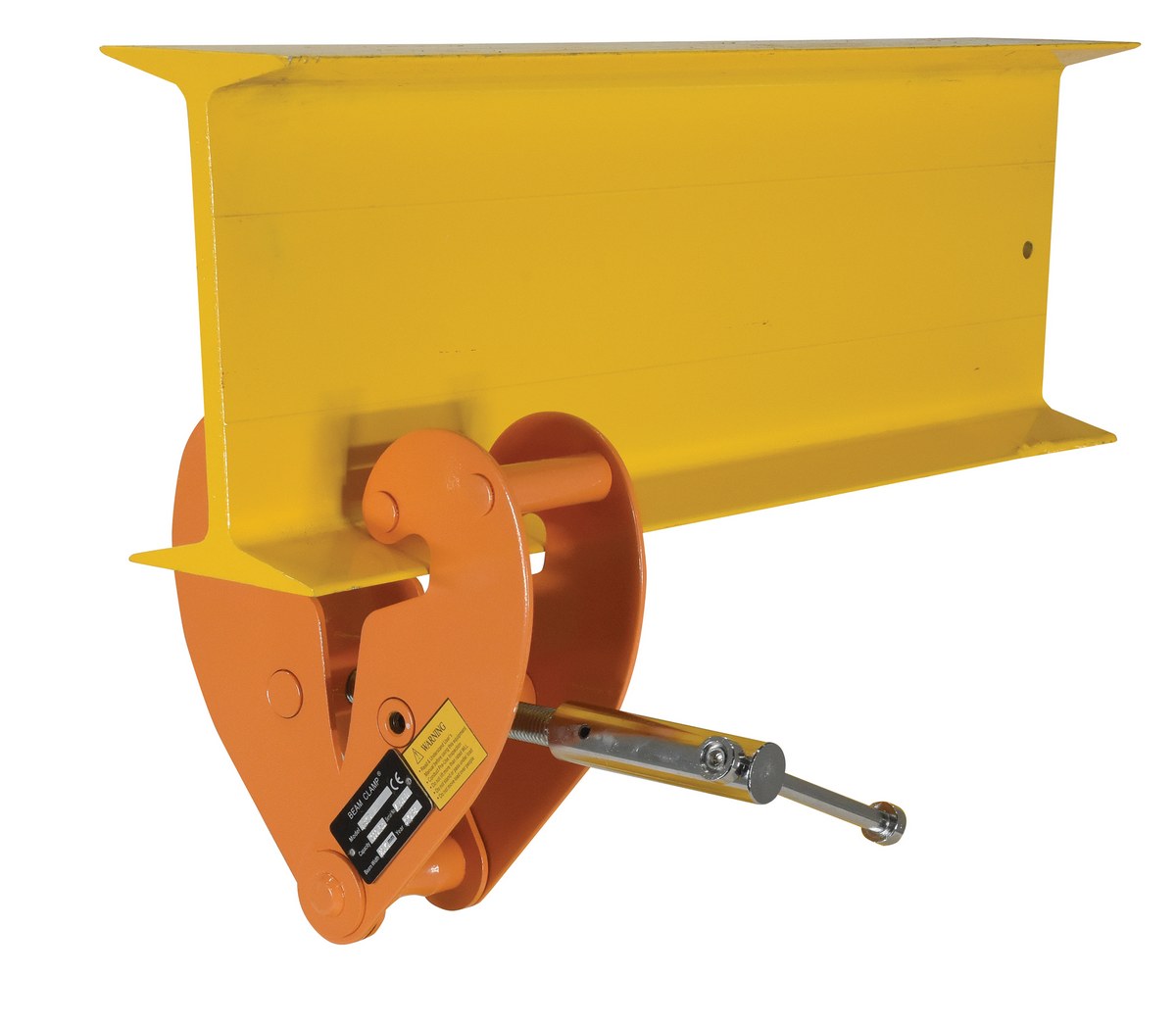

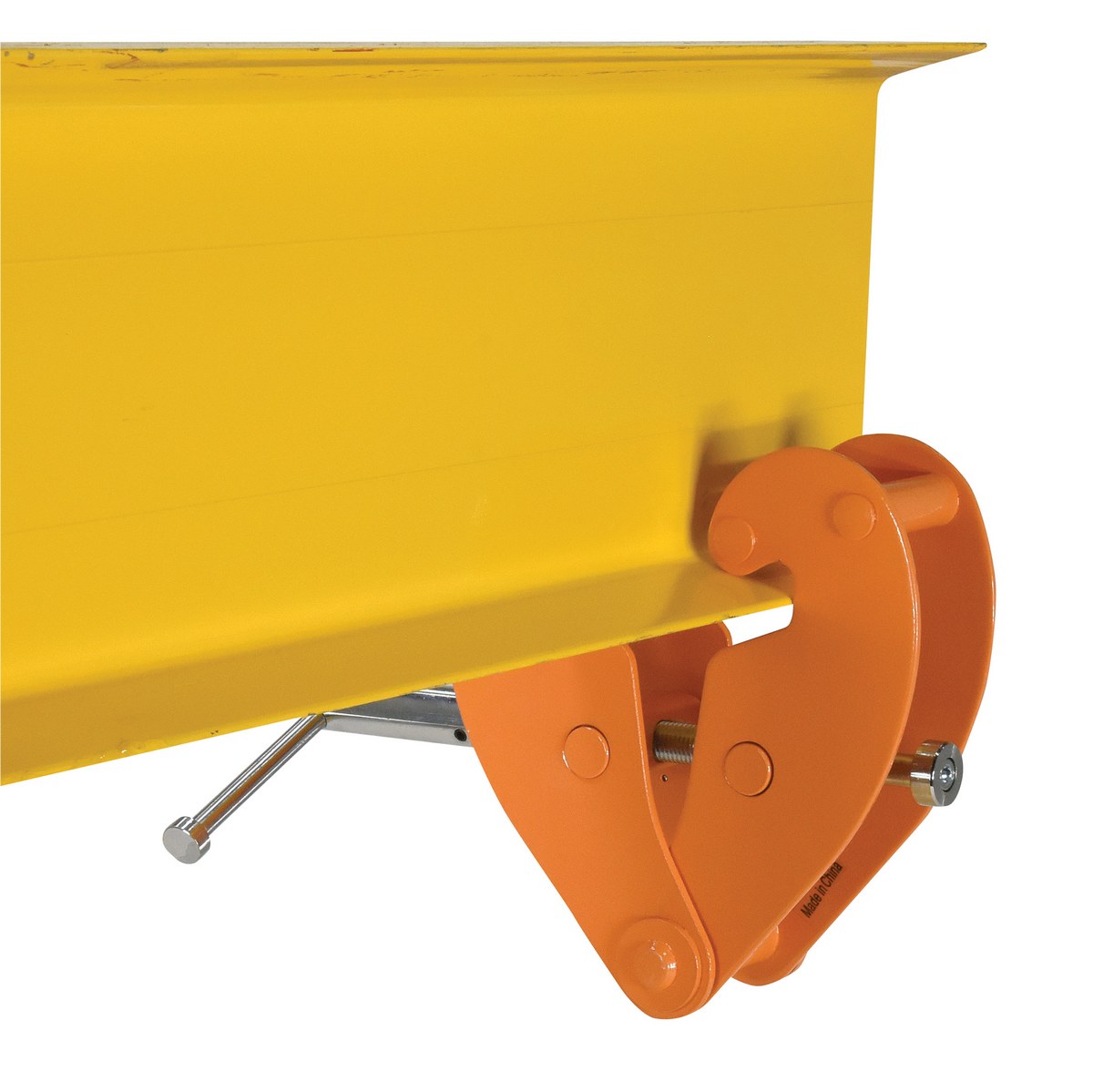

The beam clamp is designed to reduce the I-beam flange stress by distributing loads away from the flange edges during overhead lifting applications. This versatile unit can be interchanged from one gantry to another in a matter of seconds. A bar is located at the bottom of the beam clamp for attaching a hoist (sold separately). Painted finish.
Uniform Capacity (lb.): 1,000 | Fits Beam Flange Width (in.): 3-1/8 to 9-5/8 | Lifting Style: Horizontal |
Jaw Depth (in.): 3-1/2 | Minimum Jaw Opening (in.): 2-1/2 | Maximum Jaw Opening (in.): 8-1/2 |
Quickship Item?
Quickship ItemCan It Ship UPS/FedEx?
Parcel - Can Go UPS
Details For Model: BC-1 |
|||||||||||||||||||||||
Steel Beam Clamp Horizontal Lift Style 16-1/2 In. x 3-1/2 In. x 6-1/4 In. 1000 Lb. Capacity OrangeThe beam clamp is designed to reduce the I-beam flange stress by distributing loads away from the flange edges during overhead lifting applications. This versatile unit can be interchanged from one gantry to another in a matter of seconds. A bar is located at the bottom of the beam clamp for attaching a hoist (sold separately). Painted finish.
|
|||||||||||||||||||||||
|
|||||||||||||||||||||||
