Model Details

CANT-3048

Printer Friendly
CANT-3048

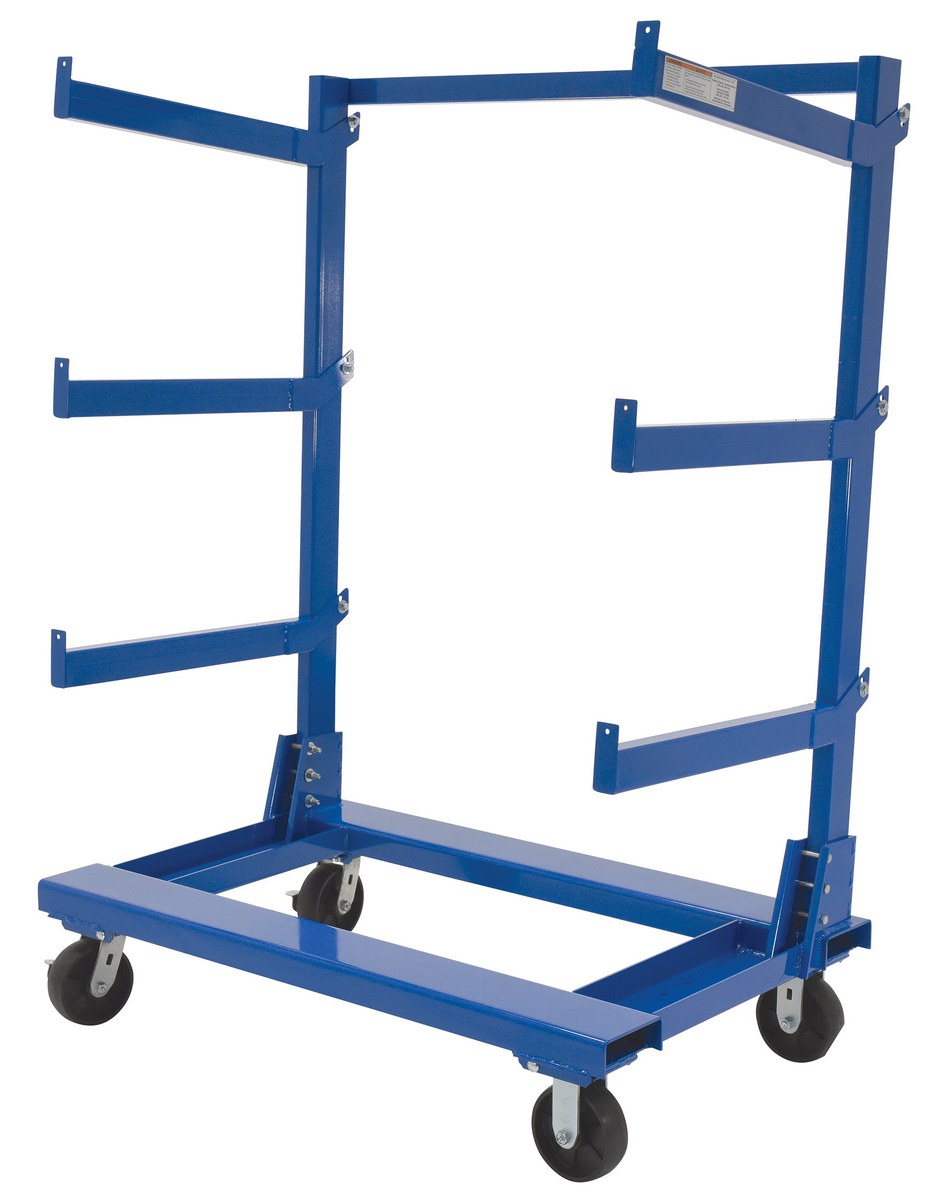

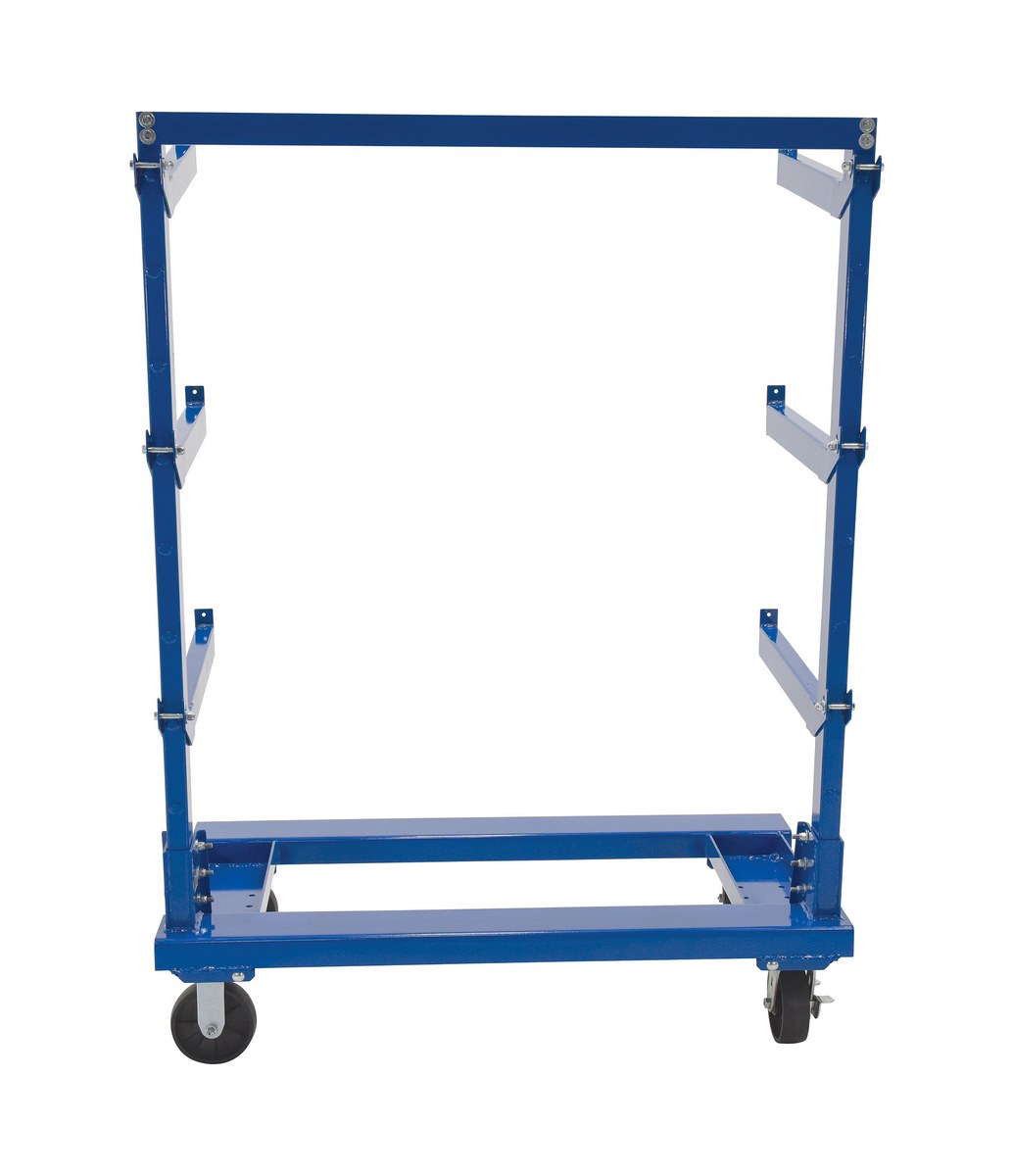

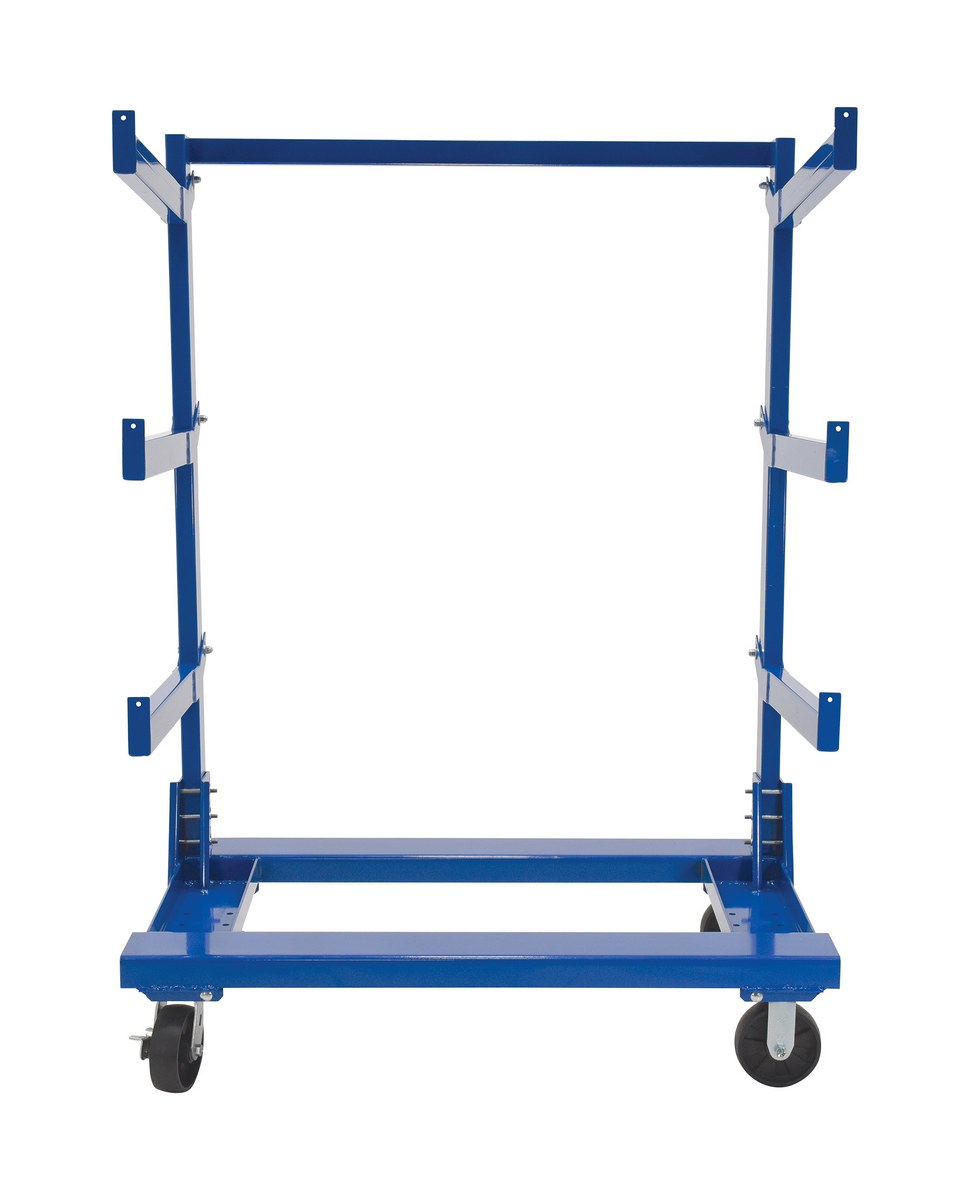

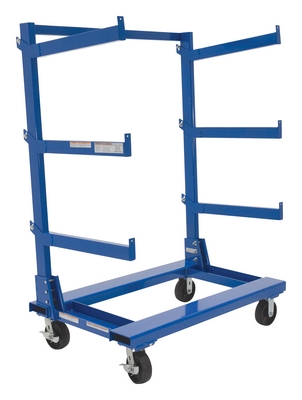

Steel Portable Cantilever Cart 30 In. x 48 In. 2000 Lb. Capacity Blue

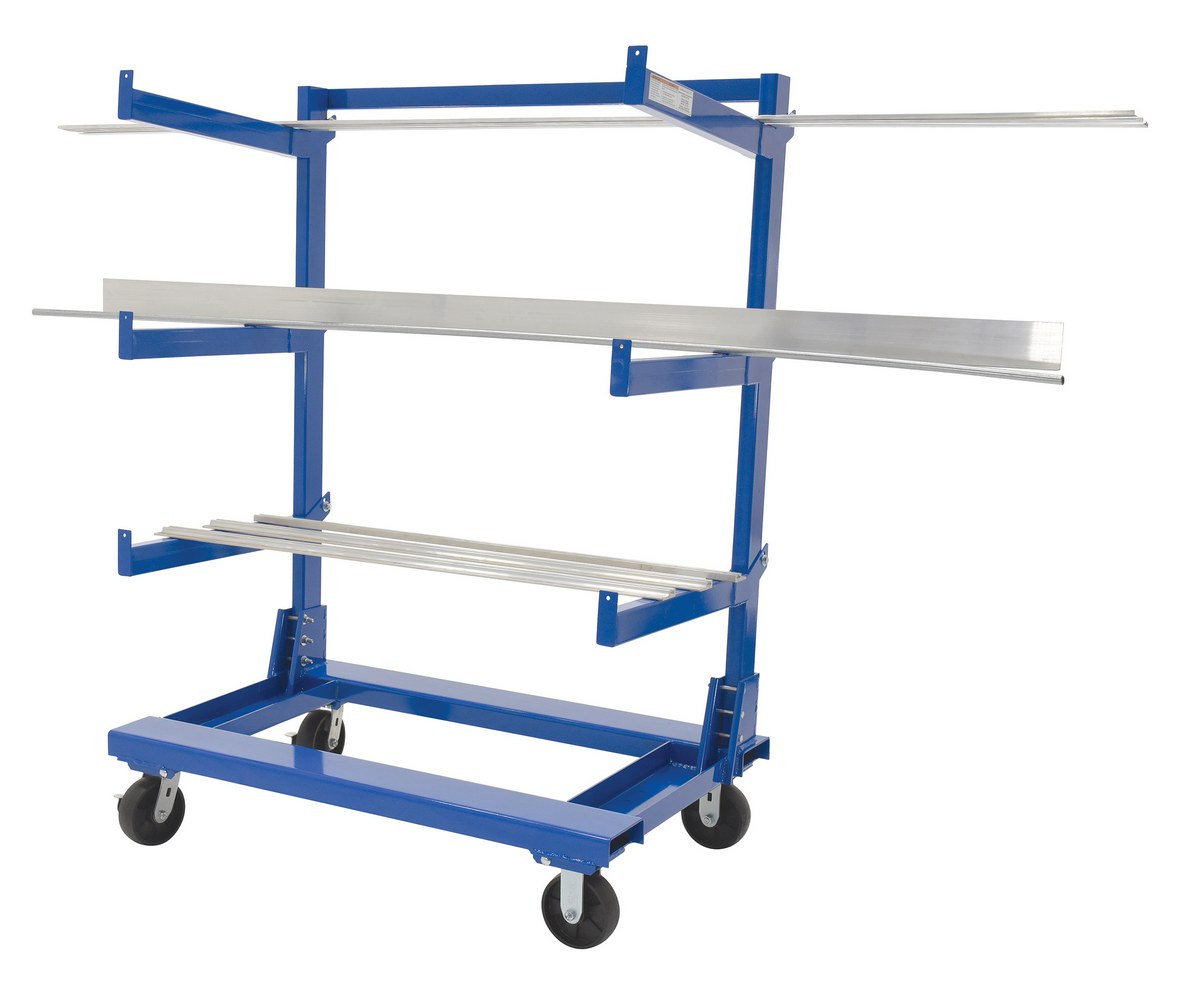

A portable Cantilever cart is for storage of bar stock type items. Cart includes three (3) pairs of arms, secured to the cart with a bolt and nut. Arm height is adjustable in six (6) inch increments and can be mounted at an incline or straight. The base includes built in fork pockets. Unit rolls on casters and is all steel construction with blue powder-coat finish.

  • Ideal for storage of bar stock type items
  • Includes three pairs of arms, secured with a bolt and nut
  • Adjustable arm height in six inch increments
  • Base includes built in fork pockets for easy transportation
Total Ship Wt.(lbs.): 212 (only 1 package) Size: 48.5625"W x 30"L x 64.6875"H Color: Blue

Uniform Capacity (lb.): 2,000 Uniform Capacity per Level (lb.): 400 Maximum Arm (Pairs): 8
Lowest Arm Position (in.): 18-3/4 Highest Arm Position (in.): 60-3/4 Usable Arm Length (in.): 24
Adjust Height Increments (in.): 6 Base Height (in.): 10 Fork Opening Width/Height (in.): 5-3/8 x 2
Caster Diameter/Width (in.): 6 x 2 Caster Quantity/Type: (2) Rigid (2) Swivel w/brake Caster Material: Glass-Filled Nylon
Compatible Replacement Arrms: CANT-A30

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: CANT-3048
CANT-3048

Steel Portable Cantilever Cart 30 In. x 48 In. 2000 Lb. Capacity Blue

A portable Cantilever cart is for storage of bar stock type items. Cart includes three (3) pairs of arms, secured to the cart with a bolt and nut. Arm height is adjustable in six (6) inch increments and can be mounted at an incline or straight. The base includes built in fork pockets. Unit rolls on casters and is all steel construction with blue powder-coat finish.

  • Ideal for storage of bar stock type items
  • Includes three pairs of arms, secured with a bolt and nut
  • Adjustable arm height in six inch increments
  • Base includes built in fork pockets for easy transportation
Dimensions: 48.5625"W x 30"L x 64.6875"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215068048 GTIN: 00691215068048
Warranty: -- Shipping Weight: 212 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 2,000 Uniform Capacity per Level (lb.): 400 Maximum Arm (Pairs): 8
Lowest Arm Position (in.): 18-3/4 Highest Arm Position (in.): 60-3/4 Usable Arm Length (in.): 24
Adjust Height Increments (in.): 6 Base Height (in.): 10 Fork Opening Width/Height (in.): 5-3/8 x 2
Caster Diameter/Width (in.): 6 x 2 Caster Quantity/Type: (2) Rigid (2) Swivel w/brake Caster Material: Glass-Filled Nylon
Compatible Replacement Arrms: CANT-A30
