Model Details

CART-1000-LD-AS

CART-1000-LD-AS

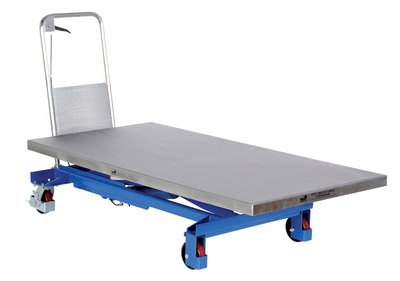

Steel Auto Shift Hydraulic Elevating Cart 31-1/2 In. x 63 In. 1000 Lb. Capacity Blue/Silver

The auto-shift Hydraulic elevating cart minimizes worker bending and lifting through its ergonomic design and portability. Material can be easily loaded onto a cart from a table, lowered to a safe transporting height, and raised to unload at destination. The two (2) speed auto-shift foot pump includes a soft-lowering down valve. Number of strokes without weight is 13 and with weight 25. The unit moves easily on four (4) polyurethane casters; two (2) swivel with brakes and two (2) rigid. Features an safety velocity fuse in each cylinder.

  • Unique lift design quickly raises & lowers material
  • Ergonomic cart design improves user safety
  • Caster construction provides easy portability when loaded
  • Steel construction offers long lasting rugged use
Total Ship Wt.(lbs.): 336 (only 1 package) Size: 31.5"W x 65"L x 37.25"H Color: Blue

Uniform Capacity (lb.): 1000 Platform Width (in.): 31-1/2 Platform Length (in.): 63
Lowered Height (in.): 15 Raised Height (in.): 36 Caster Quantity/Diameter (in.): (4) 5
Caster Type: (2) Rigid, (2) Swivel with Brakes Caster Material: Polyurethane Strokes Without Weight (qty.): 15
Strokes With Weight (qty.): 62

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: CART-1000-LD-AS


CART-1000-LD-AS

Steel Auto Shift Hydraulic Elevating Cart 31-1/2 In. x 63 In. 1000 Lb. Capacity Blue/Silver

The auto-shift Hydraulic elevating cart minimizes worker bending and lifting through its ergonomic design and portability. Material can be easily loaded onto a cart from a table, lowered to a safe transporting height, and raised to unload at destination. The two (2) speed auto-shift foot pump includes a soft-lowering down valve. Number of strokes without weight is 13 and with weight 25. The unit moves easily on four (4) polyurethane casters; two (2) swivel with brakes and two (2) rigid. Features an safety velocity fuse in each cylinder.

  • Unique lift design quickly raises & lowers material
  • Ergonomic cart design improves user safety
  • Caster construction provides easy portability when loaded
  • Steel construction offers long lasting rugged use
Dimensions: 31.5"W x 65"L x 37.25"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215319836 GTIN: 00691215319836
Warranty: -- Shipping Weight: 336 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 1000 Platform Width (in.): 31-1/2 Platform Length (in.): 63
Lowered Height (in.): 15 Raised Height (in.): 36 Caster Quantity/Diameter (in.): (4) 5
Caster Type: (2) Rigid, (2) Swivel with Brakes Caster Material: Polyurethane Strokes Without Weight (qty.): 15
Strokes With Weight (qty.): 62
