CART-1000-S-FR

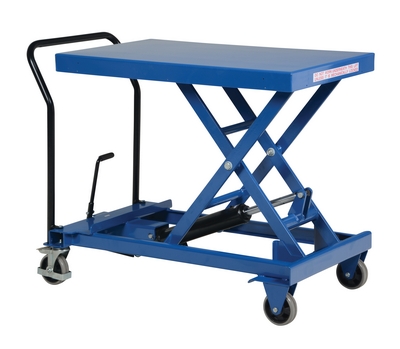

Steel Premium Scissor Lift Cart with Foot Release 40-1/2 In. x 24 In. 1000 Lb. Capacity

The premium scissor lift cart is constructed of heavy duty steel and designed to withstand the most demanding industrial environments. The simplicity and compactness of these products make them ideal for lifting and transporting loads, order-picking, die handling, and for use in support of assembly operations. There is little exertion required to raise and lower the deck due to the high quality foot-actuated, single speed hydraulic pump. The hydraulic system is equipped with an overload protection valve. Each cart has safety stops to prevent an empty deck from lowering while performing maintenance. A unique tilt-up table top allows for safe and easy maintenance. The two rigid front casters and two rear swivel polyurethane casters with brake provide a high degree of maneuverability; each swivel wheel is protected by guards and is equipped with brakes. Features an internal safety velocity fuse in each cylinder.

  • Unique lift design quickly raises & lowers material
  • Ergonomic cart design improves user safety
  • Caster construction provides easy portability when loaded
  • Steel construction offers long lasting rugged use
Total Ship Wt.(lbs.): 312 (only 1 package) Size: 24"W x 44"L x 39"H Color: Blue

Uniform Capacity (lb.): 1000 Platform Width (in.): 24 Platform Length (in.): 40-1/2
Lowered Height (in.): 13-1/2 Raised Height (in.): 35-1/2 Lowering Method: Foot Release
Scissor Design: Single Front Caster Diameter (in.): 8 Front Caster Width (in.): 2
Rear Caster Diameter (in.): 5 Rear Caster Width (in.): 1-1/2 Front Caster Type: Hard Rubber
Rear Caster Type: Poly-on-Poly

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: CART-1000-S-FR
CART-1000-S-FR

Steel Premium Scissor Lift Cart with Foot Release 40-1/2 In. x 24 In. 1000 Lb. Capacity

The premium scissor lift cart is constructed of heavy duty steel and designed to withstand the most demanding industrial environments. The simplicity and compactness of these products make them ideal for lifting and transporting loads, order-picking, die handling, and for use in support of assembly operations. There is little exertion required to raise and lower the deck due to the high quality foot-actuated, single speed hydraulic pump. The hydraulic system is equipped with an overload protection valve. Each cart has safety stops to prevent an empty deck from lowering while performing maintenance. A unique tilt-up table top allows for safe and easy maintenance. The two rigid front casters and two rear swivel polyurethane casters with brake provide a high degree of maneuverability; each swivel wheel is protected by guards and is equipped with brakes. Features an internal safety velocity fuse in each cylinder.

  • Unique lift design quickly raises & lowers material
  • Ergonomic cart design improves user safety
  • Caster construction provides easy portability when loaded
  • Steel construction offers long lasting rugged use
Dimensions: 24"W x 44"L x 39"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215084734 GTIN: 00691215084734
Warranty: -- Shipping Weight: 312 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 1000 Platform Width (in.): 24 Platform Length (in.): 40-1/2
Lowered Height (in.): 13-1/2 Raised Height (in.): 35-1/2 Lowering Method: Foot Release
Scissor Design: Single Front Caster Diameter (in.): 8 Front Caster Width (in.): 2
Rear Caster Diameter (in.): 5 Rear Caster Width (in.): 1-1/2 Front Caster Type: Hard Rubber
Rear Caster Type: Poly-on-Poly
