Model Details

CART-550-AS

CART-550-AS

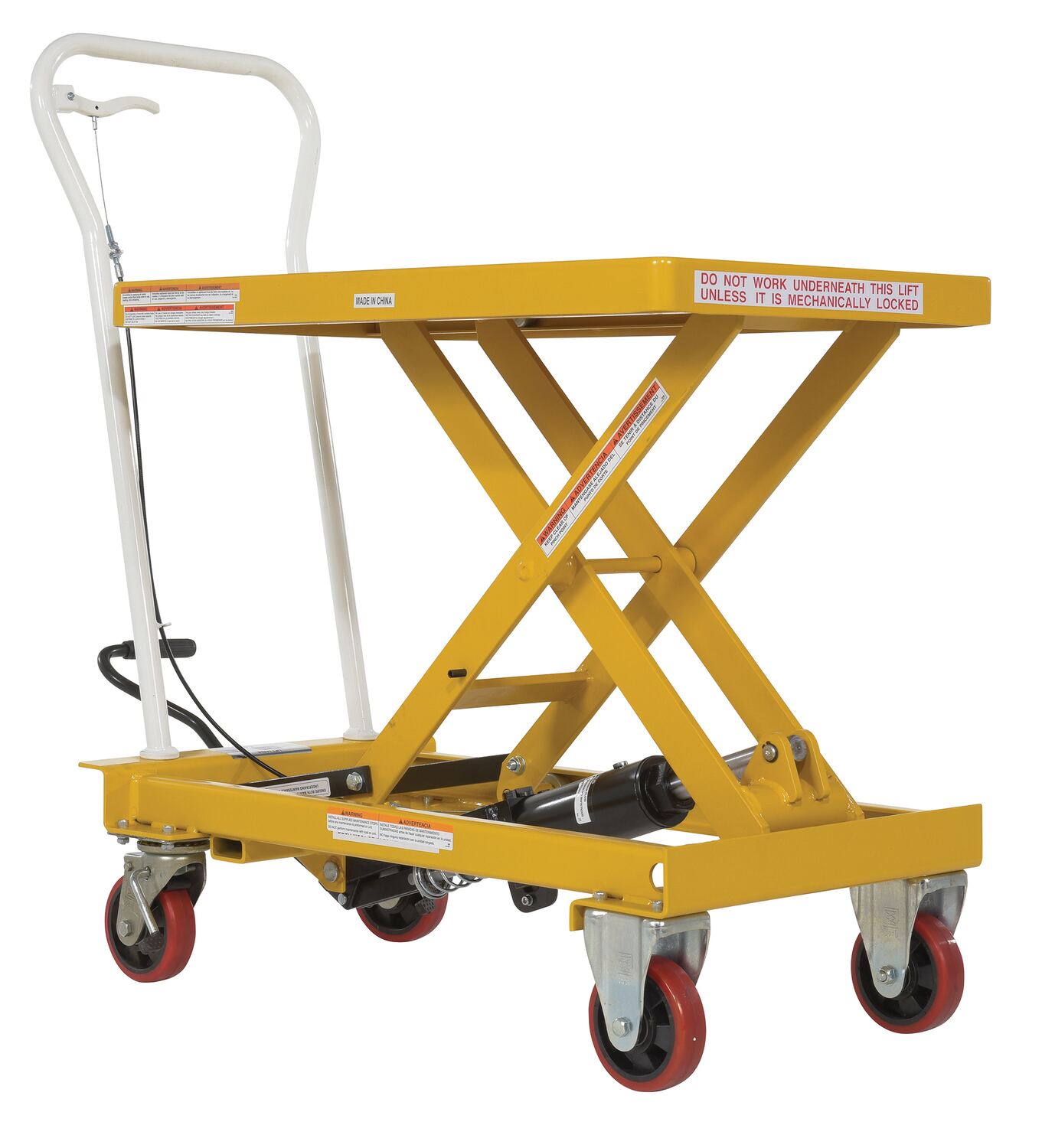

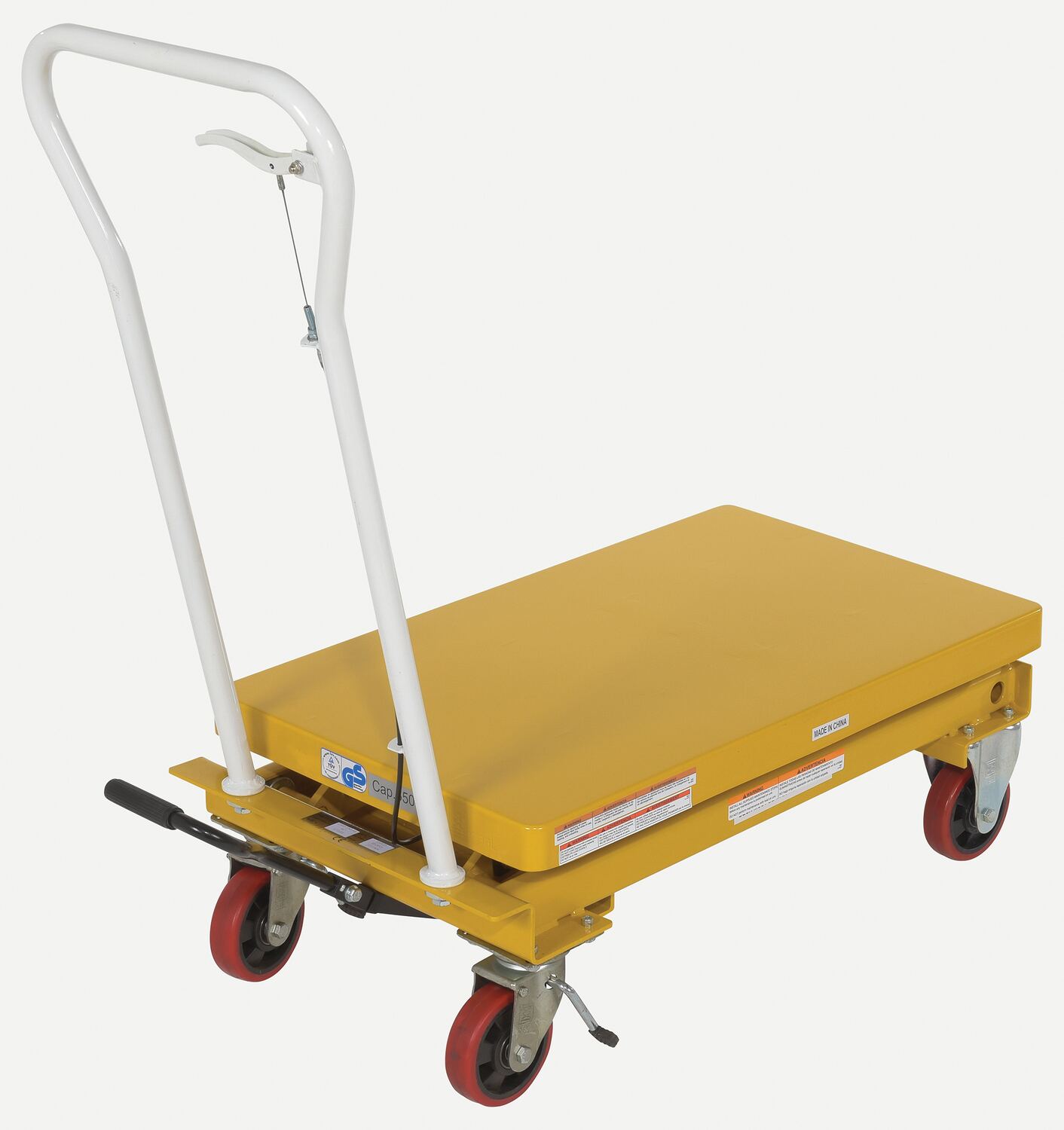

Steel Auto Shift Hydraulic Elevating Cart 19-1/2 In. x 32-1/2 In. 550 LB. Capacity Yellow

The Hydraulic elevating cart minimizes worker bending and lifting through its ergonomic design and portability. Material can be easily loaded onto a cart from a table, lowered to a safe transporting height, and raised to unload at destination. The two speed auto-shift foot pump includes a soft-lowering down valve. The unit moves easily on four polyurethane casters; two swivel with brakes and two rigid.

  • Unique lift design quickly raises & lowers material
  • Ergonomic cart design improves user safety
  • Caster construction provides easy portability when loaded
  • Steel construction offers long lasting rugged use
Total Ship Wt.(lbs.): 216 (only 1 package) Size: 19.75"W x 43.25"L x 42.25"H Color: Yellow

Uniform Capacity (lb.): 550 Platform Width (in.): 19-1/2 Platform Length (in.): 32-1/2
Lowered Height (in.): 12-1/2 Raised Height (in.): 36 Caster Quantity/Diameter/Width (in.): (4) 5 x 3-3/8
Caster Type: (2) Rigid, (2) Swivel with Brakes Caster Material: Polyurethane Strokes Without Weight (qty.): 13
Strokes With Weight (qty.): 25 Handle Height (in.): 42-1/4

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: CART-550-AS


CART-550-AS

Steel Auto Shift Hydraulic Elevating Cart 19-1/2 In. x 32-1/2 In. 550 LB. Capacity Yellow

The Hydraulic elevating cart minimizes worker bending and lifting through its ergonomic design and portability. Material can be easily loaded onto a cart from a table, lowered to a safe transporting height, and raised to unload at destination. The two speed auto-shift foot pump includes a soft-lowering down valve. The unit moves easily on four polyurethane casters; two swivel with brakes and two rigid.

  • Unique lift design quickly raises & lowers material
  • Ergonomic cart design improves user safety
  • Caster construction provides easy portability when loaded
  • Steel construction offers long lasting rugged use
Dimensions: 19.75"W x 43.25"L x 42.25"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215099608 GTIN: 00691215099608
Warranty: -- Shipping Weight: 216 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: India
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 550 Platform Width (in.): 19-1/2 Platform Length (in.): 32-1/2
Lowered Height (in.): 12-1/2 Raised Height (in.): 36 Caster Quantity/Diameter/Width (in.): (4) 5 x 3-3/8
Caster Type: (2) Rigid, (2) Swivel with Brakes Caster Material: Polyurethane Strokes Without Weight (qty.): 13
Strokes With Weight (qty.): 25 Handle Height (in.): 42-1/4
